VIA Technologies K7MKLE User manual

K7MKLE
VIA©VT8361+686B (KLE-133) Chipset
m-ATX Form Factor
(For AMD®Athlon/ Duron® CPU)
Main Board
User's Manual
(Ver.:1.0)

Copyright
Copyright© 2001 by this company. No part of this document may be
reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language or computer language, in any form or
by any means without prior written permission. This manual and the
information contained herein are protected by copyright. All rights
reserved.
Copyright 2001. All Rights Reserved.
Revision History
Revision Date Release Notes
1.0 June-2001 First Official Release

Warning and Disclaimer
This manual is designed to provide information about the AMD®
Athlon™ processor main board. Every effort has been made to make
this manual as accurate as possible, but no warranty or fitness is
implied. All the information is provided on an 'as is' basis. The
author and his corresponding publishing company shall have neither
liability nor responsibility to any person or entity with respect to any
loss or damages arising from the information contained in this
manual or from the use of the system board that accompanies it.
Information contained in this manual is subject to change without
notice. The manufacturer of the system board will not be held
responsible for technical or editorial omissions made herein, nor for
the incidental or consequential damages resulting from its
furnishing, performance, functionality or use. Subsequent changes to
this manual will be incorporated into the next edition. We welcome
any suggestion regarding this manual or our computer products.
Trademarks
●IBM® is a registered trademark of International Business
Machines
●Microsoft®is a registered trademark of Microsoft® Corporation.
●PCI®is a registered trademark of PCI Special Interest Groups.
●AWARD®is a registered trademark of Award Software Inc.
All other trademarks are the property of their respective owners.

K7MKLE SystemBoard 1
Table of Contents
Chapter 1 Introduction………………………………………………..….…………3
1-1 Main Specifications………………………………………………………………………4
1-2 Other Features………………………………………………………………………..……6
1-3 Package Contents……………………………………………..……………………....……7
Chapter 2 Hardware Installation……………………………………………………8
2-1 Component Locations …………………………………..…………………………..…8
2-2 Mainboard Overview…………………………………..…………………………..………..9
2-2-1 Short Description of Main Sockets and Connectors……………………………………10
2-3 Jumputer Setting…………………………………..…………………………..……….11
2-3-1 JKM1: Keyboard Walk Up Select…………………………………..……………………11
2-3-2 JUSB1: USB1: USB Mode Wake Up…………………………………..…………………11
2-3-3 CPU FAN Delect Control…………………………………..…………………………..…12
2-4 CPU Installation………………. ………………………………………………………14
2-4-1 CPU Clock setting….……………………………………….……...…………………….17
2-4-2 CPU and System Cooling……………………………………………….…………………20
2-5 Fan Headers…………………………..…………………………………………………22
2-6 Memory………………………………..……………………………………………………22
2-5-1 Memory Installation………………..……………………………………………………23
2-7 PCI Slot…….…………………………………………………….….………………25
2-8 Wake On Lan Header……………………………………………………………………26
2-9 Wake On Modem Header…………………………………………………………………26
2-10 On Board Audio…………………………………………………………………………27
2-9-1 Backpanel Audio Connectors……………………………………………………………27
2-9-2 Onboard Audio Connectors………………………………………………………………27
2-11 Back Panel Connectors……………………………………………………………………28
2-10-1 PS/2 Mouse and Keyboard………………………………………………………………28
2-10-2 USB…………………………………………………………………………………………29
2-10-3 Serial Ports…………………………………………………………………………………29
2-10-4 Parallel Port………………………………………………………………………………30
2-12 IrDA(Infrared Remote Link) ……………………………………………………………30
2-13 IDE1 and IDE2 ………………………………………………………………………31
2-14 FDD1(Floppy Disk) ………………………………………………………………32
2-15 PWR1(ATX Power Supply) ……………………………………………………33
2-16 Front Panel Connectors………………………………………………………………34
Chapter 3 Software Installation……………………………………………………36
3-1 Driver Installation…………………………………………………………………………36
3-2 Registry Error When Installing The VIA 4-IN-1 Drivers……………………………….37

K7MKLE SystemBoard 2
Chapter 4 The BIOS…………………………………………………………………38
4-1 Updating the BIOS………………………………………………………………………39
4-2 The CMOS Memory……………………………………………………………………40
4-3 The BIOS Setup Pages……………………………………………………………………42
4-3-1 Standard CMOS Setup…………………………………………………………………45
4-3-2 Advanced BIOS Features………………………………………………………………49
4-3-3 Advanced Chipset Features………………………………………………………..……54
4-3-4 Integrated Peripherals…………………………………………………………..……...59
4-3-5 Power Management Setup…………………………………………………………….64
4-3-6 PNP/PCI Configuration Setup………………………………………………………….69
4-3-7 PC Health Status……………………………………………………………………71
4-3-8 Frequency/Voltage Control.……………………………………………………………72
4-3-9 Passwords…………………………………………………………………………………73
Chapter 5 Frequently Asked Questions…………………………………………………75
5-1 Boot Issues………………………………………………………………………….………75
5-2 System Cooling…………………………………………...….………………………….77
5-2-1 Suitable Socket a CPU Coolers………………………...….…………………………78
5-2-2 Video Issues…………………………………………………………………………80
5-3 Memory Issues………………………………………………………….……………...81
Chapter 6 Appendix…………………………………………………………………83
Important Warnings:
STOP
WARNING: NEVER run the processor without the heatsink properly and
firmly attached. This will damage the processor within SECONDS. Also do
NOT try to use Pentium Heatsinks, these will NOT fit and do NOT provide
adequate cooling.
STOP
WARNING: Make sure your power supply can deliver the power your
system needs. We recommend AT LEAST a 250W power supply. Even
better, get a 300W power supply, especially when using many peripherals.

K7MKLE SystemBoard 3
Chapter 1 Introduction
Thank you for purchasing this high quality Motherboard, we are confident that
you will be able to use this motherboard to your full satisfaction. This manual is
divided into 6 main sections, as described below:
.
Introduction
The introduction contains information on the main specifications for this
motherboard, the package contents and cautionary notes.
Hardware Installation
The Hardware Installation section is the most important in the manual. It describes
in detail how to set the motherboard up for operation. Read all information and
follow all steps, especially if you are a new user.
Software Installation
The software section describes the drivers that need be installed to make your OS operate
properly. The drivers are provided on the driver CD.
BIOS Setup
Information on how to enter the BIOS setup and change settings is given here. In
addition all individual BIOS items are described. Although some BIOS Setting
information is given in the hardware installation section where appropriate, refer
to the BIOS Setup Section for details.
Trouble Shooting
In the case you run into trouble using your motherboard, this section will provide
you with much information and practical tips to help you solve your problem.
Some of the tips are also given in the Hardware and Software Installation Sections
where relevant.
Appendix
Provides useful information

K7MKLE SystemBoard 4
1-1 Main Specifications
 Supported CPUs
The following Socket 462-based AMD™ CPUs are supported:
AthlonTM XP ()
Athlon™ (600, 650, 700, 750, 800, 850, 900, 950, 1000,1100, 1200, 1300, 1333, 1400
MHz)
Duron™ (850 and 800, 750 and 700MHz)
Note: The frequencies listed were those known at time of publication.
 Chipset Northbridge
The VIA™ VT8361 (VIA KLE-133) system controller supports a 200/266 MHz Front Side
Bus (FSB); up to 1GB of PC133/PC100 SDRAM / VC 133 Virtual Channel Memory
(VCM) SDRAM; The K7MKLE implements with TRIDENT enhanced 3D T9880 core
logic (VGA-ON-DIE) which saves at leas + $50 for user.
 Chipset Southbridge
The VIA VT82C686B PCI Super-I/O Integrated Peripheral Controller (PSIPC) supports
UltraDMA/100, which allows burst mode data transfer rates of up to 100MB/sec; AC97
audio (Using the on-board VIA 1611A Audio Codec); USB controller with root hub and
four function ports.
 Memory
This motherboard comes equipped with two Dual Inline Memory Module (DIMM) sockets
to support Intel PC133/PC100-compliant (8, 16, 32, 64, 128, 256, or 512MB) DIMM
modules up to 1GB. In addition NECs VC133-compliant Virtual Channel (VC) SDRAM is
also supported. (VC SDRAM is a new DRAM architecture that greatly improves the
system memory ability to service high multimedia requirements.)
 PCI Expansion Slots
With three 32-bit PCI (Rev. 2.2) expansion slots, which can support Bus Master PCI cards,
such as LAN or Video-grabber cards (PCI supports up to 133MB/s maximum throughput),
this motherboard is ready for the most demanding applications.
 USB interface
With support for up to 4 USB ports, two on the back panel and two on-board, this
motherboard provides ample USB expansion room.

K7MKLE SystemBoard 5
 FAST LAN Function (Optional)
This motherboard is integrated with REALTEK RTL8139C 10/100M FAST LAN Function.
 IDE interface
This motherboard comes with an onboard PCI Bus Master IDE controller with two
connectors that support four ATA66/33 devices on two channels (ATA100 is also supported
for this boards that come with the 686B southbridge). Supports UDMA/66, UDMA/33, PIO
Modes 3 & 4 and Bus Master IDE DMA Mode 2, and Enhanced IDE devices, such as
CD-R/ RW, DVD-ROM, CD-ROM, Tape Backup and LS-120 drives.
 Super Multi-I/O
This functionality is integrated into the southbridge of the chipset. It provides two
high-speed UART compatible serial ports and one parallel port with EPP and ECP
capabilities.
 Infrared (IrDA) Connector
This functionality is also integrated into the southbridge of the chipset. The IrDA connector
supports an optional IR remote control device for wireless interfacing with external
peripherals, personal gadgets, or an optional remote controller.

K7MKLE SystemBoard 6
1-2 Other Features
 Wake-On-LAN and Wake-On-Modem
These 3 pin connectors allow the motherboard to wake up on network (WOL)
or Modem (WOM) activity.
 PC Status Monitoring
This functionality provides a reliable way to examine and manage system status
information, such as CPU and system voltages, temperatures, and fan speed. This
information is available in the BIOS or through the VIA Hardware Monitor Software.
 System BIOS
This motherboard comes with a 2MB BIOS that provides CPU/SDRAM frequency and
CPU Vcore adjustments, boot block write protection, and HD/ SCSI/ CD/ Floppy boot
selection. DMI is also supported through BIOS, which allows hardware to communicate
within a standard protocol creating a higher level of compatibility.
 Color-coded Connectors
The Back-panel connectors of this motherboard are all color coded. This allows the user to
easily locate certain connectors.
 ISM Function
This main board provides intelligent shutdown function (called Intelligent Shutdown
Master – “ISM”). When your CPU cooler dies in the future, main board will shutdown
power supply by itself automatically. This is to protect your CPU & main board.
FormoreinformationofISM functions, please refer to page 12.

K7MKLE SystemBoard 7
1-3 Package Contents
 This Motherboard
 1 Manual
 1 Driver Installation CD-ROM
 1 IDE ATA 66/100 Flat-Cable
 1 Floppy Disk Drive Flat-Cable
 1 Serial Port Cable
Please verify that all items listed above are included in your motherboard package.
If one of the items is missing, please contact the dealer where you bought your
motherboard.

K7MKLE SystemBoard 8
Chapter 2 Hardware Installation

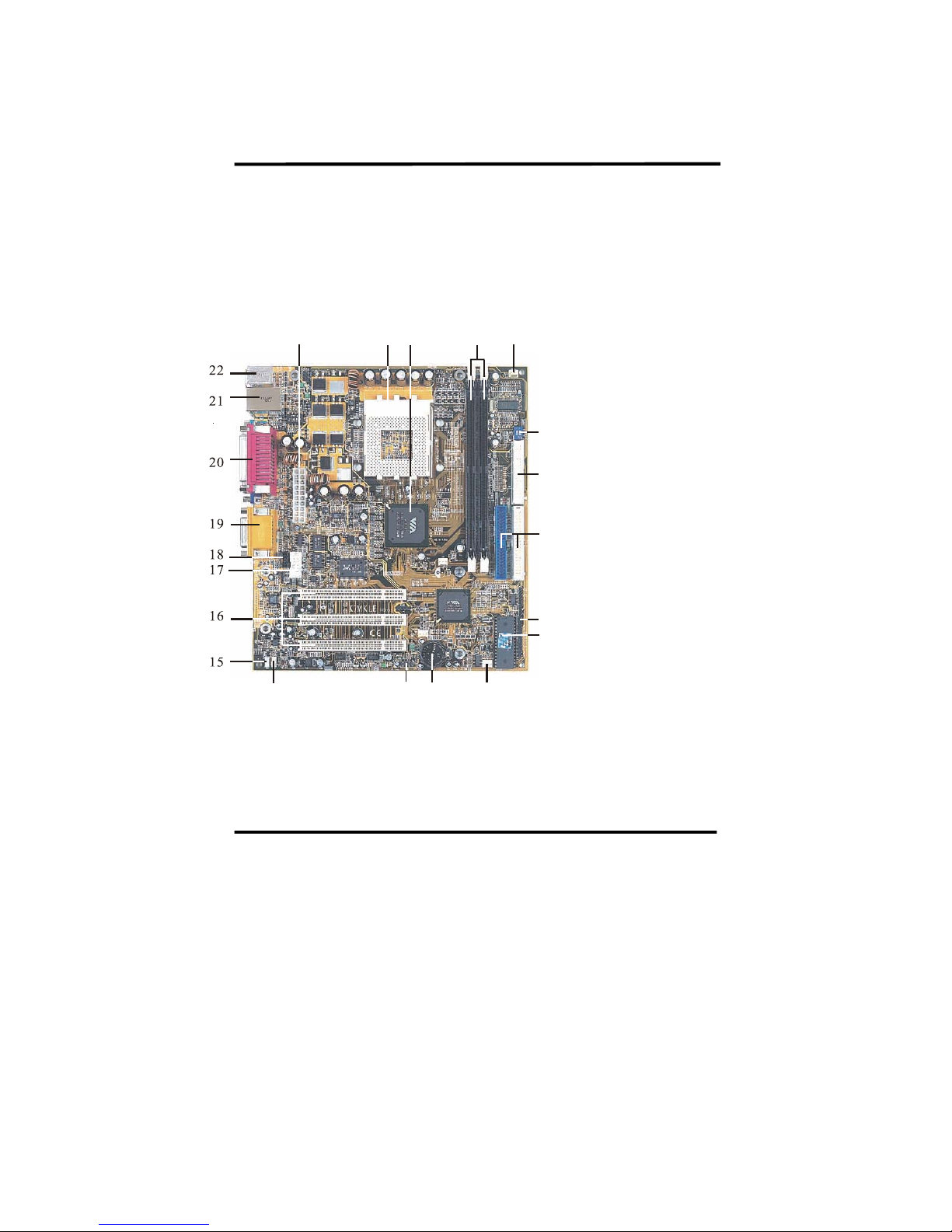

2-1 Component Locations
1 ATX POWER
2 CPU Socket
3 VIA VT8361
4 DIMM
5 CPU FAN
6 SW1
7 FDD1
8 IDE1
9 Front panel
Connectors
10 BIOS
11 FAN2
12 BATTERY
13 USB2
14 WOM1
15 WOL1
16 PCI Slot
17 CD_IN
18 COM2
19 GAME Port
LINE-OUT
LINE-IN
MIC-IN
1 2 3 4 5
6
7
8
9
10
14 13 12 11
20 LPT Port
VGA1
COM1
21 LAN
USB1
22 PS/2 Mouse

K7MKLE SystemBoard 9
Keyboard
2-2 Mainboard Layout Reference
1 2
ON
PS/2 K/B
& Mouse
USB1
COM1
VGA1
LPT
GAME
LINE-IN
LINE-OUT
MIC-IN
CD-IN1
CD-IN2
IR 1
PCI1
PCI2
PCI3
USB2
JP 1
WOL1 WOM1
SOUND
CODEC
CPU FAN
SW 1
FDD1
IDE2IDE1
DIMM1
DIMM2
FAN1
EXTSMI
TB-LED
HD-LED
RESET
SPEAK
PW-BN
PW-LED
JBAT1
ATX PO WER
VIA
VT8361
VIA
686B
BIOS
COM2
FAN2
JKM1JUSB1

K7MKLE SystemBoard 10
2-2-1 Short description of main sockets and connectors
 Socket 462 (CPU Socket)
Insert your Athlon or Duron CPU into this socket. See the description is the CPU
Installation section below for more information.
 DIMM 1,2
These are the memory module slots. Please refer to the Memory Installation section.
 IDE 1,2
Insert the IDE cable from your HDD/CD-ROM devices to these connectors.
 PCI Slots
For expansion PCI Cards (Network, Modem, SCSI, etc).

K7MKLE SystemBoard 11

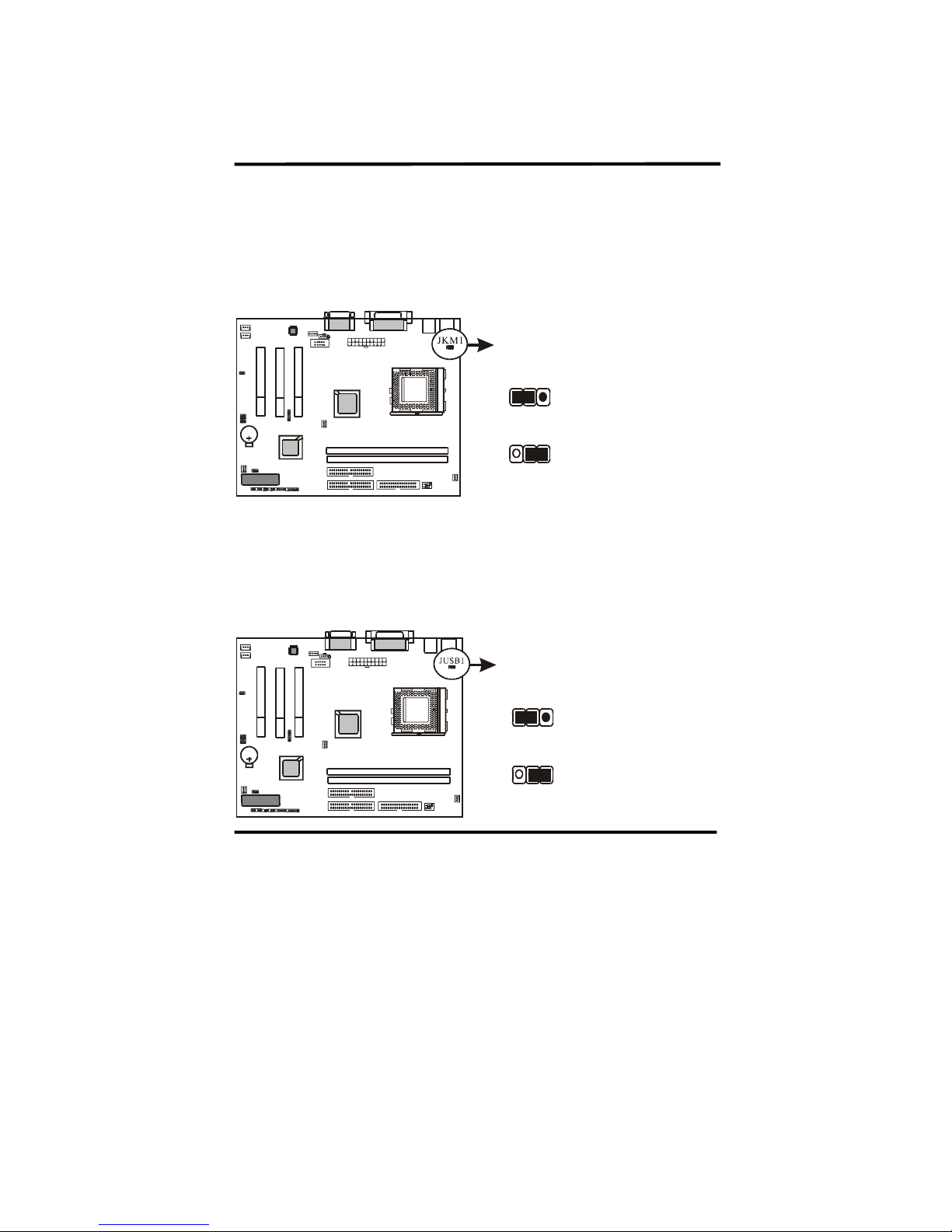

2-3 Jumper Settings
2-3-1 JKM1: Keyboard Walk Up Select
Set "2-3"---
Keybaord
Walk Up
Normal (default)
Set "1-2"---
Keyboard Walk Up
2-3-2 JUSB1: USB Mode Wake Up
Set "2-3"---
Normal (default)
Set "1-2"---
USB Wake Up
USB Mode
Wake Up

K7MKLE SystemBoard 12
2-3-3 CPUFAN Detect Control--ISM (Intelligent Shutdown
Master)
As processor technology pushes to faster speeds and higher performance, thermal
management becomes increasingly crucial when building computer systems.
Maintaining the proper thermal environment is key to reliable, long-term system
operation. And with CPU speed constantly increasing, improper cooling of the system
as a whole can lead to permanent damage. Our motherboard has an unique design –
ISM (Intelligent Shutdown Master) to provide prefect protections right at the very
moment the system cooling should fail, please make good use of it! The following is an
excerpt from a warning AMD released on such issue:
The new PGA (Pin Grid Array) AMD Athlon™ and AMD Duron™ processors have
very different thermal specifications from any preceding AMD processor. Due to
these differences, the AMD Athlon and AMD Duron processors should NEVER run
without a cooler, not even for a few seconds. Doing so will cause the processor to
overheat and fail immediately, resulting in permanent damage. While testing a
processor by booting it up for several seconds without a cooler installed may be
common industry practice, it should never be attempted with the new PGA AMD
Athlon and AMD Duron processors…..
Typically the CPU cooler Assembly comes with FAN (Some with 2 FANS), but even
so, the system cooling can deteriorate within a certain period of time. This will result
in permanent damage to the processor and potentially other key components within the
system. Our powerful ISM (Intelligent Shutdown Master) function will smartly
cut off the power supply once the cooling fan fails and safely secure your CPU and
main board against possible damages.

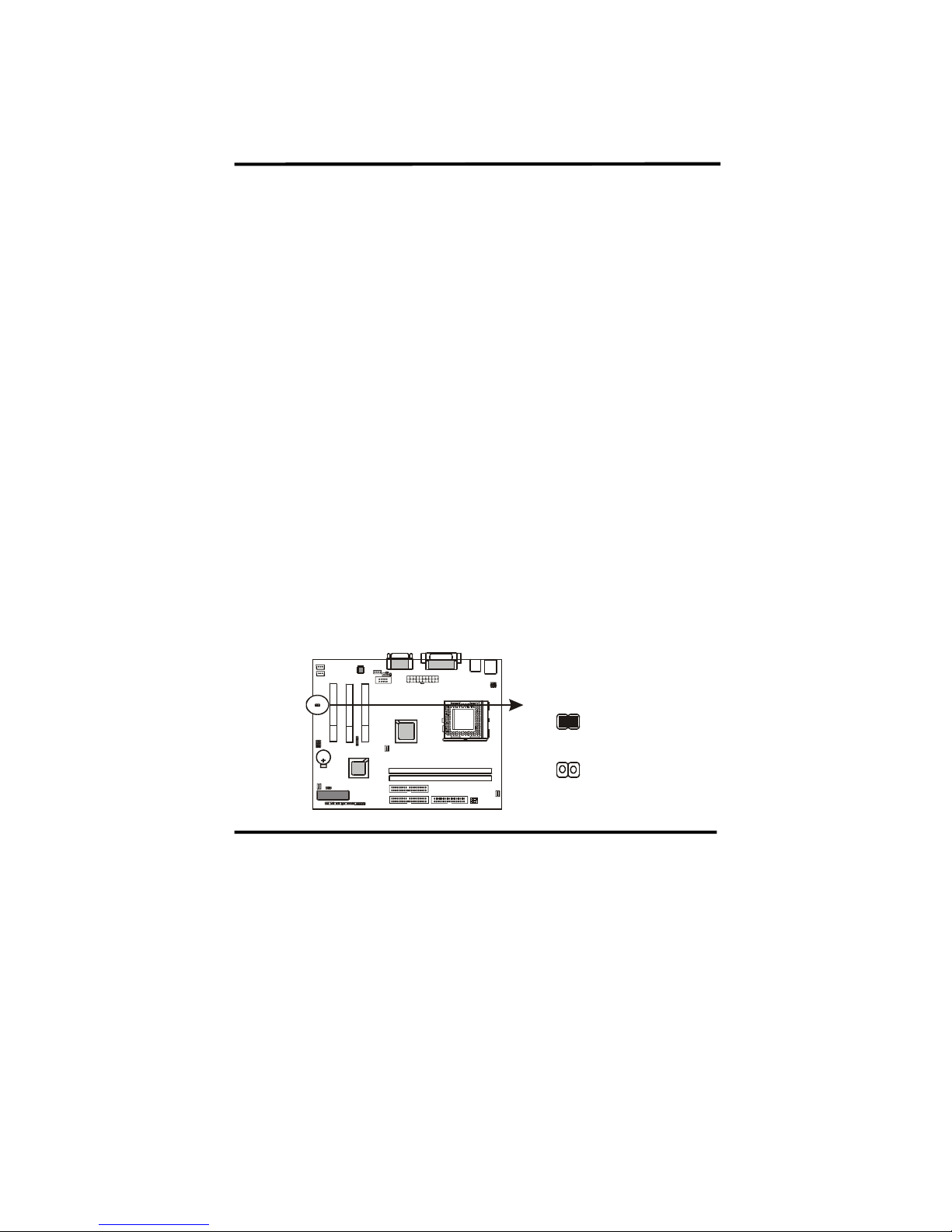

JP1: CPU DETECT
CONTROL
Set "ON "(default)--
CPU FAN TO PROTECT
Set "OFF "--
NORMAL

K7MKLE SystemBoard 13
CAUTIONS:
1. ISM is a 100% hardware solution, no additional software installation is required.
Unlike software solution, ISM will not sacrifice the system performance.
2. Must connect FAN pin of CPU cooler to CPU FAN header.
3. For best protection, in case the system cooling fails, ISM will compulsorily shut
down the computer system without precautions (no matter your system is under
DOS or Windows mode) and inevitably all unsaved data will lose.
4. The default ISM function (JP1) is ‘ON. To disable ISM function, please set JP1
Jumper to ‘OFF’.
5. If the computer system automatically shut down right after being booted up, check
whether the CPU cooler Assembly is connected to CPU FAN or the CPU fan
already failed.

K7MKLE SystemBoard 14
2-4 CPU Installation
The first step in the installation of your CPU is the insertion of the CPU into the 462 pins
CPU socket. Please follow the steps as outlined below carefully to avoid damage to the
CPU.
Avoid Static Electricity
The AMD Athlon and AMD Duron processors and your motherboard contain
sensitive electronic components that can be easily damaged by static electricity.
We recommend that you leave the processor in its original packaging until you are
ready to install it. You should only touch the edges of the processor, NEVER
touch the processor pins to avoid static discharge.
First take a moment to inspect your CPU for obvious damage due to shipping or handling.
Be sure that no noticeable damage exists before proceeding. You should have the following
items:
 1 AMD Athlon or AMD Duron processor.
 1 good heatsink and fan assembly.
Step 1

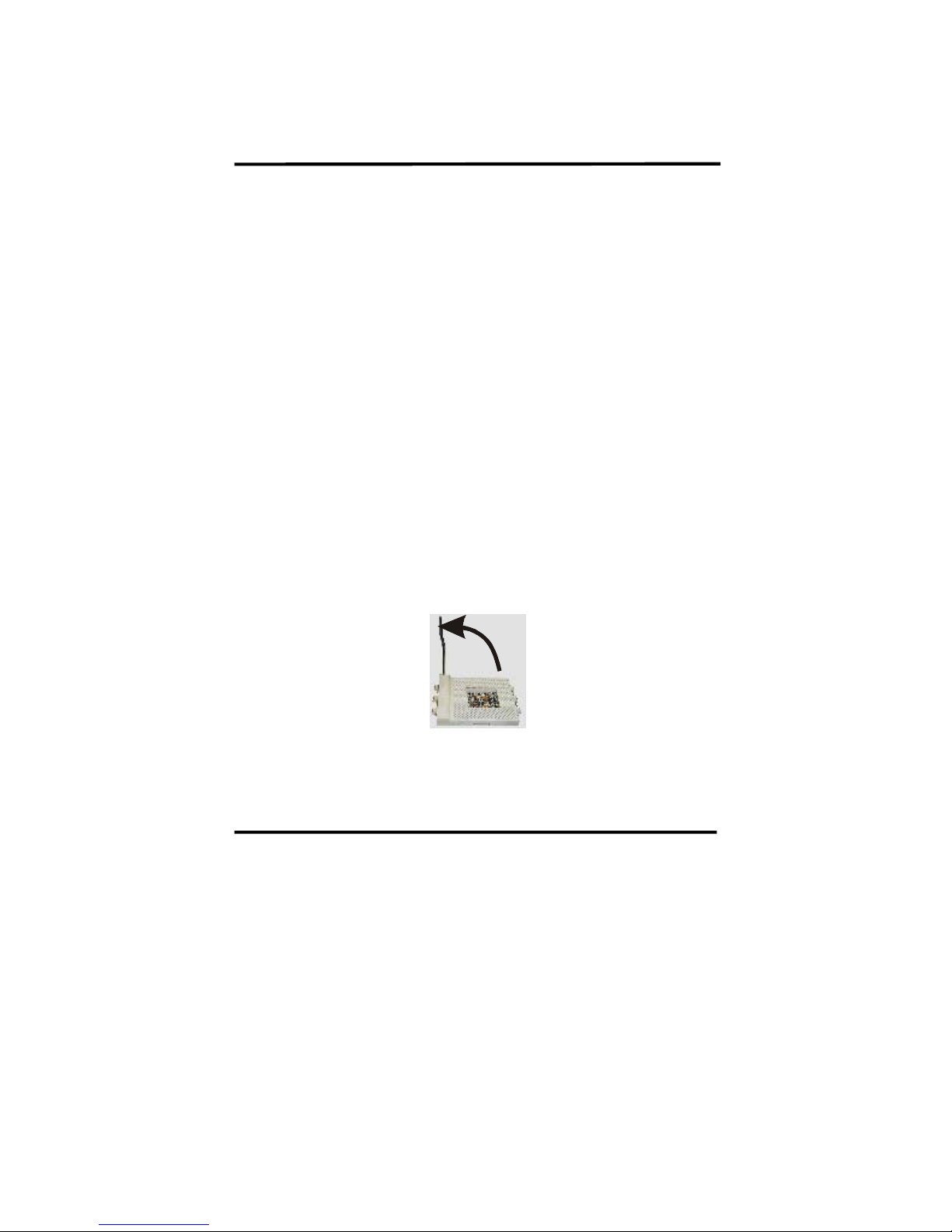

The following figure shows the processor socket. Note that the release lever on the
right side of the socket is down and latched. This position is used to lock the
processor in place. The lever must be raised to install the processor. To do this,
first push the lever sideways to unlatch it, then raise it all the way up
(approximately 90 degrees).
Step 2
The processor pin array at the top two corners is angled and has no pins in the corners.
Notice that at the top of the socket on the motherboard (near where it says "Socket 462")
the corners also do not have positions for pins. The processor must be positioned so the
pins match up properly. When you do that, the corner of processor that is cut off will be
positioned next to the release pivot.

K7MKLE SystemBoard 15

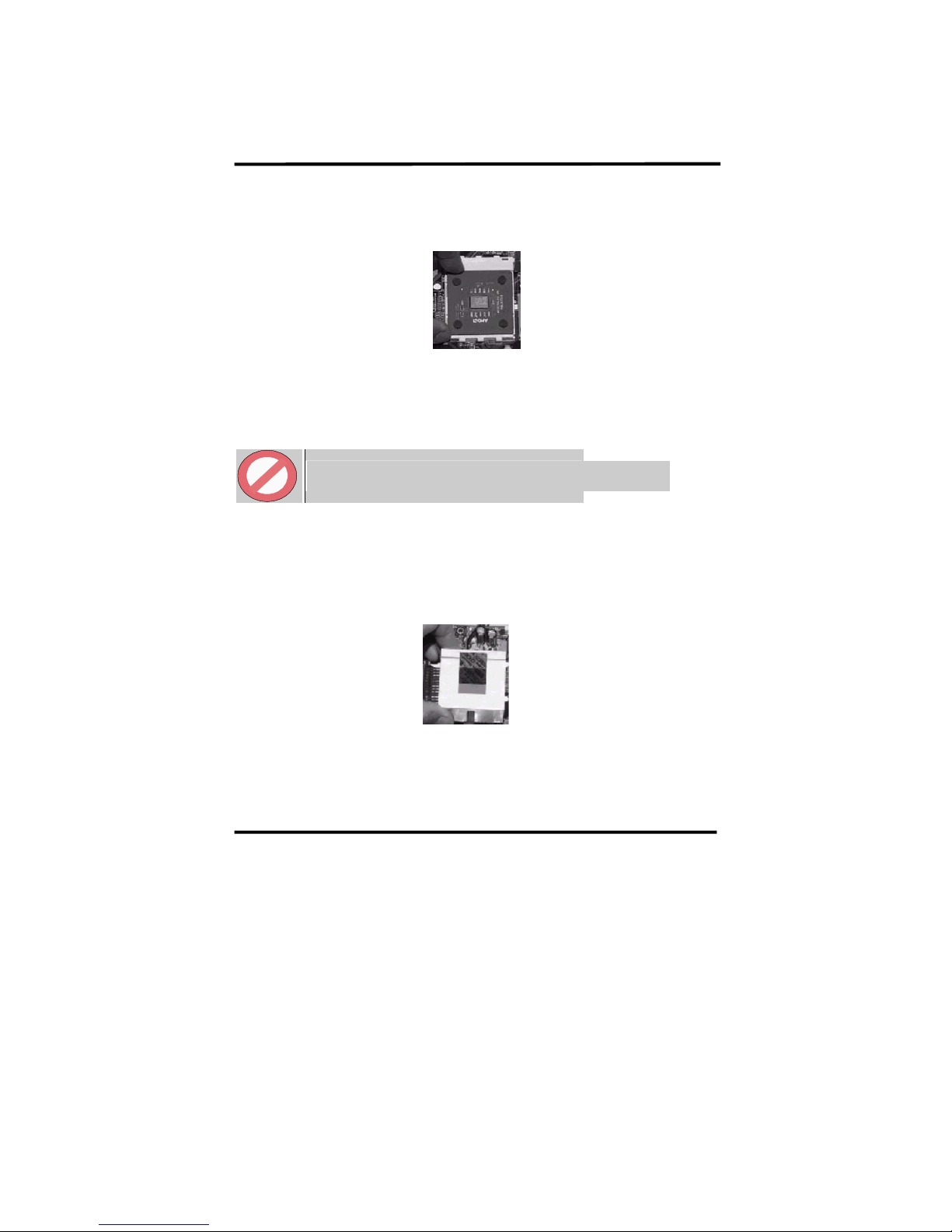

It should take no force to install the processor, this is a zero insertion force (ZIF) socket. If
it takes any force you are doing something wrong. Check the pin alignment and also make
sure the release lever is raised up completely.
After placing the CPU lower the release lever to lock the processor in place.
Now with the processor properly installed, you can proceed to install the heatsink.
It is important to note that If you have never installed a heatsink on an AMD
Athlon or AMD Duron processor before it may be difficult. We recommend you
do a dry run a few times before doing the final installation. To allow you to do this
read the following instructions. Do not remove the film on the thermally
conductive compound until you are ready to do the final installation.
STOP
WARNING: Never run the processor without the heatsink properly
and firmly attached.
Step3
The picture below shows the bottom of the heatsink. Notice the step in the
heatsink surface, this portion fits over the top of the socket, where the legend
"Socket 462" is molded into the plastic. The heatsink must be mounted with this
step above the top of the socket or the heatsink will not be touching the processor
properly.
The next picture shows the removal of the plastic film from the thermally conductive
compound. The thermal compound is a thin layer of material that increases the efficiency of
the heatsink by filling microscopic surface voids in the processor or heatsink surface with a
thermally conductive material. Please do not remove the plastic film until you have
practiced installing the heatsink and mounting the clips on the socket. It can take a few tries
to get used to doing this.

K7MKLE SystemBoard 16
The following picture shows a side view of the heatsink with the retaining clip at the
bottom of the heatsink. Make sure this retaining clip is at the bottom of the heatsink before
trying to install it.
The following picture shows the non-moveable end of the heatsink retaining clip installed
on the lug at the bottom of the processor socket. This end of the clip simply slides over the
lug when you tilt the heatsink / fan assembly towards the lug.
Now lock the locking clip for the retaining strap over the lug at the other (pivot end) of the
processor socket. This is an easy procedure after you do it a few times, but initially it will
require you to use a finger on one hand to push the latch down and use your other hand to
push the latch in. This is the part you need to practice to install the clip properly. When you
are holding the heatsink, make sure you do apply pressure to the fan. You could damage it
and cause thermal failure of the processor.
STOP
WARNING: Be careful not to scrape the motherboard during the mounting
of the fan or else damage may occur to the motherboard.
Now connect the wire from the heatsink fan to the CPU FAN connector on the motherboard.
This connector is keyed and can only be installed one way. If you use a heatsink assembly
that has two cooling fans, connect one to CPU FAN and the other to FAN1 . For more
information on the FAN connectors, refer to the FAN connector section later in this section.
STOP
WARNING: This main board supports ISM functions (please refer to
page 12 for more information), make sure you connect CPU heatsink
assembly to CPU FAN header. Otherwise, the main board will
malfunction.

K7MKLE SystemBoard 17
2-4-1 CPU Clock settings
SW1: External Frequency Selection
CPU
1 2
100MHz
ON ON
133MHz
OFF OFF
This potion tells the clock generator what frequency to send to the CPU,
DRAM and the PCI bus. This allows the selection of the CPU’s External
Frequency (or Bus Clock). The Bus Clock multiplied by the Frequency
Multiple equals the CPU’s Internal frequency (the advertifed cpu speed).
The following list contains the standard settings for the AMD Athlon and
Duron CPUs known at time of publication:
CPU Name Multiplier Bus
Frequency
CPU Name Multiplier Bus
Frequency
Athlon 1.4GHz 14.0x 100MHz Athlon 1.4GHz 10.5x 133MHz
Athlon 1.3GHz 13.0x 100MHz Athlon 1.3GHz 10.0x 133MHz
Athlon 1.2GHz 12.0x 100MHz Athlon 1.2GHz 9.0x 133MHz
Athlon 1.13GHz 8.5x 133MHz Athlon 1GHz 7.5x 133MHz
Athlon 1GHz 10.0x 100MHz Athlon 950MHz 9.5x 100MHz
Athlon 900MHz 9.0x 100MHz Athlon 850MHz 8.5x 100MHz
Athlon 800MHz 8.0x 100MHz Athlon 750MHz 7.5x 100MHz
Athlon 700MHz 7.0x 100MHz Athlon 650MHz 6.5x 100MHz
Athlon 600MHz 6.0x 100MHz Duron 700MHz 7.0x 100MHz
Duron 650MHz 6.5x 100MHz Duron 600MHz 6.0x 100MHz
