VIA Technologies P4X266-PE11-L User manual

VIA P4X266-PE11-S
VIA P4X266-PE11-L
Mainboard
Users Manual
52900137

Copyri ht
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose. The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 001. All Rights Reserved.
Trademarks
Windows® 98, Windows® 98 SE, Windows® ME, Windows® 000
and Windows NT® 4.0 are registered trademarks of Microsoft
Corporation. Intel® and Pentium® 4 are registered trademarks of
Intel Corporation. VIA is a registered trademark of VIA Technologies,
Inc. Award is a registered trademark of Award Software, Inc. Other
trademarks and registered trademarks of products appearing in this
manual are the properties of their respective holders.
Caution
To avoid damage to the system:
 Use the correct AC input voltage range.
To reduce the risk of electric shock:
 Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
 Danger of explosion if battery incorrectly replaced.
 Replace only with the same or equivalent type recommend by
the manufacturer.
 Dispose of used batteries according to the battery
manufacturers instructions.
Joystick or MIDI port:
 Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
. Shielded interface cables must be used in order to comply with
the emission limits.

Notice
This users manual contains detailed information about the
mainboard. If, in some cases, some information doesnt match those
shown in the multilingual manual, the multilingual manual should
always be regarded as the most updated version. The multilingual
manual is included in the mainboard package.
To view the users manual, insert the CD into a CD-ROM drive. The
autorun screen (Main Board Utility CD) will appear. Click Users
Manual.
Mainboard
This users manual is for the VIA P4X 66-PE11-S and VIA P4X 66-
PE11-L mainboards. The differences between these mainboards are
shown below.
Onboard audio
- AC97 codec
- Game/MIDI por t
- Audio jacks
- AUX-in and CD-in
- Front audio (J9)
Onboard LAN
- Realtek RTL8100
- RJ45 LAN port
ü
û
VIA P4X266-PE11-L
VIA P4X266-PE11-S
ü
ü

Tabl of Cont nts
Chapt r 1 - Introduction
1.1 Features and Specifications..................................................................................
1. Package Checklist.........................................................................................................
Chapt r 2 - Hardwar Installation
.1 Mainboard Layout ..........................................................................................
. System Memory...........................................................................................................
.3 Jumper Settings for Clearing CMOS Data........................................
.4 Jumper Settings for Wake-On-PS/ Keyboard......................................
.5 Por ts and Connectors...........................................................................................
Chapt r 3 - Award BIOS S tup Utility
3.1 The Basic Input/Output System.....................................................................
3.1.1 Standard CMOS Features.............................................................
3.1. Advanced BIOS Features..............................................................
3.1.3 Advanced Chipset Features ......................................................
3.1.4 Integrated Peripherals.........................................................................
3.1.5 Power Management Setup............................................................
3.1.6 PnP/PCI Configurations....................................................................
3.1.7 PC Health Status...................................................................................
3.1.8 Frequency/Voltage Control............................................................
3.1.9 Load Fail-Safe Defaults.....................................................................
3.1.10 Load Optimized Defaults..............................................................
3.1.11 Set Supervisor Password...............................................................
3.1.1 Set User Password..............................................................................
3.1.13 Save & Exit Setup.................................................................................
3.1.14 Exit Without Saving..............................................................................
3. Updating the BIOS.....................................................................................................
7
13
45
45
49
53
57
63
69
7
74
76
76
77
77
78
78
78
14
16
18
0
1

Introduction

6
90
90
Chapt r 4 - Support d Softwar
4.1 Desktop Management Interface.....................................................................
4. Hardware Monitor........................................................................................................
4.3 VIA Service Pack...........................................................................................................
4.4 Audio Drivers and Software Applications.............................................
4.5 Onboard LAN Drivers for Windows.......................................................
4.6 Microsoft DirectX 8.0 Driver.............................................................................
4.7 Drivers and Utilities Installation Notes.....................................................
App ndix A - Using th Susp nd to RAM
Function
A.1 Using the Suspend to RAM Function........................................................
App ndix B - Syst m Error M ssag s
B.1 POST Beep.......................................................................................................................
B. Error Messages..............................................................................................................
App ndix C - Troubl shooting
C.1 Troubleshooting Checklist....................................................................................
79
8
8
84
84
84
85
86
9


Introduction
7
1.1 F atur s and Sp cifications
1.1.1 F atur s
Chips t
 VIA® Apollo P4X 66/VT8 33
Proc ssor
The mainboard is equipped with Socket 478 for installing a Pentium®
4 processor.
 Intel® Pentium® 4 processor (478-pin)
 400MHz system data bus
Syst m M mory
 Three 184-pin DDR DIMM sockets
 Supports up to 3GB using PC1600 (DDR 00) / PC 100
(DDR 66) unbuffered DDR SDRAM DIMM, .5V type
 Uses x8/x16 51 MB technology
Chapter 1 - Introduction
DIMMs
MBx64
4MBx64
8MBx64
M mory Siz
16MB
3 MB
64MB
DIMMs
16MBx64
3 MBx64
64MBx64
M mory Siz
1 8MB
56MB
51 MB

Introduction

8
Expansion Slots
The mainboard is equipped with 1 universal AGP slot and 5
dedicated PCI slots.
AGP is an interface designed to support high performance 3D
graphics cards. It utilizes a dedicated pipeline to access system
memory for texturing, z-buffering and alpha blending. The universal
AGP slot supports AGP x with up to 533MB/sec. bandwidth and
AGP 4x with up to 1066MB/sec. bandwidth for 3D graphics
applications. AGP in this mainboard will deliver faster and better
graphics to your PC.
Onboard Audio F atur s
 Supports Microsoft® DirectSound / DirectSound 3D
 AC97 supported with full duplex, independent sample rate con-
verter for audio recording and playback
Onboard LAN F atur s (VIA P4X266-PE11-L only)
 Uses Realtek RTL8100 fast ethernet controller
 Integrated IEEE 80 .3 10BASE-T and 100BASE-TX compatible
PHY
 3 -bit PCI master interface
 Integrated power management functions
 Full duplex support at both 10 and 100 Mbps
 Supports IEEE 80 .3u auto-negotiation
 Suppor ts wire for management
ATX Doubl D ck Ports (PC 99 color-cod d conn ctors)
 Two USB ports
 One RJ45 LAN port (VIA P4X 66-PE11-L only)
 Two NS16C550A-compatible DB-9 serial ports
 One DB- 5 parallel port
 One mini-DIN-6 PS/ mouse port
 One mini-DIN-6 PS/ keyboard port
 One game/MIDI port
 Three audio jacks: line-out, line-in and mic-in


Introduction
9
Conn ctors
 Two connectors for 4 additional external USB ports
 One connector for IrDA interface
 Two IDE connectors
 One floppy drive interface supports up to two .88MB floppy
drives
 Two ATX power supply connectors
 One Wake-On-LAN connector
 One Wake-On-Ring connector
 CPU fan and chassis fan connectors
 Two internal audio connectors - AUX-in and CD-in
PCI Bus Mast r IDE Controll r
 Two PCI IDE interfaces support up to four IDE devices
 Supports ATA/33, ATA/66 and ATA/100 hard drives
 PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up
to 16.6MB/sec.)
 Bus mastering reduces CPU utilization during disk transfer
 Supports ATAPI CD-ROM, LS-1 0 and ZIP
IrDA Int rfac
The mainboard is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. It
supports peripheral devices that meet the IrDA and ASKIR standard.
USB Ports
The mainboard supports up to 6 USB ports. Two onboard USB
ports are located at the ATX double deck por ts of the board. The
J17 and J19 connectors on the mainboard allow you to connect 4
more optional USB ports. These optional USB ports, which are
mounted on a card-edge bracket, will be provided as an option.
USB allows data exchange between your computer and a wide
range of simultaneously accessible external Plug and Play peripherals.

Introduction

10
BIOS
 Award BIOS, Windows® 98/ 000/ME Plug and Play compatible
 Supports SCSI sequential boot-up
 Flash EPROM for easy BIOS upgrades
 Supports DMI .0 function
 Mbit flash memory
D sktop Manag m nt Int rfac (DMI)
The mainboard comes with a DMI .0 built into the BIOS. The DMI
utility in the BIOS automatically records various information about
your system configuration and stores this information in the DMI
pool, which is a part of the mainboard's Plug and Play BIOS. DMI,
along with the appropriately networked software, is designed to
make inventory, maintenance and troubleshooting of computer
systems easier. Refer to chapter 4 for instructions on using the DMI
utility.
1.1.2 Syst m H alth Monitor Functions
The mainboard is capable of monitoring the following system health
conditions.
 Monitors CPU/system temperature
 Monitors CPU/3.3V/±5V/±1 V/VBAT/5VSB voltages
 Monitors the fan speed of the CPU fan and chassis fan
 Automatic chassis fan on/off control
 Read back capability that displays temperature, voltage and fan
speed
Refer to the PC Health Status section in chapter 3 and the
Hardware Monitor section in chapter 4 for more information.


Introduction
11
1.1.3 Int llig nc
Automatic Chassis Fan Off
The chassis fan will automatically turn off once the system enters the
Suspend mode.
Dual Function Pow r Button
Depending on the setting in the Soft-Off By PWRBTN field of the
Power Management Setup, this switch will allow the system to enter
the Soft-Off or Suspend mode.
Wak -On-Ring
This feature allows the system that is in the Suspend mode or Soft
Power Off mode to wake-up/power-on to respond to calls coming
through an internal or external modem. Refer to Wake-On-Ring
Connector in chapter and Resume On LAN/Ring (Wake Up
Events field) in the Power Management Setup section in chapter 3
for more information.
Important:
If you are using a modem add-in card, the 5VSB power source
of your power supply must support ≥ 720mA
Wak -On-LAN
The Wake-On-LAN function allows the network to remotely wake
up a Soft Power Down (Soft-Off) PC. Your LAN card must suppor t
the remote wakeup function. Refer to Wake-On-LAN Connector in
chapter and Resume On LAN/Ring (Wake Up Events field) in
the Power Management Setup section in chapter 3 for more
information.
Important:
The 5VSB power source of your power supply must support
≥ 720mA

Introduction

12
Wake-On-PS/2 Keyboard
This function allows you to use the PS/2 keyboard to wake up the
system from the S5 state. Refer to  umper Settings for Wake-On-
PS/2 Keyboard in chapter 2 and PS2KB Wakeup Select (Wake
Up Events field) in the Power Management section in chapter 3 for
more information.
Important:
 If you forgot the password, you must power-off the system,
unplug the power cord and clear the CMOS data. Follow
the steps in the  umper Settings for Clearing CMOS Data
section in chapter 2.
 The 5VSB power source of your power supply must
support ≥ 720mA.
RTC Timer to Power-on the Sy tem
The RTC installed on the mainboard allows your system to auto-
matically power-on on the set date and time. Refer to Resume On-
Alarm (Wake Up Events field) in the Power Management Setup
section in chapter 3 for more information.
ACPI STR
The mainboard is designed to meet the ACPI (Advanced Configura-
tion and Power Interface) specification. ACPI has energy saving fea-
tures that enables PCs to implement Power Management and Plug-
and-Play with operating systems that support OS Direct Power
Management. Currently, only Windows® 98/2000/ME supports the
ACPI function. ACPI when enabled in the Power Management Setup
will allow you to use the Suspend to RAM function.
With the Suspend to RAM function enabled, you can power-off the
system at once by pressing the power button or selecting Standby
when you shut down Windows® 98/2000/ME without having to go
through the sometimes tiresome process of closing files, applications
and operating system. This is because the system is capable of stor-
ing all programs and data files during the entire operating session
into RAM (Random Access Memory) when it powers-off. The
operating session will resume exactly where you left off the next time
you power-on the system. Refer to Using the Suspend to RAM
Function in appendix A for more information.


Introduction
13
Important:
The 5VSB power source of your power supply must support
≥ 1A
AC Pow r Failur R cov ry
When power returns after an AC power failure, you may choose to
either power-on the system manually, let the system power-on
automatically or return to the state where you left off before power
failure occurs. Refer to PWR Lost Resume State in the Power
Management Setup section in chapter 3 for more information.
Virus Prot ction
Most viruses today destroy data stored in hard drives. The
mainboard is designed to protect the boot sector and partition
table of your hard disk drive.
1.2 Packag Ch cklist
The mainboard package contains the following items:
þThe mainboard
þA users manual
þOne IDE cable for ATA/33, ATA/66 or ATA/100 IDE drives
þOne 34-pin floppy disk drive cable
þOne Main Board Utility CD
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

14
Hardwar Installation

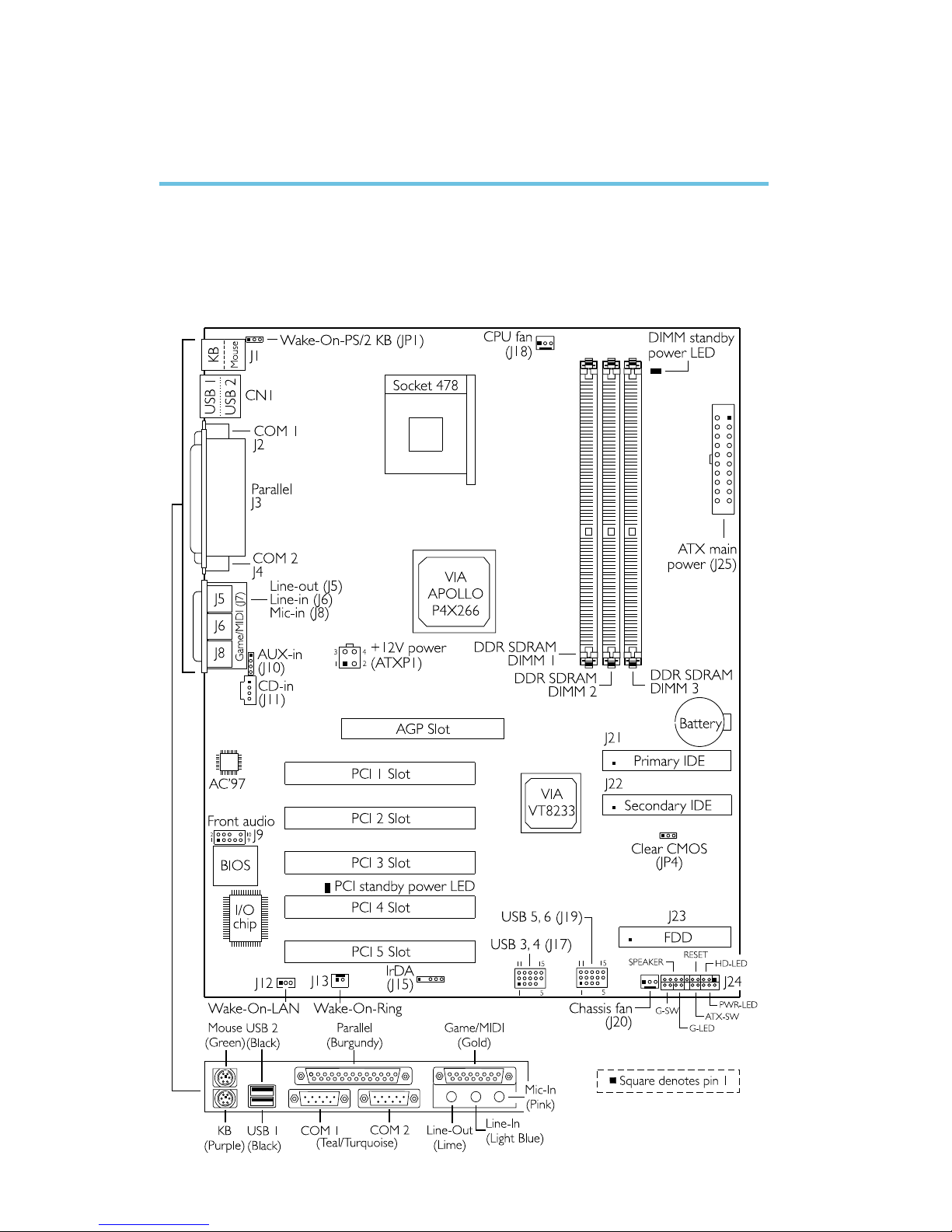

2.1 Mainboard Layout
Chapter 2 - Hardware Installation
VIA P4X266-PE11-S
(Supports onboard audio)

Hardwar Installation
15
VIA P4X266-PE11-L
(Supports onboard audio and onboard LAN)
Not :
The illustrations on the following pages are based on the VIA
P4X266-PE11-L mainboard, which is the board that supports
onboard audio and onboard LAN

16
Hardwar Installation
2.2 Syst m M mory
Warning:
Electrostatic discharge (ESD) can damage your mainboard, processor,
disk drives, add-in boards, and other components Perform the
upgrade instruction procedures described at an ESD workstation only
If such a station is not available, you can provide some ESD
protection by wearing an antistatic wrist strap and attaching it to a
metal part of the system chassis If a wrist strap is unavailable,
establish and maintain contact with the system chassis throughout
any procedures requiring ESD protection
The mainboard is equipped with three 184-pin DDR SDRAM DIMM
(Dual In-line Memory Module) sockets that support .5V DDR
SDRAM DIMM. Double Data Rate SDRAM (DDR SDRAM) is a
type of SDRAM that doubles the data rate through reading and
writing at both the rising and falling edge of each clock. This
effectively doubles the speed of operation therefore doubling the
speed of data transfer.
Refer to chapter 1 (System Memory section) for detailed
specification of the memory supported by the mainboard.

Hardwar Installation
17
1. Pull the tabs which are at the ends of the socket to the side.
. Position the DIMM above the socket with the notch in the
module aligned with the key on the socket.
3. Seat the module vertically into the socket. Make sure it is
completely seated. The tabs will hold the DIMM in place.
2.2.1 Installing th DIM Modul
A DIM module simply snaps into a DIMM socket on the mainboard.
Pin 1 of the DIM module must correspond with pin 1 of the socket.
Pin 1
Notch
Key
Tab Tab

18
Hardwar Installation
2.3 Jump r S ttings for Cl aring CMOS Data
Cl ar CMOS Data - Jump r JP4
If you encounter the following,
a) CMOS data becomes corrupted
b) You forgot the keyboard, supervisor or user password
c) You are unable to boot-up the computer system because the
processors ratio/clock was incorrectly set in the BIOS
you can reconfigure the system with the default values stored in the
ROM BIOS.
To load the default values stored in the ROM BIOS, please follow
the steps below.
1. Power-off the system and unplug the power cord.
. Set JP4 pins and 3 to On. Wait for a few seconds and set JP4
back to its default setting, pins 1 and On.
-3 On:
Clear CMOS Data
1- On: Normal
(default)
13 1 3

Hardwar Installation
19
3. Now power-on the system.
If your reason for clearing the CMOS data is due to incorrect
setting of the processors ratio/clock in the BIOS, please proceed
to step 4.
4. After powering-on the system, press <Del> to enter the main
menu of the BIOS.
5. Select the Frequency/Voltage Control submenu and press
<Enter>.
6. Set the CPU Ratio or CPU Clock field to its default setting
or an appropriate frequency ratio or bus clock. Refer to the
Frequency/Voltage Control section in chapter 3 for more
information.
7. Press <Esc> to return to the main menu of the BIOS setup
utility. Select Save & Exit Setup and press <Enter>.
8. Type <Y> and press <Enter>.

20
Hardware Installation
2.4 Jumper Settings for Wake-On-PS/2 Ke board
Wake-On-PS/2 Ke board - Jumper JP1
The Wake-On-PS/2 Keyboard function allows you to use the PS/2
keyboard to wake up the system from the S state. By default, JP1
is disabled. To use this function, set JP1 to 2-3 On. PS2KB Wakeup
Select (Wake Up Events field) in the Power Management Setup
submenu of the BIOS must be set accordingly. Refer to chapter 3
for details.
Warning:
1. If you forgot the password, you must power-off the system,
unplug the power cord and clear the CMOS data. Follow
the steps in the  umper Settings for Clearing CMOS Data
section.
2. The 5VSB power source of your power supply must
support ≥ 720mA.
2-3 On: Enable - VSB1-2 On: Disable - VCC
(default)
123 123
