instruction manual
VRILU90
&RQWHQWV
Guide to the Appliance 1
Caring for the Environment 2
Safety Information and Warnings 3
Installation Instructions 6
Operation Instructions 9
Troubleshooting 10
Care and Maintenance 11
Specifications 13
1
*XLGHWRWKH$SSOLDQFH
1
5
1. Filters
2. LED Lights
3. 3 speed touch control
– low, medium, high
4. Lights on/off button
5. Hood
6. Separate fan motor
7. Power supply
95,/8
4
23
7
6
2
&DULQJIRUWKH(QYLURQPHQW
5HVSRQVLEOHGLVSRVDORIWKHSDFNDJLQJ
The packaging of your appliance has been selected from environmentally
friendly materials and can usually be recycled. Please ensure these are disposed
of correctly.
Plastic wrapping can be a suffocation hazard for babies and young children,
please ensure all packaging materials are out of reach and are safely disposed
of. Please ensure they are offered for recycling rather than throwing these
materials away.
5HVSRQVLEOHGLVSRVDORIWKHDSSOLDQFH
At the end of its working life, do not throw this appliance out with your
household rubbish. An environmentally friendly method of disposal will ensure
that valuable raw materials can be recovered and used again.
Electrical and electronic appliances contain materials and substances which,
if handled or disposed of incorrectly, could be potentially hazardous on the
environment and human health.
Observe any local regulations regarding the disposal of electrical consumer
goods and dispose of it appropriately for recycling. Contact your local authorities
for advice on recycling facilities in your area.
The plug must be rendered useless and the cable cut off directly behind the
appliance or the machine to prevent misuse.
3
6DIHW\,QIRUPDWLRQDQG:DUQLQJV
*HQHUDO
• Please ensure this manual is read carefully before installation and use.
Keep this manual in a safe and accessible location should future reference
be required.
• The appliance has been designed as an exhausting version (external
exhaust) or as a filter version (inter air recycle) cooker hood.
6DIHW\3UHFDXWLRQ
• Take care when the cooker hood is operating simultaneously with an open
fireplace or burner that depends on the air from the environment and that
are supplied by other than electrical energy, as the cooker hood removes the
air from the environment which a burner or fireplace needs for combustion.
• There shall be adequate ventilation of the room when the range hood
is used at the same time as appliances burning gas or other fuels. (Not
applicable to appliances that only discharge the air back into the room)
• There is a risk of fire if cleaning is not carried out in accordance with the
instructions.
• Do not flambé under the range hood.
&$87,21Accessible parts may become hot when used with a cooking
appliance.
• The appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervised or instruction
concerning use of the appliance by a responsible person for their safely.
• If the supply cord is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order to avoid a hazard.
• The negative pressure in the environment must not exceed 4 Pa (4*10-5
bar).
• Provide adequate ventilation in the environment for a safe operation for the
cooker hood.
• Follow the local laws applicable for external air evacuation.
• Appliance shall only be used with rated voltage and frequency.
• There is a fire risk if cleaning is not carried out in accordance with the
instruction.
4
,QVWDOODWLRQ6DIHW\3UHFDXWLRQV
• The exhaust air must not be discharged into a flue which is used for
exhausting fumes from other appliances burning gas or other fuels. (Not
applicable for appliances which only discharge air back into the room)
• For optimal performance, the minimum distance from the top of the
cooking surface to the underside of the range hood should be 65-75cm.
• If needed, this distance may be reduced to 60cm to align with AS/NZS5601.
:$51,1* Failure to install the screws or fixing device in accordance with
the instructions may result in electrical hazards.
:$51,1*6
• In certain circumstances electrical appliances may be a danger hazard.
• Do not check the status of the filters while the cooker hood is operating.
• Do not touch the light bulbs after appliance use.
• Do not disconnect the appliance with wet hands and do not apply excessive
force to the supply cable.
• Naked Flame cooking (flambé) is prohibited underneath cooker hood (e.g.
items such as BBQ’s).
• The hood is only to be used in a domestic situation.
• Avoid free flame, as it is damaging for the filters and a fire hazard.
• Constantly check frying food to avoid it becoming overheated as the oil may
become a fire hazard.
• Disconnect the electrical plug prior to any maintenance.
• Young children should be supervised to ensure that they do not play with
the appliance.
5
6FKHPDWLFGLDJUDP
1. The main body and the external motor are connected by an extended cable.
A separate cable is plugged into the power.
2. The extension ducting will connect the main body and external motor, and
cooking residues will be extracted and discharged to outside via a ducting
kit.
6

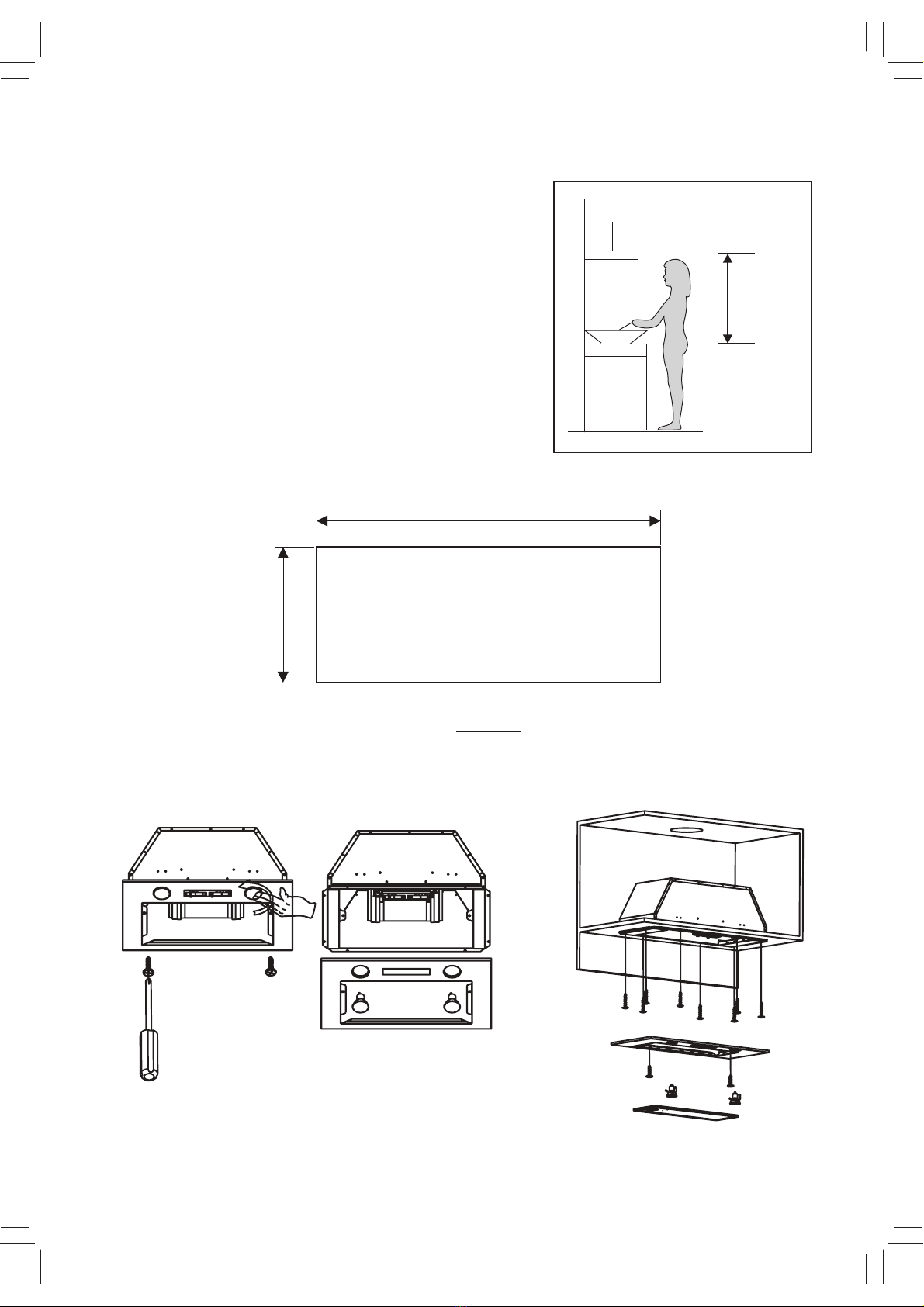

,QVWDOODWLRQ,QVWUXFWLRQV
The Rangehood should be placed at 65-75cm
from the cooking surface for the best effect.
See Pic 1
1. Cut the required size hole in the underside
of the cabinet for the hood body
2. Detach the front panel by unscrewing the
2 screws (M4 x 10mm) see below diagram
3. Mount the Rangehood into the cabinet by
using the 8 screws (ST4 x 18mm), and mount
the front panel on the hood body by 2 screws
(M4 x 10mm)
65cm
75cm
265mm
865mm
90cm
7
,QVWDOODWLRQ,QVWUXFWLRQVFRQWLQXHG
4. Install the 150mm outlet by (ST4*8mm) screws, and attach the extension
ducting pipe.
5. Connect the power cord on main body with extend wiring
6. Fix the left and right support bracket on the side of external motor, by using
6 pcs (ST4*8mm) screws
7. Connect the power cable to the external motor with extension cable
8
,PSRUWDQWSRLQWVWRFRQVLGHUIRULQVWDOODWLRQ
1. The location of the fan unit shall allow access for maintenance and repair.
Permanent fixed means of access is required where the fan unit location is
beyond the extent of normal steps or ladders.
2. Before installation, please ensure the area is clean to avoid suction of the
remaining bits of debris and dust.
3. Please ensure that the fan motor is firmly secured to either a flat surface
such as an MDF panel affixed across the ceiling rafters, or fixed to the
ceiling rafters themselves. Ensure the fan motor is level and there is no
vibration when in use.
4. The Rangehood cannot share the same air ventilation tube with other
appliances such as gas tube, warmer tube, and hot wind tube.
5. After installation, make sure that the main body is level to avoid grease
collection at one end.

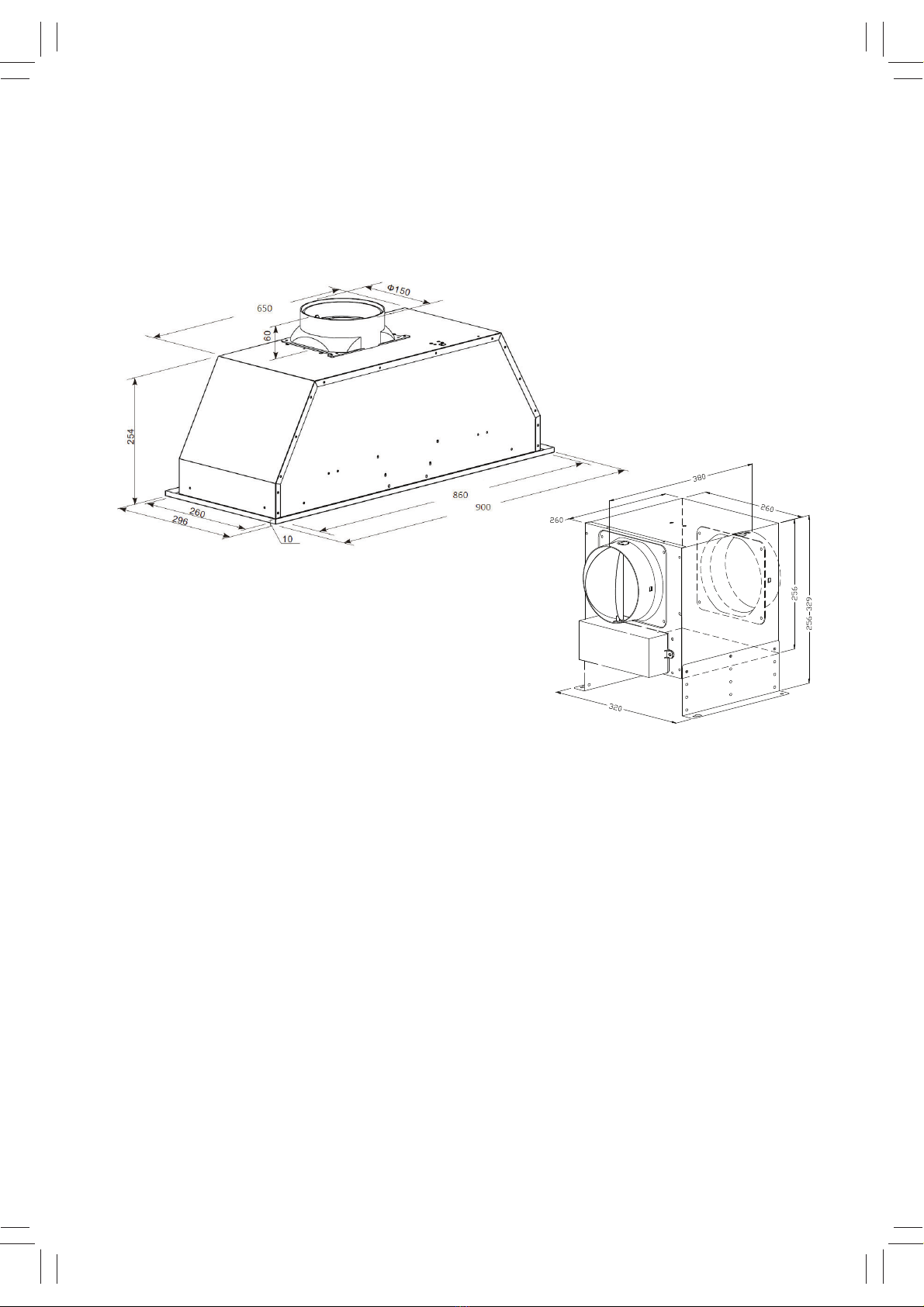

6. Please note the dimensions of the fan motor below for installation purposes.
7. The use of a ducting kit is imperative for the performance of the fan motor.
8. 7KHEHQGLQJRIGXFWLQJWXEHVKRXOGEHSDUDOOHORUDERYHWKHVWDUW
point and should be connected to the external wall, roof or eave.
9. The recommended maximum lengths of ducting pipe should be no more than:
–Four (4) metres for connection between the hood body and fan motor.
–Three (3) metres for connection between the fan motor and outside.
The fan motor must be secured using the supplied bracket and screws
&RUUHFW ,QFRUUHFW
9
2SHUDWLRQ,QVWUXFWLRQV
A. Push the 1 icon switch the unit will run at low speed.
B. Push the 2 icon switch the unit will run at medium speed.
C. Push the 3 icon switch the unit will run at high speed.
D. Push the light button and the two lights will come on.
Push it again and the lights will turn off.
Light
High
Mid
Low
10
7URXEOHVKRRWLQJ
)DXOW &DXVH 6ROXWLRQ
Light on, but motor
does not work The fan blocked Service call to clear
the blockage
The capacitor
damaged
Service call to replace
capacitor
The motor jammed
bearing damaged
Service call to replace
motor
A electrical or burning
smell from the motor
Service call to replace
motor
Light does not work,
motor does not work Light damaged Replace lights
Power cord loosen
from power supply
Switch off power and
carefully engage plug
One-way valve and
the air ventilation
entrance are not
tightly sealed
Service call to repair
one-way valve and
seal.
Vibration of the body
The fan is damaged
and causes vibration
Service call to repair
fan
The motor is loose Service call to repair
tighten the motor
The hood is not
securely fixed to the
wall
Refer to installation
section to secure to the
wall
Insufficient suction
The distance between
the body and the gas
top is incorrect
Readjust to the
specified mandatory
distance
Too much ventilation
from open doors or
windows
Choose a new place
and resemble the
machine
11
&DUHDQG0DLQWHQDQFH
127(Please ensure this rangehood is turned off at the power point before
any care and maintenance is carried out.
• It is recommended to commence the operation of the appliance prior to
cooking.
• It is recommended to leave the appliance in operation for 15 minutes after
cooking is terminated in order to eliminate cooking vapours and odours.
• When the appliance is not in use, please turn off.
• Do not use if the appliance is damaged — especially the supply cord and
the case.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
• Do not immerse the appliance in liquid.
• The exhaust air must not be discharged into a flue which is used for
exhausting fumes from an appliance burning gas or other fuels.
• Regulations concerning the discharge of air must be fulfilled.
• The proper function of the cooker hood is conditioned by the regularity of
the maintenance operations the active carbon filter.
• The filters are designed to capture the grease particles suspended in the air
from the cooking process, and must be maintained as per below to avoid
clogging (depending on the frequency of the use of the appliance).
- In order to prevent a fire hazard, it is recommended to clean the filter at
least every 2 months by carrying out the following:
- Remove the filters from the cooker hood and wash them in a solution of
water and neutral liquid detergent, leaving to soak.
- Rinse thoroughly with warm water and leave to dry.
- The filters may also be washed in the dishwasher.
• The aluminium panels may alter in colour after several washes. This is normal
under correct use and is not cause for customer concern or replacement of
panels.
• Clean the fan and other surface of the cooker hood regularly using cloth
moistened with denatured alcohol of non-abrasive liquid detergent.
• Before any repair on the cooker hood, detach all plugs.
12
&OHDQLQJDQG0DLQWHQDQFH
Changing and cleaning the anti-grease filters
• Remove the filters as per shown below.
• You can clean the filter using the following methods.
- Soak them for about 3 minutes in hot water (40-50 degrees)
with a grease-loosening detergent then brush it gently with a
soft brush. To avoid damaging the filter, please do not apply
too much pressure.
- It can be put into a dishwasher with detergent, set the
temperature at around 45 degrees.
• Please do not use abrasive detergent for it will damage the hood.
127(Make sure that cooker hood is shut down before cleaning
%XOE5HSODFHPHQW
1. Firstly, switch the unit off at the power and pull out the plug.
2. Wait until the light bulb is cooled down before replacement.
3. Replace with the same type of bulb by pushing the bulb slightly
and screwing in or out.
3/($6(127(Alternatively, you can change the bulb from the
inside of the Rangehood, take out the metal filter and have the bulb
replacement from inside of the Rangehood.
13
6SHFLILFDWLRQV
95,/8
)HDWXUHV
Undercupboard rangehood 90cm
Stainless steel finish
3 speed touch control
LED lights – 2 x 2W
3 x grease filters
1000m3/hr
Off-board ducted installation
$FFHVVRULHVLQFOXGHG
Aluminium flexi-duct: 3 metres
Extension electrical power cable:
4 metres
7HFKQLFDO,QIRUPDWLRQ
220-240V/50Hz
271W
150mm ducting spigot
3URGXFW'LPHQVLRQV
+RRG 254mm H x 900mm W
x 296mm D
)DQ0RWRU 256mm H x 320mm W
x 260mm D
MANUFACTURER GUARANTEE
This warranty is provided in Australia by Glen Dimplex Australia Pty Limited ABN 69 118 275 460
(Phone number 1300 556 816) and in New Zealand by Glen Dimplex New Zealand Limited NZBN
9429000069823 (Phone number 09 274 8265) in respect of the Viali product.
1. Viali Express Warranty
Subject to the exclusions below, we warrant that the product will not have any electrical or
mechanical breakdowns within:
a) In the case of Viali products used for personal, domestic or household purposes, a period of
2 years from the date the product is purchased as a brand-new product
from a retailer located in Australia / New Zealand.
b) In the case of Viali products used for purposes other than personal, domestic or household
purposes (including business or commercial use), a period of 90 days from the date the
product is purchased as a brand-new product from a retailer located in Australia / New
Zealand. Viali products are designed and intended for domestic use only; and
c) All warranty repairs must be carried out by Glen Dimplex or their nominated service agent
Note: warranty periods detailed above may vary in line with agreements with select retail and
builder partners and may differ between Australia and New Zealand.
The benefits conferred by this express warranty are in addition to the Consumer Guarantees
referred to in section 3 and any other statutory rights you may have under the Australian / New
Zealand Consumer Law and/or other applicable laws.
2. Warranty exclusions
This express warranty does not apply where:
a) The product has been installed, used or operated otherwise than in accordance with the
product manual or other similar documentation provided to you with the product;
b) The product requires repairs due to damage resulting from accident, misuse, incorrect
installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance,
unauthorised modification, use on an incorrect voltage, power surges and dips, voltage
supply problems, tampering or unauthorised repairs by any persons, use of defective or
incompatible accessories or exposure to abnormally corrosive conditions, events
independent of human control which occurred after the goods left the control of Glen
Dimplex;
14
c) The repair relates to the replacement of consumable parts such as fuses and bulbs or any
other parts of the product which require routine replacement;
d) You are unable to provide us with reasonable proof of purchase for the product;
e) the breakdown occurs after the expiry of the express warranty period set out in section 1 or
f) the product was not purchased in Australia / New Zealand as a brand-new product.
3. Consumer guarantees
Our goods come with guarantees that cannot be excluded under the Australian / New Zealand
Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
4. How to make a claim
You may make a claim under this warranty through our website, contacting our customer care line
or via email. Contact details for Glen Dimplex Australia and New Zealand can be found at the end of
this document
To make a valid claim under this warranty, you must:
a) Lodge the claim with us as soon as possible and no later than 14 days after you first become
aware of the breakdown;
b) Provide us with the product serial number;
c) Provide us with reasonable proof of purchase for the product. This can take the form of a
store receipt, new home handover form or other payment receipt documentation; and
d) If required by us, provide us (or any person nominated by us) with access to the premises at
which the product is located at times nominated by us (so that we can inspect the product).
15
5. Warranty claims
If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply,
we will, at our election, either repair the product or replace the product with a product of identical
specification (or where the product is superseded or no longer in stock, with a product of as close a
specification as possible).
Goods presented for repair may be replaced by refurbished goods of the same type rather than
being repaired. Refurbished parts may be used to repair the goods.
Products are designed and supplied for normal domestic use. We will not be liable to you under this
warranty for business loss or damage of any kind whatsoever.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
www.glendimplex.com.au www.glendimplex.co.nz
Australia New Zealand
Ph: 1300 556 816 Ph: 09 274 8265
16
READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE.
The manufacturer will not be responsible for any damage to property or to persons caused by
incorrect installation or improper use of the appliance.
The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors,
contained in this manual. In addition, the appearance of the figures reported is also purely
indicative.
The manufacturer reserves the right to make changes to its products when considered necessary
and useful, without affecting the essential safety and operating characteristics.
Glen Dimplex constantly seeks ways to improve the specifications and designs of their products.
Whilst every effort is made to produce up to date literature, this document should not be regarded
as an infallible guide. Actual product only should be used to derive cut out sizes.
All appliances must be installed by a qualified person/s with adherence to the relevant electrical,
plumbing and building codes, with compliance being issued as required by state or national
legislation.
Additionally, all upright cookers must have the anti-tilt device installed correctly in adherence to the
relevant standards by a licenced installer.
For maximum effectiveness and efficiency all rangehoods should be installed with the use of
ductwork, by a licenced installer with adherence to the relevant state and national building codes
and regulations.
All Glen Dimplex appliances are for Domestic use only, and must be installed by a licence installer
into Domestic Applications only, without exception and to the required Authorities guidelines. Any
installation outside of this will VOID warranty. Alfresco areas are not a Domestic application.
Distributed by:
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
For full terms and conditions, or to register your product warranty, please visit our website:
www.glendimplex.com.au www.glendimplex.co.nz
For service advice, please contact the Customer Care Centre by phone or email below.
Australia New Zealand
Ph: 1300 556 816 Ph: 09 274 8265
customer.care.ha@glendimplex.com.au [email protected]
VERSION 20211108
Table of contents
Other Viali Ventilation Hood manuals
