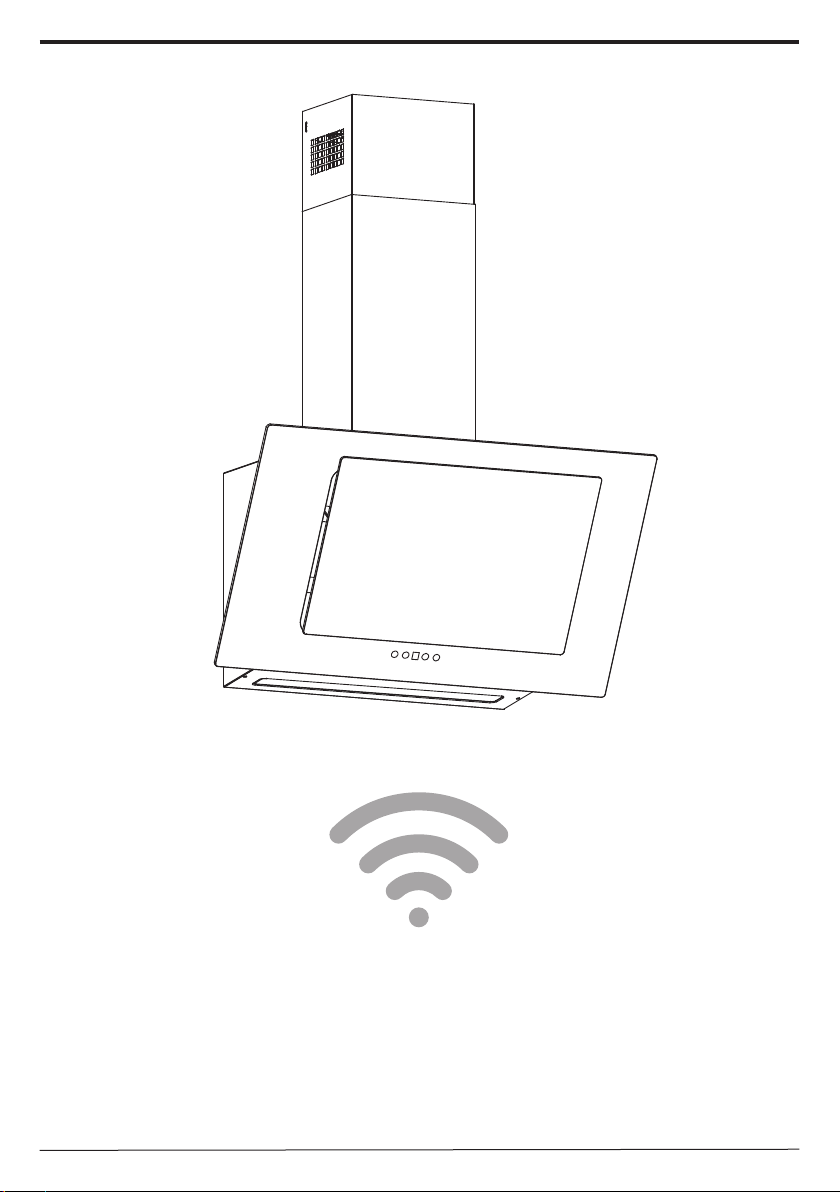

viceroy WRAG60RF User manual

WRAG60RF
WRAG90RF User Manual
WRAG60RF
WRAG90RF User Manual

02
Contents
| Before you start 03
| Safety 03
| Electrical installation 06
| Technical data 07
| Troubleshooting 09
| Guarantee 10
| What's required for installation 12
| What's in the box 12
| Installation 13
| Connectivity 22
| Use 24
| Functions & Settings 24
| Care & Maintenance 26
| Service & Spares 28

These instructions are for your safety.
Please read the following instructions
carefully before proceeding with the
installation and use of this appliance.
WARNING: All installation
work must be carried out by
a suitably qualied person,
strictly following local
building regulations and these
instructions.
• To avoid the risks that are always present
when you use an electrical appliance it is
important that this cooker hood is installed
correctly and that you read the safety
instructions carefully to avoid misuse
and hazards. After unpacking the cooker
hood please check that it is not damaged.
If in doubt, do not use the appliance but
contact Customer Services.
• Check the package and make sure you
have all of the parts listed and decide
upon the appropriate location for your
product. If this product contains glass
please take care with tting or handling to
prevent personal injury or damage to the
product. The specication plate shown on
this appliance displays all the necessary
identication information for ordering
replacement parts. If you sell the appliance,
give it away, or leave it behind when you
move house, please ensure that you pass
on this manual so that the new owner can
become familiar with the appliance and its
safety warnings.
There is a risk of electric shock
and re if cleaning is not carried
out in accordance with these
instructions.
Where applicable, this hood is
supplied with xings. Please
ensure you use the correct xings
suitable for the substrate where
the hood will be installed and
that they are able to support the
weight of the hood.
Use only the same size of
ttings and mounting screws as
recommended in this instruction
manual. Failure to follow these
instructions may result in
electrical hazards.
Switch o the hood at the mains
supply before carrying out any
maintenance work or cleaning.
Accessible parts may become
hot when used with cooking
appliances. Children less than 8
years of age shall be kept away
unless continuously supervised
and care should be taken to avoid
touching the appliance.
Do not ambé under the hood.
To avoid the risk of re, clean or
replace the grease lter regularly
and closely monitor pans
containing hot oil.
| Before you start | Safety
continued overleaf
03
Safety

| Safety (continued)
Means for full disconnection
must be incorporated in the xed
wiring in accordance with the
local wiring installation rules
for your country. An all-pole
disconnection switch having a
contact separation of at least
3mm in all poles should be
connected during installation.
When the hood is located above
an appliance, please refer to
dimension A in Step 2 of the
installation diagram for the
minimum distance between
the supporting surface for the
cooking vessels on the hob and
the lowest part of the hood.
Before connecting the hood,
check that the supplied voltage
and frequency match with that
indicated on the appliance
rating plate. Failure to install the
appliance in accordance with
these instructions may result in a
safety hazard. If in doubt, ask for
advice instore or from a qualied
installer.
Consult local regulations
regarding extraction outlets
and ensure these are complied
with. Do not connect the hood
to a ventilation or hot air duct
containing combustion fumes
from burning gas or other fuels.
Conrm that room ventilation
is appropriate with the local
authorities.
The hood may stop working
during an electrostatic discharge
(e.g. lightning). This involves no
risk of damage. Switch o the
electricity supply to the hood and
reconnect after one minute.
This hood can be used by children
aged from 8 years and above and
persons with reduced physical,
sensory or mental capabilities
or lack of experience and
knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved. Children shall
not play with the hood. Cleaning
and user maintenance shall not
be made by children without
supervision. Keep the hood and
its supply cord out of the reach of
children less than 8years old.
04
Safety

05
Safety
• Do not install the appliance outdoors in
a damp place or in an area which may be
prone to water leaks such as under or near
a sink unit. In the event of a water leak
aecting the appliance, do not use and
contact customer services to arrange for
inspection.
• Do not use ammable sprays in close
vicinity to the appliance.
• If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualied persons in order
to avoid a safety hazard.
• Please dispose of the packing material
carefully. There is a re risk if cleaning is not
carried out in accordance with
the instructions. Refer to the Care and
Maintenance sections carefully for details
on how to clean and replace the aluminium
and carbon lters (if tted).
• The LED lamps in this appliance are not
replaceable by the consumer. If a lamp fails,
please contact the customer helpline at the
end of Care & maintenance to arrange an
engineer visit.
• Do not use a steam cleaner for care and
maintenance.
• The appliance is not intended to be
operated by means of an external timer or
separate remote control system.
• There shall be adequate ventilation of the
room when the hood is used at the same
time as appliances burning gas or other
fuels. Ensure that the negative pressure of
the installation site does not exceed 4 Pa
(0.04 mbar) to ensure combustion fumes
are not drawn back into the room.
• Do not use the hood if it shows signs of
damage or imperfection. Contact customer
services for assistance.
• The manufacturer declines all liability for
personal or material damage as a result
of misuse or incorrect installation of this
appliance.
• The appliance is for domestic use only as
an extractor hood.
| Safety (continued)
