viceroy WRCAN60RF User manual

WRCAN60RF
WRCAN90RF User Manual
WRCAN60 & 90RF Hood IM V2 MAY.indd 1WRCAN60 & 90RF Hood IM V2 MAY.indd 1 25/05/2022 15:4925/05/2022 15:49

02
Contents
| Before you start 03
| Safety 03
| Electrical installation 06
| Technical data 07
| Troubleshooting 09
| Guarantee 10
| What's required for installation 12
| What's in the box 12
| Installation 13
| Connectivity 18
| Use 20
| Functions & Settings 20
| Care & Maintenance 22
| Service & Spares 24
WRCAN60 & 90RF Hood IM V2 MAY.indd 2WRCAN60 & 90RF Hood IM V2 MAY.indd 2 25/05/2022 15:4925/05/2022 15:49

03
Safety
These instructions are for your safety.
Please read the following instructions
carefully before proceeding with the
installation and use of this appliance.
WARNING: All installation
work must be carried out by
a suitably qualied person,
strictly following local
building regulations and these
instructions.
• To avoid the risks that are always present
when you use an electrical appliance it is
important that this cooker hood is installed
correctly and that you read the safety
instructions carefully to avoid misuse
and hazards. After unpacking the cooker
hood please check that it is not damaged.
If in doubt, do not use the appliance but
contact Customer Services.
• Check the package and make sure you
have all of the parts listed and decide
upon the appropriate location for your
product. If this product contains glass
please take care with tting or handling to
prevent personal injury or damage to the
product. The specication plate shown on
this appliance displays all the necessary
identication information for ordering
replacement parts.
If you sell the appliance, give it away, or
leave it behind when you move house,
please ensure that you pass on this manual
so that the new owner can become familiar
with the appliance and its safety warnings.
| Before you start | Safety
There is a risk of electric shock
and re if cleaning is not carried
out in accordance with these
instructions.
Where applicable, this hood is
supplied with xings. Please
ensure you use the correct xings
suitable for the substrate where
the hood will be installed and
that they are able to support the
weight of the hood.
Use only the same size of
ttings and mounting screws as
recommended in this instruction
manual. Failure to follow these
instructions may result in
electrical hazards.
Switch o the hood at the mains
supply before carrying out any
maintenance work or cleaning.
Accessible parts may become
hot when used with cooking
appliances. Children less than 8
years of age shall be kept away
unless continuously supervised
and care should be taken to avoid
touching the appliance.
Do not ambé under the hood.
To avoid the risk of re, clean or
replace the grease lter regularly
and closely monitor pans
containing hot oil.
continued overleaf
WRCAN60 & 90RF Hood IM V2 MAY.indd 3WRCAN60 & 90RF Hood IM V2 MAY.indd 3 25/05/2022 15:4925/05/2022 15:49

04
Safety
Means for full disconnection
must be incorporated in the xed
wiring in accordance with the
local wiring installation rules
for your country. An all-pole
disconnection switch having a
contact separation of at least
3mm in all poles should be
connected during installation.
When the hood is located above
an appliance, please refer to
dimension A in Step 2 of the
installation diagram for the
minimum distance between
the supporting surface for the
cooking vessels on the hob and
the lowest part of the hood.
Before connecting the hood,
check that the supplied voltage
and frequency match with that
indicated on the appliance
rating plate. Failure to install the
appliance in accordance with
these instructions may result in a
safety hazard. If in doubt, ask for
advice instore or from a qualied
installer.
Consult local regulations
regarding extraction outlets
and ensure these are complied
with. Do not connect the hood
to a ventilation or hot air duct
containing combustion fumes
from burning gas or other fuels.
Conrm that room ventilation
is appropriate with the local
authorities.
The hood may stop working
during an electrostatic discharge
(e.g. lightning). This involves no
risk of damage. Switch o the
electricity supply to the hood and
reconnect after one minute.
This hood can be used by children
aged from 8 years and above and
persons with reduced physical,
sensory or mental capabilities
or lack of experience and
knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved. Children shall
not play with the hood. Cleaning
and user maintenance shall not
be made by children without
supervision. Keep the hood and
its supply cord out of the reach of
children less than 8years old.
| Safety (continued)
WRCAN60 & 90RF Hood IM V2 MAY.indd 4WRCAN60 & 90RF Hood IM V2 MAY.indd 4 25/05/2022 15:4925/05/2022 15:49

05
Safety
• Do not install the appliance outdoors in
a damp place or in an area which may be
prone to water leaks such as under or near
a sink unit. In the event of a water leak
aecting the appliance, do not use and
contact customer services to arrange for
inspection.
• Do not use ammable sprays in close
vicinity to the appliance.
• If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualied persons in
order to avoid a safety hazard.
• Please dispose of the packing material
carefully. There is a re risk if cleaning is
not carried out in accordance with
the instructions. Refer to the Care and
Maintenance sections carefully for
details on how to clean and replace the
aluminium and carbon lters (if tted).
• The LED lamps in this appliance are not
replaceable by the consumer. If a lamp
fails, please contact the customer helpline
at the end of Care & Maintenance to
arrange an engineer visit.
• Do not use a steam cleaner for care and
maintenance.
• The appliance is not intended to be
operated by means of an external timer or
separate remote control system.
• There shall be adequate ventilation of the
room when the hood is used at the same
time as appliances burning gas or other
fuels. Ensure that the negative pressure of
the installation site does not exceed 4 Pa
(0.04 mbar) to ensure combustion fumes
are not drawn back into the room.
• Do not use the hood if it shows signs of
damage or imperfection. Contact customer
services for assistance.
| Safety (continued)
• The manufacturer declines all liability for
personal or material damage as a result
of misuse or incorrect installation of this
appliance.
• The appliance is for domestic use only as
an extractor hood.
WRCAN60 & 90RF Hood IM V2 MAY.indd 5WRCAN60 & 90RF Hood IM V2 MAY.indd 5 25/05/2022 15:4925/05/2022 15:49

06
Safety
All installation must be carried out by a
competent person or qualied electrician.
Before connecting the mains supply ensure
that the mains voltage corresponds to the
voltage on the rating plate.
Direct Connection
The appliance must be connected directly to
the mains using an omnipolar circuit breaker
with a minimum opening of 3mm between
the contacts.
The installer must ensure that the correct
electrical connection has been made and that
it complies with the wiring diagram.
The cable must not be bent or compressed.
Regularly check the power plug and
power cord for damage. If the supply
cord is damaged, it must be replaced by a
special cord or assembly available from the
manufacturer or its service agent.
WARNING: This is a Class II
appliance and MUST NOT
BE EARTHED.
This appliance is supplied with a 2 core mains
cable coloured as follows:
Brown = L or Live
Blue = N or Neutral
| Electrical installation
To avoid the risks that are always present
when you use an electrical appliance it is
important that this appliance is installed
correctly and that you read the safety
instructions carefully to avoid misuse and
hazards. Please keep this instruction booklet
for future reference and pass it on to any
future owners. After unpacking the appliance
please check that it is not damaged. If in
doubt, do not use the appliance but contact
Customer Services.
The manufacturer declines all liability for
damage caused to persons and objects
due to incorrect or improper installation
of the appliance. Any permanent electrical
installation must comply with the latest
wiring regulations applicable to your country
and for your own safety a qualied electrician
or contractor should undertake the electrical
installation.
The appliance is supplied from the factory to
use external ducting (not supplied). Should
you wish to use this in recirculation mode
only, please t the correct carbon lter (not
supplied).
FUSE ON
Double Pole Switched Fused Spur Outlet
USE A 3AMP FUSE
WRCAN60 & 90RF Hood IM V2 MAY.indd 6WRCAN60 & 90RF Hood IM V2 MAY.indd 6 25/05/2022 15:4925/05/2022 15:49

07
Safety
| Technical data
Value
Trademark
Model identication WRCAN60RF
WRCAN90RF
Annual Energy Consumption (AEC hood) (kWh/year) 64
Energy Eciency class B
Fluid Dynamic Eciency 28.6
Fluid Dynamic Eciency class B
Lighting Eciency (LEhood) (lux/W) 21
Lighting Eciency class B
Grease Filtering Eciency (GFE hood) 91.2
Grease Filtering Eciency class (GFEhood) B
Minimum air ow at working point (in normal use) (m3/h) 324
Maximum air ow at working point (in normal use) (m3/h) 556
Maximum air ow at highest setting (Qmax) (m3/h) 560
Maximum air ow at highest setting (Qmax) (m3/h) (with Boost) 750
Weighted sound power level at minimum setting (LWA) (dB) 53
Weighted sound power level at maximum setting (LWA) (dB) 66
Sound power level of boost if any (LWA) (dB) 71
Measured power consumption o mode (Po) (W) 0.3
Measured power consumption in standby mode (Ps) (W) 0.3
Information for EU No. 66/2014 and No. 65/2014 A.
Information of the cooker hood.
Supply voltage 220-240V~ 50Hz
Power consumption - Fan 280W
Power consumption - Cooking Light 1 x 5W Max
Power consumption - Total 285W
Protection class I I
ILCOSD Code - Cooking Light DSS-5-S
Frequency band 434 MHz
WRCAN60 & 90RF Hood IM V2 MAY.indd 7WRCAN60 & 90RF Hood IM V2 MAY.indd 7 25/05/2022 15:4925/05/2022 15:49

08
Safety
| Technical data
Time increase factor (f) 1.0
Energy Eciency Index (EEIhood) 58.6
Measured air ow rate at best eciency point (QBEP) (m3/h) 425.5
Measured air pressure at best eciency point (PBEP) (Pa) 396
Measured electric power input at best eciency point (WBEP) (W) 164
Nominal power of the lighting system (WL) (W) 5
Average illumination of the lighting system on the cooking surface (Emiddle) (lux) 105
The measurement and calculation method of the above table was done in accordance with
Commission Delegated Regulation (EU) No 65/2014 & Commission Regulation (EU) No 66/2014.
B. The following shows how to reduce total
environmental impact (e.g. energy use) of
the cooking process.
1. Install the cooker hood in a proper place
where there is ecient ventilation.
2. Clean the cooker hood regularly so as not
to block the airway.
3. Remember to switch o the cooker hood
light after cooking.
4. Remember to switch o the cooker hood
after cooking.
C. Information for dismantling.
This appliance cannot be dismantled by the
user, other than that as shown in the original
assembly of the user manual.
At the end of its useful life, the appliance
should not be disposed of with household
waste. Check with your local governmental
authority, domestic waste disposal services or
the retailer where the product was bought for
recycling advice.
WRCAN60 & 90RF Hood IM V2 MAY.indd 8WRCAN60 & 90RF Hood IM V2 MAY.indd 8 25/05/2022 15:4925/05/2022 15:49

09
Safety
| Troubleshooting
Problem Possible cause Solution
Excessive vibration.
The appliance is not installed
properly on the brackets.
Take down the appliance and
check it is properly xed.
The fan blade is damaged.
Switch o the appliance.
Repair to be carried out by
qualied service personnel only.
The fan motor is not xed tightly.
The light is on, but the
fan does not work.
The fan blade is jammed.
The motor is damaged.
Both the light and
motor do not work.
Light bulb blown. Ring the customer helpline at the
end of the Care & maintenance
section to arrange an engineer
visit.
Power connection loose. Check power supply.
Suction performance
reduced.
Speed may be too low. Select a higher speed.
Aluminium lters are dirty. Clean the aluminium lters. (See
Care and maintenance section).
Top vent might be obstructed. Clear any obstruction.
Optional vent kit might be
twisted.
Ensure that the vent kit is tted
according to the manufacturer's
instructions.
The installation may not
comply with the manufacturers
instructions.
The vent hose should be correct
diameter throughout with no
reductions or restriction.
(See installation section).
Works normally but
cooking smells linger.
Carbon lter is not tted in
recirculation mode or is full of
grease.
Fit carbon lter or replace the
carbon lter (See Care and
maintenance section).
The hood does not
work.
Check that the hood is connected to power. Check that the fuses or
automatic have not jumped.
The hood still does
not work.
If, after having checked the points mentioned above, your problem
has not yet been solved, contact the technical service or your
distributor.
This appliance respects laws of the suppression of radio interference. As the Manufacturer has
a policy of continuous product improvement, it reserves the right to adapt and carry out any
modication considered necessary without prior warning.
WRCAN60 & 90RF Hood IM V2 MAY.indd 9WRCAN60 & 90RF Hood IM V2 MAY.indd 9 25/05/2022 15:4925/05/2022 15:49

10
(EU) Declaration of Conformity
Name and address of the manufacturer or his
authorised representative:
AAUK Ltd
Unit 3 Normandy Landings
Pope Street, Castleford
West Yorkshire
WF6 2AG
This declaration of conformity is issued under
the sole responsibility of the manufacturer.
Object of the declaration:
• Product: Canopy Extractor Hood
• Model: WRCAN60RF
• Model: WRCAN90RF
The object of the declaration described above
is in conformity with the relevant Union
harmonisation legislation:
• 2014/53/EU as amended
Radio Equipment Directive
References to the relevant harmonised
standards used or references to the other
technical specications in relation to which
conformity is declared:
• EN 300 220-2 V3.1.1
• EN 300 220-1 V3.1.1
• EN 301 489-1 V2.2.3
• EN 301 489-3 V2.1.1
| Declaration of Conformity
(UK) Declaration of Conformity
Name and address of the manufacturer or his
authorised representative:
AAUK Ltd
Unit 3 Normandy Landings
Pope Street, Castleford
West Yorkshire
WF6 2AG
This declaration of conformity is issued under
the sole responsibility of the manufacturer.
Object of the declaration:
• Product: Canopy Extractor Hood
• Model: WRCAN60RF
• Model: WRCAN90RF
The object of the declaration described above
is in conformity with the relevant legislation:
• Radio Equipment Regulations 2017
as amended
References to the relevant designated
standards used or references to the other
technical specications in relation to which
conformity is declared:
• EN 300 220-2 V3.1.1
• EN 300 220-1 V3.1.1
• EN 301 489-1 V2.2.3
• EN 301 489-3 V2.1.1
Guarantee
WRCAN60 & 90RF Hood IM V2 MAY.indd 10WRCAN60 & 90RF Hood IM V2 MAY.indd 10 25/05/2022 15:4925/05/2022 15:49

11
Guarantee
Waste electrical products (WEEE) should not
be disposed of with household waste.
Please recycle where facilities exist. Check
with your local governmental authority,
domestic waste disposal services or the
retailer where the product was bought for
recycling advice.
The wheelie bin symbol on the product or its
packaging indicates that this product cannot
be treated as normal household waste. This
product must be handed over to an electric
and electronic equipment collection point
for recycling.
On ensuring that this product is disposed
of correctly, you will help to avoid possible
negative consequences for the environment
and public health, which could occur if this
product is not handled correctly.
| Recycling & disposal
WRCAN60 & 90RF Hood IM V2 MAY.indd 11WRCAN60 & 90RF Hood IM V2 MAY.indd 11 25/05/2022 15:4925/05/2022 15:49

12
Installation

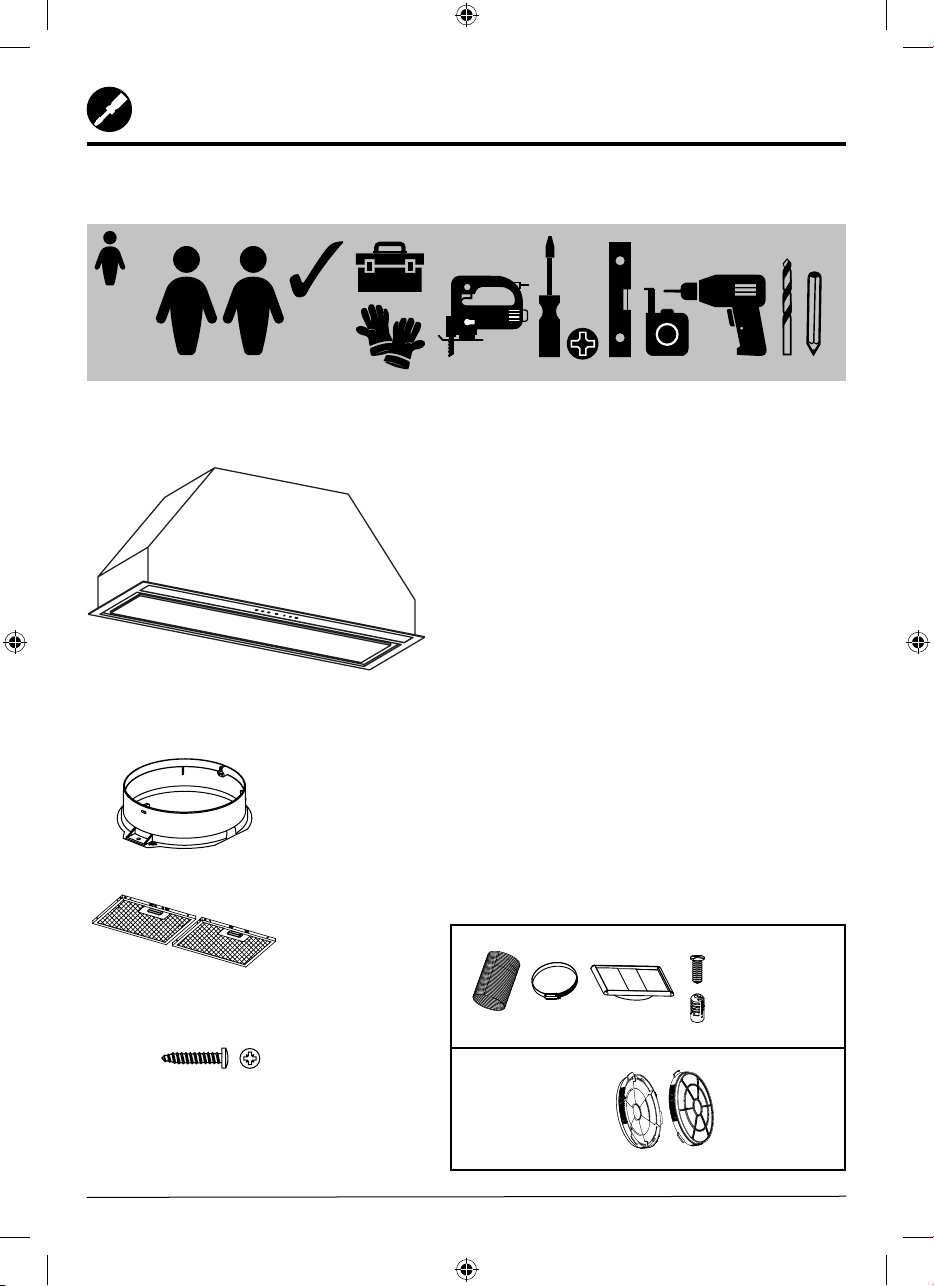

| What's in the box
02 x 1
04 x 2
3.5 x 12mm
01 x 1
03 x1 PAIR
X2
| What's required for installation
WRKITV2
Vent Pack
Ø150mm
WRFILT8
Not included
19
EN Installation
PL Montaż
FR Installation
RO Instalare
10A
[07] x 2
[04] x 1
EN Only for ducted option.
PL Tylko dla opcji z kanałem
wentylacyjnym.
FR Uniquement pour l’option avec
conduit.
RO Numai pentru opţiunea de montare
cu tubulatură.
[07]
[04]
11A
VENT PACK
(Ø150 mm)
19
EN Installation
PL Montaż
FR Installation
RO Instalare
10A
[07] x 2
[04] x 1
EN Only for ducted option.
PL Tylko dla opcji z kanałem
wentylacyjnym.
FR Uniquement pour l’option avec
conduit.
RO Numai pentru opţiunea de montare
cu tubulatură.
[07]
[04]
11A
VENT PACK
(Ø150 mm)
WRCAN60 & 90RF Hood IM V2 MAY.indd 12WRCAN60 & 90RF Hood IM V2 MAY.indd 12 25/05/2022 15:4925/05/2022 15:49

13
Installation
01

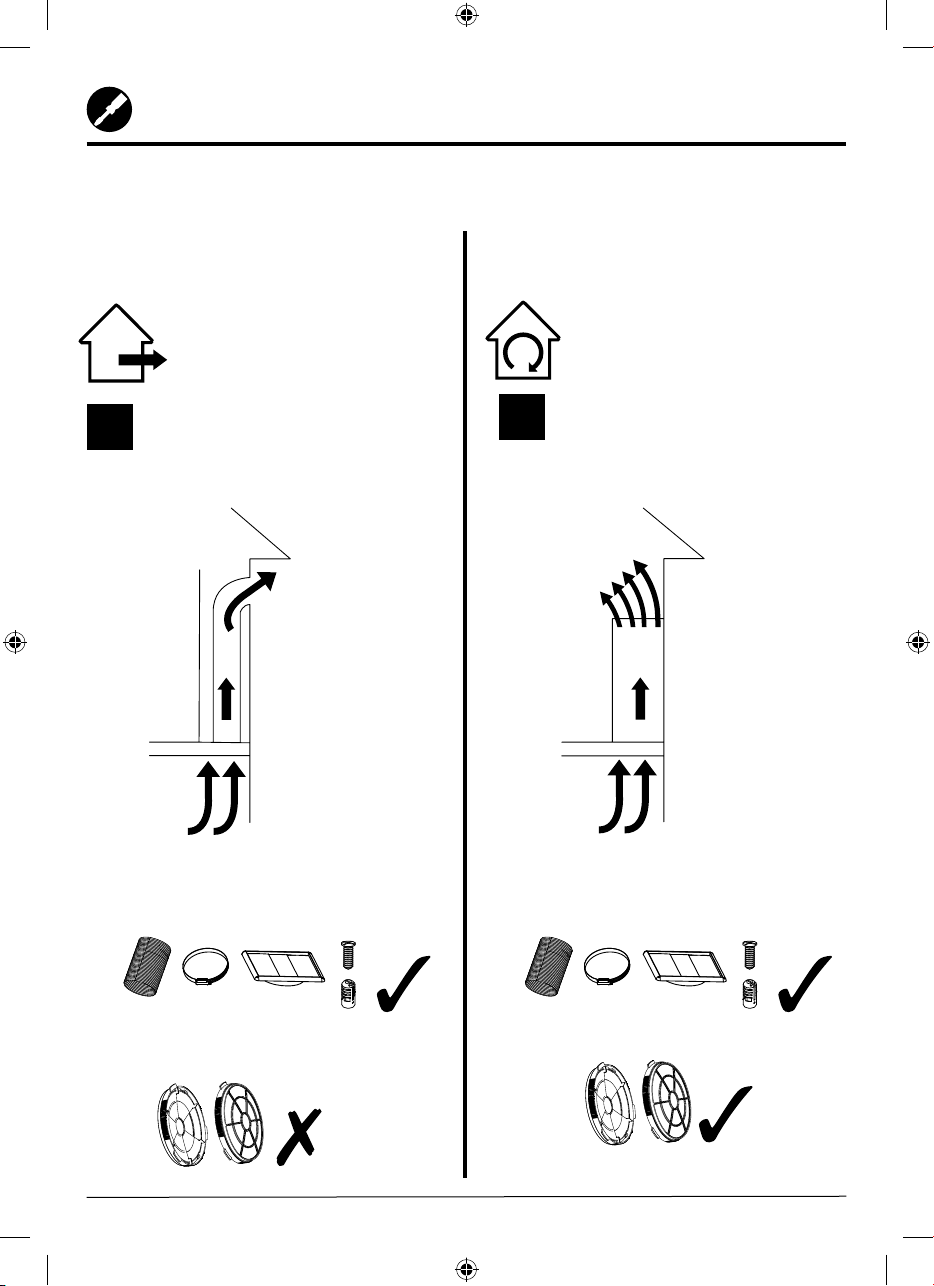

| Choose a type of installation
DUCTED OPTION
(extraction to the outside)
ARECIRCULATION OPTION
(no extraction to the outside).
This appliance is for installation
on a wall only.
B
WRFILT8
WRKITV2 Vent Pack Ø150mm
19
EN Installation
PL Montaż
FR Installation
RO Instalare
10A
[07] x 2
[04] x 1
EN Only for ducted option.
PL Tylko dla opcji z kanałem
wentylacyjnym.
FR Uniquement pour l’option avec
conduit.
RO Numai pentru opţiunea de montare
cu tubulatură.
[07]
[04]
11A
VENT PACK
(Ø150 mm)
19
EN Installation
PL Montaż
FR Installation
RO Instalare
10A
[07] x 2
[04] x 1
EN Only for ducted option.
PL Tylko dla opcji z kanałem
wentylacyjnym.
FR Uniquement pour l’option avec
conduit.
RO Numai pentru opţiunea de montare
cu tubulatură.
[07]
[04]
11A
VENT PACK
(Ø150 mm)
WRKITV2 Vent Pack Ø150mm
19
EN Installation
PL Montaż
FR Installation
RO Instalare
10A
[07] x 2
[04] x 1
EN Only for ducted option.
PL Tylko dla opcji z kanałem
wentylacyjnym.
FR Uniquement pour l’option avec
conduit.
RO Numai pentru opţiunea de montare
cu tubulatură.
[07]
[04]
11A
VENT PACK
(Ø150 mm)
19
EN Installation
PL Montaż
FR Installation
RO Instalare
10A
[07] x 2
[04] x 1
EN Only for ducted option.
PL Tylko dla opcji z kanałem
wentylacyjnym.
FR Uniquement pour l’option avec
conduit.
RO Numai pentru opţiunea de montare
cu tubulatură.
[07]
[04]
11A
VENT PACK
(Ø150 mm)
WRCAN60 & 90RF Hood IM V2 MAY.indd 13WRCAN60 & 90RF Hood IM V2 MAY.indd 13 25/05/2022 15:4925/05/2022 15:49

14

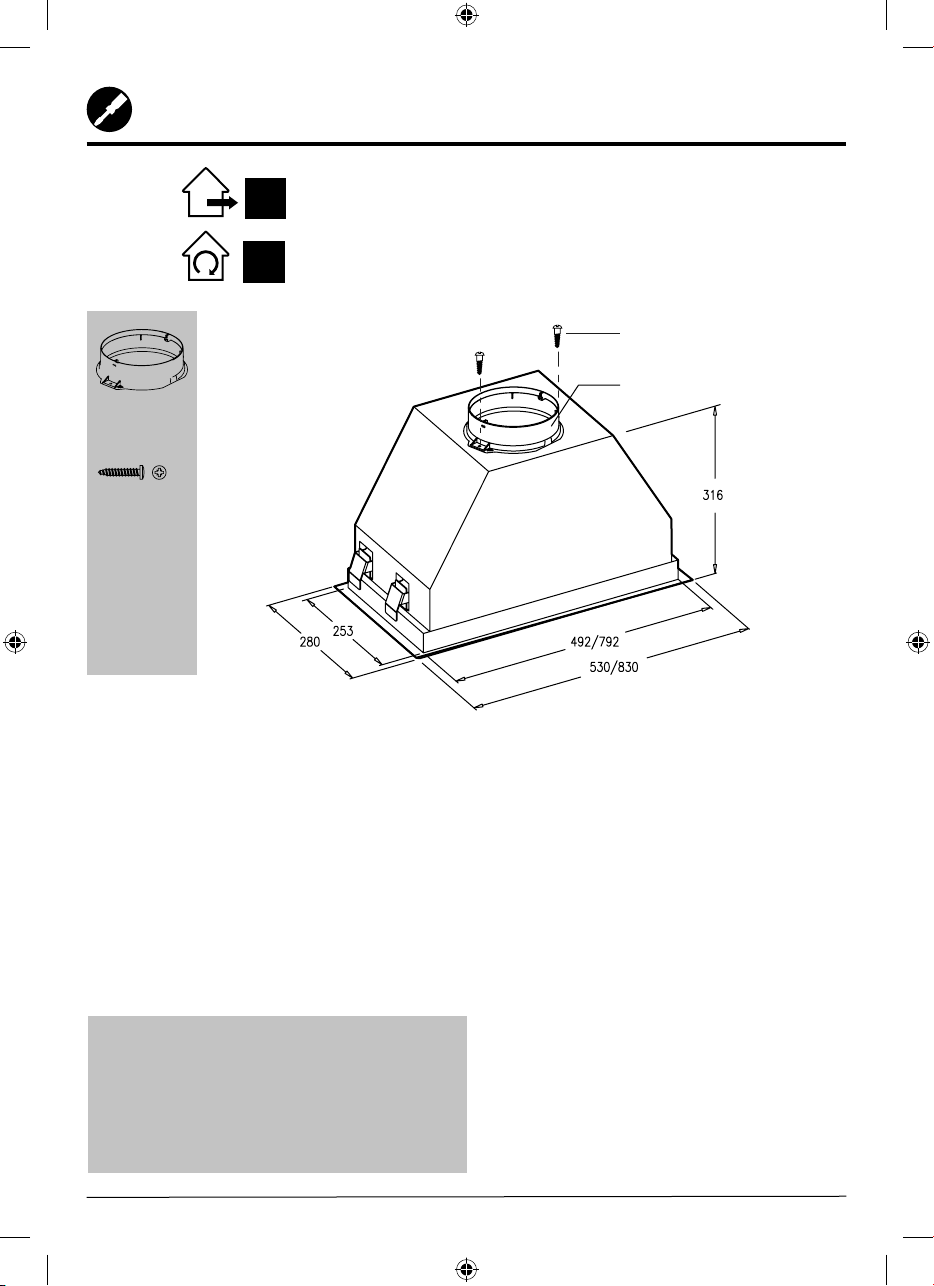

Installation
WARNING: Please follow the
Safety and Electrical Installation
sections at the start of this
manual before connecting this
appliance to the mains supply.
02 x 1
04 x 2
3.5 x 12mm
01
04
02 DUCTED OPTION
(extraction to the outside)
A
RECIRCULATION OPTION
(no extraction to the outside)
B
WRCAN60 & 90RF Hood IM V2 MAY.indd 14WRCAN60 & 90RF Hood IM V2 MAY.indd 14 25/05/2022 15:4925/05/2022 15:49

15
Installation
≥ 75cm
≥ 65cm
03
260
502/802
>450mm
>650mm
Diagram shows minimum distance between hood & hob
WRCAN60 & 90RF Hood IM V2 MAY.indd 15WRCAN60 & 90RF Hood IM V2 MAY.indd 15 25/05/2022 15:4925/05/2022 15:49

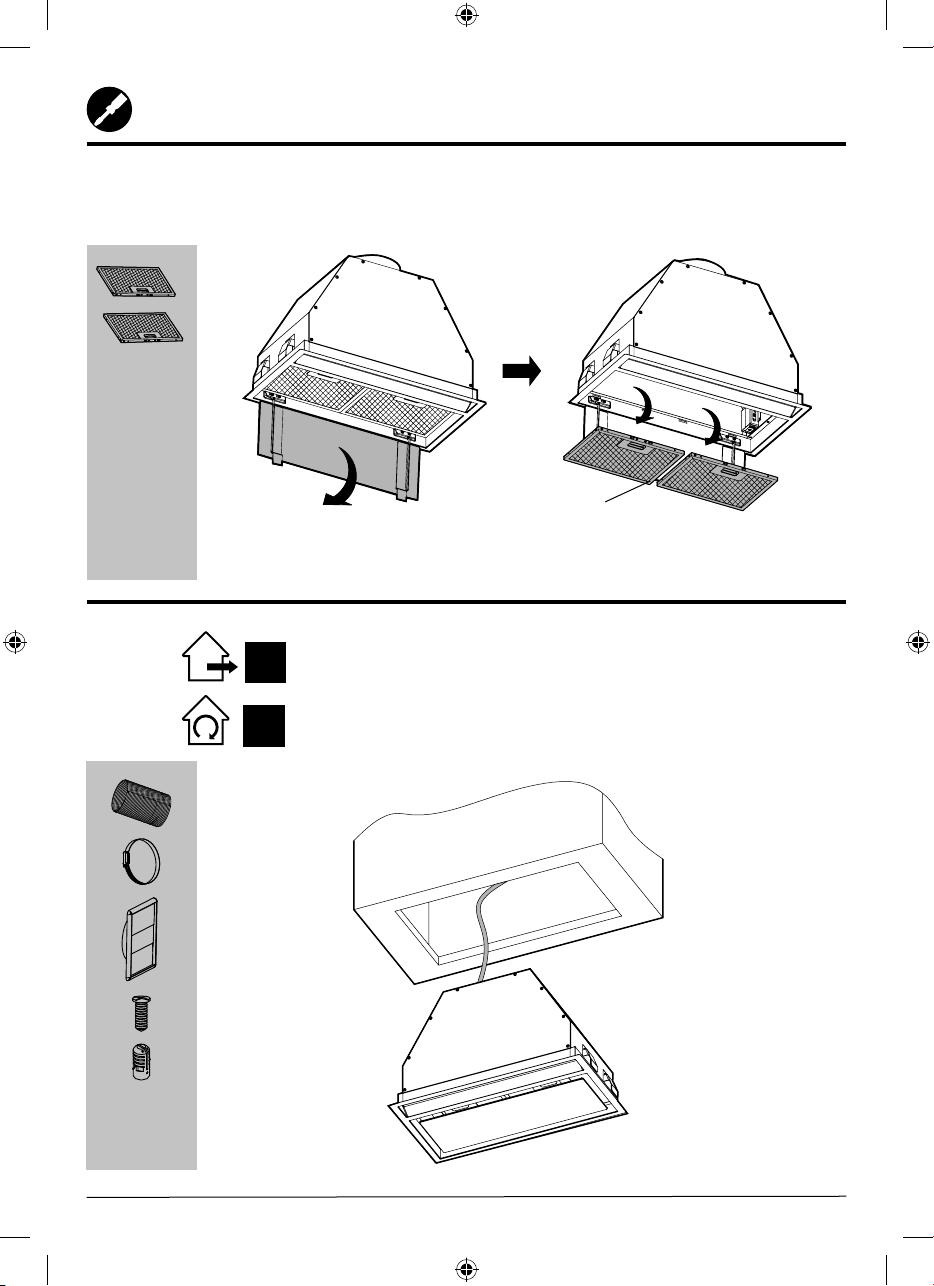

16
Installation
04
05
03 x 1
PAIR
03
19
EN Installation
PL Montaż
FR Installation
RO Instalare
10A
[07] x 2
[04] x 1
EN Only for ducted option.
PL Tylko dla opcji z kanałem
wentylacyjnym.
FR Uniquement pour l’option avec
conduit.
RO Numai pentru opţiunea de montare
cu tubulatură.
[07]
[04]
11A
VENT PACK
(Ø150 mm)
WRKITV2
Vent Pack
Ø150mm
DUCTED OPTION
(extraction to the outside)
A
RECIRCULATION OPTION
(no extraction to the outside)
B
WRCAN60 & 90RF Hood IM V2 MAY.indd 16WRCAN60 & 90RF Hood IM V2 MAY.indd 16 25/05/2022 15:4925/05/2022 15:49

17

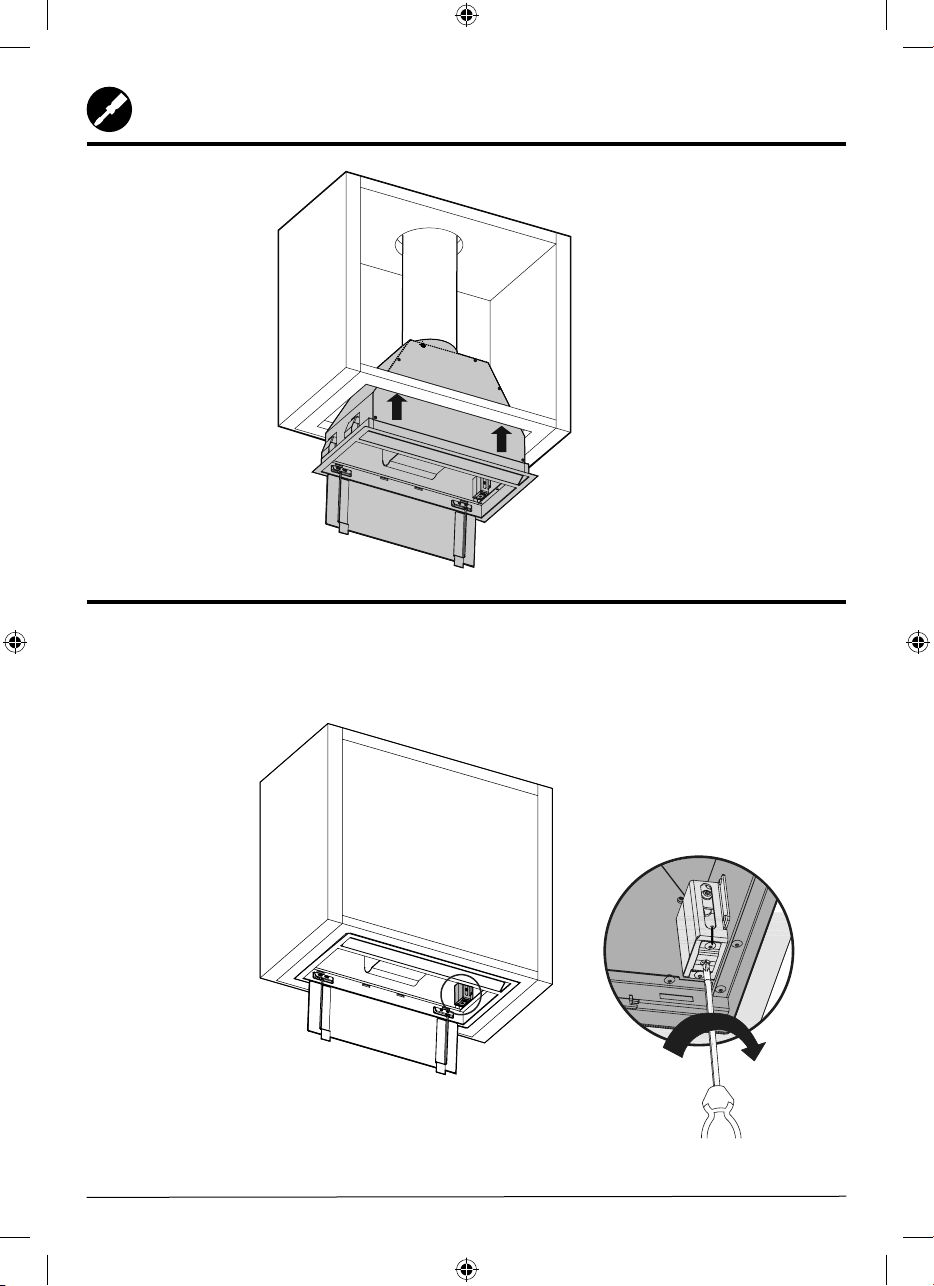

Installation
06
07
WRCAN60 & 90RF Hood IM V2 MAY.indd 17WRCAN60 & 90RF Hood IM V2 MAY.indd 17 25/05/2022 15:4925/05/2022 15:49

18
Connectivity
Setting up a new linking method
1. Make sure that the hob and the hood is o.
2. Touch the Timer Key and Speed Key
together on the hood control panel for
more than 2 seconds. All icons will blink in
blue/white alternately for 30 seconds whilst
waiting for the pairing code from the hob.
3. Turn on the hob and make
sure the Connectivity Indicator
lamp is lit up red.
4. Press the keys and together on
the hob and the connection indicator will
ash to conrm connection.
5. All icons on the hood will light up for
5 seconds to indicate connectivity has been
made with the hob.
6. Press the keys and together
on the hob one more time to store the
connectivity settings.
Note: Touch the Connectivity Key
if the Connectivity Indicator is o.
1 2 3 P
3
| Connecting a Viceroy WRCAN60RF/90RF hood with a Viceroy hob
IMPORTANT: The connectivity operation must be completed within
2 minutes of turning on the power to the hood. If this is not
successful, switch o both the hood and the hob, wait for one
minute and attempt the connectivity again.
WRCAN60 & 90RF Hood IM V2 MAY.indd 18WRCAN60 & 90RF Hood IM V2 MAY.indd 18 25/05/2022 15:4925/05/2022 15:49

19
Connectivity
IMPORTANT: The extraction rate of the hood will vary based upon
the total power output selected on the hob, as shown in the table
below. Each hob cooking zone has a maximum rated output of 10
comprising 1-9 and Boost (10).
If the hood controls are manually overridden when the hob and hood are linked, the hood
will operate for 5 minutes on this manual setting before returning to control by the hob.
Ensure the Connectivity Indicator is lit on the hob control panel.
Stopping the connectivity function
1. Touch the connectivity key on the hob, the indicator light will go out and the link will
be dropped. To reconnect again, press the connectivity key on the hob again.
2. If the hob is switched o, the hood will continue to operate independently in Timer mode and
the current speed will ash. The current speed level of the hood will continue for 5 minutes
and step down for 2 minutes at each level until nally switching o.
Speed Level of the Hood Combined Power Output of the Hob
Speed 1 This speed will be selected when the combined output is less
than 11.
Speed 2 This speed will be selected when the combined output is
between 11 and 21.
Speed 3 This speed will be selected when the combined output is
between 22 and 27.
Speed P – Boost This speed will be selected when the combined output is greater
than 27.
| Using the connectivity function
WRCAN60 & 90RF Hood IM V2 MAY.indd 19WRCAN60 & 90RF Hood IM V2 MAY.indd 19 25/05/2022 15:4925/05/2022 15:49

20
Use
WARNING: Please read the instructions before using the appliance.
Switch on the appliance at the switched fused connection unit. The appliance is ready for use.
| Before you start
| Functions & Settings

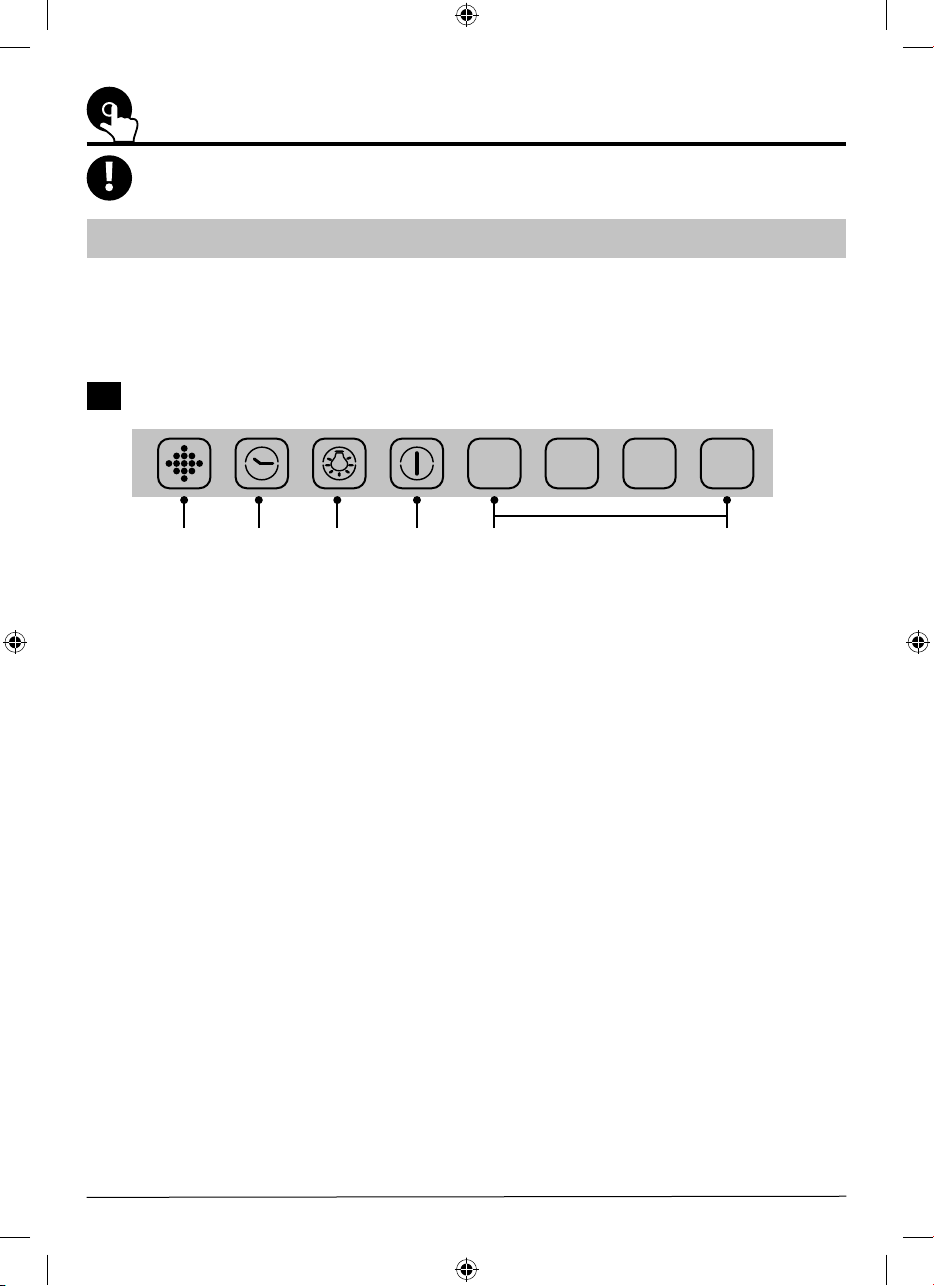

01 Control panel
1. Filter Clean Warning
2. Timer
3. Light On/O
4. Fan On/O
5. Fan Speeds
6. Boost Speed Increase
2 31 4 5
1 2 3 P
6
WRCAN60 & 90RF Hood IM V2 MAY.indd 20WRCAN60 & 90RF Hood IM V2 MAY.indd 20 25/05/2022 15:4925/05/2022 15:49
