Vicko AS175-3 User manual

22
Electric Vacuum Cleaner 2 in 1
• 2 functions in 1 appliance
• 600W
• Energy efficiency class: A+
• High efficiency
• Low Noise
• Dust Canister 0,6 Liters
• Multi-level Filtering System
• Foldable handle for easy storing
Model No: AS175-3
Ref. No: 863-8079
Instructions Manual & Product Fiche

23
ATTENTION! - IMPORTANT SAFEGUARDS
1. This appliance is designed for private, domestic use only. No responsibility is
accepted for damage resulting from use non-compatible with the instructions.
2. The appliance is not intended to be used in the following applications, and
the guarantee will not apply for:
Any commercial use.
Staff kitchen areas in shops, offices and other working environments.
Farm houses.
By clients in hotels, motels and other residential, bed and breakfast type
environments.
3. This appliance is used only for dry dust cleaning from carpets and floors.
4. The appliance is only intended to be used indoors and not outdoors.
5. Do not operate the appliance if the power cord shows any signs of damage.
If the supply cord is damaged, it must be repaired by a qualified person in
order to avoid a hazard. Improper repairs may place the user at serious risk.
6. Always handle the power cord with care. Do not pull or strain the power cord.
The power cord may never be folded or pinched. Always pull the plug to
disconnect the power cord, never pull the cord to disconnect it.
7. Do not use the cord as a handle.
8. Do not let the cord wedged between a closed door.
9. Do not pull the cord near sharp corners.
10. Do not let the cable resting on a hot surface.
11. Do not run the appliance over the power cable.
12. Do not use any accessories not recommended by the manufacturer. It may
cause injury and device destruction.
13. Do not use with a voltage converter.
14. Do not place or store the appliance on or near a microwave oven, electric
oven, gas oven or washing machine.
15. Keep the appliance away from flammable objects or other heat source.
16. Do not use outdoors or where aerosol spray products are being used or
where oxygen is being administrated.
17. The socket must be easily accessible at any time to ensure that the unit can
be disconnected quickly from the electricity supply.
18. Do not use this product while standing in water or on wet surfaces.
19. Use extra caution when cleaning on stairs.
20. Never use the appliance near a swimming pool, or any other place with
humidity and high temperature.
21. The appliance should not be exposed to extreme weather conditions (rain,
etc.) or any wet conditions.
22. Do not place or store the appliance where it can fall or be pulled into a tub of
sink.
23. Do not operate the appliance with wet hands.
24. Do not use while you are in contact with water.

24
25. Do not immerse the appliance in water or any other liquids.
26. Do not touch an appliance that has fallen into water. Just pull the plug off.
27. Never use the appliance to clean liquids.
28. Do not use the appliance on wet surfaces.
29. Do not use the appliance to clean surfaces with chlorine, ammonia, or other
cleansers.
30. Do not use the appliance to clean hard-sharp objects such as glasses, etc.
31. Do not use the appliance to clean hot debris or flammable materials such as
cigarettes, matches, charcoal, hot ash.
32. Do not use the appliance to clean animals.
33. Do not use the appliance without the filters installed or if the filters are not
properly installed.
34. Do not use the appliance without the dust canister installed or if the dust
canister is not properly installed.
35. Do not use the appliance if all parts are not properly installed.
36. Do not use the appliance if the filter is damaged. Make sure to replace it with
a new one before you use the appliance again.
37. Do not insert any objects into any opening.
38. Never put your fingers or any other objects (hair, clothes, money, jewelry,
utensils, screw drivers etc.) near the floor brush when the appliance is
activated.
39. When the appliance is in operation do not angle the floor brush or Brush /
Crevice tool air inlet near the eyes or ears.
40. Do not remove the dust canister while the appliance is operating.
41. The device should always be disconnected from the mains when not in use.
Always switch OFF and unplug the appliance if it is not in use before moving,
cleaning, assembling or disassembling, when changing fittings and storing it.
42. Before disconnecting the device from the socket, press the Power Switch in
order to deactivate it.
43. Please note that the device is powered up when connected to the power
supply, even when the power switch is in position “0”.
44. The device should be used only by adults.
45. Keep the appliance away from children. Children must be under supervision
when they are near the device.
46. The device is not a toy. Children should be supervised to ensure that they do
not play with the appliance.
47. Always supervise the device when it is in use.
48. The appliance should only be stored indoors in a dry place away from
moisture and high or very low temperature. Avoid direct exposure under
ultraviolet.
49. Always make sure the appliance is clean and dry before storing it.
50. Do not store the appliance while it is still warm.

25
CAUTION!
Read all the instructions carefully before you use the
appliance and keep them for future use.
When passing on the appliance to a third person, make sure to
include these instructions for use.
WARNING!
Do not use the appliance without the dust container and filters
in place.
WARNING!
Never use the appliance to clean liquids.
WARNING!
The appliances are not intended to be operated by means of
an external timer or separate remote-control system.
WARNING!
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
CAUTION - RISK OF ELECTRIC SHOCK!
To reduce the risk of electric shock do not open this device,
there are not serviceable parts for customers. Please refer
any maintenance or repair to qualified personnel.

26
BEFORE USE
1. Ensure the packaging of this appliance is disposed of properly as all materials
are recyclable.
2. Keep plastic bags away from babies and children.
3. After you remove the device from its packing, clean it with a damp cloth.
4. Never put the appliance under running water in order to clean it.
5. Before using the device unfold the cord completely and make sure that it does
not show any signs of damage.
6. Ensure that the main voltage rating of your power supply corresponds to the
voltage requirements of the appliance.
7. Make sure that all filters and also the canister are properly mounted before
using the appliance.
8. Make sure that all parts of the device are properly mounted before using the
appliance.
9. If you notice that there is a little smell or smoke going out of the appliance
during the first use, do not worry, it is normal.
WARNING!
Do not use the device for more than 10 minutes continuously.
Be sure to always do a pause of 2-3 minutes between each
use.

27
APPLIANCE DETAILS
1. Handle (1)
2. Button for Handle Folding (2)
3. Main body (3)
4. Inlet connection for the floor brush (4)
5. Vacuum unit release button (5)
6. Main Vacuum unit / Handheld vacuum cleaner (6)
7. Handle for portable use (7)
8. Power switch (8)
9. Canister release button (9)
10. Inlet filter (10)
11. Exhaust filter (11)
12. Canister for dust collection (12)
13. Air inlet (13)
14. Floor brush (14)
15. Floor brush release button (15)
16. Buckles for cord (16)
17. Crevice tool (17)

28
ASSEMBLY
Please follow the instructions below in order to assembly the appliance.
ATTENTION: Always make sure the appliance is unplugged from the
power supply before starting to assemble or disassemble it.
Fitting the Floor brush:
1. Insert the floor brush (14) into
inlet connection (4) and lock it.
Removing the Floor brush:
1. Press the release button (15)
2. Pull the floor brush (14) in order to
remove it.

29
Fitting the
Canister for dust collection
:
1. Insert the Canister for dust
collection (12) into the Main
Vacuum unit (6) and lock it.
Removing the Canister for dust collection:
1. Press the release button (9).
2. Pull the Canister for dust
collection (12) in order to remove
it.
Fitting the Main Vacuum unit:
1. Insert the Main Vacuum unit (6)
into the Main body (3).
2. Press the handle (7) to lock it.
Removing the Main Vacuum unit:
1. Press the release button (5).
2. Pull the main vacuum unit (6) in
order to remove it from the main
body (3).

30
INSTRUCTIONS
The appliance can be use in the following 2 ways according to your needs.
A) Use for floors and carpets
If you intent to use the appliance to clean floors and
carpets it is recommended to use it along with the
handle/Main body and floor brush.
We recommend that you regularly check the nozzle is
clean to avoid scratches on sensitive flooring.
B) Use as handy vacuum cleaner
For cleaning furniture, tables, car seats, etc. it is
recommended to use the appliance as a handy vacuum
cleaner without the handle/Main body and floor brush.

31
Please follow the instructions below in order to use the appliance.
1. Ensure that the appliance is not connected to the power supply.
2. Assemble the appliance parts according to the intended use (as a vacuum
cleaner for floor and carpets or as a handy vacuum cleaner).
3. After all components have been installed correctly, place the appliance near a
socket (away from heat or moisture sources), unfold the power cord and
connect it to the power supply.
4. Press the power switch (8) to position “I” in order to activate the appliance.

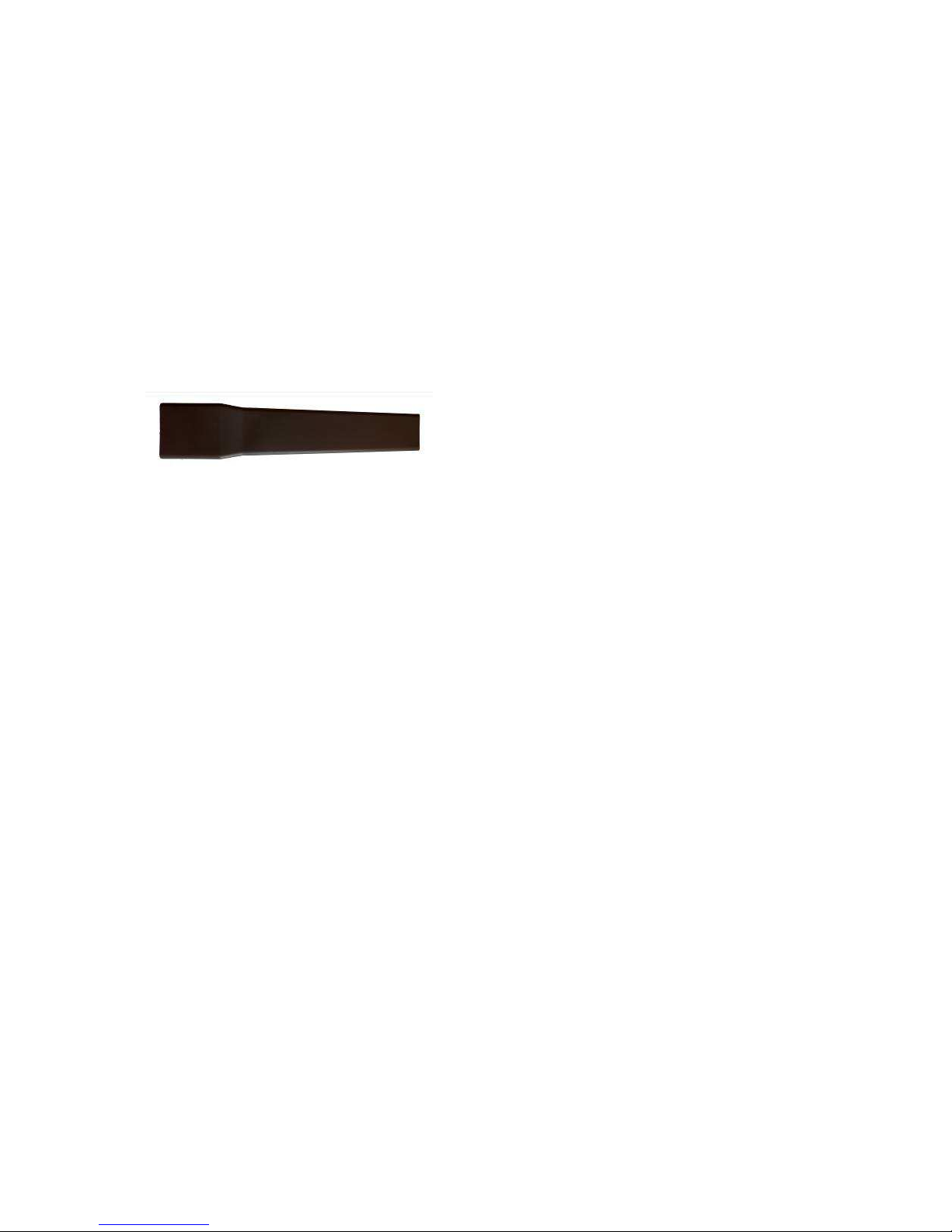

5. The appliance is equipped with a Crevice tool accessory (17). You can use
this accessory by attaching it directly on the air inlet (13).
Crevice tool (nozzle):
For cleaning radiators, corners, edges, drawers etc.
6. After you finish cleaning press again the power switch (8) to position “0” in
order to turn-off the appliance.
7. Disconnect the power cord from the power supply.

32
Caution:
Always keep the suction inlet nozzle clean of any kind of objects
that the vacuum cleaner may have absorbed. Otherwise, the
appliance can be overheated and damaged.
Useful tips:
Before using the appliance, make sure to remove from the area
you will clean all large or sharp objects that can damage the
canister.
If an object is blocking the air in the air inlet or floor brush, turn-
off the appliance, disconnect it from the power supply and
remove the object before using the appliance again.
If you hear a strange noise during the operation of the appliance,
immediately switch it off, disconnect it from the power supply
and clean all filters.

33
CLEANING / MAINTENANCE
ATTENTION:
Unplug the appliance and let it cool down before you clean it.
Always make sure the appliance is unplugged from the power supply before
starting any procedure of cleaning it.
Clean the appliance each time after using it.
Main unit cleaning:
Clean the external surface of the appliance with a damp cloth.
Do not put the appliance in water, neither rinse it under tap water or any
other liquid.
Do not use sharp objects, hard brushes or oven cleaners to clean the device.
Air inlet cleaning:
Remove any dust, villus, etc. from the nozzle and any opening of the
appliance from which the air flows to prevent any barrier to air flowing.

34
Cleaning the dust from the Canister for dust collection:
In order to ensure the best performance, we suggest to clean the Canister for
dust collection (12) regularly.
1. Remove the canister for dust collection (12) by pressing the release
button (9).
2. Pull out the Inlet filter (10) and empty the contents of the canister for dust
collection (12) into a dustbin.
3. Install the Inlet filter (10) in the canister for dust collection (12) and the
canister for dust collection (12) on the appliance again.

35
Cleaning the Inlet filter:
The filter should be cleaned regularly.
Take the filter out of the dust canister.
Wash the filter with clean water and dry it naturally.
Do not dry it by heat or it will be distorted.
Make sure that the filter is dry before it is assembled.
Re-install the filter in the dust container and the dust container on the
appliance.

36
Cleaning the exhaust filter:
The filter should be cleaned regularly.
Open the filter cover and take the filter out.
Wash the filter with clean water and dry it naturally.
Do not dry it by heat or it will be distorted.
Make sure that the filter is dry before it is assembled.
Re-install the filter in the appliance and close the filter cover.

37
NOTE: Whenever you use the appliance the filters are getting dirty. This is normal
and does not affect the function of the appliance. If the filters are too dirty and the
appliance does not work at 100%, only then you should remove and wash the
filters under running tap water. In this case you should allow the filters to dry for at
least 24 hours, away from high temperatures before reinstalling them on the
appliance. This procedure should be followed once every 6 months and not more,
or whenever the appliance is not working properly.
CAUTION:
Make sure the filters are completely dry and clean before you install
them into the appliance again.
Do not put the detachable parts in dish washer machine or disinfector
machine.
Don not dry the filters near high temperature sources.
Keep filters away from fire or high temperature.
Check the filters often and replace them in case they show signs of
damage.

38
TRANSPORT & STORING
The power cord can be rewinded round
the buckles for cord (16) on the unit.
That will be easy and convenient for the
next using.
The handle (1) can be folded for easyer
storage.
1. Press the button for handle folding
(2).
2. Fold the handle as the photo.

39
RECYCLING OF USED ELECTRICAL OR ELECTRONIC APPLIANCES
This marking indicates that this product should not be disposed with
other household wastes throughout EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of material resources. To
return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take
this product for environmental safe recycling.
PROTECT THE ENVIRONMENT
The product COMPLIES with EU directives WEEE (about recycling) and
ROHS (Restriction of the use of Certain Hazardous Substance
GUARANTEED QUALITY
All products are guaranteed for their quality.
NOTE
This unit may be submitted to changes in specifications, characteristics and/or
operation without prior notice to the user, in order to continue improving and
developing its technology.

40
TECHNICAL SPECIFICATIONS
Model
:
AS175
-
3
Ref
.
No
:
863
-
8079
Energy efficiency class:
A
+
Power
:
600W
Rating
:
220
-
240V
Frequency
:
50/60Hz
Features:
• 2 in 1
• High efficiency
• Low Noise
• Dust Canister 0,6 Liters
• Multi-level Filtering System
• Foldable handle for easy storing
Power Switch.
With Accessories:
With washable filter.
Long power cord (5m).
Power cord storage benefit.
Overheat Protection.
Modern, Ergonomic Design.
Accessories:

Crevice tool

41
Product Fiche
According to Commission Delegated Regulation (EU) No 665/2013
Supplier:
Model No.:
AS175
-
3
Energy efficiency class:
A+
Annual energy
consumption
(kWh/year):
21,7 kWh/year
Indicative annual energy consumption
(kWh per year), based on 50 cleaning
tasks. Actual annual energy consumption
will depend on how the appliance is used.
Carpet cleaning
performance class:
E
Hard floor cleaning
performance class:
A
Dust re-emission class:
E
Sound power level:
77
dB
Rated input power:
6
00
W
