Vicon VCR30RT User manual

Installation & Operation Manual
XX105
MODEL VCR30RT
TIME-LAPSE VIDEO CASSETTE RECORDER
Copyright © 2003 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: [phone] INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com
Vicon part number 8009-8105-00-01 Rev 703 Section 8

Dear Valued Customer:
Thank you for selecting Vicon systems and
products for your video needs.
Since Vicon’s beginning in 1 67, out only
business has been the design, engineering, and
production of the highest quality video systems
and equipment for use in a wide variety of
security, safety, control, surveillance, and
communication applications.
We stand behind the quality and dependability
of every product with an industry leading
Beneficial Use warranty.
If you are not satisfied with a Vicon product or
service, I would like to know. Your complete
satisfaction is the mission of every Vicon
employee.
Sincerely,
Kenneth M. Darby
President

2
INTRODUCTION
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
If you pour a cold liquid into a glass, water vapor
in the air will condense on the surface of the glass.
This is moisture condensation. Moisture conden-
sation on the head drum, one of the most crucial
parts of the unit, will cause damage to the tape.
When the VCR is exposed to a rapid temperature
change from cold to warm, some condensation
will occur. Under this condition, connect the power
cord to the AC line, press POWER button on and
allow at least two hours for the VCR to dry out.
MOISTURE CONDENSATION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION : TO REDUCE THE RISK
OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK);
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The serial number is found on the back of this
unit. This number is unique to this unit and not
available to others. You should record requested
information here and retain this guide as a per-
manent record of your purchase.
Model No.
Serial No.
CAUTION : TO PREVENT ELECTRIC SHOCK,
DO NOT USE THIS PLUG WITH AN EXTEN-
SION CORD, RECEPTACLE OR OTHER OUT-
LET UNLESS THE PLUG CAN BE FULLY
INSERTED WITHOUT EXPOSING ANY PARTS
OF THE BLADES.
This lightning flash with arrowhead sym-
bol within an equilateral triangle is intend-
ed to alert the user to the presence of
uninsulated dangerous voltage within the
product’s enclosure that may be of suffi-
cient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilater-
al triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in
the literature accompanying the product.
WARNING: Do not install this equipment in a con-
fined space such as a bookcase or similar unit.
CAUTION: The apparatus should not be exposed
to water (dripping or splashing) and no objects
filled with liquids, such as vases, should be placed
on the apparatus.
IMPORTANT COPYRIGHT INFORMATION: Many
television programs and films are copyrighted. In
certain circumstances, copyright law may apply to
private in-home video taping of copyrighted materi-
als.
Warning : This is a class A product . In a domestic environment this product
may cause radio interference in which case the user may be
required to take adequate measures.

3
CONTENTSFEATURES
INTRODUCTION
Features/Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
PREPARATION
Control Names and Locations . . . . . . . . . . . . . . . . .4-6
Installation &
VCR to Monitor and CCD Camera Connection . . . . . .7

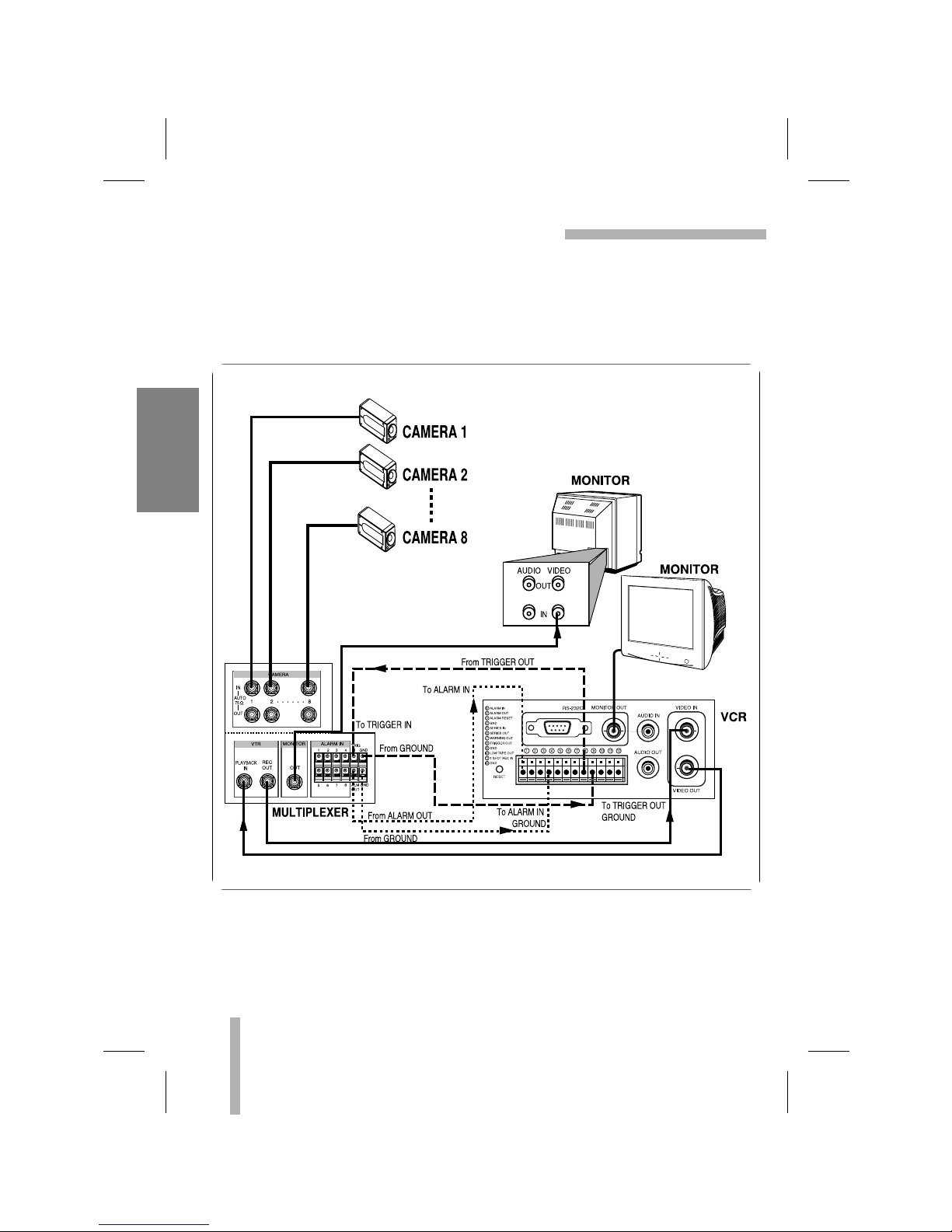

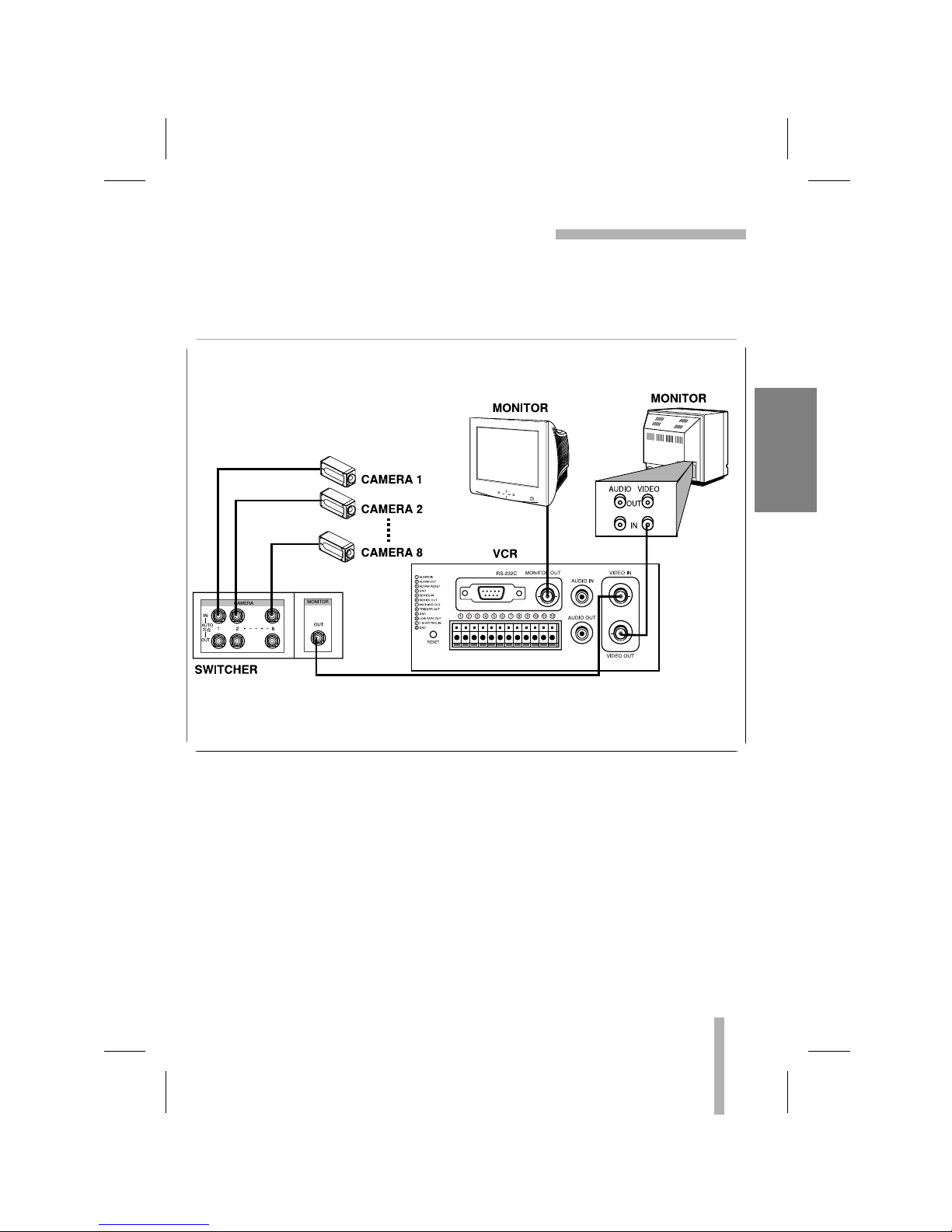

Multiplexer/Matrix Switcher Connections . . . . . . . . . .8-9
Alarm Record Connection . . . . . . . . . . . . . . . . . . . . .10
Series Record Connection . . . . . . . . . . . . . . . . . . . . .10
Setting the On Screen Display . . . . . . . . . . . . . . . . . .11
Setting the Setup Menu . . . . . . . . . . . . . . . . . . . . . . .12
Setting the Set Time . . . . . . . . . . . . . . . . . . . . . . . . .13
Video Cassette Tapes . . . . . . . . . . . . . . . . . . . . . . . .14
PLAYBACK
Normal Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Special Effects Playback . . . . . . . . . . . . . . . . . . .16-17
Tape Counter Memory Feature . . . . . . . . . . . . . . . . .18
RECORDING
Normal Recording . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Repeat Recording . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Series Recording . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Alarm Recording . . . . . . . . . . . . . . . . . . . . . . . . .23-24
ADDITIONAL INFORMATION
Check the Alarm Record Information . . . . . . . . . . . . .25
Recording Time Table Information . . . . . . . . . . . . . . .25
Check the Power Fail Recall . . . . . . . . . . . . . . . . . . .26
Use to Lock On/Off Switch . . . . . . . . . . . . . . . . . . . .26
Self-Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Service Guide Table . . . . . . . . . . . . . . . . . . . . . . . . .28
VIDEO Head Cleaning . . . . . . . . . . . . . . . . . . . . . . .28
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
RS-232C Protocol . . . . . . . . . . . . . . . . . . . . . . . .31-44
• Time Lapse VCR Function
• Trigger Function
• Buzzer Function
• Auto Switcher Functionality
• Tape Compatibility
• Elapsed Time Display
• Series Recording Function
• Alarm Recording Function
Warning : The battery used in this device may present a fire or chemical burn hazard if mis-
treated. Do not recharge, disassemble, incinerate, or heat above 212°F (100°C). Replace the
battery with Matsushita Elec. Ind., Co., Ltd. (Panasonic) part no. VL2330 only. Use of another
battery may present a risk of fire or explosion. Dispose of used batteries. Keep away from
children. Do not disassemble or dispose of in fire.
INTRODUCTION

1. TIME/CNT/REM BUTTON
To switch among the clock, tape counter
and tape remaining time.
2. POWER BUTTON
To turn the VCR on and off.
3. TIMER BUTTON
To set timer recording.
4. REC/PLAY HOURS BUTTON
To change the Play or Record speed to a
lower or higher value.
5. V-POS BUTTON
To move the position of the Time/Date
display in the vertical direction.
6. H-POS BUTTON
To move the position of the Time/Date
display in the horizontal direction.
7. MENU BUTTON
Displays the programming menu on the
Monitor or TV screen.
8. CURSOR (UP/DOWN) BUTTONS
To select the item on the menu.
9. CASSETTE COMPARTMENT
Where the video cassette is inserted.
10. STOP BUTTON
To stop the tape.
11. PLAY/REC CHECK BUTTON
To playback a recorded tape and used for
the Record Check function.
12. P/STILL(PAUSE STILL) BUTTON
To enter a field advance picture during
still playback or to pause video; in con-
junction with Jog Dial.
13. SHUTTLE RING
To fast forward or rewind the tape.
14. JOG DIAL
Rotate to advance or reverse advance
video picture while viewing a still
picture.
15. RECORD BUTTON
To record Video.
16. EJECT BUTTON
To eject a stopped cassette.
17. VCR FUNCTION INDICATOR PANEL
Details are on page 6.
18. ENTER BUTTON
To select items on the menu screen.
19. SHARPNESS CONTROL
To adjust the playback quality.
20. TRACKING (EE/DD) BUTTON
To adjust the manual tracking.
21. LOCK ON/OFF SWITCH
To switch lock and unlock.
22. COUNTER CLEAR BUTTON
To set the counter to zero or erase the
information on the menu screen.
23. ALARM INDEX
To active and deactivate (toggle) the
alarm index function.
FRONT
SHARPNESS
HARD
POWER
TIME/CNT/REM
ALARM/INDEX
COUNTER
CLEAR
TIMER
V-POS
REC/PLAY HOURS
CURSOR
TRACKING
H-POS
MENU
ENTER
SOFT
LOCK
ON OFF
1 2 3 4 5 6 7 8 9 10 11 12 13
23 22 21 20 19 18 17 16 15 14
4
PREPARATION
CONTROL NAMES AND LOCATIONS

5

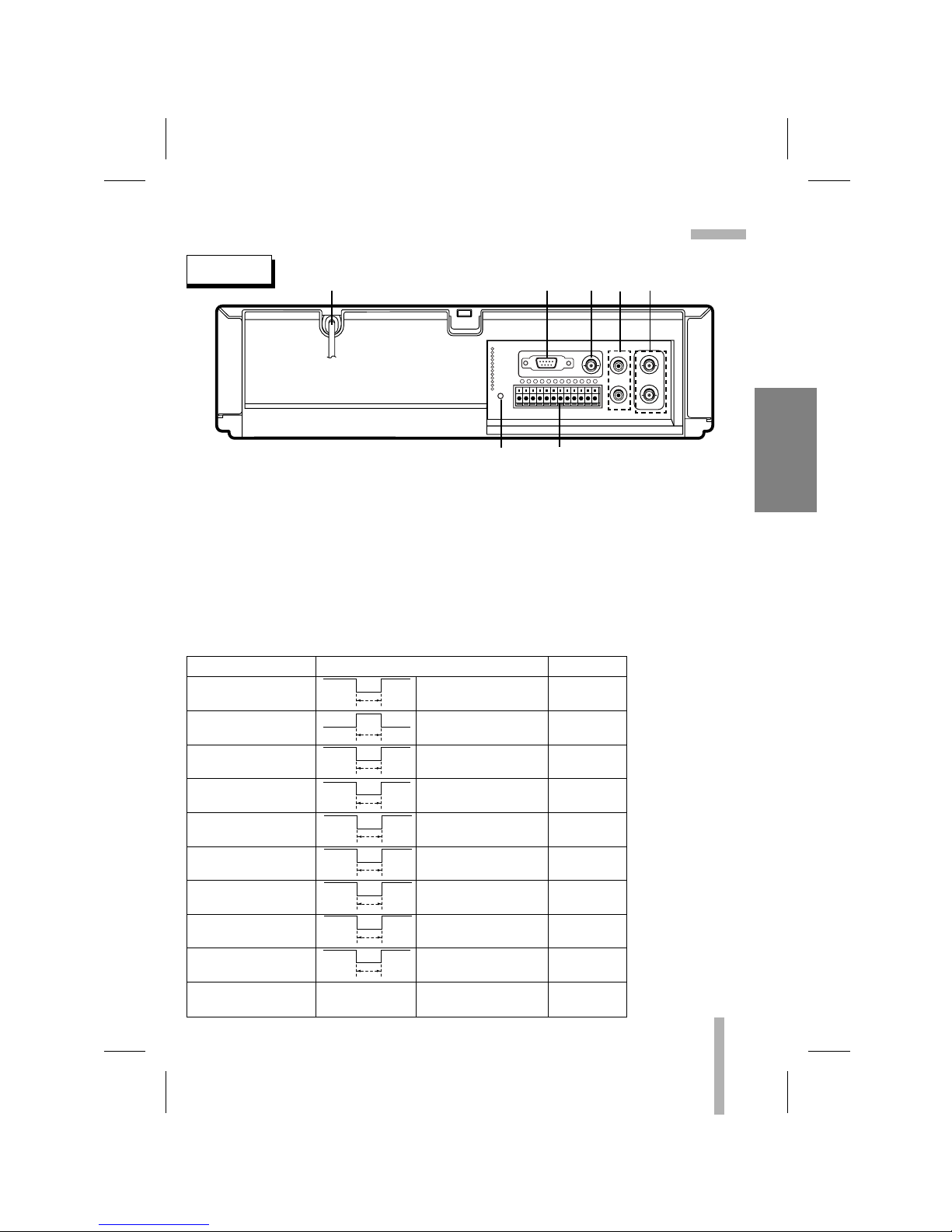

PREPARATION
CONTROL NAMES AND LOCATIONS (cont’d)
1. POWER CORD
Connect only to an AC 100-240V, 50/60Hz
outlet.
2. RS-232C CONNECTOR
Connect a personal computer for
controlling the VCR.
3. MONITOR OUT JACK
Connect to another monitor.
4. AUDIO IN/OUT JACK
Connect the audio input and output
terminal.
5. VIDEO IN/OUT JACK
Connect the video input and output
terminal.
6. RESET BUTTON
Use this button to reset the VCR.
7. 12-PIN TERMINAL BLOCK
Connect external signals.
VIDEO IN
AUDIO IN
MONITOR OUT
AUDIO OUT
VIDEO OUT
1 2 3 4 56 7 8 9 10 11 12
RS-232C
RESET
1 ALARM IN
2 ALARM OUT
3 ALARM RESET
4 GND
5 SERIES IN
6 SERIES OUT
7 WARNING OUT
8 TRIGGER OUT
9 GND
10 LOW TAPE OUT
11 1 SHOT REC IN
12 GND
REAR 1 2 3 45
67
TERMINAL SIGNAL LEVEL IN/OUT
1. ALARM IN INPUT
2. ALARM OUT OUTPUT
3. ALARM RESET INPUT
5. SERIES IN INPUT
6. SERIES OUT OUTPUT
7. WARNING OUT OUTPUT
8. TRIGGER OUT OUTPUT
10. LOW TAPE OUT OUTPUT
11. 1-SHOT REC IN INPUT
4, 9, 12. GND COMMON
VIH VIL
T
V
OH VOL
T
VIH VIL
T
VIH VIL
T
VOH VOL
T
VOH VOL
T
VOH VOL
T
VOH VOL
T
VIH VIL
T
Terminal Signal Levels
VIH: 4~5V, VIL: 0~0.6V
T: above 250msec
VOH: 4~5V, VOL: 0~0.6V
T: ALARM REC STATE
VIH: 4~5V, VIL: 0~0.6V
T: above 250msec
VIH: 4~5V, VIL: 0~0.6V
T: above 250msec
VOH: 4~5V, VOL: 0~0.6V
T: above 250msec
VOH: 4~5V, VOL: 0~0.6V
T: until any key is pressed
VOH: 4~5V, VOL: 0~0.6V
T: above 8~10msec
VOH: 4~5V, VOL: 0~0.6V
T: below 5 min, end of tape
VIH: 4~5V, VIL: 0~0.6V
T: above 250msec
0V
–

6
PREPARATION
ALARM
H
SERIES TIMER
INDEX
P.FAIL
K.LOCK
REPEAT
REC
INDICATOR PANEL
1. TIME LAPSE VCR TIME Indication
2. ALARM Indication
(ALARM REC ON indication)
3. SERIES Indication
4. RECORD Indication
5. TIMER Indication
6. CASSETTE Indication
7. INDEX Indication
8. POWER FAILURE Indication
9. KEY LOCK indication
10. REPEAT Indication
11. FUNCTION Indication
(CLOCK, TAPE COUNTER, ERROR)
12. VCR FUNCTION Indication
VCR FUNCTION Indication
PLAYBACK INDICATION RECORDING INDICATION
PLAYBACK
PAUSE STILL
FAST FORWARD
REWIND
FORWARD SEARCH
REVERSE SEARCH
RECORDING
TIMER RECORDING
ALARM INDEX
ALARM RECORDING
SERIES RECORDING
FORWARD SLOW PICTURE/
FORWARD FIELD ADVANCE
REVERSE SLOW PICTURE/
REVERSE FIELD ADVANCE
CONTROL NAMES AND LOCATIONS (cont’d)
1234567
12 11 10 9 8

7
PREPARATION
INSTALLATION

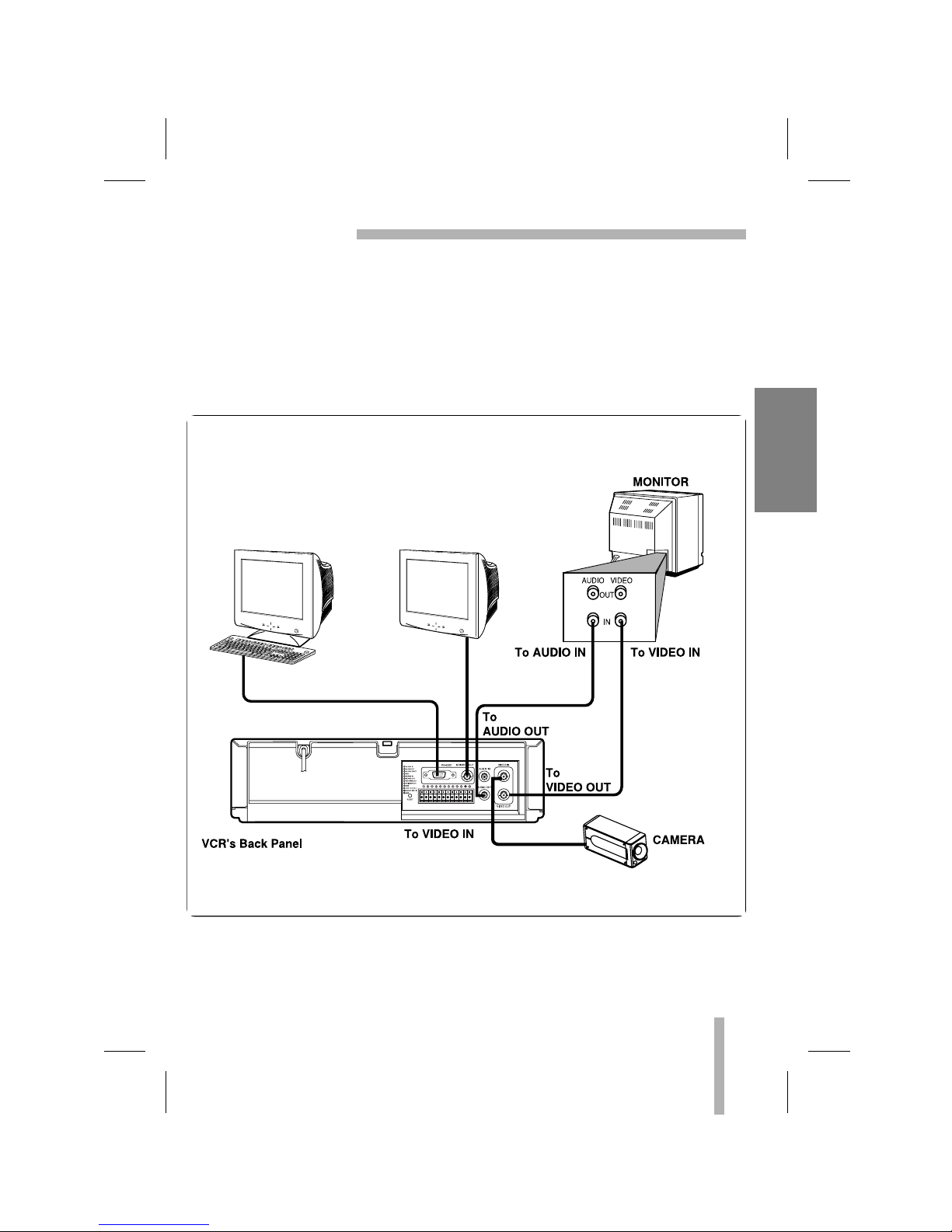

VCR TO MONITOR AND CCD CAMERA CONNECTION
• Connect your VCR’s AUDIO/VIDEO output jacks to the A/V input jacks on back of your
monitor.
If your monitor does not have A/V input jacks, exchange the monitor or TV for one with A/V
input jacks.
•Connect the CCD camera to VCR’s VIDEO input jack.
NOTE: The MONITOR OUT BNC port does not support video when power is OFF (unplugged)
to the VCR.
•The cables for audio and video connection are not provided with your VCR.
•“RS-232C”is an interface standard for data terminals and data communications equipment
employing serial binary data exchange as stipulated under the RS-232 standard. Using the
RS-232C interface, this VCR can be controlled by a personal computer.
RS-232C communication
is possible when the
optional RS-232C
interface adapter is
connected to a PC.

8
PREPARATION
MULTIPLEXER CONNECTIONS
HOW TO CONNECT MULTIPLEXER WITH TRIGGER INPUT TERMINAL
If the multiplexer has two output terminals (MONITOR OUT, PB OUT), connect monitor to the PB
OUT terminal if you want to see the playback picture.
To use the multiplexer and trigger function properly, refer to the multiplexer instruction manual.

9
PREPARATION
MATRIX SWITCHER CONNECTIONS
HOW TO CONNECT SWITCHER WITHOUT TRIGGER INPUT TERMINAL

10
PREPARATION
SERIES RECORD CONNECTION
1 2 3 4 56 7 8 9 10 11 12
ALARM RECORD CONNECTION
Connect alarm output of external device to alarm input of VCR, and then connect alarm out
GND of device to alarm input GND of VCR.
Make all connections to the first VCR before making any connections to the other VCRs in the
series.
After connecting, turn on the VCRs and then select the ON: SERIES mode in REC MODE
menu. (Refer to the page 22.)

11
SETTING THE ON SCREEN DISPLAY
MENU
G VCR SET UP
REC MODE SET UP
TIMER REC SET UP
ALARM SET UP
POWER FAIL RECALL
LANGUAGE ENGLISH
(UP) (DOWN) (ENTER) (MENU)
The following pages describe the on screen selections to be set.
PREPARATION
•Turn on the power of both the VCR and the monitor.
•If you have a TV instead of monitor, turn on the power of TV
and then set the TV’s source selector to VIDEO.
Your VCR allows adjustment of several features.
MENU SELECTION
MAIN MENU
1Press MENU button and the main menu will appear.
2Select the desired menu with the CURSOR DDor EEbutton
and then press the ENTER button.
VCR SET UP
G CLOCK SET
ELAPSED TIME
VHS-TAPE T-120
VIDEO AUTO
DISPLAY ON
AUDIO PLAY ON
QUASI V-SYNC ON
(UP) (DOWN) (ENTER) (MENU)
REC MODE
G REC TIME 000H
INTERVAL 10SEC
TRIGGER OUT 1 FIELD
SERIES OFF
REPEAT OPTION :
STOP AT EOT.
(UP) (DOWN) (ENTER) (MENU)
ALARM SET UP
G REC MODE 6H
DURATION 1 MIN
BUZZER ON
ALARM READY ON
ALARM RECALL
(UP) (DOWN) (ENTER) (MENU)
POWER FAIL RECALL
G 1 OFF 01/01/03 20:56:55
ON 01/01/03 20:56:57
2 OFF 01/01/03 20:56:50
ON 01/01/03 20:56:53
3 OFF 01/01/03 20:56:47
ON 01/01/03 20:56:49
4 OFF 01/01/03 20:56:43
ON 01/01/03 20:56:46
(DOWN) (CLEAR) (MENU)
SET DAY START END SPD
G OFF - - - - - : - - - - : - - 6
OFF - - - - - : - - - - : - - 6
OFF - - - - - : - - - - : - - 6
OFF - - - - - : - - - - : - - 6
OFF - - - - - : - - - - : - - 6
OFF - - - - - : - - - - : - - 6
OFF - - - - - : - - - - : - - 6
OFF - - - - - : - - - - : - - 6
(UP) (DOWN) (ENTER) (CLEAR)
VCR SET UP (page 12) REC MODE (pages 19-20, 22)
TIMER REC SET UP (page 21) ALARM SET UP (pages 23-25)
POWER FAIL RECALL (page 26)
MENU
VCR SET UP
REC MODE SET UP
TIMER REC SET UP
ALARM SET UP
POWER FAIL RECALL
G LANGUAGE ENGLISH
(UP) (DOWN) (ENTER) (MENU)
LANGUAGE SELECTION
You can select the
language among
ENGLISH, FRANCAIS,
DEUTSCH, ITALIANO,
ESPAÑOL, POLSKI and
.
PREPARATION

12
PREPARATION
SETTING THE SETUP MENU
6. AUDIO PLAY
5. DISPLAY
4. VIDEO
3. VHS-TAPE
2. ELAPSED TIME
1. CLOCK SET
MAIN MENU
SETUP MENU
Press UP or DOWN to
choose a desired item on
the SETUP menu.
Choose the camera’s color type (B/W, AUTO, COLOR) by
pressing ENTER.
The time/date DISPLAY is switched between ON and OFF by
pressing ENTER.
The audio is switched between ON and OFF during playback
by pressing ENTER.
Details are on page 13.
Check the used time of head by pressing ENTER.
Choose the tape type used (T-120, T-160, T-180, T-210) by
pressing ENTER.
PREPARATION
•Turn on the power of both the VCR and the monitor.
•If you have a TV instead of monitor, turn on the power of TV
and then set the TV’s source selector to VIDEO.
1Press MENU button. The main menu will appear.
Press CURSOR DDor EEto choose VCR SET UP.
2Press ENTER button. The VCR SET UP menu will appear.
VCR SET UP
G CLOCK SET
ELAPSED TIME
VHS-TAPE T-120
VIDEO AUTO
DISPLAY ON
AUDIO PLAY ON
QUASI V-SYNC ON
(UP) (DOWN) (ENTER) (MENU)
VCR SET UP
CLOCK SET
ELAPSED TIME
G VHS-TAPE T-120
VIDEO AUTO
DISPLAY ON
AUDIO PLAY ON
QUASI V-SYNC ON
(UP) (DOWN) (ENTER) (MENU)
ELAPSED TIME
DATE OF FIRST USE:
01/01/03
PERIOD IN USE:
00004 HOURS
(MENU)
MENU
G VCR SET UP
REC MODE SET UP
TIMER REC SET UP
ALARM SET UP
POWER FAIL RECALL
LANGUAGE ENGLISH
(UP) (DOWN) (ENTER) (MENU)
7. QUASI-SYNC
The quasi-sync is switched between ON and OFF during
playback by pressing ENTER.

13
PREPARATION
SETTING THE SET TIME
PREPARATION
•Turn on the power of both the VCR and the monitor.
•If you have a TV instead of monitor, turn on the power of TV
and then set the TV’s source selector to VIDEO.
Example: May 23, 2003 ; 17:30
The day of the week will display automatically.
•The clock uses the 24-hour system.
•The initial SET DAY Setting is JANUARY 1, 2003.
MAIN MENU
VCR SET UP MENU
CLOCK SET UP MENU
1Press MENU button. The main menu will appear.
2Press CURSOR DDor EEto select the SET UP item and
then press ENTER. The SET UP menu will appear.
3Press CURSOR DDor EE to select the CLOCK SET item and
then press ENTER. The CLOCK SET UP menu will appear.
4Press ENTER and then CURSOR DDor EEto set a month
and then press ENTER to move to day item.
5Repeat step 4 to select the day, year and time.
6Press MENU button when finished.
Things to know before starting
12H
17: 30 : 00
05 / 23 / 03
VCR SET UP
G CLOCK SET
ELAPSED TIME
VHS-TAPE T-120
VIDEO AUTO
DISPLAY ON
AUDIO PLAY ON
QUASI-V-SYNC ON
(UP) (DOWN) (ENTER) (MENU)
CLOCK SET UP
MM/DD//YY
G DATE 05 / 23 / 03 FRI
HH/MM/SS
TIME 17 / 30 / 00
(UP) (DOWN) (ENTER) (MENU)
MENU
G VCR SET UP
REC MODE SET UP
TIMER REC SET UP
ALARM SET UP
POWER FAIL RECALL
LANGUAGE ENGLISH
(UP) (DOWN) (ENTER) (MENU)
(TV screen/monitor)

14
PREPARATION
VIDEO CASSETTE TAPES
This VCR will operate with any video cassette which has
the mark.
•Do not expose video cassettes to extreme heat, high humidity,
or strong magnetic fields.
•Do not tamper with the cassette mechanism.
•Do not touch the tape with your fingers.
•Always store an unused cassette in its case.
Hold the cassette with the arrow side up (top). Insert the
cassette gently into the slot in the direction of the arrow (on the
cassette) until the loading mechanism automatically pulls the
cassette into the unit. Make certain that the cassette is inserted
correctly.
•If the cassette is not loaded correctly, the VCR will eject the
cassette automatically after approximately 3 seconds.
Press the STOP/EJECT button twice. The cassette will be eject-
ed automatically. After the cassette is visible in the tape slot, pull
it out to remove it.
•Unloading the cassette is possible only when the power cord
is connected to the wall outlet.
•The cassette can be ejected when the STOP/EJECT button is
pressed, even if the VCR’s power is OFF.
UNLOADING
LOADING
WHEN HANDLING VIDEO CASSETTES
To prevent accidental era-
sure, remove the tab after
recording.
To record again, cover the
hole with vinyl tape.
SAFETY TAB

15
NORMAL PLAYBACK
PLAYBACK
SHARPNESS
HARD
POWER
TIME/CNT/REM
ALARM/INDEX
COUNTER
CLEAR
TIMER
V-POS
REC/PLAYHOURS
CURSOR
TRACKING
H-POS
MENU
ENTER
SOFT
LOCK
ON OFF
REC/PLAY HOURS
TRACKING
The indicator will light and the VCR will power-up auto-
matically.
• If a tape without a record protect tab is inserted, the unit will
start the playback automatically.
Press REC/PLAY HOURS EEor DDbutton to choose the desired
time mode.
The select time is displayed in the VCR indicator panel.
Select the time while the tape is stopped or being played back.
6H ➔ 18H ➔ 30H ➔ 72H ➔ 96H
• The time mode can not be changed while the tape is playing
back in 2H or 4H.
• If the tape reaches the end before ST P is pressed, the VCR
will automatically stop and rewind.
If noise appears on the screen during playback, press either
TRACKING (DD/EE)buttons until the noise on the screen is
reduced.
• In case of vertical jitter, adjust these controls very carefully.
• Tracking is automatically reset to normal when the tape is
ejected.
TRACKING CONTROL
NORMAL PLAYBACK
1Insert a prerecorded video cassette.
2Press the PLAY/REC CHECK button.
3Press the STOP button to stop playback.
PREPARATION
•Turn on the power of both the VCR and the monitor.
•If you have a TV instead of monitor, turn on the power of TV
and then set the TV’s source selector to VIDEO.
NOTES:
•Ensure that the selected tape recording and playback times match one another.
•A picture may vibrate vertically, but this is normal.
•A distortion may appear on the top of the screen, but this is normal.
•A sound may be muted during playback, but this is normal.
•If the recording hour and playback hour are different, the sound may not play back normally. (Set the
AUDIO PLAY on the SETUP menu to OFF mode.)

16
SPECIAL EFFECTS PLAYBACK
PLAYBACK
During PLAYBACK mode...
Still picture will appear on the monitor.
• If a still picture vibrates vertically, stabilize it by pressing the
TRACKING(DD/EE)buttons.
• If the VCR is left in the STILL mode for more than 5 minutes,
the VCR will automatically enter the ST P mode to protect the
tape and video heads.
During PLAYBACK mode...
The picture will slowly advance to forward or reverse field by
field.
During STOP mode...
The INDEX indicator will appear in the VCR indicator panel.
Alarm video will play for 5 seconds and then search to the next
alarm recording.
1Press the P/STILL button.
2To continue normal playback, press the PLAY button.
TO WATCH A STILL PICTURE
TO WATCH A FIELD ADVANCE PICTURE
1Press the P/STILL button.
2Rotate the JOG dial to forward / reverse or press Field
Advanced button.
3To continue normal playback, press the PLAY button.
1Press the ALARM INDEX button.
2Rotate the SHUTTLE ring to forward or reverse.
TO SEARCH ALARM RECORDING
ALARM/INDEX

17
PLAYBACK
SPECIAL EFFECTS PLAYBACK (cont’d)
NOTES:
•Horizontal lines (noise bars) will appear on the monitor screen, but this is normal.
•The audio is automatically muted during special effect modes, so there is no sound during search.
•During the high-speed picture search modes, a short period is needed to stabilize tape speed when re-
entering the PLAY mode. Slight interference may be observed during this period.
During Still mode...
Rotate Shuttle Ring for variable speed adjust from Slow to
Search in the direction chosen.
During Still mode...
JOG DIAL
SHUTTLE RING
1Rotate the Shuttle Ring to forward or reverse.
3Release the Shuttle Ring to return to STILL mode.
4Press PLAY to return to normal playback speed.
2Rotate Shuttle Ring toward FF to advance the tape, or
toward REW to reverse the tape. How far you rotate and hold
the shuttle ring determines the speed at which the tape
moves.
NOTES:
•During STOP mode, rotate and release the Shuttle ring to rewind or
fast forward the tape.
•If the Shuttle Ring is used during the normal playback, the playback
mode is changed between the double speed play and forward
search on the forward direction, and among the reverse play,
reverse triple-speed play, and reverse search on the reverse direc-
tion. Releasing the ring resumes a normal playback mode.
1Move Jog Dial with finger toward FF to advance tape
frame-by-frame, or toward REW to reverse tape frame-by-
frame. Movement of the Jog Dial one “click”moves the tape
by one frame. How “fast”you move the Jog Dial determines
how fast the frame-by-frame movement occurs.
2Press PLAY to return to normal playback speed.
Jog Dial
Move Jog Dial for frame-
by-frame tape playback
forward or reverse.
Shuttle Ring
SLOW
PLAY
PLAY X 2
SEARCH
-SLOW
-PLAY
-PLAY X 3
-SEARCH
REVERSE FORWARD
STILL (Pause)
R
E
W
F
F

This function allows the time of the remaining tape to be
displayed during recording or playback.
•The remaining time is not display during more than “72H”
recording mode.
18
PLAYBACK
TAPE COUNTER MEMORY FEATURE
During PLAYBACK or RECORDING mode...
Whenever you press the TIME/CNT/REM button, time and
counter are displayed alternately in the VCR indicator panel.
When the COUNTER is displayed...
• Counter changes to TIME when the cassette is ejected.
• The real-time counter does not operate when nothing is
recorded on the tape.
This function is only provided when COUNTER is displayed in
the VCR indicator panel.
Continue to play or record.
The VCR will stop at the COUNTER position 0:00:00.
COUNTER MEMORY FUNCTION
REAL TIME COUNTER
Press the TIME/CNT/REM button.
1Begin recording or playing a tape.
2At the point where you want playback to begin, reset the real-
time counter to 0:00:00 by pressing the COUNTER CLEAR
button.
3Press the STOP button when recording or playback finishes.
4Rotate and release the SHUTTLE ring to reverse.
H
2Start recording or playback.
1Press the TIME/CNT/REM button until the remaining time
displays on the VCR indicator panel.
TAPE REMAINING
CLOCK
COUNTER
REMAINING TIME
H
COUNTER
CLEAR
H
TIME/CNT/REM T
TIME/CNT/REM T
