Victor 1530-6 User manual

Electronic Calculator Operating Manual
Calculatrice Electronique Manuel du Fonctionnement
Calculadora Electronica Manual de Instrucciones
Model
Modèles
Modelos
1530-6
1560-6
1570-6
- 1 -

Preface
Congratulations on your choice of a Victor electronic calculator. Careful design, quality
materials, painstaking workmanship, and advanced research and production facilities
have given you a calculator that, with proper care, will provide years of trouble-free
service. To assure future optimum performance, ask your Victor representative about
low-cost protection offered by Victor’s Extended Guarantee Protection Program. (To
order see enclosed form on Page 68)
This operating manual describes the features and operation of the Victor 1530-6,
1560-6 and 1570-6 electronic calculators. Where applicable, differences among the
three calculators are clearly noted in the manual. Each model is a commercial-grade
calculator with 10, 12 or 14-digit capacity and two-color ribbon printing.
Model 1530-6 is a print/display calculator, 10-digit,
with one independent memory
Model 1560-6 is a print/display calculator, 12-digit,
with one independent memory
Model 1570-6 is a print/display calculator, 14-digits,
with two independent memories
Each calculator also features the four basic arithmetic operations, financial,
amortization, present value/future value, days between days, time calculations, grand
total, percentage and percentage-of-change, cost, sell, margin, change sign, sigma,
item count with averaging, non-add/date functions, programmable tax rate key,
backspace, units/price mode calculations, square root function, time and date functions
with battery back-up.
TABLE OF CONTENTS
Operations and General Maintenance 3
Replacing the Ribbon/Cartridge 4
Paper Feed 5
Battery Replacement 5
Keyboard Diagrams 6
Keyboard Layout 7
Slide Switch Features 8
Key Features 10
Troubleshooting 14
Application Examples 39
Setting the Date and Time 65,66
Warranty 67
Extended Warranty 68
- 2 -

BEFORE TURNING ON - Please remove the shipping-cushion placed on the
ribbon and check the rating label on the bottom to see if the rated voltage corresponds to
the local voltage before plugging in the AC cord.
Note: Ribbon cushion is located under printer cover.
ACTIVATE BACKUP BATTERY
Before start using the calculator, please remove the insulation paper below the backup
battery.
1. Turn the AC power switch OFF and remove the battery compartment cover
located on the bottom case.
2. Remove the insulation paper located below the backup battery.
3. PRESS THE RESET SWITCH.
4. Replace the battery compartment cover.
5. Turn ON the AC power switch.
6. Program the date and time according to the instruction manual.
REMOVE BEFORE USING THE MACHINE
Depress Reset in Battery Compartment
Program Date & Time – See Operator Manual
Backup
Battery
CR2025
Insulation
Paper
Reset Button
Bottom Case
1 2
3
GENERAL MAINTENANCE
1. Do not place the machine in hot, dusty or damp locations.
2. To clean the housing use a silicon-treated cloth. Do not use water or detergents.
3. Do not place anything on the housing, particularly on the head of the printer
mechanism:
4. Turn off the power switch before removing the plug from AC wall outlet.
5. Turn the power switch off while not in use.
- 3 -

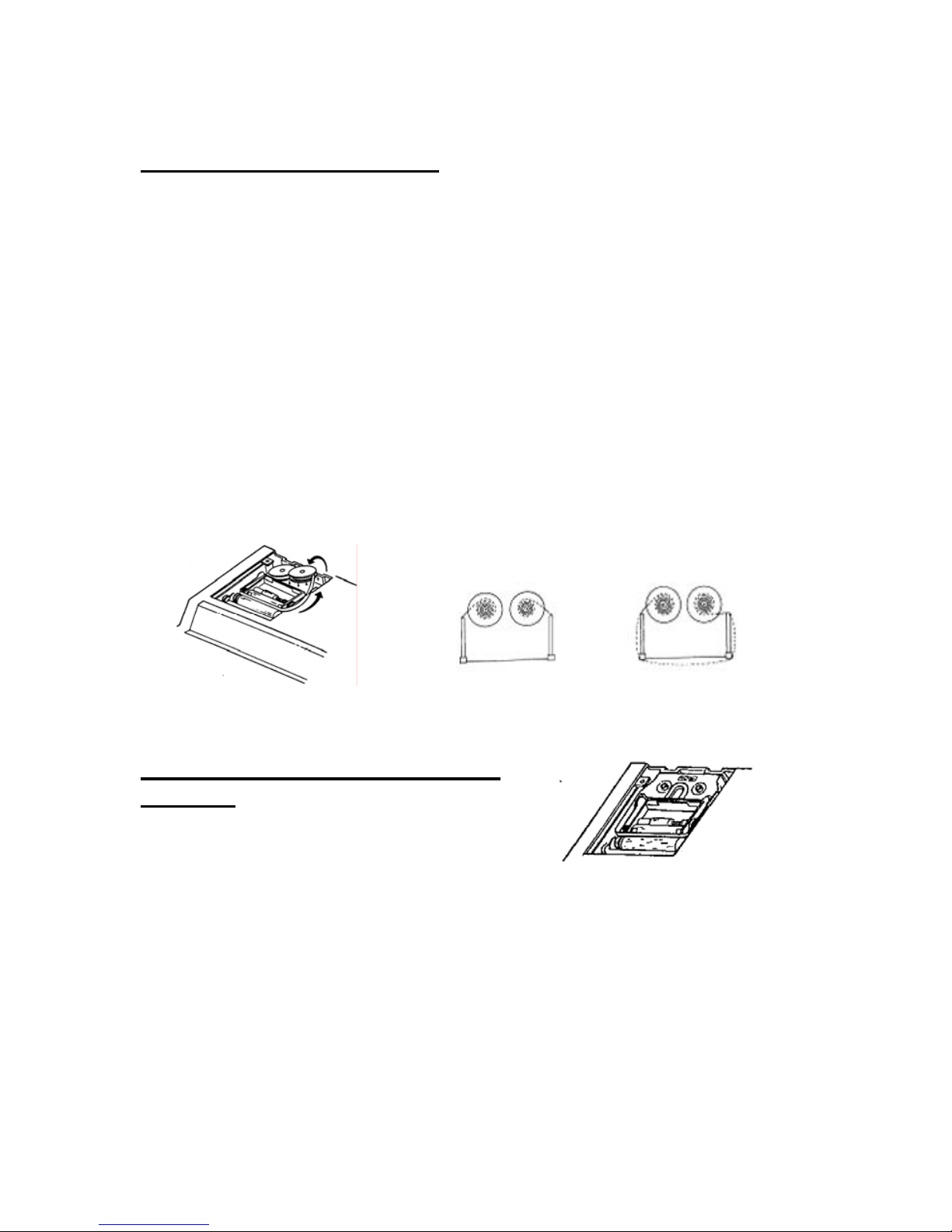

REPLACING THE RIBBON
Your calculator is shipped with a 2-color ribbon already in place. You do not need to install
or change it before you begin using the calculator. When you have been using your
calculator for some time, however, the print will gradually become faint, indicating that you
should change the ribbon. To change the ribbon, follow these steps.
1. Remove paper roll, tearing paper at rear of calculator. Use the Paper Advance (↑)
key to feed the remaining paper tape through the printer. Then remove the printer
cover.
2. Remove the old ribbon by pulling upward.
3. Install the ribbon spool with the black edge up. Roll from the outside of the full spool
and place the first spool on the spindle not engaged by the lever. Thread the new
ribbon along the outside of the guides and in front of the print wheels. Switch the
lever to the other side and replace the second spool.
4. Rotate the spools to take up any slack. Replace the printer cover and the paper tape.
(Replace with Victor Ribbon #7010)
Correct Direction Incorrect Direction
REPLACING WITH CARTRIDGE
RIBBON
You have the option to use a cartridge ribbon in this
model.
1. Remove paper roll, tearing paper at rear of calculator. Use the Paper Advance (↑)
key to feed the remaining paper tape through the printer. Then remove the printer
cover.
2. Remove the old ribbon/cartridge by pulling upward
3. Install the new cartridge by pressing it down with the VICTOR logo facing up, as
shown.
4. Replace the printer cover and the paper tape. (Replace with VICTOR cartridge
#7011)
- 4 -

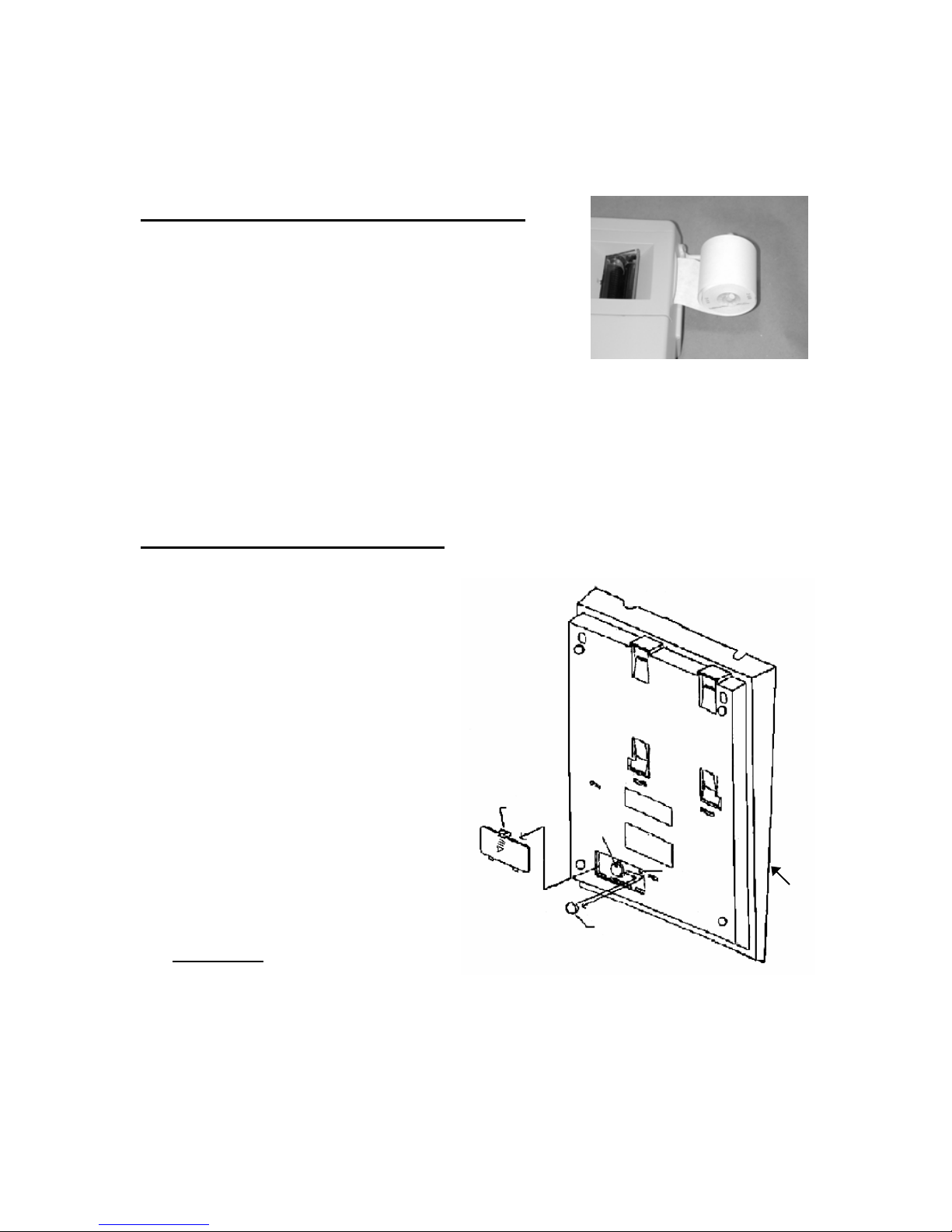

HOW TO FEED THE PAPER TAPE
1. Put the new paper roll on the paper arm.
2. Insert the paper into the slot as indicated.
3. Depress the paper feed key.
4. Suitable paper roll:
Width: max. 58mm (2.25”)
Diameter: max. 50mm (1.97”)
Paper: Normal paper
(45kg/1000 sheets/788 x 1091 mm)
BATTERY REPLACEMENT
1. Turn the AC power switch off
2. Remove - the battery
compartment cover located on
the calculator bottom case.
3. Remove the old battery and
install a new CR2025 or
equivalent.
4. Turn on the AC power switch
5. PRESS THE RESET BUTTON
6. Replace the battery compartment
cover.
7. Reprogram the date and time.
(See page 64 & 65)
Battery
Cover
- 5 -
Battery
Reset
Switch
Bott
Case
om
2.
3.
5.
Battery
Holder
CAUTION
Danger of explosion if battery is incorrectly
replaced. Only replace with the same or equivalent
type recommended by the manufacturer.
Dispose of used batteries according to the
manufacturers’ instructions.

Model 1570-6 Keyboard Layout
- 6 -
1 2 3 5 64
9
8
7 10 12 1311 14 15
16
17
18
19
20
21
22
23
24
25
26
27
28a
29
30
31
32
33
34
Model 1560-6 and 1530-6 Keyboard Layout
1 2 3 5 64
9
8
7 10 12 1311 14 15
16
17
18
19
20
21
22
23
24
25
26
27
28b
29
30
31
32
33
34

KEYBOARD LAYOUT
This section describes the mode switches, data entry keys, and operating keys provided
on your calculator. The following terms are used in discussing your calculator’s
operation:
1. Rounding Selector 19. Percentage
2. Print Switch 20. Division
3. Decimal Selector 21. Equal
4. Financial Calculation Switch 22. Multiplication
5. Sigma/Loan and FV Switch 23a. Clear / Clear Entry
6. Grand Total Switch 24. Time / Date Display
7. Paper Feed 25. Numeric Key Pad
8. Delta Percentage 26. Subtraction
9. Time/Date Calculation 27. Addition
10. Cost 28a. Memory II Selector
11. Sell 28b. Item Count
12. Margin 29. Subtotal / Date
13. Tax Rate Preset 30. Total
14. Tax 1/Amortization 31. Memory Total / Amount/Start
Date
15. Tax 2/Future Value 32. Memory Subtraction /
Interest/End Date
16. Back Space 33. Memory Addition / Months/#
of Days
17a. Item Count 34. Memory Subtotal /
Payment/Compute
18. Sign Change
• The accumulator is the area of the calculator’s logic that stores a running total of
the results of addition and subtraction operations. It is the “adding machine” portion
of the calculator.
• The calculating register is the area of the calculator’s logic where the intermediate
and final results of multiplication, division and percentage calculations are stored.
The contents of the calculating register do not affect the accumulator.
• The keyboard register is the area of the calculators logic that stores the value that
will immediately be used in the next calculation.
• The item count register is the area of the calculator’s logic that counts your
entries into the accumulator. Each positive entry is counted as one item. Each
Negative entry is subtracted resulting in a net item count. It is also net or gross
programmable.
• The memory register is the area of the calculator’s logic that accumulates
amounts you add to or subtract from the memory. Because the memory register is
- 7 -

- 8 -
independent of the accumulator and the calculating register, it retains its value until
you clear it with the Memory Total (MT) key.
SLIDE SWITCH FEATURES
This section illustrates and describes the mode switches you can use to control your
calculator’s operation.
1. ↓5/4 ↑Decimal Rounding Selector
↓This causes automatic round down (truncation).
5/4 This setting causes automatic round off. If the last digit of the result
that will be printed or printed/displayed upon rounding is followed by a
value of 0 to 4, the digit is unchanged. If the last digit of the result that
will be printed or printed/displayed upon rounding is followed by a
value of 5 to 9, the digit is rounded up.
↑This setting causes automatic round up
2. •PRINT Printer Select Switch
•(Non-print) Printer is activated only when feed key or non-add/date key is
pressed.
PRINT Printer is activated as long as calculator is turned on.
3. + 0 1 2 3 4 6 F Decimal Point Selector
+Monetary Add Mode: At this setting, amounts entered are assumed to
be monetary. The calculator automatically supplies a decimal point to
the left of the last two digits entered. Use this setting to add, subtract,
multiply and divide decimals.
Units/price mode operation:
Multiplication: The first factor will be entered as a whole number and
the second factor will have a decimal point supplied to the left of the
last two digits.
Division: The first factor will have a decimal point supplied to the left of
the last two digits and the second factor will be entered as a whole
number.
0,1,2,3,4,6 Fixed decimal point mode; these settings specify the number of digits
to the right of the decimal point that are shown in the result.
FFloating decimal point mode; this setting specifies that all digits of the
result are shown, up to a maximum of 10 on model 1530-6, and 12 on
model 1560-6 and 14 on model 1570-6. If the result exceeds these
capacities, excess digits to the right of the decimal point are dropped.
No rounding takes place.
4. •F-Cal Financial Calculation Switch
•Without Financial Calculation
F-Cal Tax 1 key change to Amortization key

Tax 2 Key change to FV key
Memory Total key change to Amount key
Memory Minus key change to Interest key
Memory Plus key change to Months key
Memory Subtotal key change to Payment key
Note: Cost-Sell-Margin is disabled when in this mode.
5. •∑/Loan FV Sigma/Loan and Futre Value Switch
F-Cal=Off • work as Sigma off
∑work as Sigma on
F-Cal = ON • work as Loan
∑work as FV
∑When the Sigma switch is in the “∑” position, the results of
multiplication or division calculations completed by the = or % key are
automatically added to the accumulator.
•When the Sigma switch is in this position, the results of these
calculations are not added to the accumulator. The sum of these
accumulations is displayed by depressing the Subtotal key and are
displayed and cleared by depressing the Total key.
(Sigma On)
ma Off)(Sig
Loan Basic Financial Calculation
FV Calculation for Future Value
6. •GT Grand Total Switch
•Calculation without Grand Total
GT 1570-6: Any total taken with Tkey is automatically accumulated to
Grand Total memory. The accumulated grand total can be recalled by
pressing the IITkey then the Tkey.
1560-6 & 1530-6: Any total taken with Tkey is automatically
accumulated to memory. The accumulated grand total can be recalled
by pressing the MT key.
NOTE: For model 1560-6 and 1530-6, when F-Cal switch is ON,
Grand Total is inaccessible because MT is Amount Key.
7. [↑]Paper Feed Key
Advance the paper roll.
8. [∆%] Delta Percentage
Automatically compares any two amounts and then calculates and
prints the difference and percent of change.
9. [TIME/DATE CAL] Time/DATE Calculation Key
Pressing this key once will set the calculator to Time Mode. +, -, S and
T will be calculated and displayed in Time Mode (hours, minutes). A
second depression will set the calculator and display to Date Mode
- 9 -

- 10 -
(MM-DD-YYYY). In Date mode, MT key changes to Start Date key,
M- key changes to End Date key, M+ key changes to Number of
Days key and MS key changes to Compute key.
10. [COST] Cost Key
Used to enter the Cost factor in a Gross Profit Margin calculation.
11. [SELL] Sell Key
Used to enter the Selling price in a Gross Profit Margin calculation.
12. [MARGIN] Margin Key
Used to enter the desired Margin in a Gross Profit Margin calculation.
13. [RATE] TAX Rate Preset Key
Used to enter TAX rate.
14. [TAX 1/Amortication] Tax 1/Amoritization Key (dual operation)
Tax 1: Calculate an amount of tax with tax rate preset by RATE key. Use +
key for calculating an amount including VAT, and –key for calculating
an amount excluding VAT.
Amortization: Prints the amortization schedule for a period, selected range of periods
or the complete term of the loan.
15. [TAX 2/FV] Tax 2/Future Value Key (dual operation)
Tax 2: Calculate an amount of tax with tax rate preset by RATE key. Use +
key for calculating an amount including VAT, and –key for calculating
an amount excluding VAT.
FV: If this key is pressed after 10-key input, it means enter the value as FV.
If Amount, Interest, Months and Payment are entered in prior, or
modification is done on any of the three as above in prior, user can
calculate/recalculate the FV by pressing this key.
16. [→]Right Shift Key
Deletes right most character of a live entry.
17a. [N] Item Count Key
Model 1570-6
Calculations with item count and/or averaging. Also used to set the N
count to Gross or Net.
18. [+/-] Sign Change Key
Reverse the sign on the display.
19. [%+] Percent Key
Completes percent calculation when Multiple or Division key is used.
20. [÷]Division Key
The Division key performs division, automatic constant division and
intermediate sequential operations. It establishes the next amount as a
constant divisor. The ÷key also causes the calculator to divide when
