Victory V30 The Countess User manual

User Guide

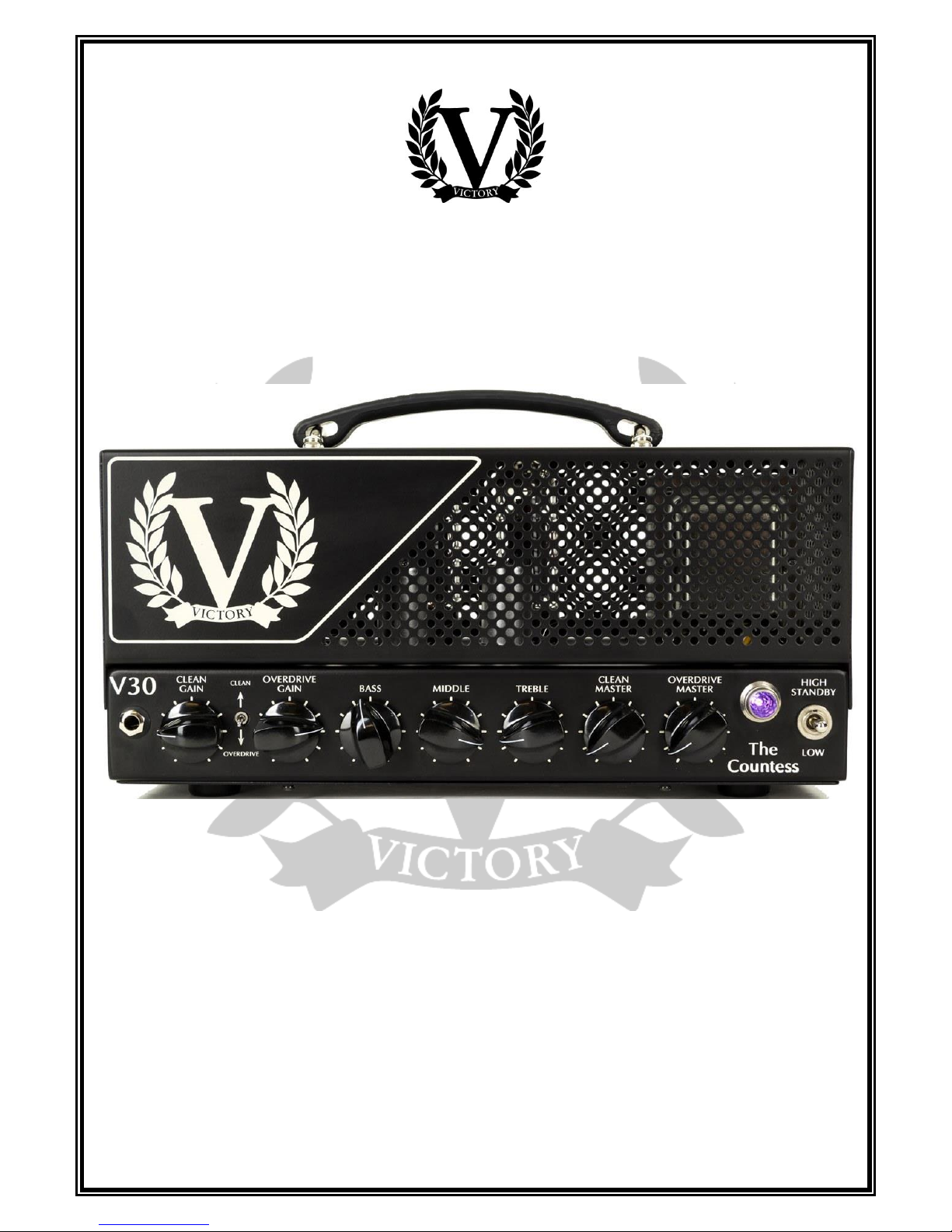

VICTORY V30 ‘The Countess’
All Valve 30 Watt Guitar Head

Thank you, and congratulations on acquiring a Victory Amplification V30. This amp is proudly designed
and built by our committed team of engineers and craftsmen in the UK.
We value simplicity in operation, flexibility in use and absolutely no compromise in tone. Our aim is
simple: to create amplifiers that inspire you ever onwards in your playing and never let you down.
SAFETY FIRST
We want you to enjoy your amplifier to the best of its potential. So please…
Before you go any further, take a moment to read these SAFETY INSTRUCTIONS
• Read these guidelines & keep them
• Follow all instructions & guidelines
• Do not use this amplifier near water or any other liquid
• Do not block any openings
• Do not attempt to clean the amplifier with any fluids: use only a dry cloth
•Do not attempt to modify or service this product yourself
•Removing covers could mean you are exposed to dangerous voltages that may result in severe injury or
death
• Refer all servicing to qualified service personnel
• Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
(a) When the power-supply cord or plug is damaged;
(b) If liquid has been spilled, or objects have fallen into the product;
(c) If the product has been exposed to rain or water;
(d) If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions. Improper adjustment of other controls may
result in damage and will often require extensive work by a qualified technician to restore the product
to its normal operation;
(e) If the product has been dropped or damaged in any way;
(f ) When the product exhibits a distinct change in performance - this indicates a need for service.
•Replacement Parts: When replacement parts are required, be sure the service technician uses
replacement parts specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other hazards.
What’s included:
Your new Victory V30 comes with the following:
1 x Single way Latching Footswitch for Channel 1/2
A mains lead for your country
A heavy duty Gig Bag/Travel Bag
This User Guide

FRONT PANEL
Input
Plug your guitar in here!
Clean Gain
This adjusts the input sensitivity. Use low settings for maximum clean headroom and higher settings
when you want to introduce more natural valve overdrive to your tone.
Balancing your input gain level with your master volume level is crucial in delivering the tone and feel
that works best for you.
Channel switch
The V30 has two channels that you can switch between using this front-panel toggle, or a remote single
way latching footswitch (supplied) plugged into the Channel footswitch socket on the rear.
Overdrive Gain
Exactly the same as the clean channel, this controls the input gain… except here there’s a whole load
more of it! Run it lower for crunchy sounds, in the mid-range for thicker overdrive, and crank it up for
the fullest distortion.
Bass
The V30 has a shared EQ section for both channels. The Bass controls the low frequency content of your
sound. Higher levels of bass can be good at low volumes, but take care when running the amp louder –
you may find you need to reduce the bass control. As with all the EQ pots, adjust to taste!
Middle
Controls the midrange frequencies in your sound. Run the middle control higher to help cut through a
band mix, or generally fatten and ‘widen’ your sound. Run it lower for a lighter, less ‘in-your-face’ kind
of sound.
Treble
Controls the high frequency content of your sound and is also a powerful tone shaper when it comes to
overdrive character.
Clean Master
Each channel has its own Master Volume control. Use this one to balance the volume level of the clean
channel to taste when switching between channels and modes.
Overdrive Master
Each channel has its own volume control. Use this one to balance the volume level of the overdrive
channel to taste when switching between channels and modes.

HIGH –STANDBY –LOW Switch
The V30 should always be switched on, (mains switch on rear of amplifier), with this front panel toggle
switch in its centre position. The amplifier is now in ‘STANDBY’ mode with just the valve heaters and low
voltages on. This allows the valves to heat up before they get 100s of volts up them, (it’s less of a shock).
After around 60 seconds, the amp can be switch to either HIGH, (around 42watts rms) or LOW, (around 9
Watts rms)
REAR PANEL
Voltage selector
Selects the correct mains voltage for your territory. Please refer to a qualified technician before even
thinking about moving this switch. If you do find yourself in foreign climes where the mains voltage is
different to home, (and the water tastes funny), it will be necessary to switch this selector. The mains
fuse must always be changed at the same time. Failure to do this will result in either the mains fuse
blowing as soon as the amp is turned on or the amp running with a fuse that is of too higher value to
provide adequate safety protection. Generally, the fuse value will double if the mains voltage is halved,
(i.e. if it’s a 1A fuse in the UK @ 230V, it will needs to be a 2A fuse for the USA @ 115V).
Always use the correct rating and type of fuse. Victory amplifiers exclusively use UL-approved 20x5mm
glass ‘T’ or ‘Timed’ fuses. If you have difficulty acquiring the correct fuses, please contact Victory using
[email protected].
Mains inlet with Switch, (IEC Socket)
Please only use the correct mains cord for your territory! The mains switch turns your amplifier ‘ON’.
Ensure the front panel toggle switch is in the middle, ‘Standby’ position before turning on the mains.

HT fuse
The HT or ‘High Tension’ fuse protects the high voltage for the valve supply. If this fuse blows, the first
step is to replace it with an identical T500mA 20x5mm fuse. The HT fuse may sometimes blow due to
‘flash-over’ inside an output valve. This is where during the manufacturing process, not all of the gas is
removed from the glass envelope and the ‘getter’ inside the valve, usually made from barium or
magnesium oxide, will burn or evaporate these remaining gasses resulting in the common silvered
internal surface of the valve. This process, which is more likely to happen with new equipment, draws
high current momentarily and can blow the HT fuse. It will rarely cause any damage so just replacing the
fuse is sufficient to get the amp running normally again.
However, if the HT fuse blows again, it may indicate a serious valve failure where internal parts of a
valve are shorted and in this case the amplifier needs to be checked by a qualified engineer to assess the
problem.
Speaker outputs
PLEASE NOTE: The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of uninsulated ‘dangerous voltage’ within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of electric shock. Terminals labelled as “Speaker
Outputs” must be connected to a speaker cabinet of the designated load rating using an un-shielded two
conductor cable for speaker use at all times during operation. Never use a guitar cable to connect the
amplifier to a speaker as this presents the amplifier with a ‘capacitive load’. This can cause instability or
oscillation which may seriously damage valves and/or the expensive output transformer.
The output transformer in the V30 has 2 separate secondary windings; a 16 Ohm and an 8 Ohm. This
makes it easy to connect different combinations of speakers. There are three speaker output jacks: 2 x 8
Ohms, (wired in parallel) and 1 x 16 ohms.
So here are the possible combinations:
1. For a single 8 Ohm cabinet, use either of the 8 Ohm sockets.
2. For a single 16 Ohm cabinet, use the 16 Ohm socket.
3. For a pair of 16 Ohm cabinets, use both of the 8 Ohm sockets.
Effects Loop
The V30 has an effects loop, which is a simple, low impedance, series loop.
The SEND socket is for connection to the input of effects units. On the V30 it is a lower impedance
version of the signal that appears at the INPUT. Use the send to connect to floor pedals or rack effects
such as Delay, Chorus and Reverb etc. Effects such as Overdrive, Fuzz, Wah Wah and Tuners often give
better results plugged into the Instrument Input on the front panel. The Send socket can also be used on
its own to send a signal to another amplifier.
The RETURN socket is for connection to the output of effects units. When not used it is internally
connected to the SEND, therefore the EFFECTS LOOP can be ignored if not in use. It can also be used as a
small signal ‘Slave’ input from another amplifier but DO NOT plug an amplifier’s speaker output into the
Return socket or very bad things will happen.

Footswitch socket
Channel F/S. Connect the supplied single way latching footswitch here to select Channel 1 or 2.
Single Ended Mode switch.
This switch, located through a hole in the rear grill, is used to switch off either of the 2 output valves.
This results in the amplifier running ‘single-ended’which is a very pure Class A mode. If the front panel
power switch is on LOW, in single-ended mode the V30 produces around 1.4Watts rms. This should
allow playing at home without getting lynched by the neighbours. The switch throws both ways to
alternate between each output valve for even wear if this mode is used extensively.
Biasing:
Whenever any output valves are changed, the amplifier will need to be re-biased. This must be done by
a qualified or competent person as there are lethal voltages inside the V30 and getting killed by a guitar
amplifier is a rubbish way to die. Also take care as valves may still be very hot from use.
Please always try to buy matched pairs of output valves as they will be easier to Bias and give longer
service. Ensure the toggle switch on the top of the chassis is in the correct position for the selected
output valves, (either 6L6s or EL34s).
Unplug the V30 from the mains and remove the bottom chassis plate using a No.1 Posidrive screwdriver.
Unscrew the 4 x M4 screws from the side of the top grill using a No. 2 Posidrive and remove it. Carefully
place the V30 on a clear and secure surface upside down so all its soft bits are exposed.
The BIAS pre-set is found on the power supply PCB, (yellow circle on photo). The Bias voltage
measurement is performed between the chassis and the test point TP10 & TP11, (yellow triangles on
photo). Using a multimeter set on the 200mV range, measure these test points and adjust the BIAS
preset so the meter reads approx. 34mV. This translates into 34mA of current per output valve. Check
both Test Points a few times and try to balance the Bias voltage so it is as close as possible between the
2 valves. We don’t recommend a difference of greater than 6mV between the 2 valves.

Amplifier Dimensions:
SIZE (mm): 342(w) x 185(h) x 185(d) Unboxed. 545(w) x 310(h) x 300(d) Boxed.
Weight: 7.3Kgs Unboxed. 9.5Kgs Boxed
Output Power
Please note that due to the nature of the waveforms involved when the amp is in Single-ended mode,
measuring the available output is very subjective.
The following measurements were taken at 240V mains input into an 8 Ohm load using a 1 KHz Sine
Wave with the output waveforms set just before clipping:
Clean Channel High Power: 42 Watts
Clean Channel Low Power: 7 Watts
Clean Channel High Power Single-Ended: 1.6 Watts
Clean Channel Low Power Single Ended: 0.5 Watts
Dirty Channel High Power: 37 Watts
Dirty Channel Low Power: 6 Watts
Dirty Channel High Power Single Ended: 1.2 Watts
Dirty Channel Low Power Single Ended: 0.5 Watts
Warranty
All Victory products come with a 5 year limited warranty. This covers any defects in manufacturing or
faulty components. Valves and speakers are warrantied for 90 days from the purchase date but
replacement parts will be at our discretion. Please contact your local dealer if you have any issues with
your Victory product.
A note from Team Victory
We’ve built your Victory Amplifier as a professional, no-compromise musical instrument, with a great
deal of pride and an absolute commitment to tone. We encourage you to learn to get to know it by
experimenting with all the controls, in order to discover its vast array of tonal combinations.
Thank you for making your tones with us: we wish you many years of achieving inspiring sounds to push
your playing ever onwards.
Now I’ll shut up; you go play yer guitar.
Contact info: [email protected]
Web: www.victoryamps.co.uk
www.youtube.com/user/VictoryAmps
www.facebook.com/VictoryAmpsUK

Handmade in England
