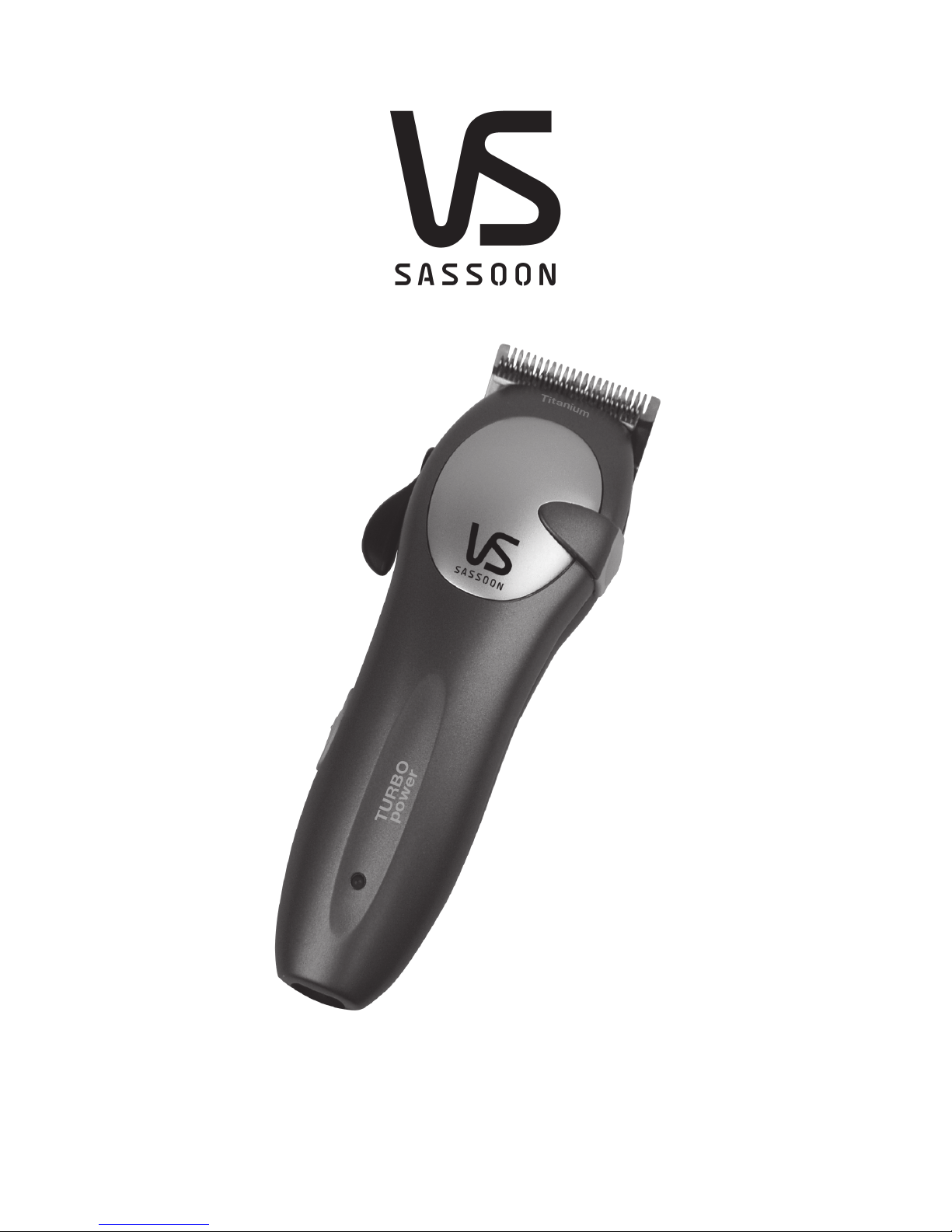

Vidal Sassoon VS318DA User manual

Model VS318DA
Turbo Power Clipper
VS318DA.indd 1VS318DA.indd 1 5/25/07 9:12:35 AM5/25/07 9:12:35 AM

IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, especially when children are
present, basic safety instructions should always be followed,
including the following:
Polythene bags over product or package may be dangerous. To
avoid danger of suffocation, keep this wrapper away from babies
and children. This bag is not a toy.
DANGER: Unplug unit when not in use. All appliances are electrically
live even when switched off.
WARNING: This appliance must not be taken
into a bathroom.
• This appliance should only be used as described in this booklet.
Please retain for reference.
• Do not immerse in water or other liquids.
• Do not use in the bath, or near basins or other vessels containing
water.
• Do not reach for an appliance that has fallen into water. Unplug
immediately.
• Take care to avoid contact between the moving blades of the unit
and the skin, paying particular attention to the face, neck and
hands.
• This appliance is not intended for use by young children or infirm
persons without supervision. Young children should be supervised
to ensure that they do not play with the appliance.
IMPORTANT: Always unplug the appliance when not in use or before
cleaning. Do not leave unattended when plugged in or switched
on.
• Do not use any attachments other than those supplied by Conair
Australia Pty Ltd.
• Do not use the appliance with damaged or broken attachment
combs or with any teeth missing from the blades, as injury may
occur.
VS318DA.indd 2VS318DA.indd 2 5/25/07 9:12:36 AM5/25/07 9:12:36 AM

• Use this appliance only for its intended use as described within
this instruction booklet.
• This appliance is not intended for commercial use.
• Never drop or insert any object into any opening.
• Ensure appliance is switched off before plugging it into the
power outlet.
• Do not place appliance on any surface while it is operating.
• Do not use outdoors or operate where aerosol (spray) products
are being used or where oxygen is being administered.
• Keep the cord away from heated surfaces.
• Do not use this appliance if the supply cord is damaged. In the
event of damage, discontinue use immediately and contact
your dealer for instructions on returning it for examination or
exchange.
• After use do not wrap the cord around the appliance as in time
this may cause the cord to fracture. Coil cord loosely by the side
of the appliance in storage.
• Always ensure that the voltage to be used corresponds to the
voltage marked on the unit.
• For additional protection, the installation of a residual current
device (RCD) with a rated operating current not exceeding 30mA
is advisable in the electrical current circuit supplying the bathroom.
Ask your installer for advice.
VS318DA.indd 3VS318DA.indd 3 5/25/07 9:12:37 AM5/25/07 9:12:37 AM

TURBO POWER CLIPPER
The VS Sassoon for Men Turbo Power Clipper set is a direct drive
cord/cordless powerful clipper with a range of accessories.
Features:
INSTRUCTIONS FOR USE
CORDED USE – OPERATION WITH THE POWER CORD
IMPORTANT: Only use the mains adaptor supplied with this
appliance.
1. Ensure the appliance is switched off.
2. Connect the adaptor to the base of the appliance and plug the
adaptor into a suitable mains socket.
3. The appliance is now ready for use.
• NOTE: The appliance should not be used for longer than 20
minutes when operated from the mains.
• Titanium Blade technology
• Turbo Boost Power
• 5 position adjustment lever
• On/Off switch
• Charging Indicator light
• Charging adaptor
• 8 x Clipper Cutting guides
• Left and right ear comb
guides
• Styling Comb
• Barber comb
• Moustache Comb
• Blade Cover
• Cleaning Brush
• Neck Brush
• Cape
• Lubricating oil
• Storage Case
• Barber scissors
• 6 sectioning clips
• Tweezers
• Nail clipper
• Nail scissors
VS318DA.indd 4VS318DA.indd 4 5/25/07 9:12:37 AM5/25/07 9:12:37 AM

CORDLESS USE - CHARGING
1. Ensure the appliance is switched off.
2. Connect the adaptor to the base of the appliance and plug the
adaptor into the mains.
3. The Charging Indicator Light will indicate that the adaptor is
connected to the main unit and is plugged in.
4. When charging for the first time, or when the appliance has
not been used for a considerable time, the appliance must be
charged continuously for 16 hours. This will provide around 40
minutes of use.
5. Ordinarily, this appliance may be charged overnight.
6. Once the appliance is charged, unplug the adaptor from the
mains and disconnect from the appliance.
7. The appliance is now ready for use.
BEFORE USE
Always inspect the appliance to ensure the clipper head is free from
hair, etc. and is running smoothly. Check also for signs of damage
and ensure that the tips of the two blades are parallel. Failure to do
this can result in injury.
The appliance is supplied with 1 left and right ear comb guides and
8 clipper guides:
Grade 1 = 3mm
Grade 2 = 6mm
Grade 3 = 9.5mm
Grade 4 = 13mm
Grade 5 = 16mm
Grade 6 = 19mm
Grade 7 = 22mm
Grade 8 = 25mm
VS318DA.indd 5VS318DA.indd 5 5/25/07 9:12:37 AM5/25/07 9:12:37 AM

USING THE COMB GUIDES
1. Ensure the appliance is switched off.
2. Slide the clipper guide over the top and sides of the blades and
pull down over the back of the blades until it clicks into place.
TO REMOVE CLIPPER GUIDE
1. Switch the appliance off.
2. Push the base of the clipper guide away from the blades.
ADJUSTABLE TAPER LEVER
The adjustable taper lever enables the cutting length to be adjusted
between grade lengths.
1. To increase the cutting length, push the lever down.
2. To reduce the cutting length, push the lever up.
BEST CUTTING PERFORMANCE
1. Ensure the appliance is sufficiently charged.
2. Use on clean, dry hair that has been combed until tangle-free.
3. Attach the appropriate clipper guide as required. If using more
than one grade, start with the longer first.
4. Switch the appliance on.
5. Hold the clipper against the hair, the teeth of the clipper pointing
upwards, yet flat against the head.
6. Move the clipper upwards and outwards through the hair, a little
at a time clipping against the direction of the hair growth.
7. The clipper will work most efficiently when cutting through the
hair at its own speed. Never force the clipper.
8. Depress the turbo boost button for an extra burst of cutting
power.
9. Never switch the clipper off whilst in the hair.
CLEANING & MAINTENANCE
• After each use, clean the head as follows:
1. Switch the appliance off or unplug if mains operated.
VS318DA.indd 6VS318DA.indd 6 5/25/07 9:12:37 AM5/25/07 9:12:37 AM

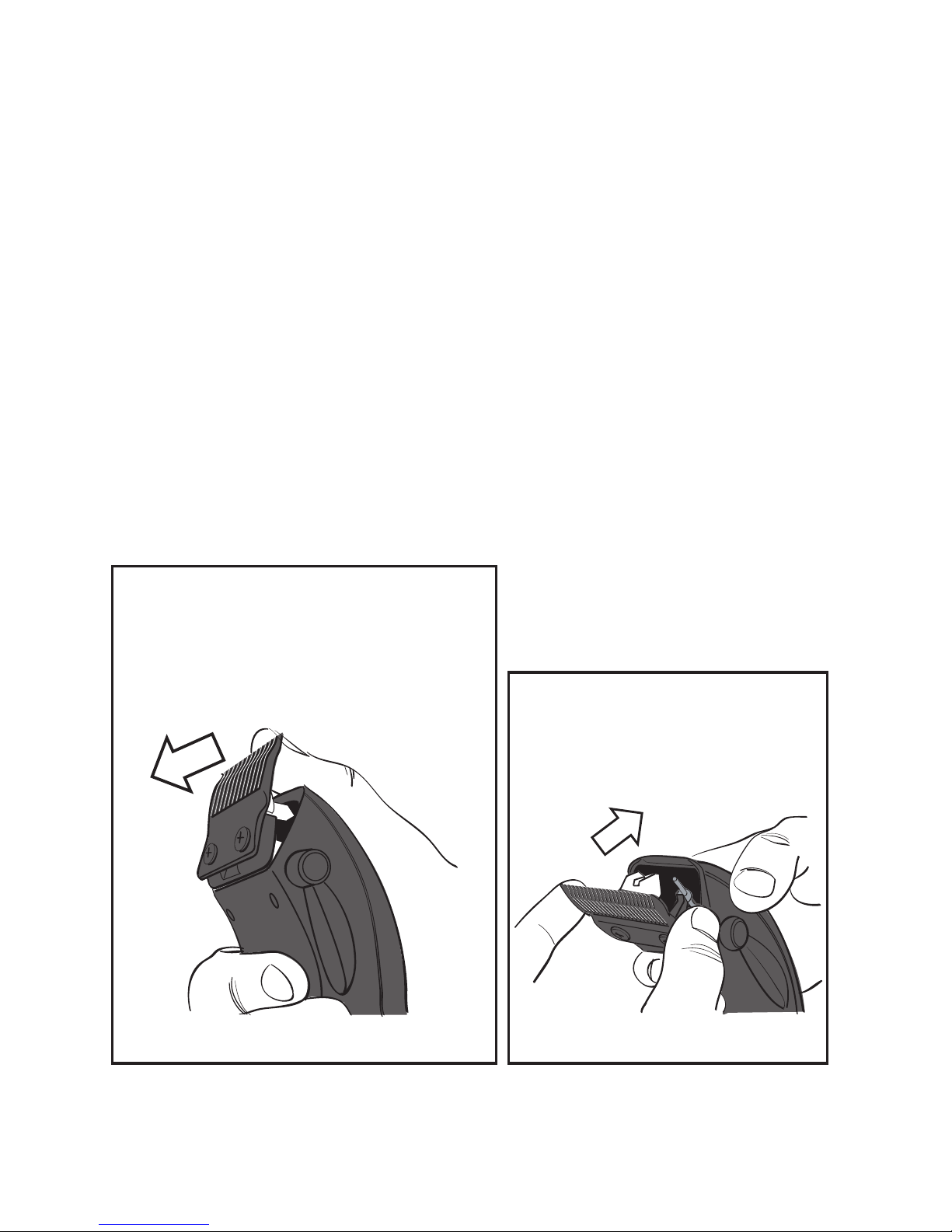

2. Remove the head from the power handle as shown on next page
fig. 1.
3. Using the cleaning brush, gently brush and blow any hairs from
the blade and head.
4. Replace the head as shown on next page fig. 2. Make sure that the
taper lever is set to the lowest position before replacing blade.
5. Do not disassemble the blades for cleaning.
When used regularly, the clipper blades will not need to be oiled.
However, if the clipper has not been used for a prolonged period
of time, it is advisable to oil the blades before use. After cleaning,
switch the appliance on, and oil the blades by adding a few drops
of the oil supplied over the blades. Only use the lubricating oil
supplied with this appliance as this is specifically formulated for
high speed clippers and does not evaporate or slow the blades.
Fig. 1
Fig. 2
VS318DA.indd 7VS318DA.indd 7 5/25/07 9:12:37 AM5/25/07 9:12:37 AM

BATTERY DISPOSAL
This appliance contains Nickel-Cadmium batteries. To protect the
environment, the appliance must be disposed of safely at the end
of its life. Please take to a recycling centre for safe disposal.
LIMITED TWO YEAR WARRANTY
Conair Australia Pty Ltd. will repair or replace (at our option) your
appliance free of charge for twenty four months from the date of
purchase if the appliance is defective in workmanship or materials.
This warranty is an additional benefit and does not affect your
legal rights. To obtain service under this warranty, please fill in and
return the Warranty Registration as instructed.
®
Vidal Sassoon and related logos are trademarks of
The Procter & Gamble Company used under licence by Conair
©2006 Richardson - Vicks Inc. /Procter and Gamble USA
Conair Corporation USA, 1 Cummings Point Road,
Stamford, Connecticut 06902 USA
Conair Australia Pty Ltd, Suites 20 & 21,
7 Narabang Way, Belrose NSW 2085.
Australia Customer Service Hotline (Australia): 1800 650 263
Customer Service e-mail: [e-mail]
Conair New Zealand Limited, PO BOX 251159, Pakuranga, Auckland
1706 New Zealand
Customer Service Hotline (New Zealand): 0800 266 247
