Vidao 50V950 User manual

USER’S MANUAL
50” LED TELEVISION
50V950
Ver 1.0
For technical assistance or troubleshooting
please call 1-855-998-4326 or visit www.sibrandssupport.com

50V 50 -1
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (includ-
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
-
paratus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or
Moisture.
shall be placed on the apparatus.
17. The mains plug or appliance coupler shall remain readily operable.
18. Use in outdoors: This TV is not designed for outdoors installation. Do not expose the TV to rain, as it may
become damaged.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Safety:
TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT REMOVE COVER
(OR BACK). NO USER SERVICEABLE PARTS ARE INSIDE. REFER TO QUALIFIED
SERVICE TECHNICIAN ONLY.
intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s
Instruction: The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and servicing instructions in the literature accompanying the
appliance.
to constitute a risk of electric shock to the users.
9

50V950-2
Safety Instructions
Please read these instructions carefully.
This product complies with all applicable US federal safety requirements, as well as those of the Canadian
Standards Association.
1. Cleaning
Always unplug the TV before cleaning. Do not use liquid or aerosol cleaners. Use a soft, slightly damp cloth to
clean.
2. Water and Moisture
Do not use this TV near water. Avoid using this TV in an excessively damp environment.
3. Stand
This TV should always be placed on a solid, sturdy surface.
4. Ventilation
To prevent overheating, do not block or obstruct the vent openings on the TV’s back panel. Also, avoid placing this
TV in a confined area with poor air flow.
5. Power Sources
This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of
The type of power supply to your home, consult your electronics retailer or local power company.
6. Power Cord Polarization
This TV is equipped with a three-wire grounding type plug, a plug with a third (grounding) pin. As a safety feature, this
plug will only t into a grounded power outlet. If you are unable to insert the plug into the outlet, contact your electrician
to replace the obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
7. Power Cord Protection
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or
against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from
the TV.
8. Lightning
To protect the TV during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it
from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV from lightning
and power-line surges.

50V950-3
Safety Instructions
9. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the TV be sure the antenna or cable system is grounded so
as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electri-
cal Code (U.S. A.), ANSI / NFPA 70 provides information with regard to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of anten-
na-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
Example of Grounding According to National
Electrical Code Instructions
NEC - National Electrical Code
10. Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power
circuits, or where it can fall on to power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
11. Overloading
12. Object and Liquid Entry
Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short-out
TV.
13. Servicing
Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or
14. Damage Requiring Service
a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the TV has been exposed to rain or water.
d. If the TV does not operate normally by following the operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper adjustment of other controls may result in damage and will
e. If the TV has been dropped or the cabinet has been damaged.
f. If the TV exhibits a distinct change in performance.
Ground Clamp Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Ground Clamps
Electric Service
Equipment
Power Service Grounding
Electrode System (NEC
Art 250, Part H)

50V950-4
Safety Instructions
15. Replacement Parts
16. Safety Check
Upon completion of any service or repairs to this TV, ask the service technician to perform safety checks to determine
whether the product is in proper operating condition.
17. Wall Mounting
The TV should be mounted to a wall only by a professional. The TV may slide or fall, causing serious injury to a child
or adult, and serious damage to the product. Warranty shall be voided.
18. Heat
The TV should be situated away from heat sources such as radiators, heat registers, stoves, or other products
NOTE TO CABLE / TV INSTALLER:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric
should be connected to the grounding system of the building, as close to the point of the cable entry as practical.
FCC REGULATORY INFORMATION:
This television has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residen-
tial installation. This television generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
electronic equipment, which can be determined by turning the television off and on, then the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and television.
- Connect the equipment into an outlet on a circuit different from that to which the television is connected.
- Consult your dealer or an experienced radio / TV technician for assistance.
’s
authority to operate the equipment.
guarantee that interference will not occur in a particular installation. If this television does cause interference to other
When replacement parts are required, be sure that only an authorized service technician has used replacement parts
specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock, or other hazards and void any warranty.

50V950-5
Table of Contents
Important Safety Instructions.........................................................................................................................................1
Table of Contents ..........................................................................................................................................................5
Introduction....................................................................................................................................................................6
Installing the Base .........................................................................................................................................................7
Remote Control
Battery Install.................................................................................................................................................................8

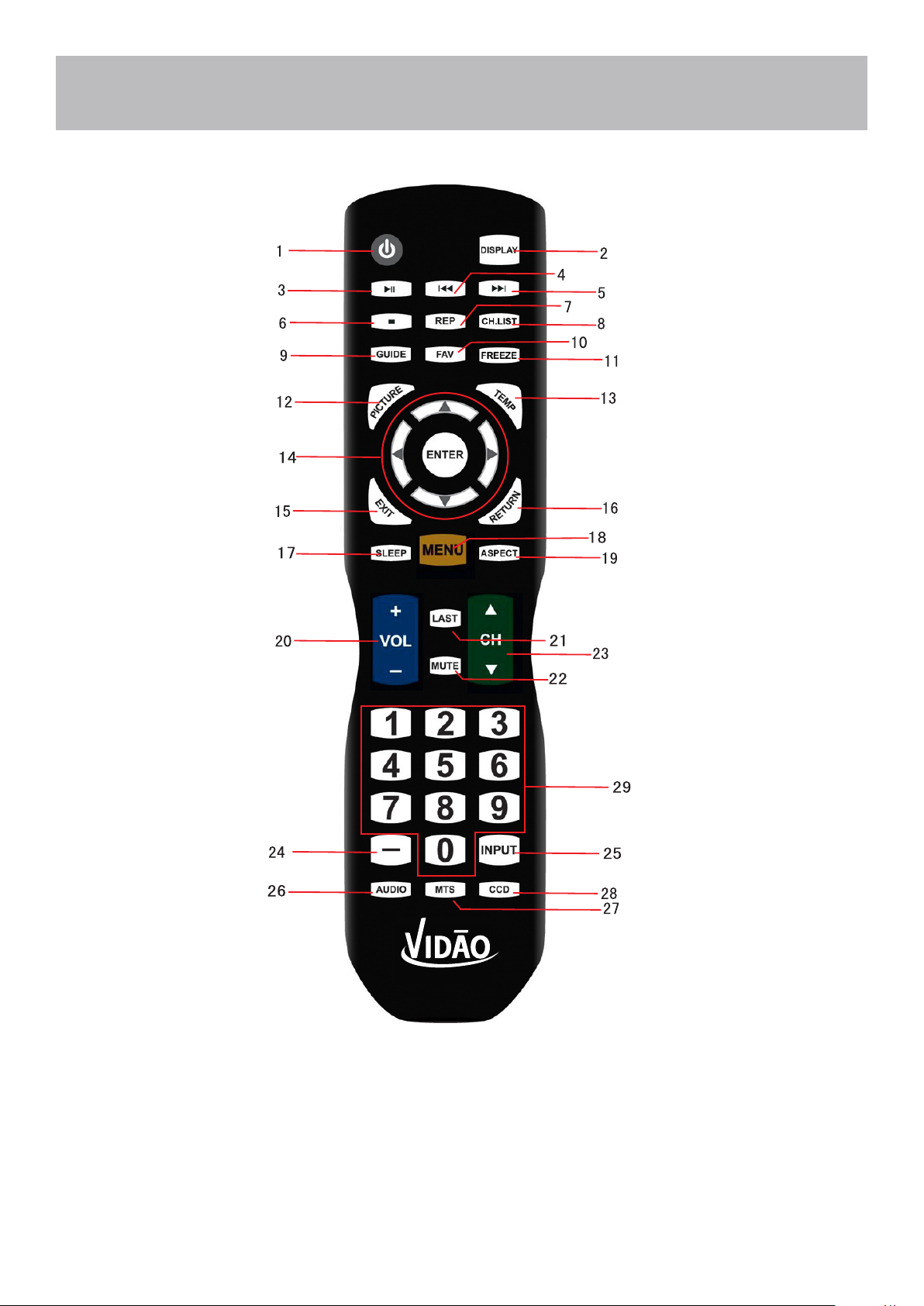

Overview .......................................................................................................................................................................9
TV Overview
Front & Side Panel ......................................................................................................................................................11
Rear Panel .................................................................................................................................................................12
Installation
TV Setup
TV Channel Setup & Channel Auto Scan.....................................................................................................................31
Picture Setting
Contrast........................................................................................................................................................................21
Brightness ....................................................................................................................................................................21
Color.............................................................................................................................................................................21
Tint................................................................................................................................................................................21
Sharpness ....................................................................................................................................................................21
Color Temp. ..................................................................................................................................................................21
Audio Settings
Bass .............................................................................................................................................................................22
Treble ...........................................................................................................................................................................22
Balance ........................................................................................................................................................................22
Surround.......................................................................................................................................................................22
SPDIF Type ..................................................................................................................................................................22
Audio Language ...........................................................................................................................................................22
Date & Time Settings ..............................................................................................................................................23
Setup Settings
Menu Languages..........................................................................................................................................................24
Transparent ................................................................................................................................................................24
..................................................................................................................................................................24OSD Timeout
Closed Captions.........................................................................................................................................................25
Advanced Settings....................................................................................................................................................26
Parental Control ........................................................................................................................................................28
Channel Settings
Favorite ........................................................................................................................................................................30
Show / Hide ..................................................................................................................................................................30
Channel Label ..............................................................................................................................................................30
Zoom Modes .............................................................................................................................................................32
USB Modes ..................................................................................................................................................................33
...........................................................................................................................................................35
Troubleshooting ........................................................................................................................................................36
Connection to a Personal Computer ..............................................................................................................................17
Connection to a Home Theater System .........................................................................................................................18
Connect a digital cable box, satellite recei
ver, or DVD player with a Component connection .......................................14
Connect a digital cable box, satellite recei
ver, or DVD player with Composite cables (yellow, red, & white) ................
Connect a digital cable box, satellite recei
ver, or DVD player with an HDMI cable .......................................................13
Connecting the Power and Basic Cable connection ......................................................................................................16
Initial Setup Wizard .......................................................................................................................................................19
15
CEC Settings...............................................................................................................................................................27
MHL Setting .............................................................................................................................................................. 34

50V950-6
Introduction What’s In The Box
The 50V950 package includes the following items. Save the carton & packing for future shipping
• Remote Control
• AAA Batteries (2)
• Quick Start Guide
• User Manual
• Child Safety
• Pedestal Base
• User manual
• Quick Start Guide
• Child Safety
• Remote Control
• AAA Batteries x 2
teglliwkoobnoitcurtsnisihT.snoitcnufdnaserutaeftuobasnoitseuqevahuoyrevenehwediugsihtotreferesaelP
you up and running with the best possible connection type for your devices. Enjoy!
This TV uses a 200x200 VESA mounting bracket attachment pattern. Please take this information with you when
purchasing a wall mount for this TV.
Wall Mount Information
For technical support, the VIDAO Technical Support Center is available 9:00AM to
9:00PM (Monday to Friday) and 9:00AM to Noon (Saturday) for technical assistance
or troubleshooting. To contact us by phone, please call 1-855-383-2411.
USER’S MANUAL
50” LED TELEVISION
50V900R
Ver1.0
• Audio / Video Cable
• Screws M4X20 for Pedestal Base
• Screws ST3X7 for Pedestal Base
• Screws M4X20 for Pedestal Base (6)
• Audio / Video Cable
• Screws ST3X7 for Pedestal Base (2)
• Pedestal Base

50V950 -7
Place the TV face down
on a soft cloth or cushion.
Position base as shown.
Insert 4 screws M4X20 (provided)
through the holes in the bottom
of the base into the post holes
and tighten securely.
Do not over-tighten.
Installing the Base
1
2Insert 4 screws ST3X7 (provided)
through the holes in the bottom
of the base into the post holes
and tighten securely.
Do not over-tighten.

50V950-8
Battery Install
Remote Control
Your remote control handset is powered by two (2) AAA type batteries
• Effective remote range is approximately 16 feet at an
angle of no greater than 30° to the left / right or 20° up /
down to the IR sensor.
• To avoid possible damage from battery chemical
leakage, remove the batteries if you do not plan to use
the remote for an extended period of time. Do not mix
batteries of different age and / or type. Always discard
used batteries safely.
• Do not expose the remote control to liquids, direct sun-
light or sources of excessive heat.
• The IR receiver on the TV will not work properly if the set
is in direct sunlight.
NOTE: Improper use of batteries can result in a chemical
leakage or explosion.
Comcast or Direct TV : 10030
Dish Network : 506
RCA Universal : 0030
30 30
IR Receiver
Cable / Satellite Remote Control Codes:
NOTE: The remote control from your Cable/Satellite provider can be programmed to operate most
of the major functions of this TV model which include: POWER, INPUT / SOURCE, VOLUME +,
VOLUME - , CHANNEL +, CHANNEL - , SELECT/OK/ENTER (based on your remote), and NUMBER
buttons. For non-major TV functions not listed, use the remote control included with this TV.
To program your Cable / Satellite remote to operate this VIDAO TV, follow the programming instruc-
tions included with your providers’ remote and use the following codes.
•Turn the remote over and remove
battery cover.
• Place two (2) “AAA” batteries into
the battery compartment with the “+”
and “-“ ends facing as indicated.
• Replace the cover
AT & T (U-verse) : 1043

50V950-9
Remote Control Overview
50V950
