VideoComm Technologies ZX-580SR240 User manual

ZX-580SR240 / CX-580SR240 Manual REV.B May 2013
1
ZX-580SR240 | CX-580SR240
WIRELESS & HARDWIRED
ALL WEATHER DAY / NIGHT CAMERA SERIES
OWNER’S MANUAL
[phone] US Toll Free
[phone] Phone
[phone] Fax
www.VideoTransmitters.com

ZX-580SR240 / CX-580SR240 Manual REV.B May 2013
2
TABLE OF CONTENTS
It’s About Real Time................................................................................................................................…......1
TABLE OF CONTENTS .................................................................……………………...............................…....2
SAFETY NOTICES.............................................................................…………………….............................…..3
INTRODUCTION .............................................................................................................…..........................…3
Advantages........................................................................…………………........................….3
PARTS LIST.............................................................................................................................…...............…...4
PRE INSTALLATION….............................................................................................................….............…....4
Identify Line-of-Sight…........................................................................................….…….…....4
Up & in the Clear…………………........................................…............................…………....…4
Ground Plane…....................................................................................….......…….......…….....4
Trees Grow!.................................…….................................................………..................……..4
CAMERA SETUP………..……..……………………………………………………………..….……………………..5
Channel Selection…………………………………………………………………………………….5
Antenna Connection………………………………………………………………………………….5
Video Connection……………………………………………………………………………………..5
Power Connection…………………………………………………………………………………….5
Mounting Bracket Installation………………………………………………………………………6
Focus & Zoom Adjustments……………………………………………………………………….6
CAMERA SPECIFICATIONS ………………...........................................................................................…….7
WARRANTY INFORMATION/ TERMS & CONDITIONS.............................................................…………….8

ZX-580SR240 / CX-580SR240 Manual REV.B May 2013
3
SAFETY NOTICES – ZX-580SR240 WIRELESS CAMERA SYSTEM
I. THIS DEVICE COMPLIES WITH FCC RULES PART 15. OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITONS:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference, including interference that
may cause undesired operation of the device
II. In order to comply with the FCC/IC adopted RF exposure requirements, this transmission system must be installed by
an authorized professional installer of VideoComm Technologies. Installation of all antennas must be performed in a
manner that will provide at least 23cm clearance from the front radiating aperture to any user or member of the public.
III. This is NOT an intrinsically safe device. Do not take the wireless ZX-580SR240 Camera into an area where intrinsic
safety is required. Bodily harm may result if warning is ignored.
IV. DO NOT OPERATE WIRELESS CAMERA WITHOUT THE ANTENNA CONNECTED TO ANTENNA PORT. Failure to do so
will result in damage to the unit and void the warranty.
V. DO NOT OPERATE THE SYSTEM WHEN the Camera & Receiver are closer than ten feet to each other. The devices may
not work properly and permanent damage can occur.
VI. This device has been certified by the FCC for use with other products without any further certification (as per FCC
section 2.1091.) Changes or modifications not expressly approved by VideoComm Technologies could void the user’s
authority to operate the equipment.
Industry Canada 3677A-T5808VCT
INTRODUCTION
All NEW and easy to install, these Rugged all-weather high resolution 700TVL cameras feature a 6-60mm varifocal
zoom lens and are perfect for protecting property and assets with exceptional night-vision ranging up to 240 Feet.
Advantages
Easy to Install and Operate “Plug & Play”
5.8GHz FM Live Real-Time Video up to 4 Miles (Model # ZX-580SR240 Only)
Depending on optional receiver (Sold Separately)
Night Vision Range up to 240 Feet
700 Line High-Resolution Day / Night Color Camera
SONY Effio-P DSP Enhanced 1/3” Day / Night Super HAD CCD with 6-60mm Varifocal Zoom Lens
Convenient Adjustable External Focus and Zoom Lens
On Screen Display Menu for Quick & Easy Video Setup with advanced features including: 20 Zone Privacy
Masking, ATR, 2D & 3D Noise Reduction, Digital Image Stabilization & 128dB Wide Dynamic Range
3-Axis Heavy-Duty Wall (Flat Surface) Mounting Bracket Included
Rugged All-Weather IP-66 Rated Cast Aluminum Design
Deters Vandalism, Theft and other Criminal Behavior
Perfect for Commercial, Industrial, Scientific,
Law Enforcement & Government Video Security Applications

ZX-580SR240 / CX-580SR240 Manual REV.B May 2013
4
PARTS LIST
The 700TVL All-Weather Camera Series has been carefully manufactured, tested, inspected and packaged. Please inspect the
packaging carefully to ensure you have received all the necessary parts and accessories listed. Refer to the following chart to
determine which parts are included with your product. If any parts are missing or damaged, contact VideoComm Technologies or your
re-seller immediately.
700-Line 240Ft Day / Night Camera Series
PARTS ZX-580SR240 Wireless Camera CX-580SR240 Hard Wired Camera
All Weather Camera with Sun-Hood X X
3dB Rubber Duck Antenna Model # RUB-5803 X -
Universal Mounting Bracket X X
Mounting Bracket Base Plate X X
2 x Bracket Adjustment Allen Keys X X
4 Bracket Base Screws X X
4 x Bracket Screws & Wall Plugs X X
12VDC 1.25 Amp Power Supply Model # PS-121C X X
2.1mm DC Barrel Jack Adapter # PS-21FBRL X X
Cover Opener for Channel Selection Port X X
Owner’s Manual X X
One Year Limited Warranty X X
PRE-INSTALLATION
Site Evaluation
Although wireless video transmission may seem like a viable option for a particular application at first glance, there are many
considerations.
Identify Line-of-Sight
Is there a clear, unobstructed view between the transmitter and receiver? Are there any other devices that may cause interference?
Depending on the height of the building, tower or structure, you must consider the path that the wireless video will travel between the
transmitter and receiver. Line-of-Sight is defined as a clear and unobstructed view between the transmitter and receiver.
Up & in the Clear
To realize the optimum distance for your VideoComm Technologies wireless devices, “give them some air”. A good rule of thumb is to
mount the devices at least 15 to 20 feet above obstructions such as the roof of a building, above parked cars in a parking lot
or the top of a fence line.
Ground Plane
If the radio devices are not mounted high enough above obstructions, the signal strength will be seriously reduced; therefore your
transmission distance will be reduced. The signal will literately bounce up and away from your intended target. This is known as a
negative ground plane effect. The ground plane could not only be the ground you stand on, but could also be the rooftops of cars or
distant buildings. If you have a choice, place the transmitter/receiver enclosures or external antenna on the edge of the roof looking
AWAY from the building. Installing the device in the middle of the roof may cause decreased range. This is particularly important if we
have a metal roof that tends to deflect signals away from the target. Also consider any obstruction that may get in the way, like another
roof or a tractor-trailer that may pass through your “Line-of-Sight”.
Trees Grow!
If we install the video link in the winter, the leaves that come out in spring may eliminate your wireless link. Are you trying to transmit
through trees? Then you will need to seriously consider how much range will be lost. A field test is always the best way to find out.
Speak to a VideoComm Technologies Technical support representative for a possible solution.

ZX-580SR240 / CX-580SR240 Manual REV.B May 2013
5

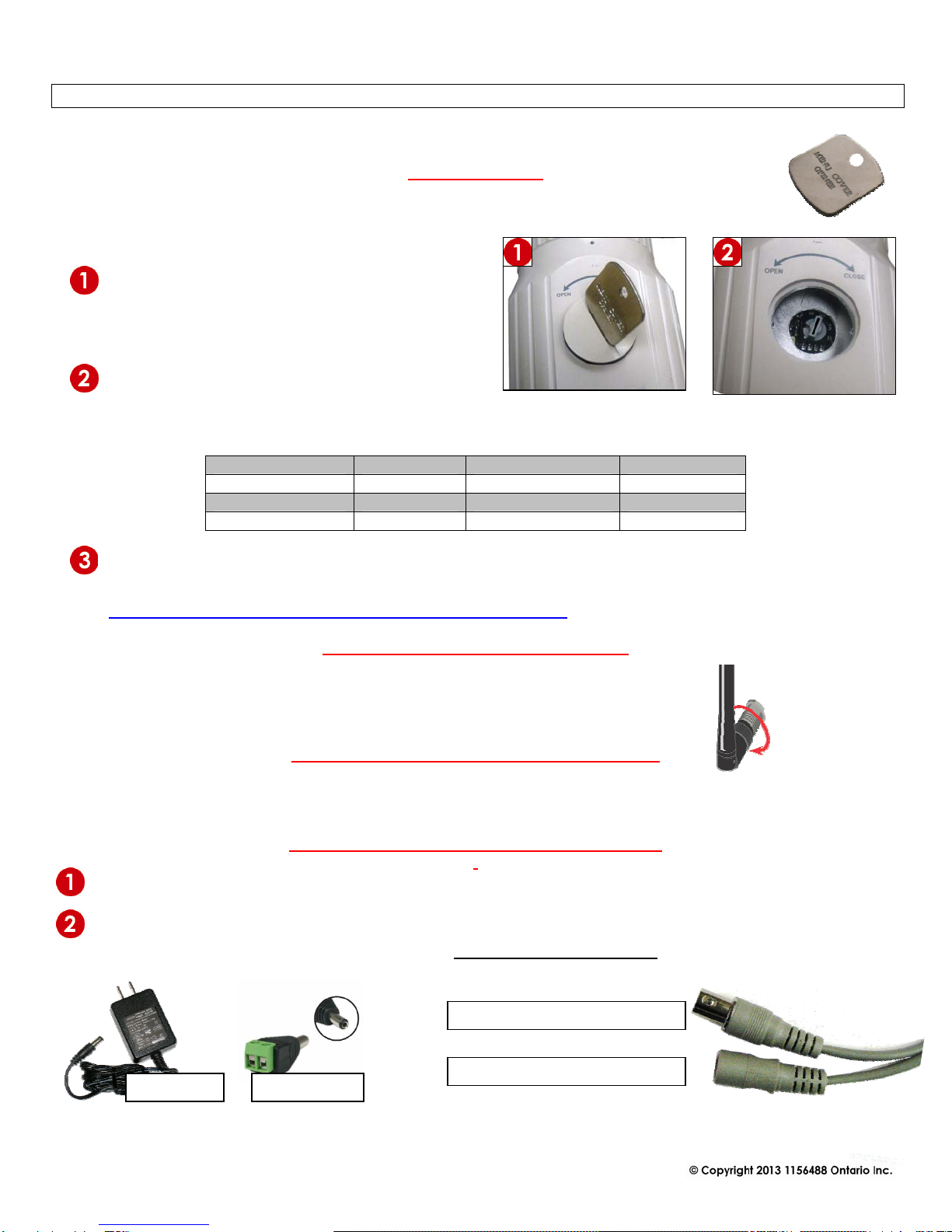

WIRELESS CAMERA SETUP – MODEL # ZX-580SR240 ONLY
The ZX-580SR240 Wireless Camera features Eight User Selectable Channels for Multiple Video Links.
Channel Selection
For the wireless video link to work, both the wireless camera and receiver must be set
to the same channel.
CHANNEL ONE 5.725GHz CHANNEL FIVE 5.809GHz
CHANNEL TWO 5.752GHz CHANNEL SIX 5.828GHz
CHANNEL THREE 5.771GHz CHANNEL SEVEN 5.847GHz
CHANNEL FOUR 5.790GHz CHANNEL EIGHT 5.875GHz
Antenna Connection – ZX-580SR240 Only
Carefully thread the antenna onto the connector of the camera.
Do not use a wrench or a tool – Hand Tighten Only. For best Transmitting pattern,
ensure the antenna is vertical
Video Connection – ZX-580SR240 & CX-580SR240
Connect the BNC-Female jack to your video viewing / recording device. To quickly and conveniently view your
camera settings or to adjust your focus and zoom, connect to a hand-held monitor.
Power Connection – ZX-580SR240 & CX-580SR240
j
Step #1 - Connect the 2.1mm barrel, 12VDC power supply Model # PS-121C Class V CEC in the 2.1mm Jack.
Step #2 – If stripping the power supply cord, use the included DC Power Jack Adaptor Model # PS-21FBRL
Important: The ZX-580SR240 & CX-580SR240 cameras are not compatible with 24AC power supplies
Step # 1 - Remove the Cover Cap from the bottom of
the camera housing’s Channel Selection Port using the
included cover opener.
A Coin or Flathead Screw Driver will also work.
Step # 2 - Rotate the rotary switch to set your channel.
Both the Camera and Receiver must be set to the same channel
Step # 3 - Replace the Cover Cap back onto channel selection port and tighten to
ensure a water tight seal.
You Must Replace the Cover Cap to Ensure a Water Tight Seal
BNC-Female Video Connection
2.1mm Power Jack Connection
PS-121C PS-21FBRL

ZX-580SR240 / CX-580SR240 Manual REV.B May 2013
6

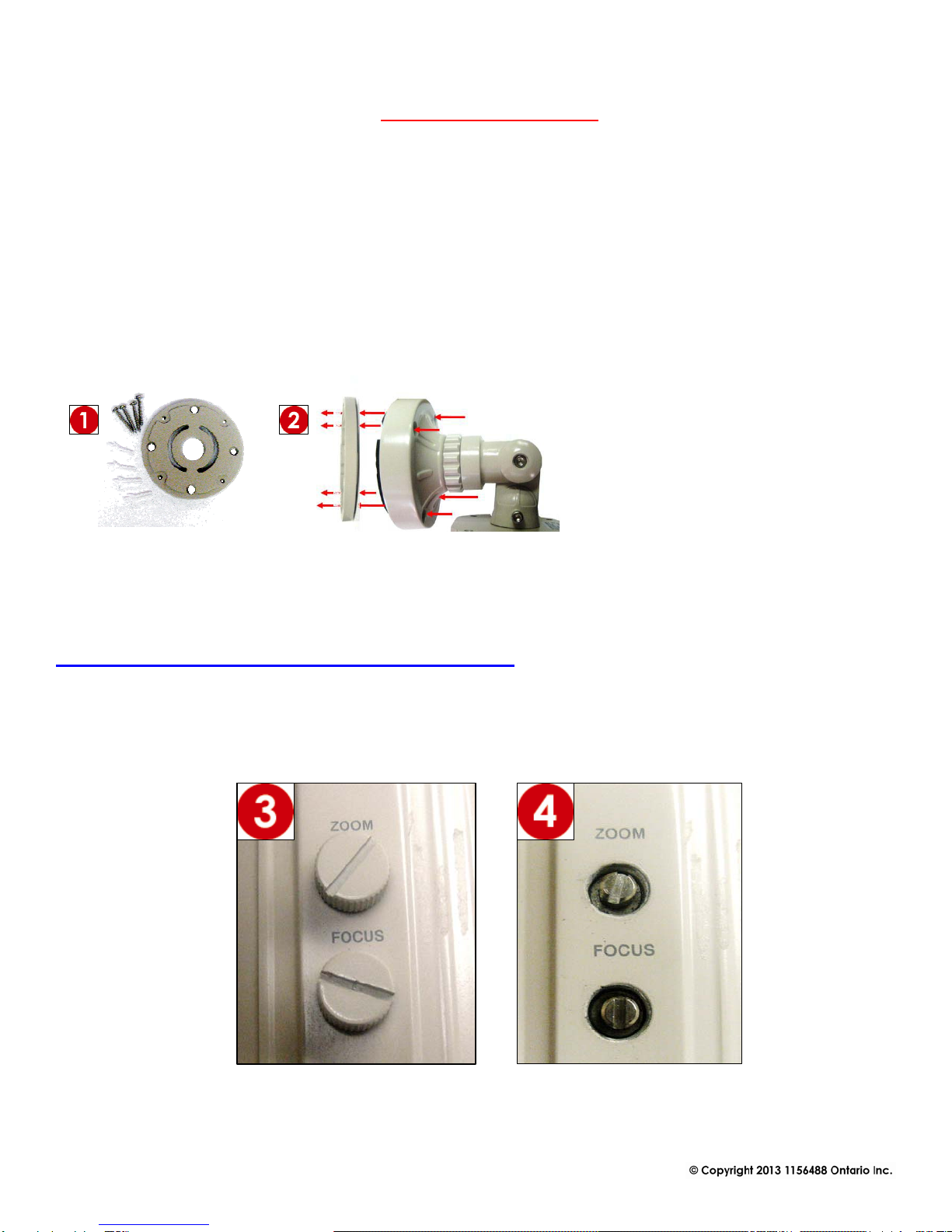

Focus & Zoom Adjustments
Step # 3 - To access the focus or zoom adjustment ports, remove the water tight caps by Rotating Counter-Clockwise. (Figure 3)
Step # 4 - Using a mini flathead screw driver, adjust the focus & zoom rotary terminal to your desired settings. (Figure 4)
Replace the water tight caps on the focus / zoom adjustment ports.
You Must Replace the Cover Cap to Ensure a Water Tight Seal
Water damage will void the warranty
Mounting Bracket Installation
Step # 1 - Securing the Base Plate
The ZX-580SR240 & CX-580SR240 require a flat mounting surface with the ability to hold a minimum of 5lbs to
support the camera & (depending on mounting-height) wind load. Designed for convenience with quick and easy
installations in mind, these camera feature a light weight mounting bracket base plate. (Figure 1)Using the included
screws and wall anchors, secure the base plate to your desired location.
Note: For wireless applications, the camera must be mounted 15 Feet above all obstructions to ensure a clear line-of-
sight between the camera and your receiver location.
Step # 2 - Attaching the Camera
Use the included Allen Key & mounting screws to firmly secure the camera bracket to the base plate. The Allen Key is
also used to release & tighten the bracket joint to properly set your camera angle. (Figure 2)

ZX-580SR240 / CX-580SR240 Manual REV.B May 2013
7
SPECIFICATIONS
ZX-580SR240 - 5.8GHz FM-LIVE 700-Line Color All-Weather Starlight IR-240' Range 6-60mm Varifocal Wireless CCD Camera
CX-580SR240 - 700-Line Color All-Weather Starlight IR-240' Range 6-60mm Varifocal CCD Camera
MODEL # ZX-580SR240 MODEL # CX-580SR240
OPERATING FREQUENCY 5.725GHz – 5.875GHz; 8 User Selectable Channels Not Applicable
RESOLUTION 700 Lines
VIDEO FORMAT NTSC (30fps) | PAL (25fps)
RADIATED POWER 50mV/m @ 3m Not Applicable
RANGE (LINE-OF-SIGHT) 300 Feet up to 4 Miles Depending on Optional Receiver & Antenna (Sold Separately) Not Applicable
CAMERA TYPE SONY Effio-P DSP Enhanced 1/3” Day / Night Super HAD CCD
LENS TYPE 6-60mm Varifocal Zoom Lens – External Focus & Zoom
MINIMUM ILLUMINATION 0.0001 Lux @ F1.2
INFRARED Up to 240 Feet Night Vision Range with 12 High Intensity IR LEDS
ON SCREEN DISPLAY MENU Adjust Exposure, White Balance, Color, Sharpness, Motion Detection ON / OFF, 20-Zone Privacy Masking, ATR-EX, 2D & 3D Noise-Reduction, Digital Image Stabilization, HLC, & 128dB Wide Dynamic
Range
ANTENNA TYPE 3dB Omni-Directional Rubber Duck Not Applicable
ANTENNA INPUT CONNECTOR SMA-Female Not Applicable
OPERATING VOLTAGE 12VDC – Model # PS-121C Class V CEC
CURRENT CONSUMPTION 300mA @ 12VDC IR OFF / 500mA @ 12VDC IR ON
CONSTRUCTION IP-66 Rated Cast Aluminum Design
DIMENSIONS 7.75” x 4” x 3.6” (197mm x 102mm x 92mm)
WEIGHT 3.4lbs (1548g) 3.1lbs (1406g)
MOUNTING BRACKETS Included – 3 Axis Bracket & Wall Plate
OPERATING TEMPERATURE
RANGE -40ºF to +170ºF (-40ºC to 77ºC)
FCC / IC / CE APPROVED Yes
Specifications are Subject to Change Without Notice
APPLICATIONS INCLUDE
NOTES

ZX-580SR240 / CX-580SR240 Manual REV.B May 2013
8
WARRANTY INFORMATION/ TERMS & CONDITIONS
VideoComm Technologies, herein referred to as “VCT.”
LIMITED WARRANTY
VCT hereby warrants, subject to the conditions here in below, that should this product become defective by reason of improper
workmanship or material defect during the specified warranty period, VCT will repair the same, effecting all necessary parts without
charge for either parts or labor, or replace the unit at VCT option.
Labor: ONE (1) Year from the date of original purchase from authorized Re-seller. TWO (2) Years for Antennas only.
Parts: ONE (1) Year from the date of original purchase from authorized Re-seller. TWO (2) Years for Antennas only.
Void Warranty
Purchaser warranty will be void and purchaser waves any rights to make warranty claim if product has been opened, altered or modified, repaired or
serviced by anyone, other then the service facilities authorized by VCT to render such services. Further, the seal/serial number on the unit must not have
been altered or removed. The unit must not have been subject to accident, misuse, abuse or operated contrary to the instructions provided. The opinion
of VCT with respect to this matter shall be final. This warranty does not include and is not extended to broken and damaged accessories, batteries and
exposed antennas and to parts wearing out due to normal wear and tear.
Proper Delivery:
Returned products will not be accepted for warranty repair unless accompanied with a valid Return Merchandise Authorization (RMA) number issued by
VCT. RMA numbers issued by VCT are valid for 15 days. Shipments received after 15 days will be refused. The unit must be shipped, freight prepaid or
delivered to the VCT Service facility, in either its original package or similar package, affording an equal degree of protection and with instructions
indicating the location within Canada or the United States to which the unit will be returned. The repaired unit will be returned to the customer freight
prepaid unless the warranty claim is deemed void or invalid. All accessories included with the unit must be listed individually on the packing slip for the
shipping documentation. VCT will not accept any liability, for loss or damage to such accessories if they are not listed.
Proof of Purchase Date:
This warranty applies and commences to VCT products, from the original date of purchase from an Authorized Re-seller. Proof of purchase (i.e.:
photocopy of invoice), must be included with product when submitting for warranty repair.
Warranty Limitations:
This warranty does not cover maintenance or check-ups, if required. This warranty gives you specific legal rights and you may also
have other rights, which vary from state/province to state/province. Some states/provinces do not allow the exclusion or limitation
of incidental or consequential damages or limitations on how long an implied warranty lasts, therefore the above exclusions or
limitations may not apply to you. VCT is not responsible or liable for indirect, special, incidental or consequential damages arising
out of or in connection with, the use or performance of the product or other damages with respect to loss of property, loss of revenues or profit, or cost of
removal, installation or reinstallation.
PRODUCT RETURNS
30 Day Product Return Policy ** If you are not satisfied with a product, you may return it to VCT within 30 days from original date of shipment within
the following conditions:
Original shipping charges are not refundable unless deemed that VCT shipped incorrect item(s), incorrect quantity (ies) o original manufacturers
defective product (subject to VCT validation).
Returned products will not be accepted unless accompanied with a valid Return Merchandise Authorization number (RMA).
RMA numbers issued by VCT are valid for 15 days. Shipments received after 15 days will be refused.
Returns must include a copy of original invoice, the completed VCT packing slip, and a detailed statement of reason for return.
Customer is responsible for all freight charges, duties and taxes, if applicable. The unit must be shipped, freight prepaid or delivered
to the VCT Service facility, in either its original package or similar package, affording an equal degree of protection and with
instructions indicating the location within Canada or the United States to which the unit will be returned.
prepaid to VCT in its original packaging, or similar packaging that offers an equal degree of protection. VCT will charge the full
replacement cost for any missing components or parts. VCT is not responsible for lost or damaged merchandise. We strongly
recommend insuring products for return shipping.
Return claims are void if manufacturer’s seal is broken and/or products are altered or modified, subjected to an accident, improper handling, improper
installation, misuse and abuse or operated contrary to the operating instructions. Products returned that are not in “re-saleable” condition will be
returned to customer at their expense.
Discontinued items, special or custom-made equipment items (items not carried as stock even though they may appear on price
lists) may not be returned. Returned products will be evaluated at the original purchase price and not at any subsequent price
increase or decrease.
** Subject to the conditions stated above, the following re-stocking fees will apply to products returned for credit/refund.
VCT reserves the right to determine the validity of the product returned and / or refuse to accept product for credit.
0 % Re-Stocking Fee (less original shipping charges): If product is returned within 30 days from original VCT ship date.
25% Re-Stocking Fee (less original shipping charges): If product is returned within 60 days from original VCT ship date.
50% Re-Stocking Fee (less original shipping charges): If product is returned within 90 days from original VCT ship date.
100% Re-Stocking Fee ( 0% credit ) : If product is returned after 90 days from original VCT ship date.
DISCLAIMER
In no event will VCT or any of its affiliates be liable for any indirect, special, punitive, consequential liability, or incidental damages upon any basis of
liability whatsoever even if advised of the possibility of such damages. In addition, VCT does not take any responsibility or assume any liability for the
wiring, installation or placement of the equipment Customer purchases, or for the activities of any other individual or entity such as Customer’s
Company, those who prepare the specifications or any local Authorities who inspect or approve Customer’s installation.
