Vido WD050210450 User manual

Aspirator blower
WD050210450
WD050210680
450W/680W

WD050210450/WD050210680
Thank you for purchasing a VIDO product. We are confident that you will appreciate the quality
of the product and you will be entirely satisfied with your purchase. Please read carefully the
user safety and operating instruction on how to operate this product correctly within safety
norms and regulations.
2

WD050210450/WD050210680
1 2 3
4 5
6
6mm
3
1 2
5
7
6
3
4
MAX
8

450W/680W ASPIRATOR BLOWER ENG
COMPONENT LIST
1) Nozzle
2) Handle
3) Speed control (Only for WD050210680)
4) Air intake
5) On/off switch
6) Lock-on button for on/off switch
7) Dust bag
8) Caps for carbon brushes
NORMAL ACCESSORIES
1) Nozzle: 1pc
2) Dust bag: 1pc
3) Spare carbon brush: 1set
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Choose the type according to the
work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can
assist you and offer advice.
4

450W/680W ASPIRATOR BLOWER ENG
GENERAL POWER TOOL SAFETY WARNINGS
Warning: Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-o perated (corded) power tool or
battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch isin the off- position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
5

450W/680W ASPIRATOR BLOWER ENG
f) Dress properly. Do not wear loose clothing or jewellery. Keep yourhair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection ofdust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.The correct
power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in the
hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power tool
for operations different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR POWER TOOL
1) Always use protective goggles, a cap and mask when using the blower. Ordinary eye or sun
glasses are not safety glasses.
2) Do not vacuum and blow materials that are hazardous to one’s health, e. g. dust from beech or oak
wood, masonry dust, asbestos. These materials are considered carcinogenic.
3) Do not vacuum and blow liquids. The penetration of liquids increases the risk of an electric shock.
4) Keep the power tool away from rain or moisture. The penetration of water into the motor increases
the risk of an electric shock.
5) When operating the power tool in damp environments is unavoidable, use a residual current device
(RCD). The use of a residual current device (RCD) reduces the risk of an electric shock.
6) Provide for good ventilation at the working place.
7) Never point the nozzle at anyone in the vicinity when using the blower.
8) Always use the dust bag when collecting dust, chips and the like.
9) Do not collect still smoldering cigarette ashes, freshly cut metals shavings, screws, nails and the
like
10) Never block suction inlet and/or blower outlet. Increased motor revolution may cause dangerous
6

450W/680W ASPIRATOR BLOWER ENG
fan breakage.
11) When an extension cord is required you must ensure it has the correct ampere rating for your
power tool and that it is in a safe electrical condition. Fully unwind extension cords to avoid potential
overheating.
DOUBLE INSULATION
The power tool is double insulated. This means that all the external metal parts are electrically insulated
from the main power supply. This is done by placing insulation barriers between the electrical and
mechanical components making it unnecessary for the power tool to be earthed.
IMPORTANT NOTE
Be sure the supply is the same as the voltage given on the rating plate. The power tool is fitted with a
two-core cable and plug.
Remove the main plug from socket before carrying out any adjustment or servicing.
SYMBOLS
To reduce the risk of injury, user must read instruction manual
Double insulation
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice
7

450W/680W ASPIRATOR BLOWER ENG
TECHNICAL DATA
Note: For power tool specifications refer to the nameplate on your power tool.
OPERATING INSTRUCTIONS
Note: Before using the power tool, read the instruction manual carefully.
1. Intended use
The machine is intended for vacuuming and blowing of materials that are not hazardous to one's health.
The machine is not suitable for vacuuming and blowing of flammable materials, metal chips and sharp
objects, such as screws or nails.
2. Switching on and off
1) To start the power tool, simply press the on/off switch. Release the on/off switch to stop your power
tool.
2) If you wish to use the power tool continuously, press on/off switch then lock on button, release on/off
switch first and lock on button second (See Fig 1) . Your switch is now locked on for continuous use. To
turn off your power tool just press and release the on/off switch. The switch will return to "off" position
automatically.
3. Regulating the air flow (Only for WD050210680)
The power tool air volume can be changed by turning the speed control to a given number setting from
1 to 7(At the time when the switch trigger is fully pulled). Higher air volume is obtained when the speed
control is turned in the direction of MAX (See Fig 2). And lower air volume is obtained when it is turned
in the direction of MIN.
4. Blowing
1) For dust blowing, attach nozzle to blower outlet. Turn it clockwise until it clicks (See Fig 3).
5. Dust suction
1) For dust suction, fit nozzle onto suction inlet and dust bag onto blower outlet. Turn themclockwise
until it clicks (See Fig 4).
Model WD050210450 WD050210680
Voltage 110-120V AC 220-240V AC 110-120V AC 220-240V AC
Frequency 50-60Hz 50-60Hz 50-60Hz 50-60Hz
Power input 450W 450W 680W 680W
No load speed 14000/min 14000/min 6000-16000/min 6000-16000/min
Max. air volume 3000L/min 3.0m3/min 3500L/min 3.5m3/min
Protection class
Machine weight 1.3Kg 1.3Kg 1.4Kg 1.4Kg
8

450W/680W ASPIRATOR BLOWER ENG
2) After the bag fills with dust, empty the contents of the dust bag into a dust bin by releasing the zipper.
WORKING HINTS FOR YOUR POWER TOOL
1. During “blowing” operation, take care that no debris/ impurities can be drawn into the air intake.
2. Never vacuum without a dust bag.
3. Do not vacuum sharp-edged or hot materials, such as glass splinters, hot ash or metal chips.
4. When vacuuming, empty the dust bag regularly. Observe the environmental regulations when
disposing waste.
MAINTENANCE
Warning : Remove the plug from the socket before carrying out any adjustment, servicing
or maintenance.
1. Keep the power tool ventilation slots clean and free from obstructions. If available, blow compressed
air into the vents to clear any internal dust (safety goggles must be worn when undertaking this
process).
2. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth.
3. Your power tool requires no additional lubrication.
4. Always store your power tool in a dry place.
5. The motor employs carbon brushes which are consumable parts. Since an excessively worn carbon
brush results in motor trouble. To inspecting or replacing the carbon brushes, use a screwdriver to
remove the brush holder caps (See Fig 5). Take out the carbon brushes. If it becomes worn to or near
“wear limit” (See Fig 6), replacing the new ones, reinstall the holder cap firmly.
Note: Both carbon brushes should be replaced at the same time. Use only identical carbon brushes.
Keep the carbon brushes clean and free to slip in the holders.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
TROUBLESHOOTING
1. If your power tool will not operate, check the power at the mains plug, or check the carbon brushes.
2. If a fault can’t be rectified, return the power tool to an authorized dealer for repair.
ENVIRONMENT PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice.
9

450W/680W ASPIRATOR BLOWER ENG

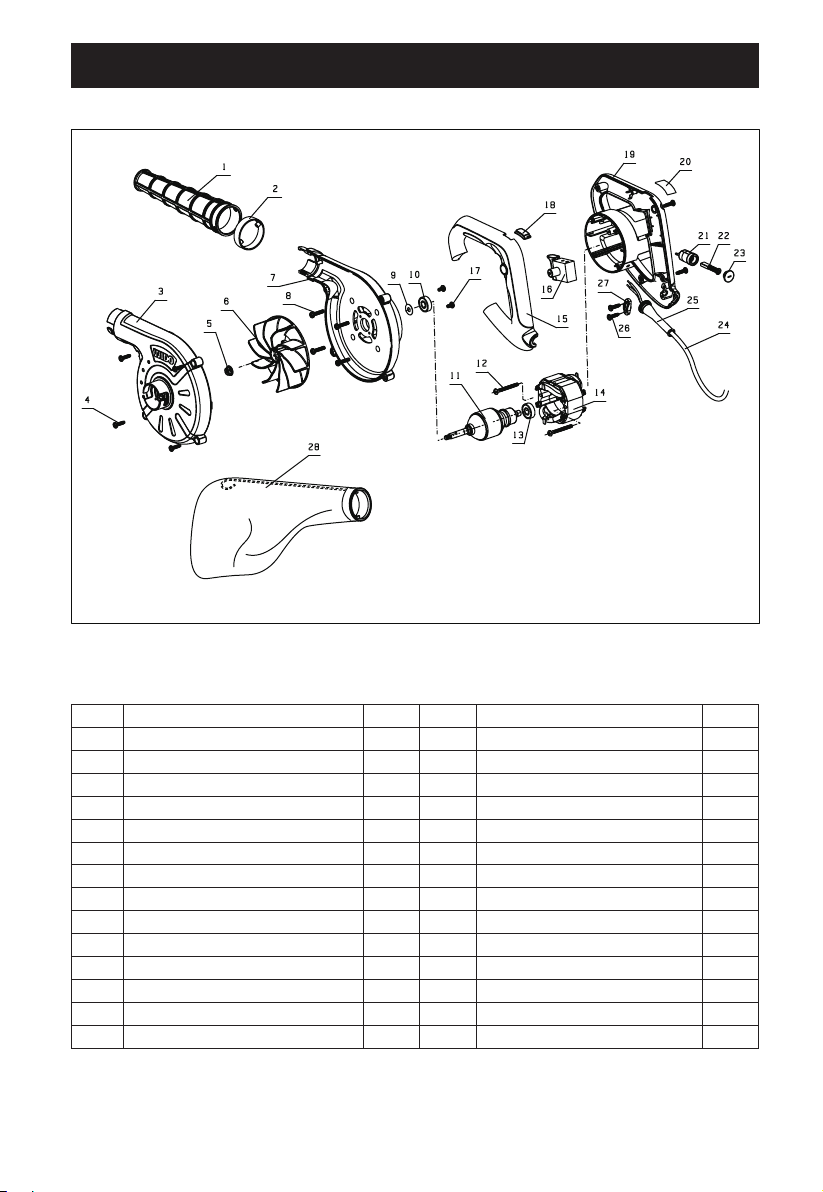

450W ASPIRATOR BLOWER EXPLOSIVE VIEW
450W ASPIRATOR BLOWER PART LIST
NO DESCRIPTION Q’TY NO DESCRIPTION Q’TY
1 Nozzle 1 15 Handle cover 1
2 Locating ring 1 16 Switch 1
3 Left air blower housing 1 17 Screw 2
4 Screw 8 18 Cover 1
5 Nut 1 19 Motor housing 1
6 Fan 1 20 Label 1
7 Right air blower housing 1 21 Brush holder 2
8 Screw 4 22 Carton brush 2
9 Washer 1 23 Brush holder cap 2
10 Bearing 1 24 Cable and plug 1
11 Rotor 1 25 Cable protector 1
12 Screw 2 26 Screw 2
13 Bearing 1 27 Cable clamp 1
14 Stator 1 28 Dust bag 1
10

450W/680W ASPIRATOR BLOWER ENG

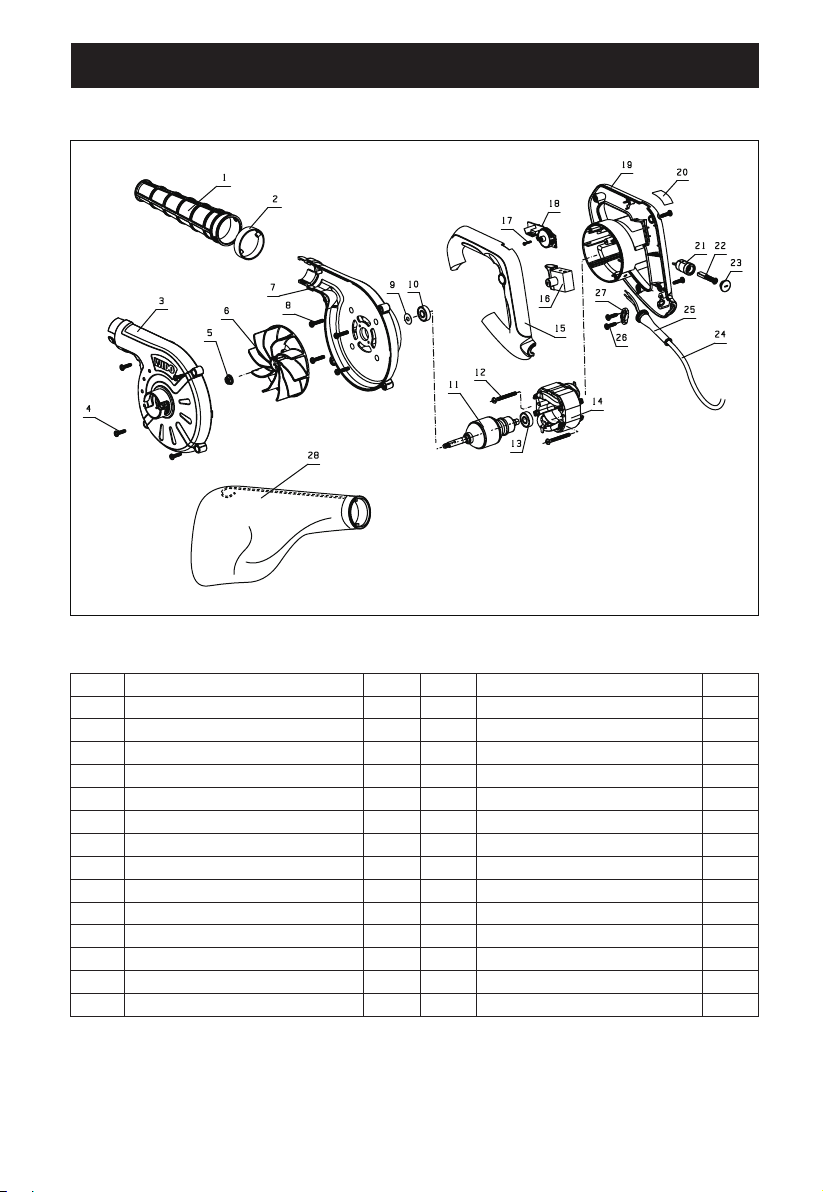

680W ASPIRATOR BLOWER PART LIST
680W ASPIRATOR BLOWER PART LIST
NO
DESCRIPTION
Q’TY
NO
DESCRIPTION
Q’TY
1
Nozzle
1
15
Handle cover
1
2 Locating ring 1 16 Switch 1
3 Left air blower housing 1 17 Screw 2
4 Screw 8 18 Speed control 1
5 Nut 1 19 Motor housing 1
6 Fan 1 20 Label 1
7 Right air blower housing 1 21 Brush holder 2
8 Screw 4 22 Carton brush 2
9 Washer 1 23 Brush holder cap 2
10 Bearing 1 24 Cable and plug 1
11 Rotor 1 25 Cable protector 1
12 Screw 2 26 Screw 2
13 Bearing 1 27 Cable clamp 1
14 Stator 1 28 Dust bag 1
11

12
WD050210450/WD050210680

13
WD050210450/WD050210680

14
WD050210450/WD050210680

15
WD050210450/WD050210680

MADE IN CHINA
Copyright @ WIDO Machinery Co., Ltd. All rights reserved. www.widopt.com
