Viessmann Vitocell 140-E Quick guide

Installation and service instructions
for contractors
VIESMANN
Vitocell 140-E/160-E
Type SEIA
Type SESA
Solar buffer cylinder
For applicability, see the last page
VITOCELL 140-E/160-E
5517 155 GB 3/2014 Please keep safe.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for quali-
fied contractors.
■Work on electrical equipment must only be carried
out by a qualified electrician.
■The system must be commissioned by the system
installer or a qualified person authorised by the
installer.
Regulations
Observe the following when working on this system:
■National installation regulations
■Statutory regulations regarding the prevention of
accidents
■Statutory regulations regarding environmental pro-
tection
■The Code of Practice of relevant trade associations
■All current safety regulations as defined by DIN, EN,
DVGW, VDE and all locally applicable standards
aÖNORM, EN and ÖVE
cSEV, SUVA, SVTI and SWKI
If you smell flue gas
Danger
Flue gas can lead to life threatening poisoning.
■Shut down the heating system.
■Ventilate the installation site.
■Close all doors in the living space.
Flue systems and combustion air
Ensure that flue systems are clear and cannot be
sealed, for instance due to accumulation of conden-
sate or other causes. Ensure a sufficient supply of
combustion air.
Instruct system users that subsequent modifications to
the building characteristics are not permissible (e.g.
cable/pipework routing, cladding or partitions).
Danger
Leaking or blocked flue systems, or an insuffi-
cient supply of combustion air can cause life
threatening poisoning from carbon monoxide in
the flue gas.
Ensure the flue system is in proper working
order. Apertures for supplying combustion air
must be non-closable.
Extractors
Operating appliances that extract air to the outside
(cooker hoods, extractors, air conditioning units, etc.)
can create negative pressure. If the boiler is operated
at the same time, this can lead to reverse flow of the
flue gas.
Danger
The simultaneous operation of the boiler and
appliances that extract air to the outside can
result in life threatening poisoning due to
reverse flow of the flue gas.
Fit an interlock circuit or take suitable steps to
ensure a sufficient supply of combustion air.
Working on the system
■Isolate the system from the power supply (e.g. by
removing the separate fuse or by means of a mains
isolator) and check that it is no longer 'live'.
■Safeguard the system against reconnection.
Danger
Hot surfaces can cause burns.
■Before maintenance or service work, switch
OFF the appliance and let it cool down.
■Never touch hot surfaces on the boiler, burner,
flue system or pipework.
!Please note
Electronic assemblies can be damaged by elec-
trostatic discharge.
Before beginning work, touch earthed objects,
such as heating or water pipes, to discharge
static loads.
Repair work
!Please note
Repairing components that fulfil a safety func-
tion can compromise the safe operation of the
system.
Faulty components must be replaced with origi-
nal Viessmann spare parts.
Safety instructions
Safety instructions
5517 155 GB

3
Auxiliary components, spare and wearing parts
!Please note
Spare and wearing parts that have not been tes-
ted together with the system can compromise its
function. Installing non-authorised components
and making non-approved modifications or con-
versions can compromise safety and may inva-
lidate the warranty.
For replacements, use only original spare parts
supplied or approved by Viessmann.
Safety instructions
Safety instructions (cont.)
5517 155 GB

4
1. Intended use
2. Installation information Product information ................................................................................ 6
■Vitocell 140-E, type SEIA and Vitocell 160-E, type SESA (750 and
950 l) ................................................................................................... 6
■Connections ........................................................................................ 6
■Siting information ................................................................................ 7
3. Installation sequence Vitocell without fitted Solar-Divicon ........................................................ 9
■Siting and levelling the Vitocell ........................................................... 9
■Fitting the thermometer sensor (if supplied) ....................................... 10
■Fitting the Vitotrans ............................................................................. 11
■Fitting the thermal insulation jacket .................................................... 12
■Fitting the cover strip .......................................................................... 14
■Fitting the cover .................................................................................. 15
■Installing an air vent valve on the solar side ....................................... 15
Vitocell with fitted Solar-Divicon ............................................................. 16
■Siting and levelling the Vitocell ........................................................... 16
■Fitting the support panel ..................................................................... 17
■Connections on the solar side ............................................................ 18
■Mounting the Solar-Divicon ................................................................ 19
■Connecting the Solar-Divicon on the solar side and checking for
leaks ................................................................................................... 20
■Fitting the thermal insulation cover ..................................................... 21
■Fitting the thermometer sensor (if supplied) ....................................... 22
■Fitting the Vitotrans ............................................................................. 23
■Fitting the lower thermal insulation mat .............................................. 24
■Fitting the thermal insulation jacket .................................................... 24
■Fitting the cover strips ........................................................................ 26
■Fitting the cover .................................................................................. 27
Installing the cylinder temperature sensor ............................................. 27
Connections on the heating water side .................................................. 28
4. Commissioning, inspec-
tion, maintenance
5. Parts lists Cylinder assembly ................................................................................. 30
Thermal insulation assembly ................................................................. 31
Connection set assembly (accessories) ................................................ 32
6. Commissioning/service
reports
.................................................................................................................. 33
7. Product characteristics .................................................................................................................. 34
8. Accessories Immersion heater specification .............................................................. 35
9. Certificates Declaration of conformity ....................................................................... 36
Index
Index
5517 155 GB

5
The appliance is only intended to be installed and
operated in sealed unvented systems that comply with
EN 12828 / DIN 1988, or solar thermal systems that
comply with EN 12977, with due attention paid to the
associated installation, service and operating instruc-
tions. DHW cylinders are only designed to store and
heat water of potable water quality. Heating water buf-
fer cylinders are only designed to hold fill water of pot-
able water quality. Only operate solar collectors with
the heat transfer medium approved by the manufac-
turer.
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific compo-
nents has been carried out.
Commercial or industrial usage for a purpose other
than heating the building or DHW shall be deemed
inappropriate.
Any usage beyond this must be approved by the man-
ufacturer for the individual case.
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and results in an exclusion of liability.
Incorrect usage also occurs if the components in the
system are modified from their intended use (e.g.
through direct DHW heating in the collector).
Adhere to statutory regulations, especially concerning
the hygiene of potable water.
Intended use
Intended use
5517 155 GB
Service

6
Vitocell 140-E, type SEIA and Vitocell 160-E, type SESA (750 and 950 l)
■Solar buffer cylinder made from steel, for central
heating backup in combination with heat pumps,
solar thermal systems, oil/gas boilers, solid fuel boil-
ers and/or electric heating with an immersion heater.
■With the option to fit a Solar-Divicon, type PS10
(pump station for a collector circuit).
■Suitable for systems to EN 12828 and DIN 4753
■Vitocell 160-E, type SESA also includes a stratifi-
cation system for solar heating
Connections
A
B
C
D
E
Fig. 1 Front view without fitted Solar-Divicon
(accessories)
AThermometer sensor retainer
BThermometer
(up to 4 pce)
CHeating water flow G 1
DReturn stratification G 1
EHeating water return G 1
Installation information
Product information
5517 155 GB
Installation

7

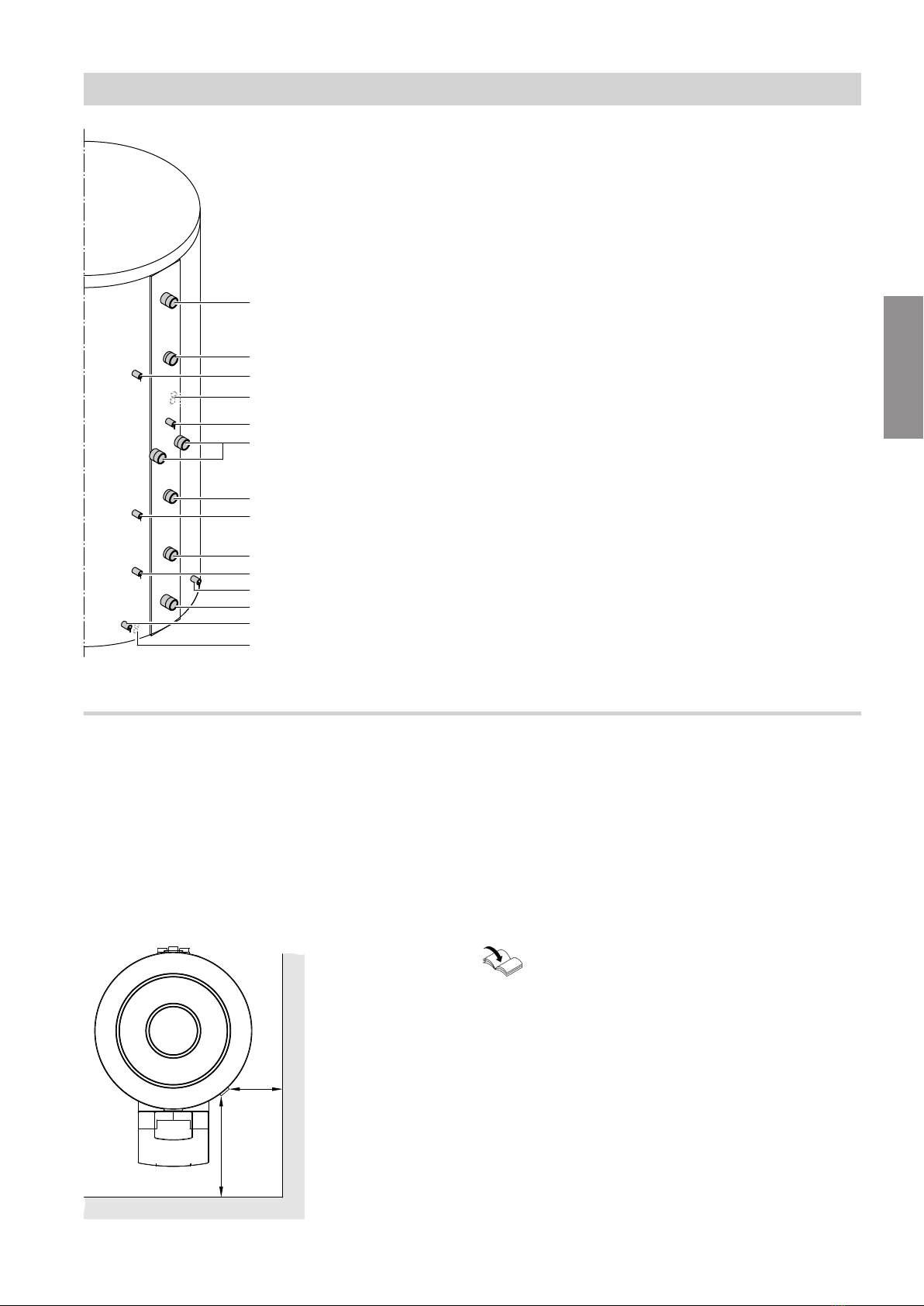

N
F
P
B
A
C
E
G
L
D
H
K
M
O
Fig. 2 Back
AHeating water flow 1 to the heating circuits/air vent
valve
BHeating water flow 2
from the heat source
CSensor well
for cylinder temperature sensor
DThermometer sensor retainer
ESensor well 2
for cylinder temperature sensor and thermometer
sensor
FHeating water flow 3/heating water return
GHeating water return 2
from the heating circuits
HSensor well 3
for cylinder temperature sensor and thermometer
sensor
KHeating water return 3
LSensor well 4
for cylinder temperature sensor
MSolar heating water flow / air vent valve (if Solar-
Divicon accessory is fitted: at the front of the heat-
ing water buffer cylinder)
NHeating water return 4 to the heat source / drain
outlet
OSolar heating water return (if Solar-Divicon acces-
sory is fitted: at the front of the heating water buffer
cylinder)
PThermometer sensor retainer
Siting information
!Please note
To prevent material losses, install the heating
water buffer cylinder in a room free from the risk
of frost and draughts.
Otherwise the heating water buffer cylinder must
be drained when not in use and there is a risk of
frost.
■Provide adequate clearance from the wall so that the
temperature controller can be operated (if installed).
■Placing the heating water buffer cylinder on a plinth
will make the room easier to clean.
Installing the Vitocell with an immersion heater
a
a
Fig. 3
Immersion heater installation instructions
Maintain the minimum clearance.
Installation information
Product information (cont.)
5517 155 GB
Installation

8
Cylinder capacity Output
Immersion heater
Dim. a
750 and 950 l 6 kW
12 kW
min. 500 mm
min. 700 mm
Note
The unheated length of any threaded immersion
heater installed on site must be at least 100 mm.
Installation information
Product information (cont.)
5517 155 GB
Installation

9
See page 16 for installation of the version with fitted
Solar-Divicon (accessories).
Siting and levelling the Vitocell
!Please note
The thermal insulation must not come into con-
tact with naked flames.
Exercise caution when welding and brazing.
A
B
3.
3x
1.
4.
2.
Fig. 4
AType plate
BBag with 3 adjustable feet
Insert the adjustable feet into the legs as far as possi-
ble, then adjust them to level the heating water buffer
cylinder.
Note
Never extend the adjustable feet beyond a total length
of 30 mm.
If no electric immersion heater is being installed, seal
the front female connection with the supplied plug R1
½.
Installation sequence
Vitocell without fitted Solar-Divicon
5517 155 GB
Installation

10
Fitting the thermometer sensor (if supplied)
7.
2.
4.
5.
6.
3.
1.
Fig. 5
1. Guide the thermometer sensor through the cover
strip and insert the thermometer.
2. Guide the upper thermometer sensor through the
lifting eye. Fully insert the sensor into the clamping
bracket. Tighten the wing nut.
Note
The cover strip is held in its vertical position by the
straight capillaries. This is necessary for the rest of
the installation.
3. Route the thermometer sensor capillaries to the
back.
Note
Repeat the following steps for each of the thermom-
eters installed.
4. Depending on where the thermometer sensor is to
be fitted, secure it in the clamping bracket or pull
the sensor retainer out of the sensor well.
5. Position the sensor on the outside of the sensor
retainer contact spring so that it is flush with the
front of the spring.
Note
Never wrap insulating tape around the thermometer
sensor.
6. Secure the thermometer sensor capillaries.
7. Insert the sensor retainer.
Installation sequence
Vitocell without fitted Solar-Divicon (cont.)
5517 155 GB
Installation

11

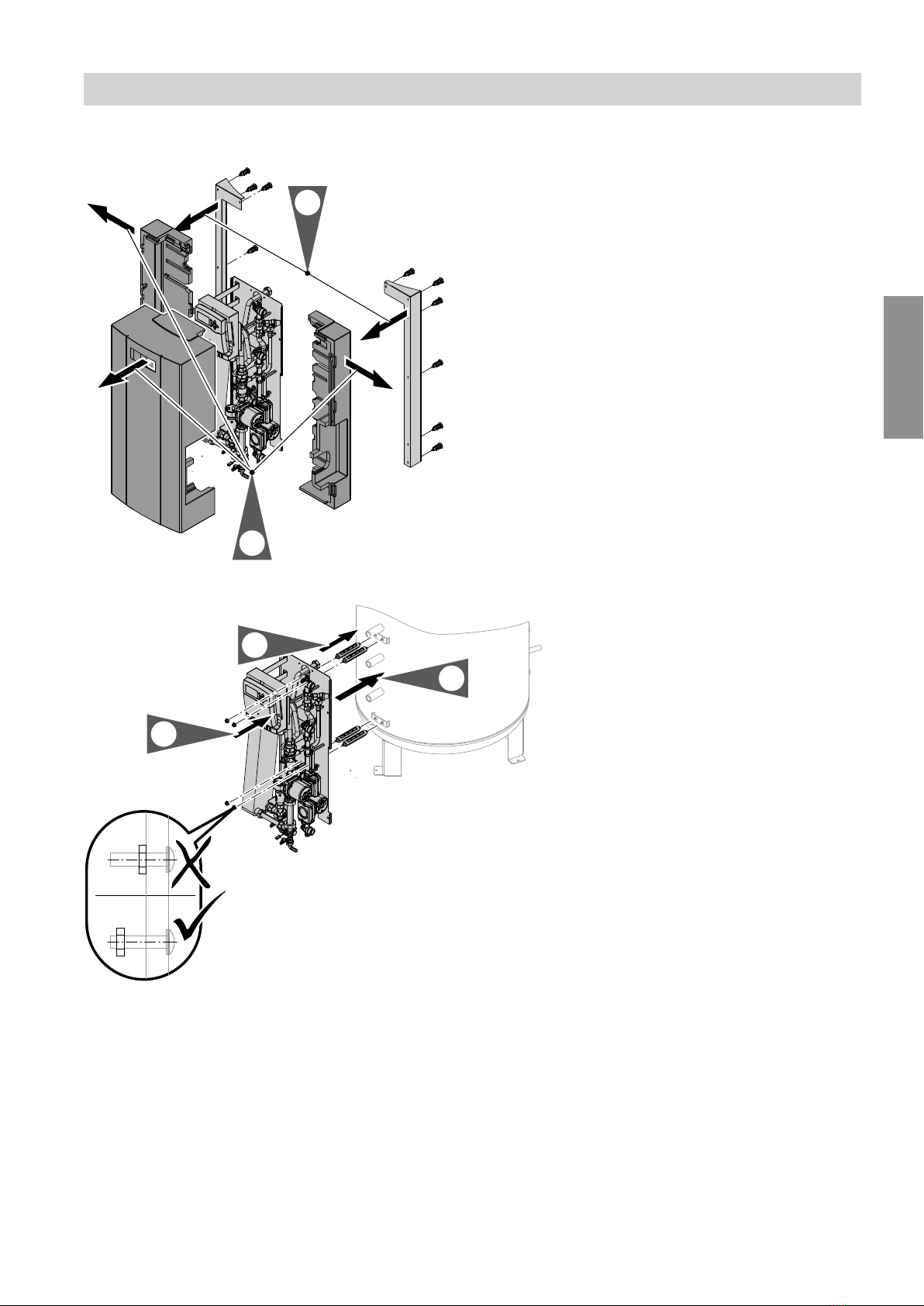

Fitting the Vitotrans
1.
2.
Fig. 6
2.
3.
1.
Fig. 7
1. Fit the bolts to the cylinder.
2. Fit the module.
3. Wind the nuts onto the bolts until hand-tight.
Installation sequence
Vitocell without fitted Solar-Divicon (cont.)
5517 155 GB
Installation

12
C
A
B
DE F
3.
1.
2.
4.
Fig. 8
1. Connect heating water flow connection pipe A to
connection D on the Vitotrans.
2. Connect heating water return connection pipe B to
connection E on the Vitotrans.
3. Connect heating water stratification connection pipe
C to connection F on the Vitotrans.
4. Screw the pipes onto the cylinder connections.
Fitting the thermal insulation jacket
!Please note
The thermal insulation must not come into con-
tact with naked flames.
Exercise caution when welding and brazing.
Note
■2 people are required for the following work.
■Ensure that no fleece remnants enter the heating
water buffer cylinder through the cylinder connec-
tions.
Installation sequence
Vitocell without fitted Solar-Divicon (cont.)
5517 155 GB
Installation

13
4. 3.
1.
2.
Fig. 9

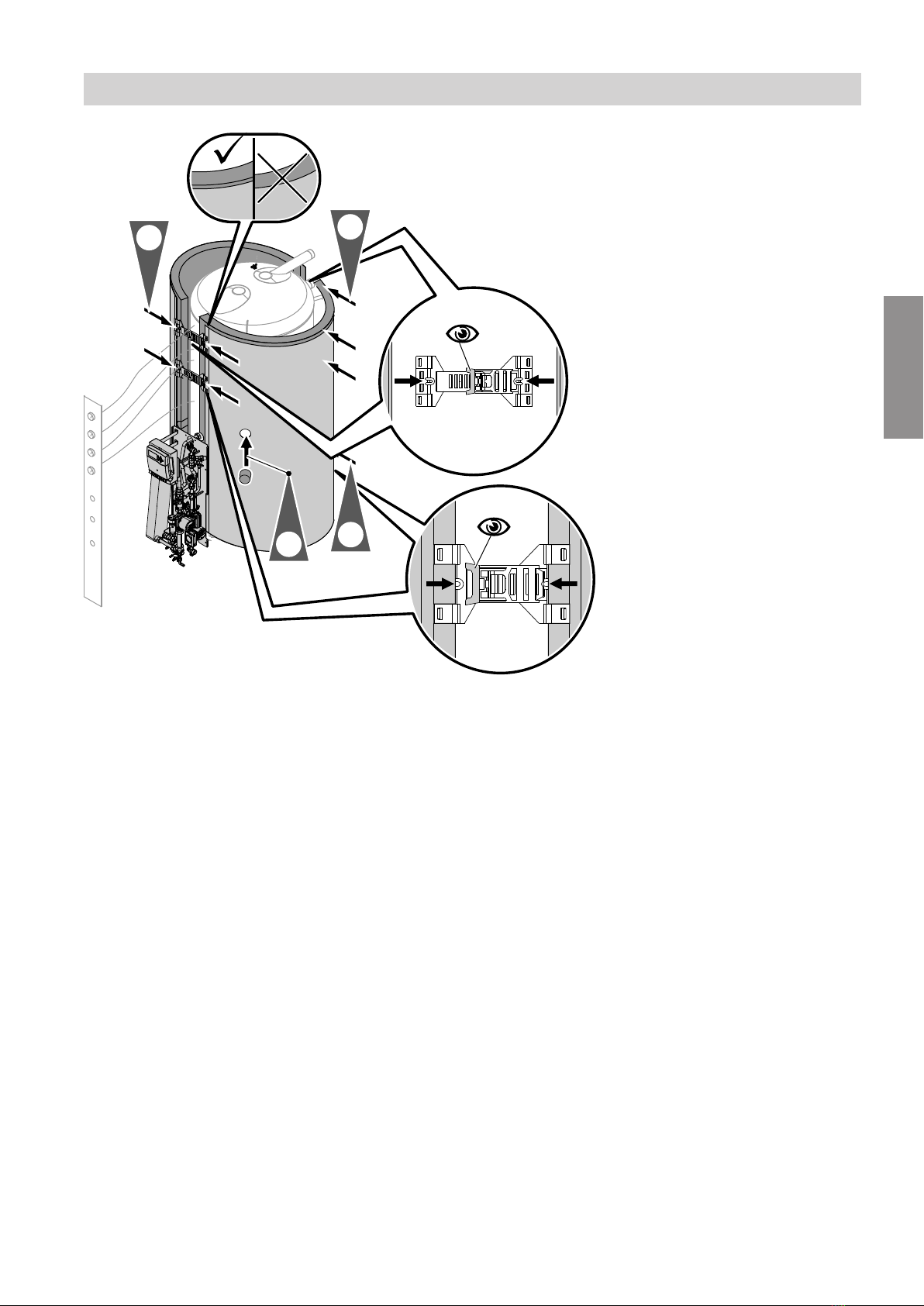

1. At the back of the cylinder: Attach 6 clip fasteners
to the edges of the right and left sections of the
insulation jacket. Place the thermal insulation jacket
around the cylinder body.
Note
Leave the clip fasteners in the first notch.
2. Fit 4 clip fasteners above and 2 clip fasteners
behind the Vitotrans so that they are evenly
spaced.
3. Push the clip fasteners as close together as possi-
ble.
4. Install the immersion heater EHE or seal the hole
with a cover.
Installation sequence
Vitocell without fitted Solar-Divicon (cont.)
5517 155 GB
Installation

14

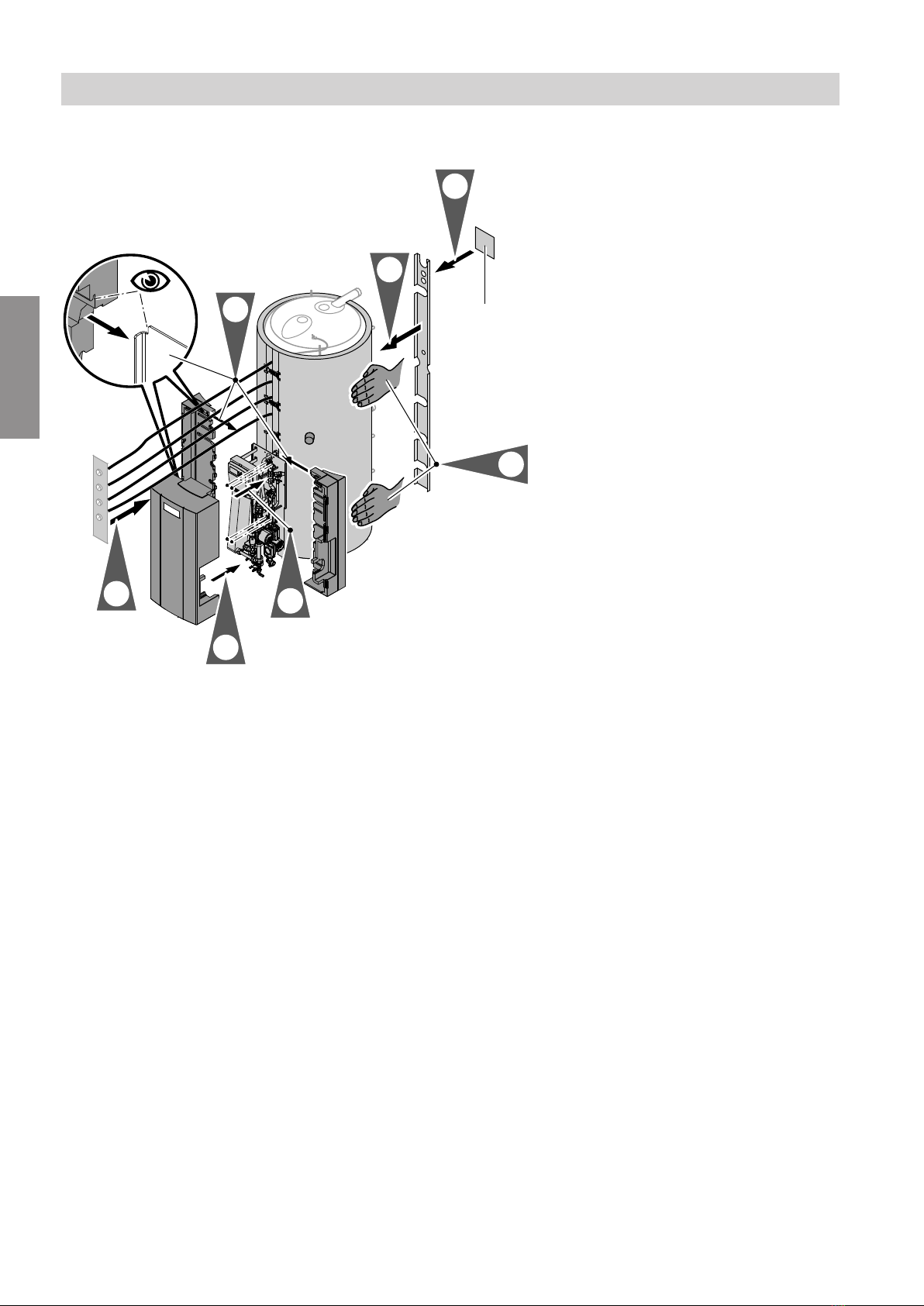

Fitting the cover strip
5.
6.
7.
A
3.
2. 1.
4.
Fig. 10
AType plate (self-adhesive)
1. Tighten the nuts on the bolts.
2. Trim and fit the cover strip.
3. Insert the rear sections of the Vitotrans thermal
insulation. Observe the groove in the thermal insu-
lation.
4. Fit the front section of the Vitotrans thermal insula-
tion.
5. Push the cylinder thermal insulation towards the
front by patting it. This reduces the gap between
the Vitotrans and the cylinder.
6. Fit the rear strip to the thermal insulation.
7. Affix the type plate.
Installation sequence
Vitocell without fitted Solar-Divicon (cont.)
5517 155 GB
Installation

15
Fitting the cover
1.
A
2.
Fig. 11
AViessmann logo
Installing an air vent valve on the solar side
2.
1.
3.
Fig. 12

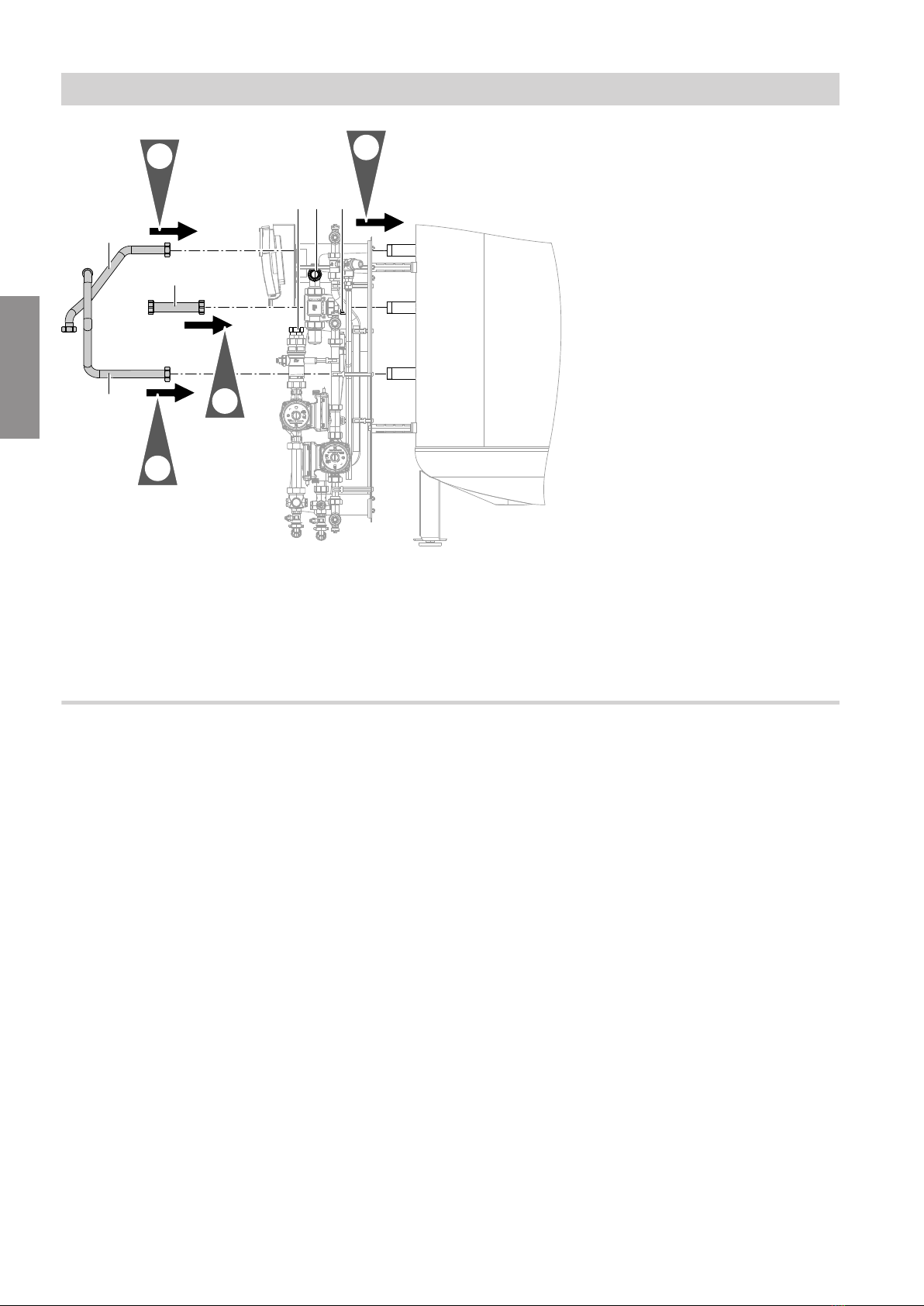

1. Push the corrugated hose into the elbow fitting.
2. Screw the air vent plug into the elbow fitting.
3. Push the corrugated hose into the solar flow and
secure the elbow and flat gasket to the cylinder.
Route the drip hose of the air vent valve into a vessel.
Continue on page 27.
Installation sequence
Vitocell without fitted Solar-Divicon (cont.)
5517 155 GB
Installation

16
Siting and levelling the Vitocell
A
B
3.
3x
1.
4.
2.
Fig. 13
AType plate
BBag with 3 adjustable feet
Insert the adjustable feet into the legs as far as possi-
ble, then adjust them to level the heating water buffer
cylinder.
Note
Never extend the adjustable feet beyond a total length
of 30 mm.
If no immersion heater is being installed, seal the front
female connection with the supplied plug R1½ .
Installation sequence
Vitocell with fitted Solar-Divicon
5517 155 GB
Installation

17
Fitting the support panel
1.
2.
Fig. 14
Installation sequence
Vitocell with fitted Solar-Divicon (cont.)
5517 155 GB
Installation

18
Connections on the solar side
2.
2.
3.
3.
1.
1.
Fig. 15

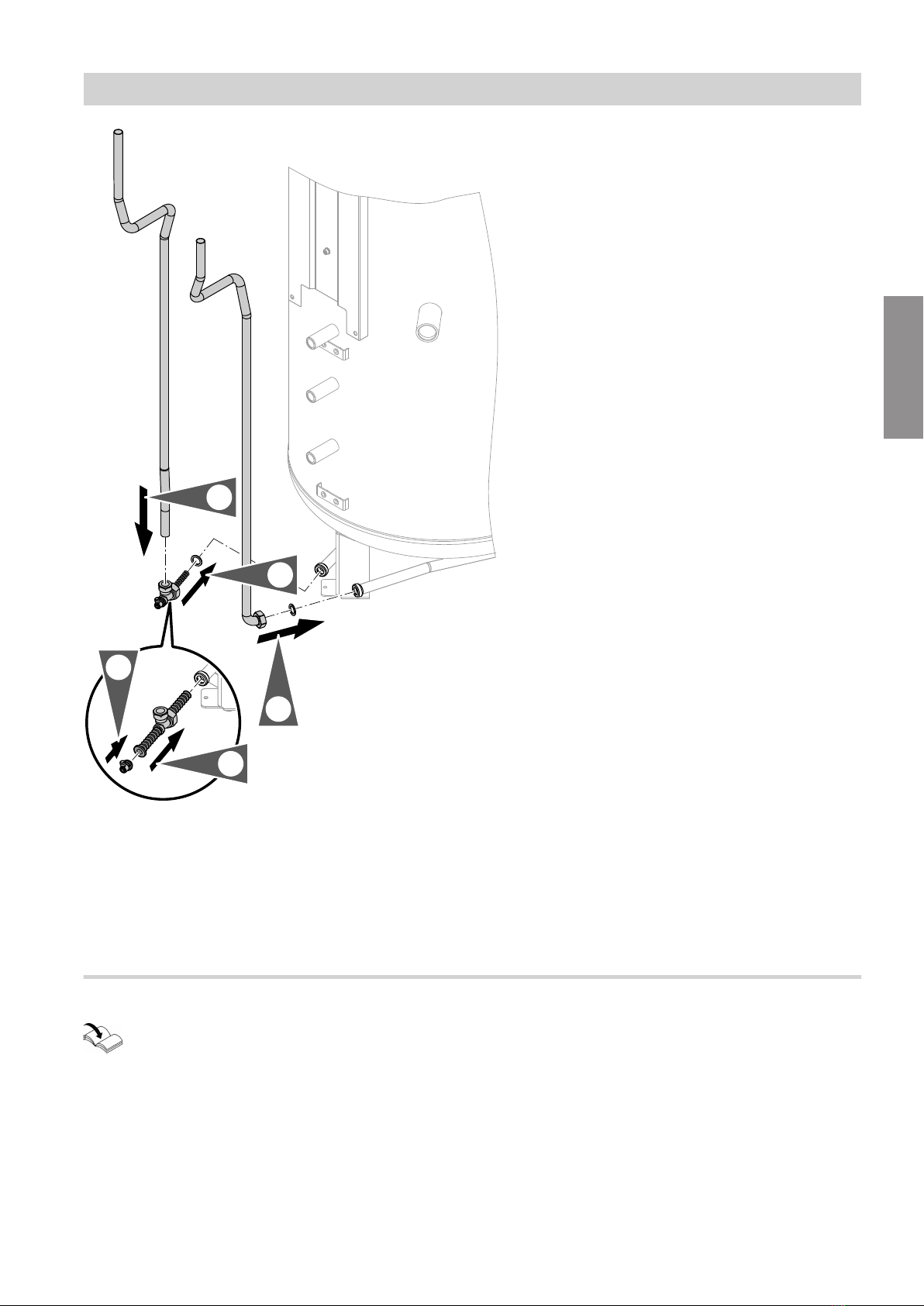

1. Remove the bottom pipes.
2. Rotate the pipes towards the front until they touch
the front adjustable foot.
3. Fit the pipes.
Installation sequence
Vitocell with fitted Solar-Divicon (cont.)
5517 155 GB
Installation

19
4.
5.
1.
2.
3.
Fig. 16
1. Push the corrugated hose into the elbow fitting.
2. Screw the air vent plug into the elbow fitting.
3. Push the corrugated hose into the solar flow and
secure the elbow and flat gasket to the cylinder.
4. Fit the solar flow pipe.
5. Fit the solar return pipe.
Mounting the Solar-Divicon
Solar-Divicon installation instructions !Please note
Wiring can be damaged if it comes into contact
with hot components.
Ensure adequate thermal insulation between
cables and hot pipework.
Installation sequence
Vitocell with fitted Solar-Divicon (cont.)
5517 155 GB
Installation

20
1.
2.
3.
Fig. 17
Connecting the Solar-Divicon on the solar side and checking for leaks
!Please note
Once the thermal insulation and thermal insula-
tion cover are in place, the fittings are no longer
visible.
Carry out the following steps before fitting the
thermal insulation.
Solar side
Permissible temperature: 140 °C
Permissible operating pressure: 10 bar
Test pressure: 16 bar
1. Connect all pipework with detachable fittings.
2. Fill the system on the solar side.
Solar collector service instructions
3. Check all fittings on the solar side for leaks, includ-
ing the connections at the bottom of the cylinder.
Installation sequence
Vitocell with fitted Solar-Divicon (cont.)
5517 155 GB
Installation
