View Solutions GP020101 User manual

Color CCD Camera operating manual
Page 1 of 4
User Manual
for
Color CCD Camera
Please read the User Manual before using the CCD Camera

Color CCD Camera operating manual
Page 2 of 4

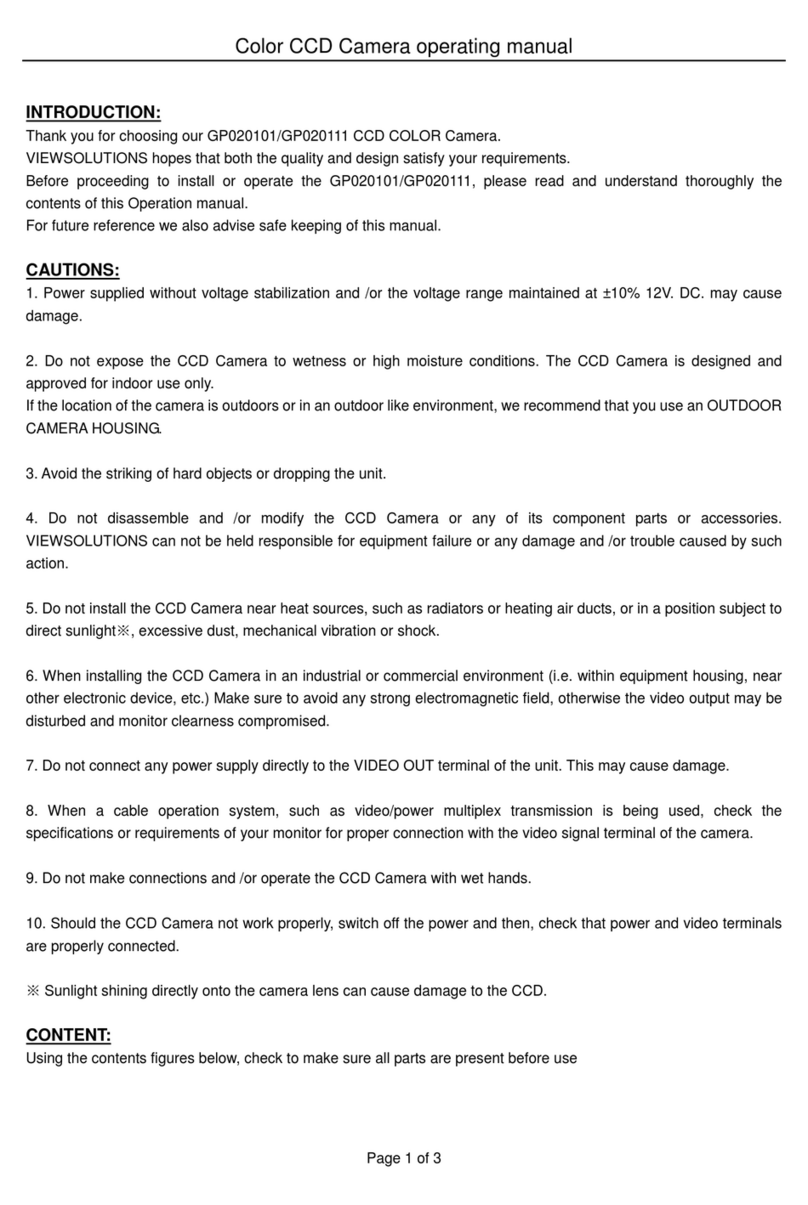

INTRODUCTION:
Thank you for choosing our GP020101/GP020111 CCD COLOR Camera.
VIEWSOLUTIONS hopes that both the quality and design satisfy your requirements.
Before proceeding to install or operate the GP020101/GP020111, please read and understand thoroughly the
contents of this Operation manual.
For future reference we also advise safe keeping of this manual.
CAUTIONS:
1. Power supplied without voltage stabilization and /or the voltage range maintained at ±10% 12V. DC. may cause
damage.
2. Do not expose the CCD Camera to wetness or high moisture conditions. The CCD Camera is designed and
approved for indoor use only.
If the location of the camera is outdoors or in an outdoor like environment, we recommend that you use an OUTDOOR
CAMERA HOUSING.
3. Avoid the striking of hard objects or dropping the unit.
4. Do not disassemble and /or modify the CCD Camera or any of its component parts or accessories.
VIEWSOLUTIONS can not be held responsible for equipment failure or any damage and /or trouble caused by such
action.
5. Do not install the CCD Camera near heat sources, such as radiators or heating air ducts, or in a position subject to
direct sunlight※, excessive dust, mechanical vibration or shock.
6. When installing the CCD Camera in an industrial or commercial environment (i.e. within equipment housing, near
other electronic device, etc.) Make sure to avoid any strong electromagnetic field, otherwise the video output may be
disturbed and monitor clearness compromised.
7. Do not connect any power supply directly to the VIDEO OUT terminal of the unit. This may cause damage.
8. When a cable operation system, such as video/power multiplex transmission is being used, check the
specifications or requirements of your monitor for proper connection with the video signal terminal of the camera.
9. Do not make connections and /or operate the CCD Camera with wet hands.
10. Should the CCD Camera not work properly, switch off the power and then, check that power and video terminals
are properly connected.
※Sunlight shining directly onto the camera lens can cause damage to the CCD.
CONTENT:
Using the contents figures below, check to make sure all parts are present before use

Color CCD Camera operating manual
Page 3 of 4
DESCRIPTION OF PARTS (UNIT: mm ) :
①CCD front face (light receiving face of the CCD camera)
NOTE: 1. Handle the CCD and lens with special care.
2. Always attach the lens cap so as to protect the lens and the
CCD from contamination and damage.
3. Dirt, water or oil deposits on either will cause an unclear picture
on the monitor, and scratches will become permanent damage.
②CS lens mount
Any standard model C-mount lens can be attached to the CCD Camera,
if our optional C-mount ring 34CMA-R is fitted to the unit.
③Focusing the CCD Camera when manual adjustment is not effective.
There are three hexagonal focusing adjustment screws each placed at
intervals of 120° around the lens mount ring for the forward and
backward motion of the lens mount.
④AUTO IRIS
Female connector for the auto-iris lens.
⑤Tripod mounting screw holes (upper and lower)
Thread size and depth are the same as that for the standard camera tripods.
⑥BACK LIGHT switch for the Back Light compensation function
⑦POWER
The terminal is designed for connection with a DC plug from an appropriate power adaptor.
NOTE: The optional power adaptor GP070101 (DC+12V, 500mA) is recommended for use with the
GP020101/GP020111.
⑧VIDEO OUTPUT
The B. N. C. terminal for video signal output.
⑨AGC (Automatic Gain Control ) OFF/ON Switch
When the Switch is on 0, it is in the OFF position and when it is on 1, AGC is ON.
SPECIFCATION:
MODE NO.
GP020101
GP020111
TV SYSTEM
NTSC
PAL
IMAGE SENSOR
1/3-inch CCD Image Sensor
CCD TOTAL PIXELS
816(H) X495 (V)
798(H) X 548(V)
SCANNING SYSTEM
525 lines, 60 fields/sec
625 lines, 50 fields/sec
SYNC SYSTEM
Internal
MINIMUM ILLUMINATION
0.8 Lux F1.2 5600ºK
WHITE
BALANCE
Mode
ATW / AWB ( Zero color rolling)
Range
3200 ~ 10000 ºK (2200-15000 ºK/with S Filter)
RESOLUTION
470/580 TVL (Enhanced)
S / N RATIO
52dB ( MIN ) / 60dB ( TYP ) (AGC OFF)
MIRROR FUNCTION
ON / OFF
B.L.C. FUNCTION
ON / OFF
AUTO IRIS
A.E.S. / DC / VIDEO

Color CCD Camera operating manual
Page 4 of 4
ELECTRONIC SHUTTER (A.E.S.)
1/60~1/120,000 sec.
1/50~1/120,000 sec.
VIDEO OUTPUT
1.0V p-p Composite video at 75 ohm
GAMMA CORRECTION
0.45
GAIN CONTROL
ON / OFF
OPERATION TEMPERATURE
-20℃TO 50℃
OPERATIONAL HUMIDITY
within 85﹪RH
POWER SUPPLY
DC12V1V / 110mA
SWITCH CONTROL AND AUTO IRIS EXPLANATION:
IMPORTANT:
The camera mentioned does not comply with this regulation, if it is modified at your disposal.
VIEWSOLUTIONS is not responsible for any inconvenience or the attendant damages to the video or audio and
monitoring recording equipment, caused by misuse, misoperation or unproved wiring of our equipment.
If for any reason the GP020101/GP020111dose not work properly, or if you have any questions regarding installation
or operation please contact the distributor or dealer from which it was purchased.
Design and specifications are subject to change without notice.
SW1
AES/ALC
SW2
BLC
SW3
AGC
SW4
ATW/AWB
SW5
MIRROR
SW6
2XZOOM
AI lens DD lens
P1: VCC. P1: DUMP –
P2: NC. P2: DUMP+
P3: VIDEO P3: DRIVE
P4: GND. P4: GND
