ViewSonic PD0711 User manual

PD0711
Pen Display
User Guide
Model No. VS16287
IMPORTANT: Please read this User Guide to obtain important information
on installing and using your product in a safe manner, as well as
registering your product for future service. Warranty information contained
in this User Guide will describe your limited coverage from ViewSonic
Corporation, which is also found on our web site at http://www.viewsonic.
com in English, or in specic languages using the Regional selection box
in the upper right corner of our website. “Antes de operar su equipo lea cu
idadosamente las instrucciones en este manual”

Thank you for choosing ViewSonic
With over 25 years as a world leading provider of visual solutions,
ViewSonic is dedicated to exceeding the world’s expectations
for technological evolution, innovation, and simplicity. At
ViewSonic, we believe that our products have the potential to
make a positive impact in the world, and we are condent that
the ViewSonic product you have chosen will serve you well.
Once again, thank you for choosing ViewSonic !

3
Important Safety Instructions
1. DO NOT place objects on top of the device, as objects may scratch the
screen.
2. DO NOT expose the device to dirty or dusty environments.
3. DO NOT place the device on an uneven or unstable surface.
4. DO NOT insert any foreign objects into the device.
5. DO NOT expose the device to strong magnetic or electrical eld.
6. DO NOT expose the device to direct sunlight as it can damage the LCD
Screen. Keep it away from heat sources.
7. DO NOT use the device in the rain.
8. Please check with your Local Authority or retailer for proper disposal of
electronic products.
9. The device may produce some heat during normal operation or
charging. To prevent discomfort or injury from heat exposure, DO NOT
leave the device on your lap.
10.POWER INPUT RATING: Refer to the rating label on the device. Only
use accessories specied by the manufacturer.
11.DO NOT use any sharp object to tap the screen.
12.Clean the touch screen with a soft cloth. If needed, dampen the cloth
slightly before cleaning. Never use abrasives or cleaning solutions.
13.Disconnect the device from an electrical outlet and power off before
cleaning the device.
14.DO NOT disassemble the device. Only a certied service technician
should perform repair.
15.Users have to use the connection to USB interfaces with USB 2.0
version or higher.

4
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with
Directive 2011/65/EU of the European Parliament and the Council on
restriction of the use of certain hazardous substances in electrical and
electronic equipment (RoHS2 Directive) and is deemed to comply with
the maximum concentration values issued by the European Technical
Adaptation Committee (TAC) as shown below:
Substance Proposed Maximum
Concentration
Actual
Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+)0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers
(PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the
Annex III of the RoHS2 Directives as noted below:
Examples of exempted components are:
1. Mercury in cold cathode uorescent lamps and external electrode
uorescent lamps (CCFL and EEFL) for special purposes not exceeding
(per lamp):
(1) Short length (≦500 mm): maximum 3.5 mg per lamp.
(2) Medium length (＞500 mm and ≦1,500 mm): maximum 5 mg per
lamp.
(3) Long length (＞1,500 mm): maximum 13 mg per lamp.
2. Lead in glass of cathode ray tubes.
3. Lead in glass of uorescent tubes not exceeding 0.2% by weight.
4. Lead as an alloying element in aluminium containing up to 0.4% lead by
weight.
5. Copper alloy containing up to 4% lead by weight.
6. Lead in high melting temperature type solders (i.e. lead-based alloys
containing 85% by weight or more lead).
7. Electrical and electronic components containing lead in a glass or
ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic
devices, or in a glass or ceramic matrix compound.

5
Copyright Information
Copyright © ViewSonic®Corporation, 2016. All rights reserved.
ViewSonic and the three birds logo are registered trademarks of ViewSonic
Corporation.
Disclaimer: ViewSonic Corporation shall not be liable for technical or edito-
rial errors or omissions contained herein; nor for incidental or consequential
damages resulting from furnishing this material, or the performance or use of
this product.
In the interest of continuing product improvement, ViewSonic Corporation
reserves the right to change product specications without notice. Informa-
tion in this document may change without notice.
No part of this document may be copied, reproduced, or transmitted by any
means, for any purpose without prior written permission from ViewSonic
Corporation.
Product Registration
To meet your future needs, and to receive any additional product informa-
tion as it becomes available, please register your product on the Internet at:
www.viewsonic.com.
For Your Records
Product Name: PD0711
ViewSonic Pen Display
Model Number: VS16287
Document Number: PD0711_UG_ENG Rev. 1C 02-24-17
Serial Number: ____________________________________
Purchase Date: ____________________________________
Product disposal at end of product life
ViewSonic respects the environment and is committed to working and living
green. Thank you for being part of Smarter, Greener Computing. Please visit
ViewSonic website to learn more.
USA & Canada: http://www.viewsonic.com/company/green/recycle-program/
Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/
Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

vi
Contents
Important Safety Instructions................................................... 3
Declaration of RoHS2 Compliance.......................................... 4
Copyright Information .............................................................. 5
Product Registration................................................................ 5
1. Introduction.......................................................................... 1
1.1 Packing list ...................................................................................... 1
1.2 Product overview............................................................................. 1
2. Installation and Setting ........................................................ 3
2.1 Install driver ..................................................................................... 3
2.2 Set the display area......................................................................... 6
2.3 Handwriting area correspondence .................................................. 7
2.4 More touch settings ......................................................................... 9
3. Troubleshooting..................................................................11
3.1 Screen problems ........................................................................... 11
3.2 Problems of interactive electromagnetic pen ................................ 12
4. Product Specication......................................................... 13
4.1 Screen ........................................................................................... 13
4.2 Interactive electromagnetic pen ................................................... 14
5. Appendix............................................................................ 15
5.1 Replace the pen tip ....................................................................... 15
Customer Support ................................................................. 16
Limited Warranty ................................................................... 17

1
1. Introduction
1.1 Packing list
After unpacking, please conrm whether the following contents are included:
Electromagnetic pen display
USB 2.0 cable
Electromagnetic pen
Pen tip x 3
Pen tip replacement tool
Pen rope
Quick Start Guide
Driver and instructions disk
Warranty card (only Chinese zone)
For any part aws or defects, please consult the original product dealer.
1.2 Product overview

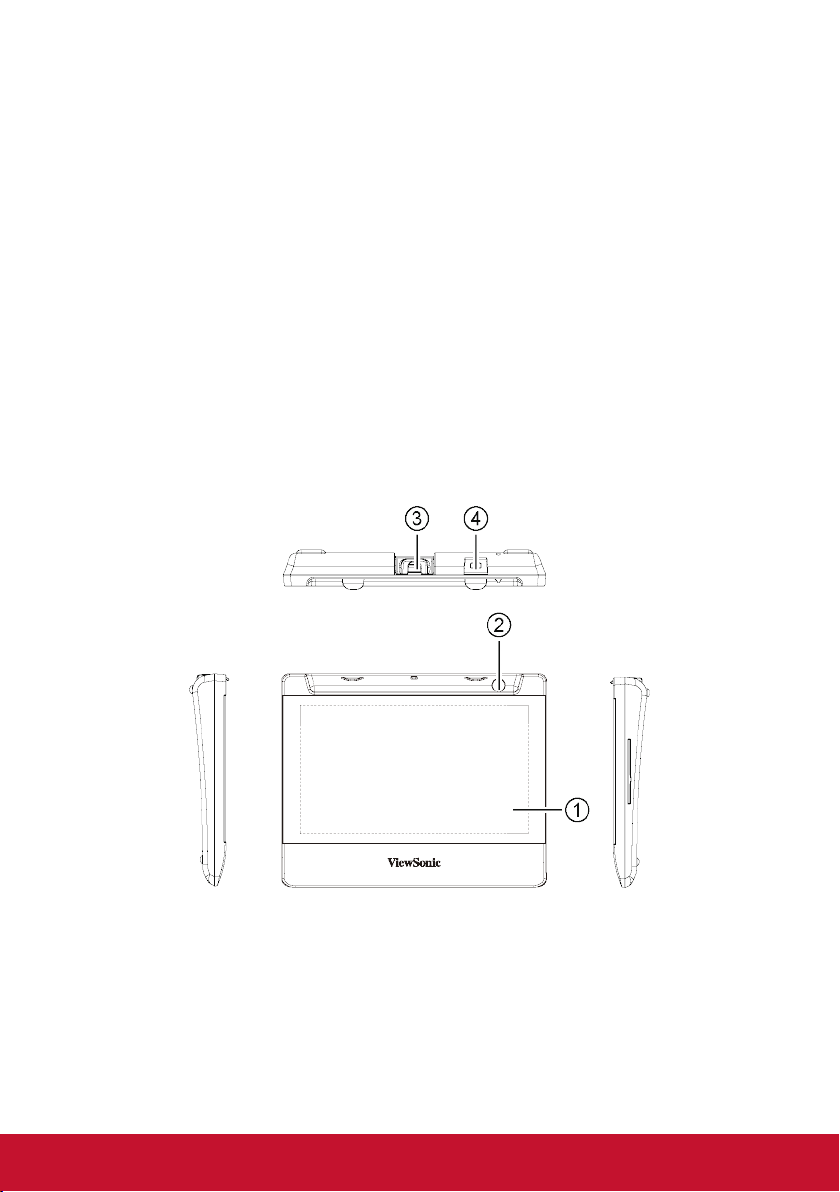

1.2.1 Front view and side view
①Display and electromagnetic pen touch area
②Pen jack
③USB output interface
④Silicone pen slot

2
1.2.2 Rear view
⑤ Rubber foot pad (x4)
⑥ Stand (×2)
⑦Nameplate sticker
⑧ Lock hole (×4)
Note: please don't open the enclosure, which exists electric shock hazard.
Please contact with the service personnel for any problem.
1.2.3 Interactive electromagnetic pen
The interactive electromagnetic pen is made with electromagnetic
resonance technology and does not require batteries.

3
2. Installation and Setting
2.1 Install driver
Connect the device and PC/NB with attached USB cable and plug in
the power adapter, as shown below.

4
2.1.1 Install DisplayLink display adapter driver and software
1) Open the driver and attached software disk, and click and install
[DisplayLink-xx.exe] at Windows.
2) Click [Agree] to start the installation. Then, the installer will be
automatically completed.

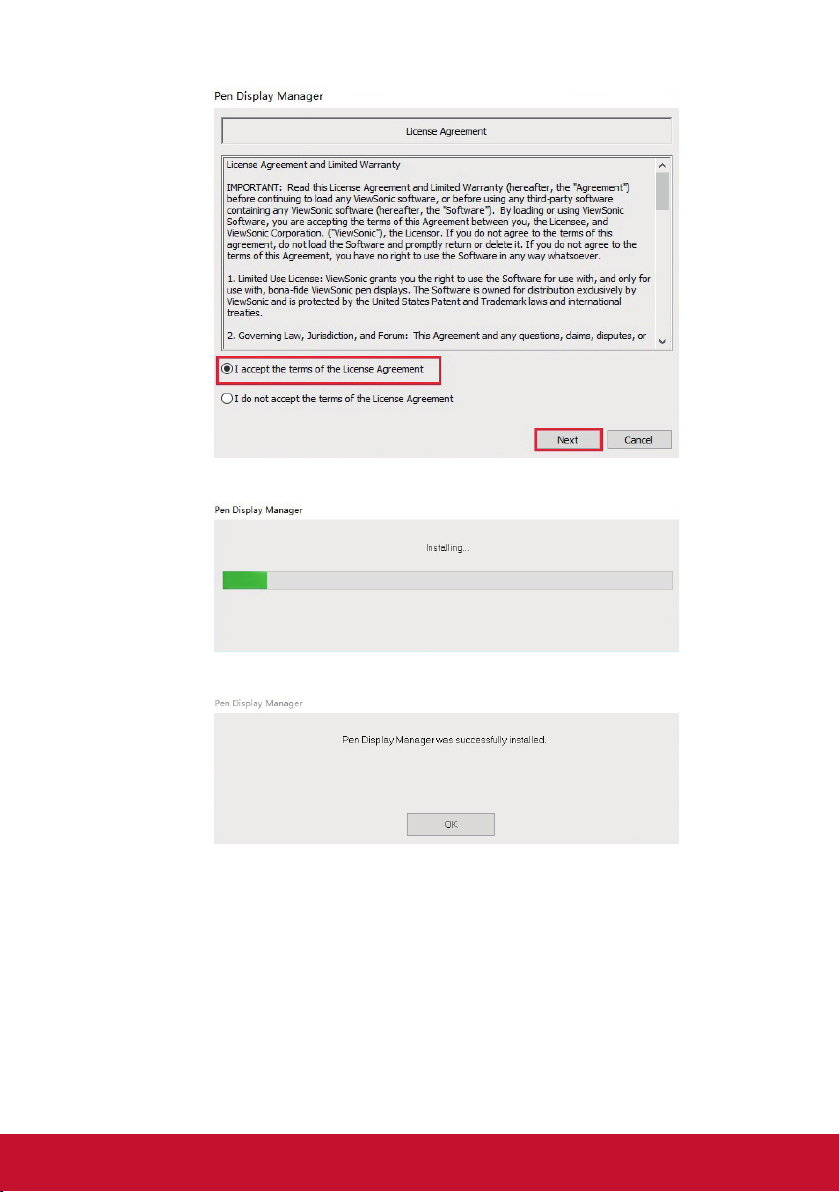

2.1.2 Install handwriting driver
1) Open the driver disk, click and install [viewsonic-xx.exe] at
Windows, Pen Display Manager will appear on the start page
immediately.

5
2) Then, complete all steps as per the setting guide.
3) You must reboot the computer after the installation is completed.

6
2.2 Set the display area
Windows 7 and Windows 8 setting environments
Press [Start] icon, open [Control panel], enter into [Display] and select
[Adjust resolution], then the setting window will open.
1) When installing Pen Display device, you will see an additional
[Multiple Displays] option.
2) Multiple Displays provides 4 display options:
a. Synchronous display on these displays: mirror display mode,
will be changed to main screen and copied screen with same
resolution.
b. Extend these displays: extend the display to the right (preset
setting).
c. Display the desktop on 1 only: only display the desktop of main
screen.
d. Display the desktop on 2 only: only display the desktop of
extended screen.
3) Select [Extend these displays], press [OK] and exit.

7
2.3 Handwriting area correspondence
1) Select the image on the bottom right hand corner to enter the
setting.
2) Under “Pen” tab, adjust the tip feel from soft to rm.
3) Under the “Mapping” tab, set the “Orientation” to “Landscape” and
“Select the Pen Display” to “2”.
4) Close the window to save the changes.
Note: the electromagnetic pen supports multistage pressure. When
drawing with pressure, please select one pressure sensing tool from
tool palette of the application. When you press the pen tip slightly, the
electromagnetic pen will display light-colored or thin line, and when
you press the pen tip heavily, the electromagnetic pen will display
dark-colored or thick line.

8
2.4 More touch settings
Windows 7/8 system is equipped with other touch functions. All settings in
this chapter are based on this system.
2.4.1 Pen and touch
Click [Start] icon → [Control panel] → [Pen and touch].
a. Pen option: when operating the items on the screen with
electromagnetic pen, you can adjust the action of each
electromagnetic pen and the setting of electromagnetic pen button.

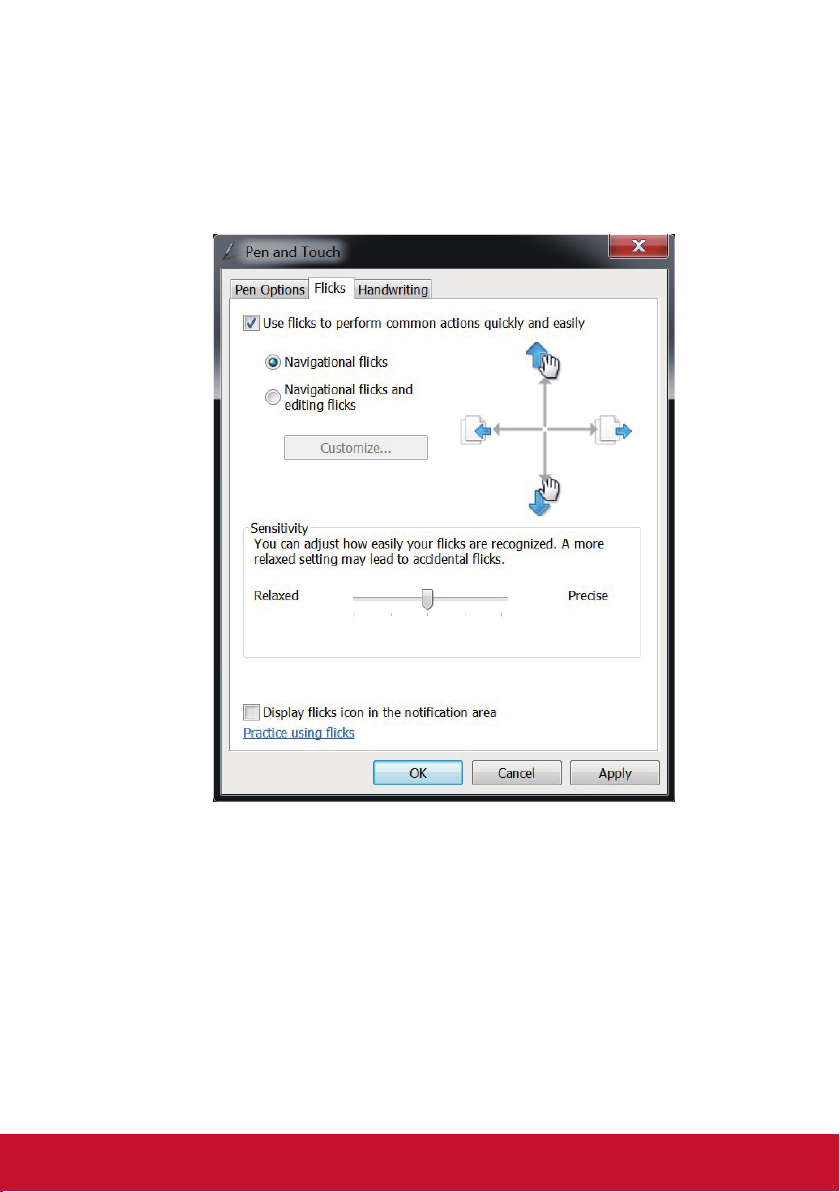

b. Flicks: using pen gesture can perform the action quickly and easily
with electromagnetic pen on the tablet PC.
c. Handwriting: you can select [Use automatic learning] or [Don’t use
automatic learning and delete any previously Collected data].

9
2.4.2 Tablet PC setting
Click [Start] icon → [Control panel] → [Tablet PC setting] → click [Other]
tab → click [Go to input panel setting].
These settings can be used to customize the following input panel functions
of tablet PC.
Handwriting: setting of stroke thickness and writing line spacing.
Ink to text conversion: handwriting recognition setting.
Text completion: [AutoComplete] setting and [Predictive text]
setting.
Advanced: [Action gesture] setting.

10
3. Troubleshooting
3.1 Screen problems
Problems Recommended actions
No picture * Check whether USB cables at computer end and
screen end are connected properly.
* Try to use another USB interface of the computer.
* Conrm whether the computer is under sleep mode.
Press the keyboard or move the mouse, and reboot
the system.
* Conrm whether the computer is starting up
* In case of laptop, please conrm whether the outer-link
(RGB) output is selected.
* Check whether DisplayLink driver is installed.
Screen
completely dark
* Long-time operation will decrease backlight efciency
and may affect the screen brightness.
Image noise * Other electrical devices may trigger electrical
disturbances.
Image blur * Using the original resolution of 1024 x 600 may provide
the optimum quality.

11
3.2 Problems of interactive electromagnetic pen
Problems Recommended actions
Electromagnetic
pen does not
work
* Try to conrm by mouse. If the mouse does not work,
please reboot the computer or the application.
* Try to re-install the driver
Pen tip is too
short
* Please check whether the pen tip is too short. If yes,
please replace the pen tip.
Abnormal cursor
movement
* Remove the disturbances caused by adjacent
electrical devices.
* Try to reboot the computer to conrm.
* Conrm both ends of USB cable are connected to PC.
Note: please don't open the enclosure electric shock hazard. For
assistance, please contact local technical support center and/or
dealer.

12
4. Product Specication
4.1 Screen
Display
Model 7 inch TFT LCD, LED backlight
Resolution 1024 x 600
Brightness 200 cd/m2 (Typ.)
Angle of visibility Horizontal 120°, vertical 80°
Response time Tr+Tf: 25ms
Connector
USB USB x1
User control
Control key NA
Power supply
Input 5V DC
Output NA
Power consumption Start-up 5.0W (5V DC/1A), sleep < 1.0W
Body
Equipment dimension 180mm x 145mm x 23mm
Equipment weight Net weight: 0.34kg
total weight: 0.7 kg
Environment
Temperature range Operation: 0°C ~ 40°C
Storage: -20°C ~ +60°C
Relative humidity Operation: 20% ~ 80%
Storage: 10% ~ 90%

13
4.2 Interactive electromagnetic pen
Model
Technique Electromagnetic touch
Action area Full screen
Technical specications
Resolution 5080 LPI (lines per inch)
Tracking velocity 250 PPS (dots per second)
Pressure sensing Class 2048
Accuracy rating ± 0.5mm (center), ± 1mm (edges and corners)
Readable height 5-15mm
Electromagnetic pen
Model Pressure sensing, wireless
Inclination of detectable
pressure sensitive pen Inclination range: ± 45°
Button No button
Pen tip Replaceable
Note: The specication is subject to change without prior notice.

14
5. Appendix
5.1 Replace the pen tip
If the pen tip is too short or exists the sharp edge, it can be replaced to the
back-up tip. Please replace according to the following steps:
1) Pull out the pen tip from electromagnetic pen straightly with tool.
2) Insert new pen tip into the handwriting pen and then push in the pen
tip untill the tip does not move.
Note: The product comes attached with a pen tip replacement tool.
