Hospitality Performance in a Small Package
16" (15.6" Viewable)
LED Premium HDTV Display
VT1601LED
ViewSonic’s new VT1601LED is a professional
monitor with HDTV functionality. The VT1601LED
features "edge white" LED technology delivering
brilliant image clarity, high contrast with saturated
colors while consuming very low power. Versatile
connectivity is provided through HDMI®in addition to
PC and traditional YPbPr component video and USB.
Internal programming is offered for users wanting to
set up specific product calibration. Extreme audio
includes internal equalizer with SPDIF digital output.
Experience LED Performance in HDTV
Enjoy a widescreen theater experience and high-denition picture quality
with this display’s "edge white" LED technology, 16:9 widescreen aspect
ratio, true HDTV capability, and wide viewing angles.
Advanced ClearPicture™– Clearer, Crisper, Sharper Images
Advanced ClearPicture™image processing eliminates noise, increases
contrast and detail and optimizes color for rich, vibrant images. High-
denition images look amazing and even standard television images are
unbelievably smooth and sharp.
Perfect for Hospitality Applications
This monitor is great for small screen installations, hospitality displays or
applications requiring automated control. Also ideal for hotels, restaurants,
sports bars or retail displays. USB multimedia, hospitality menu and
cloning feature.

Specications
Sales: [phone] or [email protected] • More product information: www.ViewSonic.com
Specications and availability are subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. HDMI and High-Denition Multimedia Interface
are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2012 ViewSonic
Corporation. All rights reserved. [16286-00B-07/12] VT1601LED
ViewSonic Corporation’s QMS & EMS
have been registered to ISO 9001 & ISO
14001, respectively, by TUV NORD.
Vivid Graphics, Clear Text, Stunning TV
Ultra-high brightness of 220 nits (typ), contrast ratio of 500:1, and 1366x768
optimum PC resolution provide vibrant video and crisp data images on the
desktop or in the living room.
LCD Panel Type 16" (15.6" viewable) Wide Color TFT Active Matrix LCD
Display Area 13.6" horizontal x 7.6" vertical; 15.6" diagonal
Optimum Resolution 1366x768
Brightness 220 cd/m2(typ.)
Contrast Ratio 500:1 (typ.)
Viewing Angles 90º horizontal, 50º vertical
Response Time 8ms (typ.)
Backlight White-light LED
Backlight Life 30,000 hours (typ.)
Aspect Ratio 16:9
Panel Surface Anti-glare, hard-coating (3H)
INPUT PC RGB analog (75 ohms, 0.7 Vp-p)
TV/Video TV/cable, composite (RCA), component YPbPr
Audio 3.5mm mini stereo audio in, earphone out and
RCA (left/right) audio in
Frequency Fh: 30~64kHz, Fv: 60~85Hz
Sync H/V separated (TTL)
Digital HDMI with HDCP and audio support
Tuner ATSC/NTSC/QAM
USB JPEG
AUDIO OUTPUT Speakers 2.5-watt (x2)
COMPATIBILITY PC Up to 1360x768 @ 60Hz (preferred)
Mac®Up to 1360x768
INPUT SIGNAL TV/Video Comp. 480i, 480p, 720p, 1080i, 1080p
CONNECTOR Analog 15-pin mini D-sub (VGA), composite, component
Digital HDMI, SPDIF
Power Adapter DC 12V
POWER Voltage AC 100–240V (universal), +/-10% Wide Range
Consumption 18W (typ) / 22W (max.)
CONTROLS Side Panel Controls Vol -/+, channel down/up, menu, source, power
Picture Picture mode, contrast, brightness, sharpness, tint, color,
screen size, wide, cinema, zoom, normal, auto adjust, clock,
phase, H/V position, color temperature, dynamic contrast,
lm mode, noise reduction
CONTROLS CONT. Audio Sound mode, treble, bass, balance, surround, AVL,
digital audio output, equalizer, rock, pop, jazz
Channel Channel list, favorite list, channel settings, air/cable,
auto (DTV/ATV) channel search
Parental Lock parental control, V-chip, change password,
keypad lock, source lock
Set Up Close caption, menu language, clock
Other Blue black, no signal/operation off, all reset, audio only
OPERATING Temperature 32–104ºF (0–40ºC)
CONDITIONS Humidity 20–80% (non-condensing)
DIMENSIONS Physical with stand 15.4 x 11.5 x 4.7 in. / 392.1 x 291.7 x 120 mm
(W x H x D) Physical without stand 15.4 x 10.3 x 1.6 in. / 392.1 x 260.4 x 40.5 mm
Packaging 17.3 x 4.3 x 13.4 in. / 440 x 110 x 340 mm
WEIGHT Net with stand 3.3 lb. / 1.5 kg
Net without stand 2.9 lb. / 1.3 kg
Gross 5.7 lb. / 2.6 kg
WALL MOUNT VESA®75 x 75 mm
REGULATIONS FCC, cUL (UL), RoHS, BETS-7, Dolby, SRS,
ENERGY STAR®, NOM
RECYCLE/DISPOSAL Please dispose of in accordance with local,
state or federal laws.
WARRANTY One-year limited warranty on parts, labor and backlight

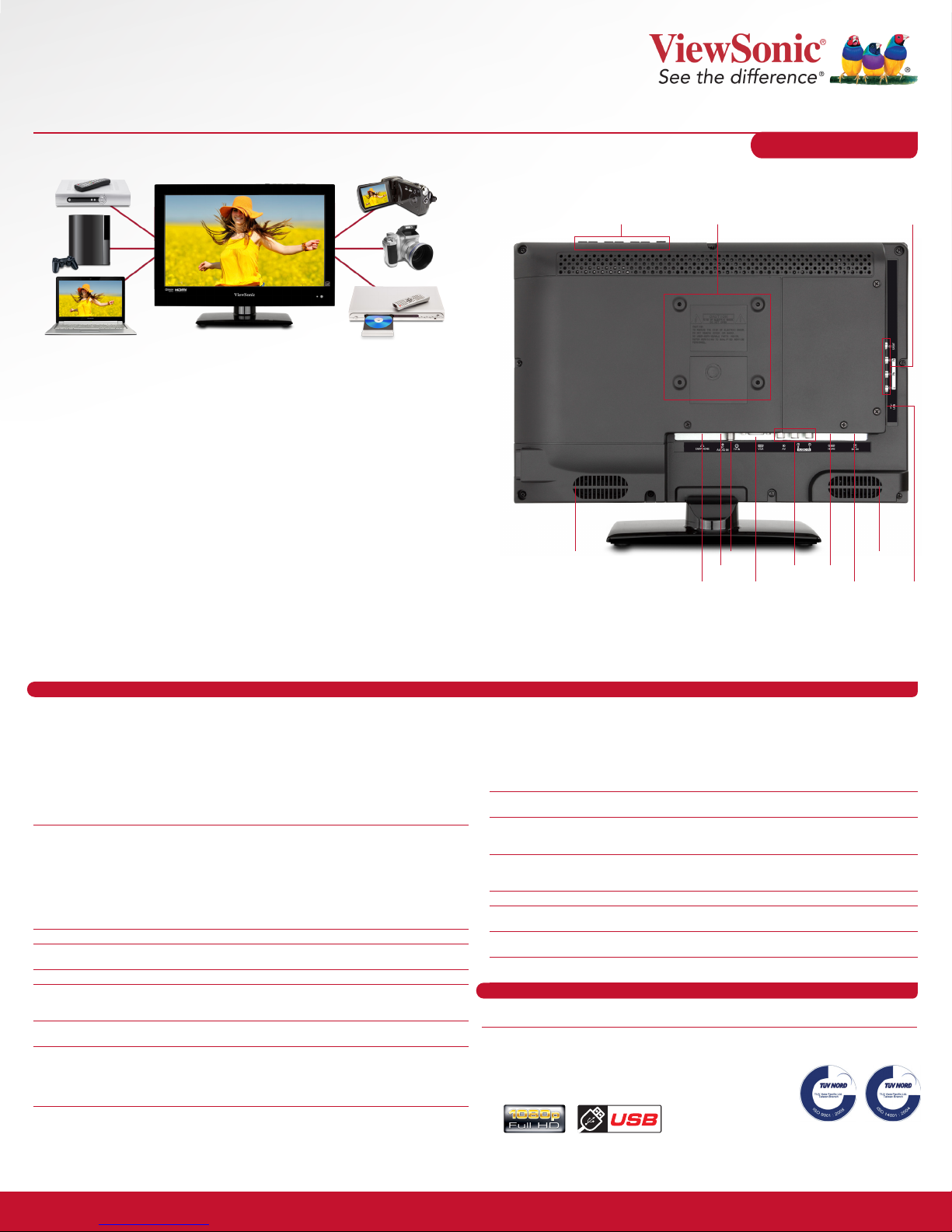

Speaker
Wall Mount-Ready
VT1601LED
VT1601LED LCD HDTV, power cable, remote control with batteries, User Guide, Quick Start Guide
What's in the box?
OptiSync® Technology Now Features HDMI®
Add versatility to your LCD TV with support for HDMI with high-definition
content protection (HDCP) and analog (VGA) signals, plus component,
composite, and TV/cable input.
Expand Your Options with Plug-and-Play Connectivity
This HDTV provides the ultimate viewing experience with integrated HDTV/
QAM TV tuner and plug-and-play, high-end connectivity for HD set-top boxes,
DVDs, game consoles and camcorders.
16" (15.6" Viewable)
LED Premium HDTV Display
Speaker
Controls
Headphone
Audio In
RF In
VGA
A/V In HDMI
DC In
Component
USB
