ViewSonic VT2730-1M User manual

Service Manual
ViewSonic VT2730-1M
Model No. VS13154-1M
27” LCD TV
(VT2730-1M_SM Rev. 1aMar.2010)
ViewSonic®381 Brea Canyon Road, Walnut, California 91789 USA - [phone]

Copyright
Copyright© 2010 by ViewSonic Corporation. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or
computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,
manual or otherwise, without the prior written permission of ViewSonic Corporation.
Disclaimer
ViewSonic makes no representations or warranties, either expressed or implied, with respect to the contents
hereof and specifically disclaims any warranty of merchantability or fitness for any particular purpose. Further,
ViewSonic reserves the right to revise this publication and to make changes from time to time in the contents
hereof without obligation of ViewSonic to notify any person of such revision or changes.
Trademarks
Optiquest is a registered trademark of ViewSonic Corporation.
ViewSonic is a registered trademark of ViewSonic Corporation.
All other trademarks used within this document are the property of their respective owners.
Revision History
Revision SM Editing Date ECR Number Description of Changes Editor
1a 03/26/10 Initial Release Sophia Kao
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
1

TABLE OF CONTENTS
1. Precautions and Safety Notices................................................................. 3
3. Front Panel Function Control Description................................................ 11
4. Circuit Description....................................................................................... 31
5.AdjustmentProcedure................................................................................ 38
6. Trouble Shooting Flow Chart................................................................ ..... 62
7.BlockDiagram............................................................................................. 64
8.SchematicDiagrams.................................................................................... 65
9.PCBLayoutDiagrams................................................................................. 75
10.Exploded View And Exploded Parts List..................................................81
11. Recommend Spare Parts List................................................................... 84
2.Specification................................................................................................. 5
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
2

1. Precautions and Safety Notices
1. Appropriate Operation
(1) Turn off the product before cleaning.
(2) Use only a dry soft cloth when cleaning the LCD panel surface.
(3) Use a soft cloth soaked with mild detergent to clean the display housing.
(4) Disconnect the power plug from AC outlet if the product is not used for a long period of time.
(5) If smoke, abnormal noise, or strange odor is present, immediately switch the LCD display off.
(6) Do not touch the LCD panel surface with sharp or hard objects.
(7) Do not place heavy objects on the LCD display, video cable, or power cord.
(8) Do not use abrasive cleaners, waxes or solvents for your cleaning.
(9) Do not operate the product under the following conditions:
- Extremely hot, cold or humid environment.
- Areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic field.
- Place in direct sunlight.
2. Caution
No modification of any circuit should be attempted. Service work should only be performed after you are
thoroughly familiar with all of the following safety checks and servicing guidelines.
3. Safety Check
Care should be taken while servicing this LCD display. Because of the high voltage used in the inverter
circuit, the voltage is exposed in such areas as the associated transformer circuits.
4. Power Supply Requirements
The external AC power operating range shall be from 90 to 264Vac
5. LCD Module Handling Precautions
5.1. Handling Precautions
(1) Since front polarizer is easily damaged, pay attention not to scratch it.
(2) Be sure to turn off power supply when inserting or disconnecting from input connector.
(3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
(4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
(5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
(6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
(7) Do not open nor modify the Module Assembly.
(8) Do not press the reflector sheet at the back of the module to any directions.
(9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of the CCFL Reflector edge. Instead, press at the far
ends of the CFL Reflector edge softly. Otherwise the TFT Module may be damaged.
(10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
(11) After installation of the TFT Module into an enclosure (LCD monitor housing, for example), do
not twist nor bend the TFT Module even momentary. At designing the enclosure, it should be
taken into consideration that no bending/twisting forces are applied to the TFT Module from
outside. Otherwise the TFT Module may be damaged.
(12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow local
ordinances or regulations for disposal.
(13) Small amount of materials having no flammability grade is used in the LCD module. The LCD
module should be supplied by power complied with requirements of Limited Power Source
(IEC60950 or UL1950), or be applied exemption.
(14) The LCD module is designed so that the CFL in it is supplied by Limited Current Circuit
(IEC60950 or UL1950). Do not connect the CFL in Hazardous Voltage Circuit.
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
3

5.2. Handling and Placing Methods
Correct Methods: Incorrect Methods:
Only touch the metal frame of the LCD panel or the
front cover of the monitor. Do not touch the surface
of the polarizer.
Surface of the LCD panel is pressed by fingers and
that may cause “Mura”
Take out the monitor with cushions Taking out the monitor by grasping the LCD panel.
That may cause “Mura”
Place the monitor on a clean and soft foam pad. Placing the monitor on foreign objects. That could
scratch the surface of the panel or cause “Mura”
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
4

2. Specification
LCD panel of this product shall be provided by “CMO” with a model number of M270H1-L01.The
following table defines this panel specification. Any changes in panel must be pre-approved by
ViewSonic in written.
Parameter Specification
LCD Type a-Si TFT Active Matrix Wide Color, Transmissive Mode,
Normally Black
LCD Interface 2-Channel LVDS
Resolution (Native) 1920 x 1080
Display Area 27” diagonal; 597.89 (H) x 336.31 (V) mm
Pixel Pitch
0.3114 (H) x 0.3114(V) mm
Viewing Angle H = 170, V = 160 with CR10 (Typical)
Contrast Ratio 1200:1 (Typical)
Brightness 300 nits (Typical)
Response Time 3.4 ms, (Typical), g-g
Brightness Uniformity 1.33 (Max), measured per panel spec.
Chromaticity(CIE1931) White-x:0.313,White-y:0.329 (Standard Mode Only)
Colors 16.7M (8-bits)
Surface Treatment Hard coating (3H)
Backlight 4 CCFLs (Cold cathode Fluorescent Lamp)
Preset Color Panel Default
Gray Scale 0-255
Rated Life (Backlight) > 50KHrs*(ILO at 3.0mA)
Front Screen Artifacts
VS Standard:
a.) No Visible Streaking, Sag or Smearing artifacts when
driven by the specified video cards (see 7.1 General Test
Equipment) in the primary mode (VGA & 60 Hz) and after
user adjustment
b.) No image drift or lose fine-tune settings due to panel
temperature change.
Panel Acceptance Spec
Refer to the panel acceptance criteria specification.
Note: Intermittent and/or Display Pattern defects which result
in further bright or dark dots will be counted individually
against the above specification.
Note: Also refer to the panel defect acceptance specification.
Panel performance characteristics “ MUST BE” met in all display modes/inputs at standard test
conditions.
1. RF Tuner
RF tuner of this product shall be provided by “Samsung DTVA50FVH10109B” for NTSC/ATSC. The
following table defines this tuner specification.
Parameter Specification
RF Tuning Range NTSC/ATSC: 55.25 to 803 MHz, 2-69 Channels for Off-Air and
1-125 Channels for CATV
RF Tuner Sensitivity (S/N
Ratio at un-weight) 44 dB (min.)// 48 dB (max.)
Channel Bandwidth NTSC/ATSC/Digital Cable: 6 MHz Maximum
CVBS Characteristics:
Video Amplitude Signal 0.8(min.)–1.2(max.) V
Audio Characteristics:
SIF out level 500mV (typ.)
Compatible system TUNER NTSC/ATSC/QAM
Compatible system AV NTSC M
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
5

2. Video
Built-in A/D converter shall provide analog to digital converter for this product.
Input Parameter Specification
CVBS Characteristics:
Video Amplitude Signal
DC Level Sync Pulse
0.7(min.) – 1.1(max.) V
Typical. 0.3 V
S-Video Characteristics:
Video Amplitude Signal
Y : 1.0Vp-p W / Neg. Sync (IN 75 ȍ)
C : 0.285Vp-p (IN 75 ȍ)
Y, Pb, Pr Characteristics:
Video Amplitude Signal
Y:1.0Vp-p (IN 75 ȍ)
Pb:0.7 Vp-p(IN 75 ȍ),Pr:0.7 Vp-p (IN 75 ȍ)
Video Bandwidth
N
TSC:6MHzMaximum
HDMI Characteristics Panel Link T.M.D.S HDMI-1.3
RGB Characteristics:
Signal Type
Sync Type
Input Signal Rating
Sync Level:
Frequency Range
Pixel Color
DDC Compliance
EDID Data Table
Analog VGA
TTL, Separate Sync, with 2.2K:pull-down resistors
1250mV Max without damage to the product, 0-700 mV Full Range
2.5-5.25 V
Horizontal: 30-82K Hz, Vertical: 55-76 Hz
16.7 M
DDC2B Compliant, Rev 1.3
Refer to Appendix
3. Audio
Audio amp of this product shall be provided by “TI” with a Model Number of TPA3113D2 .
“MST” MSD3003 for VT2730-1M shall be used as sound processor. In addition, a pair of speakers shall
be integrated within this product. The audio signals of this product shall comply with the specification
listed in the following table.
Parameter Specification
Tuner Input Base band Input
Power Output Max Rating 5W at 10 % T.H.D Distortion 5W at 10% T.H.D Distortion
Speaker Impedance main speaker :6ȍmain speaker :6 ȍ
Line In NTSC: BTSC Mono / Stereo(standard)
PAL: FM Mono / Stereo(standard)
500 mV rms (Typ)
1.6 V rms (Max)
Impedance: 600 ohms
Line Out earphone jack 500 mV rms
15 mW@32ȍ
Flatness of Amplitude
Response +/- 3 db (at 1KHz @1W) +/- 3 db (at 1KHz @1W)
Total Harmonic Distortion
(Po=0.1 to 1 W, f=1KHz) <2% <2%
Signal to Noise: 12 dB (100Hz to 1KHz)
8 dB (1kHz to 10kHz) 35 dB (100Hz to 10 kHz)
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
6

4. Electrical
The following table defines the electrical specification of this product.
ELECTRICAL SPECIFICATION
1 Power Input Voltage Range 100-240VAC +/- 10% Wide Range
2 Input Frequency Range 47-63 Hz
3 Input Current 1.0A @ 115VAC // 0.5A @ 230VAC
4 Power Supply Inrush
Max in < 80A (with fully loaded power supply) at 230Vac
Shall not result in permanent failure of power supply
(including blown fuse)
5 Power Consumption: 70 W (Normal), 75W (Max) // Stand by: < 1W
6 Interference with RF and Video
There shall be no visible interference between power supply,
RF and video signals. This applies to all available RF
channels and video modes.
7 Electromagnetic Compatibility This product shall adhere to the compatibility and immunity
specifications in FCC.
8Power Supply Transient Immunity
(Supply Transients and Outage)
Able to withstand an ANSI / IEEE C62.41 – 1980 2000V
ring wave with no damage.
9 Surge Immunity Test Able to withstand 1.25X nominal Line Voltage for one cycle
with no damage.
10 Power Supply Missing Cycle
Immunity
Function properly without reset or visible screen artifact
when 1/3 cycle of AC Power is randomly missing.
11 Power Supply Acoustics
The Power Supply shall not produce audible noise that would
be detectable by the user (Excluding Power Supply Fan).
“Audible” shall be defined in accordance with ISO 7779
(DIN EN27779:1991).
Power Switch noise shall be Excluded.
12 Efficiency >= 80% @ full load, nominal line
13 Leakage Current <0.5mA @ 240VAC
14 Power Saving(DPMS) N/A
15 Recovery Time < 3 sec.
16 Power Factor Correction Compliant with EN61000-3-2

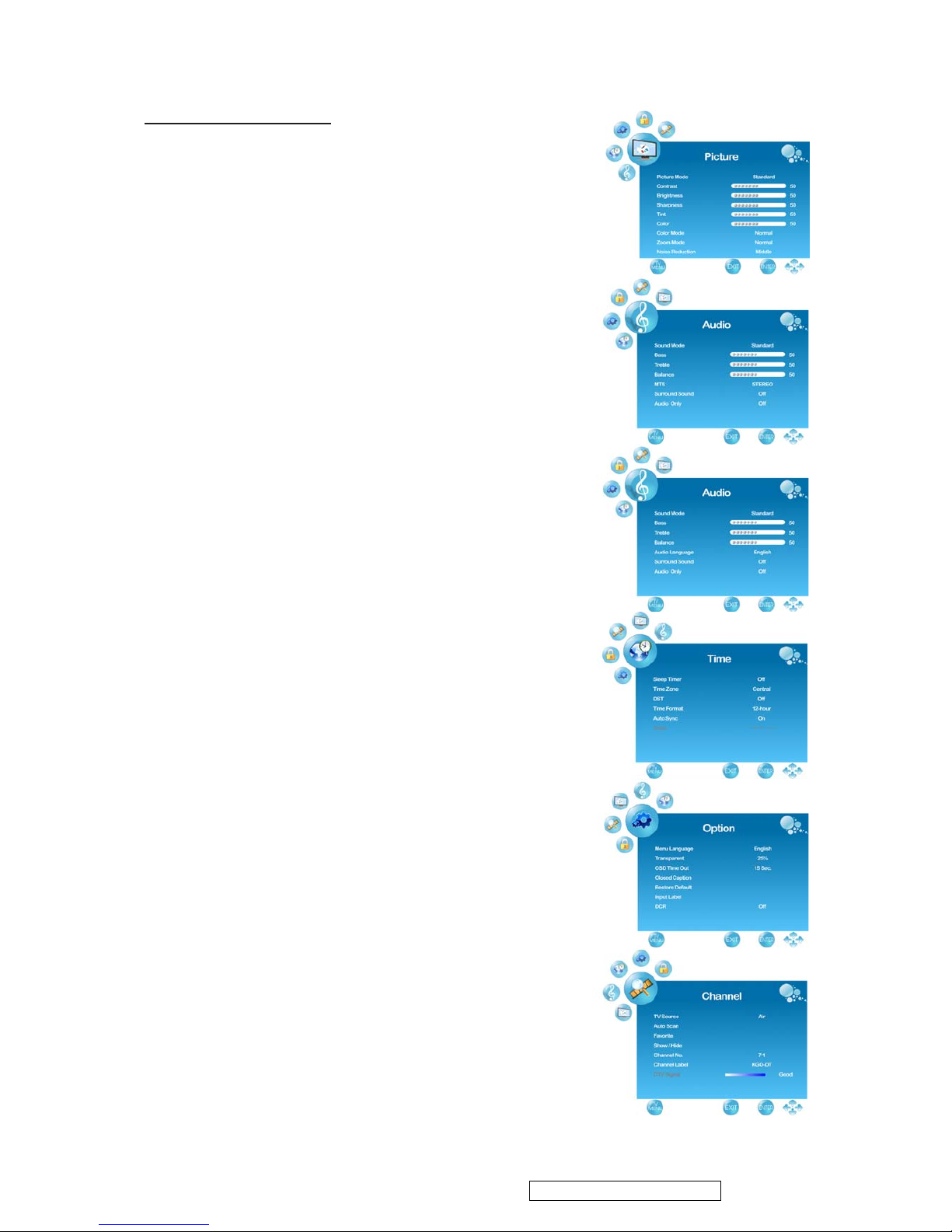

5. Firmware & OSD
The product firmware of VS13154-1M shall have a firmware version of V2.00EB0. Any
changes/revisions afterward shall also be pre-approved by ViewSonic in written. For VS13154-1M, its
firmware shall have a built-in frequency table for NTSC/ATSC off-air TV/CATV, and with MTS
implementation.
All audio/video and other output adjustments shall be performed by using an On Screen Display (OSD)
via a Remote Control Unit (RCU) in conjunction with the front panel adjustments.The following tables
list the OSD functions supported by VS13154-1M.
OSD Table for VS13154-1M
Picture Mode Standard, Dynamic, Soft ,Personal
Contrast 0~50~100
Brightness 0~50~100
Sharpness 0~50~100
Tint 0~50~100
Color 0~50~100
Color Mode Cool, Normal, Warm, Personal
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
7

Zoom Mode Movie Scale, Zoom In,4:3, Normal
NR Middle, Strong, Off, Weak,
Sound Mode Standard, Music, Movie, Sports, Personal
Treble/Bass Bass, Treble, Balance
Audio Language(ATSC) English, French, Spanish
Surround Sound SRS TruSurround HD, Off
AUDIO
Audio Only On, Off
Sleep Timer OFF, 5,10,15,30,45,60,90,120,180,240 Min
Time Zone Pacific, Alaska, Eastern, Central, Mountain, Hawaii,
Atlantic
DST On, Off
Time-Format 12/24-hour
Auto Sync On, Off
TIME
Clock Year, Month, Day, Hour, Min, OK, Cancel
Menu Language English, French, Spanish
Transparency 0%,25%,50%,75%,100%
OSD Time Out 5,15,30,45,60 sec.
Closed Caption CC off, CC on, CC on mute
Basic Selection off, CC 1~4 Text 1~4
Advanced
Selection(ATSC) off, Service 1~6
Custom, Font style, Front size, Font edge style
Font edge color, FG color, BG color, F G Opacity
Option(ATSC)
DG Opacity
Restore Default Yes, No
Input label TV,AV,S-Video, YPbPr, HDMI1, HDMI2,HDMI3,PC,
USB
DCR On, Off
Display Mode Home, Retail
Media SlideShow Timer 5Sec,10sec,30Sec,1Min,30Min
Trans. Effect Random, None, Right Drag Left Drag, Down Drag, Up
Drag, S-Play, N-Play, Fade In/Out, Fly In/Out
File List Sorting None, Sort by Name, Sort by Name Z->A, Sort by
Size, Sort by Date, Sort by Date New->Old
OPTION
SlideShow Repeat on, Off
TV Source Air, Cable
Auto Scan Scan all channels, Digital channel only, Analog channel
only
Favorite ʳ
Show/Hide ʳ
Channel No. ʳ
Channel Label ʳ
CHANNEL
DTV Signal ʳ
LOCK Enter Password ʳ
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
8

6. Remote Control Unit (RCU)
An IR remote control unit shall accompany this product along with battery. In addition, this remote
control unit shall have an operational distance of 5 meters and an operational angle of 15 degrees for both
horizontal and vertical. Besides the key-code and protocol has fully conformed to VS standard.
Parameter Specification
Type IR; Made by Sighter Electronics Co., Ltd.
Range Off axis r15qt5M
On axis: t7M
Life Testing
(Buttons)
100,000 cycle operations at a rate of 20~30 cycle / minute without load (with
battery)
Color
Painting Color - PANTONE 427C (Black for front & back cover)
Power Key - PANTONE 032C (RED)
Key Pads – PANTONE 10C & PANTONE 7C(Cool Gray)
Texts Printed on Front Cover and Key Pads - PANTONE 427C
Protocol VS key-code & protocol.
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
9

7. Mechanical
The following table defines the mechanical specifications of this product for both chassis and cabinet.
Parameter Specification
Dimension
W/O stand
646.3 x 465.7 x 227.8 mm
646.3x 409.7x 74.8 mm
Net Weight 6.97 kg
Gross Weight 8.85 kg
Net weight *without*
stand
5.58 kg
Chassis Plastic Material ABS (ABS HB / PC)
External Plastic Chassis
Components
Plastic Chassis, Cover, Stand (Metal + Plastic),Lens and Button
Exterior Chassis
Color/Texture/Details
Refer to – Product ID Guide
Chassis Color Drift Due
to UV-Light
The color drift due to UL-Light shall be less than 10 “Delta E” in the 1976
CIE L*a*b color space. Testing shall be performed according to the
requirements of ASTM Test Method D4459-93.
Molded Plastic Workmanship shall be inspected according to ViewSonic Molded Plastic
Parts Specification, VSCMPPSPEC001V1.2.
Screen Printed Parts,
Bird Logo Recess
Artwork shall be provided and confirmed by ViewSonic.
Rear Label A label identifying the product name, model/serial number and FCC
ID/Logo shall be placed into the rear label recess located on the rear panel
of the chassis.
Wall Mount 100 mm x 200 mm VESA high hole (n=4), M4 X 10mm , pitch =0.7mm
screw mounting kit not included.
Sample Sample of textured color chips, plastic material specification, and Material
Safety Data Sheets shall be submitted to ViewSonic prior to Mass
Production Release.
In addition, all exterior surfaces shall have uniform texture/color. The maximum acceptable gap between the
buckets to bezel plastic pieces shall be within 1 mm. The maximum acceptable gap between LCD panel and
bezel shall be within 1.5 mm.
8. Environmental
The following table defines the operational/storage conditions of the product.
Operating Temperature 0qC to +40qC
Humidity 10% ~ 65% non-condensing
Altitude 0 meter to +2000 meters above sea level
Storage Temperature -20qC to +60qC
Humidity 0 ~ 90% non-condensing
Altitude 0 meter to 12,000 meters above sea level
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
10

3. Front Panel Function Control Description
)URQW9LHZRIWKH3URGXFW
EL
Item Description
1Power LED Indicator Lights up in blue when the TV is turned on. Lights up in orange
when the TV is in standby mode.
2Remote Control Receiver Receives IR signals from the remote control.
3Volume Up Increase sound volume or adjust a highlighted control while in
OSD menu.
4Volume Down Decrease sound volume or adjust a highlighted control while in
OSD menu.
5MENU Turn OSD menu ON/OFF.
6CH Up Channel up when source is TV, or select a control while in OSD
menu.
7CH Down Channel down when source is TV, or select a control while in
OSD menu.
8INPUT Select input source.
9Power ON/OFF button Turn the power on from standby mode or turn the power off to
return to the standby mode.
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
11

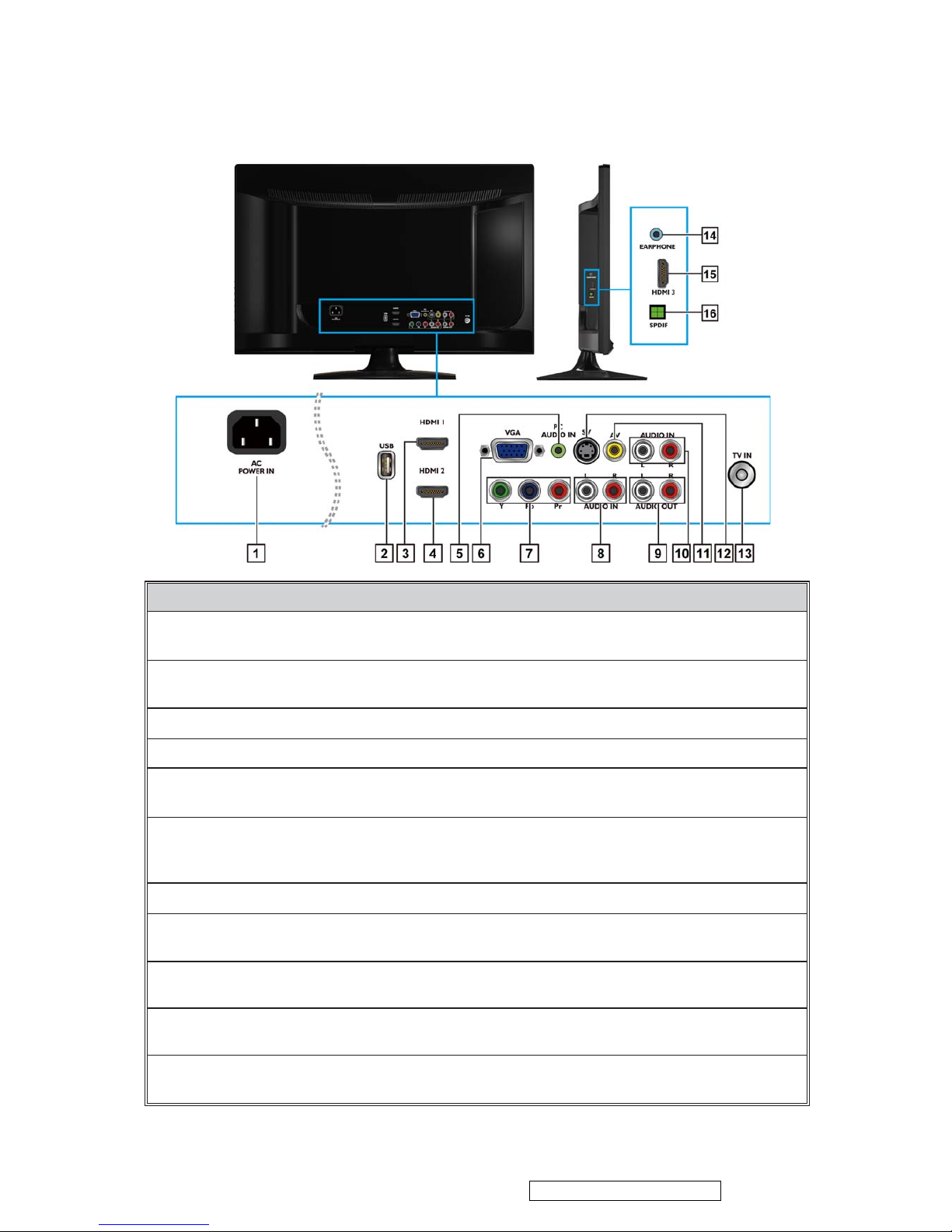

Item Description
1 Power (AC input) Plug-in the supplied AC Power cord and connect to the AC input
power source.
2USB &RQQHFWWR\RXU86%GHYLFHVVXFKDV86%ÀDVKGULYHSRUWDEOHKDUG
drive.
3HDMI 1 Input Terminal Connect this port to the HDMI output of A/V device.
4HDMI 2 Input Terminal Connect this port to the HDMI output of A/V device.
5PC Audio input Connect the RGB Audio Out on your computer to the RGB Audio
on the rear of the LCD TV.
6VGA signal input Connect a 15-pin D-sub RGB cable to the RGB output of your
computer and the other end to the RGB input on the rear of the LCD
TV.
7YPbPr signal input Connect this port to the YPbPr output of A/V device.
8YPbPr signal Audio
input (left/ right)
Connect the Audio in cable for YPbPr from this jack to the
corresponding connectors on your A/V device.
9Audio output Connect this port to your A/V device with audio in (RCA)
FRQQHFWRUVRUWRDXGLRDPSOL¿HU
10 AV/ S-Video Audio
input (left/ right)
Connect the Audio in cable for AV/ S-Video from this jack to the
corresponding connectors on your A/V device.
11 Composite Video input Connect this jack to the composite video output connectors on your
A/V equipment.
5HDU9LHZRIWKH3URGXFW
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
12

Item Description
12 S-Video input Connect the S-Video cable from the compatible device to this
connector on the rear panel of the LCD TV.
13 TV Input Jack Connect this jack to your Cable or VHF/UHF antenna.
14 Headphone Jack Connect to your headphones. By connecting the headphones, you can
listen to the sound from the TV on headphones.
＊If you connect the headphones, the TV speakers will be muted.
15 HDMI 3 Input Terminal Connect this port to the HDMI output of A/V device.
16 SPDIF Optical output Connect this port to the SPDIF input of A/V device.
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
13

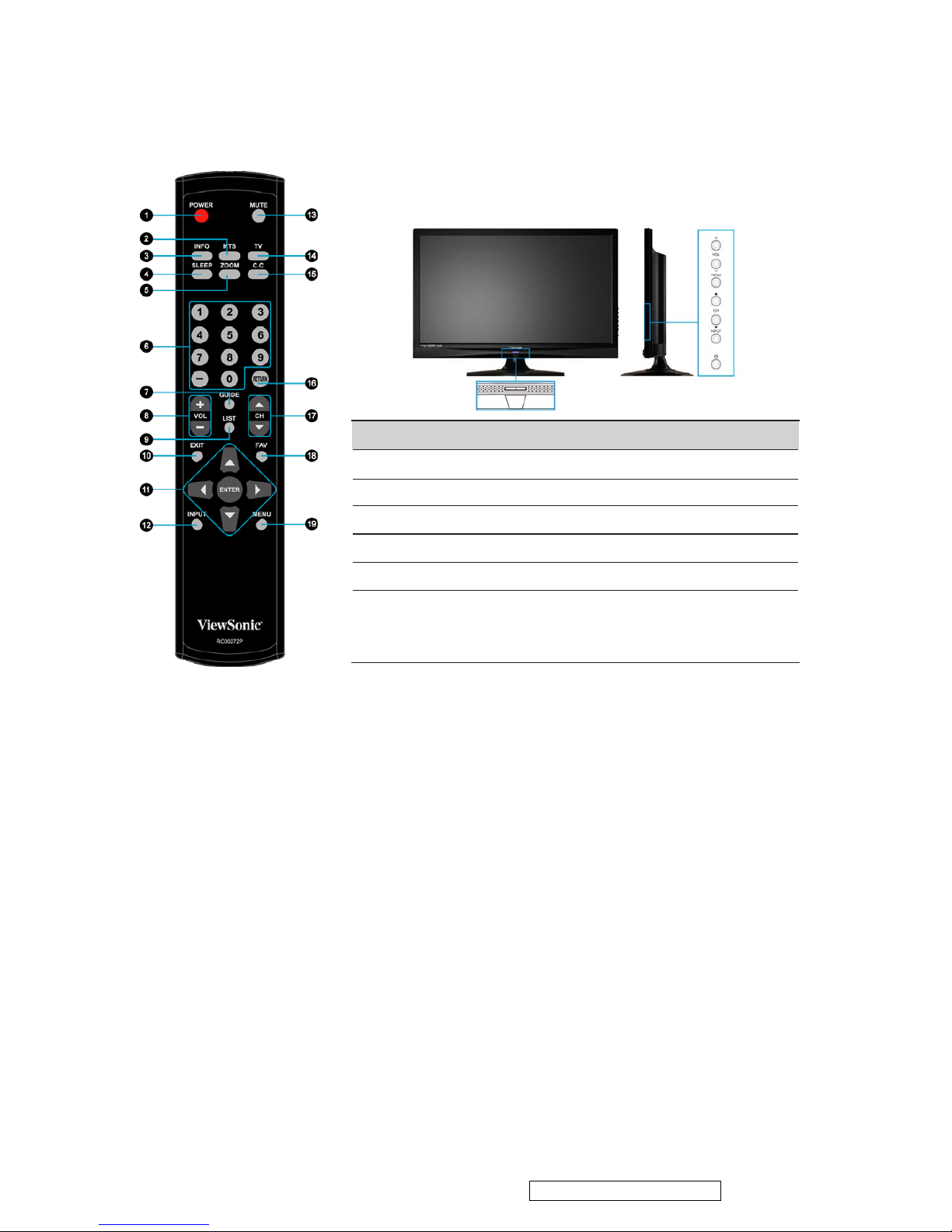

Remote Control
ENGLISH
Buttons located at the side of the LCD TV will operate the same as
these buttons on the remote control.
Button Description
1 POWER Power ON/OFF
2 MTS Select Mono, Stereo or SAP sound
3 INFO Display current information
4 SLEEP Set timer to turn off TV
5 ZOOM Adjust window size
6 0~9, -
number
buttons
Directly channel select
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
14

ENGLISH
Button Description
7 GUIDE Show electronic program guide (EPG)
8 - VOL + Press to adjust the volume.
9 LIST Select channel from program list
10 EXIT OSD exit
11 ŸźŻŹ
ENTER
buttons
Press these buttons to navigate the OSD menus.
ŸźLVIRUPHQXDQGIXQFWLRQVHOHFWDQGŻŹLV
for function adjustment.
ENTER: Enter the function setting.
12 INPUT Input source select
13 MUTE Volume mute ON/OFF
14 TV Direct to TV source
15 C.C Select caption mode
16 RETURN Press to return to previous channel.
17 ź&+Ÿ Press to change the channels up or down.
18 FAV Select from preset Favorite Channels
19 MENU Press to turn the OSD (On-Screen Display) menu
on.
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
15

Operation
Storing Channels into Memory
1. Press the MENU button to display the OSD main menu.
3UHVVŻRUŹWRVHOHFWWKH³&+$11(/´PHQXWKHQ
press ENTERRUźWRHQWHUWKHPHQX3UHVVŸRUź
WRVHOHFW³796RXUFH´DQGXVHŻRUŹWRVHOHFWWKH
DQWHQQDFRQQHFWLRQWR³$LU´RU³&DEOH´
$LU5)VLJQDOSURJUDPVE\³$LU´
&DEOH5)VLJQDOSURJUDPVE\³&DEOH´
3UHVVŸRUźWRVHOHFW³$XWR6FDQ´WKHQSUHVVŹWR
enter.
3UHVVŸRUźWRVHOHFW³6FDQDOOFKDQQHOV´³'LJLWDO
FKDQQHORQO\´RU³$QDORJFKDQQHORQO\´DQGSUHVVŹWR
perform Auto Scan function.
To stop scanning, press MENU at any time.
5. The Auto Scan screen will be shown, and after it is
GRQHWKHVFUHHQZLOOUHWXUQWRWKH¿UVWIRXQGFKDQQHO
Viewing the Menus
1. Press the MENU button to display the OSD main menu.
There are six top menus on the screen: PICTURE,
$8',27,0(237,21/2&.DQG&+$11(/
( CHANNEL menu can only be enabled in TV
source.)
3UHVVŻRUŹWRVHOHFW\RXUGHVLUHGWRSPHQX
3. Press ENTERRUźWRHQWHUWKHPHQX\RXVHOHFW
8VHŸźWRVHOHFWWKHFRQWURO\RXZDQWWRDGMXVW
:KHQVHOHFWLQJWKHFRQWUROZLWKŹSUHVVŹWRHQWHU
QH[WOHYHOPHQXRUHQDEOHWKHIXQFWLRQŹZLOORQO\
appear when the control is highlighted)
3UHVVŻŹWRDGMXVWRUVHOHFWWKHVHWWLQJV
7. Press MENU to exit from the OSD menu.
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
16

Selecting the Input Source
To select the TV or other external input sources connected
to the TV.
1. Press the INPUT button on the remote control.
3UHVVŸRUźWRVHOHFWWKHUHTXLUHGLQSXWVRXUFHEHWZHHQ
TV, AV, S-Video, YPbPr, HDMI1, HDMI2, HDMI3,
PC or USB.
(When in USB input source, the system only supports
-3(*%03DQG31*LPDJH¿OHV
7RFRQ¿UPWKHVHOHFWLRQSUHVVENTER.
Favorite Channel Setting
To set your favorite channel into memory:
1. Press the MENU button to display the OSD main menu.
3UHVVŻRUŹWRVHOHFWWKH³&+$11(/´PHQXWKHQ
press ENTERRUźWRHQWHUWKHPHQX3UHVVŸRUź
WRVHOHFW³)DYRULWH´WKHQSUHVVŹEXWWRQWR
HQWHU³)DYRULWH´VHWWLQJ
3UHVVŸRUźWRVHOHFWWKHFKDQQHO\RX¶GOLNHWREH\RXU
favorite channel.
Press ENTERWRFRQ¿UP\RXUVHOHFWLRQ
4. To cancel the selection, Press ENTER again on the selected
channel.
5. Press MENU to exit.
＊To view your favorite channels, press FAV button to
show Favorite List and select your favorite channels that
have already been stored.
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
17

Channel Name Setting
To edit a name for the current channel:
1. Press the MENU button to display the OSD main menu.
3UHVVŻRUŹWRVHOHFWWKH³&+$11(/´PHQXWKHQ
press ENTERRUźWRHQWHUWKHPHQX
3UHVVŸRUźWRVHOHFW³&KDQQHO1R´WKHQSUHVVŻRUŹ
to select the channel you want to edit the name.
3UHVVŸRUźWRVHOHFW³&KDQQHO/DEHO´WKHQSUHVVŹ
EXWWRQWRHQWHU³&KDQQHO/DEHO´VHWWLQJ
8VHŸRUźWRFKRRVHOHWWHUVRUVLJQVŻRUŹWRPRYH
forward or backward.
6. After you input the channel name, press MENU or
ENTER to complete the setting.
7. Press MENU to exit.
Adding/Erasing Channel
When the channel is erased, it will not appear on the
VFUHHQZKHQ\RXEURZVHWKHFKDQQHOVZLWKźCHŸ
button. To see the channel again, you must add the channel
RUSHUIRUPWKH³$XWR6FDQ´SDJHIXQFWLRQDJDLQ
1. Press the MENU button to display the OSD main menu.
3UHVVŻRUŹWRVHOHFWWKH³&+$11(/´PHQXWKHQ
press ENTERRUźWRHQWHUWKHPHQX3UHVVŸRUźWR
VHOHFW³6KRZ+LGH´WKHQSUHVVŹ
EXWWRQWRHQWHU³6KRZ+LGH´VHWWLQJ
3UHVVŸRUźWRVHOHFWWKHFKDQQHO\RXZDQWWR6KRZ
Hide, and check or uncheck it with ENTER button.
4. Press MENU to exit.
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
18

Adjusting the Settings
1.
(1) Press the MENU button to display the OSD main menu.
3UHVVŻRUŹWRVHOHFW\RXUGHVLUHGWRS0HQXWKHQ
press ENTERRUźWRHQWHUWKHPHQX
3UHVVŸRUźWRVHOHFWWKHFRQWURORI³&RQWUDVW´
³%ULJKWQHVV´³6KDUSQHVV´³7LQW´³&RORU´³%DVV´
³7UHEOH´³%DODQFH´WKHQSUHVVŻRUŹWRDGMXVW
the level.
(4) Press MENU to exit.
2.
(1) Press the MENU button to display the OSD main menu.
3UHVVŻRUŹWRVHOHFW\RXUGHVLUHGWRS0HQXWKHQ
press ENTERRUźWRHQWHUWKHPHQX
3UHVVŸRUźWRVHOHFWWKHFRQWURORI³3LFWXUH0RGH´
³&RORU0RGH´³=RRP0RGH´³1RLVH5HGXFWLRQ´
³6RXQG0RGH´³076´³$XGLR/DQJXDJH´RQO\LQ'79
PRGH³6XUURXQG6RXQG´³$XGLR2QO\´³6OHHS7LPHU´
³7LPH=RQH´³'67´³7LPH)RUPDW´³$XWR6\QF´
³0HQX/DQJXDJH´³7UDQVSDUHQW´³26'7LPH2XW´
³'&5´'\QDPLF&RQWUDVW5DWLR³796RXUFH´³&KDQQHO
1R´WKHQSUHVVŻRUŹWRVHOHFW\RXUGHVLUHGRSWLRQ
(4) Press MENU to exit.
3.
(1) Press the MENU button to display the OSD main menu.
3UHVVŻRUŹWRVHOHFW\RXUGHVLUHGWRS0HQXWKHQ
press ENTERRUźWRHQWHUWKHPHQX
3UHVVŸRUźWRVHOHFWWKHFRQWUROZLWKŹLQFOXGLQJ
³&ORFN´³&ORVHG&DSWLRQ´³5HVWRUH'HIDXOW´³,QSXW
/DEHO´³$XWR6FDQ´³)DYRULWH´³6KRZ+LGH´
³&KDQQHO/DEHO´WKHQSUHVVŹWRSHUIRUPWKH
function or enter detailed settings.
ViewSonic Corporation Confidential - DoNot Copy VT2730-1M
19
