Vigilantplant Daqstation DX3004 User manual

User’s
Manual
IM 04L75B01-01EN
1st Edition
Model DX3004/DX3008/DX3010
DX3020/DX3030
Daqstation DX3000
User’s Manual
Contents
Introduction................................................................................. 1
Specications Different from the DX2000 ....................................3
Checking the Package Contents .................................................3
External Dimensions and Panel Cut Dimensions..........................5
Names of Parts...........................................................................6
LOG Input Function.....................................................................7
Simulation Function....................................................................10
DAQSTANDARD for DXAdvanced............................................13

PRS 108-02E
User Registration
Thank you for purchasing YOKOGAWA products.
We invite you to register your products in order to receive the most up to date product
information. To register, visit the following URL.
http://www.yokogawa.com/ns/reg/

1
IM 04L75B01-01EN
Introduction
Thank you for purchasing the Daqstation DX3000
(hereafter referred to as the DX). This manual explains
the specifications and functions of the DX3000 that are
different from those of the DX2000.
How to Use the Manual
• This manual mainly explains the differences from the
Daqstation DX2000 in the functions and operations.
For the functions not described in this manual,
please read each user’s manual of DX2000 or
DAQSTANDARD (DXA120).
• Download the electronic manuals from the
YOKOGAWA website.
• In the manuals, read “DX2000” as “DX3000”.
For details, see the relevant DX2000 User’s Manuals.
• To ensure correct use, please read this manual and
the following manuals thoroughly before beginning
operation.
• For specifications, refer to General Specifications.
Paper Manuals
Manual Title Manual No.
Model DX3004/DX3008/DX3010/DX3020/DX3030
Daqstation DX3000 User’s manual
IM 04L75B01-01EN
(This manual)
Model DX2004/DX2008/DX2010/DX2020/
DX2030/DX2040/DX2048
Daqstation DX2000 Operation Guide
IM 04L42B01-02E
Precaution on the use of the DX3000 IM 04L75B01-91EN
Electronic Manuals
You can download these manuals from the following web
page:
www.yokogawa.com/ns/dx3000/im/
Manual Title Manual No.
Model DX3004/DX3008/DX3010/DX3020/DX3030
Daqstation DX3000 User’s manual
IM 04L75B01-01EN
Model DX2004/DX2008/DX2010/DX2020/DX2030/
DX2040/DX2048
Daqstation DX2000
IM 04L42B01-01E
Model DX2004/DX2008/DX2010/DX2020/DX2030/
DX2040/DX2048
Daqstation DX2000 Operation Guide
IM 04L42B01-02E
DX1000/DX1000N/DX2000
Custom Display
IM 04L41B01-04E
DX1000/DX1000N/DX2000
Communication Interface
IM 04L41B01-17E
DX1000/DX1000N/DX2000
EtherNet/IP
Communication Interface
IM 04L41B01-18E
DXA120
DAQSTANDARD Viewer
IM 04L41B01-63EN
DXA120
DAQSTANDARD
Hardware Configurator
IM 04L41B01-64EN
DXA120
Installing DAQSTANDARD
IM 04L41B01-66EN
Precaution on the use of the DX3000 IM 04L75B01-91EN
Genaral Specifications
Title General specifications No.
Paperless Recorder DX3000 GS 04L75B01-01EN
* The last two characters of the manual number and
general specification number indicate the language in
which the manual is written.
Notes
• The contents of this manual are subject to change
without prior notice as a result of continuing
improvements to the instrument’s performance and
functions.
• Every effort has been made in the preparation of
this manual to ensure the accuracy of its contents.
However, should you have any questions or find any
errors, please contact your nearest Yokogawa dealer.
• Copying or reproducing all or any part of the contents
of this manual without the permission of Yokogawa is
strictly prohibited.
• Please pass this manual to the end user. We also ask
you to store this manual in a safe place.
Revisions
July 2015 1st Edition
Safety Precautions
Read the precautions provided in the “Precaution on the
use of the DX3000 (IM 04L75B01-91EN)”, and use it
correctly.
Conventions Used in This Manual
Markings
WARNING
CAUTION
Improper handling or use can lead to
injury to the user or damage to the
instrument. This symbol appears on
the instrument to indicate that the
user must refer to the user’s manual
for special instructions. The same
symbol appears in the corresponding
place in the user’s manual to identify
those instructions. In the manual,
the symbol is used in conjunction
with the word “WARNING” or
“CAUTION.”
Calls attention to actions or conditions
that could cause serious or fatal injury
to the user, and precautions that can
be taken to prevent such occurrences.
Calls attentions to actions or conditions
that could cause light injury to the user
or damage to the instrument or user’s
data, and precautions that can be
taken to prevent such occurrences.
Calls attention to information that is
important for proper operation of the
instrument.
Note

2IM 04L75B01-01EN
About the Usage of Open Source Software
Heimdal
The password-management function of the DX3000
uses Heimdal source code for AES authentication key
generation.
In accordance with the Heimdal license agreement, the
copyright notice, redistribution conditions, and license are
listed below.
Copyright (c) 2006 Kungliga Tekniska Högskolan (Royal
Institute of Technology, Stockholm, Sweden).All rights
reserved.
Redistribution and use in source and binary forms, with
or without modification, are permitted provided that the
following conditions are met:
1. Redistributions of source code must retain the
above copyright notice, this list of conditions and the
following disclaimer.
2. Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and
the following disclaimer in the documentation and/or
other materials provided with the distribution.
3. Neither the name of the Institute nor the names of
its contributors may be used to endorse or promote
products derived from this software without specific
prior written permission.
THIS SOFTWARE IS PROVIDED BY THE INSTITUTE
AND CONTRIBUTORS "AS IS'' AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO
EVENT SHALL THE INSTITUTE OR CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED
AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Expat
The report template function of the DX3000 uses Expat
source code for report creation. In accordance with
the Heimdal license agreement, the copyright notice,
redistribution conditions, and license are listed below.
Copyright (c) 1998, 1999, 2000 Thai Open Source
Software Center Ltd
Permission is hereby granted, free of charge, to any
person obtaining a copy of this software and associated
documentation files (the “Software”), to deal in the
Software without restriction, including without limitation
the rights to use, copy, modify, merge, publish, distribute,
sublicense, and/or sell copies of the Software, and to
permit persons to whom the Software is furnished to do
so, subject to the following conditions:
The above copyright notice and this permission notice
shall be included in all copies or substantial portions of the
Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NONINFRINGEMENT. IN NO EVENT
SHALL THE AUTHORS OR COPYRIGHT HOLDERS
BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT,
TORT OR OTHERWISE, ARISING FROM, OUT OF OR
IN CONNECTION WITH THE SOFTWARE OR THE USE
OR OTHER DEALINGS IN THE SOFTWARE.

3
IM 04L75B01-01EN
Specifications Different from the DX2000
The following specifications differ from those of the
DX2000.
For detail, refer to General Specifications.
Options
The following options are not available
For details, refer to “MODEL and SUFFIX Codes“.
Optional code Description
/A1 Alarm output 2 points
/A2 Alarm output 4 points
/D5 VGA output
/H2 Clamped input terminal (detachable)
/H5 Desktop type(only for /P1 model, without
power cable, M4 screw type power
terminal)
/H5[ ] Desktop type
/N3 Extended input type (PR40-20, Pt50, etc.)
/P1 24 VDC/AC power supply
/KB1 Easy Text Entry (with input terminal)
/KB2 Easy Text Entry (without input terminal)
/PM1 Pulse input (including remote control and
mathematical function)
/CC1 Calibration correction function
/BT2 Multi batch function
/CP1 PROFIBUS-DP
/AS1 Advanced security function
Safety and EMC Standards
The DX3000 does not comply with standards below .
• CE
EMC directive: EN61326-1 compliant, Class A Table 2
(For use in industrial locations)
EN61000-3-2 compliant
EN61000-3-3 compliant
EN55011 compliant, Class A, Group 1
Low voltage directive: EN61010-1, EN61010-2-030
compliant,
Installation category II*1, pollution
degree 2*2, measurement category
II*3
• EMC Regulatory Arrangement in Australia and New
Zealand: EN55011 compliant, Class A, Group 1
Reference junction compensation accuracy
Types K, J, E, T, N, L, U: ± 0.7 °C
Types R, S, B*, W, WRe: ± 1.2 °C
(Above 0 °C, input terminal temperature is balanced)
* Reference junction compensation is fixed to the 0 °C.
LOG input function
A function used to measure the DC voltage input,
convert to logarithmic scale, and display the data.
Simulation function
• A function used to stop the updating of the time,
trend, digital values, and bar graph.
• A function used to clear the internal memory and the
trend.
• A function used to disable the time display on the
operation display.
Number of math channels and report channels
24 (DX3004, DX3008)
Display language
Select from English, German, French (Not support for
Japanese, Chinese).
Dimension and Weight
See “External Dimensions and Panel Cut Dimensions”.
Vibration
5 ≤ f < 8.4 Hz amplitude 3.5 mm (peak)
8.4 ≤ f ≤ 160 Hz acceleration 9.8 m/s2
The accompanying software application
DAQSTANDARD for DXAdvanced
DAQSTANDARD for DXAdvanced (DXA120-S2) is the
special version for the DX3000 with Log input function
and simulation function.
Checking the Package Contents
After receiving the product and opening the package,
check the items described below. If the wrong items
have been delivered, if items are missing, or if there is a
problem with the appearance of the items, contact your
nearest Yokogawa dealer.
Check that the product that you received is what you
ordered by referring to the model name and suffix code
given on the name plate on the DX3000.
NO. (Instrument Number)
When contacting the dealer from which you purchased the
instrument, please give them the instrument number.
MODEL and SUFFIX Codes
Model Code Suffix code Optional
Code Description
DX3004 4ch, 125ms (Fast sampling
mode: 25ms)
DX3008 8ch, 125ms (Fast sampling
mode: 25ms)
DX3010 10ch, 1s (Fast sampling mode:
125ms)
DX3020 20ch, 1s (Fast sampling mode:
125ms)
DX3030 30ch, 1s (Fast sampling mode:
125ms)
Internal memory –3 400MB
External media –4 CF card (with media)
Display language –2 English/German/French, degF,
DST (summer/winter time)
Optionals /A3 Alarm output 6 points*1
/A4 Alarm output 12 points*1 *7
/A5 Alarm output 24 points*1 *2 *6
/C2 RS-232 interface*3
/C3 RS-422/485*3
/F1 FAIL/Status output*2 *4 *7
/F2 FAIL + Alarm output 22 points
*1 *4 *6
/M1 Mathematical functions
/N1 Cu10,Cu25 RTD input/3 leg
isolated RTD
/N2 3 leg isolated RTD*5
/R1 Remote control
/TPS4 24VDC transmitter power
supply (4 loops)*6
/TPS8 24VDC transmitter power
supply (8 loops)*6 *7
/USB1 USB interface
/MC1 External input function*8
*1 /A3, /A4, /A5, /F2 cannot be specified together.
*2 /A5 and /F1 cannot be specified together.
*3 /C2 and /C3 cannot be specified together.
*4 /F1 and /F2 cannot be specified together.
*5 /N2 can be specified for only DX3010, DX3020 and DX3030.
*6 /TPS4, /TPS8, /A5 and /F2 cannot be specified together.
*7 In case that /TPS8 is specified, combination of /A4/F1 cannot be specified
together.
*8 /MC1 can be specified for only DX3010, DX3020 and DX3030.

4IM 04L75B01-01EN
Standard Accessories
The instrument is shipped with the following accessories.
Make sure that all accessories are present and
undamaged.
No. Name Part Number/Model Qty. Notes
1Mounting
brackets
B9900BX 2 For panel mounting
2 DAQSTANDARD
for DXAdvanced
‒1CD. Contains the
software and user’s
manuals.
3Daqstation
DX3000 User’s
manual
IM 4L75B01-01EN 1 A4 size
DXA120 Installing
DAQSTANDARD
IM 4L41B01-66EN 1 A4 size
4CF card B8706NQ 1128 MB (The size and
model may change.)
Optional Accessories (Sold separately)
The following optional accessories are available for
purchase separately. If you make an order, make sure that
all contents are present and undamaged. For information
about ordering accessories, contact the dealer from which
you purchased the DX.
Name Part Number/
Model Minimum. Q’ty Notes
CF card 772093 1512 MB
772094 1 1 GB
772095 12 GB
CF card adapter 772090 1 –
Shunt resistor (for
screw input terminal)
415920 1250 Ω ± 0.1%
415921 1100 Ω ± 0.1%
415922 110 Ω ± 0.1%
Mounting brackets B9900BX 2 –

5
IM 04L75B01-01EN
External Dimensions and Panel Cut Dimensions
Panel cut dimensions
448 (17.68)
194 (7.64)
196 (7.72)
215 (8.46)
433 (17.05)
2 to 26 (0.08 to 1.02)
38.2
(1.5)
143.5 (5.65)
196 (7.72)
71.5
(2.81)
Ddimensions
480.4 min.
(18.91)
195.3+2
0
(7.69)
435.9+2
0
(17.16) 227.1 min.
(8.94)
7.5
(0.3)
10.5 (0.41)
(Allowable panel thickness)
Unit: mm
(approx. inch)
Unless otherwise specified, tolerance is ±3% (however, tolerance is ±0.3 mm when below 10 mm).
Weight
DX3004, DX3010 : approx. 6.96Kg*
DX3008, DX3020 : approx. 7.24Kg*
DX3030 : approx. 7.52Kg*
*without optional features

6IM 04L75B01-01EN
Names of Parts
Front View
LCD
Display various operation
displays such as the trend
display as well as setup
displays.
CF card slotUSB port CF card eject button
Used when ejecting the CF card.
CF card access indicator
Key panel
Key panel
Power switch
Rear Panel
USB port (/USB1 option) Serial interface port (/C2 option)
A RS-232 interface connector.
Input terminals (screw terminals)
Connect input signal wires from the
measured item.
Optional terminals (/A[ ], /F[ ],
/R1, and /TPS[ ] options)
Connect optional input/output
signal wires.
Power supply terminal and
protective earth terminal.
Ethernet port
Serial interface port (/C3 option)
A RS-422A/485 interface connector.

7
IM 04L75B01-01EN
LOG Input Function
Foreword
This section explains the LOG input function.
For a description of other standard functions, see the
DX2000 User’s Manual (IM04L42B01-01E) and the
Communication Interface User’s Manual (IM04L41B01-
17E).
* The accompanying software application
DAQSTANDARD for DXAdvanced is the special
version for the DX3000 with these special functions.
The setting function for these special functions and
the saving setting data by ASCII or Excel format are
available on this special software.
LOG Input Specifications
■ ConvertingtheLOGInput(Relationshipbetween
the Input Voltage and Digital Display)
Trend display
(logarithmic scale)
: Displays the input voltage on a logarithmic
scale.
Digital display : Displays the result obtained by converting
the input voltage using the equation below.
The relationship between the input voltage of special LOG
range and digital display value is shown below.
VL VU
Y
1.0ESL 1.0ESU
Input X
Input voltage
Lower limit of display span
Scale lower limit
Upper limit of display span
Scale upper limit
: X
: VL
: SL
: VU
: SU
Digital display value Y=10
(SU-SL)*(X-VL)/(VU-VL)+SL
■ LOGInputMode
• This mode allows you to measure the DC voltage input
(DCV: 20 mV, 60 mV, 200 mV, 2 V, 6 V, 20 V, and 50
V), convert to logarithmic scale, and display the data.
• Selectable span range: Same range as the DC voltage
input
Span Lower must be less than Span Upper.
• Selectable scale range: 1.0E-15 to 1.0E+15 (15
decades maximum)
Scale Lower must be less than Scale Upper.
• Select two or three digits for the mantissa.
• You can set the unit.
Setting the LOG Input
1. Press MENU (switch to the setting mode).
2. Select Meas channel > Range, Alarm.
3. Select the channels in First-CH and Last-CH.
4. Set Mode to Log.
5. Set the measurement range, the span, and the
exponents of the scale lower and upper limits.
LOG Input Setup Screen Example
Setup Item Selectable Items
(Selectable Range) Description
Range Same as the DCV
range
Sets the range.
Span Lower Varies depending on
the input type
Sets the span lower limit.
Span Upper Varies depending on
the input type
Sets the span upper limit.
* Span Lower must be less
than Span Upper.
Scale Lower 1.0E-15 to 1.0E+15 Sets the scale lower limit.
1.00E-15 to 1.00E+15 when
the number of displayed
mantissa digits is 3.
Scale Upper 1.0E-15 to 1.0E+15 Sets the scale upper limit.
* 15 decades maximum.
* Scale Lower must be less
than Scale Upper.
1.00E-15 to 1.00E+15 when
the number of displayed
mantissa digits is 3.
Unit Up to 6 characters Up to 6 characters
Table 1 Log Input Mode Settings

8IM 04L75B01-01EN
■ FunctionsThatCannotBeUsed
• Partial expanded display
Partial expanded display cannot be specified on a
channel in LOG input mode.
• Difference computation between channels
• There is no limitation on setting a channel in LOG
input mode as a reference channel in a difference
computation.
• However, if such difference computation is executed,
the measured result of the difference channel is
error.
• Calibration correction function
Calibration correction cannot be specified on a channel
in LOG input mode.
■ NumberofGrids(NumberofDivisionsoftheScale
Display)
• The number of grids can be set in the range of 4 to 12
or auto (same as the standard model).
• If the number of grids is set to auto on a target channel
set to LOG range, the number of grids is equal to the
number of decades. The display shows a LOG grid in
this case.
• Channels set to LOG input mode is automatically set to
LOG scale.
■ CommunicationOutputandBinaryDataOutput
Format
• The binary data is an A/D normalized value of the
channel set to LOG.
• Measured data output (FD command)
• FIFO data output (FF command)
(Example)
If the input is 3.000 V measuring in the 6-V range, the
binary data is 10000 (0x2710).
• If the measured result is -OVER, the value is set to
0x8001. If the measured result is +OVER, the value is
set to 0x7FFF.
Note
Converting from binary data to LOG value
1 The binary data is output in A/D normalized value. The
A/D normalized value is a scaled value taking the full
span value of the range to be 20000.
The full span value of the range is the maximum value
that can be set in the range. It is 6 V in the 6-V range.
For example, the A/D normalized values in the 6-V
range are as follows: 6 V = 20000, -6 V = -20000, 1 V =
20000*1/6 = 3333.3.
2 The A/D normalized value is converted to voltage using
the following equation.
Voltage = (A/D normalized value)*(full span value of the
range)/20000
3 The voltage is converted to a LOG value using the
equation given in section 2.1, “Converting the LOG
Input.”
Setting the Number of Displayed Mantissa Digits
1. Press MENU (switch to the setting mode).
2. Hold down FUNC for 3 s to switch to the basic
setting mode.
3. Select Environment > Digits, Time indicate.
4. Set Digits to 2 or 3.
Setup Screen Example for the Number of
Displayed Mantissa Digits
■ Alarm
• Alarm types in LOG input mode
H, L, T, and t only.
• Set the alarm value using a voltage.
• Computing method of alarm values
Computing equation of the digital display value
From Y = 10(SU-SL)*(X-VL)/(VU-VL)+SL
logY = (SU-SL)*(X-VL)/(VU-VL)+SL
X = (logY-SL)*(VU-VL)/(SU-SL)+VL
For a computation example, see Table 2.
• Alarm hysteresis fixed to 0%.
The alarm hysteresis settings specified in the basic
setting mode for the measurement channel are invalid.
Span
Lower Span Upper Lower Limit of
Exponent
Upper
Limit of
Exponent
Alarm Value
Equivalent
Display Voltage Equivalent
1 5 2 8 5.0E+6 4.133
1 5 2 8 1.0E+6 3.667
Table 2 Computation Example of Alarm Values
■ ComputationFunction(Option)
When a channel set to LOG is used in a computation,
error data is used as its measured value.
■ ReportFunction
Report computation results in error if a channel set to
LOG is assigned to a report channel.

9
IM 04L75B01-01EN
■ CommunicationOutputandASCIIDataOutput
Format
• Measured/computed data
±DDDDD E±AA
• ±DDDDD: Data mantissa (sign + 5 digits)
• ±AA : Data exponent (sign + 2 digits)
Value with the number of displayed mantissa digits
corrected with respect to the exponent of the display
data.
(Example)
When the number of displayed mantissa digits is 3 and
the measured result (display value) is 3.16E+02, the
ASCII output is equal to +00316E+00.
• Handling of over data
When the measured result is -OVER : -99999E+99
When the measured result is +OVER: +99999E+99
■ CommunicationCommands
Setting the LOG Range
Setting mode setting
SR p1,p2,p3,p4,p5,p6,p7,p8,p9 <terminator>
p1: Channel number (001 to 030)
p2: Setting type (Log)
p3: Measurement range (20 mV, 60 mV, 200 mV, 2 V, 6
V, 20 V, or 50 V)
p4: Span lower limit
p5: Span upper limit p4 < p5
p6: Lower limit of exponent (-15 to 15)
p7: Upper limit of exponent (-15 to 15) p6 < p7 and
(p7-p6) ≤ 15
p8: Decimal place (fixed to 0) * Decimal place of the
exponent
p9: Unit (up to 6 characters)
Specifying the Number of Displayed Mantissa Digits
Basic setting mode setting
QA p1 <terminator>
p1: Number of displayed digits (2: 2 digits or 3: 3 digits)
■ ManualSampleFunction
• Stored data when a channel set to LOG is assigned
The data is stored in the same format as with the digital
value display (mantissa + exponent).
• Events that cause the manual sampled data to be
divided
If the number of displayed mantissa digits of the LOG
input range is changed, the data file is divided the next
time manual sample is executed.
Measurement and Display Accuracy
■ MeasurementandDisplayAccuracy(Digital
Display)
• Computing method of the display value accuracy
Input voltage : X
Lower limit of
display span
: VL Upper limit of
display span
: VU
Scale lower limit : SL Scale upper limit : SU
Digital display value : Y
1) Converting equation for the input voltage (setting)
• Y = 10(SU-SL)*(X-VL)/(VU-VL)+SL
2) Measurement accuracy of input voltage X (uses the
negative side due to the LOG characteristic)
• Xerr =X – (measurement accuracy of the voltage
range)
3) Hardware error of the display value
• Y’= Y – Yerr
• The difference from the true value Y is hardware
error Y’ when display value Yerr corresponds to
input voltage Xerr.
4) Display accuracy of the mantissa
• Display accuracy = Y’* 1.1 + 1 digit
• Computing example of the display value accuracy
Integration time : 50 Hz
2 V range : Voltage span 0.0000 to 1.0000 V
LOG span : -2 to 3
1) Determine the converting equation for the setting.
Y = 10(SU-SL)*(X-VL)/(VU-VL)+SL
= 10(3-(-2))*(X-0)/(1-0)+(-2)
= 10(5X-2)
2) Determine the measurement error with respect to
the input voltage.
Measurement accuracy of the 2 V range = ±(0.05%
of rdg + 12 digits)
= ±(0.0005*10000+12)
= ±17 digits
Therefore, for an input voltage of 1 V, the value will fall
within the range between 0.9983 V and 1.0017 V.
Since the computation is performed on the negative
side with large error in the LOG characteristics, we
obtain Xerr = 0.9983 V.
3) Determine the hardware error of the display value.
Substitute Xerr, the value determined in 2), into the
equation of 1).
Yerr = 10 (5*0.9983-2)
= 9.8 * 102 (truncate values below the one-
hundredths place)
Since the true value is Y = 1.0 * 103, the error is 2
digits.
Therefore, the hardware error of the display value is
given by Y’ = ±2 digits.
4) Display value accuracy of the mantissa
• As a final error, we add the software error to the
hardware error.
• Software error = Hardware error * 1.1 + 1 digit
• Display value accuracy = ±(2 digits * 1.1 + 1 digit)
= ±(3.2 digits)
The fraction is rounded up. When the mantissa is 2
digits, the display accuracy is ±4 digits.

10 IM 04L75B01-01EN

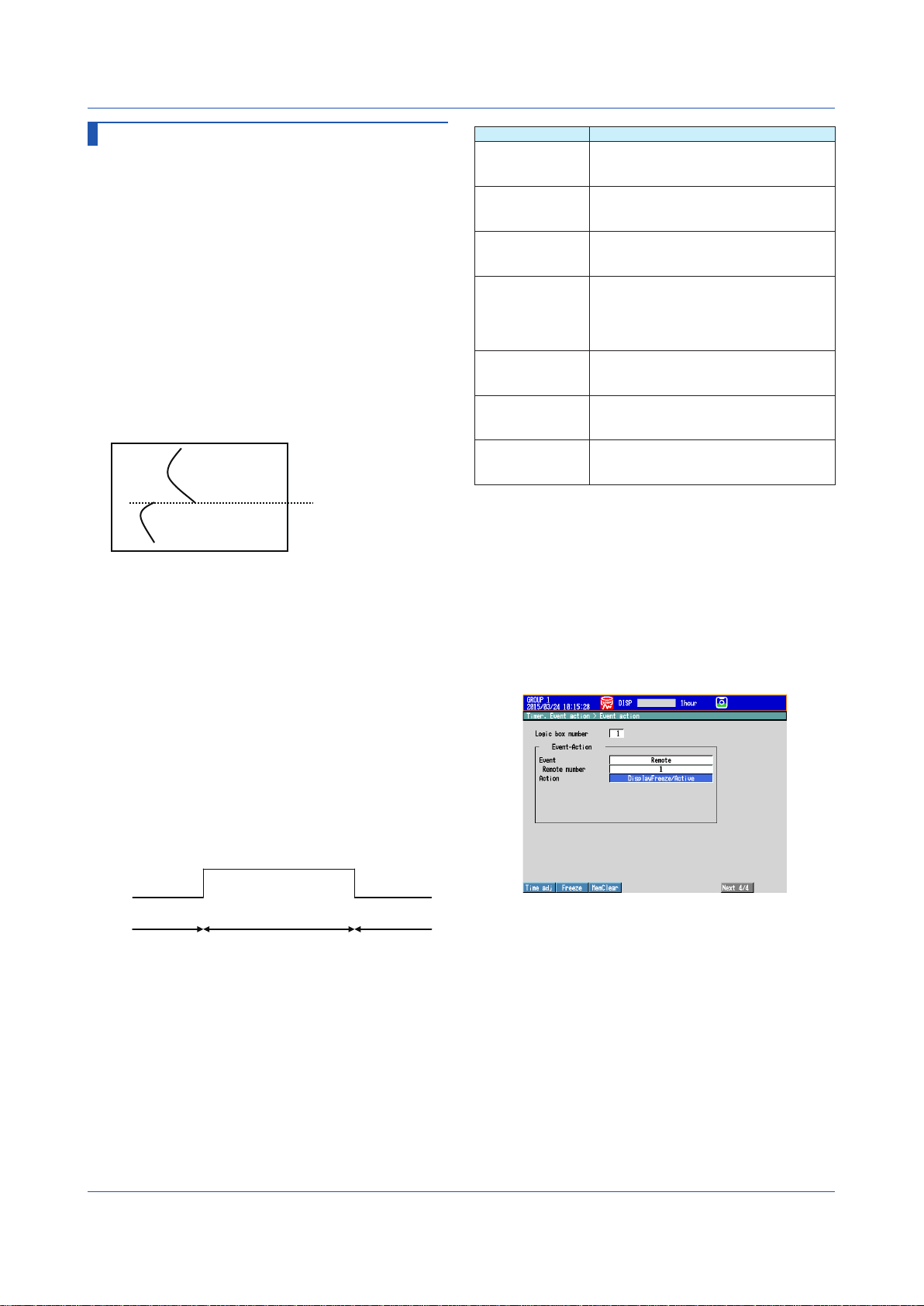

Simulation Function
Display Freeze Function
■ Specifications
• A function used to stop the updating of the time, trend,
digital values, and bar graph.
• The display freeze function is controlled through the
event action function or communication commands.
• Alarm summary, message summary, and various log
displays are also not updated if they are displayed.
• While the display is frozen, display data is also not
updated.
• Key operation is possible while the display is frozen.
Display operations such as switching the display group
are possible.
• When recovering from the display freeze condition to
normal operation, the trend display is resumed from
where it left off.
“Close” to “Open”
Screen image of the operation
• The time display can be enabled or disabled in the
basic setting mode.
For details, see the “■ Enabling/Disabling the Time
Display” on page 10.
■ EventActionFunction
• You can freeze or activate the display using the event
action function.
The “Display Freeze/Activate” action can be specified
only when the event is set to “Remote.”
• The “Display Freeze/Activate” action operates as a
level action.
• The display freeze action is executed when an
open-to-close event (rising edge) is detected.
• The display activate action (normal operation) is
executed when a close-to-open event (falling edge)
is detected.
Normal operation
Display freezeNormal operation
Close
Open
• Event action functions that do not operate while the
display is frozen
See Table 3.
If a level action such as Memory start/stop is executed
due to a level event such as remote while the display is
frozen, the DX operation may become mismatched with
the event state.
Example)
If Memory start/stop using remote is specified and the
remote control input is switched from closed to open
while the display is frozen, the memory stop operation
is not executed. If display freeze is released in this
condition, the remote control input terminal will be open
even though the memory is in a start condition.
Action Note
Memory start/stop Does not operate while the display is
frozen. Operates after the display freeze is
released.
Memory start Does not operate while the display is
frozen. Operates after the display freeze is
released.
Memory stop Does not operate while the display is
frozen. Operates after the display freeze is
released.
Event trigger Does not operate while the display is
frozen. Operates after the display freeze is
released.
However, the action does not operate if the
event is set to timer or match timer.
Save display data Does not operate while the display is
frozen. Does not operate even after the
display freeze is released.
Save event data Does not operate while the display is
frozen. Does not operate even after the
display freeze is released.
Manual sample Does not operate while the display is
frozen. Does not operate even after the
display freeze is released.
Table 3 Event Action Functions That Do Not Operate While
the Display Is Frozen
■ SettingtheDisplayFreezeFunction
1. Press MENU (switch to the setting mode).
2. Select Timer, Event action > Event action.
3. Set the Logic box number, Event (set to Remote),
and Remote number.
4. In the Action box, press the Freeze soft key.
Setup Screen Example for the Display Freeze Function
■ OperationWhiletheDisplayisfrozen
• If the DX is in a state in which it can switch to the basic
setting mode, the DX can switch to the mode even
while the display is frozen.
The display freeze function is released when switching
back to the operation screen from the basic setting mode.
• If the power turns OFF and then back ON such as due
to a power failure while the display is frozen (closed
state) through remote control, the display freeze
function is released even if there is no change in the
remote state (remains at the closed state).
• The automatic display revert function does not operate.
The automatic revert timer is restarted when the
display freeze function is released.

11
IM 04L75B01-01EN
Memory and Trend Clear Function
■ Specifications
• A function used to clear the internal memory and the
trend.
• Clears the data area of the internal memory (data
files that have been created are not cleared).
• Can be executed while memory sample is in
progress.
• If you carry out the clear operation on the historical
trend display, the display retains the condition before
the operation.
• If you execute memory and trend clear on a
display other than the operation display, the screen
automatically returns to the operation display.
• Methods for clearing the internal memory and trend
display
• Event action function
• Communication command
For details, see the “■Communication Commands.”
■ EventActionFunction
• You can use the event action function to clear the
internal memory and trend display.
The “Clear the internal memory and trend display”
action can be specified only when the event is set to
“Remote.”
• The “Clear the internal memory and trend display”
action is executed only when an open-to-close event
(rising edge) is detected.
■ SettingtheMemoryandTrendClearFunction
1. Press MENU (switch to the setting mode).
2. Select Timer, Event action > Event action.
3. Set the Logic box number, Event (set to Remote),
and Remote number.
4. In the Action box, press the MemClear soft key.
Setup Screen Example for the Memory and Trend
Clear Function
Communication Commands
The same command is used to control the display freeze
function and memory and trend clear function.
QB p1 <terminator>
p1: Switch the screen operation and clear the memory
(0 to 2)
0: Normal operation
1: Freeze the display
2: Clear the internal memory and trend display
Enabling/Disabling the Time Display
■ Specifications
• A function used to disable the time display on the
operation display.
• Displays on which the time display is disabled
See Table 4 Displays on Which the Time Display Is
Enabled/Disabled and the Description.
Display Name Description
Status display Time display Time
Trend display Grid time display Grid time
Message display Written time
Circular display Grid time display Grid time
Message display Written time
Historical trend
display
Grid time display Grid time
Message display Written time
Alarm summary Alarm time
Message summary Written time
Memory information Start time and stop
time
Batch comment time
Cursor time display Cursor time
Summary display Memory summary Start/Stop time
Manual sample data
time
Report data time
Message summary Alarm time
Alarm summary Written time
Report data display Start time
Timeout time
Log display Login log Time
Error log Time
Communication log Time
FTP log Time
WEB log Time
E-mail log Time
SNTP log Time
DHCP log Time
MODBUS log Time
Table 4 Displays on Which the Time Display Is Enabled/
Disabled and the Description

12 IM 04L75B01-01EN
■ Enabling/DisablingtheTimeDisplay
1. Press MENU (switch to the setting mode).
2. Hold down FUNC for 3 s to switch to the basic
setting mode.
3. Select Environment > Digits, Time indicate.
4. Set Time indicate on/off to On or Off.
Setup Screen Example for Enabling/Disabling the Time
Display
Setup Item Selectable Items
(Selectable Range) Description
Time display On/Off Enables/disables the time
display.
Off: Disable
On: Enable
Table 5 Setting the Time Display
■ CommunicationCommands
QC p1 <terminator>
p1: Enables/disables the time display (On/Off).
On: Enable
Off: Disable
Special Current Value Mark Function
■ Specifications
• A function used to display the channel using two digits
for the current value mark (see Fig. 1, “Current Value
Mark”) that is displayed in the scale display position on
the trend/historical trend display.
For the channel display, see Table 6.
If you set the display to two digits, you will not be able
to distinguish between measurement, computation, and
external input channels. In addition, the external input
channels will overlap.
• The current value mark setting is in AUX setting of the
basic setting mode.
See Table 6.
Fig. 1 Current Value Mark
Channel Type Channel Display of the Current Value
Mark
Three Digits
(Standard) Two Digits (Special Setting)
Measurement
channel
1 to 30 1 to 30
Computation
channel
101 to 160 1 to 60
External input
channel
201 to 299 1 to 99
300 to 399 0 to 99
400 to 440 0 to 40
Table 6 Channel Display of the Current Value Mark
■ SettingtheChannelDisplayoftheCurrentValue
Mark
1. Press MENU (switch to the setting mode).
2. Hold down FUNC for 3 s to switch to the basic
setting mode.
3. Select Environment > AUX.
4. Set item 1under AUX to On (two digits, special
setting) or Off (three digits, standard setting).
Setup Screen Example for the Channel Display of the
Current Value Mark
AUX Setting Selectable Items
(Selectable Range) Description
1On/Off Channel display of the
current value mark
Off: Three digits (standard
setting)
On: Two digits (Special
setting)
2 On/Off Not used
3On/Off Not used
4On/Off Not used
Table 7 Setting the Channel Display of the Current Value
Mark
■ CommunicationCommands
WU p1,p2,p3,p4,p5 <terminator>
p1: Setup type (AUX)
p2: Channel display of the current value mark (On: two
digits, Off: three digits)
p3: Not used (On/Off)
p4: Not used (On/Off)
p5: Not used (On/Off)

13
IM 04L75B01-01EN
DAQSTANDARD for DXAdvanced
Foreword
This section explains the special functions below
of DAQSTANDARD for DXAdvanced, a dedicated
PC software application for the DX3000 special
specifications (log input and simulation function). For a
description of other standard functions, see the DXA120
DAQSTANDARD for DXAdvanced User’s Manual
(IM04L41B01-61E).
Setup function for the log input and simulation
functions
Setup file export function
Setup Function for the Log Input and Simulation
Functions
■ SetupFunctionfortheLogInputFunction
The following setup items are added.
Setup Items That Are Added Setup Page (Tab)
Log range setting Measure channel
Setting of the number of displayed
digits of the mantissa
Basic setting
Setup Function for the Log Input Function
• “LOG” is added to the Delta/Scale/Sqrt area of the
measure channel setup page (tab).
• “LOG Scale” is added to the measure channel setup
page (tab).
• For details on the settings, see the “LOG Input
Function” on page 7.
Setup Function for the Number of Displayed Mantissa
Digits
• The setting for the number of displayed mantissa digits
is added to the Aux area of the Basic Setting page
(tab).
• For details on the settings, see the “LOG Input
Function” on page 7.
■ SetupFunctionfortheSimulationFunction
The following setup items are added.
Setup Items That Are Added Setup Page (Tab)
Time indicate ON/OFF setting Basic setting
Settings for display freeze and
memory clear
General setting
Setup Function for Turning ON/OFF the Time Display
• The setting for turning ON/OFF the time indicate is
added to the Aux area of the Basic Setting page (tab).
• For details on the settings, see the “LOG Input
Function” on page 7.
Setup Function for Display Freeze and Memory Clear
• “Display Freeze/Active” and “Memory Clear” are added
as actions when the event source is set to Remote
in the Event Action area of the General Setting page
(tab).
• For details on the settings, see the “LOG Input
Function” on page 7.
Setup File Export Function
• The setup file can be exported (saved) to an Excel file
or tab-separated text file.
• From the File menu, point to Export and click Excel or
Text.
• Specify the destination folder and file name and save
the file.

Blank

YOKOGAWA ELECTRIC CORPORATION
Headquarters
2-9-32, Nakacho, Musashino-shi, Tokyo, 180-8750 JAPAN
Phone : [phone]
Branch Sales Offices
Osaka, Nagoya, Hiroshima, Kurashiki, Fukuoka, Kitakyusyu
YOKOGAWA CORPORATION OF AMERICA
Head Office
12530 West Airport Blvd, Sugar Land, Texas 77478, USA
Phone : [phone] Fax : [phone]
Georgia Office
2 Dart Road, Newnan, Georgia 30265, USA
Phone : [phone] Fax : [phone]
YOKOGAWA AMERICA DO SUL LTDA.
Praca Acapulco, 31 - Santo Amaro, Sáo Paulo/SP, BRAZIL, CEP-04675-190
Phone : [phone] Fax : [phone]
YOKOGAWA EUROPE B. V.
Euroweg 2, 3825 HD Amersfoort, THE NETHERLANDS
Phone : [phone] Fax : [phone]
YOKOGAWA ELECTRIC CIS LTD.
Grokholskiy per 13 Building 2, 4th Floor 129090, Moscow, RUSSIA
Phone : [phone] Fax : [phone]
YOKOGAWA CHINA CO., LTD.
3F Tower D Cartelo Crocodile Building, No.568 West Tianshan Road,
Shanghai 200335, CHINA
Phone : [phone] Fax : [phone]
YOKOGAWA ELECTRIC KOREA CO., LTD.
(Yokogawa B/D, Yangpyeong-dong 4-Ga), 21, Seonyu-ro 45-gil, Yeongdeungpo-gu,
Seoul, 150-866, KOREA
Phone : [phone] Fax : [phone]
YOKOGAWA ENGINEERING ASIA PTE. LTD.
5 Bedok South Road, Singapore 469270, SINGAPORE
Phone : [phone] Fax : [phone]
YOKOGAWA INDIA LTD.
Plot No.96, Electronic City Complex, Hosur Road, Bangalore - 560 100, INDIA
Phone : [phone] Fax : [phone]
YOKOGAWA AUSTRALIA PTY. LTD.
Tower A, 112-118 Talavera Road, Macquarie Park NSW 2113, AUSTRALIA
Phone : [phone] Fax : [phone]
YOKOGAWA MIDDLE EAST & AFRICA B.S.C.(C)
P.O. Box 10070, Manama, Building 577, Road 2516, Busaiteen 225, Muharraq,
BAHRAIN
Phone : [phone] Fax : [phone] Apr. '14
Printed in China
