VIGORSKY RC HOBBY VFO User manual

1/ 14
VFO
Instruction Manual

2/ 14
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product
before operating. Failure to operate the product correctly can result in damage to the product, personal
property and cause serious injury.
This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common
sense and failure to do so could result in injury or damage to the product or other property. This product is
not intended for requires some basic mechanicalability.
Failure to operate this Product in a safe and responsible manner could result in injury or damage to the
product or other property. This product is not intended for use by children without direct adult supervision.
This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all
the instructions and warnings in the manual, prior to assembly, setup or use, inorder to operate correctly and
avoid damage or serious injury.
Safety Precautions and Warnings
As the user of this product, you are solely responsible for operating in a manner that does not endanger
yourself and others or result in damage to the product or the property ofothers.
• Always keep a safe distance in all directions around your model to avoid collisions or injury. This model is
controlled by a radio signal subject to interference from many sources outside your control. Interference can
cause momentary loss of control.
• Always operate your model in open spaces away from full-size vehicles, traffic and people.
• Always carefully follow the directions and warnings for this and any optional support equipment (chargers,
rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything electrical out of the reach of children.
•Always avoid water exposure to all equipment not specifically designed and protected for this purpose.
Moisture causes damage to electronics.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
•Always keep parts dry.
•Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before flying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
• Never place any portion of the model in your mouth as it could cause serious injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.

3/ 14
Introduction:
VIGORSKY has been committed to the development and production of propeller aircraft for years. All
planes are designed by a model plane enthusiast and college professor, Hongyu, who has a good command
of three - dimensional designing and masters complicated knowledge of dynamics. He and his team have
never stopped enhancing the products from the year it was founded.
VFO (Vertical Flying Object) , which has a unique appearance and performance, can take off and hover
just like helicopters. With the symmetrical wings, it can fly stably at very low speed.
Specifications
Wingspan: 60 MM
Take-off weight: 300g.（Depends on how you build your plane and your electronic equipments）
Motor：VM-2815 1450KV
ESC:：VIGORSKY12A2A BEC
Batteries:：3s 500MAH
Servos: CYS digital metalS0008 8g *4
Propeller：8043 Instructions
1. Kit contents

4/ 14
2. All the control surfaces are pre-installed, which makes it easy to assemble.
Install the upper horizontal fuselage. Apply some glue to the contact area. Make sure everything is square.
The “Tack Up” method will be used to join the wings to the fuselage. Apply a medium bead of glue to the
wing. Bring the two parts together to transfer the glue, and then separate immediately.

5/ 14
3. Install the lower horizontal fuselage.
Install the lower horizontal fuselage as shown in the picture. Make sure everything is square.

6/ 14
4. Install the four SFGs
Apply some glue to the slots, and then stick them to the fuselage as pictured above.

7/ 14
5. Install the motor mount supports.
Glue the two motor mount supports, and adjust it if necessary to make mounting holes to be aligned. When
dry, glue it to the nose.
Install the motor mount.
Apply some glue to the correspondingsurface, set aside for 3 minutes before bonding, and then stick it to
the nose of the fuselage as pictured above.

8/ 14
6. Make push rods.
Locate the following carbon rods, which will be used to strengthen the fuselage.
Put glue on pushrod by dipping it into the glue nozzle.
Insert the carbon rods into the pre-cut holes. Look carefully for the holes.
Finish supporting the aircraft as shown in the picture.

9/ 14
7.Install the servo arms.
Make sure your servos are electronically centered, and attach the horns as need for each servo.
8. Locate the following servo horns and push rod linkage stoppers.

10 / 14
9. Locate all the following items. Cut the heat-shrink tubing into four pieces as shown.

11 / 14
Make the push rods by connecting 1.5mm diameter carbon rod with Z-shaped steel wire instead of push
rod linkage stopper.
Fix the Z-shaped wire and the carbon rod with heat-shrink tubing. Make all of the control rods needed in
the same way
10 Apply some glue to the profiles of the servos.. Install the servos to the fuselage.

12 / 14
Pay attention to the direction of the servo arms.
11. Solder the ESC and the motor.
Connect the ESC with the motor. It is better to solder the ESC and the motor, and cover the joint with
heat-shrink tubing, which can reduce the weight of VFO.
11.1

13 / 14

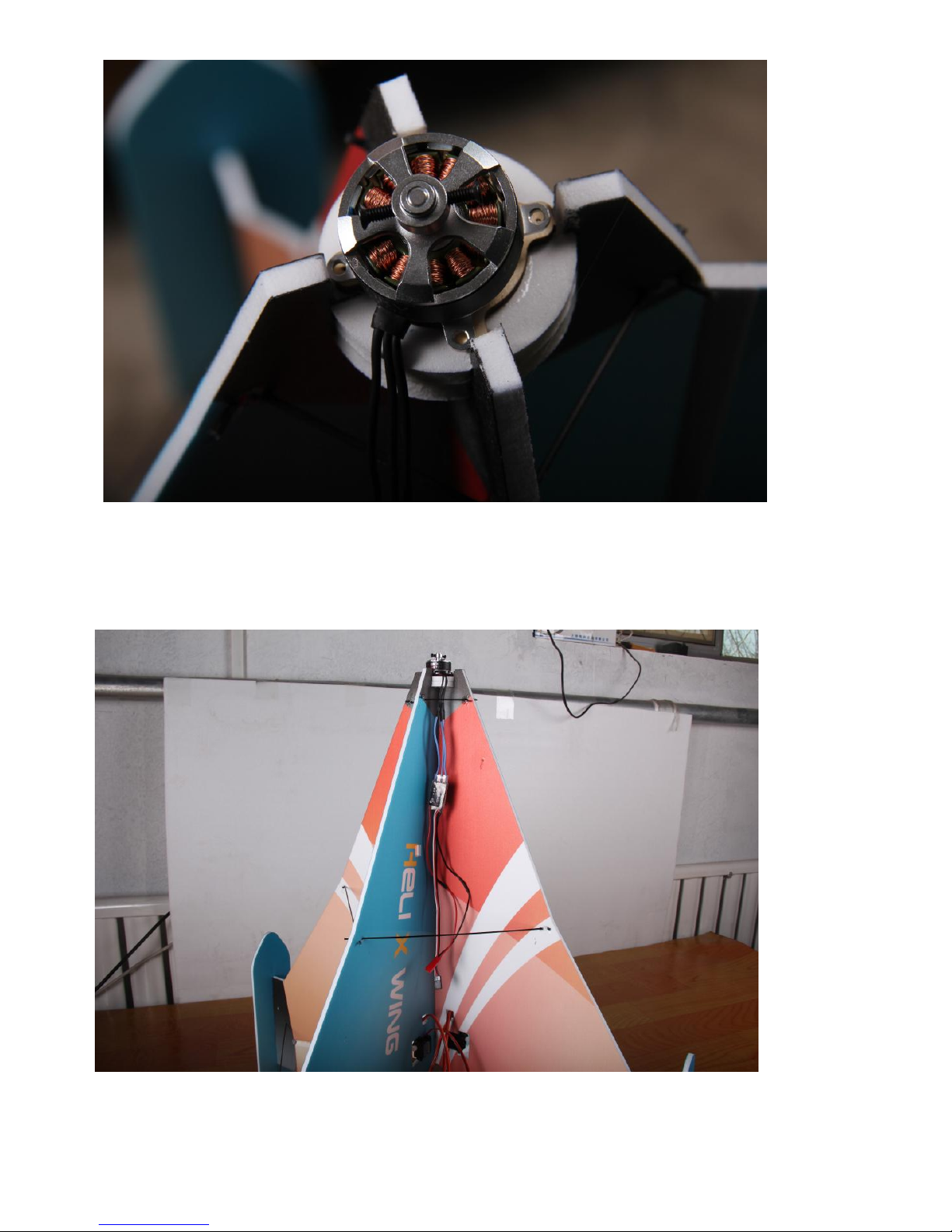

Apply glue on the back of motor mount. When nearly dry, glue the assembly to the nose of the plane. Secure
the motor to the nose of the aircraft.
12.
Locate the wire of the servos on the side that you will install the ESC on.

14 / 14
NOTE: The assembly of VFO is easy. But before you head out to the flying site, you
need to set the MIX. Ask the dealerfor the video.
This is all about the assembly ofVFO designed by VIGORSHY. Enjoy your flying!
The manual is written by Zhang Lianpo and translated by Jay Chen.
