Viking Pure 1000 User manual

1 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
User Manual
Sailing Toward aGreener Tomorrow
Viking Pure 1000
™
A Revolutionary system used to produce both a cleaner and a sanitizer
from just salt, water, and electricity. It is not only a greener solution
to cleaning… it is 100% NON-TOXIC.
Model Numbers:
PN: VPC1000 (115/230 VAC)
Viking Pure 1000 (Control Only)
PN: VPT2501 (115/230 VAC)
Twin 25 Gallon Pump System
PN: VPT5001 (115/230 VAC)
Twin 50 Gallon Pump System

2 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©

3 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Contents
Warnings...... . .. . . .. . . . . .. . . . .. . . .. . . .4
ControlOnly
ControlDiagrams
VPC1000(FrontView).............5
VPC1000(BottomView)...........6
VPC1000(CellDiagram)...........7
SettingUpYourControl
Pre-installationWaterTest.........8
Diagram.........................9
Instructions.......................10
StartingControl...................11
DisplayScreenFunctions
StandardFunctionButtons.......... 12
TitleScreen........................13
MenuScreen......................14
RunScreen(TurningOn)............15
RunScreen(TurningOff)............16
Set-upScreen(MaxTankLevels)....17
Set-upScreen(MinTankLevels).....18
TankScreen(SystemOn)...........19
TankScreen(SystemOff)...........20
TankScreen(HOClPump).........21
TankScreen(NaOHPump)..... . . . .22
TimeScreen. . . . . . . ...............23
StandbyScreen...... . . . . .. . . .. . . ..24
InformationScreen. . . .. . . . . .. . . .. . .25
DistributorInfoScreen..............26
Re-orderInfoScreen. ..............27
25GallonTank Unit
Pump,Twin25Gallon...........28
PumpUnitFootprint..... ..29
50GallonTank Unit
Pump,Twin50Gallon...........30
PumpUnitFootprint..... ..31
UserInformation
AddingSalt...............32
Warranty.................33
UserReferenceGuide.....34
OtherProducts........... 35

4 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Warnings
The following warnings include general safety information for this equipment with detailed descriptions.
WARNING
ELECTRIC SHOCK HAZARD
Improper grounding, setup, or usage of the system can cause electric shock.
• Turn off and disconnect power cord before servicing equipment.
• Use only grounded electrical outlets.
• Use only 3-wire extension cords.
PRESSURIZED EQUIPMENT HAZARD
Components in this system are pressurized and have the potential to rupture if not properly used.
•
Follow Maintenance Procedures as stated in this manual, when you stop using and before
cleaning, checking, or servicing equipment
• Tighten all fluid connections before operating the equipment.
• Follow fluid regulator instructions stating maximum PSI allowance.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Misuse of equipment will damage unit, void warranty (if new), or cause serious injury, even death.
• Check equipment daily. Repair or replace worn or damaged parts immediately.
• Do not alter or modify equipment.
• For use only by trained staff.
• Use equipment only for its intended purpose. Call your Viking Pure 1000 distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not use hoses to pull equipment.
• Only use Viking accessories for this unit. Any other accessories may damage unit & void warranty
Only Use Viking Pure® Salt
Use of any other types of salt will damage unit’s membranes, chemically change the solutions, and
may even cause physical harm.
WARNING
If you have any questions or
comments regarding the warning
information above please contact us
at:
[email protected]
Or
1-(386)-428-9800

5 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Control Diagrams
VPC1000

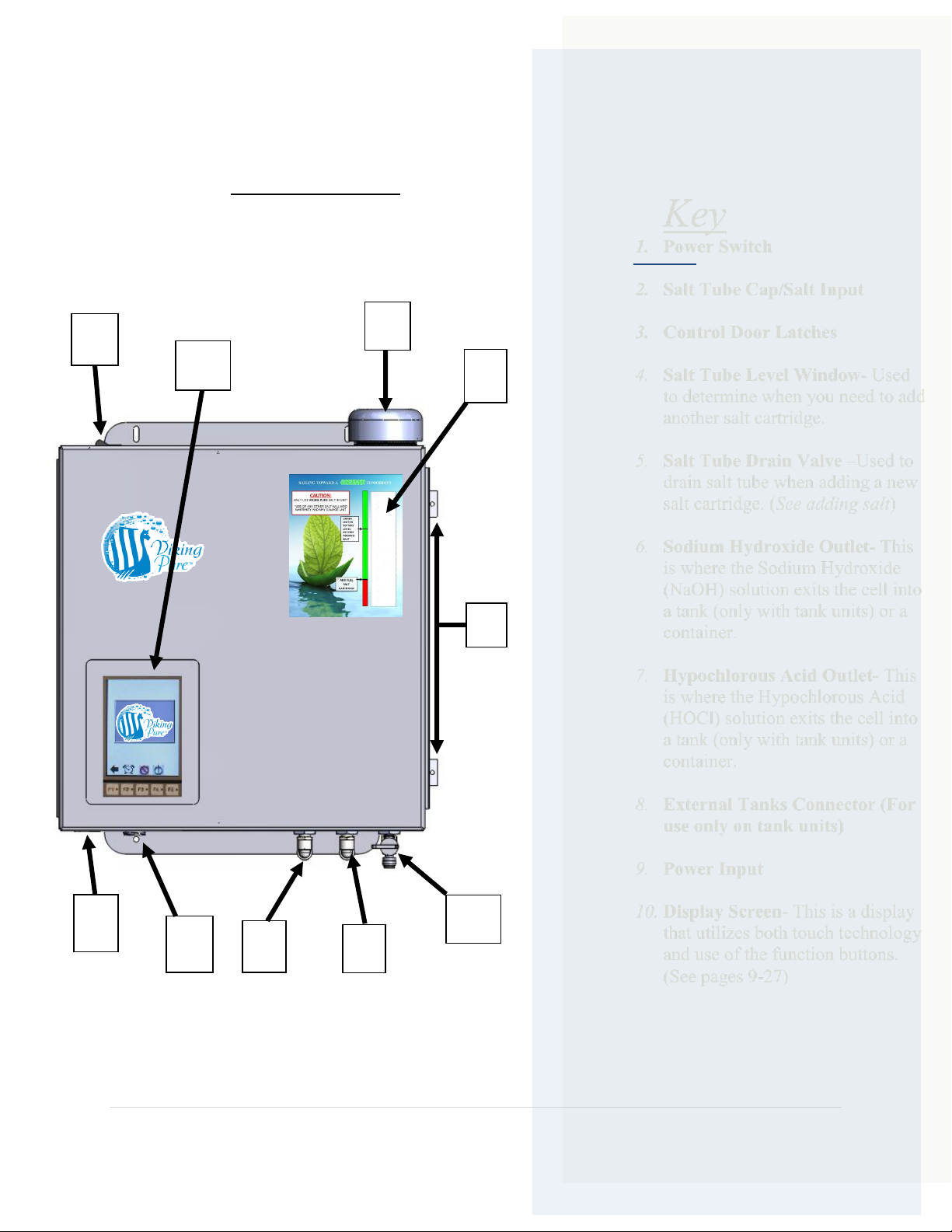

Viking Pure 1000 Control
(Front View)
1
2
3
4
5
6
7
8
9
10
Key
1. Power Switch
2. Salt Tube Cap/Salt Input
3. Control Door Latches
4. Salt Tube Level Window- Used
to determine when you need to add
another salt cartridge.
5. Salt Tube Drain Valve –Used to
drain salt tube when adding a new
salt cartridge. (See adding salt)
6. Sodium Hydroxide Outlet- This
is where the Sodium Hydroxide
(NaOH) solution exits the cell into
a tank (only with tank units) or a
container.
7. Hypochlorous Acid Outlet- This
is where the Hypochlorous Acid
(HOCl) solution exits the cell into
a tank (only with tank units) or a
container.
8. External Tanks Connector (For
use only on tank units)
9. Power Input
10. Display Screen- This is a display
that utilizes both touch technology
and use of the function buttons.
(See pages 9-27)

6 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Control Diagrams
VPC1000
Viking Pure 1000 Control
(Bottom View)
11
12
13
14
15
16
17
18
Key
11. Control Door Latches
12. Salt Tube Drain Valve –Used to
drain salt tube when adding a new
salt cartridge. (See adding salt)
13. Sodium Hydroxide Outlet- This
is where the Sodium Hydroxide
(NaOH) solution exits the cell into
a tank (only with tank units) or a
container.
14. Hypochlorous Acid Outlet- This
is where the Hypochlorous Acid
(HOCl) solution exits the cell into
a tank (only with tank units) or a
container.
15. External Tanks Connector (For
use only on tank units)
16. Power Input
17. Display Screen- This is a display
that utilizes both touch technology
and use of the function buttons.
(See pages 9-27)
18. Filtered Water Inlet

7 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Cell Diagrams
VP1000
Viking Pure 1000 Cell Diagram
21
19
20
23
22
24
24
25
Key
19. Sodium Hydroxide Flow
Control- This should be adjusted
only under the direction of a
Viking Pure representative
20. Blue Tubes- Denotes all tubing
used to transport Sodium
Hydroxide
21. Hypochlorous Acid Flow
Control- This should be adjusted
only under the direction of a
Viking Pure representative
22. Red Tubes- Denotes all tubing
used to transport Hypochlorous
Acid
23. Salt Brine Inlet(s)- This is where
the salt brine from the salt tube
enters the cell
24. Yellow Tubes- Denotes all tubing
used to transport salt brine from
the salt tube to the Electrolyzer
Cell
25. Filtered Water Inlet(s)- This is
where the filtered water will enter
the Electrolyzer Cell
26. Power Harness
23
26

8 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Setting Up Your Control
Pre-Installation Hard Water Test
1. Before installing your system you should do a quick Hard Water Test.
2. This test can be done by bringing a sample of your water (fresh out of the tap) to a local
water testing facility or you may purchase a water testing kit from Viking Pure.
3. The different levels you will be testing for are as follows:

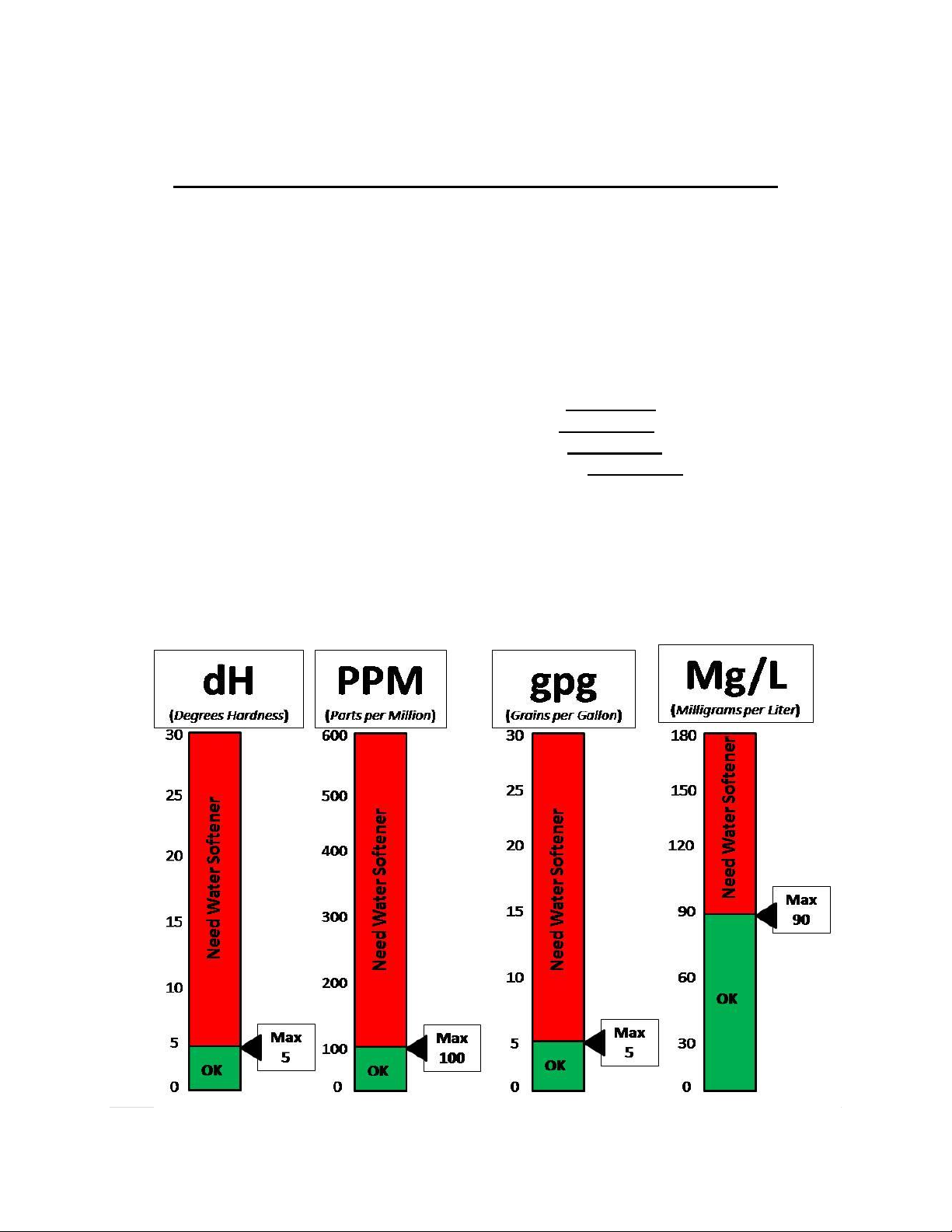

a. Degrees Hardness: This test should result in NO MORE than 5 dH.
b. Parts per Million: This test should result in NO MORE than 100 PPM.
c. Grains per Gallon: This test should result in NO MORE than 5 gpg.
d. Milligrams per Liter: This test should result in NO MORE than 90 Mg/L
4. The test must be performed to determine if a water softener is needed to run the system
properly.
5. If a water softener is needed, shown by failed testing, one must be installed or warranty
will be void (See page 38 for all warranty information). This is due to the fact that hard
water will damage the membranes in the cell and drastically affect the lifespan of the
unit.

9 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Setting up your Control: Diagram

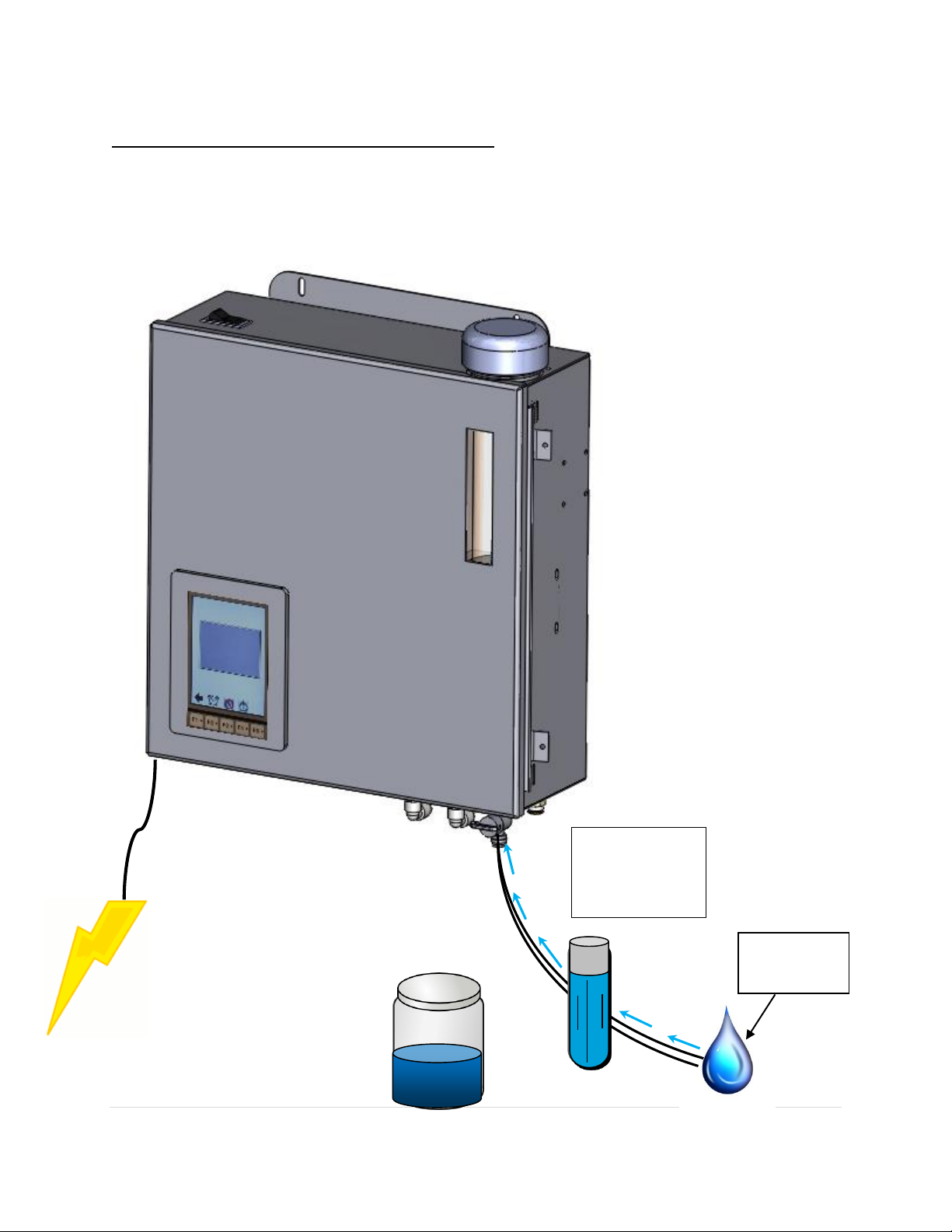

Water
Source
Water
Filter
(Included)
Power Inlet
(Either 115V
or 220V)
(See adding
salt for more
information)

10 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Setting Up your Control
Instructions
1. *Properly secure control to a vertical surface using 2 mounting locations.
2. Attach tubing (Included) to the proper fitting on base of control. (Make sure you
connect the right tubing from the HOCl and NaOH outlets, on bottom of control,
to the correct tanks).
3. Install water filter (Included) on water supply and run tubing (Included) to the
“Filtered Water Inlet” located at the base of the control. .
4. Connect power cord(s) (Included) to the control, lower left side, and to an outlet
corresponding to the correct voltage of the unit.
*Mounting hardware not included.

11 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Setting Up Your Control:
Starting Control
1.When plugging in your new Viking Pure 1000 system, be sure you
are plugging your system into the correct power outlet.(115Vac or
230Vac)
2. Be sure water supply is turned on and pressure is properly set.

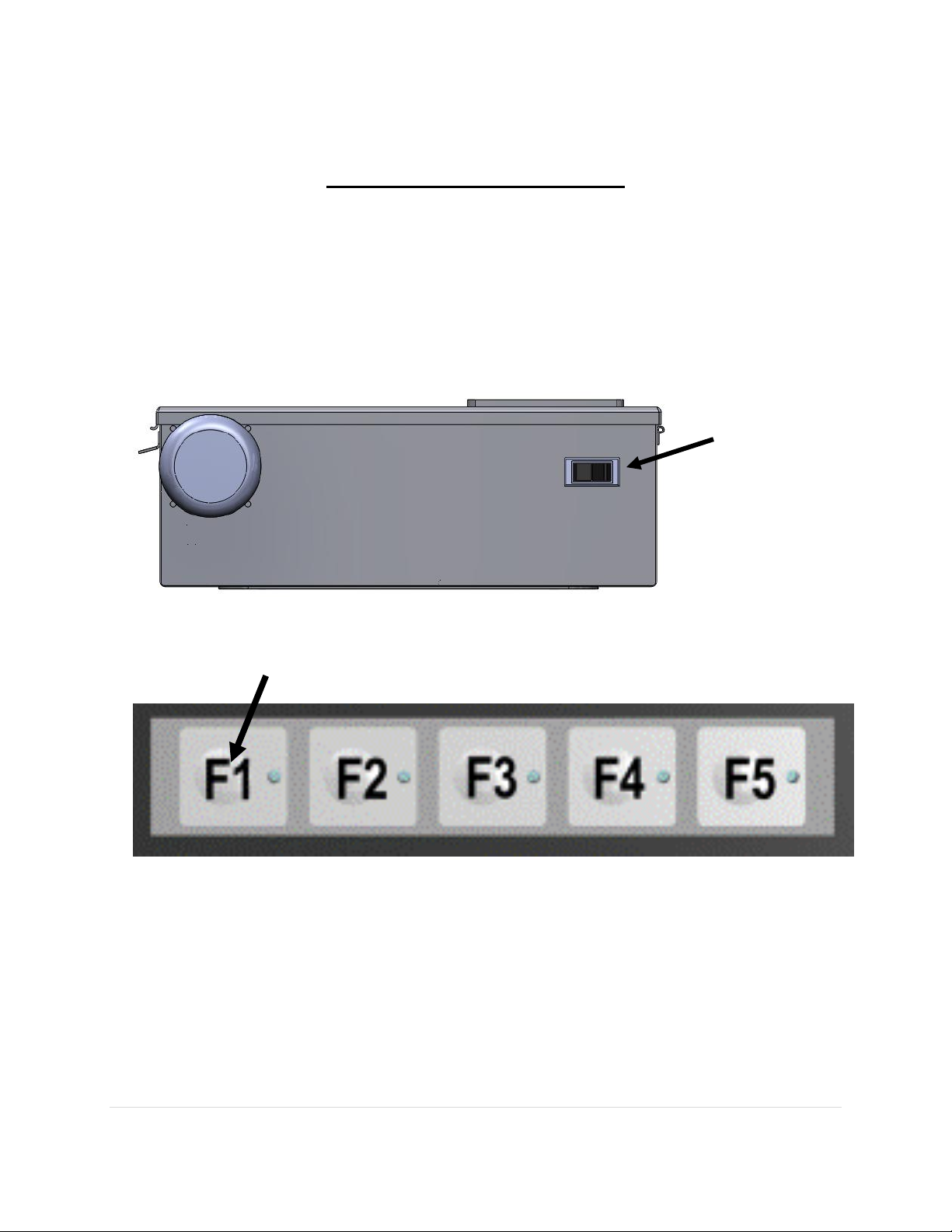

3.Next, Power up you control with the power switch on top of the unit.
4.The home screen will display Viking Pure Logo. To get to main menu,
press the F1 button at bottom of display.
5. Salt pump will need to run several seconds before starting, to insure
the salt chamber is filled with the proper concentration of salt brine.
6. Turn the electrolyzed cell on through the run screen on the touch
panel menu and the product will start being produced.
Top View

12 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Display Screen Functions

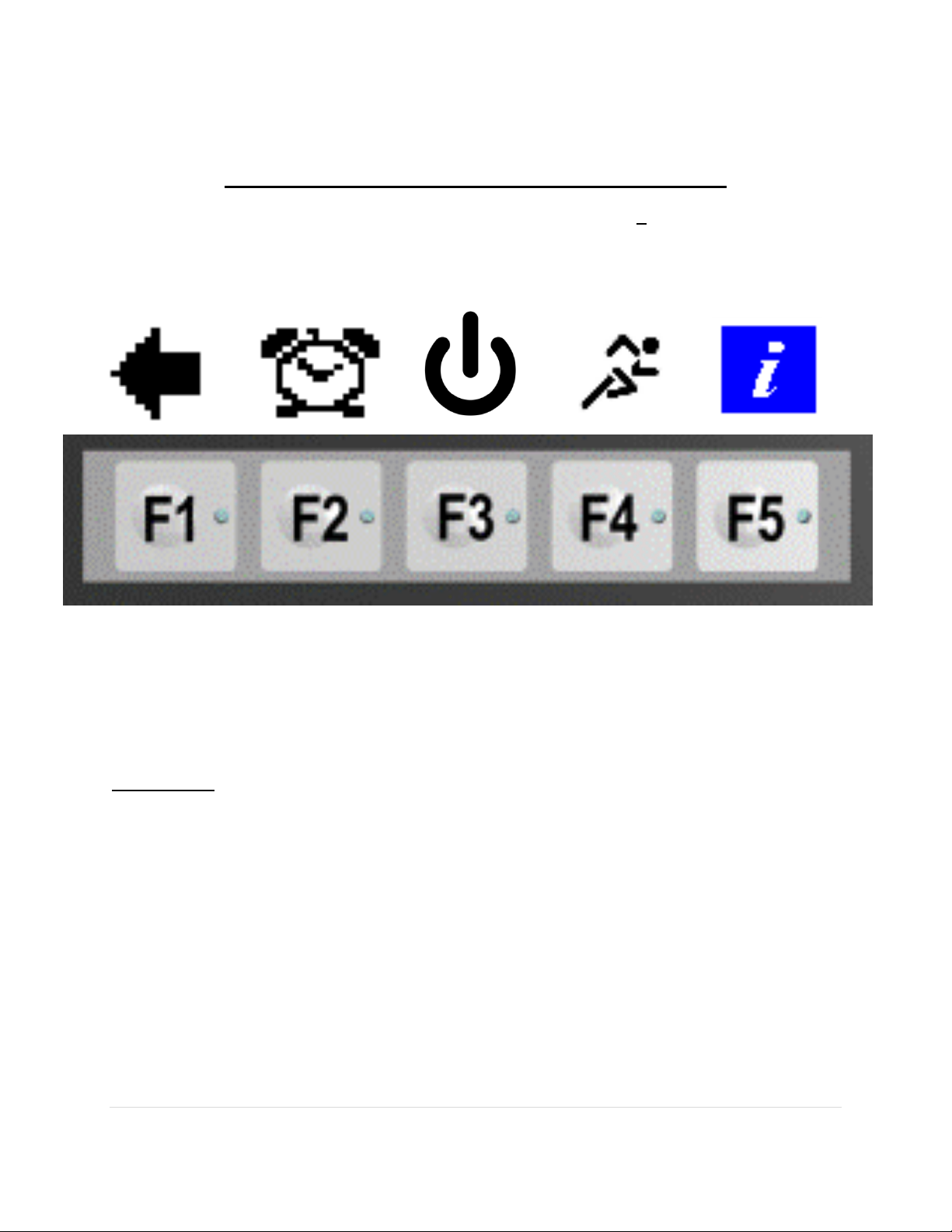

Standard Function Buttons
(Bottom of Every Screen)
Please Note: The icons on the touch screen (above the function buttons) are not functional. You must
press the function buttons, directly under the icon, to go to the corresponding menu. The LED will indicate
when the function button is pressed.

13 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Display Screen Functions
Title Screen
Menu Screen
Time Screen
Standby
Screen
Run Screen
Information
Screen

14 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Display Screen Functions
Menu Screen
This screen is the main menu
Setup Screen
Run Screen
Tank Screen

15 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Display Screen Functions

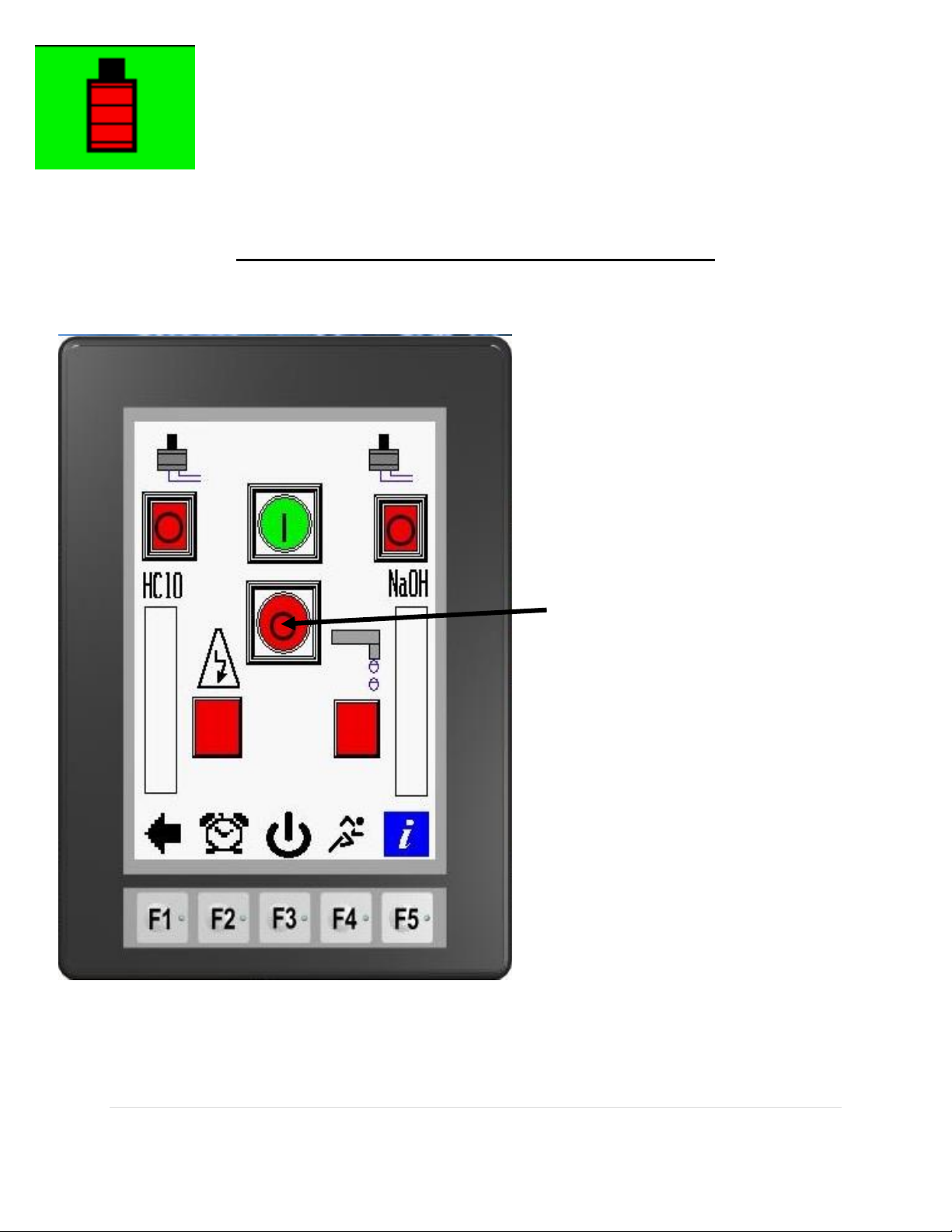

Run Screen (Turning On)
PRESSING THIS BUTTON WILL START
THE SYSTEM OPERATIONS. THERE IS
A 5 SECOND DELAY AS THE
COMPUTER CHECKS THE SYSTEM TO
ENSURE WATER IS FLOWING AND
SALT IS CIRCULATING. WHEN THIS
CHECK IS COMPLETE, THE POWER
ICON AND THE WATER ICON WILL
TURN FROM RED TO GREEN
INDICATING THE SYSTEM IS IN
OPERATION.

16 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Display Screen Functions
Run Screen (Turning Off)
PRESSING THIS BUTTON WILL
STOP THE PRODUCTION OF THE
SOLUTIONS. WATER WILL
CONTINUE TO FLOW FOR SIXTY
(60) SECONDSTO FLUSH THE
CELL WITH FRESH WATER.

17 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Display Screen Functions

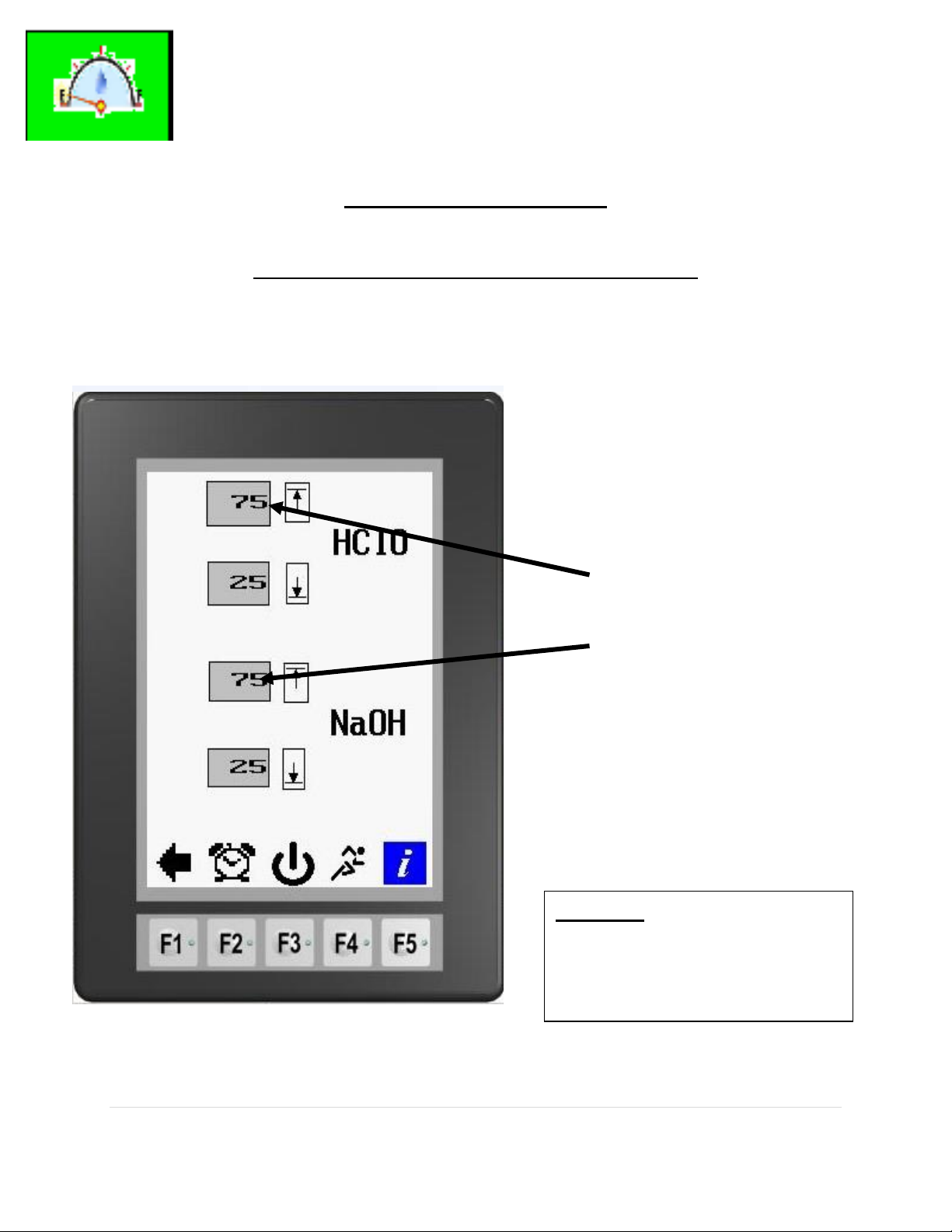

Set-up Screen
(Maximum Tank Levels)
Example:
If you require your unit to cease filling at 3/4
of a tank, you would set this number to 75
indicating 75% max fill.
PRESSING THIS BUTTON
WILL BRING UP A
NUMERICAL KEYBOARD
WHERE YOU WILL BE ABLE
TO SET YOUR MAX FILL
PERCENTAGE (%) IN THE
CORRESPONDING TANK
THE NUMBER INDICATES
THE MAX PERCENTAGE (%)
TO FILL THE TANK

18 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Display Screen Functions

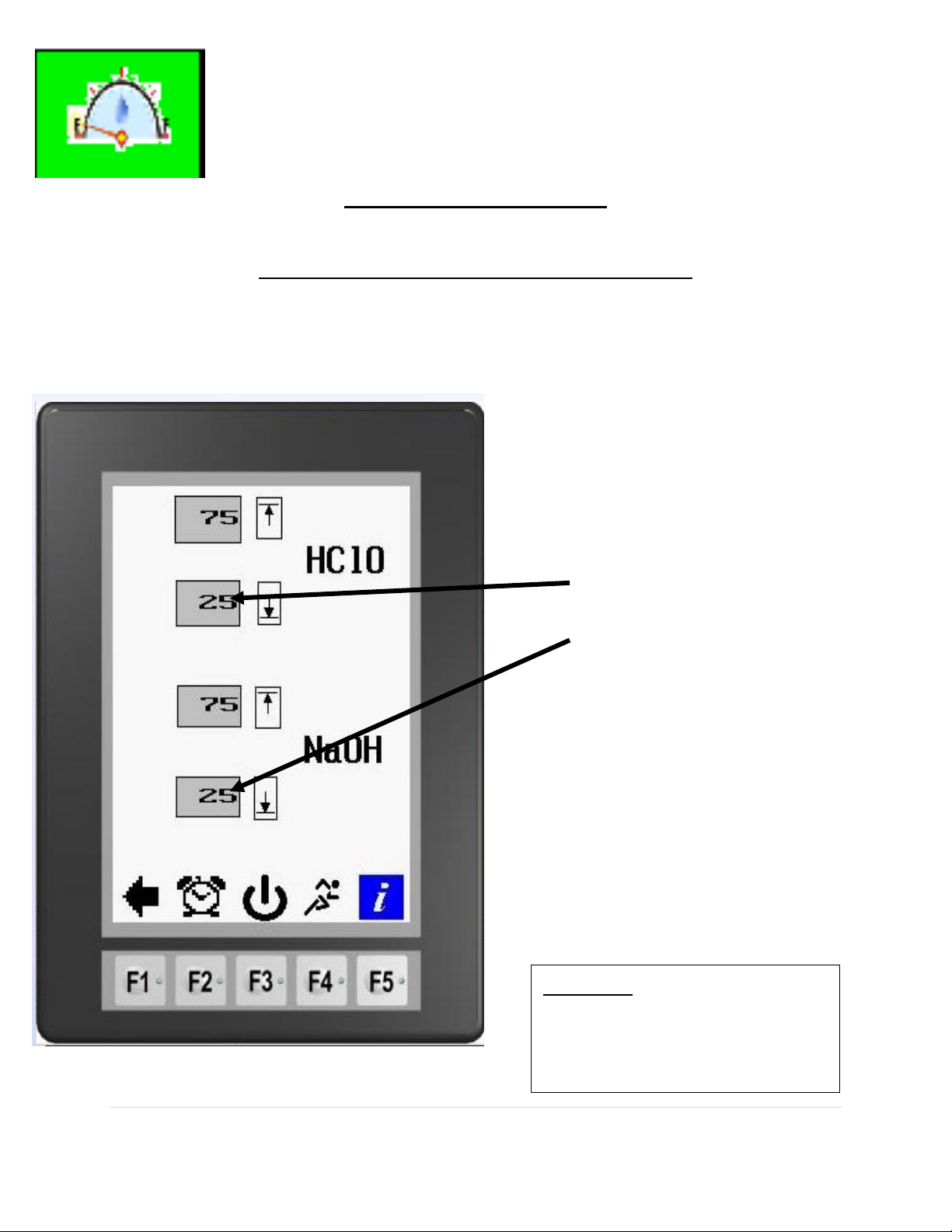

Set-up Screen
(Minimum Tank Levels)
PRESSING THIS BUTTON WILL
BRING UP A NUMERICAL
KEYBOARD WHERE YOU WILL BE
ABLE TO SET YOUR MINIMUM
DRAIN PERCENTAGE (%) IN THE
CORRESPONDING TANK
THE NUMBER INDICATES THE
MINIMUM PRECENTAGE (%) AS TO
WHICH THE TANK CAN BE DRAINED
BEFORE THE SYSTEM WILL START
PRODUCING THE SOLUTIONS
AGAIN
Example:
If you require your unit to start refilling at
1/4 of a tank, you would set this number to
25 indicating 25% refill point.

19 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Display Screen Functions
Tank Screen (System ON)
Display Screen Functions
Tank Screen (System On)
Display Screen Functions
Tank Screen (System Off)
PRESSING THIS BUTTON WILL START THE
SYSTEM OPERATIONS. THERE IS A FIVE (5)
SECOND DELAY ON STARTING AS THE
COMPUTER IS CHECKING THE SYSTEM TO
ENSURE WATER IS FLOWING AND SALT IS
CIRCULATING. WHEN THIS PROCESS IS
COMPLETE, THE POWER ICON WILL
CHANGE FROM RED TO GREEN
INDICATING THE SYSTEM IS NOW IN
OPERATION

20 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Display Screen Functions
Tank Screen (System Off)
PRESSING THIS BUTTON WILL STOP THE
PRODUCTION OF THE SOLUTIONS.
WATER WILL STILL CONTINUE TO FLOW
FOR SIXTY (60) SECONDS TO FLUSH THE
CELL WITH FRESH WATER
