Viking Pure:Mini Pure™
A Revolutionary system used to produce a
limited supply of both a cleaner & a sanitizer
from just salt, water, and electricity. It is
not only a greener solution to cleaning…
it is 100% NON-TOXIC.
Model Number:
PN: VPM (115VAC/230VAC)

2 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Contents
Warnings.....................................3
Diagrams
UnitDiagram.............................4
InsideUnitDiagram....................... 5
CellDiagram............................. 6
Installation&SetUpofYourUnit
Pre-installationWaterTest.................7
Diagram.................. . .. . . .. . . . .. . . . 8
ConnectingandOperatingtheVPM......9-10
UserInformation
AddingSalt................ . . .. . . .. . . . . .. 11
Warranty.................................12
UserReferenceGuide.....................13

3 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Warnings
The following warnings include general safety information for this equipment with detailed descriptions.
WARNING
ELECTRIC SHOCK HAZARD
Improper grounding, setup, or usage of the system can cause electric shock and death.
• Turn off and disconnect power cord before servicing equipment.
• Use only grounded electrical outlets.
• Use only 3-wire extension cords.
LIMITED PRODUCTION NOTICE
Unit is intended to be used for smaller applications only. Unit is limited to use in the following ways:
•
Unit shall not run, continuously, for more than 1 hour (6 runs) or unit may become damaged and/or
cause injury.
• Unit shall not run for more than 3 hours (18 runs) per 24 hour period or unit may become damaged
And/or cause injury.
*Please See Warranty (Page 12) For Full Warranty Information*
.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Misuse of equipment will damage unit, void warranty (if new), or cause serious injury, even death.
• Check equipment daily. Repair or replace worn or damaged parts immediately.
• Do not alter or modify equipment.
• For use only by trained staff.
• Use equipment only for its intended purpose. Call your Viking Pure 1000 distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not use hoses to pull equipment.
• Only use Viking accessories for this unit. Any other accessories may damage unit & void warranty
Only Use Viking Pure® Salt
Use of any other types of salt will damage unit’s membranes, chemically change the solutions, and
may even cause physical harm.
WARNING
If you have any questions or
comments regarding the warning
information above please contact us
at:
[email protected]
Or
1-(386)-428-9800 USA

4 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Unit Diagram
VPM
Viking Pure: Mini Pure
1
2
3
4
7
3
8
Key
1. Power Entry Module/Power
Switch- This is where you plug in
your power cord and turn the unit
ON/OFF.
2. Salt Tube Cap/Salt Input
3. Activation Dial- Used to start
production.
4. Salt Tube Level Window- Used
to determine when you need to add
another salt cartridge.
5. Filtered Water Inlet –(On lower
right side of unit)
6. Salt Tube Drain- To be used
when refilling salt (See page 9 for
more details)
7. Sodium Hydroxide Outlet- This
is where the Sodium Hydroxide
(NaOH) solution exits the cell into
a container. (See Item# 11)
8. Hypochlorous Acid Outlet- This
is where the Hypochlorous Acid
(HClO) solution exits the cell into
a container. (See Item# 11)
9. LED Power Indicator- This will
light up the moment you turn the
Power Switch ON indicating you
have power
10. Door Latch- Comes with a tamper
proof screw (Not Shown: On Right
Side)
5
3
8
6
9
9

5 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Inside Unit Diagram
VPM
Viking Pure: Mini Pure
3
11
Key
11. Salt Tube- This is where
you will fill your salt tube.
12. Electrolyzer Cell- This is
where both HOCl and
NaOH solutions are
produced.
13. Hypochlorous Acid Flow
Control- This should be
adjusted only under the
direction of a Viking Pure
representative
14. Sodium Hydroxide Flow
Control- This should be
adjusted only under the
direction of a Viking Pure
representative
15. Hypochlorous Acid
Outlet- This is where the
Hypochlorous Acid solution
exits the cell into a
container.
16. Sodium Hydroxide
Outlet- This is where the
Sodium Hydroxide solution
exits the cell into a
container.
3
8
14
12
15
13
16
11

6 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©

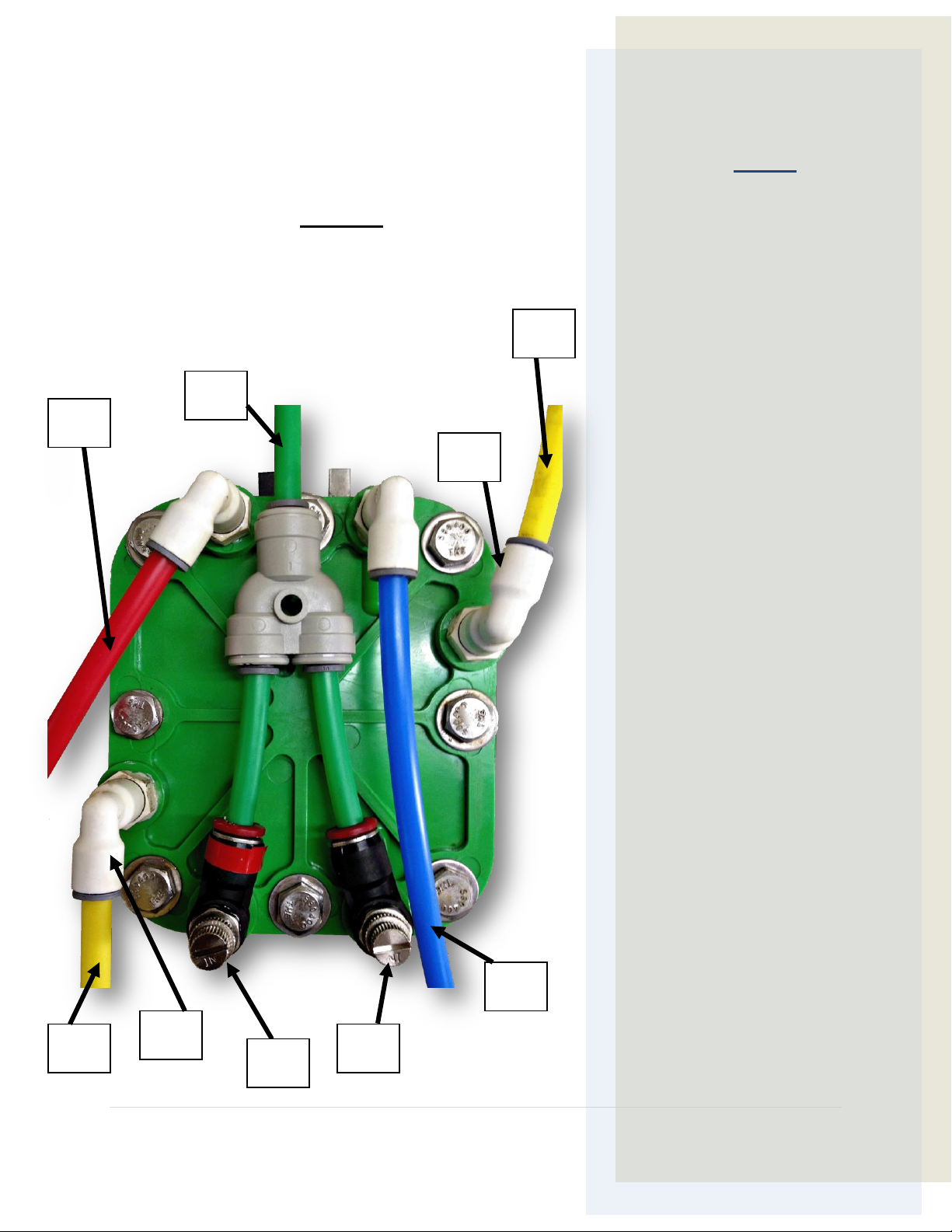

Cell Diagram
VPM
Viking Pure: Mini Pure
3
11
Key
17. Mounting Bracket- Not
Shown: On Left.
18. Hypochlorous Acid Flow
Control- This should be
adjusted only under the
direction of a Viking Pure
representative
19. Red Tubes- Denotes all
tubing used to transport
HOCl.
20. Sodium Hydroxide Flow
Control- This should be
adjusted only under the
direction of a Viking Pure
representative
21. Blue Tubes- Denotes all
tubing used to transport
Sodium Hydroxide.
22. Salt Brine Inlet- This is
where the salt brine from
the salt tube enters the cell.
23. Salt Brine Outlet- This is
where the salt brine, that
was not used, is recycled
back to the salt tube.
24. Filtered Water Inlet(s)-
This is where the filtered
water will enter the
Electrolyzer Cell.
25. Yellow Tubes- Denotes all
tubing used to transport salt
brine from the salt tube to
the Electrolyzer Cell.
3
8
25
24
21
23
22
20
18
25
19

7 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Setting Up Your Control
Pre-Installation Hard Water Test
1. Before installing your system you should do a quick Hard Water Test.
2. This test can be done by bringing a sample of your water (fresh out of the tap) to a local
water testing facility or you may purchase a water testing kit from Viking Pure.

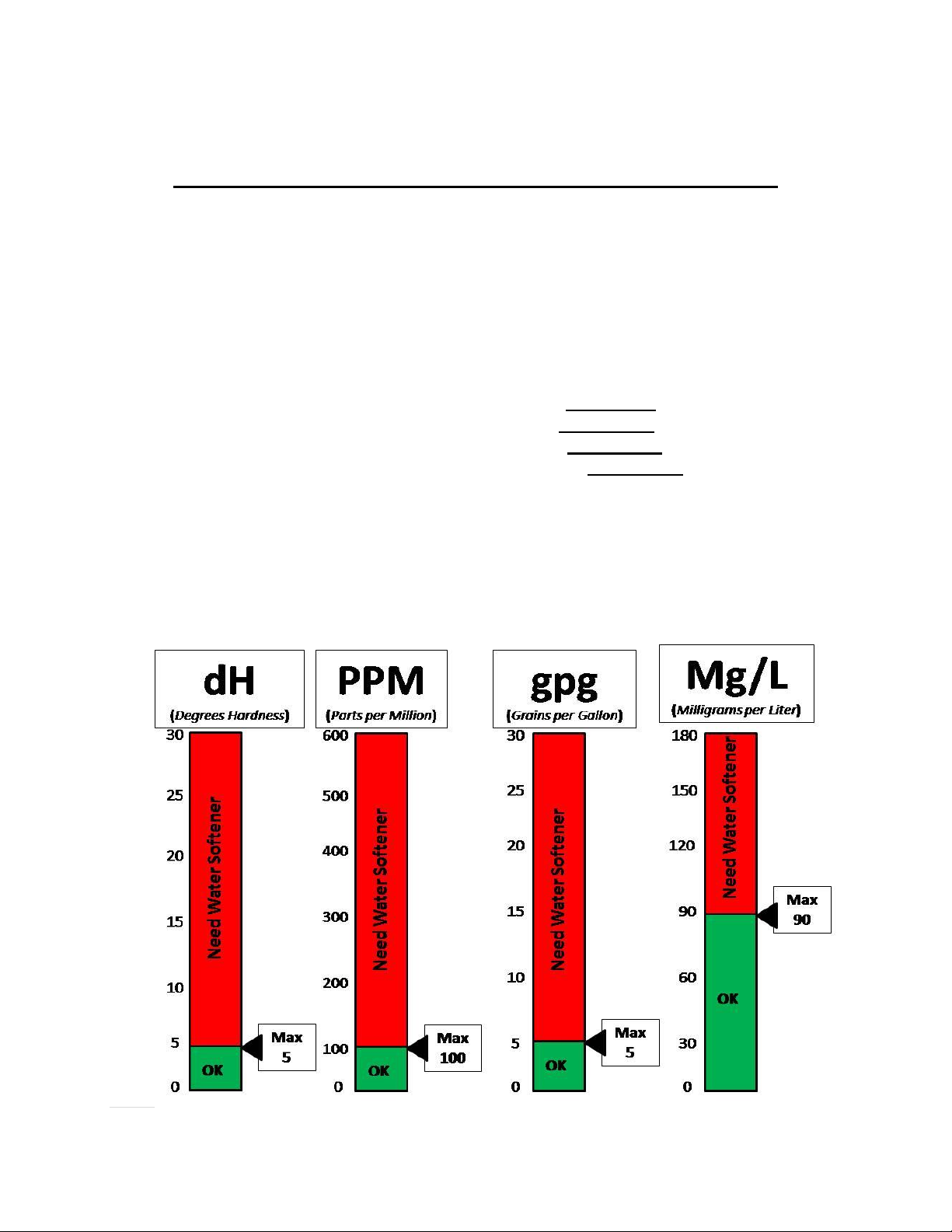

3. The different levels you will be testing for are as follows:
a. Degrees Hardness: This test should result in NO MORE than 5 dH.
b. Parts per Million: This test should result in NO MORE than 100 PPM.
c. Grains per Gallon: This test should result in NO MORE than 5 gpg.
d. Milligrams per Liter: This test should result in NO MORE than 90 Mg/L
4. The test must be performed to determine if a water softener is needed to run the system
properly.
5. If a water softener is needed, shown by failed testing, one must be installed or warranty
will be void (See page 10 for all warranty information). This is due to the fact that hard
water will damage the membranes in the cell and drastically affect the lifespan of the
unit.

8 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©

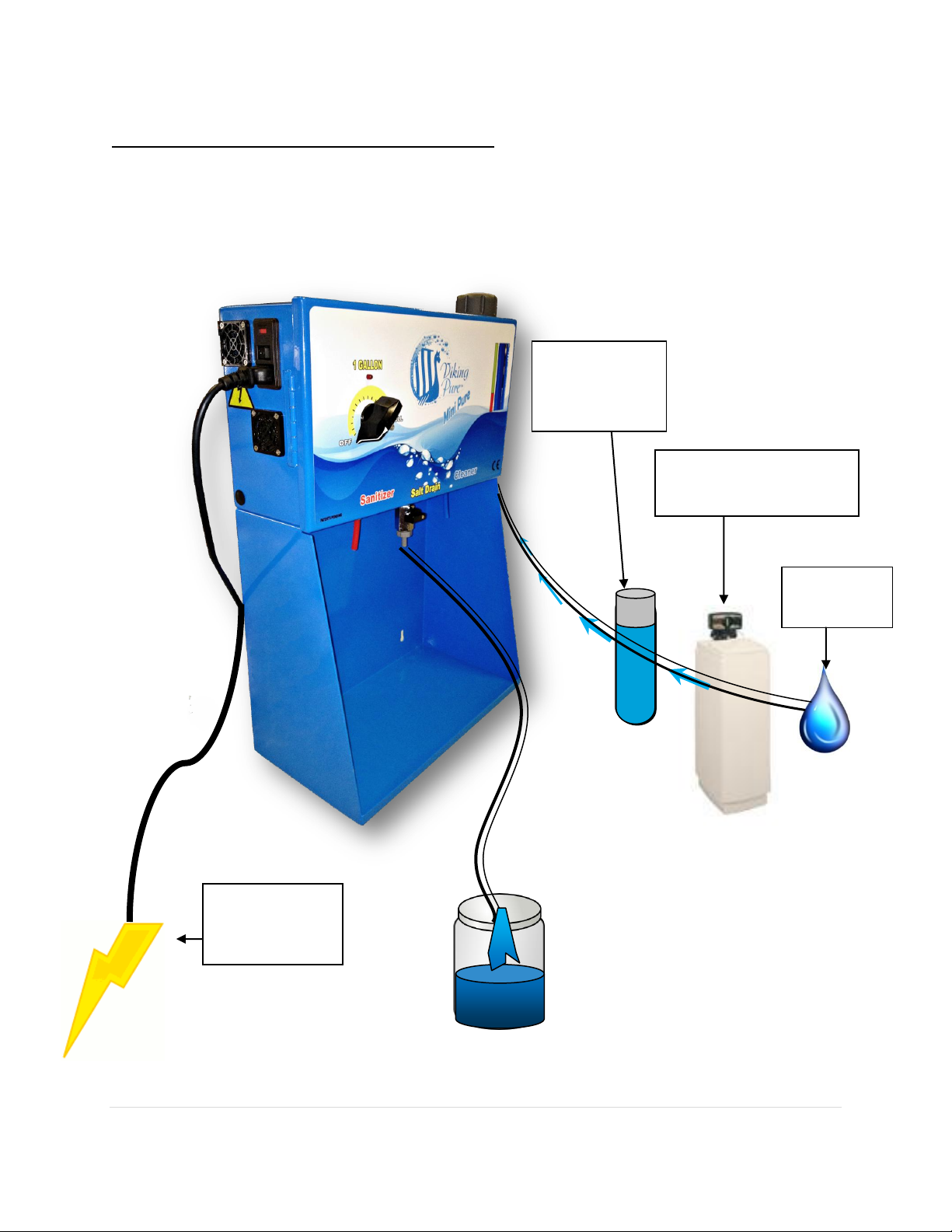

Setting up your Control: Diagram
Water
Source
*Water Softener
(Sold Separately)
Power Inlet
(115VAC/230
VAC)
*Viking Pure Water Softeners can
be ordered separately:
VPWS-115 (115VAC)
VPWS-230 (230VAC)
Water
Filter
(Included)

9 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Connecting and Operating your
Viking Pure: Mini Pure
1. After removing the unit from the shipping container, inspect the unit for any marks
and/or damage that may have resulted from mishandling during freight. If the unit is
damaged report it to UPS or the shipping company involved.
2. Install unit in the best area, as determined by Pre-Install Site Evaluation Sheet (filled out
and sent to Viking Pure, Distributor or Sales Representative before purchase of unit).
Power connection is a standard wall outlet with ground, 3 prongs. FOR 115VAC AND
230VAC UNITS, USE PROPER OUTLET.
3. Remove plug from Filtered Water Inlet fitting by pushing inner ring back and pulling out
plug (Item #5 on pg. 4 of manual)
4. Water connection can be made with the fitting supplied or any other means that has a
shutoff valve. The connection should accommodate the ¼” plastic supply line supplied.
5. Mount the water filter using the bracket supplied. The filter comes with a fitting installed
on the Outlet end. Water supply should be connected to the inlet on filter.
6. Route the tubing from the water filter to the Mini Pure in such a way as to protect the
tubing from damage and cut to size. Then install the tube into the Mini Pure lower right
side as indicated, FILTERED WATER INLET (Item #5 on Pg. 4 of Manual).
7. Turn water on and check for any leaks at the water supply or on the water filter, if leaks
occur: turn off water supply and check connection of all fittings to tubes and ensure they
are pressed in firmly as shipment may have loosened some connections.
8. Add salt to the unit (see pg. 11 for Adding Salt to Unit)
9. Plug unit into a standard house hold type receptacle that is grounded to code (Item #9 on
Pg. 4 of Manual). FOR 115VAC AND 230VAC UNITS, USE PROPER OUTLET.
10. At the top of the control turn the power on (Item #1 on Pg. 4 of Manual).
11. Remove tube caps from both output tubing (Items #7 and #8 on pg. 4 of manual)

10 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
12. Insert the 1 Gallon Containers (Provided) under their respective tubes, Red for
Hypochlorous Acid and Blue for Sodium Hydroxide, into the lower section
13. Turn dial on control (Item #3 on Pg. 4 of Manual) to full and run approximately ½ gal of
each to allow the air to purge out of all the lines then dispose of these solutions.
14. Replace the containers and turn the dial (Item #3 on Pg. 4 of Manual) to full, watching
the first cycle to insure the proper fill of the bottles. The bottles should fill to the base of
the handle.
15. If the fill is too high or too low please call Viking Pure, your distributor or your sales
representative and they will assist you on adjusting the fill volume.
16. Turn the dial to the full setting and watch the next fill cycle to insure proper settings
When required amount of product is obtained, turn the power off and it will be ready for the next
cycle when required just turn the power on and start Sailing with us Toward a Greener and Safer
Tomorrow.

11 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Adding Salt
1. Loosen salt tube cap (Item #2 on Pg. 4 of Manual).
2. Open salt tube drain valve (Item #6 on Pg.4 of Manual) at base of control and
allow liquid to drain into a container (Do not dispose of this liquid, it is used in
later steps).
3. When liquid stops draining close manual valve (Liquid will stop draining on its
own at the correct level).
4. Fully remove salt tube cap (Item #2 on Pg. 4 of manual)
5. Add full container of Viking Pure: Mini Pure brand salt.
6. Fill with the liquid drained (From step 2) to ½" from the top of the tube.
7. Insure the outer surface of the tube is free from salt.
8. Replace the salt tube cap and secure tightly.

12 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Warranty
Warranty
Viking Industries, Incorporated (Viking Pure) warrants that products manufactured by it shall be free of defects in
material and workmanship when operated in accordance with Viking’s operating and maintenance procedures for
the following period from the date of shipment:
Product
Warranty Limit
Viking Pure: Mini Pure
1 Year
Viking’s liability is limited to the repair or replacement, at Viking’s option, of any product, which proves to be
defective during the warranty period outlined. The product must be returned, prepaid by purchaser, to Viking after
obtaining a Return Authorization Number from Viking. Viking shall have the right of final determination as to the
existence and cause of any defects.
This warranty shall not cover unauthorized repairs, alterations, modifications, or use by the purchaser of product for
which it is not intended without prior written consent from Viking.
This warranty shall not cover abuse, neglect, improper operating or maintenance procedures, voluntary or
involuntary damages of the product by the purchaser.
Viking’s liability under this warranty shall in no event exceed the purchase order price and shall not cover any losses
caused by delays or for any expenses for labor, supplies, machine rental or loss or damages to other property.
No warranty is made with respect to customer equipment or products manufactured to purchaser’s specifications
except as specifically stated in writing by Viking.
Warranty will be void if salt other than that supplied by Viking Pure is used.
Warranty will be void if : a) Hard Water Test is not performed b)Hard Water Test is performed, failed to meet
Viking’s set limits (as defined on page 6) and no water softener is installed.
Viking’s responsibility for transportation under this warranty is limited to charges for delivery of repaired products
via the least expensive transportation available, to the purchaser in the Continental United States only. Payment for
shipment of Viking parts or products to Viking’s facilities is the responsibility of the purchaser.
Warranty for items that are repaired or replaced by Viking shall continue in effect for the remainder of the original
warranty period or for ninety (90) days following the date of shipment by Viking, whichever period is longer.
This warranty supersedes any other warranty, expressed or implied, and constitutes all of Viking Industries, Inc.’s
liability with respect to its products.

13 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Viking Pure: Mini Pure User Reference Guide:
Model Number :____________________
Serial Number :_____________________
Installation Date :___________________
User Notes:

14 | P a g e
Viking Pure, LLC
501 Pullman Rd., Edgewater, Fl. 32132, USA
Copyright 2012 Viking Pure, LLC©
Viking Pure, LLC
501 Pullman Rd.
Edgewater, FL 32132 USA
Phone: [phone]
Fax: [phone]
Email: [e-mail]
