Viking LLA-1 User manual

Extend Analog PABX Station
Loop Length to 30,000 Feet
Features Applications
Specifications
www.VikingElectronics.com
Information: 715-386-8861
The Viking model LLA-1 provides long line
and off premise extension (OPX) capabilities
for PABX and KSU analog stations, ISDN
terminal adapters, channel banks, etc. The
long loop adapter converts any low talk
battery voltage or weak ringing analog line
into a standard 48V line with powerful 20HZ
sine wave ring signal.
The LLA-1 is compatible with pulse dialing,
touch tone dialing, hook switch flash
features, CPC signaling, and Caller ID
features. A ground screw terminal allows for
improved surge protection and as a earth
ground reference for the regenerated line.
The long loop adapter requires no
programming, and can be used as a direct
replacement for the discontinued Proctor
model 46222 long loop adapter.
• Convert an analog KSU/PABX station to
a standard voltage OPX
• Provides 48 VDC talk battery
• Provides 20 HZ, 10 REN sine wave
ringing
• Passes Caller ID information
• Passes hook switch flash
• DTMF and pulse dialing compatible
• Passes CPC signals
• Electrically isolates PABX station from
extended loop
• Provides additional lightning and
surge protection
• Selectable ring protocols
Power: 120V AC/13.8V AC 1.25A, UL listed adapter
provided
Dimensions: 5.25” x 3.5” x 1.75” (133mm x 89mm x
44mm)
Shipping Weight: 3 lbs (1.36 kg)
Environmental: 32° F to 90° F (0° C to 32° C) with 5%
to 95% noncondensing humidity
Talk Battery: 48 VDC (minimum)
Ring Generation: Sine wave 105 VAC @ 20 HZ
(nominal), capable of ringing 10 REN load
Dialing: Pulse (10 pps) and DTMF compatible
Hook Switch Flash Timing: From 200ms to 500ms
increased to 500ms
CPC Timing: Duplicates original CPC timing
Electrical Isolation: 1500 VDC
Facility Interface Code: OL13C
Audio Loss Through Unit: 1.3 dB
Connections: (6) screw terminals
• Turn a standard station into an on-premise or
off-premise extension (OPX)
• Give a low voltage line or station from an ISDN
terminal, KSU, PABX, etc. the talk battery and
ringing power of a standard CO line
• Convert a polarity reversal DC ring signaling
line to a typical 20Hz AC ringing line
DESIGNED, MANUFACTURED AND SUPPORTED IN THE USA
PRODUCT
MANUAL
SECURITY & COMMUNICATION
VIKING LLA-1
Long Loop Adapter
(Off Premise Extensions)
April 24, 2023

2
CONNECT TO
EARTH GROUND
LINE IN
FROM SYSTEM
POWER
13.8VAC
LONG LOOP OUT
TO TELEPHONE
Viking Electronics, Inc., Hudson, WI. 54016
13.8V AC
Adapter
(included)
120V AC
Unused Trunk
Input of PABX/KSU
Phone(s)
or
Analog
Tip/Ring
Long Loop Run
PABX/KSU
Station, ISDN
Terminal Adapter,
Channel Bank, etc.
* Earth
Ground
Earth Ground to
Additional Units
IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges
from both the AC outlet and the telephone line. It is recommended that a surge protector be
installed to protect against such surges.

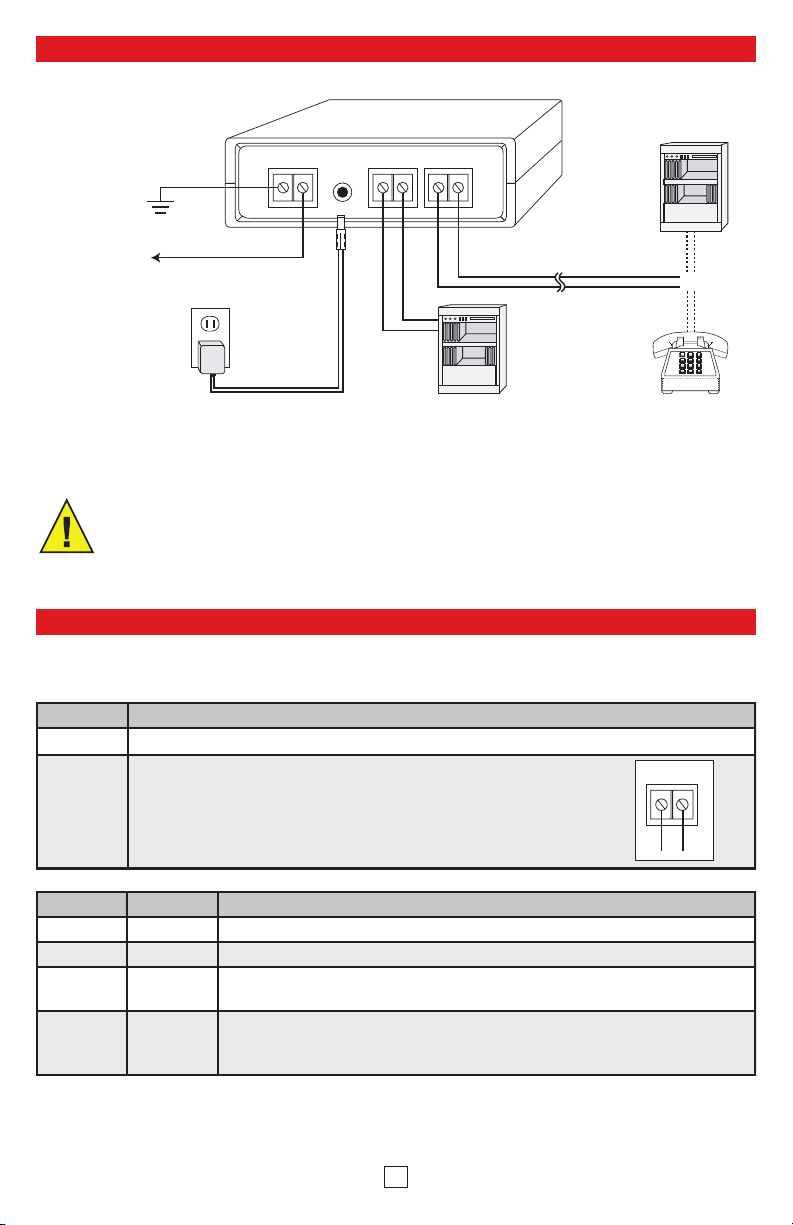

Installation
