VK440 Super FLX
BEAM SPOT WASH (CMY)
Moving Head
USER MANUAL M124
Rev 1.01

2
ITEM
Item...........................................................................................................................02
1.Introduction.…….................................................................................................03
2.Fixture size............................................................................................................03
3.Parts Introduction.............................................................................................. 04
4.Safety information...............................................................................................05
5.Packing and shipping .........................................................................................07
6.AC power..............................................................................................................07
7.Lamp model and replacement............................................................................07
8.Colour and gobo description...............................................................................09
9.Control panel Operation.....................................................................................10
10.DMX Channels...................................................................................................14
11.PCB Driving board............................................................................................23
STATEMENT
This product is carefully checked prior to shipping from our warehouse. All users should strictly
abide by the warnings and instructions stated in this manual, any damage and results due to misuse
and the neglect of this operating manual are chargeable to the end user. This is a delicate piece of
electronics and treated with care will perform exceptionally well..

3
1. VK440 Super FLX Introduction
Thank you for choosing the VK440 Super FLX. This model is the very latest development of
the smart, efficient and powerful moving light products, combining advanced technology of
today's stage lighting products with international advanced electronic control technology and
excellent user-friendly industrial design , fully comply with CE standard, and international
standard DMX512 signal mode.
The VK440 Super FLX uses an efficient lamp and short distance condenser system, coupled
with the high-quality optical lens components, gives gorgeous color and clear gobos, sharp and
uniform output light..
The LCD fixture setting display is intuitive and fast and can be inverted 180 °. DMX512
control is via 20/ 24 or 30 channel modes. Horizontal scanning: 540 ° vertical scanning 270 °.
The color wheel is combined with white and 11 colors. The static gobos is combined with
white and 17gobos, the rotation gobo is combined with white and 9 gobos. Three prisms, two
rotating, one is 8 facet prism, one is 4 linear prism, and one is 16 facet prism. Each 2 prisms
can mixed together. Frost function.0-100% mechanical dimming, mechanical strobe, speed
adjustable strobe effect and gobo shaking effect, over-heat protection function.
2 FIXTURE SIZE
Size： 440 （L）×310（W）×680（H）mm

4
3. PARTS INTRODUCTION
01
02
03
04
05
06 07
01 —Lens
02 —Body
03 —Tilt Lock
04 —Arm
05 —Pan Lock
06 —Handle
07 —Light base
01
0
2
01
0
3
0
4
0
2
0
5
01 —LCD display
02 —Control wheel
01 —DMX In
02 —DMX Out
03 —Power Switch
04 —Power In
0
5
—
Fuse

5
4. SAFETY INFORMATION
Safety warning message
This product is only suitable for professional use, users are deemed familiar with moving light
fixtures generally. After you got the lights, please check the package whether have any damage
caused by transportation. If there is any damage, do not use this fixture, and please contact the
dealer as soon as possible. This product is only suitable for indoor, IP20 protection class use.
Lamps should be kept dry to avoid moisture, overheating or dusty environment. Prevent lamps
from coming into contact with water or any other liquid. The user of this product should pay
attention to: fire, heat, electric shock, ultraviolet radiation, the lamp exploding which can cause
serious or fatal injury. Please ensure you have read the instructions before use d or installing.
Follow the Manual information and the operation methods and pay attention to the warning signs
on the specification and equipment. If you have any problem on how to safely operate this
equipment please contact your dealer.
4.1 ANTI-HIGH TEMPERATURE
ta=40°C
Please don’t use the equipment if the temperature is above 40 degrees C
4.2 BURST PREVENTION
The lens should be changed if has sustained damage. Don’t change for a non-original
manufacturer lens.
Lens size：Φ158×43 mm
4.3 TO PREVENT FALLING WOUNDING
Please don’t move the package by one person only.
When hanging the fixture, please verify that the facilities used to suspend the fixture are able to
withstand the weight of the lamps by a safety factor of 10 times the weight.
Please make sure the mounting hardware is strong enough, and insure a safety bond is used as
auxiliary security / safety fixing in case of mounting hardware failure.
4.4 UA PROTECTION AND LAMP/BULB EXPLOSION
Prohibit straight viewpoint with exposed bulbs to avoid UV damage to the eyes;
Do not use the equipment without the lens screen and the lid;
The lens and the light head covers should be replaced if any damage is present
The Fixture should be used with the protection screen in place.
4.5 PREVENTION OF ELECTIC SHOCK
The electrical connection must only be carried out with corresponding qualifications;
Before installing, make sure you use the correct power voltage. Lights must comply with the
identified power, voltage and have an overload or leakage protection;
Each light must be properly grounded, installed in accordance with the relevant standards;
Cut off the power when installing or replacing the lamp or the fuse;

6
4.6 TO PREVENT BURNING OR FIRE
1. The fixture can be mounted directly on the surface of ordinary combustible material.
2. Do not short-circuit temperature protection switch or fuse, use the specified type of fuse.
3. The equipment must be installed away from inflammable and explosive materials.
4. The equipment should be at a projected range of 15 meters away objects and projectiles
5. Keep obstacles al least 0.5m away from the Fans or ventilation slots.
6. Do not place any object on the lens.
7. Allow 20 minutes for the lantern to cool before h andling
8. Do not replace parts with non-original parts & consult your dealer before attempting
repairs.
4.7 TRANSPORT PROTECT LOCK
In order to protect the light, there is a transport lock; During transport the lock catch should
be positioned in the center to keep the fixture head in a vertical state.
4.8 ABOUT PACKING
1. Before packing away, make sure power is off, and wait for at least 20 minutes for the fixture
to cool down.
2. Before cleaning the fixture, make sure X, Y axis transport lock is closed.
3. Lift the unit only by the two side grab handles and turn fixture upside down and then place
in the flight case.
4. After packed, put accessory into the accessory case, then close and lock the flight case.
5. Flight cases should only be stacked two high and never upside down
4.9 UNPACKING
1. Open the flight casee, and lift out the fixture using the 2 side grab handles.
2. Turn fixture over and place on a stable surface with enough space for the head to turn
through 360 degrees.
3. Before power up, make sure you have opened the X, Y axis lock!
Attention!
Two omega clamps must be attached to the fixture for hanging together with suitable
hook clamps. Omega clamps have a 1/4 turn lock, fully clockwise rotate 90 ° to lock them in
place. Add one safety bond on the hole of light base as additional insurance against clamp
failure.
Attention! Each fixture can only accept one DMX input & output.
Do not use two outputs to separate or split the DMX connection, if a separate branch is required a
DMX512 splitter is necessary.
It is therefore not recommended to change from 3 pin to 5 pin
DMX connections using the head itself as signal loss can occur.

7
5. PACKAGE
VK440 SuperFLX is packed within a dual Flight Case The case is heavy and although on
wheels it is recommended that 2 people move the unit for safety. Lock the flight case brake
on the wheels to prevent the case from in advertently rolling away whilst working on the
fixture.
.
6. AC POWER
VOLTAGE, POWER, FUSE SPECIFICATION
Input Voltage
Total Power Frequency
110-240V 600W 50/60HZ
Fuse voltage
Electronic current
Specification
250V 10A 5×20
VK440 SuperFLX Power connection attention:
Attention! The equipment must be operated by professionals; Make sure that the voltage of power
supply complies with the voltage identified on the lamp, and must have an overload or leakage
electrical protection (RCD).
Live wire(L) Neutral(N) Ground wire
BROWN BLUE Yellow +Green
7. LAMP MODEL AND REPLACE
VK440 SuperFLX LAMP
The lamp for this light is extremely expensive at over £300 and
they last a long time and should not need user replacement –
please call Viking BEFORE replacement for advice FIRST !!!!!
LAMP MODEL POWER LIFE/HOUR LUMEN
OSRAM SIRIUS
HRI 440W
440w 1800 HOURS 114900Lux
WARNING! There is a safety hazard of damage if a similar lamp is fitted –
always use the proprietary Osram lamp. To reduce the risk of damage to lamp
exploding it is important not to exceed the stated 1800 hours running time of the
lamp.

8
LAMP REPLACEMENT
Attention! When replacing the lamp is important not to touch lamp with bare hands, to avoid
greasy dirt stains on the filament which degrades performance and lamp life. Disconnect the
power. Before replacing the lamp the fixture needs 20 minutes for lamp cooling. Fasten the head
with Y axis protect lock in 60 ° position.
1. Use cross screwdriver to open the light body cover (picture 1)
（1）
2. After open the cover,you can see the lamp inside,please wait the lamp be cool after used but not
touch it in hot status.(picture 2)
（2）
3. One hand press the lamp holder,another hand hold the lamp,and pull out the wires(picture 3,4)
（3）（4）
4.after take apart the lamp, please check the inside glasses, clear it will make the light better
effect.(Picture 5)
（5）
5.install the lamp after replaced.

9

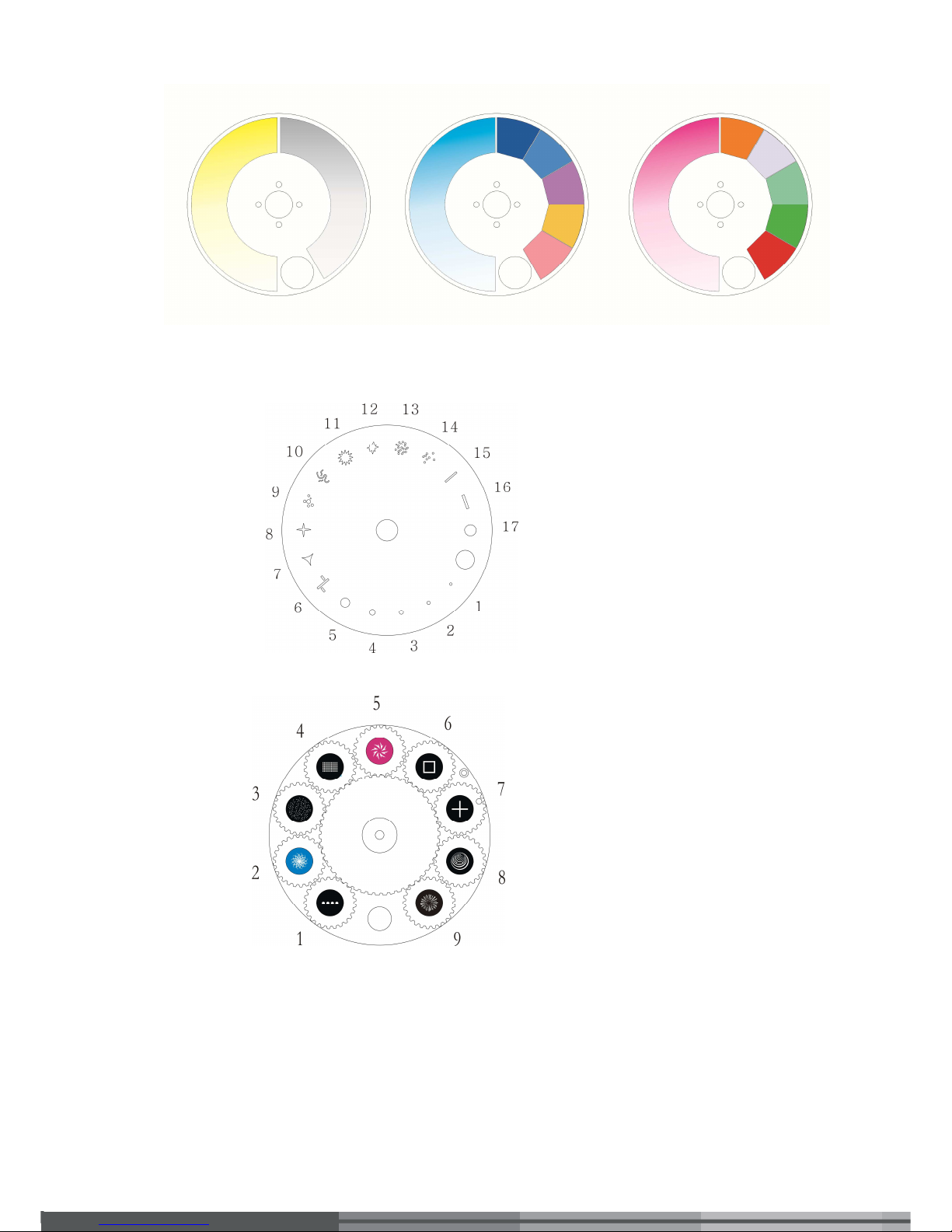

8.COLOR WHEEL,GOBO WHEEL
BS440C color wheel with colors+CMY,pure colors,perfect effect;
BS440C Static gobo wheel with 17gobos +white, Rich gobos;
BS440C Rotate gobo wheel with 9gobos+white, smooth gobo rotation, replace easily;
Two rotation prism, one 8 facet prism, one linear 4 prism, one fixed 16 prism, each two
prism can combined using together. Frost function.

10

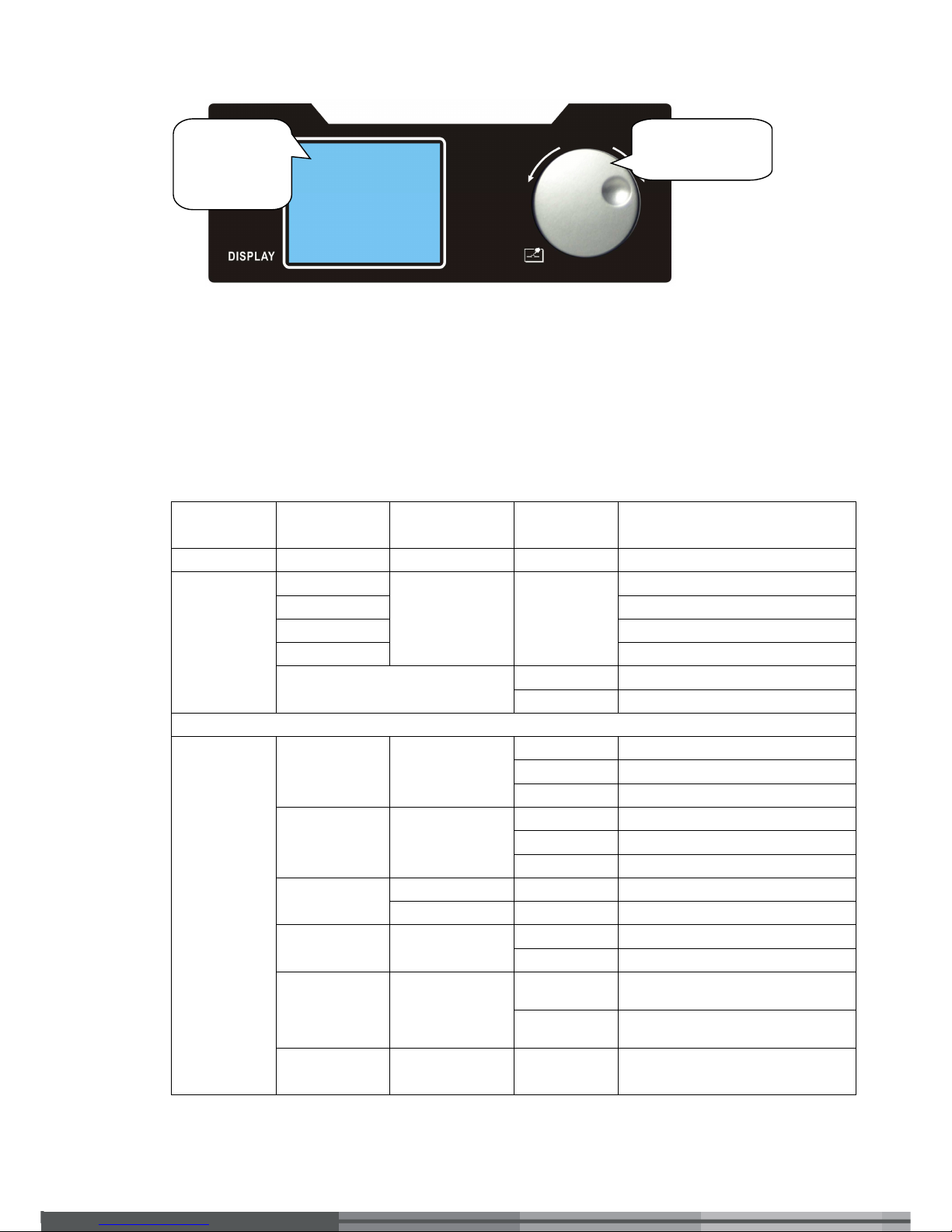

9. CONTROL PANEL
Touch screen display：Display the data information and control operation;
Control wheel: can turn right,left and enter;
Turn left: Data increasing, scroll menu;
Turn right: Data diminishing, scroll menu;
Enter: OK
9.2. CONTROL PANEL MENU OPERATE
Main Menu Submenu 1 Submenu2
Function
SET Function description
DMX
ADDRESS
<<
1-512
to address 1
< address up
> address down
<< to address 512
SAVE save and back
ESC back
FEATURES
SETTING
Run Mode:
DMX DMX
Wire no function
Aoto no function
Channel Mode:
20CH 20CH mode
24CH 24CH mode
30CH 30CH mode
Pan Reverse:
Off Pan Scan Normal
On Pan Scan Reverse
Tilt Reverse: Off Tilt Scan Normal
On Tilt Scan Reverse
Opto Check: Off Pan/Tilt optical sensor testing off
On Pan/Tilt optical sensor testing on
PT Speed: Noml
Pan/Tilt Scan Speed setting
normal
CONTROL
WHEEL
TOUCH
SCREEN
DISPLAY

11
Slow
Pan/Tilt Scan Speed setting
slow
Fast
Pan/Tilt Scan Speed setting
fast
Pan Angle:
360 Pan Scan Angle setting 360
540 Pan Scan Angle setting 540
630 Pan Scan Angle setting 630
Singl Clear: Off keep signal data
On clear signal data
Full Colour: Off half color function
On full color function
ShortCut: Off Shortcust off for colors and gobos
On Shortcust open for colors and gobos
ADV. ADVANCED FUNCTION
RST. Re-setting and back
SAVE Save and back
ESC Back
ADVANCED
FUNCTION
Redress
ZEROSETTING
Pan:
0-255 Adjust the begging state
Tilt:
Static Gobo:
Rot Gobo:
Colour:
Colour2:
Colour3:
Focus:
Zoom:
Dimmer:
Prism:
Beam:
Beam Rot:
Frost:
SAVE Save and back
>
<
ESC back
ChanlDef No function
FactSett Only factory only
UseManage
Limit LimitTime No function
LimitCont No function
DefConfig YES Return to default
NO back

12
FacConfig
SAVE Save and back
EPRT for factory only
ESC back
ESC back
UNLOCK
Verify1: 0-255 need password
Verify2:
KEY need password
ESC back
MANUAL
LAMP REST
ALL MOTER All step motor(do not adjust it )
XY
MOTER
Pan/Tilt step motor adjust(do not
adjust it )
PART
MOTER Other step motor( except Pan/Tilt)
YES The chosen step motor reset
ESC Back
TEST RUN
AUTO Auto
SOUND Sound
ESC Back
SMULATE
DMX
Pan:
0-255 Control Channel on display
Pan Fine:
Tilt:
Tilt Fine:
PT Speed:
Special Fun:
Colour:
Colour2:
Colour3:
Cyan Colour:
Magenta Colour:
Yellow Colour:
Static Gobo:
Rot Gobo:
Gobo Rot:
Prism:
Prism Rot:
Frost:
Zoom:
Zoom Fine
Focus:
Focus Fine:
Strobe:
Dimmer:
> Value+1
< Value-1

13
ESC Back
ESC Back
SYSTEM
INFO
DMX VALUE CH00-CH32 0-255 DMX value number
REST INFO
Colour:
Right/Error For factory only
Rot Gobo:
Static Gobo:
Pan:
Tilt:
Gobo Rot:
Prism:
Beam:
Prism Rot:
Beam Rot:
Zoom:
Focus:
Pan Opto:
Tilt Opto:
ESC Back
OTHER INFO
Run Time: 0-9999 Machine runing hours
Run Count: 0-9999
How many time of the Machine
power on and off
Residue T: Most Running time adjust(do not adjust)
Residue C: Most (do not adjust)
Type: 280W Mode No
Temp: 0 No function
Fan 1: 0-9999 Fan 1 speed
Fan 2: 0-9999 Fan 2 speed
DisVersion: Vxxx Version of display software
XY Version: Vxxx Version of Pan/Tilt software
M1 Version: Vxxx Software Version M1
M2 Version: Vxxx Software Version M2
ESC Back
ESC Back
DISPLAY
SETTING
Light Set: 1-7Lev Back Ground light level
Light Off:
On Keep back ground light on
1Min Back light turn off after 1 min
2Min Back light turn off after 2 mins
3Min Back light turn off after 3 mins
Menu Back:
Off Turn off the menu and back
1Min Menu back after 1 min
2Min Menu back after 2 mins
3Min Menu back after 3 mins

14
Light Flash: Off Back ground light flash function off
On Back ground light flash function on
Touch Cali: Off Touch screen calibration on
On Touch screen calibration off
SAVE Save and back
ESC Back
LAMP
SETTING
Lamp
Default:
Off Lamp off
On Lamp on
Manual Lamp:
Off Lamp off by manual
On lamp on by manual
Lamp Time 0000-9999 Lamp time
Lamp State
Off Lamp off
On Lamp on
Lamp Off:
10M
After 10 mins no signal come in,
Lamp off
Lifh
No signal come in , lamp keep
lighting
10.DMX Channels
24CH Mode 20CH Mode DMX Value Function
1 1 0－255 Pan
2 * 0－255 Pan Fine
3 2 0－255 Tilt
4 * 0－255 Tilt Fine
5 3 0－255 Pan Tilt speed adjust
6 4 Marco
0－129 No function
130－139 Lamp on
140－149 Pan Tilt Reset
150－159 No function
160－169 All the small step motor Reset
170－199 No function
200－209 whole light Reset
210－229 No function
230－239 Lamp off
240－255 No function
7 5 Color 1
0 White
28 White+Pink
50 Pink
80 Pink+Light Orange
100 Light Orange

15
129 Light Orange+Light Purple
150 Light Purple
181 Light Purple+Blue
204 Blue
235 Blue+Deep Blue
255 Deep Blue
8 6 Color 2
0 White
28 White+Deep Red
50 Deep Red
80 Deep Red+Deep Green
100 Deep Green
129 Deep Green+Light Green
150 Light Green
181 Light Green+UV Blue
204 UV Blue
235 UV Blue+Deep Orange
255 Deep Orange
9 7 Color 3
0-255 CTO
10 8 0-255 Cyanine
11 9 0-255 Magenta
12 10 0-255 Yellow
13 11 Static gobo
0－3 No function
4－7 Gobo1
8－12 Gobo2
13－16 Gobo3
17－20 Gobo4
21－24 Gobo5
25－29 Gobo6
30－33 Gobo7
34－37 Gobo8
38－41 Gobo9
42－46 Gobo10
47－50 Gobo11
51－54 Slim Beam1
55－58 Slim Beam2
59-63 Slim Beam3
64－67 Slim Beam4
68－71 Slim Beam5
72-113 Run from fast to slow
114-117 Pause
118-159 Run from slow to fast
Gobo shake from slow to fast
160-165 Gobo1Shake

16
166－170 Gobo2Shake
171－176 Gobo3Shake
177－181 Gobo4Shake
182－187 Gobo5Shake
188－193 Gobo6Shake
194－198 Gobo7Shake
199－204 Gobo8Shake
205－209 Gobo9Shake
210－215 Gobo10Shake
216－220 Gobo11Shake
221－226 Slim Beam1Shake
227－232 Slim Beam2Shake
233－237 Slim Beam3Shake
238－243 Slim Beam4Shake
244-248 Slim Beam5Shake
249－255 Big Beam Shake
14 12 Rotation Gobo( postion Mode)
0 No function
1－4 Biggest White（Uniform effect）
5－7 Gobo1
8－10 Gobo2
11－13 Gobo3
14－16 Gobo4
17－19 Gobo5
20－22 Gobo6
23－25 Gobo7
26－28 Gobo8
29－31 Gobo9
Rotation Gobo(Gobo rotation Mode)
32－34 Gobo1
35－37 Gobo2
38－40 Gobo3
41－43 Gobo4
44－46 Gobo5
47－49 Gobo6
50－52 Gobo7
53－55 Gobo8
56－59 Gobo9
Gobo Shake index from slow to fast
60－67 Gobo1Shake
68－75 Gobo2Shake
76－83 Gobo3Shake
84－91 Gobo4Shake
92－99 Gobo5Shake
100－107 Gobo6Shake
108－115 Gobo7Shake

17
116－123 Gobo8Shake
124－129 Gobo9Shake
Gobo Shake rotation from slow to fast
130－137 Gobo1Shake
138－145 Gobo2Shake
146－153 Gobo3Shake
154－161 Gobo4Shake
162－169 Gobo5Shake
170－177 Gobo6Shake
178－185 Gobo7Shake
186－193 Gobo8Shake
194－199 Gobo9Shake
200－227 Rotation,Clockwise from fast to slow
228－229 Pause
230－255 Rotation Anti-clockwise from slow to fast
15 13 Gobo Rotation
If Rotation Gobo in position mode
0－255 Index
If Rotation Gobo in Gobo rotation mode
0 Pause
1－127 Rotation Anti-clockwise from fast to slow
128-129 Pause
130－255 Rotation clockwise from slow to fast
16 14 Prism（Prism rotation is in position mode）
0－5 No function
6－25 Prism1
26－50 Prism2
51－75 Prism3
76－100 Prism4
101－125 Prism5
Prism rotation is in rotation mode
126－150 Prism1
151－175 Prism2
176－200 Prism3
201－225 Prism4
226－255 Prism5
17 15 Prism Rotation（position mode）
0－255 Index
Prism rotation ( rotation mode)
0－1 No function
2－127 Rotate Clockwise from fast to slow
128－129 Pause
130－255 Rotate Anti-clockwise from slow to fast
18 16 Frost
0－64 No function
65－255 Frost changable

18
19 17 Zoom
0－255 Linear Zoom
20 * 0－255 Zoom Fine
21 18 0－255 Focus
22 * 0－255 Focus Fine
23 19 Strobe
0－31 Strobe Close
32－63 Strobe Open
64－95 Strobe from slow to fast
96－127 Strobe Open
128－143 From fast to slow,slow close fast open
144－159 From slow to fast,fast open slow close
160－191 Strobe Open
192－223 Random Strobe from slow to fast
224－255 Strobe Open
24 20 Dimmer
0-255 Linear Dimmer
30CH Mode DMX Value Function
1 0－255 Cyanine
2 0－255 Magenta
3 0－255 Yellow
4 Color1
0 White
28 White+Pink
50 Pink
80 Pink+Light Orange
100 Light Orange
129 Light Orange+Light Purple
150 Light Purple
181 Light Purple+Blue
204 Blue
235 Blue+Deep Blue
255 Deep Blue
5 Color 2
0 White
28 White+Deep Red
50 Deep Red
80 Deep Red+Deep Green
100 Deep Green
129 Deep Green+Light Green
150 Light Green
181 Light Green+UV Blue
204 UV Blue

19
235 UV Blue+Deep Orange
255 Deep Orange
6 Color 3
0-255 CTO
7 Strobe
8 Dimmer
0－31 Strobe Close
32－63 Strobe Open
64－95 Strobe from slow to fast
96－127 Strobe Open
128－143 From fast to slow,slow close fast open
144－159 From slow to fast,fast open slow close
160－191 Strobe Open
192－223 Random Strobe from slow to fast
224－255 Strobe Open
9 Dimmer Fine
10 Static Gobo
0－3 No function
4－7 Gobo1
8－12 Gobo2
13－16 Gobo3
17－20 Gobo4
21－24 Gobo5
25－29 Gobo6
30－33 Gobo7
34－37 Gobo8
38－41 Gobo9
42－46 Gobo10
47－50 Gobo11
51－54 Slim Beam1
55－58 Slim Beam2
59-63 Slim Beam3
64－67 Slim Beam4
68－71 Slim Beam5
72-113 Run from fast to slow
114-117 Pause
118-159 Run from slow to fast
Gobo Shake from slow to fast
160-165 Gobo1Shake
166－170 Gobo2Shake
171－176 Gobo3Shake
177－181 Gobo4Shake
182－187 Gobo5Shake
188－193 Gobo6Shake
194－198 Gobo7Shake
199－204 Gobo8Shake

20
205－209 Gobo9Shake
210－215 Gobo10Shake
216－220 Gobo11Shake
221－226 Slim Beam1Shake
227－232 Slim Beam2Shake
233－237 Slim Beam3Shake
238－243 Slim Beam4Shake
244-248 Slim Beam5Shake
249－255 Big Beam Shake
11 Effect Gobo(Empty)
12 Effect Gobo Rotation(Empty)
13 Rotation Gobo
1－4 Biggest White（Uniform mode）
5－7 Gobo1
8－10 Gobo2
11－13 Gobo3
14－16 Gobo4
17－19 Gobo5
20－22 Gobo6
23－25 Gobo7
26－28 Gobo8
29－31 Gobo9
Rotation Gobo(Gobo Rotation mode)
32－34 Gobo1
35－37 Gobo2
38－40 Gobo3
41－43 Gobo4
44－46 Gobo5
47－49 Gobo6
50－52 Gobo7
53－55 Gobo8
56－59 Gobo9
Gobo Shake index from slow to fast
60－67 Gobo1Shake
68－75 Gobo2Shake
76－83 Gobo3Shake
84－91 Gobo4Shake
92－99 Gobo5Shake
100－107 Gobo6Shake
108－115 Gobo7Shake
116－123 Gobo8Shake
124－129 Gobo9Shake
Gobo Shake rotation from slow to fast
130－137 Gobo1Shake
138－145 Gobo2Shake
146－153 Gobo3Shake
