Viking VBBO1601 Series User manual

RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
OUTDOOR—STORAGE
Multi-Use & Refrigeration Base
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
All models include
• Commercial-type construction, design,
and styling
o All cabinets are constructed
completely of heavy-duty stainless
steel
o Professional-style handle(s) match
the look of Viking outdoor
appliances
• 30”D.
• Heavy-duty, adjustable legs (same as
used on ranges)
• Cabinets must be installed with
locally-supplied countertop
• Optional clip-on toe kick included
VBBO1601 model includes
• Accommodates Viking 15”W. outdoor
side burner and TruSear griller
• Drawer (one) equipped with full
extension slides
VBBO2602 model includes
• Accommodates Viking outdoor 24"W.
wok/cooker, refreshment center,
24”W. rangetop, and TruSear griller
• Drawers (two) equipped with full
extension slides
VURO2400 model includes
• Accommodates Viking outdoor 15”W.
beverage center and ice machine.
• Door may be adjusted to mount left
or right hinge
• Fully-concealed hinges
VURO3200 model includes
• Accommodates Viking outdoor 24”W.
beverage center, beverage
center/icemaker combo, and beverage
dispenser
• Door may be adjusted to mount left
or right hinge
• Fully-concealed hinges
VBBO1601*
Base for Side Burner or
15”W. TruSear™Griller
FINISH DETAILS FOR ALL MODELS
• Stainless Steel (SS)
VBBO2602**
Base for Wok Top/Cooker,
24”W. Refreshment Center,
24”W. Rangetop, or 24”W.
TruSear™Griller
Standard Features & Accessories
Model Options
VURO2400***
Base for 15”W.
refrigeration products
VURO3200****
Base for 24”W.
refrigeration products
*Shown throughout with VGSB152T (15”W. side burners), sold separately
**Shown throughout with VGWT241T (24”W. wok top), sold separately
***Shown throughout with VUAR150T (15”W. beverage center), sold separately
****Shown throughout with VUAR140T (24”W. beverage center), sold separately
For compatible cooking and refrigeration products see Installation Notes & Accessories.

PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
OUTDOOR—STORAGE
Multi-Use & Refrigeration Base
✪ Please see
Installation Notes
and Accessories for
important
information,
including cooking
products, side
panels, and filler
strips.
VBBO1601 VBBO2602 VURO2400 VURO3200
Overall width 15-5/8” (39.7 cm) 26-3/8” (67.0 cm) 24” (61.0 cm) 32” (81.3 cm)
Overall height (from bottom) 34-1/2” (87.6 cm)
Overall depth (from rear) 29-7/8” (75.9 cm)
To end of handle brackets 31-7/8” (81.0 cm) 31-7/8” (81.0 cm) N/A N/A
Approx. ship wt. lbs. (kg) 104 (47.2) 160 (72.6) 115 (52.2) 125 (56.7)
Dimensions & Specifications

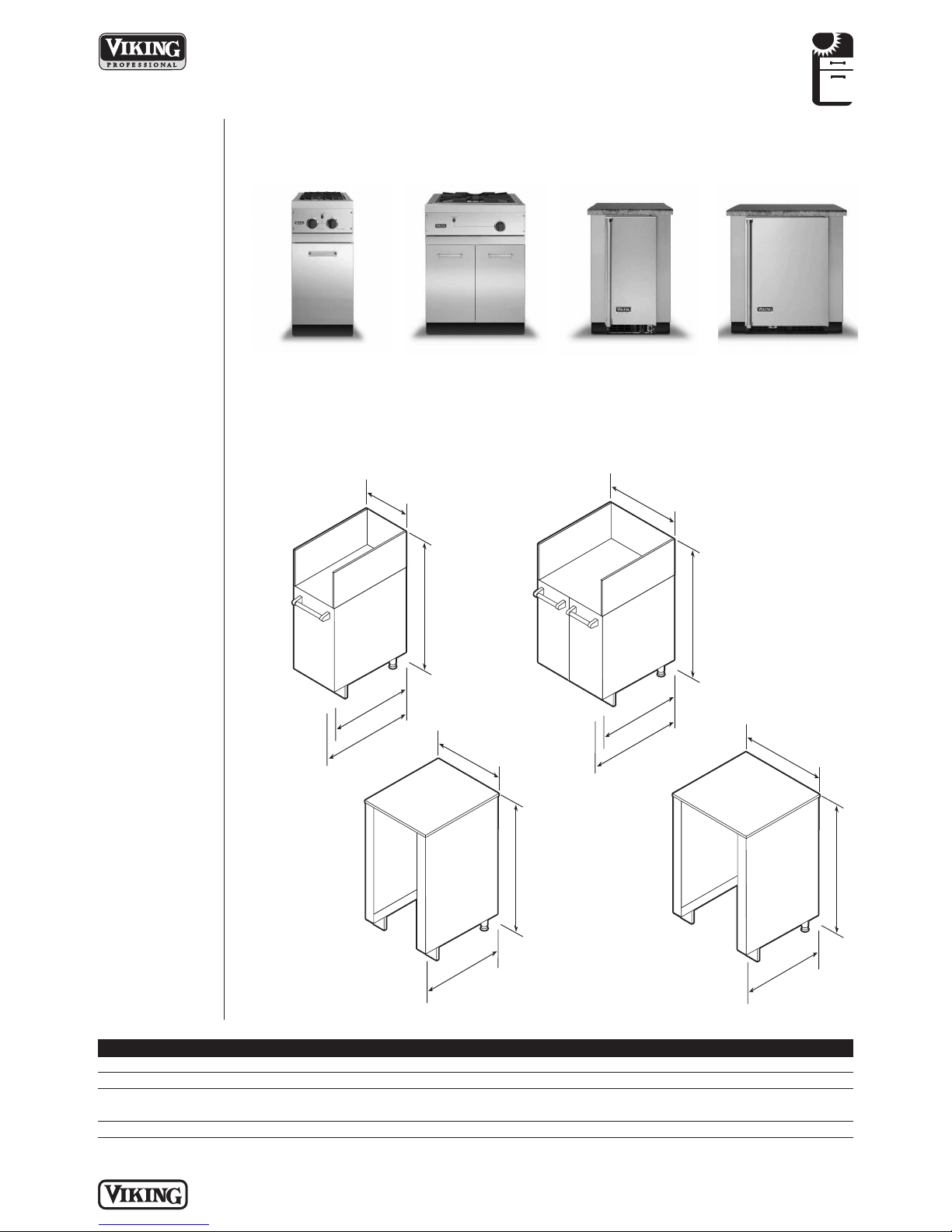

PRODUCT DIMENSIONS
15-5/8”
(39.7 cm)
29-7/8”
(75.9 cm)
31-7/8”
(81.0 cm)
34-1/2”
(87.6 cm)
26-3/8”
(67.0 cm)
29-7/8”
(75.9 cm)
31-7/8”
(81.0 cm)
34-1/2”
(87.6 cm)
24”
(61.0 cm)
29-7/8”
(75.9 cm)
34-1/2”
(87.6 cm)
32”
(81.3 cm)
29-7/8”
(75.9 cm)
34-1/2”
(87.6 cm)
VBBO1601
Base for Side
Burner or
15”W. TruSear™
Griller
VBBO2602
Base for Wok
Top/Cooker, 24”W.
Refreshment Center,
24”W. Rangetop, or
24”W. TruSear™Griller
VURO2400
Base for 15”W.
refrigeration
products
VURO3200
Base for 24”W.
refrigeration
products
VBBO1601 VBBO2602
VURO2400 VURO3200

OUTDOOR—STORAGE
Multi-Use & Refrigeration Base
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
29-7/8”
(75.9 cm)
31-7/8”
(81.0 cm)
45-1/2”
(115.6 cm)
34-1/2”
(87.6 cm)
Dimensions & Specifications
DOOR SWING
VBBO

RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
OUTDOOR—STORAGE
Multi-Use & Refrigeration Base
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
Cooking Products
• See individual product pages for more information and additional specifications.
Refrigeration Products
• See individual product pages for more information and additional specifications.
Side Panels
• Heavy-duty stainless steel
• Panels finish sides of base cabinets at the end of a run
• Fit flush into recessed sides of cabinets
• Optional clip-on toe-kick included
Back Panels
• Heavy-duty stainless steel
• For use in custom island installations
• Individual panels for each cabinet
• 3/4”-thick (adds to cabinet depth)
• Optional clip-on toe-kick included
✪ Installation Notes & Accessories
Model Description Approx. ship wt. lbs. (kg)
VGSB152T 15”W. side burners (compatible with VBBO1601) 80 (36.3)
VGRT244T 24”W. rangetop (compatible with VBBO2602) 160 (72.0)
VGWT241T 24”W. wok/cooker (compatible with VBBO2602) 80 (36.3)
VGIB151T 15”W. TruSear griller (compatible with VBBO1601) 80 (36.3)
VGIB242T 24”W. TruSear griller (compatible with VBBO2602) 160 (72.0)
Model Description Approx. ship wt. lbs. (kg)
VBRC241 24”W. refreshment center (compatible with VBBO2602) 82 (36.9)
VUAR150T 15”W. beverage center (compatible with VURO2400) 110 (49.5)
VUAR140T 24”W. beverage center (compatible with VURO3200) 140 (63.0)
VURI140T 24”W. beverage center/icemaker (compatible with VURO3200) 140 (63.0)
VUIM150T 15”W. ice machine (compatible with VURO2400) 110 (49.5)
Model Description Approx. ship wt. lbs. (kg)
VSP30 29-7/8”W. x 34-1/2”H. side panel 16 (7.3)
Model Description Approx. ship wt. lbs. (kg)
VBP16 16”W. back panel (for VBBO1601) 10 (3.7)
VBP24 24”W. back panel (for VURO2400) 15 (6.8)
VBP26 26”W. back panel (for VBBO2602) 17 (7.7)
VBP32 32”W. back panel (for VURO3200) 21 (9.5)

OUTDOOR—STORAGE
Multi-Use & Refrigeration Base
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
Filler Strips, Pieces, & Other Corner Panel Kits
• Strips separate cabinets and create turns
o Mount sides flush with doors, NOT cabinet face
• Fit flush into recessed sides of cabinets
• Optional clip-on toe-kick included
Compliance Information
WARRANTY SUMMARY*
• One-year full warranty—complete product
• Lifetime limited warranty—rust through all stainless steel components
• Two-year limited warranty—door hinges and drawer slides
• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items
* For complete warranty see Use & Care Guide . Warranty valid on Viking products shipped within the United States and Canada.
✪ Installation Notes & Accessories
Model Description Approx. ship wt. lbs. (kg)
VCF90 Corner filler piece (each side is 4”W.)—for 90° bends 5 (2.3)
VCF135 Corner filler piece (each side is 4”W.)—for 135° bends 5 (2.3)
VFLR4 General filler strip (4”W.)—for separating appliance-based cabinets 5 (2.3)
VBPFLR4 4”W. back panel (for use w/VFLR4) 5 (2.3)
VOCF90 Outer corner filler panel kit (each side is 4”W.)— 40 (18.1)
for connecting 2 back panels at 90° angle and adding countertop support
VOCF135 Outer corner filler panel kit (each side is 4”W.)— 40 (18.1)
for connecting 2 back panels at 135° angle and adding countertop support
