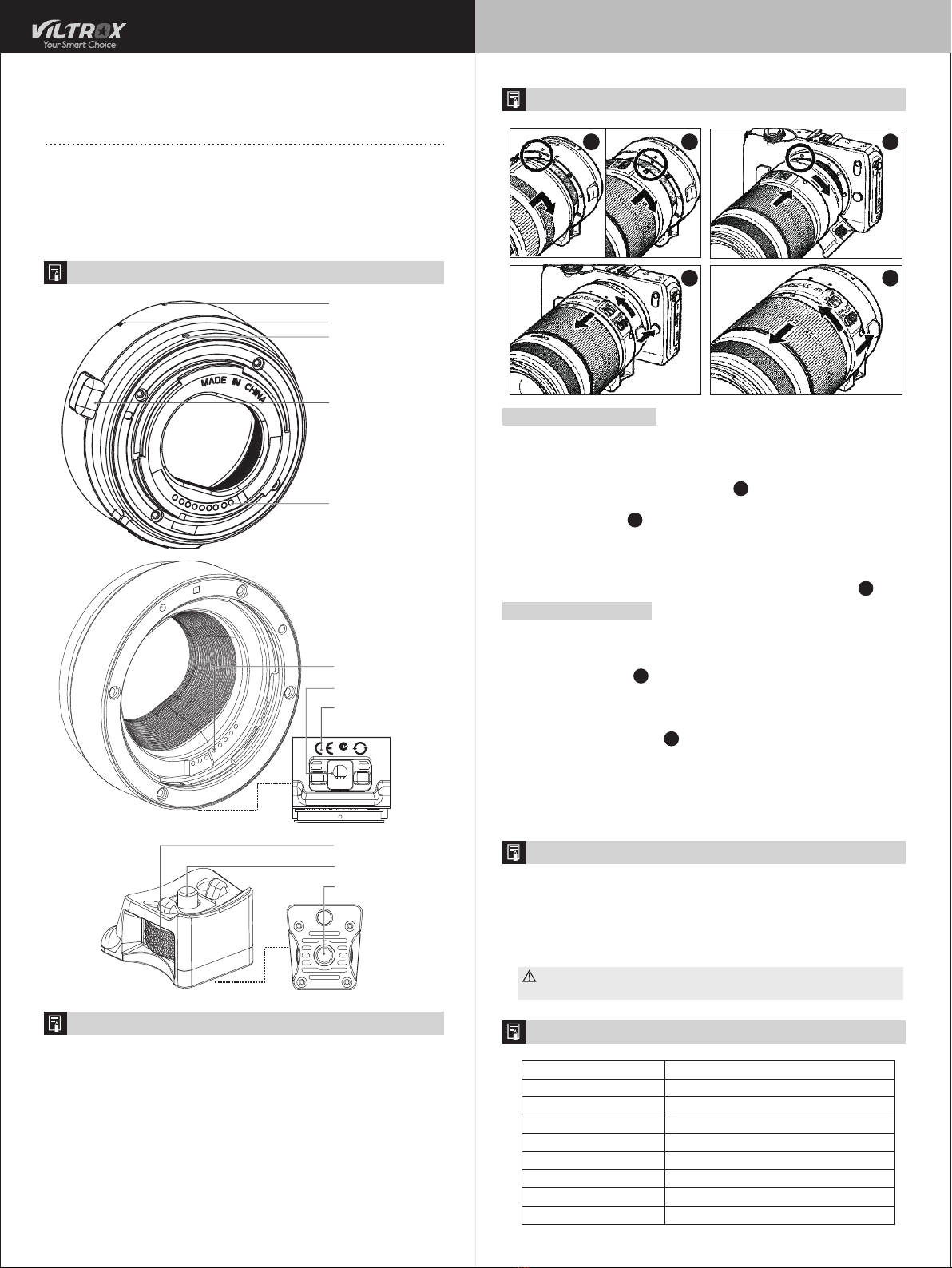

Viltrox EF-NEX Installation instructions

Lens release lever
EF-S Lens mount index
EF Lens mount index
Camera lens mount index
Contacts (camera side)
Contacts (lens side)
Tripod mount socket
Tripod mount screw
Tripod mount knob
Tripod socket
Certification/
Regulatory logos
Thank you for purchasing a Viltrox product.
◎ This adapter is connected to the lens and also affect the performance
of the lens.
1.Attach the included tripod mount to the adapter by firmly turning the
tripod mount knob.
Please make sure that the tripod mount is facing in the correct direction in
relation to the adapter.
2. Attach the tripod using the tripod mount socket.
Securely attach the tripod while firmly hoding the adapter.
The size and weight listed are for the adapter only.All data listed is measured according to Canon standards.
Specifications subject to change without notice.For more information, please visit www.viltrox.com
Mount Adapter EF-NEX
Instructions User manual
1.Attach the EF lens to the EF mount side of the adapter.
Insert the lens into the adapter by aligning the mount index found on the EF
lens (red circle) with the same mark found on the adapter,and turn the EF
lens clockwise until you hear a click.(fig. )
When attaching an EF-S mount index marks (white squares) and turn the
lens clockwise.(fig. )
2.Mount the adapter to the camera.
Insert the adapter into the camera by aligning the Sony E-mount lens mount
index found on the adapter (white circle) with the same mark found on the camera,
and turn the adapter counter clockwise until you hear a click.(fig. )
When using a tripod with EF lenses that are equipped with a tripod mount, such as super
telephoto lenses,please be sure to use it to mount the lens to the tripod.
① ② ③
④ ⑤
Compatible lenses
Compatible cameras
Front mount
Rear mount
Tripod Socket
Max.Diameter and Length
Weight
Front Cap
Rear Cap
JYC Technology(HK)Co.,Ltd.
10
N118
EF series lenses
◎ Detaching Procedures
◎ Mounting Procedures
1. Turn the camera OFF,and detach teh adapter from the camera while
the EF lens is still attached to it.
Turn the adapter counter clockwise the while pressing the camera's lens
release button.(fig. )
Detach the adapter once it has stopped turning.
2. Detach the EF lens from the adapter.
Turn the EF lens counter clockwise while pushing the lens release lever
found on the adapter.(fig. )
Detach the EF lens once it has stopped turning.
3.Precautions when using this adapter with a tripod
When shooting with a tripod,do not use the camera’s tripod mount socket
while the adapter is attached.Be sure to use the tripod mount included
with the adapter.
NEX series camera
Canon EF mount compliant
Sony E-mount compliant
Cu 1/4 × 1
66.6 26 mm×
Approx. 125 g
Camera Cover
Lens Dust Cap
The Lens Mount Adapter EF-NEX is designed to allow Sony E- ount
series lenes to be used with E-mount lens compatible interchangeable-lens
digital cameras lenses.Before using this adapter, please make sure that
the camera and the lens is compatible.
m
1. If the adapter cannot work on NEX series cameras,Please updated the
camera to 04 or up version.
2. After set the adapter on the EF-NEX lens ,Be remember to set the M
mode change to A mode.Please restart the camera if it cannot Auto focus.
3. It will not affect the performance of lens after seting the adapter ring on the lens.
4. Please use the switch on the lens to set the lens function. If the settings
in the camera menu and set on the lens, and is subject to the settings on the lens.
5. When you use the lens is much heavier than the camera, be sure to move
the camera and shoot holding the lens. Will increase the minimum focusing
distance of the lens adapter is connected, so the maximum magnification
and field of view may change.
①
②
③
④
⑤
Nomenclature
Attentions Specifications
Attaching the tripod mount
Mounting and Detaching the Adapter

的可换镜头数码相机搭配使用。
在使用此转接 环之前, 请确保相机 与镜头兼容。
使用本产品前,请详细阅读使用说明书,使您对产品更熟悉并掌握正
确的操作方法.请务必妥善保管好本说明书,以便日后能随时查阅。
唯卓镜 头 转接 环 EF-N EX的设计可将EF系列镜头与NEX系列兼容
◎ 使用此转接环时的注意事项
1. 在NEX系列相机上如果不能使用,请将相机 更新为04以上。
2. 安装卡口转接环EF－NEX镜头后,将设置从M模式转换到A模式后,
如果不能自动对焦,请重启相机。
3. 将此转接环连接至镜头并不会影响镜头的性能。
4. 请使用镜头上的开关来设置镜头功能。如果相机菜单中的设置
与镜头上的设置不同,则应以镜头上的设置为准。
5. 当您使用的镜头比相机还要重时,在移动相机及进行拍摄时请务必
握住镜头。由于镜头的最小对焦距离在连接此转接环时将会增加,
因此最大放大倍率和视野范围可能会改变。
版本号
1.将随附的三脚架座安装到转接环,并将三脚架座旋钮旋紧。
请确定三脚架座与转接环均朝向正确的方向。
2.使用三脚架座槽安装三脚架
紧握住转接环以稳固地安装三脚架。
列出的尺寸和重量指转接环,上述所有数据均按照标准测量。产品规格和外观
如若改变,恕不另行通知。更多资讯请访问：www.viltrox.com
-
EF NEX
使 用 说 明 书
卡口转接环
◎ 安装程序
1. 将E F镜 头 安 装 到E F转 接 环 上 的 安 装 槽
将EF镜头上的安装标记(红色圆圈)对准转接环上的相同标记,然后
以顺时针方向转动EF镜头直到听到喀一声为止.( )
将EF-S镜头安装到转接环时,请对准EF-S安装标记(白色方块)
将镜头插入转接环,然后以顺时针方向转动.( )
2. 将转 接 环 安 装到 相 机
将转 接环上 的相 机镜 头 安 装标 记(白色圆 圈)对准相机 上的 相同标
将转接环装入相机,然后以逆时针方向转动转接环直到听到喀一声
为止。( )
◎ 拆卸程序
1. 关闭 相 机 电 源,然 后 将 仍 安 装 着E F镜头 的转 接 环 从 相 机 取 下
按住相机的 镜头释放按钮,同时以逆时针方向转动转接环。( )
在转接环停止转动时将其取下。
2. 将E F镜 头 从 转 接 环 取 下
按下转接环上的镜头翻译杆,同时以逆时针方向转动EF镜头。( )
在EF镜头停止转动时将其取下。
3. 搭 配 三 脚 架 使 用 转 接 环 时 的 注 意 事 项
当使用三脚架时行拍摄时,如果您已安装转接环,请勿使用相机的三脚架
安装槽.请务必使用转接环随附的三脚架座。
① ② ③
④ ⑤
兼容镜头 E F系列镜头
兼容相机 NEX系列相机
正面安装 佳 能EF安装 相容
背面安装 索 尼E - M O U N T安 装 相 容
三脚架槽 CU 1/4×4
最大直径及长度 66.6×26毫米
重 量 约125克
前 盖 相机盖
后 盖 镜头防尘盖
JYC Technology(HK)Co.,Ltd.
在使用三脚架时,如果您的EF镜头(例如超长焦镜头)配备三脚架座,
请务必使用此架座将镜头安装到三脚架。
感谢您购买唯卓产品！
镜头释放杆
EF-S镜头安装标记
相机镜头安装 标记
触 点(相 机 端)
触 点(镜 头 端 )
三脚架 座 槽
三脚架座螺丝
三脚架座旋钮
三脚架槽
证书/规章标 志
E F 镜头 安 装 标 记
①
②
③
④
⑤
唯 卓
产 品 规 格
安装三脚架
安装和 拆卸转 接 环
注意事项
部件名称
10
N118
