Vino Safe VSP WINE CELLAR Operating instructions

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 1 out of 20
NVS S.A.S. - VinoSafe
2 Rue des Artisans
F-68280 SUNDHOFFEN
Tel. + 33 (0)3 89 71 45 35
Fax. + 33 (0)3 89 71 49 73
Email: [e-mail]
www.vinosafe.com
Reference:
460vspsav1ev8
Last update :
01/07/08
INSTALLATION & RECOMMENDATION GUIDE
VSP WINE CELLAR
PLEASE READ THESE INSTRUCTIONS BEFORE ASSEMBLING AND COMMISSIONING YOUR
WINE CELLAR. THEY INCLUDE NECESSARY INFORMATION FOR YOUR SAFETY, THE APPROPRIATE USE
AND MAINTENANCE OF YOUR CABINET.
WAIT FOR 48 HOURS BEFORE TURNING THE CABINET ON
A. THANKS…
The VinoSafe team thanks you for choosing a VSP wine cellar. We design and manufacture them in the French region
of Alsace in the same spirit as a wine grower who constantly tries to improve her/his wines quality. We hope you will
be fully satisfied. It is therefore mandatory for you to take some time to read this guide simultaneously with the
discovery of your cabinet look and features. Your wines deserve this as you invest time and money into them.
We thank you in advance to share with us all relevant remarks that will help us to improve our products and services.
B. ROLE OF YOUR VINOSAFE RESELLER
You will find hereunder the name and address of the company with whom you concluded this purchase. Your local
contact is the one who knows you best and who will be able to answer your first questions.
With 15 years experience in the wine cellar business, we have found out that 2 problems out of 3 can be solved
without any intervention of VinoSafe to replace some parts. This is why you will find in this guide a lot of explanations
and a list of questions and recommendations if you encounter a problem. If you do not solve the issue, please call you
reseller and call VinoSafe in case you are not getting the appropriate replies.
Don’t forget that a satisfied customer will always be a potential for positive recommendations to neighbours and
friends. It is VinoSafe’s interest to make sure you are not left without the appropriate support!
Your local reseller





Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 2 out of 20
C. DELIVERY, UNPACKING, STORAGE, REMOVAL CONDITIONS
You have acquired a refrigeration system that contains a gas in a closed circuit, and oil in the compressor. Your
product cannot be transported and stored in any position.
The air-conditioning system must never be put to bed. It has to be delivered inclined, then after out packing, it always
must remain standing (respect the same records at the time of a move)
Please check that the packaging is not damaged before you unpack. Damages to the outside packaging could be
significant of transport damages that could end up creating dysfunctions or outside defaults. Do not hesitate to make
comments on the delivery documents that you receive from the freight forwarder.
If you do not start using your VSE-CL immediately, leave it in its original packaging to protect it.
D. SAFETY RECOMMENDATIONS
Use this appliance only for the purpose for which it is intended:
-Storing your wine at a temperature between 8° and 15°C.
Any other purpose may be dangerous and is forbidden. The manufacturer may not responsible if the appliance
is not used properly.
An appliance that has been damaged (impact, flooding, fire, surges caused by lightning, etc…) may be
dangerous for your safety. If the appliance has suffered damage, unplug the appliance immediately or
disconnect the power supply and contact the manufacturer (see rating plate on the appliance).
This appliance complies with current safety regulations. Maintenance work (such as electric connections) must
only be carried out by qualified engineers. Faulty connections or repairs that have not been carried out correctly
present a considerable danger for the user.
Make sure that the voltage on your mains supply corresponds to the rating shown on the rating plate.
This appliance may not be electrically safe if it is not connected to an effective earth lead. It is essential that
this basic safety measure is taken and, if there is any doubt, the domestic wiring installation should be checked
by a qualified electrician. The manufacturer shall not be held responsible for the consequences if the appliance
is not earthed or if the earth is faulty or incorrectly connected.
For safety reasons do not use an extension lead.
Disconnect the appliance from the power supply while undertaking maintenance work or cleaning (unplug the
appliance or open the circuit breaker).
Do not allow young children to play with this appliance or to use it.
Do not lean on the air-conditioning unit.
If liquid accidentally runs into the air conditioning unit, (broken wine bottles, etc…), unplug the appliance
immediately or disconnect the mains supply and contact the manufacturer (see rating plate on the appliance).
Make sure that appliances are rendered unusable when they are no longer in use. Unplug the appliance and cut
the cable. Then take the appliance to an approved refuse tip.
Keep the manuals with your appliance for future reference.

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 3 out of 20
E. CABINET IDENTIFICATION

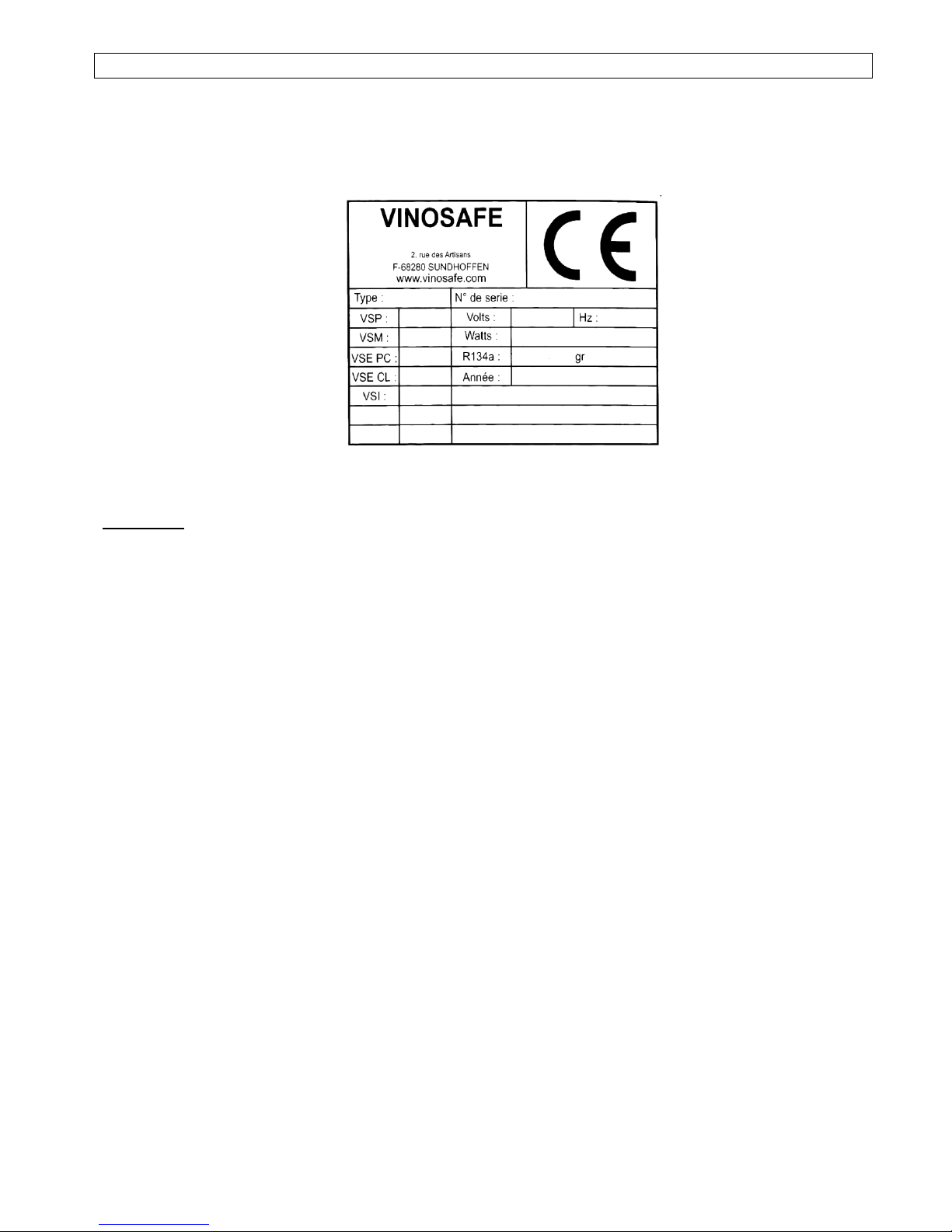

The identification nameplate is located at the top/left of the rear of the cabinet.
WARNING: WHEN YOU NEED INFORMATION OR TECHNICAL ASSISTANCE, PLEASE ALWAYS SUPPLY THE MODEL,
TYPE AND SERIAL NUMBER LOCATED ON THIS VINOSAFE NAMEPLATE.

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 4 out of 20
F. ASSEMBLY
F.1. ASSEMBLING THE WINE CELLAR
Use a metallic driller.
1. Principle
The insulating panels are assembled using hooks mounted on a rod.
These catches are operated using a right angled hex wrench.
In most cases, the hooks are engaged by turning the wrench fully
clockwise.
If the panels are incorrectly assembled or if you wish to dismount
the wine cellar, turn the wrench fully anti-clockwise before clamping
them again by turning clockwise.
Warning: The hooks which clamp the V.PM / V.PF / V.PR top
panels have to be turned in the opposite direction (anti-clockwise).
Warning :
Always start with rear left angle
Place the V.SM / V.SR / V.SF panels on the floor (flat surface).
NB: VSP 146 wine cellars do not have any V.PR panels.
Position the panels so that the tongue on each panel
slots into the groove on the adjacent panel.
Tighten the hooks fully (clockwise).

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 5 out of 20
Warning : Always start with rear left angle
(see draft)
Put the first corner panel (type V.A) in position.
Make sure that it is the right way up (the top is marked
HAUT).
Tighten the two bottom hooks (clockwise).
Fit the first side panel (type V.F).
Before tightening the V.F side panel to the V.A, corner
panel, make sure that the tops of the panels are well
aligned.
Tighten in the following order:
- the two side hooks,
- the two bottom hooks.
Continue assembling the other V.F side
panels as well as the V.A corner panels.
Always check that the tops of the panels are well
aligned.

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 6 out of 20
Warning: Allow a space for fitting the V.P.C. door frame.
The doorframe can be fitted in place of any V.F side panel.
Always end with a V.A. corner panel.
To make it easier to fit the last V.A panel, lift it up, engage the
tongues into the grooves and slide it downwards.

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 7 out of 20
Fit the first V.PM top panel
Fit the V.PR panel.
NB: VSP 146 wine cellars do not have any V.PR panels
NB: When clamping these panels to the V.PM panel, tighten
the hooks anti-clockwise.
Warning:
Use the panel pre-equipped with the electric cord near the
air conditioning door
Using a mallet, fit the white caps into the holes forhe hooks
mechanism.
Black caps are provided for the bottom and side of the
doorframe.
Fit the V.PF panel last
Warning:
Use the panel pre-equipped with the electric cord
near the air conditioning door
.

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 8 out of 20
F.2. WIRING
Fit the door.
Remove both side covers (A) from the strip light, V.R. (B)
Position the strip light at the top of the doorframe (on the inside):
- Ensure that the light bulks lamp (C) pass through the holes,
- Put the white light switch pusher through the hole.
- Fit the V.R. strip light using two 4 x 16 screws.

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 9 out of 20

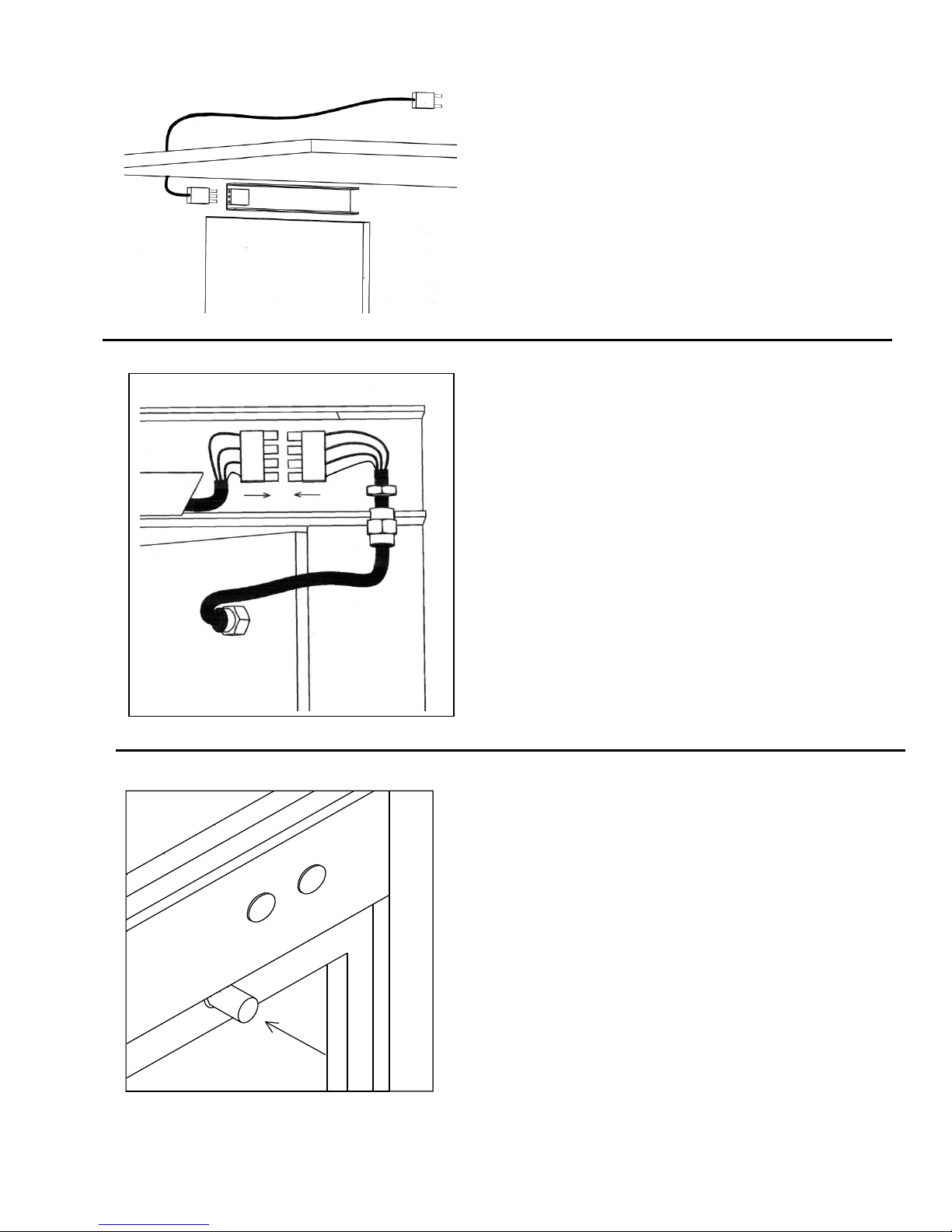

Take the black flexible conduit from the door to the
strip light and anchor the cut-out using the nut.
Attach the white connector from the door to the connector
inside the strip light.
Check that the light switch pushe operates correctly
You should hear a click when you press the switch
If there is a problem:
- Check that the movement of the switch pusher is not
hampered by a wire,
- Bend the steel lever of the switch to adjust the
movement of the pusher button.
- The pusher button should operate when the door
closes.
Link the male 3-point connector of the
electric cord to female connector positioned
on the ruler

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 10 out of 20
Replace the covers on either side of the V.R. strip
light.
Attach the covers using the two 4 x 10 screws
Place the V.C. air conditioning unit in front of the
door.
Warning! Do not lift the air conditioning unit by the
espace.
Connect the white connectors.
-Put the air conditioning unit on the bottom edge
of the door.
-Engage the hooks (A) one after the other using
the hex wrench (B) through the holes in the door
but do not tighten.
-Check that the air conditioning unit clears the
doorframe. If it slides to the door frame, adjust
the position of the air conditioning unit.
-Tighten the hooks (C).

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 11 out of 20
F.3. FITTING THE RACKS

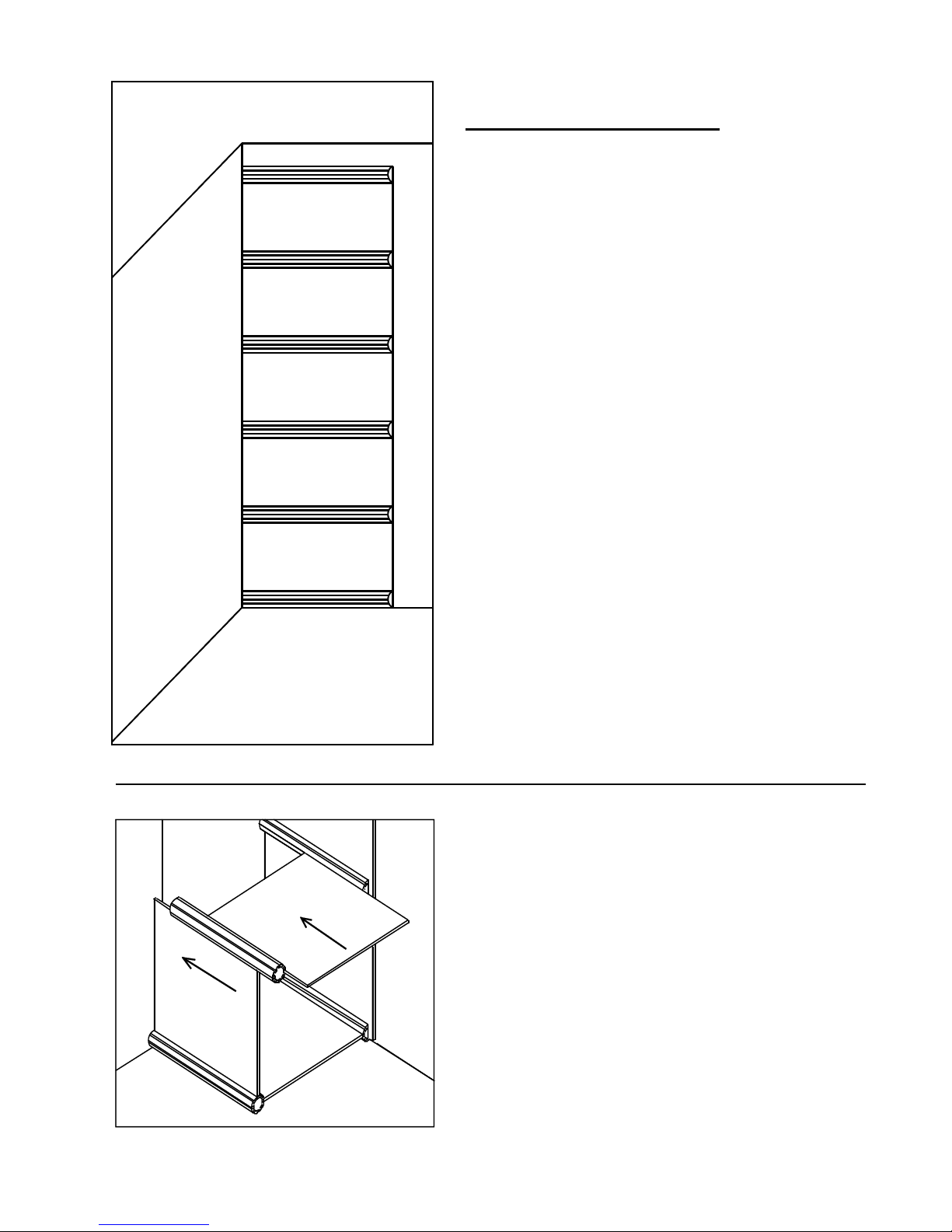

Fit of the V.EPB end panels and hold it upright.
Build up the rack by sliding the small V.EP panels into the
grooves in the V.EPB end panel and the V.ER connectors.

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 12 out of 20
The large V.ED dividers are designed to be
fitted diagonally to form two six bottle
compartments
.
A typical rack
All that remains to be done is to spread the gravel on
the floor, between the shelves.

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 13 out of 20
I. USER MANUAL
G.1. COMMISSIONING

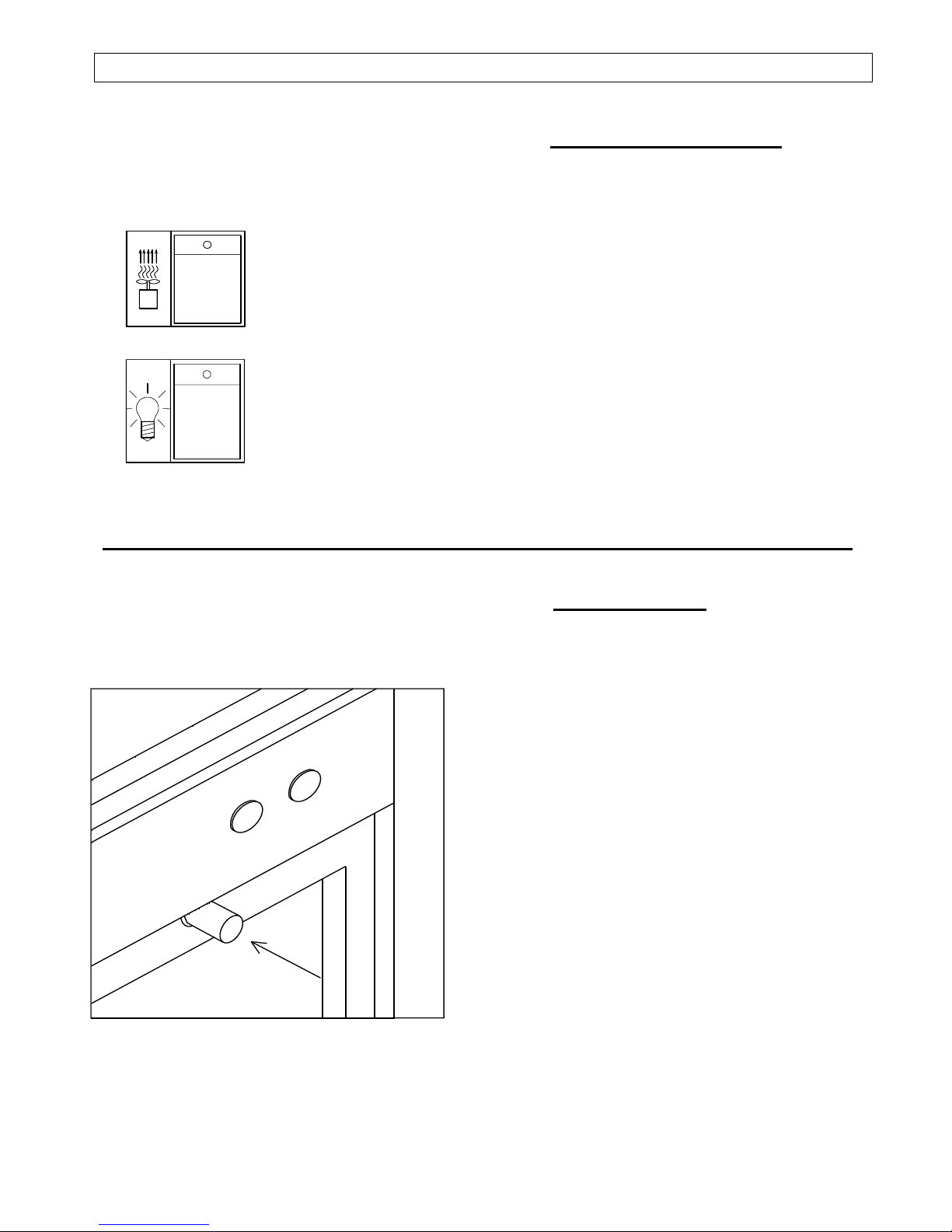

The two switches on the lighting strip to 0.
The switch nearer the end of the switch controls the air conditioning unit.
The other switch controls the lighting
Connect the power supply cable (single phase 220 V + earth) to a plug.
G.2. LIGHTING
Position 0: The lighting operates automatically
-Check that the lighting operates.
-The light should turn off automatically when the door is
closed.
-The yellow indicator on the outside shows whether the
light is on inside the wine cellar.
Position 1 : Lighting override
-The lighting can also be turned on manually if you wish
to stay in the wine cellar with the door closed, for
example to stack bottles. In this case, set the light
switch to 1.
REMEMBER to set the switch back to 0 for normal use:
light can prevent wine ageing correctly.
IN CASE OF PROBLEMS: (see opposite)
-check that the light switch is set to 0.
-check that the white switch pusher operated by
the door is working.

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 14 out of 20
G.3. AIR-CONDITIONNING UNIT
-Turn on the air conditioning (switch at end of strip).
-The green light should come on.
-The internal fan operates continuously.
-The external fan operates only when the unit is cooling.
-The unit thermostat is preset to maintain a constant
temperature of about 12 to 13°C inside the wine cellar.
-This temperature can be adjusted between 8°C and 15°C
by turning the control knob.
-If the temperature outside the cellar drops too low, (in
winter, for example) and there is a risk that the
temperature inside the cellar will fall, a heater within the
air conditioning unit will automatically take over from the
refrigeration system in order to maintain the ideal
temperature
SETTING AND ADJUSTING THE TEMPERATURES
The set values in the thermostats are not temperatures in grades, but indexes. A 1 unit index value is
close to 1° Celsius. It is necessary to wait 48 hours to check the impact of a temperature adjustment on
the thermostat.

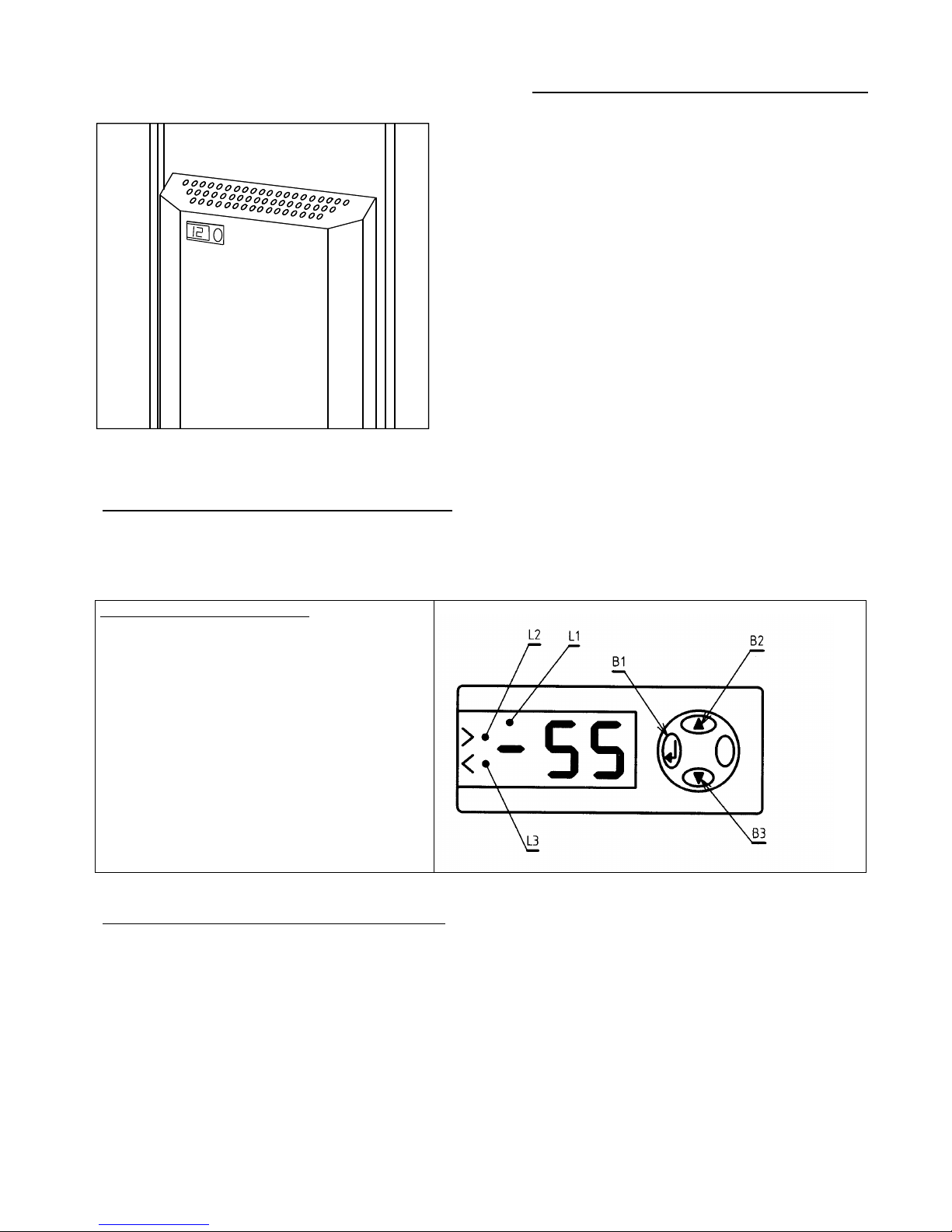

Electronic regulator (Picture D1) :
B1 : Displays the requested value
Validates the set value
B2 : Increases the requested value
B3 : Decreases the requested value
L1 : Flashes during a programming phase
L2 : The heating resistance is active
L3 : The compressor is active
Pict.D1
Display and programming of the desired index value:
-Press B1 until you read the message Set.
-Press B1 a second time to display the wished index value.
-Change this value using B2 & B3.
-Save this value by Pressing once more on B1.
-To confirm the value is saved, the message Set will be displayed.
After some time the display gets back to normal mode (display of the actual internal temperature).

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 15 out of 20
RELATIVE HUMIDITY
If the humidity is too low the corks will dry out (leakage), if the humidity is too high the corks and labels may go
mouldy but the wine will not be affected. The air conditioning unit has been specially designed to maintain a optimum
humidity.
FILTRING NEW AIR FROM OUTSIDE
A small amount of new air from the outside is
continuously drawn into the cellar to oxygenate the
inside.This air passes over an active carbon filter.
This filter must be changed regularly if the cellar is
located in place with unpleasant odours.
H. GENERAL PRECAUTIONS
Resetting the temperature:
Adjust the temperature gradually in very small increments so that the air conditioning unit does not operate for an
excessively long time (to avoid icing up).
To ensure that the air conditioning unit operates efficiently:
-Never obstruct the ventilation grills in the wall or over the unit.
-The cellar should be placed in well-ventilated area where the temperature does not exceed 35°C, to ensure that
the refrigeration unit will be effective.
-Dust sucked in by the air conditioning unit may reduce the efficiency of operation. The air conditioning unit should
be checked regularly to ensure that the condenser is clean. The air conditioning unit should be lifted off the wall
(page 9) and the condenser should be cleaned using a vacuum cleaner. This maintenance is not covered by the
guarantee.
Side to be cleaned

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 16 out of 20
STOCKING BOTTLES IN THE CELLAR
So that the air conditioning unit does not operate for an
excessively long time (to avoid icing up). We recommend
stocking the cellar gradually.
As both the glass and the wine have a significant thermal
capacity, it may take several days for the bottles to reach
the correct temperature.
During this period, the air conditioning unit will operate for
longer periods than normal and a small amount of water
may leak out. This will stop when the wine cellar and wine
have reached a stable temperature.
NB:
We recommend stacking the bottles with the cork towards
the walls of the cellar and the bottom of the bottle towards
the channel because:
- the bottles are not liable to slide or fall off the shelves,
- you can read the label without moving the bottle,
- this arrangement looks more attractive.
WE HOPE THAT YOU WILL BE FULLY SATISFIED WITH YOUR CELLAR AND THAT IT
WILL GIVE YOU GREAT PLEASURE.

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 17 out of 20
J. MAINTENANCE
TEMPERATURE TOO LOW
The thermometer is not showing the correct reading: Check by using another thermometer.
Thermostat set too low: Raise the temperature gradually to avoid subjecting your wine to sudden
changes in temperature.
TEMPERATURE TOO HIGH
The thermometer is not showing the correct reading: Check by using another thermometer.
Thermostat set too high: Lower the temperature gradually to avoid subjecting your wine to sudden
changes in temperature.
Door not properly closed: Check that the door closes and locks correctly.
Ventilation in the room where the wine cellar is installed is inadequate (this problem usually
arises when the outside temperature is high): If possible, open the door or windows. Install a
ventilation system in the room (ventilation grill, extractor fan, etc…)
Thermostat setting decreased too suddenly: Causes the air conditioning unit to ice up.
Air conditioning unit iced up: Turn the air conditioning unit off for 48 hours and turn on again,
ensuring that the thermostat is set on 13 °C or 14 °C. If the problem persists, disconnect the main
supply, remove the air conditioning unit from the wall (page 10) and clean the condenser using a vacuum
cleaner. This maintenance is not covered by the guarantee.
K. QUESTIONS / ANSWERS
This section is developed step by step following new cases that are brought forward to us. You will always find the
latest version on our website www.vinosafe.com.

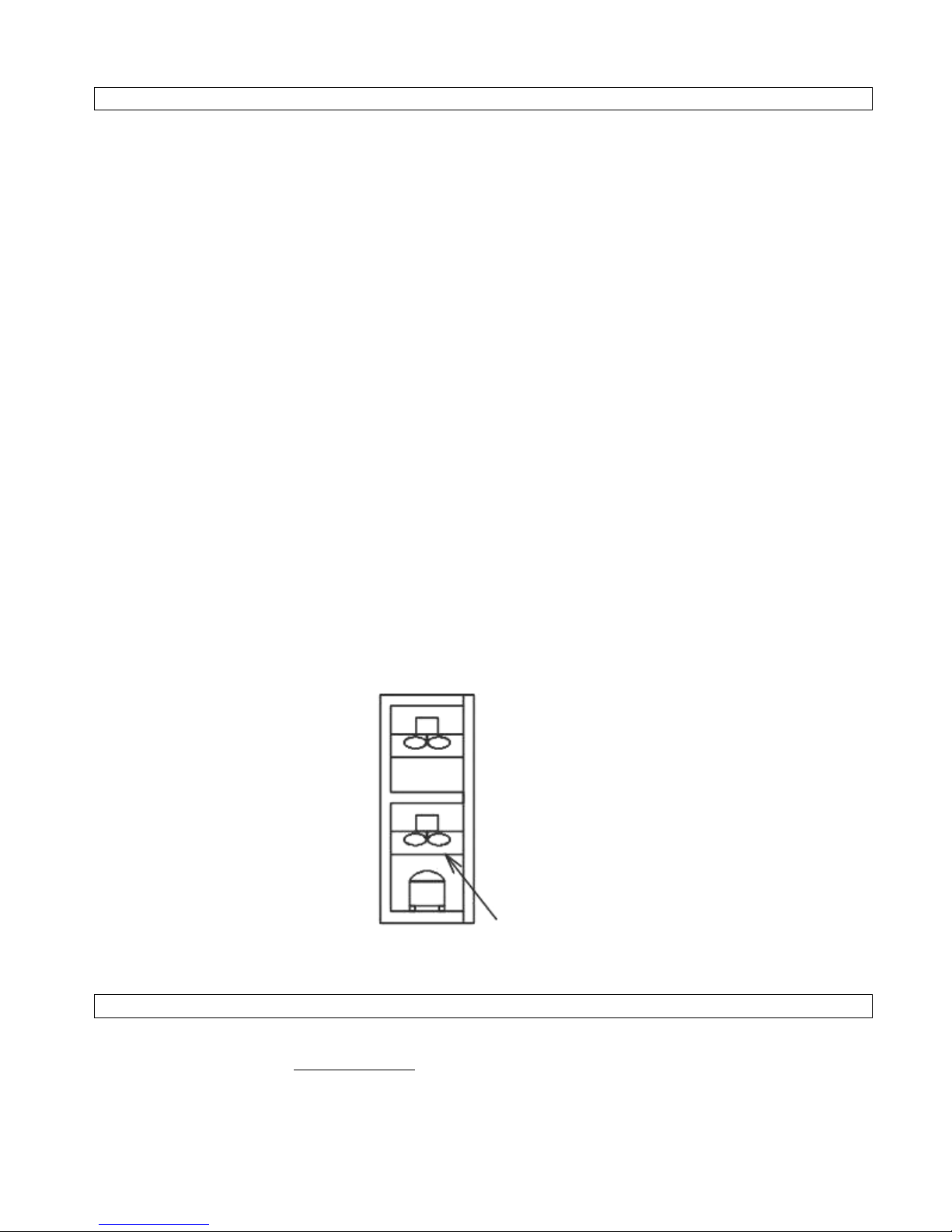

Side to be cleaned

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 18 out of 20

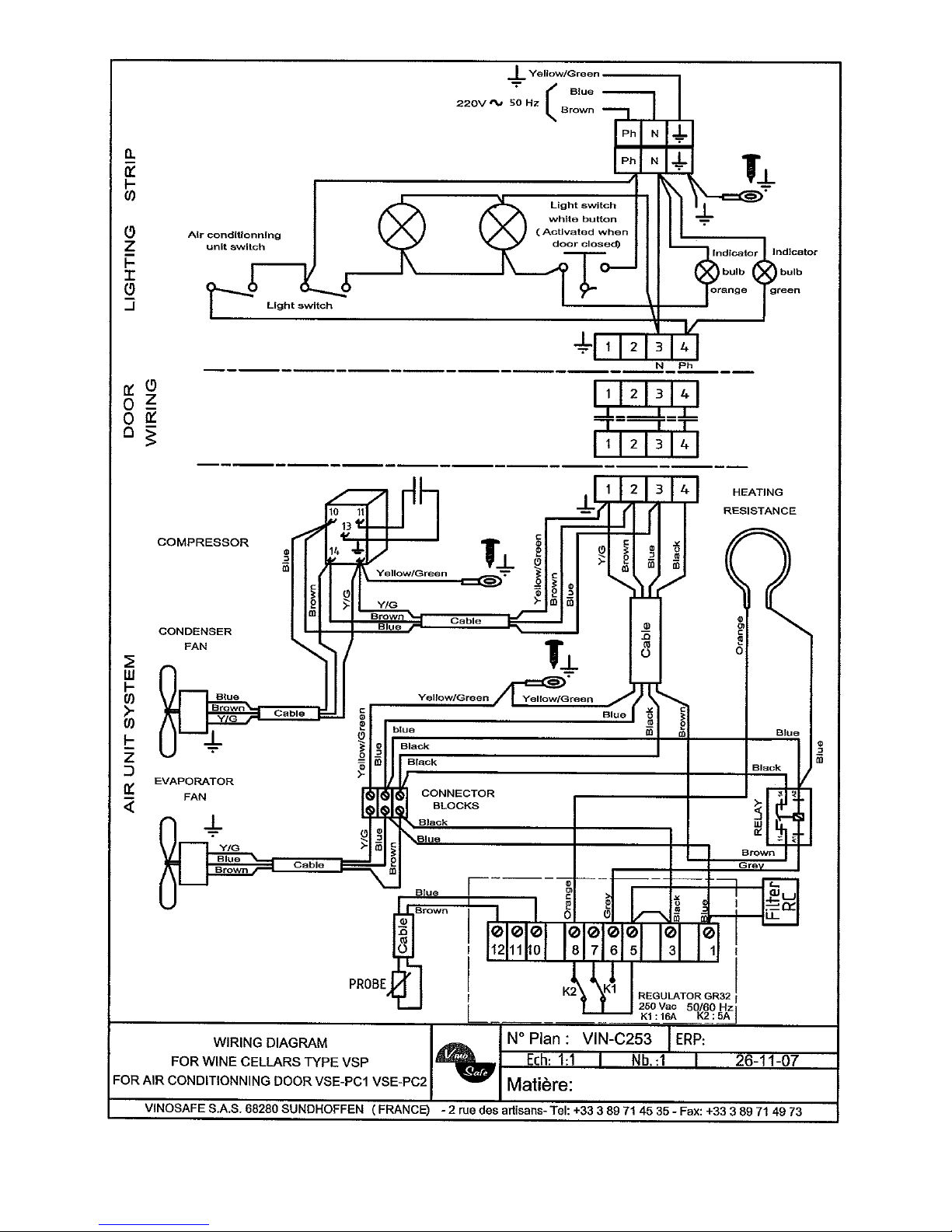

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 19 out of 20
L. RECOMMENDATIONS TO POTENTIAL BUYERS
If you are satisfied with VinoSafe, we suggest that you refer some potential buyers to us. If you transmit 5
comprehensive addressees of potential buyers to VinoSafe or its reseller, we shall send a gift to you (wine accessory).
If some addresses end us as orders, we shall send yet another gift, but more substantial.
You can send the joined document to your reseller by post or by fax, or mail these addresses either to your reseller or
direct to VinoSafe at [email protected].
M. ADVICES AND CONCLUSION
These guide’s detailed information is subject to changes without notice.
NVS SAS - VinoSafe offers no warranty on this equipment if is used for a different purpose than wine storage.
VinoSafe cannot be held responsible for potential mistakes in this guide or for any damage linked or generated
by the supply, the utilisation or the performances of this equipment.
This guide contains original information protected by copyright. All rights are reserved. Photocopying, copying
or translating this document is strictly forbidden apart from a written consent of NVS SAS - VinoSafe.
We thanks you again for your trust in NVS SAS - VinoSafe and remain, via our resellers our directly, at your
entire disposal. And happy wine tasting… with restraint!

Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 20 out of 20
DÉCLARATION DE CONFORMITÉ DU CONSTRUCTEUR selon les directives 73/23/CEE 89/336/CEE
CE CONFORMITY DECLARATION according directives EEC/73/23 EEC/89/336
HERSTELLERKONFORMITÄT ERKLÄRUNG entsprechend-Richtlinien EWG/73/23 EWG/89/336
Nous, NVS S.A.S
We, 2 rue des Artisans
Wir, F –68280 SUNDHOFFEN
Déclarons par la présente que la machine
Hereby declare that the machine
Erklären, dass die folgende Maschine
Type / type / Typ_______________________________________________________________________
Série n° _______________________________
Année de fabrication / Year of production / Herstellungsjahr__________________________________
Est conforme aux dispositions de la directive « Basse tension » 73/23/CEE et de la directive compatibilité
électromagnétique 89/336/CEE
Complies with the provisions of the low voltage directive EEC/73/23 and with the provisions of the electromagnetic
compatibility directive EEC/89/336
Den Bestimmungen der Niederspannungsenergie EWG/73/23 und den Bestimmungen der elektromagnetischen
Übereinstimmung –Richtlinie EWG/89/336 entspricht
Et est également conforme aux dispositions des normes européennes harmonisées suivantes :
Is in compliance with the following harmonised standards :
Und ebenfalls der folgenden Europäischen Normen… entspricht :
EN 60 335-1 sécurité des appareils électrodomestiques et analogues
Safety of household and similar electrical appliances
elektrische Geräte für den Hausgebrauch und ähnliche Zwecke
Timbre de l’Entreprise
