Vintec-Cellar V 120 SP User manual

V 160 DP / V 160 SP / V 120 SP
Instructions for use

2
GB

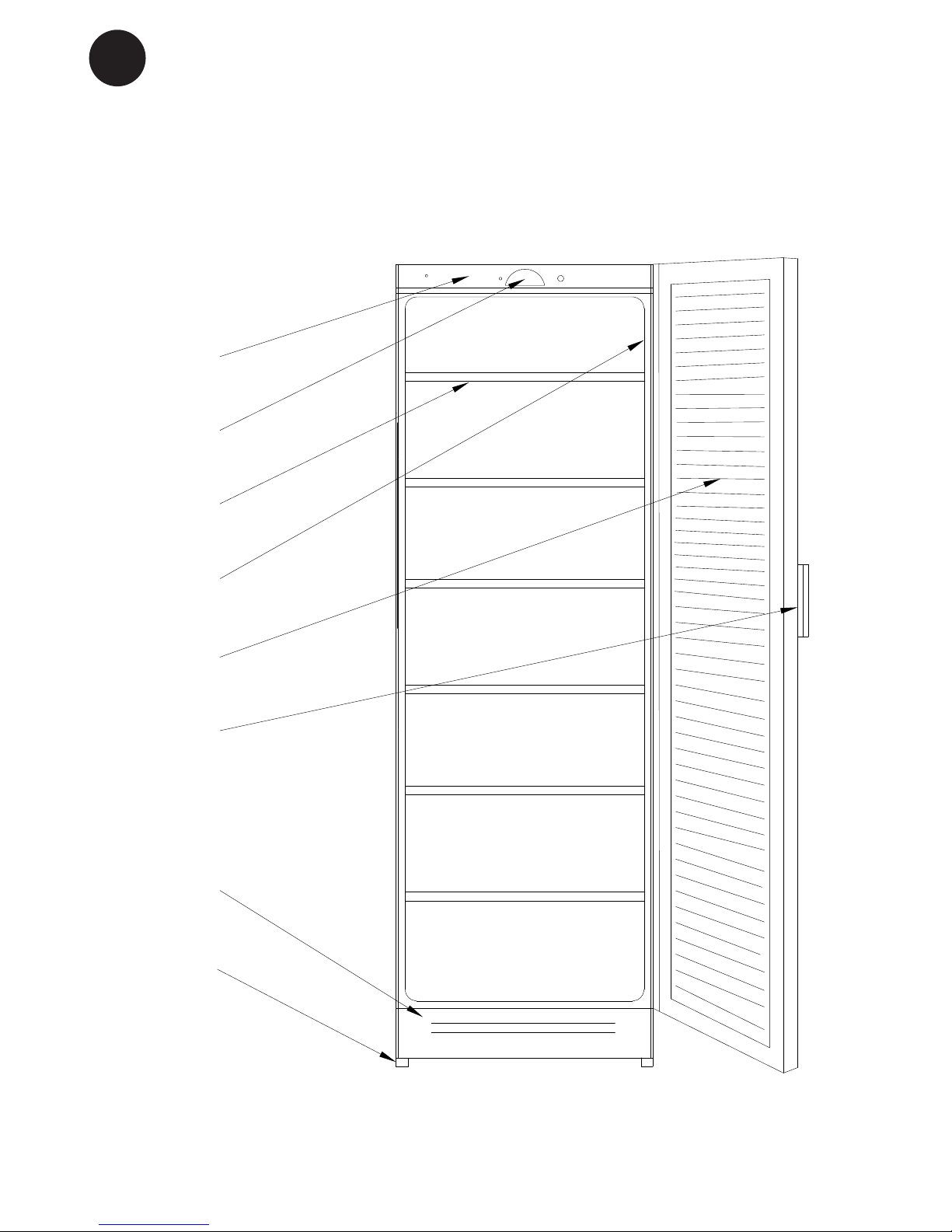

Get to know your wine cooler.
Controlpanel.
Toplight.
Shelf
Nameplate.
Door.
Doorhandle.
Kickplate.
Adjustable feet

3
GB
Warning.
In case this appliance contains hydrocar-
bon refrigerant please refer to guidelines
listed below.
As the appliance contains a ammable
refrigerant, it is essential to ensure that the
refrigerant pipes are not damaged.
Standard EN378 species that the room in
which you install your appliance must have
a volume of 1m³ per 8 g of hydrocarbon
refrigerant used in the appliances. This is
to avoid the formation of ammable gas/
air mixtures in the room where the appli-
ance is located in the event of a leak in the
refrigerant circuit. The quantity of the refrig-
erant used in your appliance is indicated on
the rating plate.
WARNING: Keep ventilation openings in
the appliance’s cabinet or in
the built-in structure clear of
obstruction
WARNING: Do not use other mechanical
devices or other means to ac-
celerate the defrosting process
than those recommended by
the manufacturer
WARNING: Do not damage the refrigerant
system
WARNING: Do not use electrical appli-
ances inside the refrigerated
storage compartment, unless
they are of a type recommend-
ed by the manufacturer
WARNING: Do not expose the appliance
to rain
WARNING: This appliance is not intended
for use by young children or
inrm persons unless they have
been adequately supervised by
a responsible person to ensure
that they can use the appliance
safely. Young children should be
supervised to ensure that they
do not play with the appliance
● Always keep the keys in a separate place
and out of reach of children
● Before servicing or cleaning the appli-
ance, unplug the appliance from the
mains or disconnect the electrical power
supply
● If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent, or similarly qualied persons in
order to avoid a hazard
● Relevant for Australia: Supply cord
tted with a plug complies with AS/NZS
3112.
● Frost formation on the interior evaporator
wall and upper parts is a natural phenom-
enon. Therefore, the appliance should
be defrosted during normal cleaning or
maintenance
● Directions for replacing the illuminating
lamps are to be included in the instruction
● Please note that changes to the appli-
ance construction will cancel all warranty
and product liability
● This appliance is intended to be used
exclusively for the storage of wine
● This appliance is intended to be used
exclusively for the storage of wine

4
GB
Only use an unscented detergent when
clea ning the cabinet inside.
You may remove the top panel and wash it
when cleaning the cabinet inside.
Switch off the appliance and pull out the
plug when cleaning the cabinet.
The skirting board can be removed to facili-
tate a vacuum-cleaning of the oor.
To make the cooling system work at its
optimum it is necessary from time to time
to clean the wire condensator and the com-
pressor at the back of the cabinet by means
of a brush or a vacuum cleaner. Remember
to clean the drain.
Check that the cabinet is undamaged.
Please report any damage immediately to
your dealer. Wash the cabinet and inner
lining with a mild unscented detergent and
wipe it dry. Do not use abrasive scouring
powder, steel wool or similar.
Before starting the ap-
pliance
Maintenance
Get to know ............................................2
Warning ..................................................3
Before starting the appliance ..................4
Maintenance ...........................................4
Has the appliance stopped working?......5
Installation ..............................................5
Technical data.........................................6
Control panel ..........................................6
General advice .......................................6
Change of hinge side..............................7
Lock ........................................................8
Warrenty and spare parts .......................8
Disposal ..................................................9
Contents

5
GB
Has the appliance
stopped working?
Before calling a repairman, check that
● The plug is properly plugged into the wall
socket.
● The fuse is intact.
● The power has not been cut off.
● All controls are correctly set.
● Switch off the cabinet for 15 minutes (for
instance at the thermostat). Switch it on
again and after 5 minutes check whether
frost has formed on the evaporator.
● Do not open the cabinet when unneces-
sary.

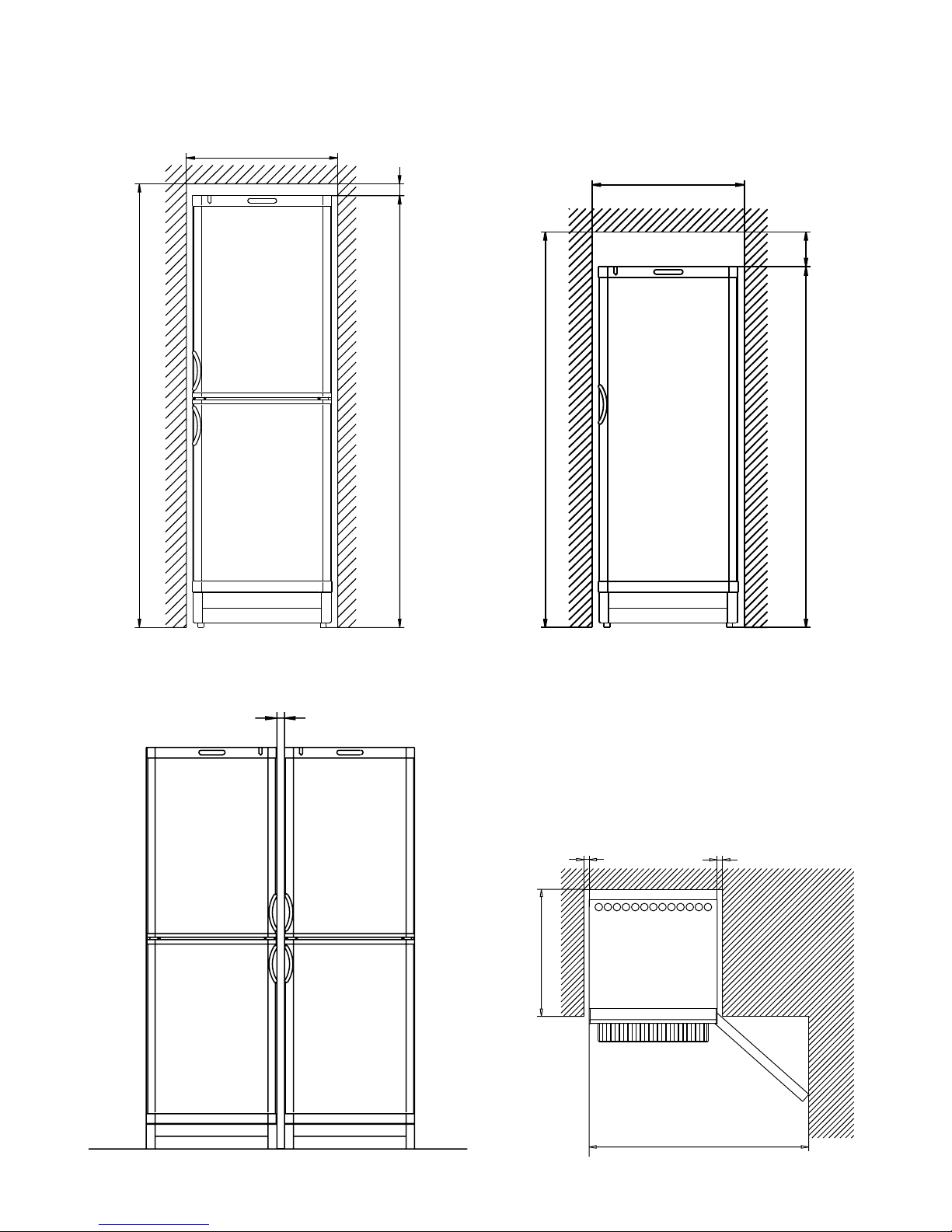

Installation.
See page A and B.
Install the cabinet in a dry place and so that
it is not exposed to direct sunlight or any
other sour ce of heat.
Place the cabinet in a level position. This is
easily achieved by adjusting the adjustable
feet at the front edge of the base.
The cabinet may not rest against a wall on
its hinged side. When placing the cabinet
on a carpet or on a wooden oor you should
adjust it once more after some time as the
cabinet might settle in soft foundati ons.
If you want to build the appliance into a
cupboard you must consider 3 factors:
1. There must be space above the ap-
pliance in order to make the cooling
system work satisfactorily.
2. When the door is opened the appliance
takes up more room in the width and
therefore the door must either be placed
outside the cupboard or there must be
a space of at least 1,5 cm at the hinge
side.
3. The distance to the wall at the hinge side
must be of a sufcient size.
.
Furthermore is it possible to build together
the appliance and another cabinet.
It is safest to place the earthed wall socket
abo ve the appliance and at least 1.7 / 2.0
m above the oor. Any local installation
rules for appliances of this kind must be
observed.
During a storm the electricity supply might
be cut off.
You should be aware of this when installing
the appliance in weekend cottages or else-
where where you would not immediately
observe that the power has been cut off.
Construction and details in the accessories
are subject to alter ation without previous
notice.
Max. 85 kg.

6
GB
Technical data.
Control panel.
General advice.
If the unit is not used for more than two
days it should be switched off and the doors
should be left open for ventilation to prevent
a bad smell in the unit.
The appliance is equipped with a high qua-
ity skin condenser. Therefore, a slight heat-
ing of the sidewalls is quite normal.
Lighting.
This appliance is equipped with a device
which causes the light to switch off if the
door is open / left ajar for abnormally long
time.
When the door has been closed for a cou-
ple of minutes, the device is cut off and the
light switches on in normal way again.
Defrosting.
The evaporator is automatically defrost. The
thawed water is led to a tray on top of the
compressor where it evaporates.
1. Lamp.
2. Thermostat knob.
3. Indicator for the connection to the elec-
tricity supply (green).
31 2
The thermostat knob is adjustable from 0
(stop) to 7 (coldest). Find the position of
the thermostat which gives you the desired
temperature. Start at position 4.
This device complies with relevant EU
directives including Low Voltage Directive
2006/95 EEC. and Electromagnetic Com-
patibility Directive 2004/108/EC
The rating plate provides various techni-
cal information as well as type and serial
number.

7
GB

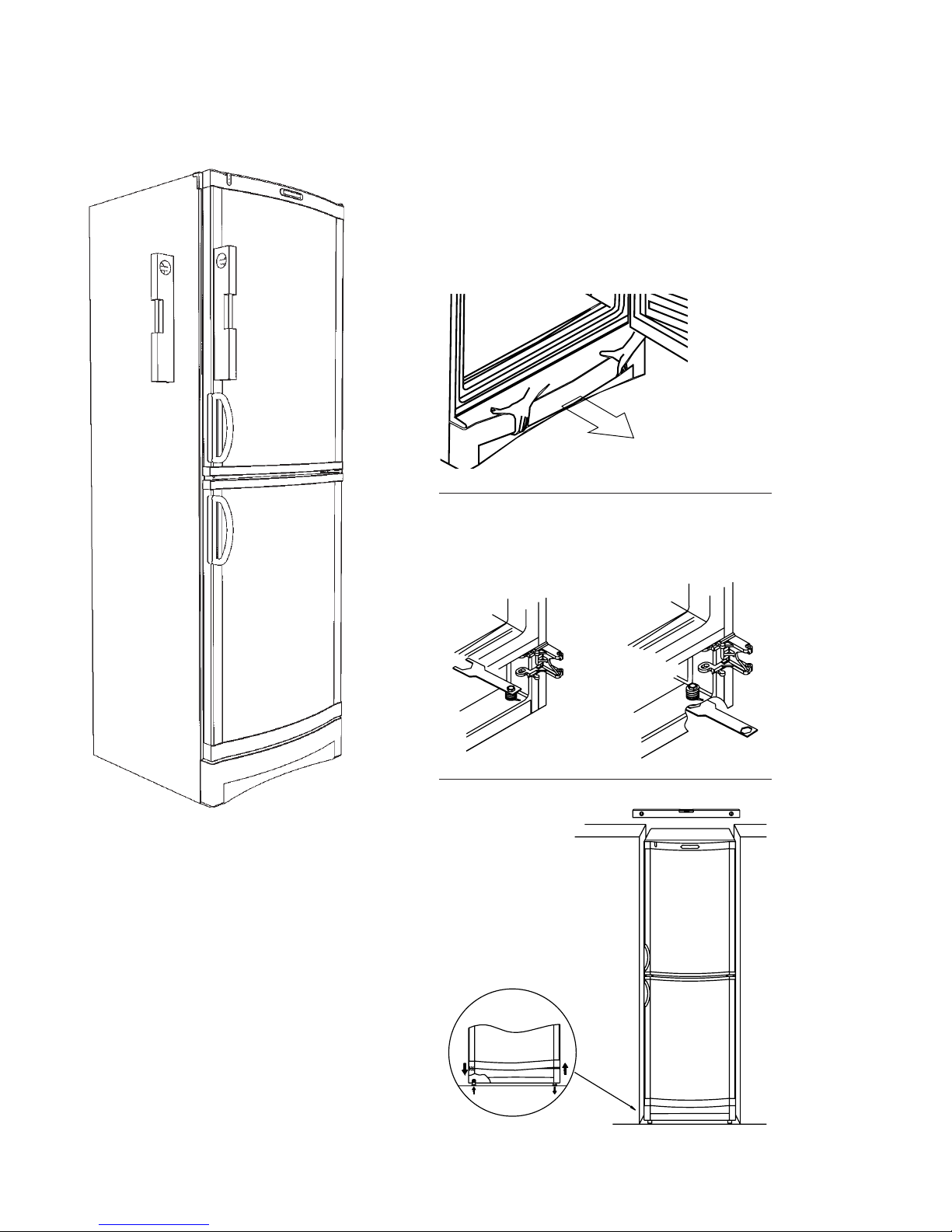

Change of hinge side.
8) Move the handle.
6) The kick panel is mounted and the
hole plugs are
mounted on the
opposite side.
1) Dismantle the top
hinge. This one is to
be used later as top
hinge at the opposite
side. Lift off the top
door.
3) Dismantle the middle
hinge. Lift off the bottom
door. Mount the hinge
screws again.
7) Ajustment of the top
door: loosen the screws
in the hinge above the
door, loosen the hinge
above the door and
turn the hinge to the
wanted side. Tighten the
screws.
5) Adjusting the bottom door:
Loosen the 3 screws in the
bottom hinge and push
the bottom hinge to the
required side. Tighten the
screws and mount the
kick panel.
2) On appliances with
a door closer on
the upper door, this
door closer should
be removed and
remounted on the
opposite side.
4) Dismantle the screws in
the middle of the new
hinge side. Mount
the bottom door and
screw on the middle
hinge.
4) Remove the kick panel.
The bottom hinge is dismounted
at the 3 screws. The hinge is
turned 180° and mounted
on the opposite side.

8
GB
Mounting of lock for
appliance with 1 door.
(Optional extra.)
Mounting of lock for
appliance with 2 doors.
(Optional extra.)
Warranty, spare parts
and service.
Warranty disclaimer
Faults and damage caused directly or
indirectly by incorrect operation, misuse,
insufcient maintenance, incorrect building,
installation or mains connection. Fire, ac-
cident, lightening, voltage variation or other
electrical interference, including defective
fuses or faults in mains installations.
Repairs performed by others than approved
service centres and any other faults and
damage that the manufacturer can sub-
stantiate are caused by reasons other than
manufacturing or material faults are not
covered by the warranty.
Please note that changes to the construc-
tion of the appliance or changes to the
component equipment of the appliance will
invalidate warranty and product liability, and
the appliance cannot be used lawfully. The
approval stated on rating plate will also be
invalidated.
Transport damage discovered by the buyer
is primarily a matter to be settled between
the buyer and the distributor, i.e. the dis-
tributor must ensure that such complaints
are resolved to the buyer’s satisfaction.
Before calling for technical assistance,
please check whether you are able to rectify
the fault yourself. If your request for assist-
ance is unwarranted, e.g. if the appliance
has failed as a result of a blown fuse or
incorrect operation, you will be charged
the costs incurred by your call for technical
assistance.
Spare parts
When ordering spare parts, please state
the type, serial and product numbers of
your appliance. This information is given on
the rating plate. The rating plate contains
various technical information, including type
and serial numbers.
Product numbers

9
GB
Disposal
Information for Users on Collection
and Disposal of Old Equipment and
used Batteries
These symbols on the products,
packaging, and/or accompanying
documents mean that used electri-
cal and electronic products and
batteries should not be mixed with
general household waste. For proper
treatment, recovery and recycling
of old products and used batteries,
please take them to applicable collec-
tion points, in accordance with your
national legislation and the Directives
2002/96/EC and 2006/66/EC.
By disposing of these products and
batteries correctly, you will help to
save valuable resources and prevent
any potential negative effects on
human health and the environment
which could otherwise arise from
inappropriate waste handling.
For more information about collec-
tion and recycling of old products and
batteries, please contact your local
municipality, your waste disposal
service or the point of sale where you
purchased the items.
Penalties may be applicable for incor-
rect disposal of this waste, in accord-
ance with national legislation.
For business users in the Euro-
pean Union.
If you wish to discard electrical and
electronic equipment, please contact
your dealer or supplier for further
information.
[Information on Disposal in other
Countries outside the European
Union]
These symbols are only valid in the
European Union. If you wish to dis-
card this product, please contact your
local authorities or dealer and ask for
the correct method of disposal.
Note for the battery symbol (bot-
tom two symbol examples):
This symbol might be used in combi-
nation with a chemical symbol. In this
case it complies with the requirement
set by the Directive for the chemical
involved.

A
600
25
min. 1040
600
min. 150
25
150
1501850
1550
600
min. 1700
min. 2000

B
If the cabinet is to
be adjusted:
Take hold of the front panel with both hands.
Then lift up the front panel and turn out the
bottom part.
Adjust the tilt of the unit
by turning the adjustable feet with a 13 mm
spanner.
Adjusting the door
If the door bumps against the bottom pa-
nel, this can be remedied by adjusting the
feet as shown on the drawing.

91.20.006-04
Reserves the right to alter specications without prior notice.
