Violet Defense S.A.G.E. UV Guide

USER MANUAL & WARRANTY

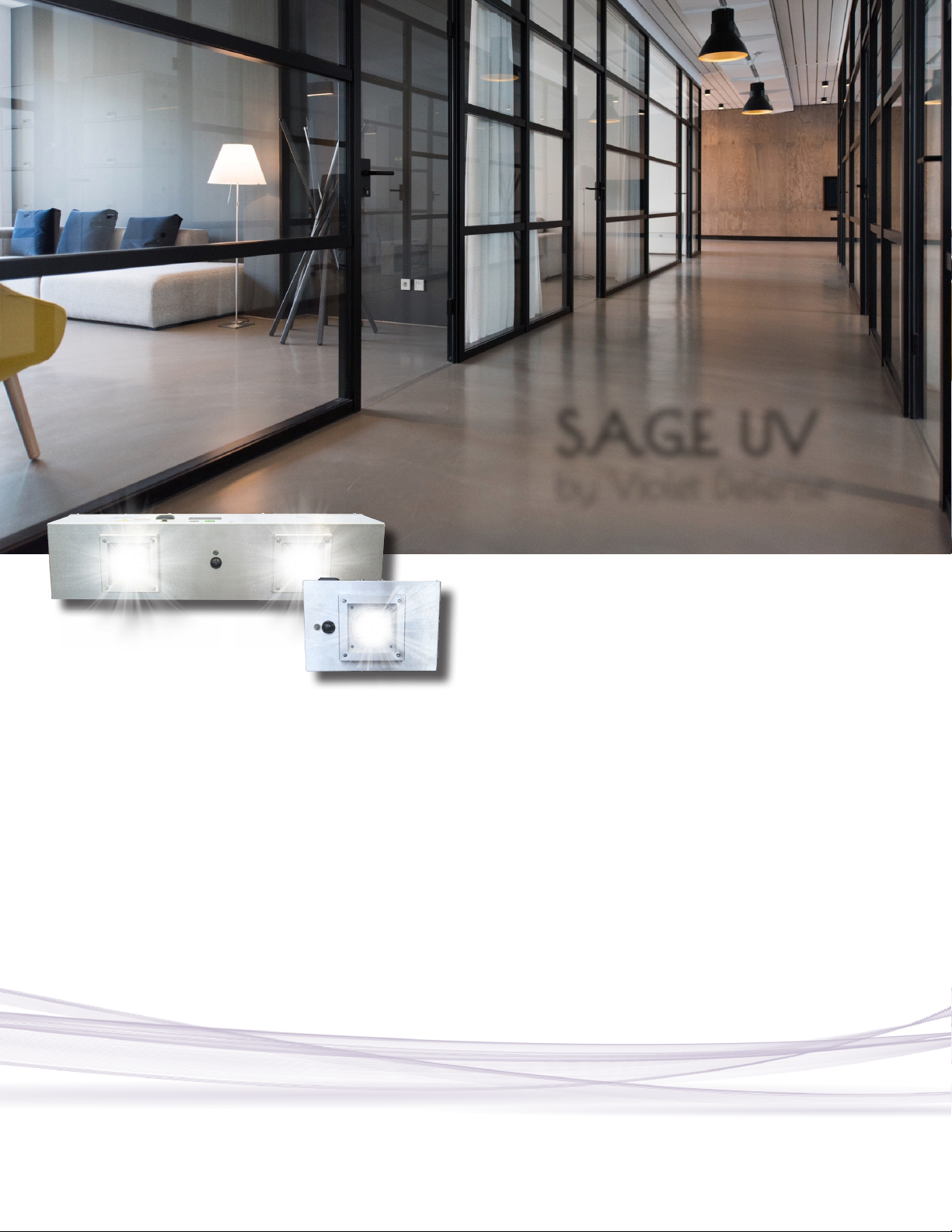

S.A.G.E UV Whole Room Unit
S.A.G.E. UV Micro
Violet Defense, LLC | www.violetdefense.com | 407.433.1104
S.A.G.E. UVS.A.G.E. UV
by Violet Defenseby Violet Defense

SAFETY WARNINGS 1
GENERAL OPERATION 2
STANDARD UNITS - OPERATIONAL GUIDELINES 3
BUILDING AUTOMATION ENABLED UNITS -
OPERATIONAL GUIDELINES 4
RECOMMENDED CLEANING PROTOCOLS 7
TROUBLESHOOTING 8
INSTALLATION 9
UV SAFETY OVERVIEW 10
WARRANTY 12
TABLE OF CONTENTS

1
IMPORTANT SAFETY INSTRUCTIONS
• Read these instructions prior to operating the unit. For the most up-to-date manual, visit www.violetdefense.com/
resources.
• Keep and follow all instructions.
• Heed all warnings. Failure to use the equipment in the manner specied may impair the unit from providing the desired
protection.
• Plug unit into a grounded outlet. Ensure proper conditions for operation. The unit is designed to operate under normal
conditions indoors (temperature 5-40 degrees Celsius, RH less than 80% (non-condensing), at an altitude <2000m and
main supply uctuations +/- 10% of nominal voltage, overvoltage Category II.
• Allow unit to complete pre-programmed cycles prior to unplugging or shutting o power. This allows it to enter safe
mode.
• Do not allow the unit to get wet or be used in or near water.
• Do not block any ventilation openings. Use in accordance with these instructions.
• Do not attempt to open or tamper with the unit.
• Do not place or store the unit near any ammable materials or liquids.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t into
your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the unit.
• Unplug this unit during lightning storms or when unused for long periods of time.
• Refer all servicing to qualied service personnel. Servicing is required when the unit has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the unit, the unit has been
exposed to rain or moisture, does not operate normally, or has been dropped.
• Unit is designed to operate only when the room is unoccupied. There are redundant safety systems to ensure the unit
does not activate while the room is occupied as the UV light is not recommended for excessive exposure. If the sensor in
the system fails, the system will shut down.
• Do not look directly at the unit due to the brightness of the light. UV light does not signicantly penetrate standard glass,
therefore, incidental exposure on the other side of a window or wall does not present any signicant risk.
THIS PRODUCT IS NOT A TOY. KEEP AWAY FROM CHILDREN.
S.A.G.E. UV
USER MANUAL
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning ash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sucient magnitude to
constitute a risk of electric shock to persons.
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO
RAIN OR MOISTURE.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
© Copyright 2020 Violet Defense, LLC All Rights Reserved SUV-GEN2-UM2020
SAFETY WARNINGS

Disclaimer: The S.A.G.E. UV unit is not intended for use as a medical device and people should not be directly exposed to the
light generated by the unit. The actual disinfection rates on a specic space will vary.
GENERAL OPERATION OF THE UNIT
1. The S.A.G.E. UV unit is designed to be installed approximately 2 meters (~6 1/2 feet) away
from priority areas. See page 11 for additional information on installation methods. Note that
the unit has been tested to kill E. coli, S. enterica, S. aureus at distances of up to 4 meters (~13
feet) away, but the length of time necessary to run the unit increases with the distance from
targeted area. Reective surfaces, including metallic surfaces, tiles, and safety glass will
enhance the eectiveness of the unit as the UV light will reect o of these surfaces.
2. The unit runs at 120V AC and 60 Hz. Once powered on, at its peak, the Whole Room Unit
unit will draw up to 7 amps (less than a standard vacuum cleaner) and the Micro/Bath Unit
less than 3.5 amps for 4 second intervals. Ensure the breaker has available amp draw during
operation.
3. While the unit is operational, all personnel should leave the space during the cleaning cycle.
Exit the space within 60 seconds for optimal functioning of the unit.
4. The unit’s redundant safety systems will stop the unit from operating if motion is detected in
the space. The unit will resume operation approximately 60 seconds (unless alternate motion
timeout was selected) after room is unoccupied and no additional motion is detected.
5. The unit will run a safety test to ensure unit is functioning properly and that there is no motion
detected in the space. If successful, unit will run its pre-programmed operational cycle. See
guidelines for standard unit or building automation enabled units for more information on
operational modes.
6. Allow the unit to complete its entire cycle before unplugging or turning o power to the unit.
This allows the unit to enter safe mode. If necessary to cease operation prior to completion of
cleaning cycle, be sure to keep unit away from water for optimal safety. It’s recommended that
the units have a 15-minute cool down period after each 30-minute disinfection cycle.
PRODUCT FEATURES
Uses Pulsed Xenon technology to
deploy powerful bursts of UV-C,
UV-B, UV-A, and violet-blue light
with ~170⁰of coverage
Built-in motion sensor will actively
monitor the space and only allow
the unit to activate when the space
is unoccupied
GENERAL OPERATION
© Copyright 2020 Violet Defense, LLC All Rights Reserved SUV-GEN2-UM2020
2

STANDARD UNITS
CONFIGURING THE UNIT
The S.A.G.E. Wizard can be used to congure units to the preferred programming mode and
adjust related settings. This conguration should be completed before initial operation or as
changes need to be made. To begin, visit www.violetdefense.com/wizard to download the
S.A.G.E. Wizard and computer conguration instructions. After downloading, run the installer
and a shortcut will be placed on computer’s start menu and desktop.
1. Congure your computer per instructions.
2. Plug the S.A.G.E. unit into your computer using an Ethernet cable.
3. Open the S.A.G.E. Wizard and follow the on-screen instructions to congure the unit,
including operational mode, related settings such as length of motion time-out, runtime
for manual or scheduled mode, and scheduling options, such as start-time for scheduled
mode.
4. Once completed, unplug the cable and install the unit. See additional installation
instructions on page 9.
Each standard unit has 3 primary modes available to users. Fixtures must be programmed
before initial use.
• Autonomous Mode: In this mode, once plugged in, the unit will automatically
activate once the space is unoccupied and continue disinfection on a regular
schedule, adjusting frequency based on level of activity in the space based on the
motion sensor. Users may select the timeout time, which determines how long the
unit will wait until resuming operation after motion is detected.
• Scheduled Mode: In this mode, the unit will activate at selected time(s) of day
during each 24-hour period. Users may schedule up to 4 start times each day to
operate for a specied run time (i.e. 15 or 30 minutes). Users may select the motion
timeout, which determines how long the unit will wait until resuming operation after
motion is detected. The unit may also be congured to activate a disinfection cycle
immediately when it is powered and then continue with the scheduled operational
time(s).
• Single Cycle Mode: In this method, users will manually activate the unit to start
a disinfection cycle. The unit will then run its pre-programmed cycle (i.e. 15 or 30
minutes) one time before entering safe mode until power is cycled on and o again.
Users may select the timeout time, which determines how long the unit will wait until
resuming operation after motion is detected.
OPERATIONAL MODES
STANDARD UNITS
© Copyright 2020 Violet Defense, LLC All Rights Reserved SUV-GEN2-UM2020
3

Building Automation Enabled S.A.G.E. units have 5 operating modes available to users that
may be enabled and/or adjusted from your building automation control system (see pages
5-6 for additional information).
• AI Mode: The unit will automatically activate once the space is unoccupied and
continue disinfection on a regular schedule, adjusting frequency based on level of
activity in the space based on the motion sensor.
• Manual Mode: User will manually activate the unit to start a disinfection cycle. The
unit will then run its pre-programmed cycle length one time before entering safe
mode until power is cycled on and o again.
• Overnight Mode: The unit will activate a 30-minute disinfection cycle, turn o for
30-minutes, and then activate a second 30-minute disinfection cycle.
• Four Hour Mode: The unit will run alternating 1-hour cycles of 2-minutes of
cleaning, 8-minute breaks, followed by 30-minute break over the course of 4 hours.
The cumulative cleaning time will be 36 minutes, but is intended to extend the life
of the product.
• BMS Mode: The unit will operate disinfection cycles similar to that of manual
mode. However, the unit will have to be activated from within your building
automation system software. NOTE: By default, this mode will have safety features
deactivated.
With the building automation capabilities of the S.A.G.E. UV Whole Room Unit, users have the
ability to adjust the following:
• Operational Modes & Settings*: Select operating modes, including type of disinfection
cycle and related selections, such as start time, run time, and motion timeout length,
which indicates how long the unit will wait to attempt re-activation after motion has
been detected
• System Monitoring: Monitor current status of units remotely and troubleshoot operating
• Network Settings: Congure network settings and/or troubleshoot any networking
issues
• Metrics: Access data on the units, including number of successful cleaning cycles and
runtime over specied period of time or lifetime of unit
BUILDING AUTOMATION ENABLED UNITS
BUILDING AUTOMATION UNITS
© Copyright 2020 Violet Defense, LLC All Rights Reserved SUV-GEN2-UM2020
4
*Modes and conguration options are subject to change. Visit www.violetdefense.com/
resources for current user manual or contact the team at Violet Defense with any questions.

BUILDING AUTOMATION UNITS
© Copyright 2020 Violet Defense, LLC All Rights Reserved SUV-GEN2-UM2020
5
GETTING STARTED
To get connected to your S.A.G.E. unit, use one of the following two methods:
Connect Automatically Using a DHCP-enabled Router
1. Connect one end of an Ethernet network cable to the S.A.G.E. unit, and the other
into a DHCP-enabled router. Ensure your computer is connected to the same router
(either Ethernet or Wi-Fi).
2. Ensure your S.A.G.E. unit is powered on.
3. Use your BACnet software of choice to discover the S.A.G.E. device.
Connect manually using a direct Ethernet connection
1. Connect one end of an Ethernet network cable to the S.A.G.E. unit, and the other
directly into your computer’s Ethernet adaptor.
2. Ensure your S.A.G.E. unit is powered on.
3. On your computer, set your connected Ethernet adaptor’s IP address to “192.168.1.2”
4. Use your BACnet software of choice to discover the SAGE device. By default, the
SAGE device will bind to address “192.168.1.5” (Note: It may take up to 15 seconds for
the device to appear on network after bootup.)
Network Troubleshooting
1. If your BACnet software is having trouble discovering the device, try an alternate
connection method. Verify each step carefully. If it is still not responding, try rebooting
the unit or using the reset button to restore the default memories.
2. The unit’s network conguration can be reset to factory default by holding the reset
button in for at least 2 seconds and then releasing. This will clear all congured IP
settings and reset the unit to preferring a DHCP-assigned IP address, but will fall back
to a known address (192.168.1.5) if no DHCP-router is detected (in the case of a direct
connection, for example).
3. The unit’s entire congurable memory can be factory reset by holding the reset button
in for at least 10 seconds and then releasing. This will put the unit into manufacturing
mode until congured otherwise. In this mode, the unit can only be manually connected
to (method 2) until the 5-ash cycle has nished. When the LED is solid green, reboot
the unit, and then automatic connection (method 1) will be possible.
4. Note: If a user congured BACnet object “DHCP CNFG” to disabled, automatic
connection (method 1) will be impossible. Holding the reset button in for 2 seconds will
recover this state.
5. Note: If a user congured BACnet objects “IP Address CNFG”, “Subnet Mask CNFG”, or
“Gateway CNFG”, both automatic and manual connections may be impossible. Holding
the reset button in for 2 seconds will recover this state.

BUILDING AUTOMATION UNITS
© Copyright 2020 Violet Defense, LLC All Rights Reserved SUV-GEN2-UM2020
6
BACnet Variable Description Options
Real-Time Clean STS Indication of unit’s cleaning cycle status 1= Unit nished a cleaning cycle
0 = Unit has not yet completed
its current cleaning cycle
Motion Detected STS Indication of status of PIR sensor 1 = Unit has detected motion
0 = No motion detected
UV Cleaning STS Indication of unit’s current operational status 1 = Unit is running/cleaning
0 = Unit is not cleaning
Time Until Clean Remaining time (in seconds) until the unit is nished
its current cleaning cycle
Self Test STS Reports any issues with the unit that can be
detected by on-board diagnostics
RTC Device Time STS Displays the time currently stored on the device.
Note: Read-only. Time must be synchronized using
your BACnet client’s time sync function.
(Year-Month-Day)
(24-Hour:Minute:Second)
SYSTEM MONITORING
OPERATIONAL MODES & SETTINGS
BACnet Variable Description Options
Operating Mode CMD Set operating mode for the unit. See descriptions on
page 6.
AI; Manual; Overnight; Four
Hour; BMS
Cleaning Internal
Runtime STPT
Set the amount of time (in minutes) the unit cleans
for in manual mode.
Range 10 minutes to 30
minutes
Motion Timeout STPT Sets the number of seconds for which the unit will
pause when it detects motion.
Range 15 seconds to 1800
seconds
Enable Cleaning CMD Manually turn the unit on/o. 0 = Unit is off
1 = Unit is on
Enable Safeties CMD When safeties are enabled, unit pauses cleaning
when PIR detects motion.
0 = Safeties are disabled
1 = Safeties are enabled
Cleaning Schedule Unit will start cleaning on any schedules set here.
Synchronization of BACnet time with on-board clock
is recommended. The schedule will repeat each
week on the specied day and time.
Each day supports a maximum
of 8 scheduled times.
Reboot Device CNFG Reboots device
RTC Daylight Saving
Rule CNFG
If this eld is blank, automatic daylight saving time
changes are disabled. To enable DST, you must
set rules for the start and end dates using specic
grammar.
See “Automatic Daylight Saving
Grammar” section on page 7
RTC Time Zone This user-dened string has no functional impact
on the unit, but is intended to be used as a note
describing which time zone the unit is in.
User-dened time zone string

NETWORK SETTINGS
BACnet Variable Description Options
DHCP CNFG When DHCP is enabled, ethernet settings are acquired
automatically. If the unit fails to acquire a DHCP IP
address, it will default to 192.168.1.5. When disabled,
enter your custom settings via the IP Address, Subnet
Mask, and Gateway Objects. Then reboot the device to
apply network changes.
Enabled/Disabled
Factory Default IP CNFG Sets all network settings back to their factory defaults.
Sets the MSTP baud rate back to the default (38400)
and the MSTP MAC address to the default (55).
MSTP Baud Rate CNFG Use this to set the MSTP baud rate. Supported device baud
rates: 9600; 19200; 38400;
57600; 76800; 115200
IP Address CNFG If DHCP is disabled, a static IP address can be set here.
Subnet Mask CNFG If DHCP is disabled, a static subnet mask can be set
here.
Gateway CNFG If DHCP is disabled, a static gateway can be set here.
Device MAC Address
CNFG
The ethernet’s MAC address
UDP Port CNFG The UDP port that BACnet uses. Default value: 47808
MSTP MAC Address
CNFG
Use this to set the MSTP MAC address. Each device on
the network must have a unique MAC address.
Default value: 55
SYSTEM MONITORING
OPERATIONAL MODES & SETTINGS
BACnet Variable Description
Successful Cleanings In Last 24 Hours The number of cleaning cycles that were completed in the most
recent 24 hour period
Runtime for Past 7 Days Total run time (in hours) of the unit over the past 7 days
Runtime for Past 30 Days Total run time (in hours) of the unit over the past 30 days
Total Runtime (Lifetime Hours) Total run time (in hours) of the unit over the product’s life
METRICS
BUILDING AUTOMATION UNITS
© Copyright 2020 Violet Defense, LLC All Rights Reserved SUV-GEN2-UM2020
7

AUTOMATIC DAYLIGHT SAVING GRAMMAR
To set the rules associated with daylight savings time, please follow the instructions below.
The rules are case sensitive. The time must be synchronized after changing the rule.
(First/Second/Third/Fourth/Last)(First 3 letters of weekday: Mon/Tue/Wed/Thu/Fri/Sat/
Sun)(First 3 letters of month: Jan/Feb/Mar/Apr/May/Jun/Jul/Aug/Sep/Oct/Nov/Dec)
(Hour when time changes in 24-hour format)
A dash (-) separator must be used between the start rule and end rule.
For example, in the United States, DST starts on the Second Sunday of March at 02:00AM
and ends on the First Sunday of November at 02:00AM. The DST rule would therefore be:
SecondSunMar02-FirstSunNov02
The DST rule for Germany would be:
LastSunMar01-LastSunOct01
BUILDING AUTOMATION UNITS
© Copyright 2020 Violet Defense, LLC All Rights Reserved SUV-GEN2-UM2020
8

RECOMMENDED CLEANING PROTOCOLS
For most situations, the general cleaning procedures can be used to operate the S.A.G.E. UV
unit. However, there are special instructions recommended for blood spills, or when certain
organisms, such as C. di are known or suspected to be present.
General Cleaning
1. Complete standard cleaning procedures to remove any visible dirt, grease, or other
debris from space.
2. Activate whole room unit per operational instructions above.
3. Upon returning to space, look at indicator light. Solid green light indicates cleaning cycle
completed. If motion was detected prior to observing the indicator light, the indicator
light will turn red. If users want to determine if unit completed the last cycle, prior to
powering o, stand out of range of the motion sensor for 60 seconds. The light will
resume solid green if cycle was completed. Otherwise, it will resume operation.
Cleaning When Blood or Bodily Fluids Are Present
UV light has the ability to penetrate liquid blood, which has not formed a dried crust, or
bodily uids up to a 1/16” thickness as long as there is no tissue or solid material present.
Therefore, UV light may be used to help protect sta before and after traditional cleaning
protocols for your facility.
1. Activate S.A.G.E. UV unit prior to commencing any cleaning procedures. If the blood has
already dried, apply hydrogen peroxide solution prior to running the unit.
2. Utilize normal procedures, including appropriate safety protocols to clean the space,
including removal of blood and bodily uids.
3. Activate a second cycle of the S.A.G.E. UV unit to target any remaining bacteria and
viruses.
Cleaning When C. di Is Of Concern
Clostridium dicile (C. di) is a bacteria that is extremely dicult to kill (hence its name) as
it is able to survive in unfavorable conditions. Furthermore, it is an anaerobic, endosporic
organism, which means it can survive without oxygen and form dormant spores to survive
harsh conditions. With the risk of severe illness associated with C. di, it is recommended
that you use a combination of approaches to reduce the risk of contracting C. di in your
facility.
1. Utilize your facility’s adopted environmental cleaning and disinfection strategy for dealing
with C. di.
2. Activate the S.A.G.E. UV unit for two consecutive 30-minute cycles at a range of less than
one meter for best results.
CLEANING PROTOCOLS
© Copyright 2020 Violet Defense, LLC All Rights Reserved SUV-GEN2-UM2020
9

SENSOR INDICATORS
TROUBLESHOOTING
1. If unit is ashing red, then an issue was detected by the unit. Unplug or power down the unit.
2. Plug the unit back into the wall or turn on power to unit. Exit the space within 60 seconds.
3. When you return to the space, identify the color of light on the sensor indicator. If unit is
green or solid red, the unit is working properly. If unit is still ashing red, contact customer
service at Violet Defense at 407-433-1104.
4. If unit is non-responsive (i.e. no indicator light showing), please contact Violet Defense for
technical support at 407-433-1104 or [e-mail].
Each S.A.G.E. UV unit has indicator lights that
help you determine the status of the unit.
CLEANING THE UNIT
• Do not use abrasive cleaners to clean the unit.
• To clean the unit, wipe down the metal plates with stainless steel polish using a microber
cloth.
TROUBLESHOOTING
© Copyright 2020 Violet Defense, LLC All Rights Reserved SUV-GEN2-UM2020
10
Color of Light Meaning
Flashing Green Unit is ready to begin cleaning when room
becomes unoccupied.
Solid Green Unit has successfully completed its cleaning
cycle. If unit detects motion, the unit will change
to solid red, even if cycle completed.
Solid Red Unit was interrupted during the cleaning cycle.
Cleaning will resume when room becomes
unoccupied again during the programmed times
for operation.
Flashing Red One of the safety sensors has detected an issue.
Please see troubleshooting section for further
information.

SENSOR INDICATORS INSTALLATION - DROP CEILING WITH EXISTING OUTLET*
(WHOLE ROOM UNIT/BATH UNIT WITH 2’ X 2’ ADAPTER)
1. Remove the existing ceiling tile.
2. Plug the S.A.G.E. power cord into outlet.
3. Position the S.A.G.E. unit onto ceiling grid.
4. Insert cut-to-size ceiling tile to sit ush against the
S.A.G.E. unit. See instructions below for cutting
tile to size.
*If there is no existing outlet, install a 110V, 15
Amp outlet. This may be subject to applicable
permitting. Please consult with a licensed
electrician.
Whole Room Units
1. Measure and mark a 5 3/4” section on the ceiling tile.
2. Use a box cutter or other appropriate tool to cut o the 5 3/4” section of the tile.
Micro Units with Adapter Plates
If installing the Micro unit with 2’ x 2’ adapter, no cuts are required.
For hard-ceiling installation, contact Violet Defense for additional guidance.
To install in a 24” x 48” grid, cut the ceiling tile to t using a box cutter or appropriate
tool.
CUTTING CEILING TILE TO SIZE
Each S.A.G.E. UV unit comes standard with mounting holes for standard VESA bracket.
This enables a variety of installation methods, including wire suspension and wall
mounts. The VESA holes also allow for integration with a variety of mobile stands, such
as tripods or bases with caster-wheels.
The Micro units can also be used with base stand to position in various rooms on
tabletops, desks, counter tops, etc.
(Brackets and stands sold separately)
OTHER DEPLOYMENT OPTIONS
INSTALLATION
© Copyright 2020 Violet Defense, LLC All Rights Reserved SUV-GEN2-UM2020
11

S.A.G.E. UV SAFETY OVERVIEW
Given the correct combination of user protocols and the built-in safety features, there are
minimal risks of any harmful eects from using the S.A.G.E. UV units.
RECOMMENDATIONS
• If in the vicinity of the S.A.G.E. UV unit during operation, do not look directly at the
light. This is similar to how one would avoid harmful eects from the sun by not
looking directly at it.
• Germicidal UV light does not signicantly penetrate standard glass.
• Per the built-in safety features described below, the unit is designed to not operate
while a room is occupied. However, operators are instructed in the user manual to
have all persons vacate a space before operation. Further optional protocols, such
as signage indicating the UV unit is in operation may be desired.
SAFETY FEATURES
The S.A.G.E. UV units have four primary aspects to their built-in safety features to ensure
the safety of anyone operating the unit or in its vicinity.
Limited Exposure Risk
Due to the nature of the programming on the S.A.G.E. UV units, over a 30-minute cycle
time for the unit, the actual exposure to UV (if there were no other safety systems in place)
would be no more than two seconds of exposure.
Motion Detection
Each S.A.G.E. UV unit has built-in passive infrared (PIR) sensor used to detect motion in
a space. The sensor is programmed to detect individuals walking into the deployment
space. The unit will not resume operation of the cleaning cycle until it has successfully
detected the space is free of motion.
Safe Stop
The third layer of protection built into the S.A.G.E. units is to ensure that if the motion
sensor or other components experience technical issues, the unit will safe stop by cycling
the unit o. The unit will ash red indicating that one should contact Violet Defense for
technical support. The unit will not resume operation until the issue detected has been
resolved. If unit is non-responsive (i.e. non-operational or no indicator light), contact Violet
Defense.
Frequency of Flashes
The S.A.G.E. UV units will ash every 6 seconds during operation. Violet Defense
collaborated with the Epilepsy Foundation when designing the product to ensure that the
frequency of ashes will not cause any issues for someone with photosensitive epilepsy.
UV SAFETY OVERVIEW
© Copyright 2020 Violet Defense, LLC All Rights Reserved SUV-GEN2-UM2020
12

S.A.G.E. UV SAFETY OVERVIEW
Occupational Safety and Health Administration (OSHA)
The Occupational Safety and Health Administration (OSHA) does not have any mandated
exposure limits to ultraviolet light. OSHA only provides technical guidance regarding
protecting employees from ultraviolet laser exposure. While general information about
ultraviolet contained in that guidance is described below, it is important to note that Violet
Defense Technology does not currently deploy ultraviolet lasers. For more information on
OSHA’s guidelines, visit https://www.osha.gov/pls/oshaweb/owadisp.show_document?p_
table=INTERPRETATIONS&p_id=24755.
Ultraviolet radiation is divided into three regions: UV-A: 315-400 nanometers (nm), UV-B:
280-315 nm, and UV-C: 100-280 nm. UV can be associated with adverse health eects due
to prolonged exposure and the wavelength of light.
According to OSHA’s guidelines, “exposure in the shorter UV-C and longer UV-A ranges
seems less harmful to human skin. The shorter wavelengths are absorbed in the outer dead
layers of the epidermis and the longer wavelengths have an initial pigment-darkening eect
followed by erythema if there is exposure to excessive levels.”
“The hazards associated with skin exposure are of less importance than eye hazards.”
Exposure to light may cause photokeratitis or cataracts.
National Institute for Occupational Safety and Health (NIOSH)
The National Institute for Occupational Safety and Health (NIOSH) recommends limits to
exposure determined by the wavelength of UV light and intensity. NIOSH recommends that
the time of exposure to an intensity of 100 microwatts per square centimeter at wavelength
254 nm not exceed 1 minute. Per the programming, UV exposure from S.A.G.E. unit for a
30-minute cycle is less than two seconds. For more information, view the recommended
standards from NIOSH (https://www.cdc.gov/niosh/docs/73-11009/pdf/73-11009A.pdf).
Environmental Protection Agency (EPA)
The Environmental Protection Agency (EPA) is the governmental agency responsible for
regulating ultraviolet light products. It regulates chemical disinfectants along with devices,
such as equipment that generates UV light, used to control pests like bacteria and making
antimicrobial claims. For more information about EPA guidelines, visit https://www.epa.gov/
safepestcontrol/pesticide-devices-guide-consumers.
Food and Drug Administration (FDA)
The Food and Drug Administration (FDA) only regulates devices that are classied as medical
instruments, machines, and devices used to treat diagnosed medical conditions. Therefore,
Violet Defense does not fall under FDA guidelines.
GOVERNMENTAL SAFETY CONSIDERATIONS FOR ULTRAVIOLET LIGHT
UV SAFETY OVERVIEW
© Copyright 2020 Violet Defense, LLC All Rights Reserved SUV-GEN2-UM2020
13

WARRANTY
14
STATEMENT OF LIMITED WARRANTY
FOR VIOLET DEFENSE S.A.G.E. PRODUCTS
04/2020
Thank you for purchasing your Violet Defense S.A.G.E Product (the “Product”).
THE TERMS OF THE ONE (1) YEAR LIMITED WARRANTY (THE “WARRANTY”) APPLICABLE TO THE PRODUCT ARE
SET FORTH BELOW.
HOW CONSUMER LAW RELATES TO THIS WARRANTY
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE (OR BY COUNTRY, PROVINCE OR OTHER JURISDICTION). OTHER THAN AS PERMITTED
BY LAW, VIOLET DEFENSE, LLC (“VIOLET DEFENSE”) DOES NOT EXCLUDE, LIMIT OR SUSPEND OTHER RIGHTS
YOU MAY HAVE, INCLUDING THOSE THAT ARISE FROM NONCONFORMITY OF THE PRODUCT. FOR A FULL
UNDERSTANDING OF YOUR RIGHTS, YOU SHOULD CONSULT THE LAWS OF YOUR COUNTRY, PROVINCE, STATE
OR OTHER JURISDICTION.
WARRANTY LIMITATIONS AND DISCLAIMERS (SUBJECT TO CONSUMER LAW)
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND THE REMEDIES SET FORTH HEREIN ARE
EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL,
WRITTEN, STATUTORY, EXPRESS OR IMPLIED. VIOLET DEFENSE DISCLAIMS ALL STATUTORY AND IMPLIED
WARRANTIES, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS, TO THE EXTENT
PERMITTED BY LAW. IN SO FAR AS SUCH WARRANTIES CANNOT BE DISCLAIMED, VIOLET DEFENSE LIMITS THE
DURATION AND REMEDIES OF SUCH WARRANTIES TO THE WARRANTY PERIOD (AS DEFINED BELOW) AND, AT
VIOLET DEFENSE’S OPTION, THE REMEDIES SET FORTH HEREIN. SOME STATES (COUNTRIES, PROVINCES AND
OTHER JURISDICTIONS) DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY (OR CONDITION)
MAY LAST, SO THE LIMITATION DESCRIBED ABOVE MAY NOT APPLY TO YOU.
WHO MAY USE THIS WARRANTY?
Violet Defense extends this Warranty only to the end-user purchaser who originally purchased the Product from
Violet Defense or a Violet Defense authorized distributor or reseller. This Warranty is non-transferable and is not
intended for the benet of any person or entity other than the original end-user purchaser.
WHAT DOES THIS WARRANTY COVER?
VIOLET DEFENSE WARRANTS THE VIOLET DEFENSE PRODUCT TO BE FREE FROM DEFECTS IN MATERIALS
AND WORKMANSHIP WHEN USED NORMALLY IN ACCORDANCE WITH VIOLET DEFENSE’S PUBLISHED
GUIDELINES FOR A PERIOD OF ONE (1) YEAR FROM THE DATE OF ORIGINAL RETAIL PURCHASE BY THE END-
USER PURCHASER, AS EVIDENCED BY THE PROOF OF PURCHASE (THE “WARRANTY PERIOD”).
WHAT DOES THIS WARRANTY NOT COVER?
This Warranty does not apply to any appliance, assembly, or product other than the Product, even if the Product is
incorporated in, or packaged or sold with, any such appliance, assembly or other product.
This Warranty does not apply to any condition or damage due to external causes such as: (1) acts of nature; (2)
physical damage; (3) exposure to water either through submersion or water entering the unit; (4) exposure to
adverse or hazardous chemicals, including the use of reactive cleaning agents or harsh chemicals to clean the
Product; (5) environmental conditions; (6) vandalism; (7) re; (8) power failure, improper power supply, power
surges or dips; (9) induced vibration; (10) negligence or more culpable conduct by the purchaser, its employees,

WARRANTY
15
contractors, representatives or other users of the Product; (11) improper or unauthorized use, installation, handling,
storage, alteration, maintenance or service, including failure to abide by any product classications or certications,
unauthorized repair, or failure to comply with any applicable standards, codes, recommendations, product
specication sheets, instructions, and safety warnings; (12) use of the Product(s) with other products, equipment,
processes or materials supplied by any end user or third party; (12) transportation; (13) normal wear and tear; (14)
accidents; or (15) events or occurrences beyond Violet Defense’s control.
WHAT IS THE PERIOD OF COVERAGE?
This Warranty starts on the date of the original purchase of the Product by an end-user purchaser, and lasts for one
(1) year. The Warranty Period is not extended if we replace the Product. Violet Defense may change the availability or
terms of this Warranty at its discretion, but any changes will not be retroactive.
WHAT ARE YOUR REMEDIES UNDER THIS LIMITED WARRANTY?
During the Warranty Period, if the Product fails to conform to the foregoing Warranty, Violet Defense, at its sole
discretion, will replace the Product (or the defective portion thereof). The foregoing Warranty excludes labor and
equipment required to remove the non-conforming Product (or part(s) thereof) and/or re-install the replacement
Product(s) (or part(s) thereof).
HOW DO YOU OBTAIN WARRANTY SERVICE?
Warranty claims must be submitted in writing to Violet Defense within thirty (30) days of the discovery of the
nonconformity, or the nonconformity will be deemed to have been waived. To obtain Warranty service, you must call
407.433.1104 during the Warranty Period to obtain a Return of Materials Authorization (“RMA”) number. No Warranty
service will be provided without an RMA number.
The nonconforming Product(s) may be required to be returned to Violet Defense for inspection and verication of
the nonconformity. Violet Defense will not be responsible for any costs and expenses incurred in connection with
shipment of the nonconforming Product(s) (or part(s) thereof) to Violet Defense, however, Violet Defense shall bear
the expenses of shipping the replacement Product(s) (or part(s) thereof) to the end-user purchaser in the event that
Violet Defense replaces the Product(s) (or part(s) thereof).
SOLE REMEDIES; LIMITATION OF LIABILITY
THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE AND EXCLUSIVE REMEDIES AND OUR ENTIRE
RESPONSIBILITY FOR ANY BREACH OF THIS WARRANTY. OUR LIABILITY SHALL UNDER NO CIRCUMSTANCES
EXCEED THE ACTUAL AMOUNT PAID BY YOU FOR THE NONCONFORMING PRODUCT. EXCEPT AS PROVIDED
IN THIS WARRANTY AND TO THE MAXIMUM EXTENT PERMITTED BY LAW, WE ARE NOT LIABLE FOR DIRECT,
INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR PUNITIVE DAMAGES RESULTING FROM ANY BREACH OF
WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS
OF USE; LOSS OF REVENUE; LOSS OF ACTUAL OR ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS ON
CONTRACTS); LOSS OF THE USE OF MONEY; LOSS OF ANTICIPATED SAVINGS; LOSS OF BUSINESS; LOSS OF
OPPORTUNITY; LOSS OF GOODWILL; LOSS OF REPUTATION; OR ANY INDIRECT OR CONSEQUENTIAL LOSS OR
DAMAGE HOWSOEVER CAUSED INCLUDING THE REPLACEMENT OF EQUIPMENT AND PROPERTY.
SOME STATES (COUNTRIES, PROVINCES AND OTHER JURISDICTIONS) DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU.
GENERAL
No Violet Defense distributor, reseller, agent, or employee is authorized to make any modication, extension, or
addition to this Warranty. If any term is held to be illegal or unenforceable, the legality or enforceability of the
remaining terms shall not be aected or impaired. This Warranty is governed by and construed under the laws of the
country in which the Product purchase took place.

TM
189 S Orange Avenue | Suite 1400 | Orlando, FL 32801
