Getting Started
Keys to using this manual
Specific actions (in bold type) and style conventions are used consis-
tently throughout this manual, they are as follows:
• Press: implies pushing in and releasing a button.
• Hold: is used after Press actions when a button needs to be held
in position for an extended period of time, typically several sec-
onds.
• Italicized words denote section/sub headings in this guide and
can be located through the table of contents.
• An asterisk (*) when used after a word or phrase denotes that
additional details can be found in related sections usually noted
at the bottom of the page or end of the section.
• Confirmation LED’s are identified by the command/function but-
ton they are associated with.

4© 2016 Directed. All rights reserved.
Remote Control Information
Feature Description
Internal Antenna Used for transmitting and receiving*information.
Command buttons (4)
A U X
A U X
A U X
AUX
Used to perform Locking, Unlocking, Auxiliary channel and
Remote Start commands.
Function button
A U X
Used to access function levels for commands, configura-
tion menus for programming, Car Selection, and to request
reports.
Confirmation LED’s Each button has an associated LED next to it that are active
during related operations. These LEDs are labeled respec-
tively as: Lock LED, Unlock LED, Remote Start LED, and AUX
LED.
*2-way communication is only applicable to the Responder LE
remote control.

5
© 2016 Directed. All rights reserved.
Control Center

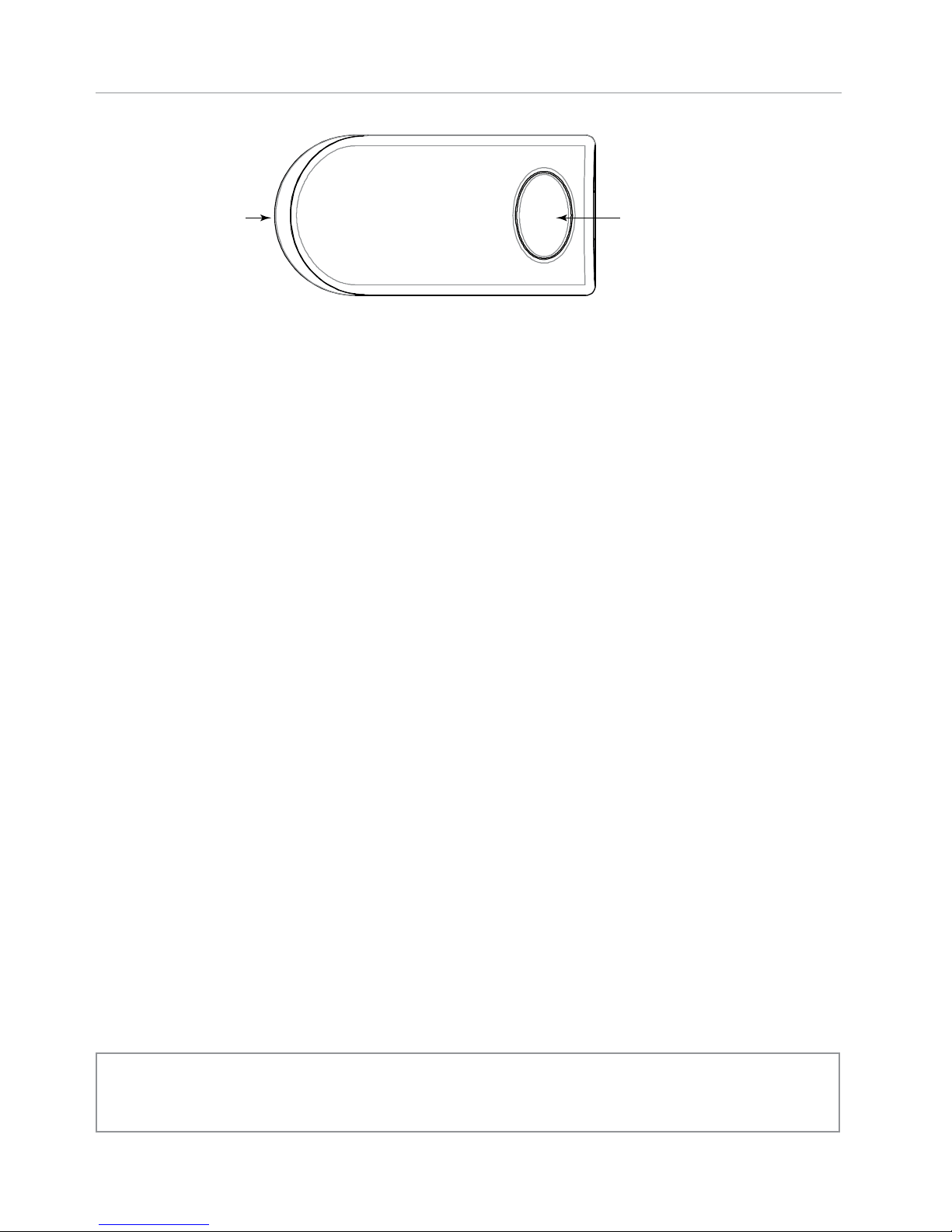

Control CenterLED Button
The Control Center, typically located on the upper part of the front
windshield, sends and receives commands or messages to and from
your system. It consists of:
• The In-vehicle system antenna.
• The Status LED, as a visual indicator of the system’s status.
• The Control button, for placing the system into Valet Mode* and
to perform the Emergency Override** operation.
* See “Remote and System Operations” on page 28.
** See “Emergency Override” on page 21

6© 2016 Directed. All rights reserved.
Using your System
Commanding the system
Commands, Basic or Advanced, are used to activate system features
and are performed by pressing one of the Command buttons. Basic
commands control the most often used keyless entry and remote start
features while Advanced commands control more specialized fea-
tures.
Confirmations for Basic or Advanced commands are indicated
by horn honks* and parking light flashes. A description of each fea-
ture confirmation is found in the following Basic command and Ad-
vanced command sections.
Performing Commands
Perform Basic commands by pressing a Command button.
Perform Advanced Commands by first accessing Levels 1-4 using the
AUX
button and then by pressing a Command button while within a
level.
Advanced command example: Silent Lock
1. Press the
AUX
button once to access Function Level 1.
2. Press the
AUX
AUX
button to perform the Silent Lock command.
3. The system will lock the doors and flash the parking lights,
without horn honks.*
* The optional Horn Honk feature must be connected
