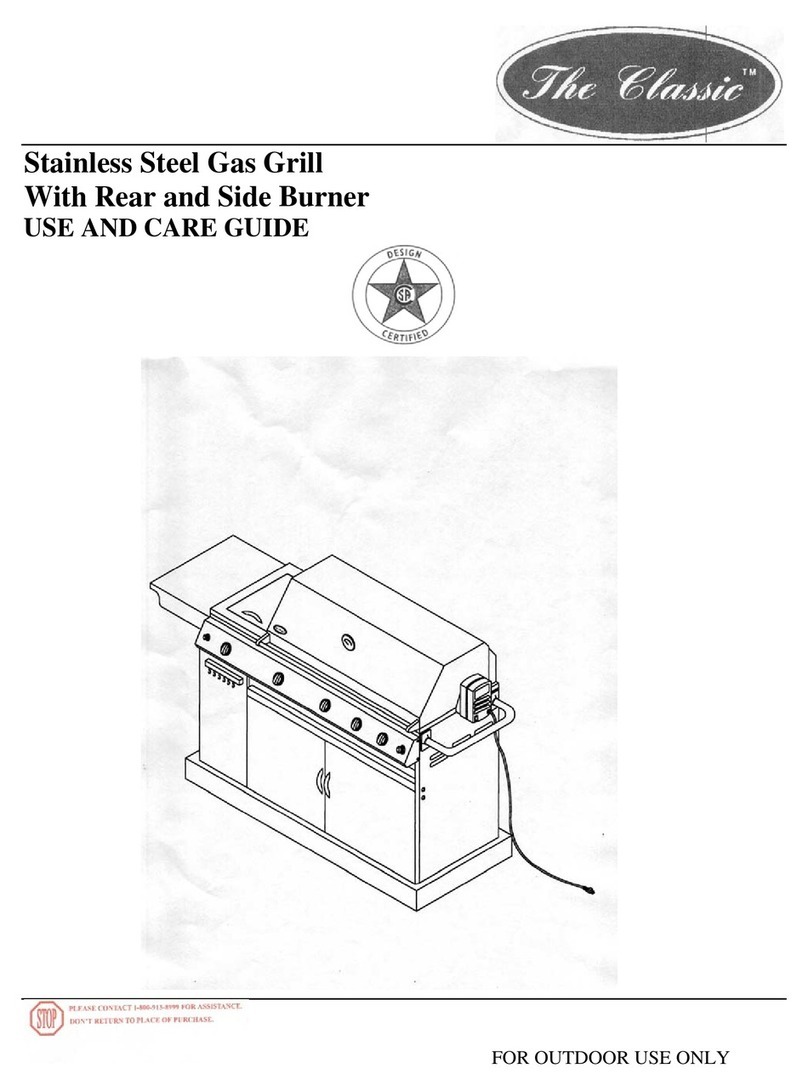

ASSEMBLY & OPERATING INSTRUCTIONS FOR OUTDOOR
GAS GRILL
FOR MODEL 720-0070 LP OUTDOOR GRILL

MESSAGE TO OUR MEMBERS
Thank you for selecting our Outdoor Stainless Steel
Because this appliance contains s features not found on any other grill, we recommend that you
read this entire booklet before your first use. Keep it in a handy place as it has answers to
questions that may occur during future use.
Feel free to contact us if we can help you. When you write please include the model number of the grill.
We thank you for buying the stainless steel gas and wish you many years of enjoyment.
Note: This appliance is NOT intended to be installed in or on recreational vehicles or boats.
PLEASE RETAIN THIS MANUAL FOR FUTURE
TABLE OF CONTENTS
SECTION ONE: SECTION FIVE:
Precaution -------------------------------2-3 Care and Maintenance ---------------------14
Placement of The Grill -----------------3 Troubleshooting ----------------------------15
SECTION TWO: SECTION SIX:
Assembly Instruction -------------------4-9 Grill Parts List-------------------------------16-17
SECTION THREE: SECTION SEVEN:
Gas Hook-UP & Leak Testing---------10 Grill Cooking Chart ----------------------18-20
Installer final checklist -----------------11 SECTION EIGHT:
Operating Instruction -------------------12 Grill Recipe Suggestions -------------------21-23
Grill lighting Instruction
Rotisserie ---------------------------------13 SECTION NINE:
Warranty --------------------------------------24
SECTION FOUR:
Using The Side Burner -----------------13
1

PRECAUTIONS
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, immediately call your gas
supplier.
WARNING
Do not try lighting this appliance without
reading the “LIGHTING INSTRUCTIONS”
section of this manual.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
TESTED IN ACCORDANCE WITH ANSI
Z21.58a-1995 STANDARD FOR OUTDOOR
COOKING GAS APPLIANCES. THIS
GRILL IS FOR OUTDOOR USE ONLY.
Check your local building codes for the proper
method of installation. In the absence of local
codes, this unit should be installed in accordance
with the National Fuel Gas Code No. Z223.1-
1988 and the National Electrical Code
ANSI/NFPA No. 70-1990.
CALIFORNIA PROPOSITION 65-
WARNING
The burning of gas fuel generates some
byproducts, which are on the list of substances
which are known by the State of California to
cause cancer or reproductive harm. California
law requires businesses to warn customers of
potential exposure to such substances. To
minimize exposure to these substances, always
operate this unit according to the use and care
manual, ensuring you provide good ventilation
when cooking with gas.
SAFETY PRACTICES TO AVOID
PERSONAL INJURY
When properly cared for, your 720-0070 Grill will
give safe, reliable service for many years. However,
extreme care must be used since the grill produces
intense heat and can increase accident potential.
When using this appliance basic safety practices must
be followed, including the following:
Read this Care and Use Manual carefully and
completely before using your grill to reduce the risk
of fire, burn hazard or other injury.
Begin by ensuring proper assembly.
Do not repair or replace any part of the grill unless
specifically recommended in this manual. All other
service should be referred to a qualified technician.
CHILDREN SHOULD NOT BE LEFT ALONE OR
UNATTENDED IN AN AREA WHERE THE GRILL
IS BEING USED. NEVER ALLOW THEM TO SIT,
STAND OR PLAY ON OR AROUND THE GRILL AT
ANY TIME.
DO NOT STORE ITEMS OF INTEREST TO
CHILDREN AROUND OR BELOW THE GRILL OR
IN THE CART. NEVER ALLOW CHILDREN TO
CRAWL INSIDE OF THE CART.
Never let clothing, pot holders or other flammable
materials come in contact with or too close to any
grate, burner or hot surface until it has cooled. Fabric
may ignite and result in personal injury.
For personal safety, wear proper apparel. Loose
fitting garments or sleeves should never be worn
while using this appliance. Some synthetic fabrics are
highly flammable and should not be worn while
cooking.
Only certain types of glass, heat-proof glass ceramic,
earthenware, or other glazed utensils are suitable for
grill use. Theses types of materials may break with
sudden temperature changes. Use only on low or
medium heat settings according to the manufacturer’s
directions.
Do not heat unopened food containers as a build-up
of pressure may cause the container to burst.
Use a covered hand when opening the grill lid. Never
lean over an open grill.
WHEN LIGHTING A BURNER, ALWAYS PAY
CLOSE ATTENTION TO WHAT YOU ARE DOING.
BE CERTAIN YOU ARE TURNING THE IGNITER
LABELED FOR THE BURNER YOU INTEND ON
USING.
2

PRECAUTIONS
When using the grill, do not touch the grill rack, burner
grate or immediate surrounding area as these areas
become extremely hot and could cause burns. Use only
dry potholders. Moist or damp potholders on hot surfaces
may cause burns from steam. Do not use a towel or
bulky cloth in place or potholders. Do not let potholders
touch hot portions of the grill rack.
Grease is flammable. Let hot grease cool before
attempting to handle it. Avoid letting grease deposits
collect in the bottom of the grill. Clean often.
DO NOT USE ALUMINUM FOIL TO LINE THE GRILL
RACKS OR GRILL BOTTOM. This can severely upset
combustion air flow or trap excessive heat in the control
area. The result of this can be melted knobs, rotary
igniters and increased chance of personal injury.
For proper lighting and performance of the burners keep
the ports clean. It is necessary to clean them periodically
for optimum performance. The burners will only operate
in one position and must be mounted correctly for safe
operation.
Clean the grill with caution. Avoid steam burns; do not
use a wet sponge or cloth to clean the grill while it is hot.
Some cleaners produce noxious fumes or can ignite if
applied to a hot surface.
INSECT WARNING!!! Spiders and insects can nest in
the burners of this and any other grill, and cause the
gas to flow from the front of the burner. This is a very
dangerous condition which can cause a fire to occur
behind the value panel, thereby damaging the grill and
making it unsafe to operate. Inspect the grill twice a
year.
Be sure all grill controls are turned off and the grill is
cool before using any type of aerosol cleaner on or
around the grill. The chemical that produces the spraying
action could, in the presence of heat, ignite or cause
metal parts to corrode.
Do not use the grill for cooking excessively fatty meats
or products which promote flare-ups. Do not operate the
grill under unprotected combustible construction. Use
only in well ventilated areas. Do not use in buildings,
garages, sheds, breezeways or other such enclosed areas.
THIS UNIT IS FOR OUTDOOR USE ONLY.
Keep the area surrounding the grill free from
combustible materials, trash, or combustible fluids and
vapors such as gasoline or charcoal lighter fluid. Do not
obstruct the flow of combustion and ventilation air. If the
unit is stored indoors ensure that it is cool. If propane is
used, the cylinder must be unhooked and the propane
cylinder stored outside in a well ventilated area, out of
reach of children.
DO NOT USE BRIQUETTES OF ANY KIND IN THE
GRILL.
The VII stainless steel gas is designed for optimum
performance without the use of briquettes. Do not place
briquettes on the radiant as this will block off the area for
the grill burners to vent. Adding briquettes can damage
ignition components and knobs, and void the warranty.
Keep the back of the cart free and clear from debris.
Keep any electrical supply cord, or the rotisserie motor
cord away from the heated areas of the grill.
Never use the grill in windy conditions. If located in a
consistently windy area (oceanfront, mountaintop, etc.) a
windbreak will be required. Always adhere to the
specified clearance.
NEVER USE A DENTED OR RUSTY PROPAN
PLACEMENT OF THE GRILL
CLEARANCE
To Non-Combustible Construction
A minimum of 3” clearance from the back of the grill to
non-combustible construction is required for the lid to
open fully.
DO NOT INSTALL THIS UNIT INTO COMBUSTIBLE
ENCLOSURES!
LOCATION
When determining a suitable location take into account
concerns such as exposure to wind, proximity to traffic
paths and keeping any gas supply lines as short as
possible. Locate the grill only in a well-ventilated area.
Never locate the grill in a building, garage, breezeway,
shed or other such enclosed areas without an approved
ventilation system. During heavy use, the grill will
produce a lot of smoke. Lock the wheels after the grill is
placed in a suitable position according to the sticker
located beneath the right door.
3

Assemble Instructions
PLEASE READ THE INSTRUCTIONS CAREFULLY AND FOLLOW STEP BY STEP.
TOOLS REQUIRED:
Philips head screwdriver (not provided), wrench (provided), Allen key (provided). The following
hardware is provided.
Item Description Specification Quantity
1 Truss head screw 1/4-20*1-1/2 inch 12pcs
2 Truss head screw 1/4-20*1/2 inch 18pcs
Step 1:
Remove side panel (marked “L”) and two 3” casters from the carton . Put two casters and side
panel marked “L” together with provided wrench. Repeat this figure for the right side panel.
Step 2:
Assemble bottom panel to side panels with 8 pieces of Truss Head ¼-20 x 1-1/2” screws. Follow
the mark “L” and “R” accordingly.
Truss Head 1/4”
–
20×1 1/2”Serew
4

Step 3:
Align the 2 doors with the bottom panel holes first & align with the door bracket & then with top
of the 2 side panels, use the four pieces 1/4”-20X11/2” screws for the both side panels.
Step 4:
Remove the upper portion of grill from carton “A”. Slide-in the upper portion of the grill onto
the cart as shown below.
5

Step 5:
Screw the upper portion of the grill to the cart with Truss head ¼-20 x ½”. Screw in 4 corners of
the grill housing. Make sure 4 screws are tight.
Step 6:
Assemble the back panel with 4 pieces of Truss head “1/4-20x 1/2” screw.
Truss Head Screw 1/4-20*1/2’’
6

Step 7:
Assemble side burner with ¼-20 x ½” screws. Align the holes on the right side of grill housing
and screw through the holes in the side burner grate and tighten into the grill housing as per the
diagram below. Repeat this step for the side shelf.
Step 8:
Place two flame tamers, cooking grids, warming rack and grease tray as shown below.
7

Step 9:
Assemble the rotisserie kit as per the diagram below First locate the motor bracket on left side of
the bowl assembly with two “1/4-20 x ½” truss head screws. Then place the Motor onto the
motor bracket and last assemble the rotisserie as the figure shows.
Step 10:
To install the battery, turn the ignition button housing counterclockwise and remove it. The
rotisserie burner ignition switch uses an AAA size battery. Please keep the positive pole facing
toward you . Replace the ignition button housing after batteries are installed.
8

Your gas grill is ready to use.
9

GAS HOOK-UP
NEVER CONNECT AN UNREGULATED GAS SUPPLY
LINE TO THE APPLIANCE. USE THE REGULATOR
ASSEMBLY SUPPLIED.
This is a liquid propane configured grill. Do not attempt
to use a natural gas supply unless the grill has been
reconfigured got natural gas use.
Total gas consumption (per hour) of The outdoor
stainless steel gas with all burners on “HI”:
Main burners 30,000 Btu/hr.
Rotisserie burner 10,000 Btu/hr.
Side burner 12,000 Btu/hr
Total 52,000 Btu/hr.
The installation of this appliance must conform with
local codes or, in the absence of local codes, with the
national fuel gas code, ANSI Z223. 1a-1988. Installation
in Canada must be in accordance with the Standard
Can1-b149.1 and/or .2 (installation code for gas burning
appliances and equipment) and local codes.
L.P. Tank Requirements
A dented or rusty L.P. tank may be hazardous and should
be checked by your L.P. supplier. Never use a cylinder
with a damaged valve. The L.P. gas cylinder must be
constructed and marked in accordance with the
specifications for L.P. gas cylinders of the U.S.
Department of Transportation (DOT). The cylinder must
be provided with a shut off valve terminating in an L.P.
gas supply cylinder valve outlet specified, as applicable,
for connection type QCC1 in the standard for
compressed gas cylinder valve outlet and inlet
connection ANSI/CGA-V-1.
Manifold pressure: (operating): 10” water column
(W.C.), (non-operating): 11.2” water column (W.C.).
L.P. GAS HOOK-UP:
Ensure that the black plastic grommets are in place and
that the hose does not come into contact with the heat
shield or the grill head.
CONNECTION:
Orifices for use with L.P. gas come equipped with a high
capacity hose/regulator assembly for connection to a
standard 20lb. L.P. cylinder (18-1/4” high, 12-1/4”
diameter).
To connect the L.P. gas supply cylinder, please follow
the steps below:
1. Make sure tank valve is in its full off position (turn
clockwise to stop)
2. Check tank valve to assure it has proper external
male threads (type 1 connection per ANSIZ21.81)
3. Make sure all burner valves are in their off position.
4. Inspect valve connections port and regulator
assembly. Look for any damage or debris. Remove
any debris. Inspect hose for damage. Never attempt
to use damaged or plugged equipment. See your
local L.P. gas dealer for repair.
5. When connecting regulator assembly to the valve,
hand tighten nut clockwise to a positive stop. Do not
use a wrench to tighten. Use of a wrench may
damage quick coupling nut and result in a hazardous
condition.
6. Open tank valve fully (counterclockwise). Use a
soapy water solution to check all connections for
leaks before attempting to light grill. If a leak is
found, turn tank valve off and do not use grill until a
local L.P. gas dealer can make repairs.
To disconnect L.P. gas cylinder:
1. Turn the burner valve off.
2. Turn the tank valve off fully (turn clockwise to
stop).
3. Detach the regulator assembly from tank valve by
turning the quick coupling nut counterclockwise.
LEAK TESTING
GENERAL
Although all gas connections on the grill are leak tested
at the factory prior to shipment, a complete gas tightness
check must be performed at the installation site due to
possible mishandling in shipment, or excessive pressure
unknowingly being applied to the unit. Periodically
check the whole system for leaks, or immediately check
if the smell of gas is detected.
BEFORE TESTING
Make sure that all packing material is removed from the
grill including the burner tie-down straps.
DO NOT SMOKE WHILE LEAK TESTING.
NEVER LEAK TEST WITH AN OPEN FLAME.
Make a soap solution of one part liquid detergent and
one part water. You will need a spray bottle, brush, or
rag to apply the solution to the fittings. For the initial
leak test, make sure the L.P. cylinder is full.
10

TO TEST
Make sure all control valves are in the “OFF” position.
Turn the gas supply on. Check all connections from the
L.P. cylinder up to and including the connection to the
manifold pipe assembly (the pipe that goes to the
burner). Soap bubbles will appear where a leak is
present. If a leak is present, immediately turn off gas
supply, tighten any leaking fittings, turn gas on, and
recheck. Should the gas continue to leak from any or all
of the fittings, turn off the gas supply, and contact our
customer service at 1-800-913-8999.
Only those parts recommended by the manufacturer
should be used on the grill. Substitution can void the
warranty. Do not use the grill until all connections have
been checked and do not leak.
ALWAYS CHECK FOR LEAKS AFTER
EVERY L.P. TANK CHANGE
Check all gas supply fittings for leaks before each use. It
is handy to keep a spray bottle of soapy water near the
shut-off valve of the gas supply line. Spray all the
fittings. Bubbles indicate leaks.
Disconnected L.P. cylinders must have threaded valve
plugs tightly installed, and must not be stored in a
building, garage or any other enclosed area.
The gas must be turned off at the supply cylinder when
the unit is not in use.
If the appliance is stored indoors the cylinder must be
disconnected and removed from the appliance. Cylinders
must be stored outdoors in a well-ventilated area out of
the reach of children.
Gas flow check:
Each grill burner is tested and adjusted at the factory prior to shipment; however, variations in the local gas supply may
make it necessary to adjust the burners. The flames of the burners should be visually checked.
Flames should be blue and stable with no yellow tips, excessive noise or lifting. If any of these conditions exist, check if the
air shutter or burner ports are blocked by dirt, debris, spider webs, etc.
INSTALLER FINAL CHECK LIST
Specified clearance maintained 24” from
combustibles.
All internal packaging removed.
Knobs turn freely.
Burners are sitting properly on orifices.
Pressure regulator connected and set for 11.2” W.C.
L.P. gas. Gas connections to grill using hose &
regulator assembly provided (pre-set for 11.0” water
column).
Unit tested and free of leaks.
User informed of gas supply shut off valve location.
USER, PLEASE RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
11

12
OPERATING INSTRUCTION
General use of the grill and rotisserie
Each burner is rated at 15,000 Btu/hr. The grill burners
encompass the entire cooking area and are side ported to
minimize blockage from falling grease and debris.
Above the burners are stainless steel radianted. The
igniter knobs are located on the lower center portion of
the valve panel. Each rotary igniter is labeled on the
Lighting Instructions Plate.
USING THE GRILL:
Grilling requires high heat for searing and proper
browning. Most foods are cooked at the “HI” heat setting
for the entire cooking time. However, when grilling large
pieces of meat or poultry, it may be necessary to turn the
heat to a lower setting after the initial browning. This
cooks the food through without burning the outside.
Foods cooked for a long time or basted with a sugary
marinade may need a lower heat setting near the end of
the cooking time.
Make sure the grill has been leak tested and is properly
located.
Remove any packing material.
Light the grill burners using the instructions in this
manual.
Turn the control knob to “HI” and preheat the grill for 15
minutes. The grill lid is to be closed during the appliance
preheat period.
Place the food on the grill and cook to the desired
doneness. Adjust heat setting, if necessary. The control
knob may be set to any position between “HI” and “LO”.
NOTE: The outdoor stainless steel gases designed to
grill efficiently without the use of lava rocks or
briquettes of any kind. Heat is radiated by the stainless
steel flame tamers positioned beneath the solid stainless
steel rods.
NOTE: The hot grill sears the food, sealing in the juices.
The longer the preheat, the faster the meat browns and
the darker the grill marks.
DO NOT LEAVE THE GRILL UNATTENDED
WHILE COOKING.
USING ROTIS BURNER:
Your grill is capable of performing back burner rotis
cooking. Light the rear burner as described in the
lighting instructions. Once lit, the rotis burner will reach
cooking temperatures in about 1 minute.
The rotis motor is capable of turning up to a 12lb. cut of
meat or poultry. The motor slides onto the metal motor
mount. The rotisserie motor must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70-1990.
The skewer for the rotis is assembled into the motor
assembly by placing the pointed end into the motor, and
resting the grooved bushing on the support at the
opposite side of the grill. The thumbscrew should be
inside the grill body. With the skewer pushed as far as
possible into the motor, the skewer should rest on the left
side of the grill body. To load the skewer begin with the
handle in place, and slide one of the meat forks (prongs
toward the food) onto the skewer. Center the product to
be cooked on the skewer then push the meat forks firmly
together. Tighten the wing nuts as tight as possible.
It may also be necessary to wrap the food with butchers
string (never use nylon or plastic string) to secure any
loose portions. Once the food is secure insert the skewer
into the motor. It is normal for the skewer to flex when
larger cuts of meat are being cooked. It may also be
necessary to remove the grill rods for larger cuts of meat.
If the meat scrapes on the grill rods during any part of
the rotation, then the grill rods must be removed.
Assemble the counterweight with washers and handle to
counter balance the heaviest side of the meat. By suing
the counterweight the rotisserie motor should turn
smoothly through all 360 degrees of rotation.
After your first use of the rotis burner it is likely that the
stainless steel adjacent to the burner will darken to a dark
blue color. This is a normal property of the non-rusting,
type 304 stainless steel used on the grill.
CAUTION: PLEASE TAKE OFF THE WARMING
RACK WHEN USING THE ROTIS BURNER. THE
HIGH HEAT COMING FROM THE ROTIS BURNER
MAY CAUSE THE WARMING RACK TO BEND.
WARNING
ELECTRICAL GROUNDING INSTRUCTIONS. This
appliance (rotisserie motor) is equipped with a plug and
should be plugged directly into a properly grounded
receptacle. DO NOT cut or remove the grounding prong
from this plug.
Keep the rotis motor electric cord away from the heated
surfaces of the grill. When not in use remove and store
the motor in a dry location.

LIGHTING INSTRUCTIONS GRILL/ROTIS
WARNING: IMPORTANT!
BEFORE LIGHTING…
Inspect the gas supply piping or hose prior to turning the
gas “ON”. If there is evidence of cuts, wear, or abrasion,
it must be replaced prior to use. Do not use the grill if the
odor of gas is present. The pressure regulator and hose
assembly supplied with the unit must be used. Never
substitute regulators for those supplied with the grill. If a
replacement is necessary, contact the factory for proper
replacement.
Screw the regulator (type QCC1) onto the tank. Leak
check the hose and regulator connections with a soap and
water solution before operating the grill (see assembly
instruction).
TO LIGHT THE GRILL BURNER:
Turn all knobs to “OFF” then turn on the gas supply.
Always keep your face and body as far from the grill as
possible when lighting.
Open the lid, push and turn one control knob to the “HI”
position and press the electric igniter for 3 to 4 seconds
to light the burner. If the burner does not light, wait for 5
minutes then retry.
TO MATCH LIGHT THE GRILL:
If the burner will not light after several attempts then the
burner can be match lit.
If you’ve just attempted to light the burner with the
igniter, allow 5 minutes for any accumulated gas to
dissipate. Keep your face and hands as far away from the
grill as possible. Insert a lit extended match or lighter
through the cooking grids to the burner. Press the control
knob and rotate left to the HI setting which should
release the gas. Burner will light immediately.
Push and turn the control knob which is centered on the
burner to “HI”. If the burner does not light in 4 seconds
turn the knob off, wait 5 minutes and try again.
TO LIGHT THE ROTIS BURNER:
Open the lid, push and turn the control knob to the “HI”
position. Press the electric igniter for 3 to 4 seconds to
light the burner. If the burner does not light within 4
seconds, turn the control knob to “OFF”. If the igniter
does not function, the burner can be lit by holding a lit
match to the burner (with the control knob at “HI”).
Keep a spray bottle of soapy water near the gas supply
valve and check the connections before each use.
Do not attempt to light the grill if odor of gas is present.
Call for service 1-800-913-8999.
USING THE SIDE BURNER
WARNING: IMPORTANT!
USING THE SIDE BURNER:
Inspect the gas supply piping or hose prior to turning the
gas “ON”. If there is evidence of cuts, wear or abrasion,
it must be replaced prior to use. Do not use the side
burner if the odor of gas is present.
WARNING: Always keep your face and body as far
away from the burner as possible when lighting.
LIGHTING INSTRUCTIONS
To light side burner, remove any cooking utensils from
the burner grate. Push and turn the control knob
counterclockwise to the “HI” position. This will start the
gas flowing. Press the electric igniter for 3 to 4 seconds
to light the burner. If the burner does not light within 4
seconds, turn the control knob to “OFF”. If the smell of
gas is detected and the igniter is not functioning,
immediately turn the control knob “OFF”. Allow 5
minutes for any accumulated gas to dissipate, then see
the following section for “MATCH LIGHTING”.
MATCH LIGHTING
Hold a lit extended match or lighter near the burner
ports, turn the control knob counterclockwise to “HI”.
Move your hand immediately once the burner is lit.
Rotate the control knob to the desired setting. Check for
proper burner flame characteristics. Each burner is
adjusted prior to shipment; however, variations in the
local gas supply may take minor adjustments necessary.
Burner flames should be blue and stable with no yellow
tips, excessive noise, or lifting. If any of these conditions
exist call our customer service line. If the flame is
yellow, it indicates insufficient air. If the flame is noisy
and tends to lift away from the burner, it indicates too
much air.
STAINLESS STEEL
The grill is made from non-rusting and non-magnetic
stainless steel. There are many different stainless steel
cleaners available. Always use the mildest cleaning
13

procedure first, scrubbing in the direction of the grain.
To touch up noticeable scratches in the stainless steel,
sand very lightly with dry 100 grit emery paper in the
direction of the grain. Specks of grease can gather on the
surfaces of the stainless steel and bake on to the surface
and give the appearance of rust. For removal use an
abrasive pad in conjunction with a stainless steel cleaner.
GRILL RACK
The easiest way to clean the grill is immediately after
cooking is completed and after turning off the flame.
Wear a barbeque mitt to protect your hand from the heat
and steam. Dip a brass bristle barbeque brush in tap
water and scrub the hot grill. Dip the brush frequently in
the bowl of water. Steam, created as water contacts the
hot grill, assists the cleaning process by softening any
food particles. The food particles will fall and burn. If
the grill is allowed to cool before cleaning, cleaning will
be more difficult.
GRILL BURNERS
Extreme care should be taken when moving a burner as it
must be correctly centered on the orifice before any
attempt is made to relight the grill. Frequency of
cleaning will depend on how often you use the grill.
GRILL BURNER CLEANING
Ensure the gas supply is off and the knobs are in the
“OFF” position. Make sure the grill is cool. Clean the
exterior of the burner with a wire brush. Clear stubborn
scale with a metal scraper. Clear any clogged ports with
a straightened paper clip. Never use a wooden toothpick
as it may break off and clog the port. Please note if
insects or other obstructions are blocking the flow of gas
through the burner, you will need to call our customer
service line.
CARE & MAINTENANCE OF SIDE BURNER
ENSURE THAT THE GAS SUPPLY AND THE
KNOBS ARE IN THE “OFF” POSITION. MAKE
SURE THE RANGETOP BURNER IS COOL
BEFORE REMOVAL.
BURNER CLEANING:
Clean the exterior of the burner with a wire brush. Clear
any clogged burner ports with a straightened paper clip.
Never enlarge the burner ports. Never use a wooden
toothpick as it may break off the clog the port.
GREASE TRAY CLEANING:
The grease tray should be emptied and wiped down
periodically and washed in a mild detergent and warm
water solution. A small amount of sand or cat litter may
be placed in bottom of grease tray to absorb the grease.
STAINLESS STEEL:
There are many different stainless steel cleaners
available. Always use the mildest cleaning procedure
first, scrubbing in the direction of the grain. Do not use
steel wool as it will scratch the surface. To touch up
noticeable scratches in the stainless steel, sand very
lightly with dry 100 grit emery paper in the direction of
the grain.
TOP BURNER GRATE:
The top burner grate is stainless steel. To avoid burns do
not clean a hot grate. They may be wiped while in place
with hot, soapy water, rinsed and wiped dry. Never
immerse a hot grate in water
CLEANING THE S.S COMPONENTS
ENSURE THAT THE GAS SUPPLY AND THE
KNOBS ARE IN THE “OFF” POSITION. MAKE
SURE THE RANGETOP BURNER IS COOL
BEFORE REMOVAL.
BURNER CLEANING:
Clean the exterior of the burner with a wire brush. Clear
any clogged burner ports with a straightened paper clip.
Never enlarge the burner ports. Never use a wooden
toothpick as it may break off the clog the port.
GREASE TRAY CLEANING:
The grease tray should be emptied and wiped down
periodically and washed in a mild detergent and warm
water solution. A small amount of sand or cat litter may
be placed in bottom of grease tray to absorb the grease.
STAINLESS STEEL:
There are many different stainless steel cleaners
available. Always use the mildest cleaning procedure
first, scrubbing in the direction of the grain. Do not use
steel wool as it will scratch the surface. To touch up
noticeable scratches in the stainless steel, sand very
lightly with dry 100 grit emery paper in the direction of
the grain.
14

TROUBLE SHOOTING
SPIDER AND INSECT WARNING!!!
Spiders and insects can nest in the burners of this or any
other grill, and cause the gas to flow from the front of the
burner. This is very dangerous condition which can cause
a fire to occur behind the valve panel, thereby damaging
the grill and making it unsafe to operate.
WHEN TO LOOK FOR SPIDERS
You should inspect the burners at least once a year or
immediately if any of the following conditions occur:
1. The smell of gas in conjunction with the burner
flames appearing yellow.
2. The grill does not reach temperature.
3. The grill heats unevenly.
4. The burners make popping noises.
BEFORE CALLING FOR SERVICE
If the grill does not function properly, use the following
checklist before contacting your dealer for service. You
may save the cost of a service call.
CHECK LIST
PROBLEMS WHAT TO DO
Grill won’t light when the ignition
button is pushed. Remove the grill rack and the radiant tray. With a mirror, watch the igniter tip. You should see a spark jump from the tip of the igniter when the button
is pressed. You should also hear a repeating click.
If there is no spark and no click, replace the battery under the ignition button
housing. If you replace the battery and there is still no sparks, can you match
light the burner? If the burner lights with a match, you can continue
operating the grill, but you will need to call our customer service line to
repair the electronic ignition. If the burner will not light by the match, please
check the other burners to see if they will operate. If gas is blocked to 1 or
more burners call our customer service for advise. Please also check the
igniter tip to see if it is clean and free from debris. You can sand this area
lightly and readjust it for 3/16” gap.
Do other burners on the unit operate?
Check the orifice for blockage.
Burner flame is yellow or orange, in
conjunction with the odor of gas. Call our customer service line.
Low heat with knob in “HI” position. Is the fuel hose bent or kinked?
Is the grill in a dusty area?
Is there adequate gas supply available? If it is only one burner that appears
low, does the orifice or burner need cleaning?
Is the gas supply, or gas pressure low?
Is the grill being preheated for 15 minutes?
15

Parts List
ILLUSTRATED PARTS BREAKDOWN
Model 720-0070 LP Outdoor Gas Grill
16

MODEL 720-0070 PARTS LIST
REF# DESCRIPTION QTY PART# REF# DESCRIPTION QTY PART#
1 FRONT LID 1PIECE BBQ001 24 SIDE BURNER BODY 3PIECES BBQ024
2 HANDLE,FRONT LID 1PIECE BBQ002 25 WARMING RACK,SIDE BURNER 2PIECES BBQ025
3 THERMOMETER 1PIECE BBQ003 26 LID,SIDE BURNER 1PIECE BBQ026
4 LOGO 1PIECE BBQ004 27 HANDLE,SIDE BURNER 1PIECE BBQ027
5 BOWL ASSEMBLY 1PIECE BBQ005 28 CAST IRON SIDE BURNER 2PIECES BBQ028
6 FRONT BAFFLE 1PIECE BBQ006 29 SIDE PANEL,LEFT 2PIECES BBQ029
7 CONTROL PANEL 1PIECE BBQ007 30 SIDE PANEL,RIGHT 1PIECE BBQ030
8 MAIN BURNER VALVE 1PIECE BBQ008 31 CASTER 1PIECE BBQ031
9 REAR BURNER VALVE 1PIECE BBQ009 32 CASTER WITH BRAKE 1PIECE BBQ032
10 SIDE BURNER VALVE 1PIECE BBQ010 33 BOTTOM PANEL 1PIECE BBQ033
11 KNOB 1PIECE BBQ011 34 REGULATOR 1PIECE BBQ034
12 BEZEL 1PIECE BBQ012 35 LEFT OPEN DOOR 1PIECE BBQ035
13 MANIFOLD 2PIECES BBQ013 36 RIGHT OPEN DOOR 1PIECE BBQ036
14 GREASE TRAY 1PIECE BBQ014 37 HANDLE,OPEN DOOR 1PIECE BBQ037
15 REAR PANEL 1PIECE BBQ015 38 DOOR BRACKET 3PIECES BBQ038
16 WARMING RACK 1PIECE BBQ016
17 COOKING GRID 3PIECES BBQ017
18 FLAME TAMER 3PIECES BBQ018
19 MAIN BURNER 1PIECE BBQ019
20 REAR BAFFLE,REAR BURNER 3PIECES BBQ020
21 MOTOR BRACKET 2PIECES BBQ021
22 GAS COLLECTOR,REAR
BURNER 3PIECES BBQ022
23 REAR BURNER 2PIECES BBQ023
To make sure you obtain the correct replacement part(s) for your gas grill, please refer to the parts list on this page. The
following information is required to assure getting the correct part.
Gas grill model number (see data sticker on grill).
Part number of replacement part needed.
Description of replacement part needed.
Quantity of parts needed.
To obtain replacement parts, contact the dealer from which products was purchased. If dealer service is not available,
contact: Virco Associates, Inc. Customer service 1-800-913-8999 or fax [phone].
IMPORTANT
Use only factory authorized parts. The use of any part that is not factory authorized can be dangerous. This will also void
your warranty.
Keep this assembly and operating instruction manual for convenient referral, and for replacement parts ordering.
CAUTION:
Gas valves are present at the factory (valve assembly will be marked accordingly). If you wish to convert at some later date,
be sure to contact your gas supplier or grill dealer before making the conversion.
A different gas valve must be installed when converting from one type of gas to another. You will also need a data plate
indicating what type of gas is used by the grill.
17

GRILL COOKING CHART
FOOD WEIGHT OR
THICKNESS FLAME SIZE APPROXIMATE TIME SPECIAL INSTRUCTIONS AND TIPS
VEGETABLES
Fresh
Slice. Dot with butter or margarine.
Wrap in heavy-duty foil.
Grill, turning occasionally.
Beets Medium 12 to 20 minutes
Carrots
Turnips
Grill, turning once. Brush
occasionally
with melted butter or margarine.
Onion 1/2 inch slices Medium 8 to 20 minutes
Potatoes
Wrap individually in heavy-
duty foil. Grill, rotating
occasionally.
Sweet Whole Medium 40 to 60 minutes
White 6 to 8 ounces High 45 to 60 minutes
Frozen
Dot with butter or margarine.
Wrap in heavy-duty foil. Grill,
turning occasionally.
Asparagus Medium 15 to 30 minutes
Broccoli
Brussels
Sprouts
Green beans
Peas
French fries Medium 15 to 30 minutes Place in aluminum foil pan.
Grill, stirring occasionally.
MEATS
Beef
Hamburgers 1/2 to 3/4 inch Medium 10 to 18 minutes
Grill, turning once when juices rise
to the surface.
Do not leave hamburgers
unattended since a flare-up could
occur quickly.
High 8 to 15 minutes
Steaks
18

Rib,
FOOD WEIGHT OR
THICKNESS FLAME SIZE APPROXIMATE TIME SPECIAL INSTRUCTIONS AND TIPS
Tenderloin,
Porterhouse,
T-Bone, Sirloin
Rare 1 inch High 8 to 14 minutes
Remove excess fat from edge. Slash
remaining fat at 2-inch intervals.
Grill, turning once.
1-1/2 inch High 11 to 18 minutes
Medium 1 inch Medium to 12 to 22 minutes
1-1/2 inch High 16 to 27 minutes
Well-done 1 inch Medium 18 to 30 minutes
1-1/2 inches Medium 16 to 35 minutes
Lamb
Chops & Steaks
Rare 1 inch High 10 to 15 minutes
Remove excess fat from edge. Slash
remaining fat at 2-inch intervals.
Grill, turning once.
1-1/2 inch High 14 to 18 minutes
Medium 1 inch Medium to 13 to 20 minutes
1-1/2 inch High 18 to 25 minutes
Well-done 1 inch Medium 17 to 30 minutes
Pork
Chops 1 inch Medium 15 to 40 minutes
Remove excess fat from edge. Slash
remaining fat at 2-inch intervals.
Grill, turning once. Cook well done.
Well-done 1-1/2 inches Medium 25 to 60 minutes
Ribs
Medium 40 to 60 minutes
Grill, turning occasionally.
During last few minutes brush with
barbecue sauce, turn several times.
Pork
Ham steaks
(precooked) 1/2 inch slices High 4 to 8 minutes
Remove excess fat from edge.
Slash remaining fat at 2-inch
intervals. Grill, turning once.
Hot dogs Medium 5 to 10 minutes Slit skin. Grill, turning once.
POULTRY
Broiler/fryer 2 to 3 pounds Low or 1 to 1-1/2 hours
Place skin side up. Grill, turning
and brushing frequently
with melted butter, margarine, oil or
marinade.
Halved or Medium 40 to 60 minutes
19
