VIRTUFIT iConsole CTR 2.1 User manual

Crosstrainer iConsole CTR 2.1
Owners manual
ENG
T [phone]
E service@tnessbenelux.nl
Wwww.tnessbenelux.nl
Twekkelerweg 263
7553 LZ Hengelo
TheNetherlands
Fitness
BeneluxBenelux
Uw partner in fitness
For questions or missing parts, please contact Fitness Benelux:

2Crosstrainer iConsole CTR 2.1
ENG
CONTENT
Safety Instruction 3
Check List 4-6
Assembly Instruction 7-16
Exploded Drawing 17
Parts List 18-20
Computer Instruction 21-27
iConsole+ App 28
Training Instruction 29

3
Crosstrainer iConsole CTR 2.1
ENG
SAFETY INSTRUCTION
Before you start training on your crosstrainer, please read the instructions carefully.
Be sure to keep the instructions for information, in case of repair and for spare part
delivery.
- This elliptical trainer is made for home use only and tested up to a maximum
body weight of 150 kgs.
- Follow the steps of the assembly instructions carefully.
- Use only original parts as delivered.
- Before the assembly, be sure to check if delivery is complete by using the included parts-list.
- For assembly use only suitable tools and asks for assistance with assembly if necessary.
- Place the exerciser on an even, non-slippery surface. Because of possible corrosion,
the usage of any exerciser in moist areas is not recommended.
- Check before the rst training and every 1-2 months that all connecting elements are
tight tting and are in the correct condition. Replace defective components immediately
and/ or keep the equipment out of use until repair. For repairs, use only original parts.
- In case of repair, please ask your dealer for advice.
- For repairs, use only original spare parts.
- Avoid the use of aggressive detergents when cleaning the home exerciser.
- Ensure that training starts only after correct assembly and inspection of the item.
- For all adjustable parts be aware of the maximum positions to which they can be
adjusted/tightened to.
- The home exerciser is designed for adults. Please ensure that children use it only
under the supervision of an adult.
- Ensure that those present are aware of possible hazards, e.g. movable parts during training.
- Warning: incorrect/excessive training can cause health injuries.
- Consult your physician before staring with any exercise program.
He or she can advise on the kind of training and which impact is suitable.

4
Crosstrainer iConsole CTR 2.1
ENG
CHECKLIST (contents of packaging)
02
CHECK LIST (contents of packaging)
Computer
Water bottle holder
Front bottom plastic cover (Left)
Front bottom plastic cover (Right)
Plastic cover for foot support bar(Left)
Plastic cover for foot support bar(Right)
Footplate (Left)
Footplate (Right)
Rear stabilizer
Front Stabilizer
Main frame

5
Crosstrainer iConsole CTR 2.1
ENG
CHECKLIST (contents of packaging)
03
Handlebar (Left)
Handlebar (Right)
Upper handlebar (Left)
Upper handlebar (Right)
Lower handlebar
Foot support bar (Left)
Foot support bar (Right)
Handlebar post
Rotation rod Adapter

6
Crosstrainer iConsole CTR 2.1
ENG
CHECKLIST (contents of packaging)

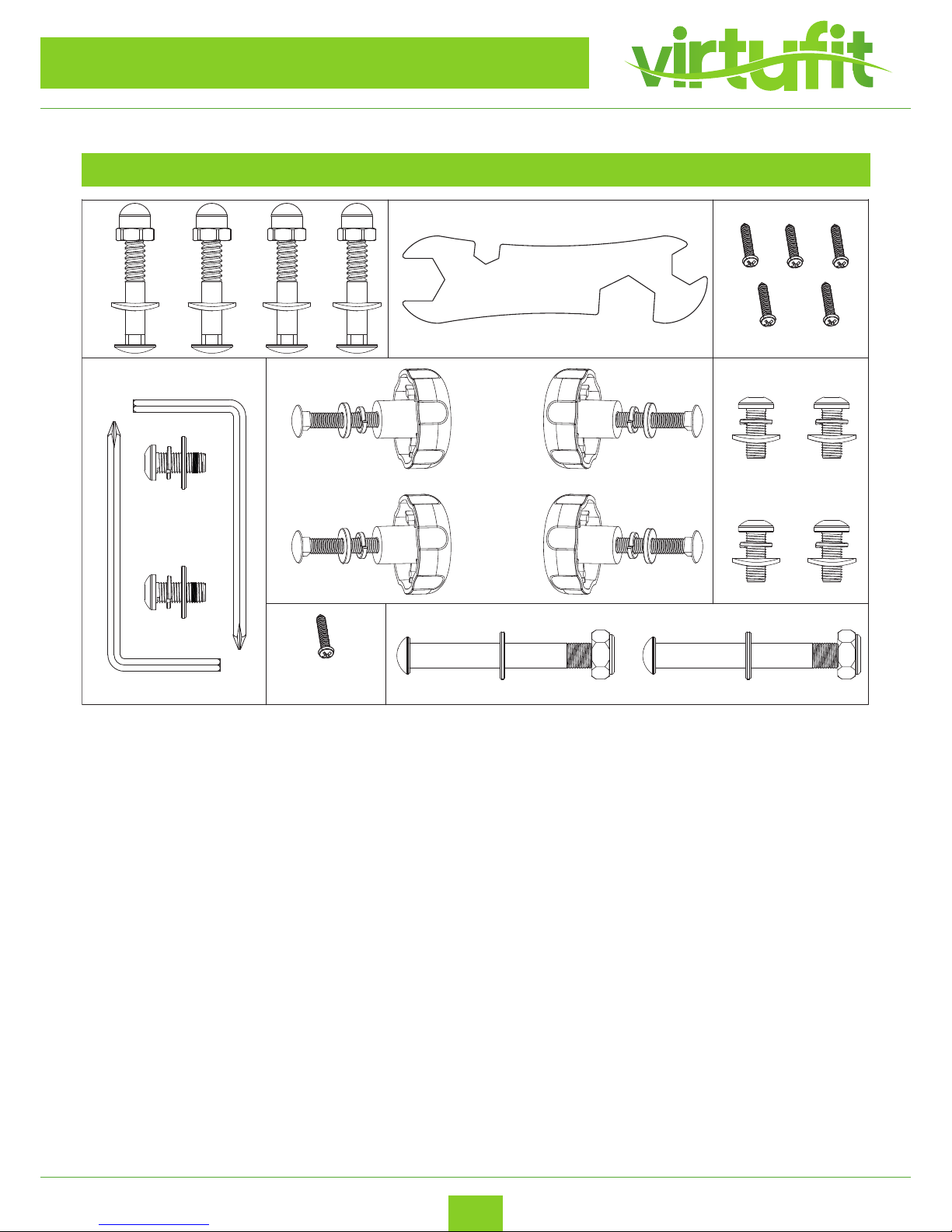

TOOL KIT
NO 9*4 NO 64*4 NO 91*4
NO 29*5
NO 22*1
NO 101*1
NO 32*4
NO 86*4
NO 87*4
NO 88*4
NO 11*2
NO 14*2
NO 35*2
NO 100*2 NO 23*2 NO 24*2 NO 27*2
NO 9*4 NO 10*4 NO 11*4

7Crosstrainer iConsole CTR 2.1
ENG
ASSEMBLY INSTRUCTION
7Crosstrainer iConsole CTR 2.1
ENG
ASSEMBLY INSTRUCTION
05
UITLEG BIJ MONTAGE
I. Bevestig de voorste stabilisator (90) op het frame (93) met M8 schroeven (64), gebogen ring (9)
en dopmoer (91). Draai het geheel strak aan.
II. Bevestig de achterste stabilisator (63) op het frame (93) met M8 schroeven (64). gebogen ring
(9) en dopmoer (91) Draai strak aan.
Opmerking: U kunt de dop aan de achterkant verstellen om de crosstrainer stabiel te houden .
STAP 1
STEP 1
I. Attach the Front Stabilizer (90) onto the Main Frame (93) with M8 Screws (64), Curved washer (9)
and Cap nut (91) .Tighten fully.
II. Attach the Rear Stabilizer (63) onto the Main frame (93) with M8 Screws (64). Curved washer (9)
and Cap nut (91) Tighten fully.
Note: You can adjust the Rear End Cap to keep the elliptical trainer stable.
STEP 1
I. Attach the Front Stabilizer (90) onto the Main Frame (93) with M8 Screws (64), Curved washer (9)
and Cap nut (91) .Tighten fully.
II. Attach the Rear Stabilizer (63) onto the Main frame (93) with M8 Screws (64). Curved washer (9)
and Cap nut (91) Tighten fully.
Note: You can adjust the Rear End Cap to keep the elliptical trainer stable.

8Crosstrainer iConsole CTR 2.1
ENG
STEP 2
8Crosstrainer iConsole CTR 2.1
ENG
STEP 2
06
I. Til de stuurstang voorzichtig op (95) tot deze verticaal is . Verbind de bovenste weerstands kab e l(98)
ende o nder ste weer sta nd ska be l(94) en bevestig de stuurpost (95) op het frame (93)
met 4xM8x20mm inbusbouten (10), M8 bocht ring e n(9), M8 platring e n(92)
enM8 veerri ng (11).
II. Breng de voorste plastic kappen samen (21L&21R) met zelftappende schroef M3x15mm (22),
zelfstappende schroef M4x15mm (29) en schroef M5x15mm (30).
STAP 2
ASSEMBLY INSTRUCTION

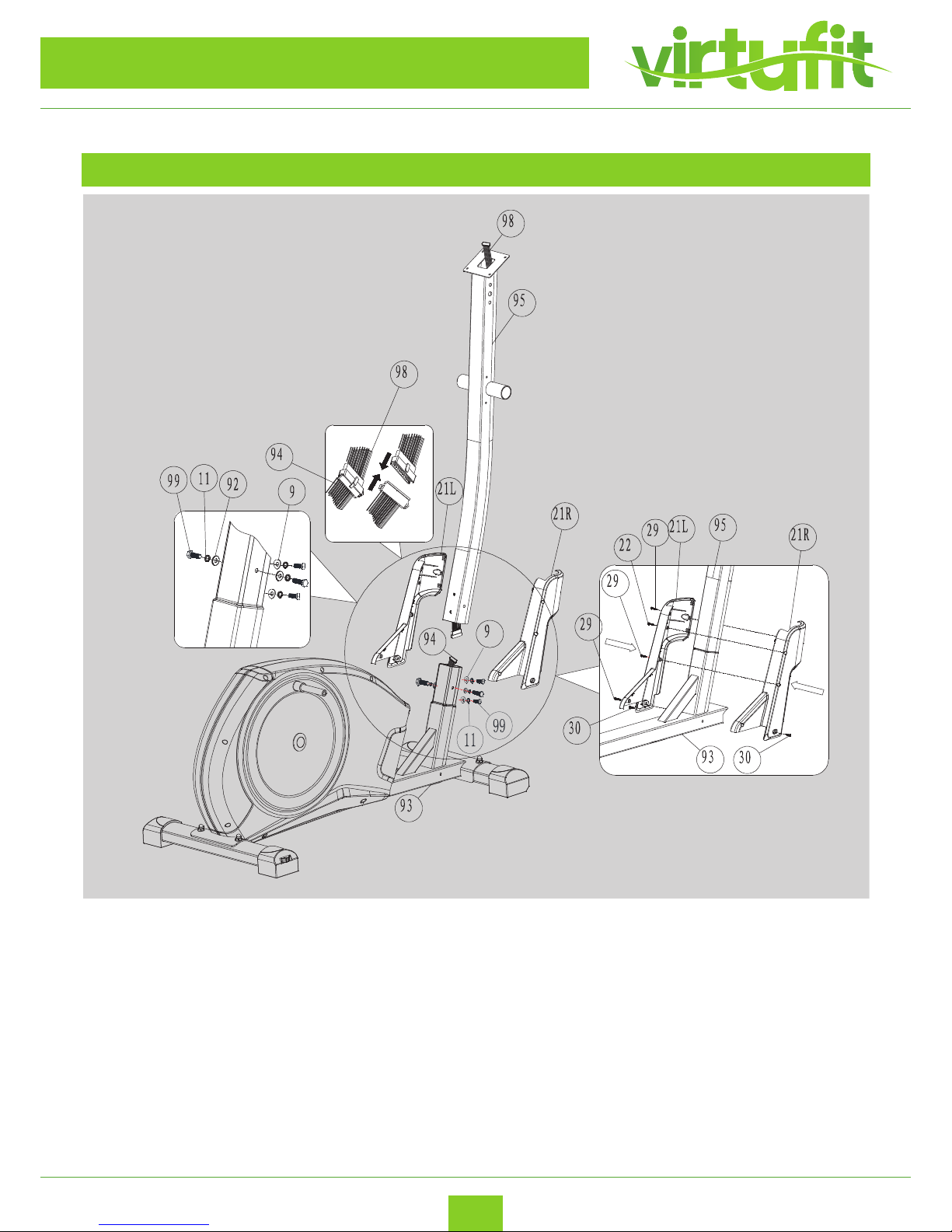

I. Carefully lift the Handlebar Post (95) until it is vertical. Connect the upper Tension Cable (98)
by using 4x Hex bolt M8x20mm (99), M8 Curved Washer (9), M8 Flat Washer (92)
and M8 Spring Washer (11).
II. Align the Front Bottom Plastic Cover (21L&21R) together by using Self-tapping Screw M3x15mm (22),
Self tapping Screw M4x15mm (29) and Screw M5x15mm (30).
I. Carefully lift the Handlebar Post (95) until it is vertical. Connect the upper Tension Cable (98) by using 4x
Hex bolt M8x20mm (99), M8 Curved Washer (9), M8 Flat Washer (92) and M8 Spring Washer (11).
II. Align the Front Bottom Plastic Cover (21L&21R) together by using Self-tapping Screw M3x15mm (22),
Self tapping Screw M4x15mm (29) and Screw M5x15mm (30).
ASSEMBLY INSTRUCTION

9
Crosstrainer iConsole CTR 2.1
ENG
STEP 3
9Crosstrainer iConsole CTR 2.1
ENG
STEP 3
ASSEMBLY INSTRUCTION
Place the Potation Rod(96) into the Handle Post (95). Slide the left and
right LowerHandlebars (17) ontothe Rotation Rod and secure in place with Φ19.5*Φ38*0.5mm Flat
Washer (18), Φ8.5*Φ36*3mmFlatWasher, M8 Spring Washer (11) and
M8*20 AllenBolt (14)foreachside.
Place the Potation Rod (96) into the Handle Post (95). Slide the left and right Lower Handlebars (17) onto the
Rotation Rod and secure in place with 19.5*38*0.5mm Flat Washer (18), 8.5*36*3mm Flat Washer, M8 Spring
Washer (11) and M8*20 Allen Bolt (14) for each side.
ASSEMBLY INSTRUCTION

10
Crosstrainer iConsole CTR 2.1
ENG
STEP 4
10 Crosstrainer iConsole CTR 2.1
ENG
STEP 4
ASSEMBLY INSTRUCTION
Attach the Footplate Support Bars (33L+33R)by sliding them onto the Main Frame (93) and securing in place with
M8*20 Allen Bolt (14), M8 Spring Washer(11)and M8 Flat Washer (35)for each side. Tighten fully.
ASSEMBLY INSTRUCTION
Attach the Footplate Support Bars (33L+33R) by sliding them onto the Main Frame (93) and securing in
place with M8*20 Allen Bolt (14), M8 Spring Washer (11) and M8 Flat Washer (35) for each side. Tighten fully.

11 Crosstrainer iConsole CTR 2.1
ENG
ASSEMBLY INSTRUCTION
STEP 5
11 Crosstrainer iConsole CTR 2.1
ENG
ASSEMBLY INSTRUCTION
STEP 5
09
Bevestig de voetstangen (33L+33R) door ze op het frame te schuiven (93) en bevestig met
M8*20 inbusbout (14), M8 veerrin g (11) enM8 platrin g(35) aan beide zijden . Draai het geheel
stevig vas t.
STAP 5

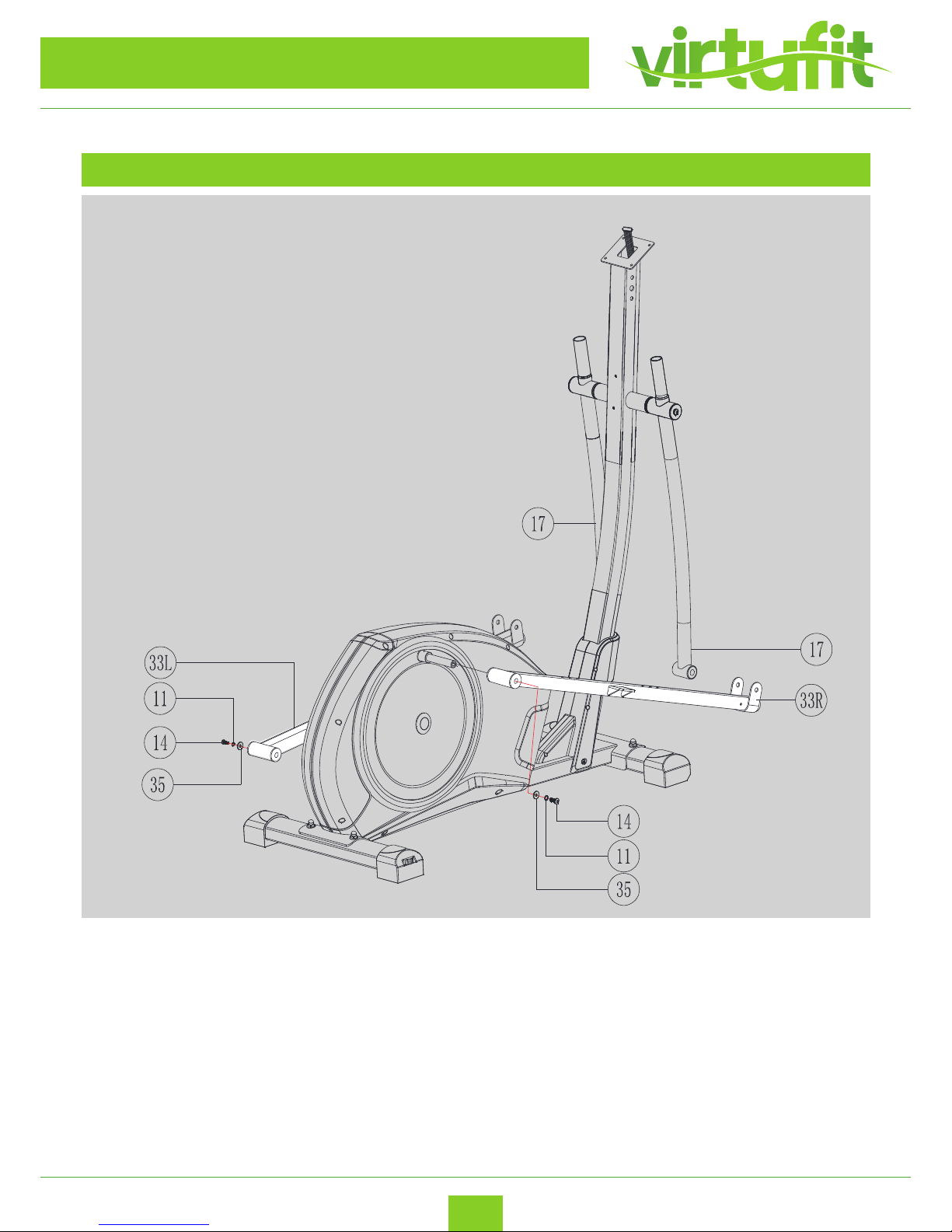

Attach the Footplate Support Bars (33L+33R) by sliding them onto the Main Frame (93) and
Align the footplate support bars (33L+33R) with the Lower Handle Bars (17) and attach together
with M10 Allen Bolt (27), M10 Flat Washers (24) and Nylon Lock Nuts (23). Tighten fully.
Attach the Plastic Covers (28L+28R) onto the Footplate Support Bars (33L+33R) using
M4 Self tapping Screws (29) and M5 Screws (30). Align the Handlebar Post (95),
So it is straight and then fully tighten the bolts.
Align the footplate support bars (33L+33R) with the Lower Handle Bars (17) and attach together with M10
Allen Bolt (27), M10 Flat Washers (24) and Nylon Lock Nuts (23). Tighten fully. Attach the Plastic Covers
(28L+28R) onto the Footplate Support Bars (33L+33R) using M4 Self tapping Screws (29) and M5 Screws (30).
Align the Handlebar Post (95), So it is straight and then fully tighten the bolts.

12
Crosstrainer iConsole CTR 2.1
ENG
ASSEMBLY INSTRUCTION
STEP 6
12 Crosstrainer iConsole CTR 2.1
ENG
ASSEMBLY INSTRUCTION
STEP 6
A
lign the footplate support bars (33L+33R) with the Lower Handle Bars (17) and attach together
with M10
Allen Bolt (27), M10 Flat Washers (24) and Nylon Lock Nuts (23). Tighten fully.
Before attach the Handlebars(3L+3R) to Handlebar Post (95), inset the hand pulse cable (13)
to the hole on Handlebar Post (95) and make sure the 2 ends be pulled and exposed on the
middle top of Handlebar Posthole.
Attach Handlebars (3L+3R)byusing M8 Allen Bolt (14) and M8 Flat Washer(92) for each side.
Make sure bolts are fully tightened.
Before attach the Handlebars (3L+3R) to Handlebar Post (95), inset the hand pulse cable (13) to the hole on
Handlebar Post (95) and make sure the 2 ends be pulled and exposed on the middle top of Handlebar Post
hole.
Attach Handlebars (3L+3R) by using M8 Allen Bolt (14) and M8 Flat Washer (92) for each side. Make sure
bolts are fully tightened.

13
Crosstrainer iConsole CTR 2.1
ENG
ASSEMBLY INSTRUCTION
STEP 7
13 Crosstrainer iConsole CTR 2.1
ENG
ASSEMBLY INSTRUCTION
STEP 7
Attach the Upper Handlebar (8L+8R) onto the Lower Handlebar (17) by using M8 Allen Bolt (10),
M8 Spring Washer (11) and M8 Curved Washer (9).
Attach the Upper Handlebar (8L+8R) onto the Lower Handlebar (17) by using M8 Allen Bolt (10), M8 Spring
Washer (11) and M8 Curved Washer (9).

14
Crosstrainer iConsole CTR 2.1
ENG
ASSEMBLY INSTRUCTION
STEP 8
14 Crosstrainer iConsole CTR 2.1
ENG
ASSEMBLY INSTRUCTION
STEP 8
Align the Upper Tension Cable (98) on the top of Handlebar Post (95) with that on the Computer (1).
Align the Hand Pulse Cable (13) as well.
Then Secure the Computer (1) with Handlebar Post by using M5 Screws (97).
Make sure all the bolts are fully tightened.
Align the Upper Tension Cable (98) on the top of Handlebar Post (95) with that on the Computer (1). Align
the Hand Pulse Cable (13) as well.
Then Secure the Computer (1) with Handlebar Post by using M5 Screws (97). Make sure all the bolts are fully
tightened.

15
Crosstrainer iConsole CTR 2.1
ENG
ASSEMBLY INSTRUCTION
STEP 9
15 Crosstrainer iConsole CTR 2.1
ENG
ASSEMBLY INSTRUCTION
STEP 9
Attach the Footplate (31L+31R) onto the Foot Support Bar (33L+33R) using M6 Carriage Bolts (32),
M6 Flat Washers (88), M6 Spring Washers (87) and M6 Knob (86), tighten fully.
Attach the Footplate (31L+31R) onto the Foot Support Bar (33L+33R) using M6 Carriage Bolts (32), M6 Flat
Washers (88), M6 Spring Washers (87) and M6 Knob (86), tighten fully.

16
Crosstrainer iConsole CTR 2.1
ENG
ASSEMBLY INSTRUCTION
STEP 10
16 Crosstrainer iConsole CTR 2.1
ENG
ASSEMBLY INSTRUCTION
STEP 10
Now your machine is ready for use!

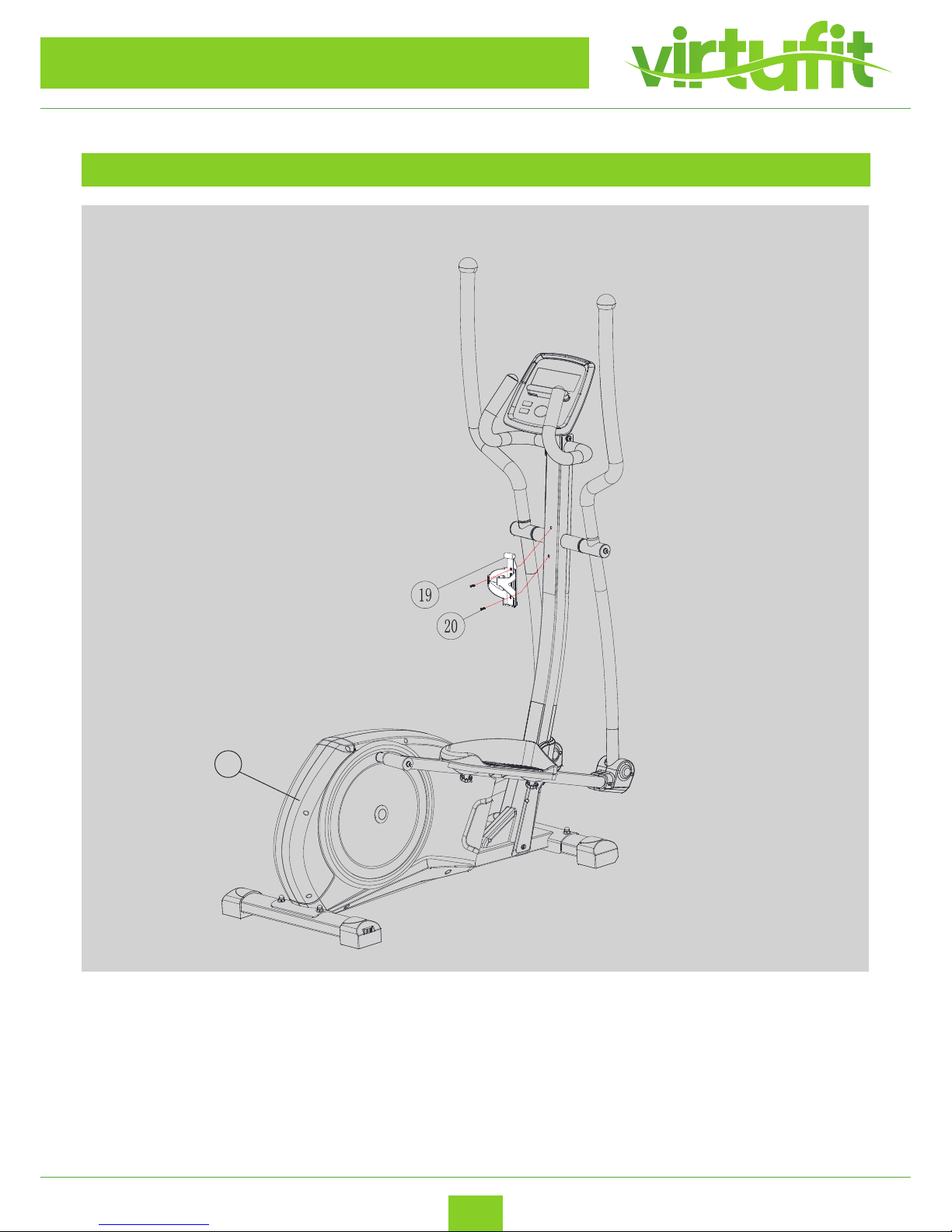

Place the Water Bottle Holder (19) into the hole in the front, by using Screw M5x20 mm (20).
Place the water bottle holder (19) into the hole in the front by using screw m5 x 20mm (20). Connect the
adapter, the adapter input (102) is at the back of the device.
Now ready for use!
102

17
Crosstrainer iConsole CTR 2.1
ENG

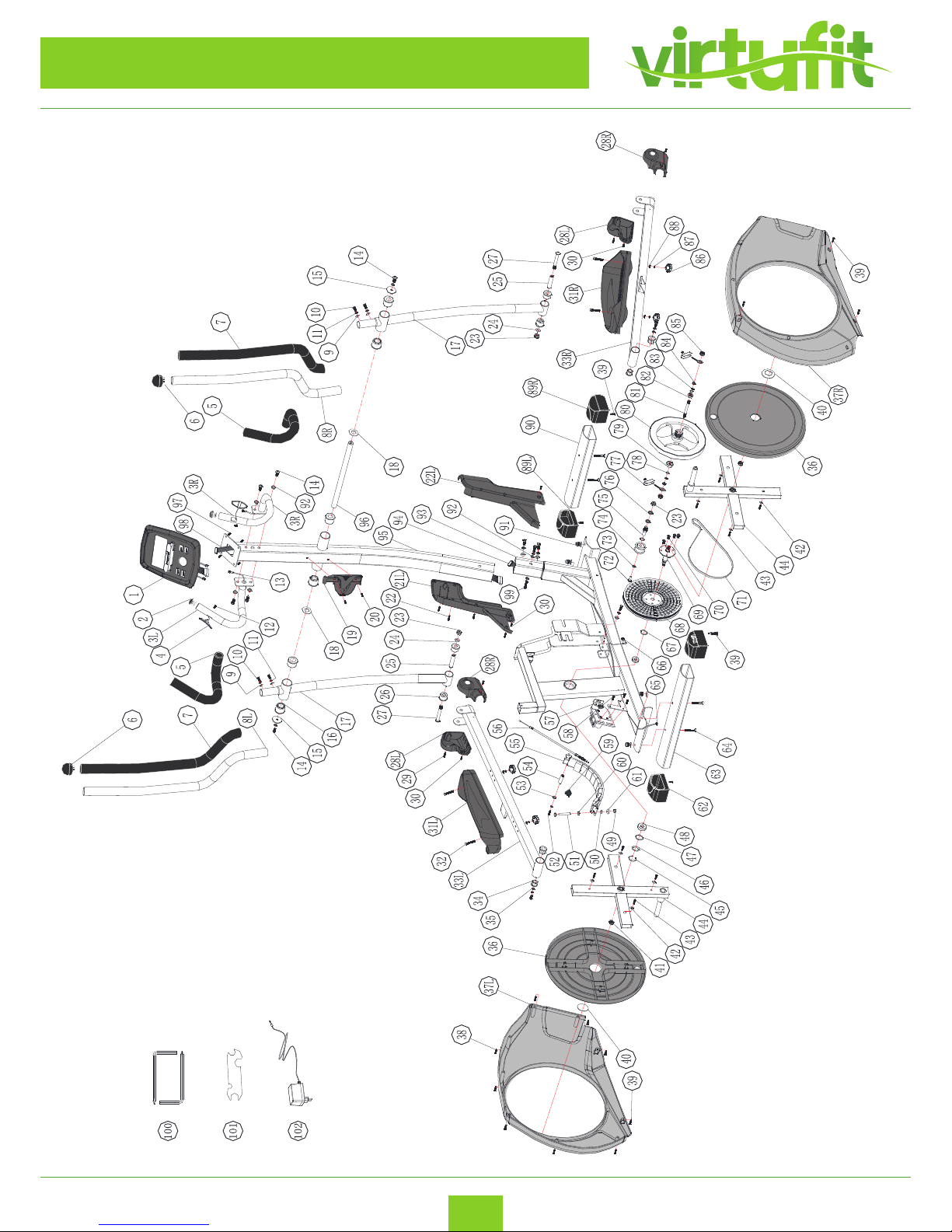

EXPLODED DRAWING

18
Crosstrainer iConsole CTR 2.1
ENG
PARTS LIST
Number Description Amount
1 Computer 1
2 End cap for handlebar 2
3L Handlebar (Left) 1
3R Handlebar (Right) 1
4 Hand pulse pads 2
5 handlebar foam 2
6 End cap for upper handlebar 2
7 Upper handlebar foam 2
8L Upper handlebar (Left) 1
8R Upper handlebar (Right) 1
9 Curved washer M8 10
10 Allen bolt M8*20 4
11 Spring washer M8 12
12 Self-tapping screw M3.5*20 2
13 Hand Pulse cable 2
14 Allen bolt M8*20 8
15 Flat washer Φ8.5*Φ36*3T 2
16 Handlebar pivot bushes 6
17 Lower handlebar 2
18 Flat washer Φ19.5*Φ38*0.5T 2
19 Water bottle holder 1
20 Screw M5*20 1
21L Front bottom plastic cover (Left) 1
21R Front bottom plastic cover (Right) 1
22 Self-tapping screw M3*15 1
23 Nylon lock nut M10 3
24 Flat washer M10*19*2 2
25 Tube spacer 14*59.5 2
26 Handlebar lower pivot bushes 4
27 Allen bolt M10*78 2
28L Plastic cover for foot support bar(Left) 2
28R Plastic cover for foot support bar(Right) 2
29 Self-tapping screw M4*15 5
30 Screw M5*15 6
31L Footplate (Left) 1
31R Footplate (Right) 1
32 Carriage bolt M6*50 4
33L Foot support bar (Left) 1
33R Foot support bar (Right) 1
34 Bushing 4
35 Flat washer 8*28*2T 2
36 Round cover 2

19
Crosstrainer iConsole CTR 2.1
ENG
PARTS LIST
Nummer Omschrijving Aantal
37L Chain cover (Left) 1
37R Chain cover (Right) 1
38 Self-tapping screw M4.5*25 6
39 Screw M5*15 10
40 Plastic cover 2
41 Nut M10*1.25 2
42 Washer 5*16*1 8
43 Self-tapping screw M4*15 8
44 Crank 2 2
45 C-shape washer Φ18 1
46 Waved washer Φ20.5*25*0.5T 1
47 Washer 20*25*1 1
48 Bearing 6004RS 2
49 Nut M6 1
50 Flat washer 6.5*19*1.5T 1
51 Hex head screw M6*75 1
52 Allen head screw M6*16 2
53 Flat washer 6*13*1.5T 2
54 Axle for magnet holder 1
55 Magnet set 1
56 Cable 1
57 Motor 1
58 Screw M5*15 5
59 Tapered spring 1
60 Nut M6 1
61 Plastic washer 6.5*22*1.5T 1
62 Rear end cap 2
63 Rear stabilizer 1
64 Carriage bolt M8*55 4
65 DC line 1
66 Sensor 1
67 Washer 20*25*2 1
68 Belt wheel 1
69 Pedal Axle 1
70 Anti-loose Allen bolt M8*12 4
71 Belt 1
72 Hex head screw M6*12 1
73 Flat washer 6*13*1T 1
74 Idler 1
75 Axle for Idler 1
76 Flat washer 10*19*1.5 2
77 Belt adjustment set 2 sets
78 Waved washer Φ10*15*0.3T 2

20
Crosstrainer iConsole CTR 2.1
ENG
PARTS LIST
Nummer Omschrijving Aantal
79 Bearing 6300RS 1
80 Flywheel 1
81 Flywheel Axle 1
82 Bearing 6000RS 1
83 C-shape washer Φ9 2
84 Hex nut M10*1.25*4T 2
85 Nut M10*1.25 2
86 Knob M6 4
87 Spring washer M6 6
88 Flat washer 6*16*2 4
89L End cap for front stabilizer (Left) 1
89R End cap for front stabilizer (Right) 1
90 Front Stabilizer 1
91 Cap nut M8 4
92 Flat washer 8*19*1.5T 6
93 Main frame 1
94 Lower tension cable 1
95 Handlebar post 1
96 Rotation rod 1
97 Screw for computer M5*12 4
98 Upper tension cable 1
99 Hex bolt M8*20 4
100 Allen key wrench with phillips head 2
101 Combination wrench 1
102 Adapter 1
