VISIONARY DESIGNS MOD-1230 Manual

www.classicexhibits.com
Step 1
Page 1 of 4
866.652.2100
© 2011
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
Order #XXXXX - MOD-1230 - Workstation Assembly
Item
1
2
3
4
5
6
Description
Base Plate
30”h Lower Vertical Extrusion
30”h Upper Vertical Extrusion
37.461”h Right Vertical Extrusion
37.461”h Left Vertical Extrusion
15.674”w Horizontal Extrusion
Qty.
1
1
1
1
1
1
Steps:
1) Attach vertical extrusions [2, 4 and 5] to base plate [1], see detail D on General Info
page for base plate attachment.
2) Connect upper vertical extrusion to lower vertical extrusion [3 to 2].
3) Slide insert between vertical extrusions [4 and 5],
then attach horizontal extrusion [6] between vertical extrusions [4 and 5] atop insert.
4) Attach shelves in place.
5) Set counter atop assembled base and secure to vertical extrusion [3] using thumbscrews.
6) Attach literature racks to assembled kiosk, see Literature Rack Attachment detail.
7) Attach monitor mount to vertical extrusion [3], see Monitor Mount Attachment detail.
1
1
1
1
1
2
2
2
2
2
3
3
3
3
4
5
6
7
8
9
1A
1B
Monitor Mount Attachment
Attach monitor mount to vertical
extrusions after assembly.
Slide Mount
into Groove of
Vertical Extrusion.
Tighten
Setscrew Attach top
Plate and
tighten screws
Attach connector piece to rack
as shown. Then connect
assembled literature
rack to vertical extrusion.
Literature Rack Attachment
Tighten Lock
to Secure
Bolt
A10 Clamp
Note: A10 Clamps should remain
attached to verticals as shown.
When desired location
is found, tighten
set screw to secure.
Tighten black plastic
set screw to secure
shelf in place.
Slide connector on back
of A10 clamp into groove
of extrusion.
A10 Clamp Attachment
Rotate Clamp to
Desired Angle
Insert
Plex Shelf
Plex Shelf
Counter Top
4
5
Monitor Mount

www.classicexhibits.com
Step 2
Page 2 of 4
866.652.2100
© 2011
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
Order #XXXXX - General Information

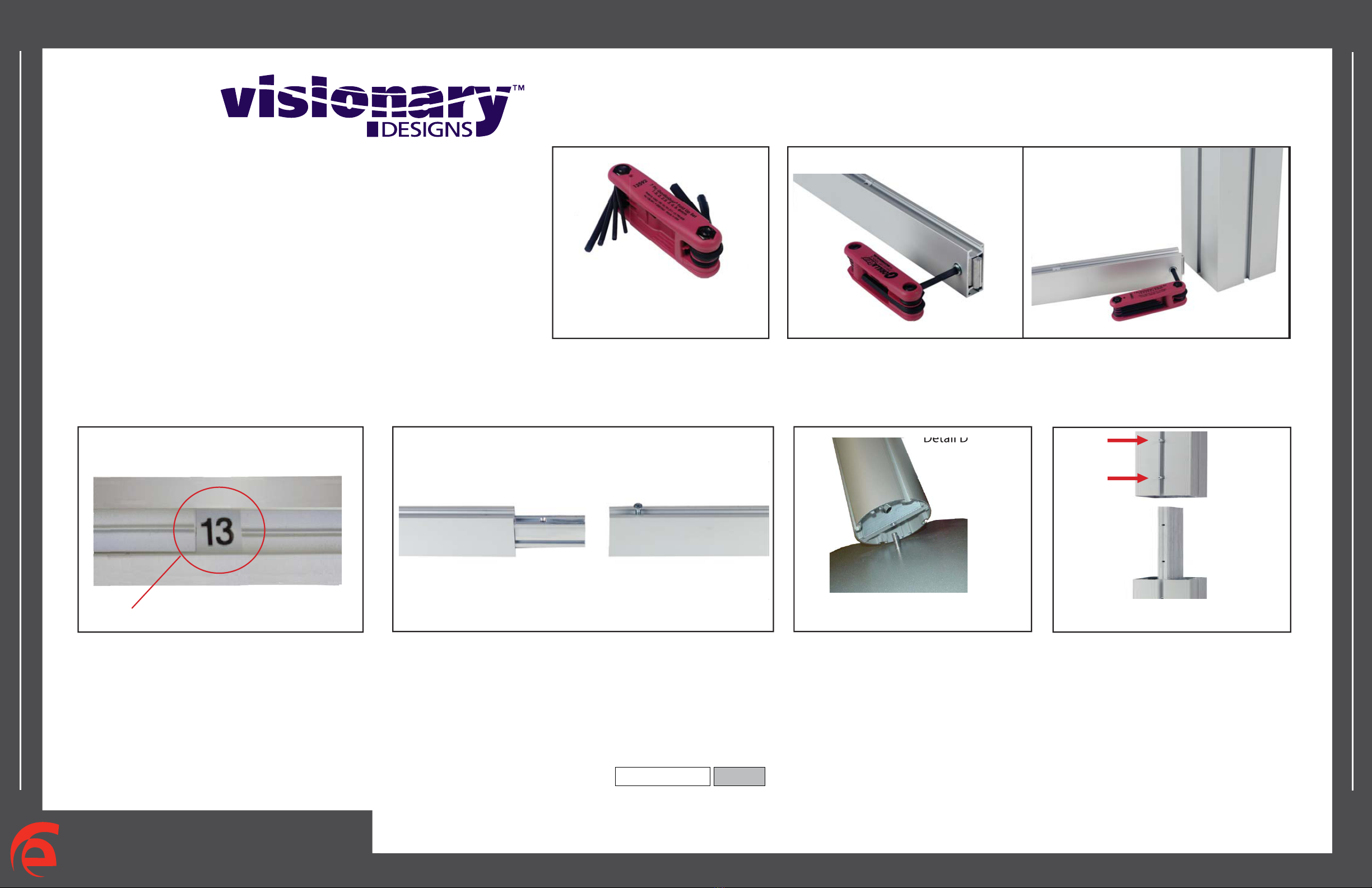

The Tool Typical Connection
Horizontal Inline Connection (remove only one setscrew)
Base Plate Connection Vertical Connection
(remove only two setscrews)
Most Visionary Designs exhibits can be
assembled with the supplied Hex Key Tool.
Occasionally, a flat head screwdriver may
be required.
Most horizontal extrusion connections have a patented expandable lock. This lock inserts into
the groove of an opposing extrusion. Tightening the lock with the Hex Key Tool expands the lock
and creates a strong positive connection.
Remove only (1) setscrew when disassembling. Replace setscrew in
extrusion after assembling it. Before packing, replace setscrew in
extrusion to avoid losing it.
Attach base plate to round or square
vertical extrusion using the bolt provided.
Be careful not to strip the threads.
When vertical extrusions are packed in
portable cases rather than crates or
tubs, they must broken down into
smaller sections which then require
assembly.
Remove only (2) setscrews when
disassembling. Replace setscrews in
extrusion after assembling it. Before
packing, replace setscrews in extrusion
to avoid losing them.
Using Your Setup Instructions
The Visionary Designs Setup Instructions are created specifically for your
configuration. They are laid out sequentially, including an exploded view of
the entire display, and then a logical series of detailed steps to assemble the
main structure and components. We encourage you to study the instructions
before attempting to assemble your exhibit.
Each page reminds you to tighten the setscrews after disassembling your
exhibit to prevent loss of the locks and setscrews (see below in RED).
This is VERY IMPORTANT.
Cleaning and Packing Your Display
1) Use care when cleaning aluminum extrusion or acrylic inserts. Use only
non-abrasive cleaners.
2) When cleaning laminate inserts or countertops, use mild cleansers and a
soft material such as cotton.
3) Keep all display components away from extreme heat and long exposure
to sunlight to avoid warping and fading.
4) Retain all packing material. It will make re-packing much easier and will
reduce the likelihood of shipping damage.
Typical Connection (cont’d)
Numbered Label
Each extrusion contains a numbered label which
corresponds with setup instructions.
The label is located within a groove of the extrusion
(when possible). With Visionary Designs the labels
contain Black numbers unless otherwise specified.
Detail C EliateDDliateDDetail B
Detail A
Setscrews
NOTE :
PDF copies of your Setup Instructions are available @ www.classicexhibits.com
Use the Search Tool located on the lower left-hand corner of the Classic Home page.
Enter your 5-7 digit Order #.
Search for Setup Instructions
