Vitus Audio SS-025 User manual

SS-025
Owner’s Manual
Under Revision

2
SS-025 | Version 1
All rights reserved. No part
of this publication may be
reproduced, stored in or
introduced into a retrieval
system, or transmitted in
any form, or by any means
(electronic, mechanical,
photocopying, recording
or otherwise) without the
prior written permission of
Vitus Audio. Any person who
does any unauthorized act
in relation to this publication
may be liable to criminal
prosecution and civil claims for
damages.
Information contained in this
manual is subject to change
without notice, and whilst it
is checked for accuracy, no
liabilities can be accepted for
errors.

3
SS-025 | Version 1
table of contents
on a personal note
Certificate . . . . . . . . . . . . 4
from the creator
Foreword . . . . . . . . . . . . . 5
introduction
About this manual . . . . . . . . 6
Introduction to
the Signature Series . . . . . . . 6
1. getting started
Unpacking the box . . . . . . . . 8
What’s in the box. . . . . . . . . 8
Device overview . . . . . . . . . 9
Turning the SS-025 on and off. . 10
2. connecting
Connecting the SS-025 . . . . .11
SS-025 rear panel. . . . . . . . . 12
3. operation
Operation modes . . . . . . . .14
Functions – left front panel . . .15
Functions – right front panel . .15
SS-025 description of
the elements in the menu.. . . . 16
SS-025 menu structure . . . . . . 16
4. operation & service
Safety notice . . . . . . . . . . . 17
Mains supply voltage . . . . . .17
Maintenance . . . . . . . . . . . 17
Mains fuse . . . . . . . . . . . .18
Replacing a blown fuse . . . . .18
5. warranty
Warranty . . . . . . . . . . . . .20
6. specifications
SS-025 Specifications . . . . . .23
7. examples operation
Example 1. . . . . . . . . . . . . 24
Example 2 . . . . . . . . . . . .25
Example 3 . . . . . . . . . . . .26
Example 4 . . . . . . . . . . . .27
7. examples
connecting devices
Connecting devices 1 . . . . . .28
8. pictures
SS-025 Front . . . . . . . . . . .30

4
SS-025 | Version 1
on a personal note
Certificate
Model: SS-025
Product ID/Serial
__________________________________
Product Build Date
__________________________________
Signed
__________________________________
All products details, specifications and
measurements are recorded for your SS-025
and kept by Vitus Audio.

5
SS-025 | Version 1
from the creator
Foreword
First of all, thank you for
choosing the Vitus Audio
SS-025 stereo amplifier, we
are sure you will enjoy it for
many years to come. When
purchasing a Vitus Audio
product, you are guaranteed a
musical performance,
which exceeds the current
musical standards. Vitus
Audio is dedicated to musical
performance rather than
technical details and high
performance measures.
We believe that many
manufactures are blinded by
the current available theory,
instead of looking for new
answers.
At Vitus Audio everything
works until proven not to.
This way we always try to
push the limits and explore
the unexplored. As a result
of this, many of the solutions
we use today are considered
to be “impossible to ever
get working”, however they
have convinced many people
and reviewers world wide
of the opposite. Before any
of our new topologies are
implemented in our products,
they are carefully reviewed by
our dedicated listening panel.
This way we can guarantee
the correct level of musically
performance and robustness.
Generally we’re after super
neutral, super detailed and
super dynamic reproduction
without “loosing” the nerve
in the music which often is
a drawback of many high
end amplifiers. Our real
strongholds are complete
silence, unbelievable depth
and width in the soundstage
resulting in a far more open
sound with higher resolution
-you could say, closer to the
artist. As a result of the above,
our amps do not “focus” on
any specific frequencies - i.e.
no extension of top or bass,
which of course results in high
clarity of the midrange since
it’s “naturally present”!
Hans Ole Vitus

6
SS-025 | Version 1
introduction
About this manual
This is your SS-025 owner’s
manual. The following pages
will describe, as clearly as
possible, how to get your SS-
025 operating fast and simple.
Although some operations are
self-explanatory, we strongly
suggest you read this manual
to avoid any damage to the
unit. The manual is designed
to be helpful. If there are
points you feel we could cover
better, or that we have missed
out – please tell us.
Important
information is
presented like
this. Ignoring this
information may cause
damage to you or the
unit. Damage caused
to the unit by ignoring
this information might
invalidate the warranty.
Introduction to the
Signature Series
The Vitus Audio Reference
Series is a true high-end series
of products, which is build on
our true dedication to neutral
music reproduction. Every
detail is carefully thought
through, and all choices made
during development, where
based purely on listening, and
not measuring. Only the best
available materials are used to
ensure an overall quality which
will last for many years, when
treated right.


7
SS-025 | Version 1
F
120
100
80
60
40
- 40
20
- 20
0
C
50
40
30
- 20
20
10
- 10
- 40
- 30
0
F
120
100
80
60
40
- 40
20
- 20
0
C
50
40
30
- 20
20
10
- 10
- 40
- 30
0
introduction

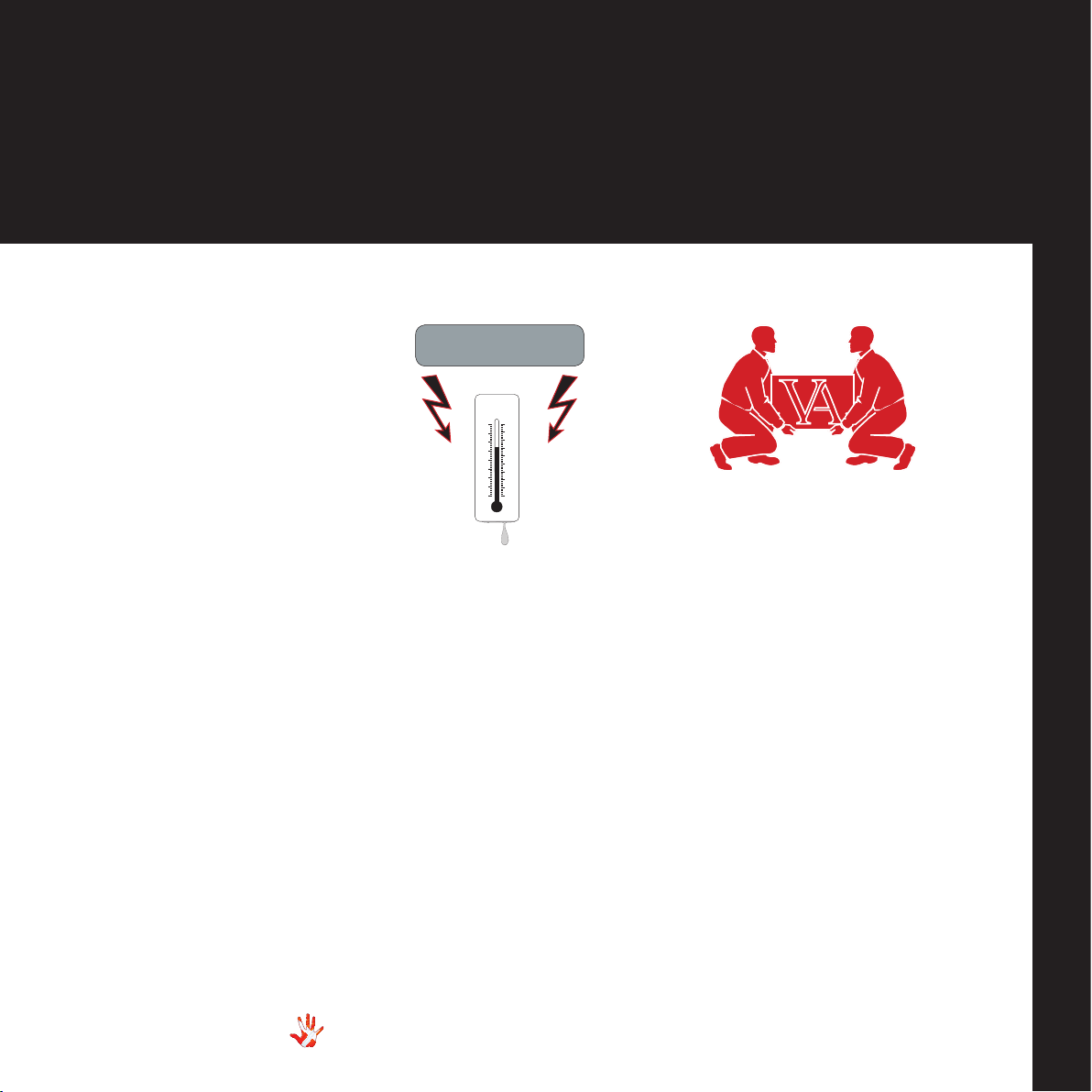

This amplifier is
VERY heavy –
make sure to be
at least two people
to unpack the unit.
You might damage
both your back and
the amplifier if extra
care is not applied.
Vitus Audio A/S cannot
be held responsible
for any damage that
is a consequence of
uncareful handling of
the unit.

After unpacking
allow 24 hours
for the product to
reach room temperature
before connecting up
and switching on. This
is to allow condensation
to dissipate, which
might otherwise
cause damage to the
electronics. Remember
also that condensation
can form when you
move the amplifier from
a cold place to a warm
place.
CAUTION

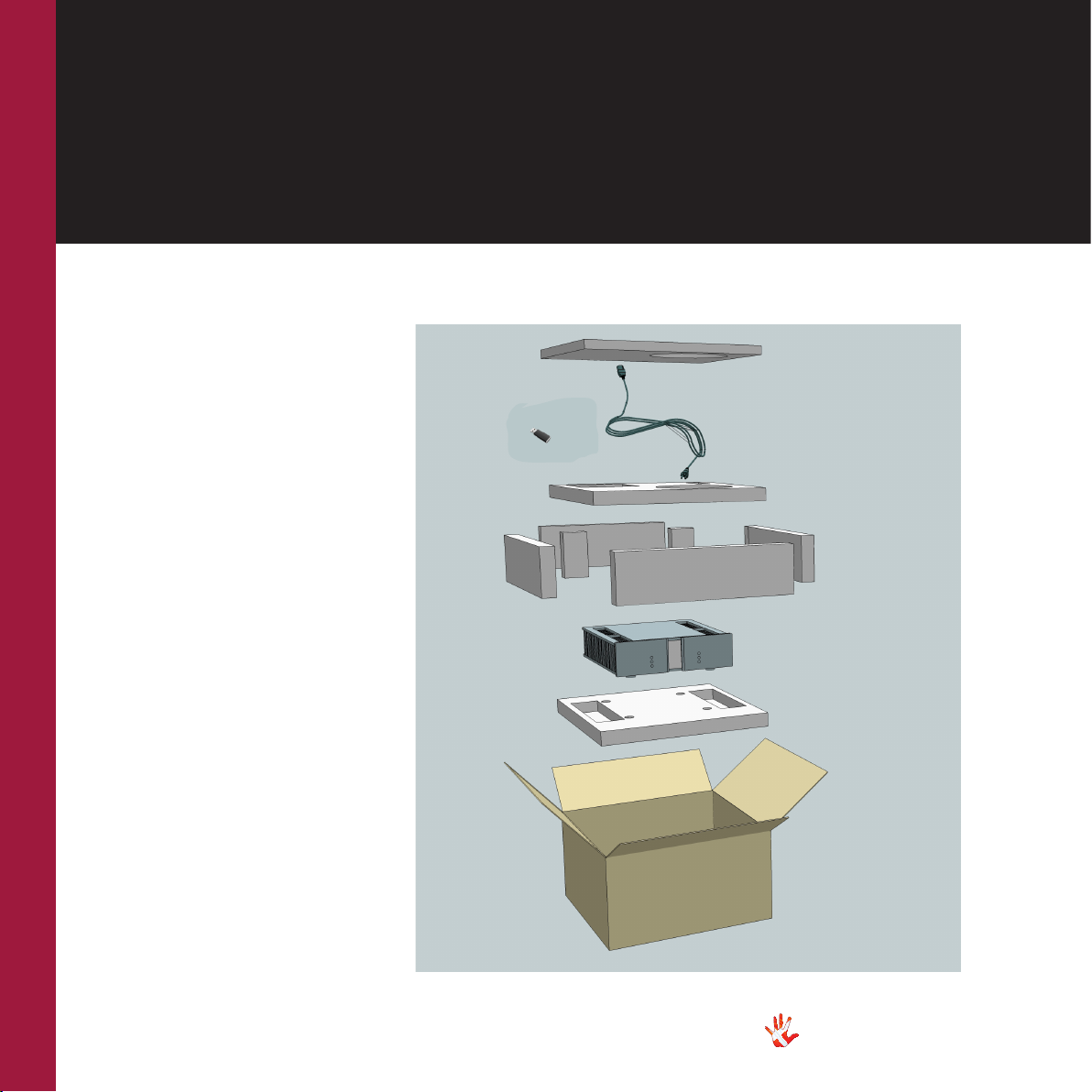

Figure 1 Box exploded view
Foam top 1
Foam bottom
Box
Foam top 2
Foam Sides
6 pieces
SS-025
Power Cable
Unpacking the box
After you have opened the
top, it is possible to remove
the top protective foam which
gives you direct access to the
amplifier. In the top you will
find the remote, the power
cord and brochures. Now
remove the side protective
foam, this will make it easier
to grab hold of the SS-025.
Two people carefully lift the
amplifier out of the box, and
put it directly onto the floor.
Store the empty box and the
protective foam for later use.
What’s in the box
SS-025
Power Cable
USB with Manual & Brochure
Foam top 1
Foam top 2
Foam Sides 6 pieces
Foam bottom
Box
USB with
Manual &
Brochure
8
SS-025 | Version 1
1. getting started

Device overview
Figure 2 Device overview
The body of the SS-025 is
constructed of anodized
aluminium.
Dimensions (H x W x D):
130 x 435 x 435
Weight: 42 KG
135 mm 435 mm
435 mm
35 mm
20 mm
9
SS-025 | Version 1
1. getting started
1. getting started

10
SS-025 | Version 1
1. getting started
Turning the SM-011 on and off.
Always turn on the products beginning from the source:
Source apre-amplifier apower amplifier.
Always turn off your products in reverse order:
Power amplifier apre-amplifier aSource.
Not following this procedure,
may cause damage to any of
your products/speakers.
Damage caused to any of your
products/speakers by not following
this procedure will invalidate the warranty.


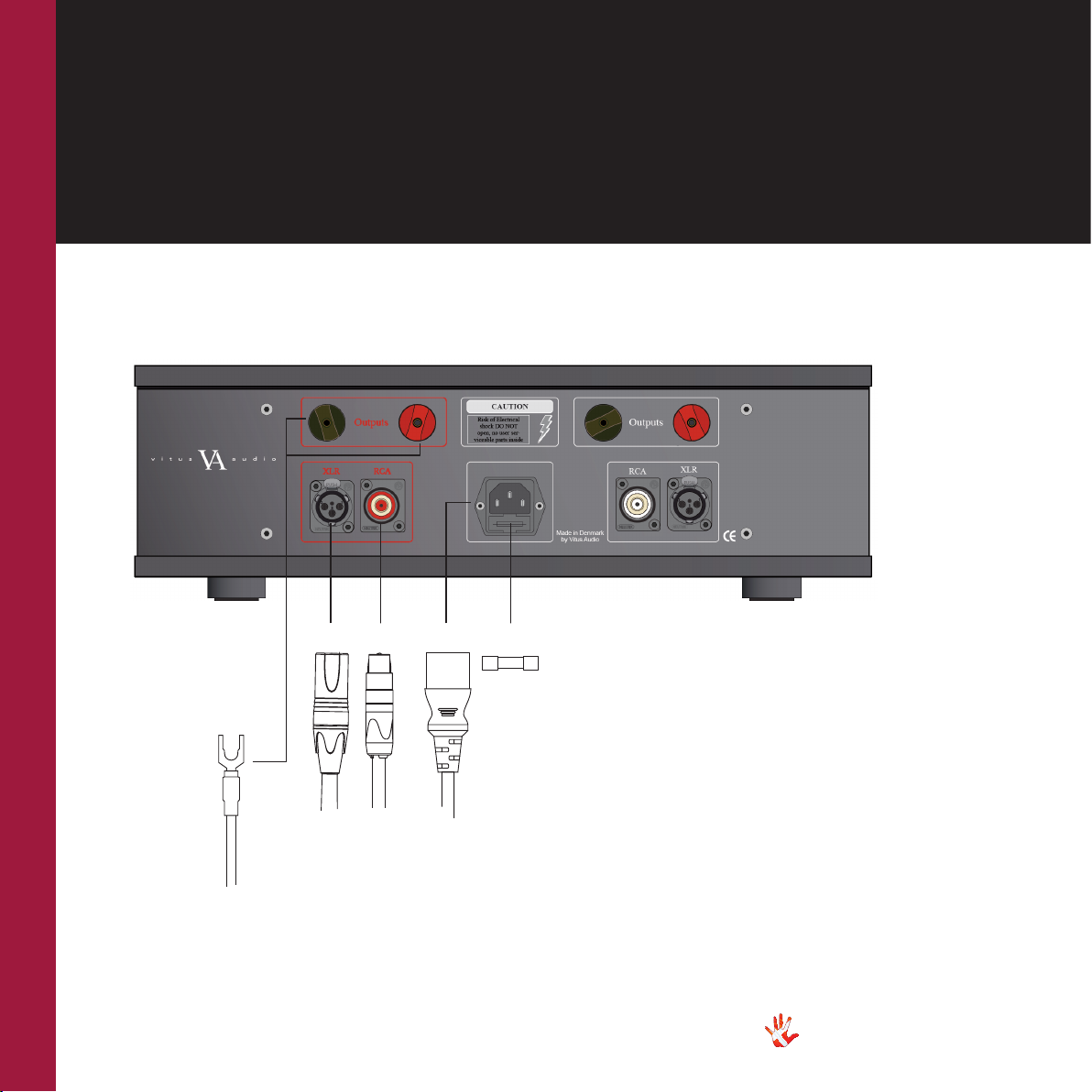

Connecting the SS-025
Inputs
Input XLR
Input RCA
Power
Outputs
Speaker left
Speaker right

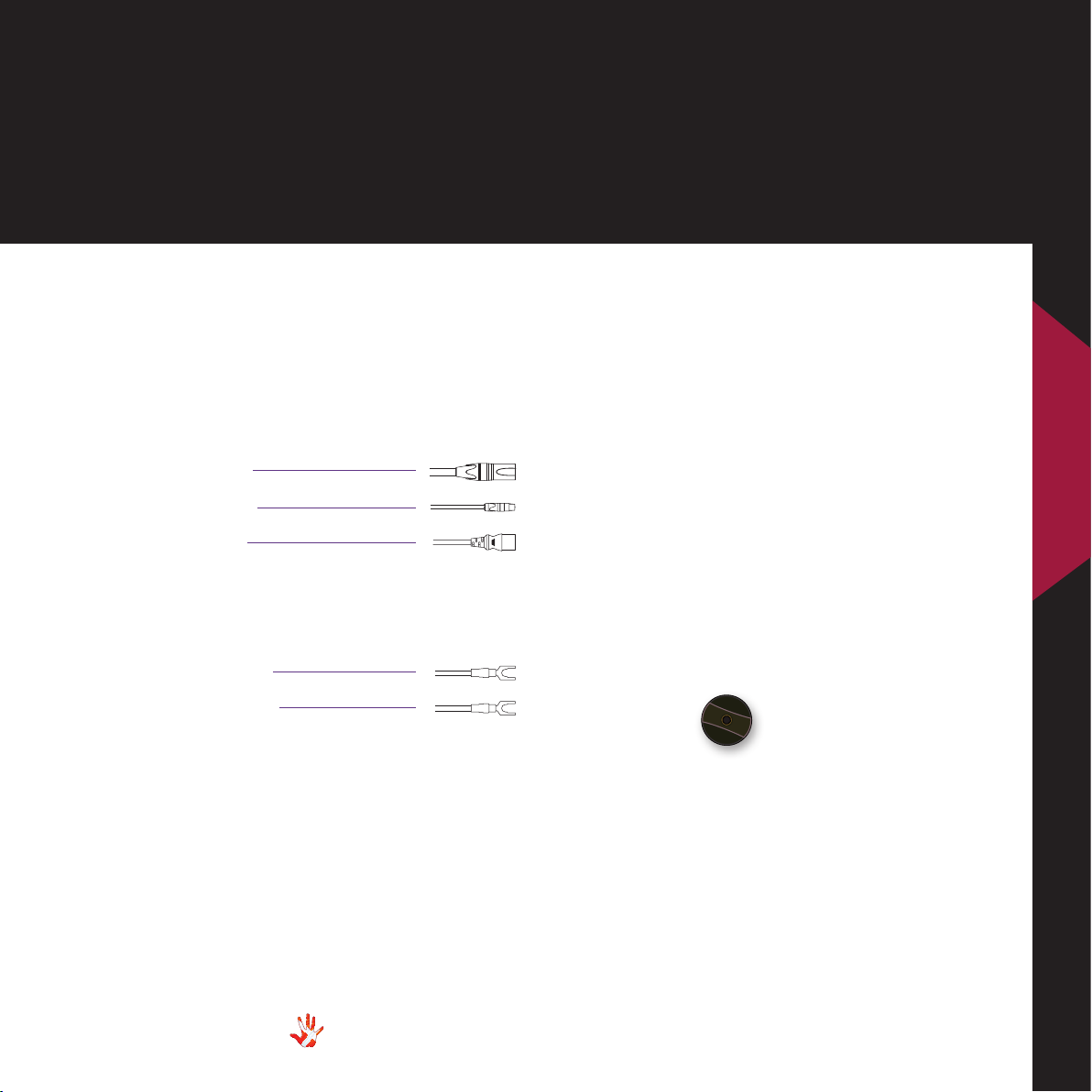

Figure 4 Plugs
Speaker out
Speaker out
RCA
Power
XLR in
11
SS-025 | Version 1
2. connecting
Place the SS-025 on the floor.
Connect all the sources to the
inputs of the SS-025.
Connect the Speaker output of
the SS-025.
Carefully connect the mains to
the amplifier, after you have
connected both inputs and
outputs.
This is a true balanced
amplifier, DO NOT connect
the ”-“output (Figure 3) to
any ground source, including
chassis or signal ground, this
will damage the amplifier.
Figure 3 ”-“output
2. connecting

RCA
Speaker out
PowerXLR
12
SS-025 | Version 1
2. connecting
Fuse
SS-025 Rear panel

13
SS-025 | Version 1
2. connecting
2. connecting

14
SS-025 | Version 1
3. operation
The SS-025 has 3
operation modes
1.Normal mode.
This is the mode you use when
listening to music.
2. Menu mode
In this mode you can alter the
settings of the SS-025.
3. Standby mode.
In this mode the controls of
the SS-025 are deactivated.

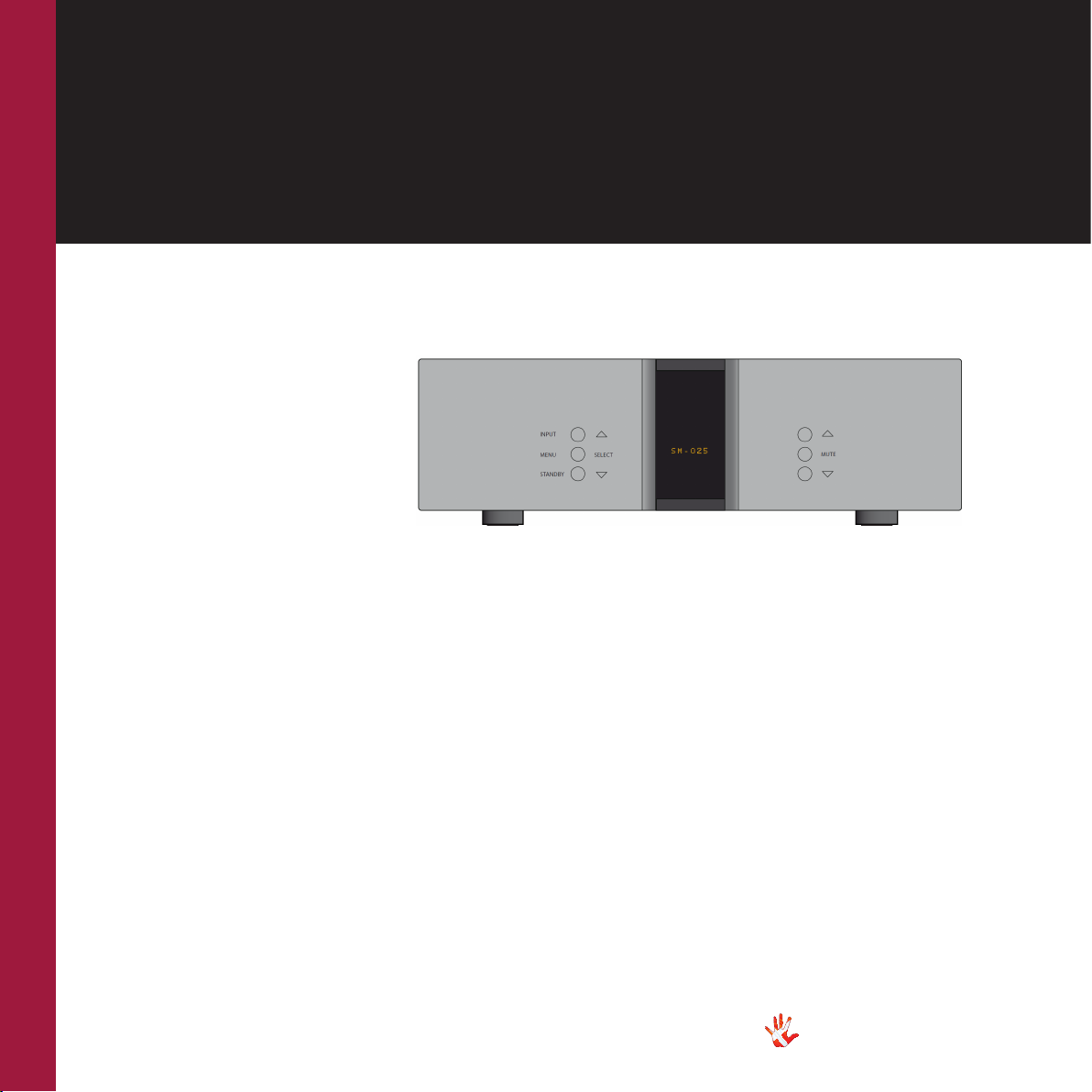

Figure 6 SS-025 Front panel.
Operation modes

15
SS-025 | Version 1
3. operation
Normal mode
The SS-025 has one function.
2. MUTE Mute the output of
the amplifier.
Normal mode
In normal mode there are
3 basic functions/buttons
available on the left front.
1. INPUT
Switches between
XLR in and RCA in
2. MENU Switches to
Menu mode.
3. STANDBY Switches in and
out of
Standby Mode
Menu mode
You enter menu mode, by
pushing the ”MENU” button
once in Normal mode. In the
Menu mode there are 3 basic
functions/buttons:
1. Scroll forward in the
menu.
2. MENU/ Enter & Exit
SELECT submenus and
select settings.
3. Scroll backward in the
menu.
Functions – left front panel Functions – right front panel
Figure 8 SS-025 Right front panel.
Figure 7 SS-025 Left front panel.
3. operation

16
SS-025 | Version 1
3. operation
SS-025 description of
the elements in the
menu.
CLASS
Choose between class A and class
AB mode.
INPUTS
Alter settings for the inputs.
DATA
Shows data for this SS-025.
RESET
Restore default settings for the
amplifier.
BRIGHT
Change the brightness of the
display any step between 0 and 3.
SS-025 menu structure
MENU LEAVE
0/1/2/3
INPUTS
CLASS AB / CLASS A
RESET
CLASS
BRIGHT
DATA
SETUP BACK
BACK
RCA
XLR
BACK
TEXT
USED USED / NOT USED

17
SS-025 | Version 1
4. operation & service
Safety notice
The Vitus Audio SS-025
contains no user serviceable
parts except from the mains
fuse. Do not attempt to open
the case. There are potentially
dangerous voltages present
inside. Should your SS-025
show signs of malfunction,
then please contact your
dealer or Vitus Audio.
Mains supply voltage
Any unit may be set for
operation in 100V, 115V or
230V A.C. Units are shipped
set for the mains supply
voltage according to the
destination. The voltage
setting can be updated later
by your dealer, if necessary.
Maintenance
Vitus Audio products are
designed to run for many years
without the need for regular
maintenance. Our products
contain no user serviceable
parts except from the mains
fuse. Should your SS-025 show
signs of malfunction, please
contact your dealer or Vitus
Audio.
4. operation &
service

18
SS-025 | Version 1
4. operation & service
Mains fuse
The mains fuse is accessible
from the outside of the
amplifier. You will find the
mains fuse, just below the
power inlet. If the fuse blows,
then you can easily replace
it. The fuse only blows on the
occurrence of power surges
or if there is a fault in the
unit. Normally power surges
cause no other damage other
than blowing the fuse. When
the fuse blows repeatedly on
replacement, then the unit
most likely has a malfunction.
In case of malfunction the
unit must be returned to Vitus
Audio for repair.
Fuse type:
20x5mm 6,3A T(230V) /
10A T(115V) / 12A T(100V)
HRC fuse
Replacing the fuse with a fuse
of a type and rating different
from the original fuse, might
result in damage to the unit
and injury to you (the user).
Damage to the unit as a result
of wrongly replacing the
mains fuse, will invalidate the
guarantee.
For an explanation of how to
replace the fuse see chapter 4
“replacing a blown fuse”.

REMOVE THE POWER CABLE
In the following steps we will
show you how to replace a
blown fuse.
Replacing a blown fuse

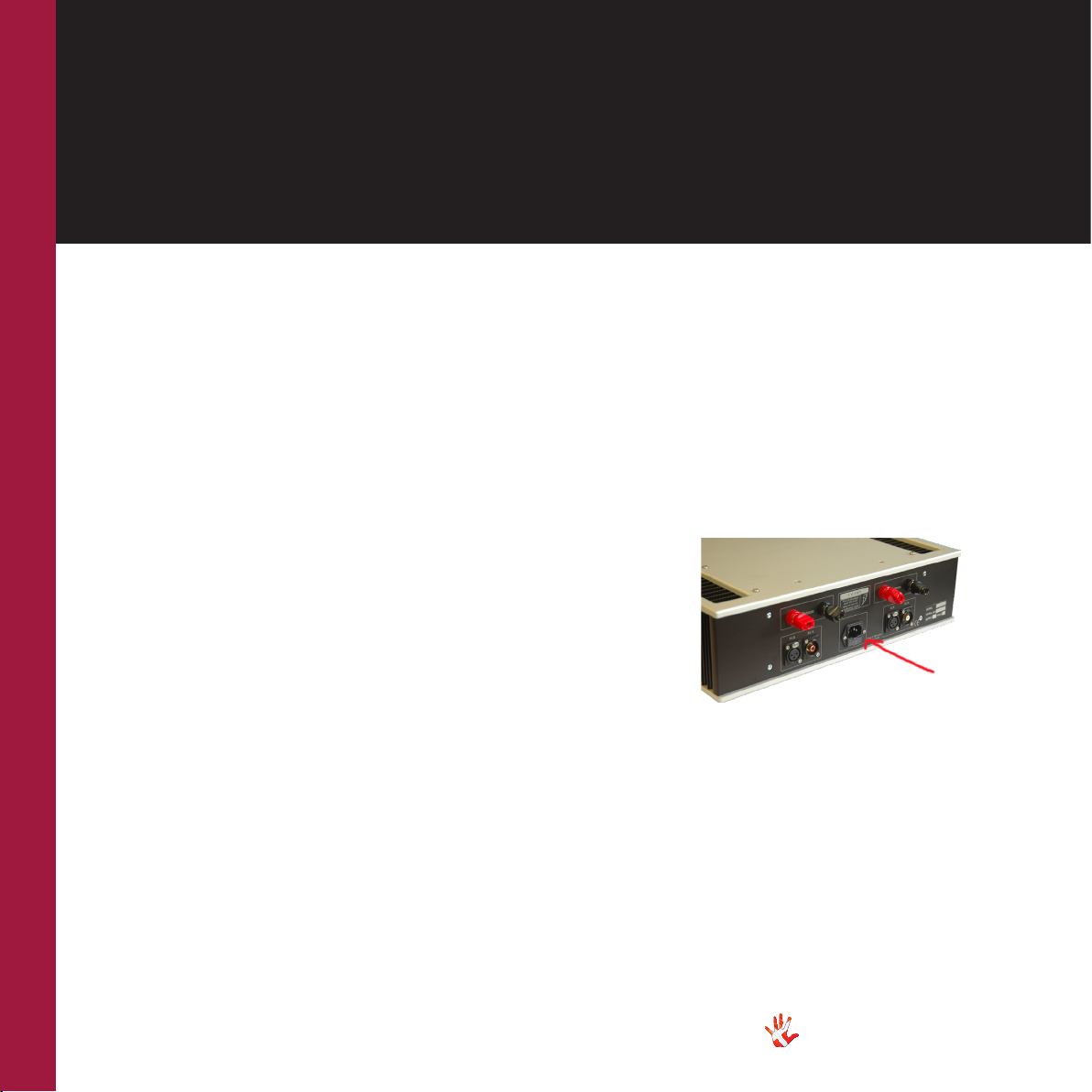

1 The fuse carrier is placed
on the back under the power
connector

19
SS-025 | Version 1
4. operation & service
4. operation &
service

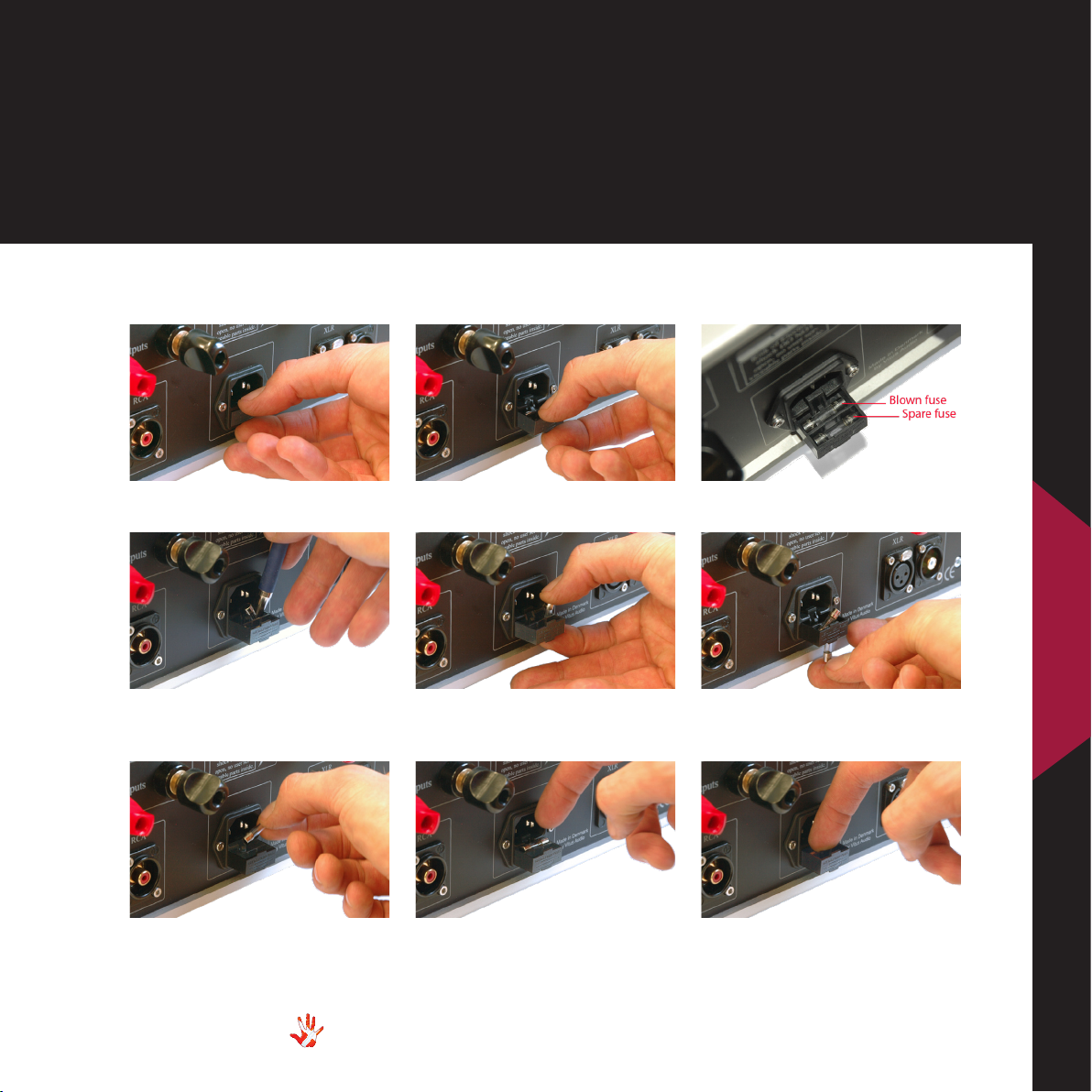

5 Flip the fuse out using
a pointy object (a pen for
example).
4 There is a spare fuse
available in the fuse carrier.
3 Pull the fuse carrier out.
2 Put two fingers around the
fuse carrier.
10 Click the fuse in place.
Push the fuse carrier back into
the machine.
9 Place the spare fuse in the
fuse carrier.
8 Take the spare fuse out of
the fuse carrier. Throw the
blown fuse away.
7 Use the blown fuse to flip
the spare fuse out of the fuse
carrier.
6 Take the blown fuse out of
the fuse carrier.

20
SS-025 | Version 1
5. warranty
Warranty
Warranty Statement
(modified to fit Vitus Audio)
1. TERMS AND CONDITIONS
LIMITED WARRANTY
Vitus Audio warrants the
product designated herein
to be free of manufacturing
defects in material and
workmanship, subject to
the conditions hereinafter
set forth, for a period of
two (2) years from the date
of purchase by the original
purchaser or no later than
four (4) years from the date of
shipment to the authorized
Vitus Audio cooperating
partner, whichever comes
first, excepting any cosmetic
damage to chassis parts. (See
6)
2. CONDITIONS
This Warranty is subject to
the following conditions and
limitations. The Warranty
is void and inapplicable
if the product has been
used or handled other than
in accordance with the
instructions in the owner’s
manual, abused, or misused,
damaged by accident
or neglect or in being
transported, or the defect
is due to the product being
repaired or tampered with by
anyone other than Vitus Audio
or authorized Vitus Audio
repair center. The product
must be packed in its original
box and returned to Vitus
Audio or an authorized repair
center by the customer at his
or her sole expense. Vitus
Audio will pay return freight of
its choice.
IMPORTANT!
A returned product MUST
be accompanied by a written
description of the defect
and a photocopy of the
original purchase receipt.
This receipt must clearly list
model and serial number,
date of purchase, the name
and address of the purchaser
and authorized dealer and the
price paid by the purchaser.
Vitus Audio reserves the right
to modify the design of any
product without obligation
to purchasers of previously
manufactured products
and to change the prices or
specifications of any product
without notice or obligation to
any person.
3. REMEDY
In the event the above
product fails to meet the
above Warranty and the above
conditions have been met, the
purchaser’s sole remedy under
this Limited Warranty shall be
to return the product to Vitus
Audio or an authorized Vitus
Audio repair center where the
defect will be rectified without
charge for parts and labor,
except chassis parts. (See 6)
4. LIMITED TO ORIGINAL
PURCHASER
This Warranty is for the
sole benefit of the original
purchaser of the covered
product and shall not be
transferred to a subsequent
purchaser of the product.
5. DURATION OF WARRANTY
This Warranty expires on the
second (2nd) year anniversary
of the date of purchase or
no later than the fourth (4th)
anniversary of the date of
shipment to the authorized
Vitus Audio cooperating
