Vitus Audio scd-025 User manual

SCD-025
Owner’s Manual

SCD-025 | Version 1
on a personal note
Certificate . . . . . . . . . . . . .4
from the creator
Foreword . . . . . . . . . . . . . . 5
introduction
About this manual . . . . . . . . . 6
Introduction to
the Signature Series . . . . . . . . 6
What’s in the box SCD-025 . . . .8
1. getting started
Turning the SCD-025 on and off. . 9
Moving and transporting
the SCD-025 . . . . . . . . . . . .9
External interference . . . . . . . . 9
2. connecting
SCD-025 rear panel . . . . . . . 10
Connecting the SCD-025 . . . . 10
Volume control . . . . . . . . . . 10
All rights reserved. No part
of this publication may be
reproduced, stored in or
introduced into a retrieval
system, or transmitted in
any form, or by any means
(electronic, mechanical,
photocopying, recording
or otherwise) without the
prior written permission of
Vitus Audio. Any person who
does any unauthorized act
in relation to this publication
may be liable to criminal
prosecution and civil claims for
damages.
Information contained in this
manual is subject to change
without notice, and whilst it
is checked for accuracy, no
liabilities can be accepted for
errors.

SCD-025 | Version 1
table of contents
3. operation
Philips RC5 remote . . . . . . . . 12
4 operation modes . . . . . . . . 13
Functions left front . . . . . . . . 14
Functions right front.. . . . . . . 15
SCD-025 Discription of
the elements in the menu. . . .16
SCD-025 The menu structure . . 17
Installing the Vitus Audio
USB Audio Interface . . . . . . . 18
Installing the driver. . . . . . . . 18
Setting up the Media player. . .19
Installing the USB driver
on windows XP . . . . . . . . . . 20
Installing the USB driver
on windows Vista/7. . . . . . . . 22
4. operation & service
Safety notice . . . . . . . . . . . 24
Mains supply voltage . . . . . .24
Maintenance . . . . . . . . . . . 24
Mains fuses . . . . . . . . . . . . 25
Replacing a blown fuse . . . . .26
Securing the cd-drive . . . . . .28
5. warranty
Warranty . . . . . . . . . . . . .30
6. specifications
SCD-025 Specifications . . . . .33
SCD-025 device overview . . . . 34
7. examples operation
Example 1 . . . . . . . . . . . .35
Example 2 . . . . . . . . . . . .36
Example 3 . . . . . . . . . . . .37
Example 4 . . . . . . . . . . . .38
Example 5 . . . . . . . . . . . .39
Example 6 . . . . . . . . . . . .40
Example 7 . . . . . . . . . . . .41
Example 8. . . . . . . . . . . . . 42
Example 9 . . . . . . . . . . . .43
Example 10 . . . . . . . . . . . . 44
Example 11 . . . . . . . . . . . . 45
Example 12 . . . . . . . . . . . . 46
7. examples
installing software
Installing a media player
Foobar2000 . . . . . . . . . . .48
7. examples
connecting devices
Connecting devices 1 . . . . . . . 50
Connecting devices 2 . . . . . .51
Connecting devices 3 . . . . . . . 52
8. pictures SCD-025
SCD-025 Inside . . . . . . . . . . 54
SCD-025 Front . . . . . . . . . . 55

SCD-025 | Version 1
on a personal note
Certificate
Model: SCD-025
Product ID/Serial
__________________________________
Product Build Date
__________________________________
Signed
__________________________________
All products details, specifications and
measurements are recorded for your SCD-
025 and kept by Vitus Audio.

SCD-025 | Version 1
from the creator
Foreword
First of all, thank you for
choosing the Vitus Audio
SCD-010. We know you will
enjoy it for many years to
come. When purchasing a
Vitus Audio product, you
are guaranteed a musical
performance, which far-
exceeds the current musical
standards. Vitus Audio
is dedicated to musical
performance rather than
technical details and high
performance measures.
We believe that many
manufactures are blinded by
the current available theory,
instead of looking for new
answers.
At Vitus Audio everything
works until proven not to.
This way we always try to
push the limits and explore
the unexplored. As a result
of this, many of the solutions
we use today are considered
to be “impossible to ever
get working”, however they
have convinced many people
and reviewers world wide
of the opposite. Before any
of our new topologies are
implemented in our products,
they are carefully reviewed by
our dedicated listening panel.
This way we can guarantee
the correct level of musically
performance and robustness.
Generally we’re after super
neutral, super detailed and
super dynamic reproduction
without “loosing” the nerve
in the music, which often is a
drawback of many high end
systems. Our real strongholds
are complete silence,
unbelievable depth and width
in the soundstage resulting
in a far more open sound
with higher resolution -you
could say, closer to the artist.
As a result of the above, our
electronics do not “focus” on
any specific frequencies - i.e.
no extension of top or bass,
which of coarse results in high
clarity of the midrange since
it’s “naturally present”!
Hans Ole Vitus

SCD-025 | Version 1
introduction
About this manual
This is your SCD-025 owner’s
manual. The following pages
will describe, as clearly as
possible, how to get your
SCD-025 operating fast
and simple. Although
some operations are self-
explanatory, we strongly
suggest you read this manual
to avoid any damage to the
unit. The manual is designed
to be helpful. If there are
points you feel we could cover
better, or that we have missed
out – please tell us.
Important
information
is presented like
this. Ignoring this
information may cause
damage to you or the
unit. Damage caused
to the unit by ignoring
this information might
invalidate the warranty.
Introduction to the
Signature Series
The Vitus Audio Signature
Series is a true high-end series
of products, which is build on
our true dedication to neutral
music reproduction. Every
detail is carefully thought
through, and all choices made
during development, where
based purely on listening, and
not measuring. Only the best
available materials are used to
ensure an overall quality which
will last for many years, when
treated right.


SCD-025 | Version 1
introduction
Unpacking the box
After you have opened the
top, it is possible to remove
the top protective foam which
gives you direct access to the
unit.
In the top you will find the
remote, the power cord and
brochures.
Now remove the side
protective foam, this will make
it easier to grab hold of the
unit.
Two people carefully lift the
amplifier out of the box, and
put it directly onto the floor.
Store the empty box and the
protective foam for later use.
F
120
100
80
60
40
- 40
20
- 20
0
C
50
40
30
- 20
20
10
- 10
- 40
- 30
0
F
120
100
80
60
40
- 40
20
- 20
0
C
50
40
30
- 20
20
10
- 10
- 40
- 30
0

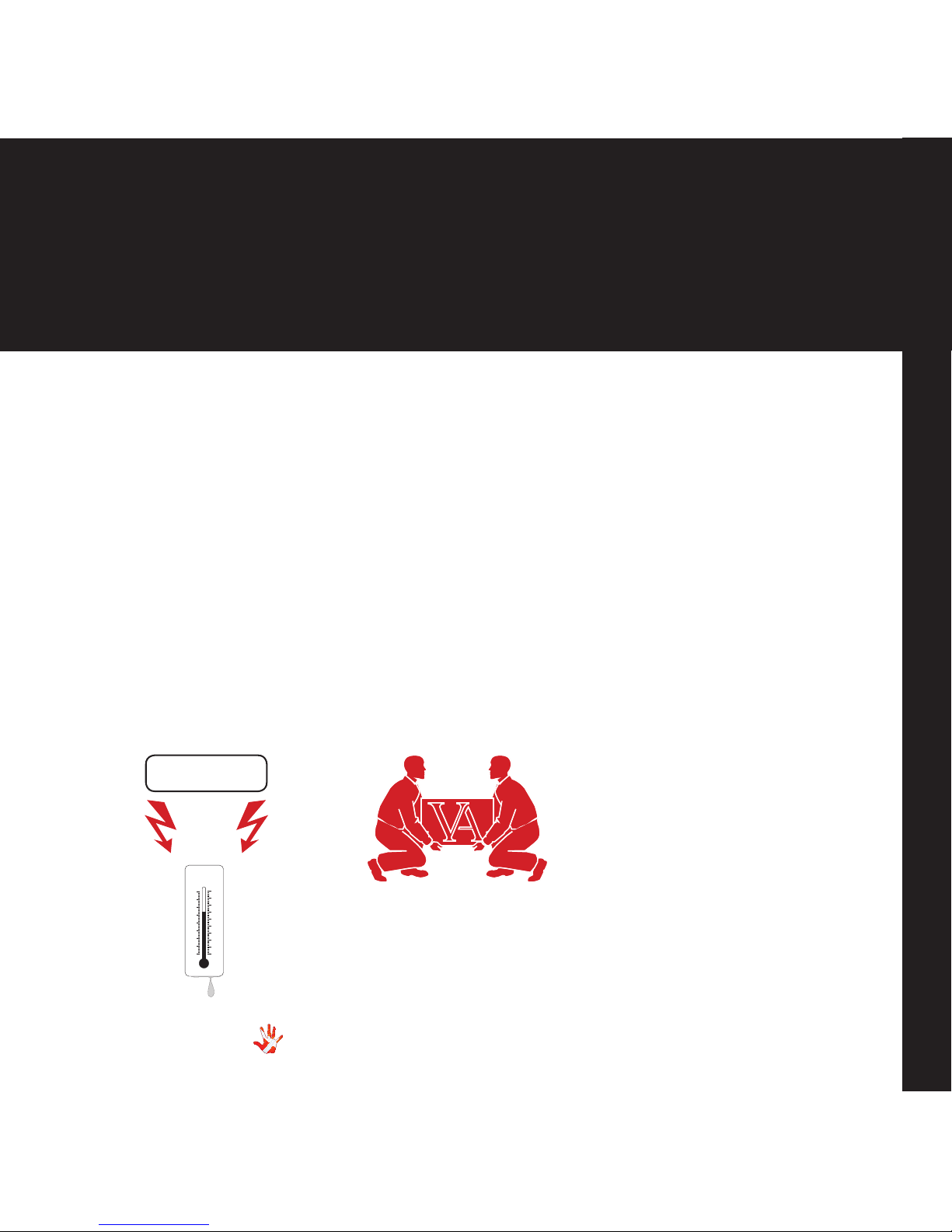

Handling the unit
This unit is VERY
heavy – make sure
to be at least two
people to unpack the
unit. You might damage
both your back and
the unit if extra care
is not applied. Vitus
Audio A/S cannot
be held responsible
for any damage that
is a consequence of
uncareful handling of
the unit.

Differences in
temperature
After unpacking
allow 24 hours
for the product to
reach room temperature
before connecting up
and switching on. This
is to allow condensation
to dissipate, which
might otherwise
cause damage to the
electronics. Remember
also that condensation
can form when you
move the unit from a
cold place to a warm
place.
CAUTION

SCD-025 | Version 1
introduction

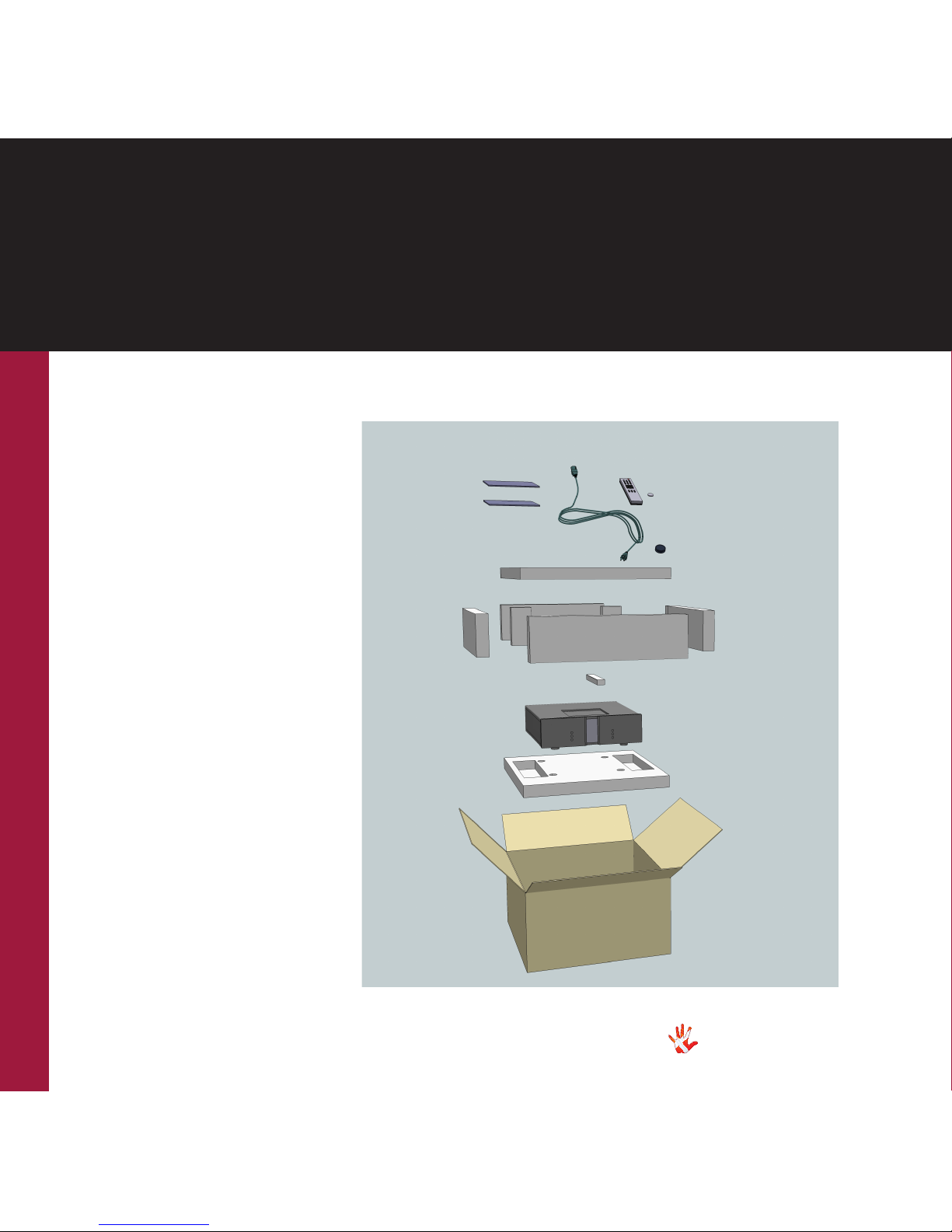

Figure 1 Box exploded view
Foam bottom
Box
Foam top
CD-drive securing foam
Foam Sides
6 pieces
SCD-025
Brochure
Manual
Andromeda power cord
Philips RC5 remote
Puck
Remote spare batteries
(2 pcs)
*
* See ”securing
the cd-drive” in
chapter 4 .
What’s in the box
SCD-025
SCD-025 Manual
Vitus Audio Brochure
Philips RC5 remote
Remote spare battery
Andromeda Power Cord
Puck
Foam top 1
Foam top 2
Foam Sides 6 pieces
CD-drive securing foam
Foam bottom
Box

SCD-025 | Version 1
1. getting started
1. getting started
Turning the SCD-025 on and off.
Always turn on the products
beginning from the source:
CD player apre-amplifier apower amplifier.
Always turn off your products in
reverse order:
Power amplifier apre-amplifier aCD player.

Not following this procedure, may cause damage
to any of your products/speakers. Damage caused
to any of your products/speakers by not following
this procedure will invalidate the warranty.
External interference
It is important to remember
that all equipment which is
connected to the mains is
a potential source of hum
and interference and may
radiate both electrostatic or
electromagnetic radiation. In
addition, the mains will also act
as a carrier for many forms of
RF interference generated by
electric motors, air-conditioning
units, thyristor light dimmers
etc. Unless the earth system is
clean, all attempts to improve
hum noise levels will be futile.
In extreme cases there will be
no alternative but to provide
a completely separate and
independent `technical earth'
to replace the incoming 'noisy
earth'. However, always consult
your local electricity supply
authority to ensure that safety
regulations are not being
infringed.
Always follow this procedure.
1. Turn the SCD-025 off.
2. Disconnect the mains power supply
(take the andromeda cable out).
3. Remove the Mains Cable
4. Move/Transport the SCD-025
5. Allow 24 hours for the SCD-0251 to
reach room temperature.
6. Connect the SCD-025.
Moving and transporting the SCD-025

SCD-025 rear panel
Outputs
RCA out
Preout. XLR
Inputs.
Input 1 USB
Input 1 RCA
Input 2 XLR
Power
XLR out
RCA in
RCA out
Power
XLR in
SCD-025 | Version 1
2. connecting
USB b (male)
Connecting the SCD-025

1. Place the SCD-025 on the
floor.
2. Allow 24 hours for the
product to reach room
temperature
3. Connect all the sources to
the inputs of the SCD-025.
4. Connect the output of the
SCD-025 to the amplifier.
5. Connect the mains to the
SCD-025.
Volume control
The volume control is turned
off by default. When you use
the CD-player together with
a preamplifier or integrated
amplifier, it is recommended
that the volume control of the
CD-player is bypassed.
If you want to remove the
volume bypass, see example
“turning volume bypass off” in
the example in chapter 7.

Master Clock
IN Serial IN XLR RCA XLR RCA
Digital Inputs Digital Outputs Analog Output Right Analog Output Left
Made in Denmark by
Vitus Audio A/S
Model: SCD-025
Serial #
Supply: 115/230V
Freq: 50 - 60Hz
SPDIFSPDIF1 2
NEUTRIK
PUSH
SCD-025 Rear panel.
XLR out XLR out XLR outRCA in RCA out RCA out RCA out
Fuse
PowerXLR in
2. connecting
USB in
SCD-025 | Version 1
2. connecting
2. operation

SCD-025 | Version 1
3. operation
Functions of the remote
Philips RC5 remote
Standby
Mute
Stop
Next track
Repeat trackRepeat CD
AB start/stop
Previous track
Fast backward
Pause
Fast forward
Select track
Volume up
Volume down
Codes for the remote
The remote uses the RC5-
standard for sending commands
to the SCD-025.
The following codes are used:
ADDRESS 20
NEXT 32
PREVIOUS 33
PAUSE 8
FFW 50
FBW 52
PLAY 53
STOP 54
REPEAT 29
REP.TRACK 59
STANDBY 12
VOLDOWN 17
VOLUP 16
MUTE 13

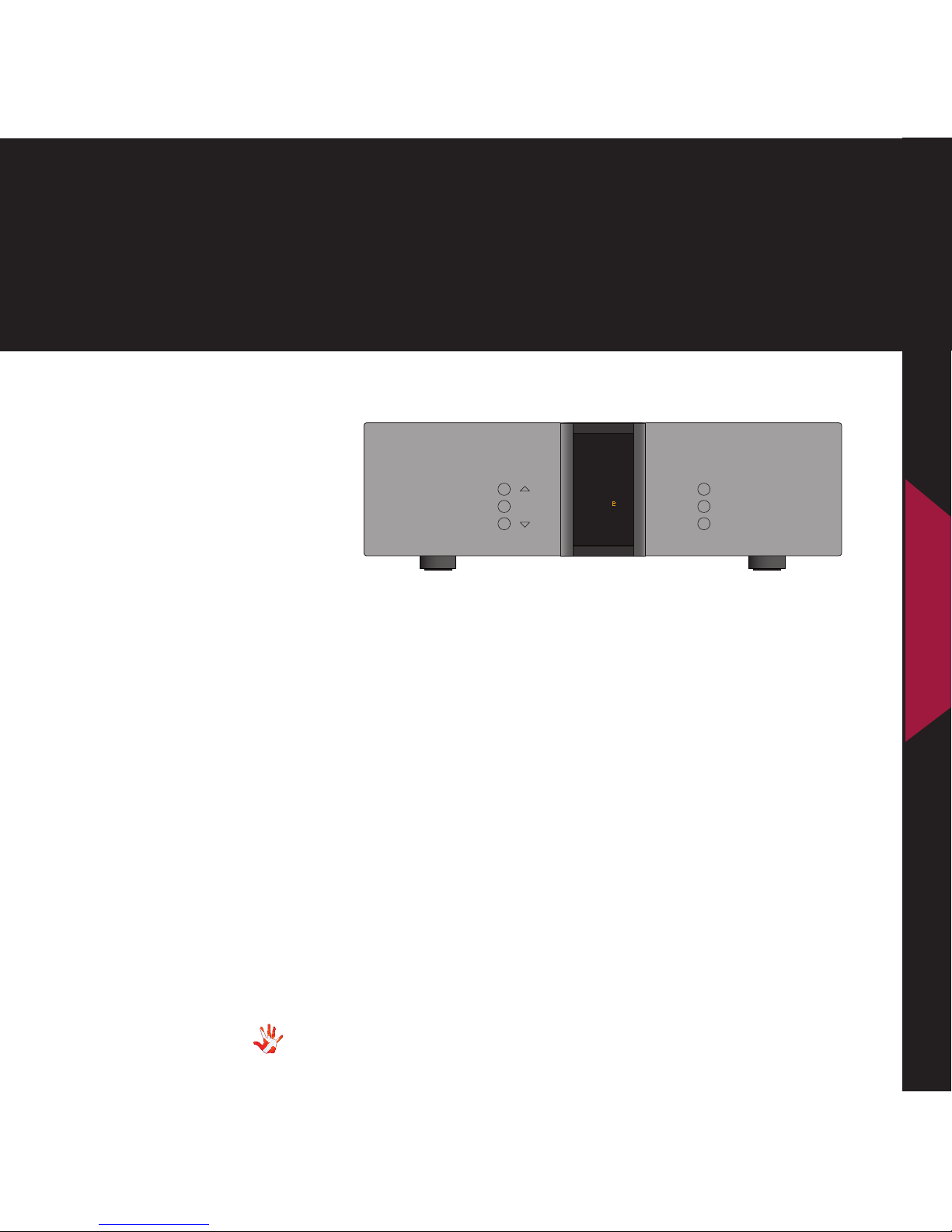

Figure 5 SCD-025 Front panel.
PLAY STOP
MENU SELECT
STANDBY PREV
NEXT
SCD-O 5
SCD-025 | Version 1
3. operation
The SCD-025 has
4 operation modes
1. Normal mode.
This is the mode you use when
you are listening to music.
2. Menu mode
In this mode you can alter the
settings of the SCD-025.
3. Standby mode.
In this mode the controls of
the SCD-025 are deactivated.
The SCD-025 does not shut
down in Standby Mode in
order to maintain an optimal
working temperature
4. Digital input mode.
In this mode you can
connected a 3rd party product
to the SCD-025 and use the
SCD-025 as a DAC.
The digital source must have
one of the following sample-
frequencies.
32,0 kHz......+/-3%
44,1 kHz......+/-3%
48,0 kHz......+/-3%
88,2 kHz......+/-3%
96,0 kHz......+/-3%
3. operation &
service

SCD-025 | Version 1
3. operation

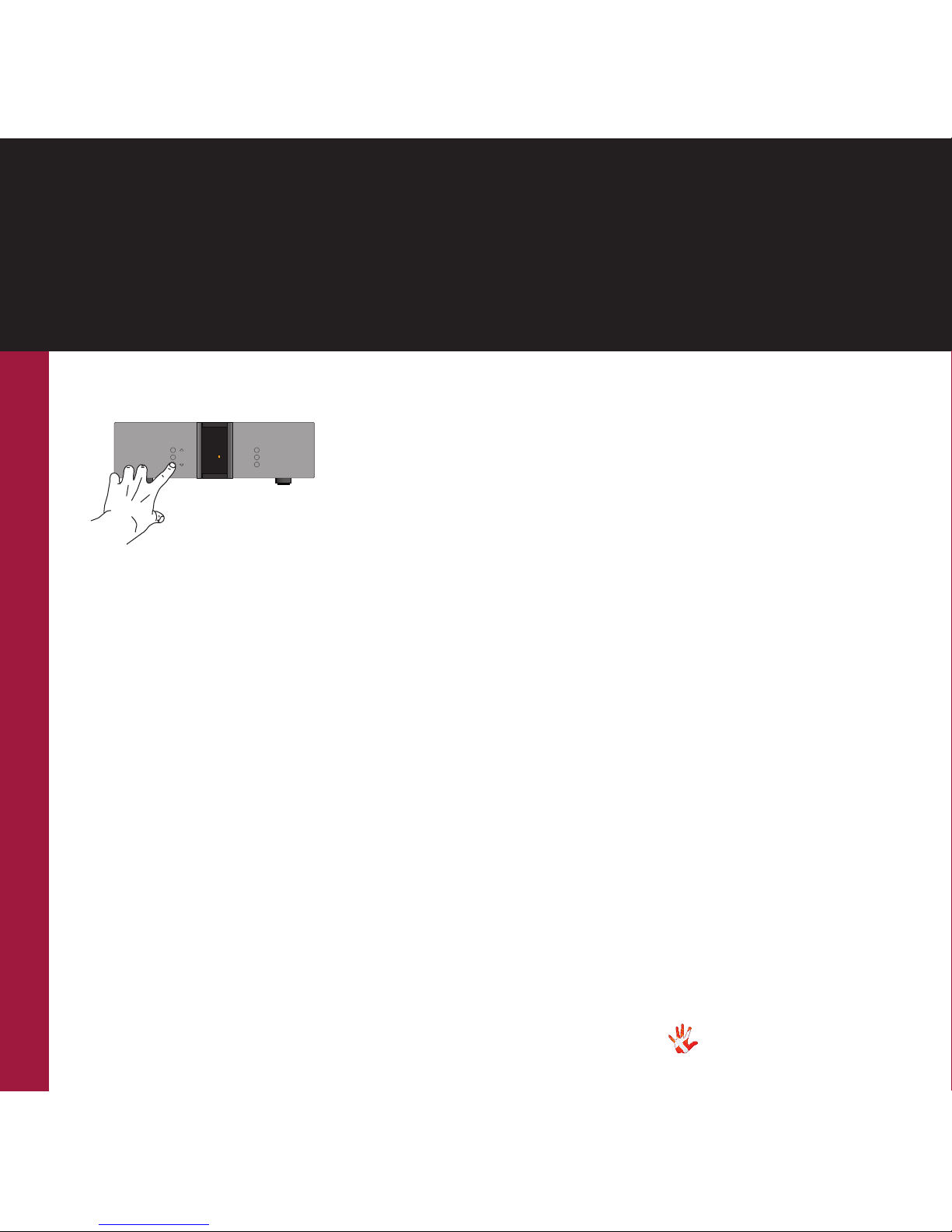

SCD-025 Left front.
PLAY STOP
MENU SELECT
STANDBY PREV
NEXT
SCD-O 5
Normal mode
In normal mode there are
3 basic functions/buttons
available on the left front.
1. PLAY Start playback
mode, if the cd is playing, the
current track will restart.
2. MENU Switch to
“Menu mode”.
3. STANDBY Switches in and
out of
“Standby Mode”
Functions left front
Menu mode
You enter menu mode, by
pushing the ”MENU” button
once in Normal mode. In the
Menu mode there are 3 basic
functions/buttons:
1.  Scroll forward in
the menu.
2. SELECT Enter & Exit
submenus and
select settings.
3. Scroll backward in
the menu.
Digital input mode
In digital input mode there are
3 basic functions/buttons:
1.  Switch between
input 1 and 2
2. MENU Switch to
“Menu mode”.
3. STANDBY Switches in and
out of
“Standby Mode”

SCD-025 | Version 1
3. operation
PLAY STOP
MENU SELECT
STANDBY PREV
NEXT
SCD-O 5

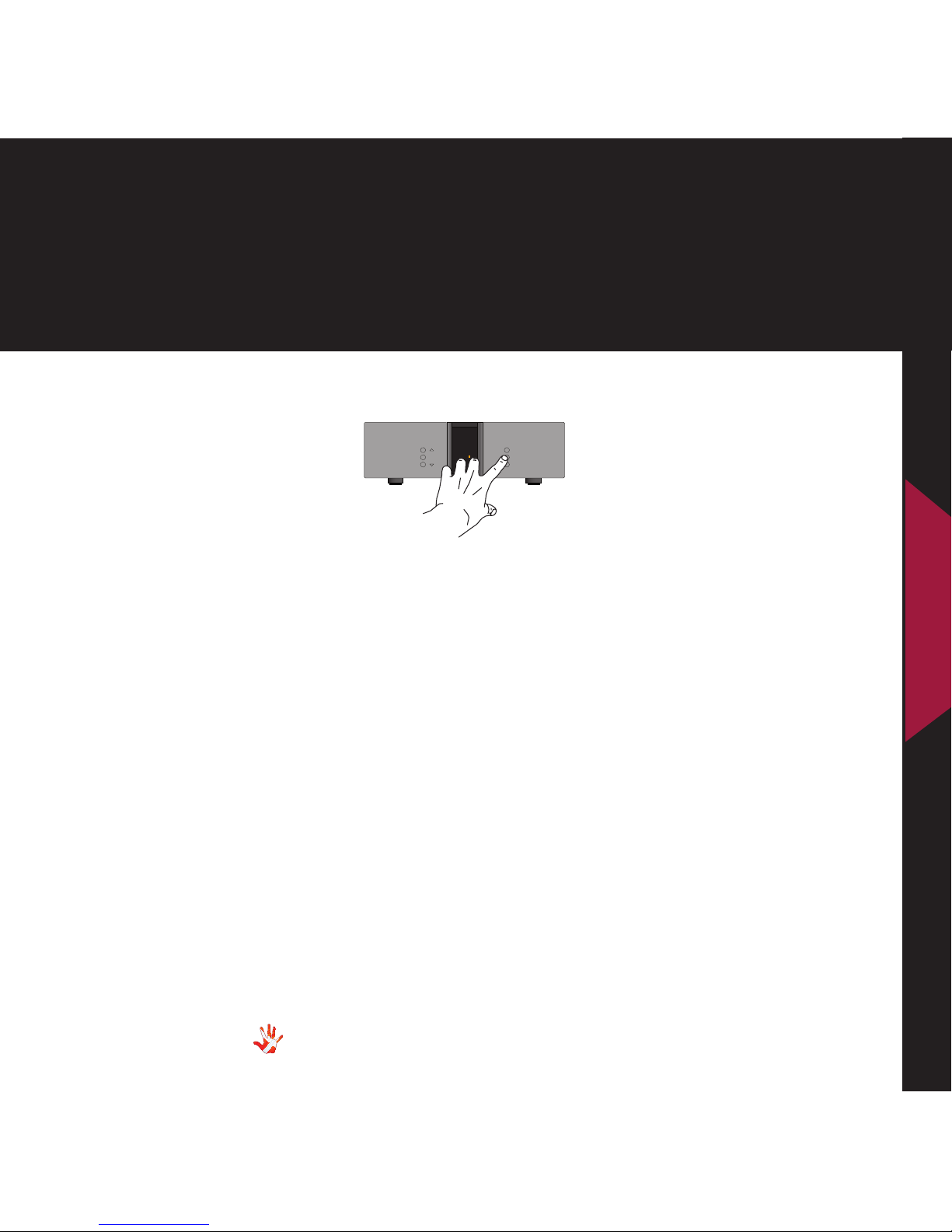

SCD-025 Right front.
Normal mode
In normal mode there are
3 basic functions/buttons
available on the right front:
1. STOP Stop playback.
2. NEXT Next track (press)
Fast forward
(press and hold)
3. PREV. Previous track (press)
Fast backward
(press and hold)
Digital input mode
In digital input mode there
are 3 basic functions/buttons
available on the right front:
1. STOP (Turn volume up.)
2. NEXT Mute the output.
3. PREV. (Turn volume down.)
Functions right front.
3. operation &
service
* There are no functions available for the STOP and PREV buttons
when Volume Bypass turned on (BP ON) . The functions for button
STOP (Volume up) and button PREV (Volume down) first become
available when the Volume Bypass is turned off. (BP OFF).
*
*

SCD-025 | Version 1
INPUT Switch between, drive,
input 2, input 1, drive and usb.
VOLUME Change the output
volume.
SETUP Change the settings
of the SCD-025.
BP VOL Turn volume bypass
on and off.
PHASE Turn phase inversion
on or off.
BRIGHT Change the
brightness of the display any
step between 0 and 3.
DATA Shows the hardware
version, the software version
and the build dato of the SCD-
025.
RESET Restore the settings of
the SCD-025 to its default.
V.INIT Change the initial dB
step of the volume in the SCD-
025 to any step between -99
and12.dB
VOL.STEP The SCD-025 has a
standard volume step of -42 dB.
You can set the volume step to a
step, between -99.0 dB to +6dB.
This step will be the new volume
step. Even when after the power
cord has been disconnected the
SCD-025 still starts up in the new
volume step.
REMEMBER Set the SCD-
025 to remembers the current
volume step. The SCD-025 will
start up in this volume step when
it leaves standby. This volume
step is not remembered when
the power cord is removed. Then
the SCD-025 will initiate in the
volume step as it is defined in the
V.INIT sub-menu.
BRIGHT Change the brightness
of the display any step between 0
and 3.
INPUTS Change settings for
each input.
INPUT X Change the settings
of input X.
FIXED Lock and unlock the
volume by switching between FIX
ON/FIX OFF.
SET FIX Set the volume of
input X to a fixed dB step. (Input X
is now locked to a dB step and can
not be adjusted with the volume
control)
ADJUST Adjust the fixed dB
step to any step between -99
and +12 dB. This function is
only available when FIX ON is
selected.
OFFSET Select an offset- gain,
between -12 and 12 dB, for input
X. This function is only available
when FIX OFF is selected
TEXT Choose a name for input
X.
OUTPUT
Change between XLR, or RCA
out.
SCD-025 Discription of the elements in the menu.
3. operation

SCD-025 | Version 1
3. operation
3. operation &
service
SCD-025 The menu structure
MENU
S/PDIF 2
S/PDIF 1
USB
INPUT
LEAVE
DRIVE
-84,0 / 0,0
VOLUME
The menu items VOLUME and
V.INIT become visible when
the Volume Bypass is turned
off. (BP OFF).
The Volume is Bypassed as a
standard (BP ON).
BACKSETUP
PHASE INV OFF / INV ON
BP VOL BP ON / BP OFF
DATA
XLR OUT / RCA OUTOUTPUT
RESET RESET NO / RESET YES
-99 dB / +0 dB
BACK
REMEMBER
VOL.STEP
**
**
*
BRIGHT 0 / 3
BACK
INPUTS
-12 dB / +12 dBOFFSET
TEXT List with products
S/PDIF 2
S/PDIF 1
USB
DRIVE
BACK
ADJUST -99 dB / 0 dB
FIX ON / FIX OFFSET FIX
FIXED
V.INIT
BACK
OFFSET is visible with FIX OFF
ADJUST is visible with FIX ON
*
**
*
**
**
**
**
**
**
*

SCD-025 | Version 1
Installing the Vitus
Audio USB Audio
Interface
The SCD-025 can be
connected to a computer
with the one of the following
operating systems.
Windows XP 32 bit
Windows XP 64 bit
Windows Vista 32 bit
Windows Vista 64 bit
Windows 7 32 bit
Windows 7 64 bit
MAC OS
The digital source must have
one of the following sample-
frequencies.
32,0 kHz......+/-3%
44,1 kHz......+/-3%
48,0 kHz......+/-3%
88,2 kHz......+/-3%
96,0 kHz......+/-3%
176,4 kHz......+/-3%
192,0 kHz......+/-3%
Installing the driver
Before you install the driver
on your pc make sure that
the SCD-025 is connected to
a power source and the PC
and the SCD-025 have to be
connected with an USB cable.
On the CD you can find
the installation files for the
different operating systems
mentioned before.
3. operation

SCD-025 | Version 1
Setting up the Media
player.
We recommend that you use
a media player that can be set
to have its output in Kernel-
streaming mode.
Do not use Windows Media
Player. Windows Media
Player does not support
Kernel Streaming.
The output of the media-
player has to be set to Kernel
streaming and Vitus Audio
Interface.
Always close the media-
player program before
connecting or disconnecting
the SCD-025 to the
computer.
In chapter 7 we will show how
to set up Foobar2000 a free
mediaplayer.
Kernel Streaming
Kernel Streaming or Direct
Kernel streaming (Direct KS)
is a technique that supports
kernel-mode processing of
streamed data. It enables
efficient real-time streaming
for multimedia devices such
as sound cards and TV tuner
cards. Kernel streaming allows
a device driver to create Direct
Show-like filters and pins in
kernel mode, providing access
to hardware, lower latency
communication and still be
used within a Direct Show filter
graph.
3. operation
3. operation

SCD-025 | Version 1

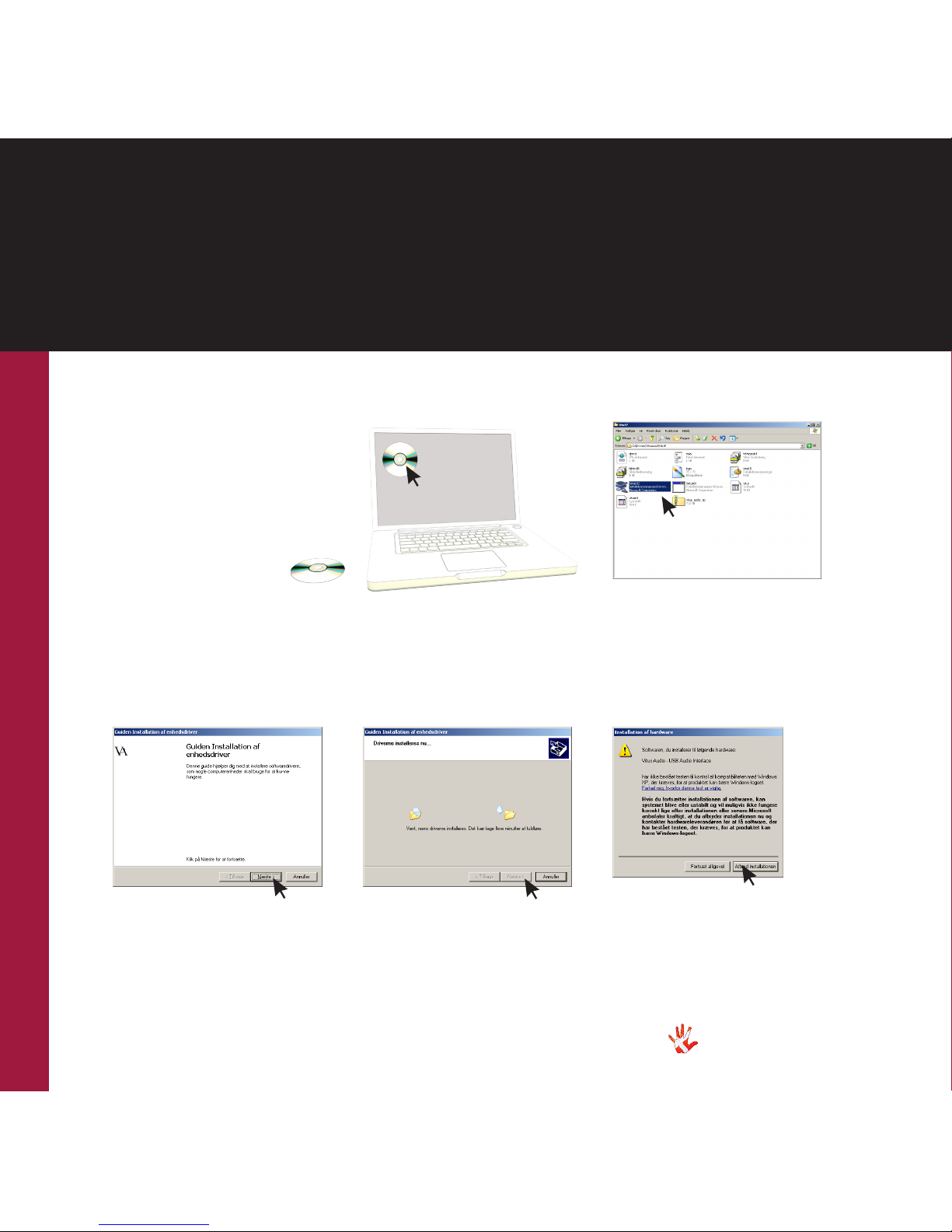

2WinXP.
On the cd enter the folder
named WinXP and doubleclick
the file named Setup 32.
1Put the CD in your computer
and double click on the CD
icon.
3 Software installation.
Press Next.
5 Hardware installation.
Press Continue Anyway when
the following warning appears.
4 Software installation.
Press next when the driver has
been installed.
Installing the
USB driver on
windows XP
3. operation
