Vivanco Music Station User manual

MUSIC STATION
X English User Manual
X
X
X
X
X
X
X
MUSIC STATION
X English User Manual
X
X
X
X
X
X
X

2
Safety Instructions
Please read the following instructions before using
■ All safety and operating instructions should be read thoroughly before
using Music Station.
■ Retain this instruction for future reference.
■ Do not remove the cover or back to prevent the risk of electric shock.
■ Do not expose Music Station to extreme temperature or humidity, direct
sunlight, excessive dust or vibrations.
■ Use soft dry cloth, or if necessary, use a damp cloth to clean.
■ WARNING: to prevent the risk of fire or electric shock, do not expose
Music Station to rain or moisture location.
■ Use only Music Station power supplies.
Safety Instructions……………………...………………………………………...….2
Overview……………...………………. ………………………………………….….3
Package Contents ....……………………………………………………………....4
Installing your Music Station………………………………………………………..4
Changing Connector…………………………………………………………………5
Phone Charging………………………………………………………………………5
Listening to Music…………………………………………………………………....6
Receiving Calls and Handsfree…………………………………………………….6
Voice Dialing………………………………………………………………………....7
Making VoIP calls…………………………………………………………………...7
Specifications .……..………………………………………………………..…… ..8
Declaration of Conformity…………………………………………………………..9
Disposal of Waste Electrical and Electronic Equipment………………………...9
English
9
English
Declaration of Conformity
We, Vivanco France SAS, ZI Les Gambades, 03340 Neuilly le Réal, France
declare that our product Music Station, IS-601, to which this declaration
relates is in conformity with the standards:
EN 55022:1998+A2:2003
EN 61000-3-2: 2000+A1:2001+A2:2005
EN 61000-3-3: 1995+A1:2001
EN 55024: 1998+A1:2001+A2:2003
IEC 61000-4-2: 1995+A1:1995+A2:2000
IEC 61000-4-3:2006
IEC 61000-4-4:2004
IEC 61000-4-5:2005
IEC 61000-4-6:2003+A1:2004
IEC 61000-4-11:2004
in accordance with EMC directive 89/336/EEC
Date of issue:August 29, 2006
If you have any question during use of our product, Music Station,
please contact directly Vivanco GmbH, D-22926, Ahrensburg/Germany or
visit www.vivanco.de to get further information.
This product, at the end of its life, shall be handed over to the public collec-
tions points for the recycling of electrical and electronic equipment. By dispos-
ing correctly this product, you can help preserve, protect and improve the
quality of the environment, protect human health and utilize natural resources.
Disposal of Waste Electrical and Electronic Equipment
2
Safety Instructions
Please read the following instructions before using
■ All safety and operating instructions should be read thoroughly before
using Music Station.
■ Retain this instruction for future reference.
■ Do not remove the cover or back to prevent the risk of electric shock.
■ Do not expose Music Station to extreme temperature or humidity, direct
sunlight, excessive dust or vibrations.
■ Use soft dry cloth, or if necessary, use a damp cloth to clean.
■ WARNING: to prevent the risk of fire or electric shock, do not expose
Music Station to rain or moisture location.
■ Use only Music Station power supplies.
Safety Instructions……………………...………………………………………...….2
Overview……………...………………. ………………………………………….….3
Package Contents ....……………………………………………………………....4
Installing your Music Station………………………………………………………..4
Changing Connector…………………………………………………………………5
Phone Charging………………………………………………………………………5
Listening to Music…………………………………………………………………....6
Receiving Calls and Handsfree…………………………………………………….6
Voice Dialing………………………………………………………………………....7
Making VoIP calls…………………………………………………………………...7
Specifications .……..………………………………………………………..…… ..8
Declaration of Conformity…………………………………………………………..9
Disposal of Waste Electrical and Electronic Equipment………………………...9
English
9
English
Declaration of Conformity
We, Vivanco France SAS, ZI Les Gambades, 03340 Neuilly le Réal, France
declare that our product Music Station, IS-601, to which this declaration
relates is in conformity with the standards:
EN 55022:1998+A2:2003
EN 61000-3-2: 2000+A1:2001+A2:2005
EN 61000-3-3: 1995+A1:2001
EN 55024: 1998+A1:2001+A2:2003
IEC 61000-4-2: 1995+A1:1995+A2:2000
IEC 61000-4-3:2006
IEC 61000-4-4:2004
IEC 61000-4-5:2005
IEC 61000-4-6:2003+A1:2004
IEC 61000-4-11:2004
in accordance with EMC directive 89/336/EEC
Date of issue:August 29, 2006
If you have any question during use of our product, Music Station,
please contact directly Vivanco GmbH, D-22926, Ahrensburg/Germany or
visit www.vivanco.de to get further information.
This product, at the end of its life, shall be handed over to the public collec-
tions points for the recycling of electrical and electronic equipment. By dispos-
ing correctly this product, you can help preserve, protect and improve the
quality of the environment, protect human health and utilize natural resources.
Disposal of Waste Electrical and Electronic Equipment

8
English
Specifications
Speaker Driver 40mm tweeter x 2
50mm Subwoofer x 1
Speaker Impedance 4 ohms
Frequency Response 20 Hz~20k Hz
Signal Input 10mV~1v P-P
Power Rating 5.0 Watts (1.5W+1.5W+2.0W)
Microphone Sensitivity -58db
Phone Charge Voltage Output 5.1V
Power Source AC to DC auto-Switching adaptor
9v/1500mA
Cellular Phone Charging Changeable connector (attached with
2 specific models connectors)
Dimension Diameter: 175mm
Height: 62.5mm (closed)
Height: 145mm (opened)
Weight 650g
Option Other famous mobile phone brand
changeable connector is available.
Sold separately.
3
English

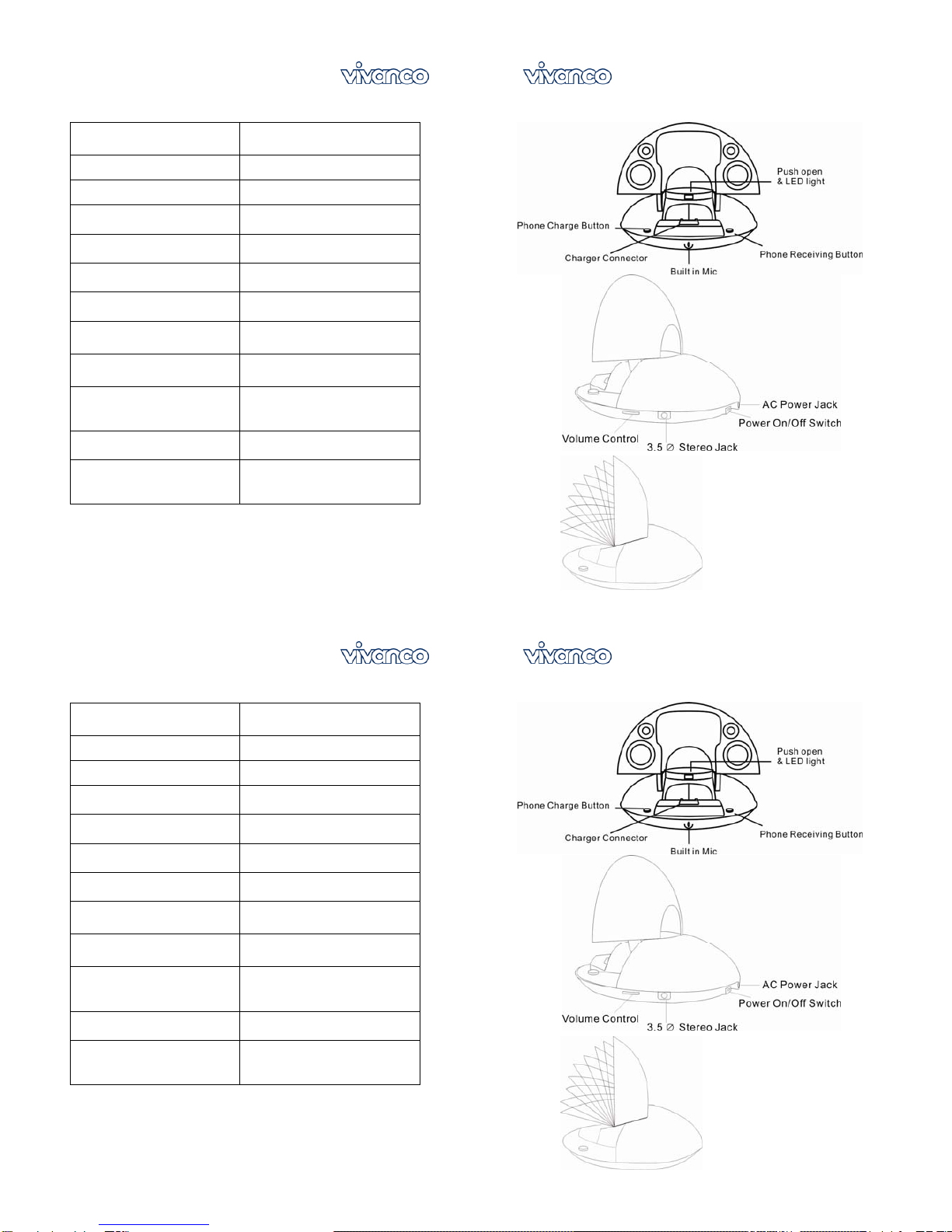

Overview
Push LED to open Music Station
8
English
Specifications
Speaker Driver 40mm tweeter x 2
50mm Subwoofer x 1
Speaker Impedance 4 ohms
Frequency Response 20 Hz~20k Hz
Signal Input 10mV~1v P-P
Power Rating 5.0 Watts (1.5W+1.5W+2.0W)
Microphone Sensitivity -58db
Phone Charge Voltage Output 5.1V
Power Source AC to DC auto-Switching adaptor
9v/1500mA
Cellular Phone Charging Changeable connector (attached with
2 specific models connectors)
Dimension Diameter: 175mm
Height: 62.5mm (closed)
Height: 145mm (opened)
Weight 650g
Option Other famous mobile phone brand
changeable connector is available.
Sold separately.
3
English
Overview
Push LED to open Music Station

4
English
Package Contents
■ Music Station
■ 3.5Ø audio jack cable
■ 100V~240V Auto-switching AC Adaptor
■ Changeable connector for mobile phone or iPod ( You may consult the
detailed applicable list on Music Station’s packaging ).

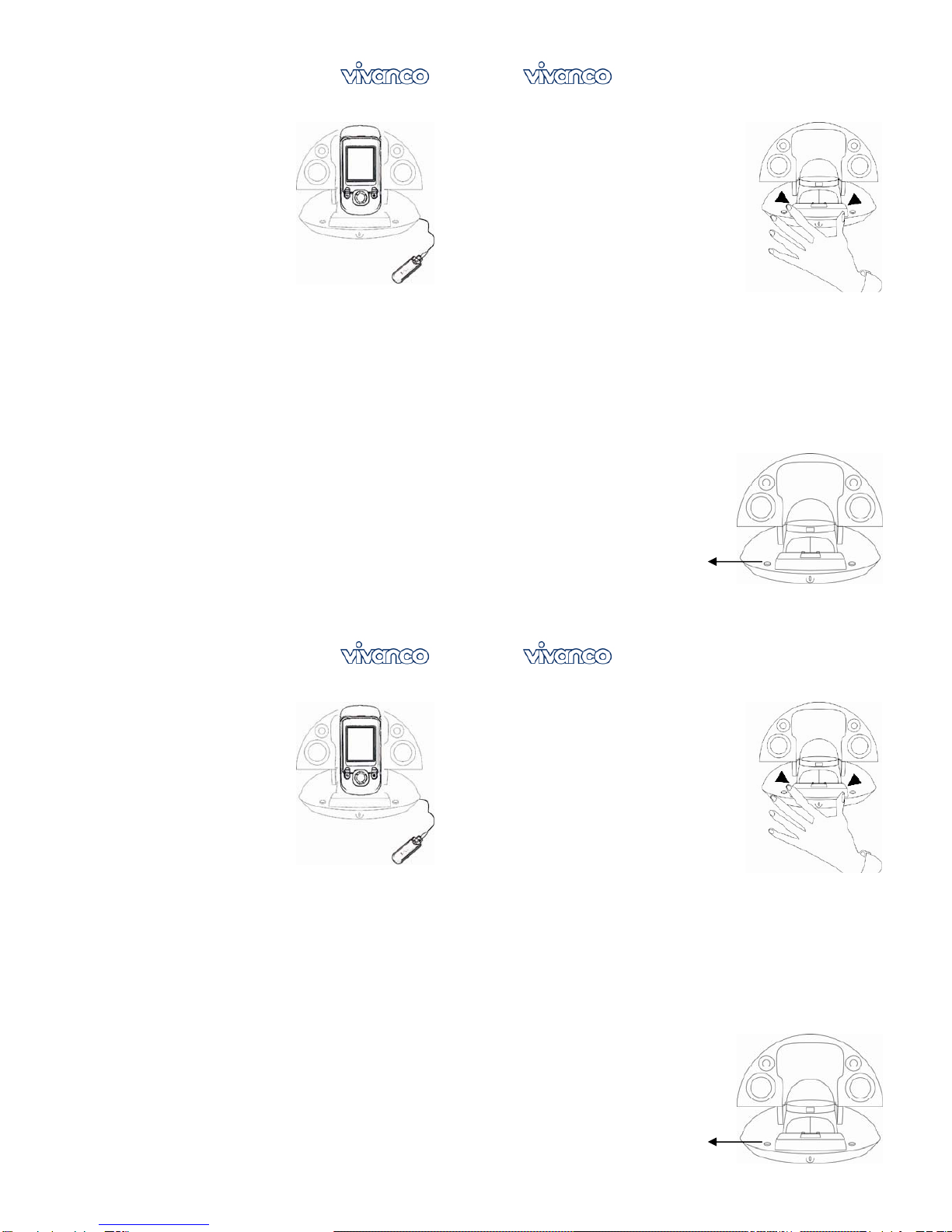

Installing your Music Station
Step 1: Unpack Music Station, AC adapter, mobile phone/iPod connector and
audio cable
Step 2: Push LED to open Music Station
Step 3: Choose correct mobile phone or iPod connector, and plug it in the right
place where to put charger connector of Music Station
Step 4: Plug AC adapter into Music Station, and connect it to wall outlet
Step 5: If using mobile phone or iPod with bottom charger connector, plug your
mobile phone or iPod into charger connector
Step 6: If using mobile phone, iPod and other portable audio devices such as
MP3 player, desktop, Notebook which connect with cable, connect 3,5 Ø audio
jack cable from headphone to stereo jack on the side of Music Station
Step 7: Push power switch ‘ON’ that is on the back of Music Station. LED will
light when Music Station is on
7
English
Voice Dialing
Making VoIP Calls
1.If you have a personal computer, an Internet connection, an applicable VoIP
software and an account, you can make VoIP calls via Internet by connect-
ing your Music Station to computer with audio cable.
1.Activate voice dialing* by pressing and holding the phone receiving button
for 2 seconds.
2.You will hear a signal of your mobile phone as your phone is set so.
3.Say the name of the person you want to call into the mic of Music Station.
4.If mobile phone does not locate the number, you will hear an error tone as
your phone is set so.
5.To start voice dialing again, press and hold the phone receiving button after
the error tone
* If supported by your mobile phone
Before recording voice dialing entries into your mobile phone, you can not
make any call using voice dialing.
4
English
Package Contents
■ Music Station
■ 3.5Ø audio jack cable
■ 100V~240V Auto-switching AC Adaptor
■ Changeable connector for mobile phone or iPod ( You may consult the
detailed applicable list on Music Station’s packaging ).
Installing your Music Station
Step 1: Unpack Music Station, AC adapter, mobile phone/iPod connector and
audio cable
Step 2: Push LED to open Music Station
Step 3: Choose correct mobile phone or iPod connector, and plug it in the right
place where to put charger connector of Music Station
Step 4: Plug AC adapter into Music Station, and connect it to wall outlet
Step 5: If using mobile phone or iPod with bottom charger connector, plug your
mobile phone or iPod into charger connector
Step 6: If using mobile phone, iPod and other portable audio devices such as
MP3 player, desktop, Notebook which connect with cable, connect 3,5 Ø audio
jack cable from headphone to stereo jack on the side of Music Station
Step 7: Push power switch ‘ON’ that is on the back of Music Station. LED will
light when Music Station is on
7
English
Voice Dialing
Making VoIP Calls
1.If you have a personal computer, an Internet connection, an applicable VoIP
software and an account, you can make VoIP calls via Internet by connect-
ing your Music Station to computer with audio cable.
1.Activate voice dialing* by pressing and holding the phone receiving button
for 2 seconds.
2.You will hear a signal of your mobile phone as your phone is set so.
3.Say the name of the person you want to call into the mic of Music Station.
4.If mobile phone does not locate the number, you will hear an error tone as
your phone is set so.
5.To start voice dialing again, press and hold the phone receiving button after
the error tone
* If supported by your mobile phone
Before recording voice dialing entries into your mobile phone, you can not
make any call using voice dialing.

6
English
Listening to Music
1.Play music from your portable audio devices,
connect it to your Music Station through 3.5Ø
audio cable, then play your music tracks
2.Or plug your phone on the connector of
Music Station and play music tracks* or
radio* using your phone.
3.If mobile phone receives a call while you are
listening to music, the sound of music will
automatically stop once you press receiving
button to answer the phone. And the music
will be automatic back when your call is
finished.
4.Increase or reduce volume level by adjusting
the volume control of your Music Station or
mobile phone, portable audio devices.
* If supported by your mobile phone
1. Receive calls and enjoy handsfree telecommunication by plugging your
mobile phone into Music Station.
2. Your phone call will be automatically received as your phone is set so.
3. Otherwise, you can press receiving button to answer the phone, and don’t
have to pick up your mobile phone, Music Station now serve you a hands-
free.
4. Press the receiving button to end your call.
5. Increase or reduce volume level by adjusting the volume control of your
Music Station or mobile phone
Receiving Calls and Handsfree
5
English
1. Music Station’s packaging contains 3 specific
changeable connectors, for your future use,
you can also purchase suitable connector for
your new mobile phone.
2.For changing connector, please slightly
squeeze the both sides of the connector and
pull it up, then plug with a new connector and
slightly push to install.
Changing Connector
Phone Charging
1. Charge your mobile phone with Music Station even when you play music
or enjoy handsfree telecommunication of your mobile phone
2. Properly plug your mobile phone in the charger connector on Music Sta-
tion, and press the phone charge button on
3. LED light color changes slightly while charging
4. Press the phone charge button off once charge is finished
Note With certain mobile phones, Music Station might give noises while charg-
ing, you can turn down the volume of Music Station.
Warning: You must use a proper connector for your mobile phone,
otherwise, it doesn’t work and will be
damaged
Phone charge button
6
English
Listening to Music
1.Play music from your portable audio devices,
connect it to your Music Station through 3.5Ø
audio cable, then play your music tracks
2.Or plug your phone on the connector of
Music Station and play music tracks* or
radio* using your phone.
3.If mobile phone receives a call while you are
listening to music, the sound of music will
automatically stop once you press receiving
button to answer the phone. And the music
will be automatic back when your call is
finished.
4.Increase or reduce volume level by adjusting
the volume control of your Music Station or
mobile phone, portable audio devices.
* If supported by your mobile phone
1. Receive calls and enjoy handsfree telecommunication by plugging your
mobile phone into Music Station.
2. Your phone call will be automatically received as your phone is set so.
3. Otherwise, you can press receiving button to answer the phone, and don’t
have to pick up your mobile phone, Music Station now serve you a hands-
free.
4. Press the receiving button to end your call.
5. Increase or reduce volume level by adjusting the volume control of your
Music Station or mobile phone
Receiving Calls and Handsfree
5
English
1. Music Station’s packaging contains 3 specific
changeable connectors, for your future use,
you can also purchase suitable connector for
your new mobile phone.
2.For changing connector, please slightly
squeeze the both sides of the connector and
pull it up, then plug with a new connector and
slightly push to install.
Changing Connector
Phone Charging
1. Charge your mobile phone with Music Station even when you play music
or enjoy handsfree telecommunication of your mobile phone
2. Properly plug your mobile phone in the charger connector on Music Sta-
tion, and press the phone charge button on
3. LED light color changes slightly while charging
4. Press the phone charge button off once charge is finished
Note With certain mobile phones, Music Station might give noises while charg-
ing, you can turn down the volume of Music Station.
Warning: You must use a proper connector for your mobile phone,
otherwise, it doesn’t work and will be
damaged
Phone charge button
