Connection HDSP-3 amplier
! ATTENTION !
Always load the correct preset for the loudspeaker before use.
Always be sure to connect the loudspeaker to the correct Speakon connector.
Otherwise the loudspeakers could be damage.

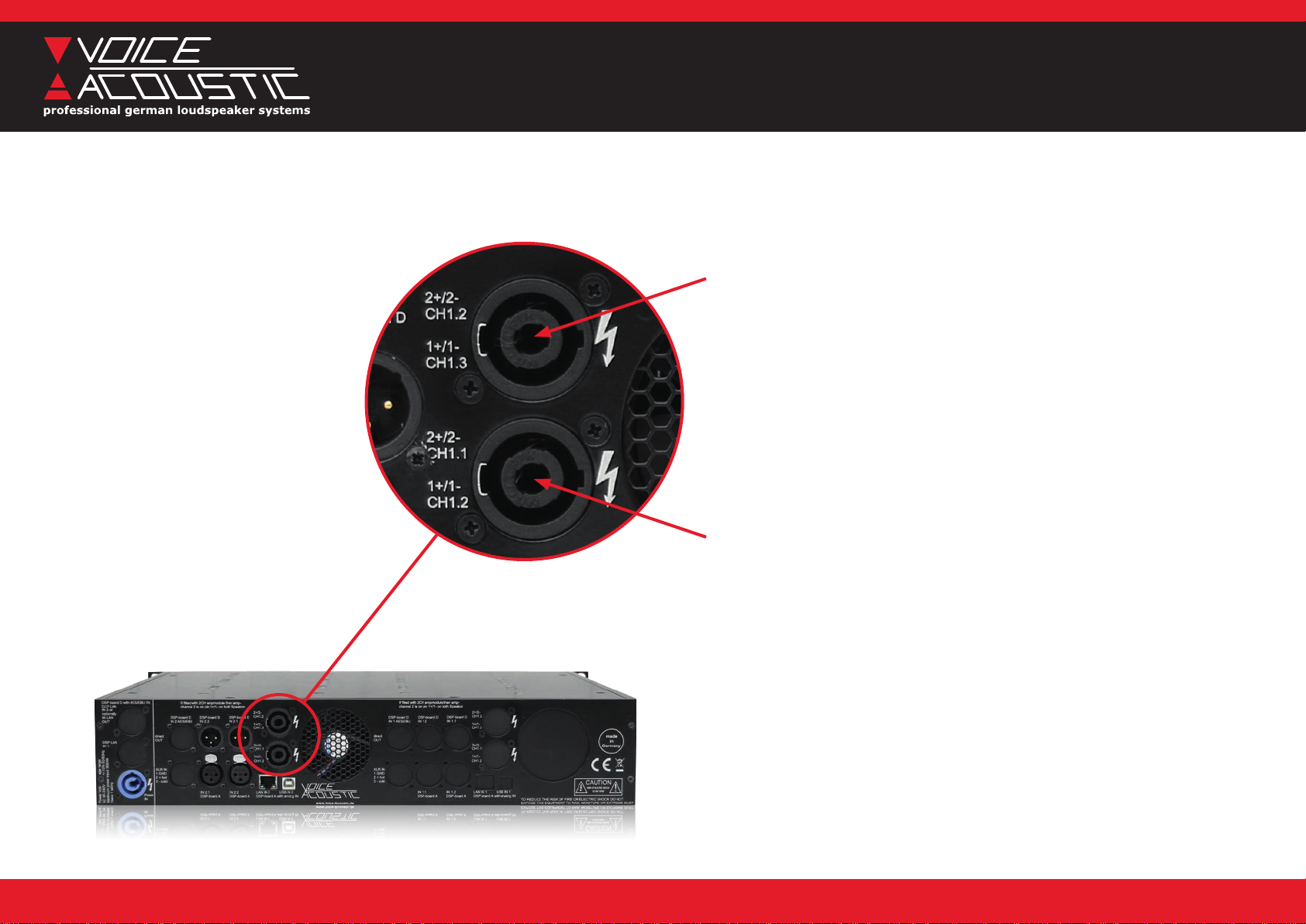

Upper Speakon connector for:
Amplier channel 3 (OUT CH3, 800 W) on Speakon 1+/1-
Amplier channel 2 (OUT CH2, 800 W) on Speakon 2+/2-
The amplier channel 2, 800 W is bridged on both sockets, so you can
use connect to the upper Speakon socket bi-amping tops if required,
which both need the 800 W channel (e.g. CXN-16 in half-powered mode).
The powerful 2400W amplier channel 1 is only connected to pin 2+/2-
on the the lower Speakon socket!
Bottom Speakon connector for:
Amplier channel 1 (OUT CH1, 2400 W) on Speakon 2+/2-
Amplier channel 2 (OUT CH2, 800 W) on Speakon 1+/1-

www.Voice-Acoustic.de - Brocksfeld 3 - D-27313 Dörverden - Tel.: [phone] - [e-mail]
Connection HDSP-3 amplier
4-pole cable between amplier and subwoofer!
It only works with 4-pole cable!
2- or 4-pole cable between sub and top
2- or 4-pole cable

www.Voice-Acoustic.de - Brocksfeld 3 - D-27313 Dörverden - Tel.: [phone] - [e-mail]
Connection HDSP-3 amplier
Connection option 1 with two basses
4-pole cable between amplier and subwoofer!
It only works with 4-pole cable!
Disadvantage:
complex cable laying because the basses
for L/R installation from one side of the stage
to be wired through the other end.
2- or 4-pole cable between sub and top
2- or 4-pole cable
4-pole cable

www.Voice-Acoustic.de - Brocksfeld 3 - D-27313 Dörverden - Tel.: [phone] - [e-mail]
Connection HDSP-3 amplier
! ATTENTION !
It is important to use the adapter
for the assignment to be right next:
Speakon socket on top and bottom.
Pay attention to the labeling of the adapter.
Connection option 2 via adapter with two basses
2- or 4-pole cable
only 4-pole cable only 4-pole cable
Advantage adapter:
Simple cabling
for L/R installation
2- or 4-pole cable

www.Voice-Acoustic.de - Brocksfeld 3 - D-27313 Dörverden - Tel.: [phone] - [e-mail]
Connection HDSP-3 amplier
Connection bi-amping speakers, e.g. Modular-15, Ikarray-12, CXN-16
Only with 4-pole cable at the bottom Speakon socket
Modular-15 bi-amping
15“ on CH1, 2.400 W, Speakon 2+/2-
1,4“ on CH2, 800 W, Speakon 1+/1-
Ikarray-12 bi-amping
12“ on CH1, 2.400 W, Speakon 2+/2-
1,4“ on CH2, 800 W, Speakon 1+/1-
CXN-16 bi-amping
full-power mode
4x 8“ on CH1, 2.400 W, Speakon 2+/2-
1,4“ on CH2, 800 W, Speakon 1+/1-

www.Voice-Acoustic.de - Brocksfeld 3 - D-27313 Dörverden - Tel.: [phone] - [e-mail]
Connection HDSP-3 amplier
Use 4-pole cable. Assignment of the basses is always on Speakon 2+/2-.
2-pole cables are always wired to 1+/1- as standard and the bass would not receive a signal.
It is also possible (only recommended in xed installations) to assemble 2-pole cable to 2+/2-.
In mobile use this would be a potential source of error, which is why we generally
only recommend the use of 4-pole cables for all loudspeakers.
4-pole cable, because bass is on 2+/2-
CXN-16
bi-amping
half-power mode
4x 8“ on CH2, 2.400 W, Speakon 2+/2-
1,4“ on CH3, 800 W, Speakon 1+/1-
only 4-pole cable
CXN-16 connection in half-power mode
Only with 4-pole cable
