Volcano Fine Lavatube User manual
USER GUIDE
Welcome to the VOLCANO Fine Electronic Cigarettes® family and thank you for your purchase!
Here you will nd all the information that you need to get your kit up and running.
If after reading through this you still need some help, we welcome you to visit our website
for more useful videos, tips, and information...and as always...happy vaping.
http://www.volcanoecigs.com/how-to
CONGRATULATIONS
DEVICE ANATOMY
Battery Compartment
This is where the battery is housed.
Power - Activation Button
This button powers the device on/o and
activates the unit during use.
LED Screen
This is the LED screen for displaying power features.
A
B
C
D
A
B
C
D
Tube Tank
This is the heating element /
eliquid well.
Drip Tip
This is a removeable mouthpiece.
E
E
FEATURES
2 Power Modes: The device can be set to either Average Voltage, or vRMS (recommended setting).
Within these modes the device can be set to either Variable Voltage or Variable Watage.
1
2Device Memory: All device settings are stored in internal memory. The LAVATUBE® remembers
the output settings as well as the voltage or wattage it was set to before being powered o.
Variable Voltage: In voltage mode, the voltage is changed in .1 volt increments.
3
4Variable Wattage: In wattage mode, the wattage is changed in .5 watt Increments.
INSTALLING / REPLACING BATTERY - STEP 1
1Unscrew and remove the LAVATUBE head unit.
1
INSTALLING / REPLACING BATTERY - STEP 2
2Install an AW IMR High Drain Rechargeable LiMN battery into the LAVATUBE.
2
INSTALLING / REPLACING BATTERY - STEP 3

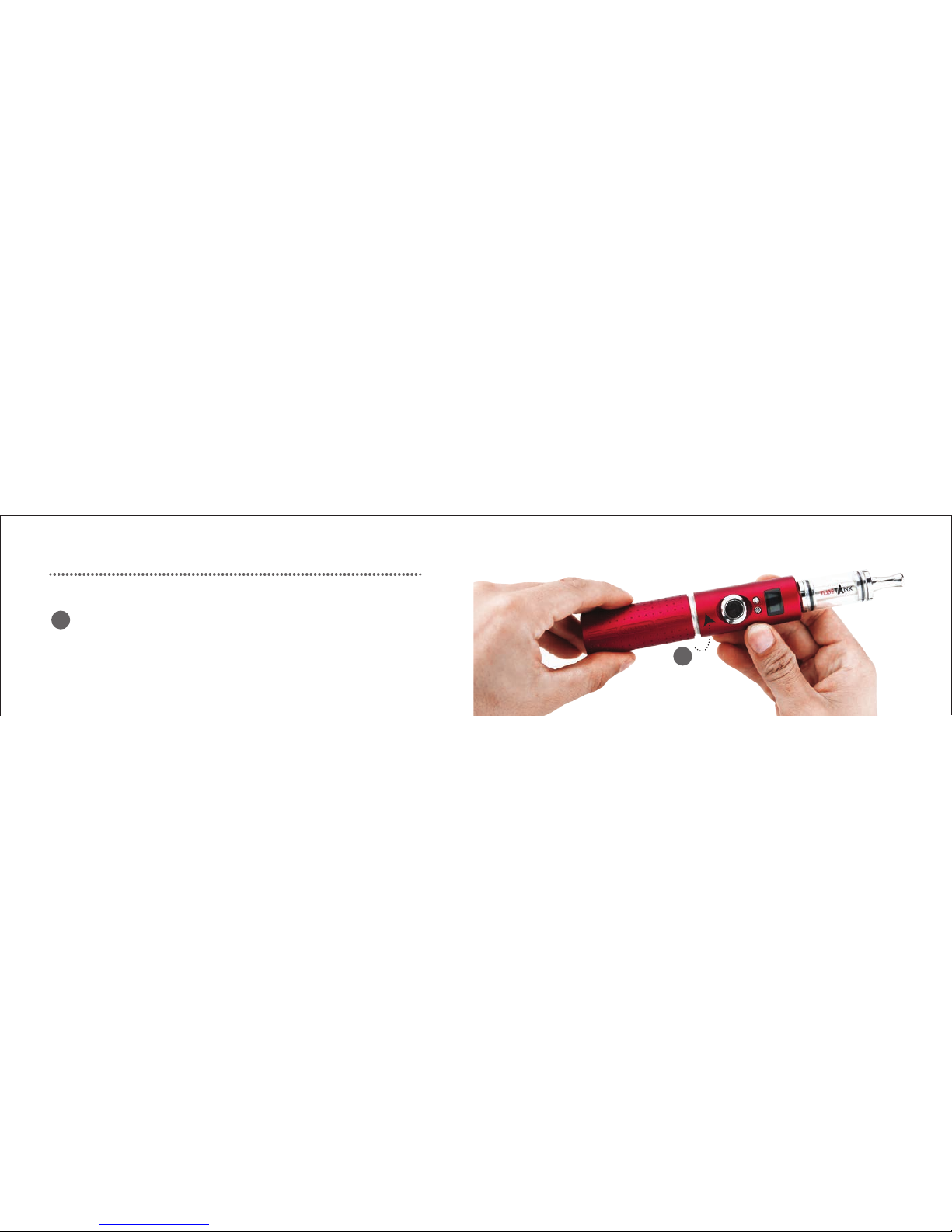

3Reassemble the LAVATUBE® by screwing the battery compartment back onto the head unit.
3
TURNING DEVICE ON, CHECKING VOLTAGE AND OHMS: - STEP 1
1To turn the device on/o, click the activation button 5 times rapidly
(approximately a half of a second in-between clicks)
1

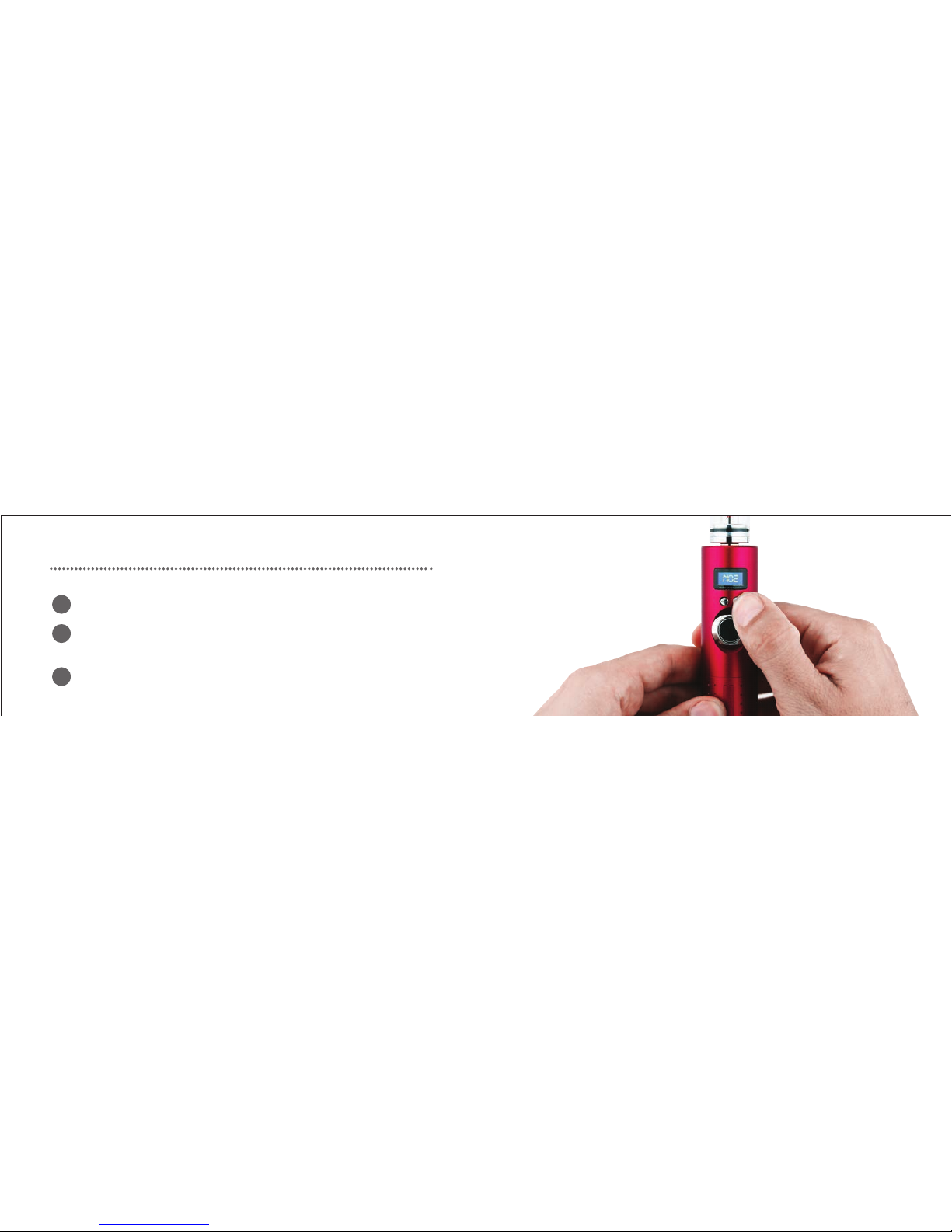

2To check the battery level, the LAVATUBE® is capable of reading and displaying the current
voltage the battery is outputting on it’s own. To do this, simply press and hold the minus button
for approximately 5 seconds. The display will briey show the battery voltage between a range
of 4.2v (fully charged battery)to 3.2v (depleted battery that must be recharged).
*When the battery is too low to eectively power the LAVATUBE®, the screen will display “LO”
when you press the activation button. At this point, you will need to either switch out the
battery for a fresh one or recharge the battery that is currently being used.
2
TURNING DEVICE ON, CHECKING VOLTAGE AND OHMS: - STEP 2
3To check the Ohms of the heating element attached, press and hold the plus button for
approximately 5 seconds. The screen will briey show the heating elements ohm resistance
level before reverting back to the general power settings screen.
TURNING DEVICE ON, CHECKING VOLTAGE AND OHMS: - STEP 3 3

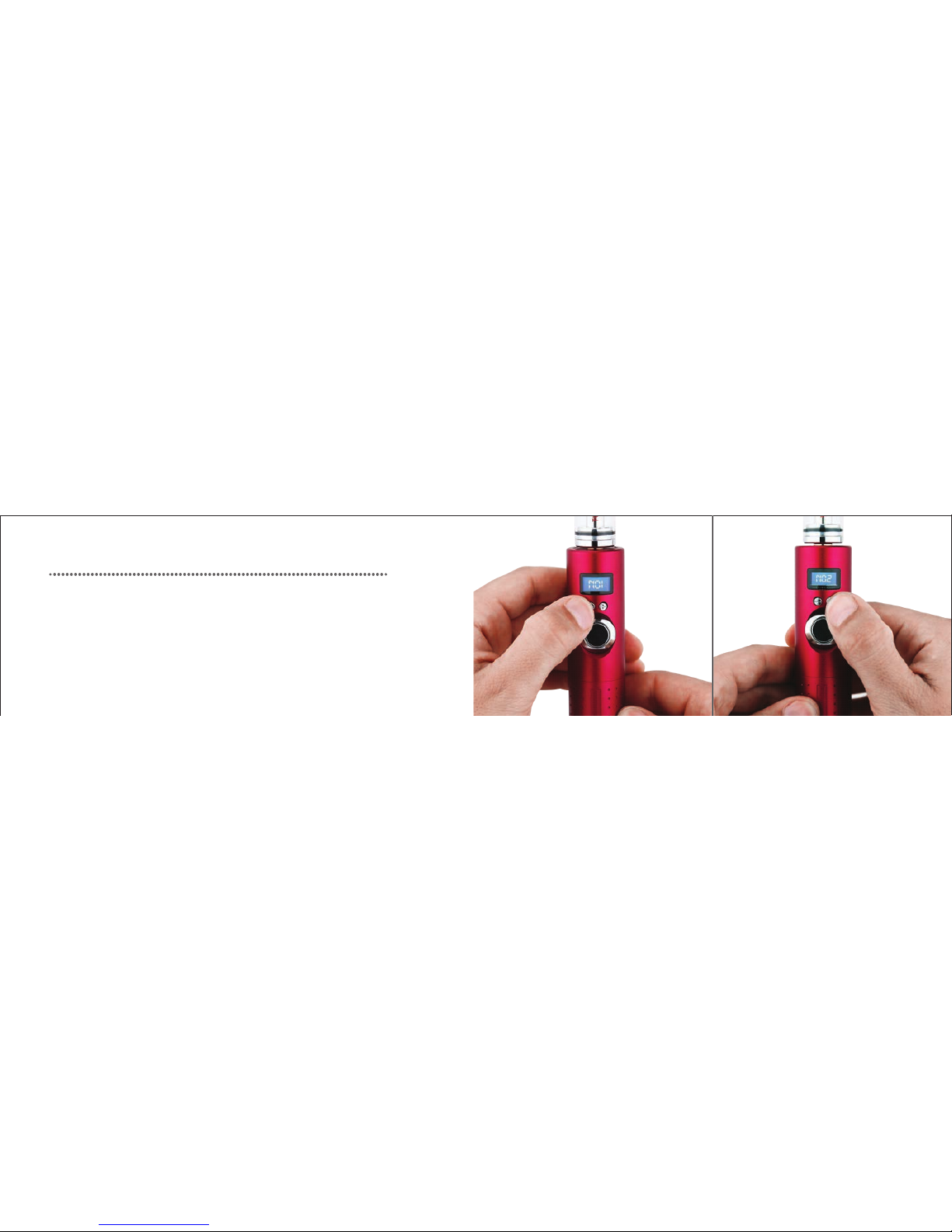

1Press and hold BOTH the plus and minus buttons at the same time for approximately 10 Seconds.
The screen will change to either 3V or 3W depending on the current setting.
Repeat to select a dierent mode.
SWITCHING BETWEEN VOLTAGE AND WATTAGE MODES:
2
3
1Press and hold EITHER the negative or positive button for approximately 20-25 seconds.
The screen will change to either NO1 (average voltage) or NO2 (vRMS) depending on the
current setting.
Repeat to select a dierent mode.
SWITCHING BETWEEN AVERAGE AND VRMS MODES:
2
3
AVERAGE VOLTAGE AND vRMS MODES:
The initial setting on your LAVATUBE® v2.5 device will vary from Average Voltage to vRMS mode in
either variable voltage or variable wattage. When in Average Voltage mode (NO1) the
power going to the heating elements will be a little higher than in vRMS (NO2) mode. For this
reason we recommend only advanced users set the mode to (NO1). For a smoother, more consistent
vape, we recommend the device be set in (NO2) mode. For a hotter, more intense vape we recommend
setting the device in the (NO1) mode but suggest you use a lower voltage/wattage setting than normal.
This will help to prevent the heating element from burning out.
A
2
The LAVATUBE® v2.5 is an advanced electronic device that must be maintained properly to ensure proper
function. By following these cleaning instructions, you will ensure that your unit is always in top working order.
Preventive Cleaning and Maintenance:

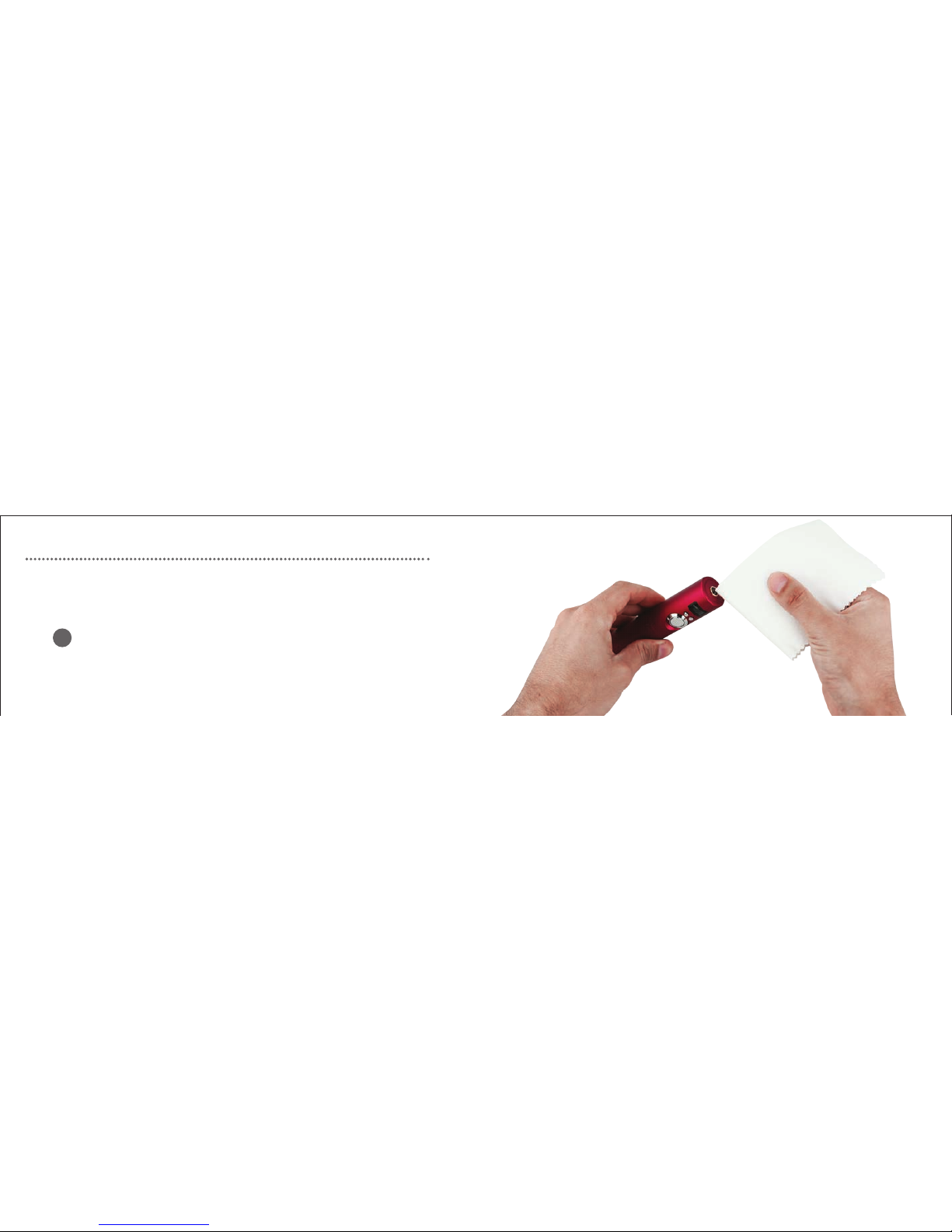

Clean the heating element connection (510 connection) at the top of the device every time the
heating element is switched out.
Take a q-tip or piece of paper towel that had been dipped in Isopropyl Alcohol (never use water when
cleaning the LAVATUBE®) and wipe the inside of the connection. Make sure to get both the threads
and bottom plate until they are clean.
1
RECOMMENDED CLEANING AND UPKEEP
B
Preventive Cleaning and Maintenance (continued):
Next, wipe the connection dry with a dierent paper towel or the other side of the q-tip.
RECOMMENDED CLEANING AND UPKEEP
A
2
With the device disassembled, clean the threading of both the head unit and the battery compartment.
Using a green scouring pad, or similar cleaning tool, scrub the threads with light pressure.
Then lightly wipe o any dirt and grime that may have came o the threads with Isopropyl Alcohol.
2
RECOMMENDED CLEANING AND UPKEEP
Preventive Cleaning and Maintenance (continued):
RECOMMENDED CLEANING AND UPKEEP
2
When using the device, make sure that any excessive eliquid spillage or build up is cleaned and wiped
from the unit whenever possible to prevent it from seeping into the device, and causing damage.
3
Preventive Cleaning and Maintenance (continued):
A
2
Advanced Cleaning and Maintenance:

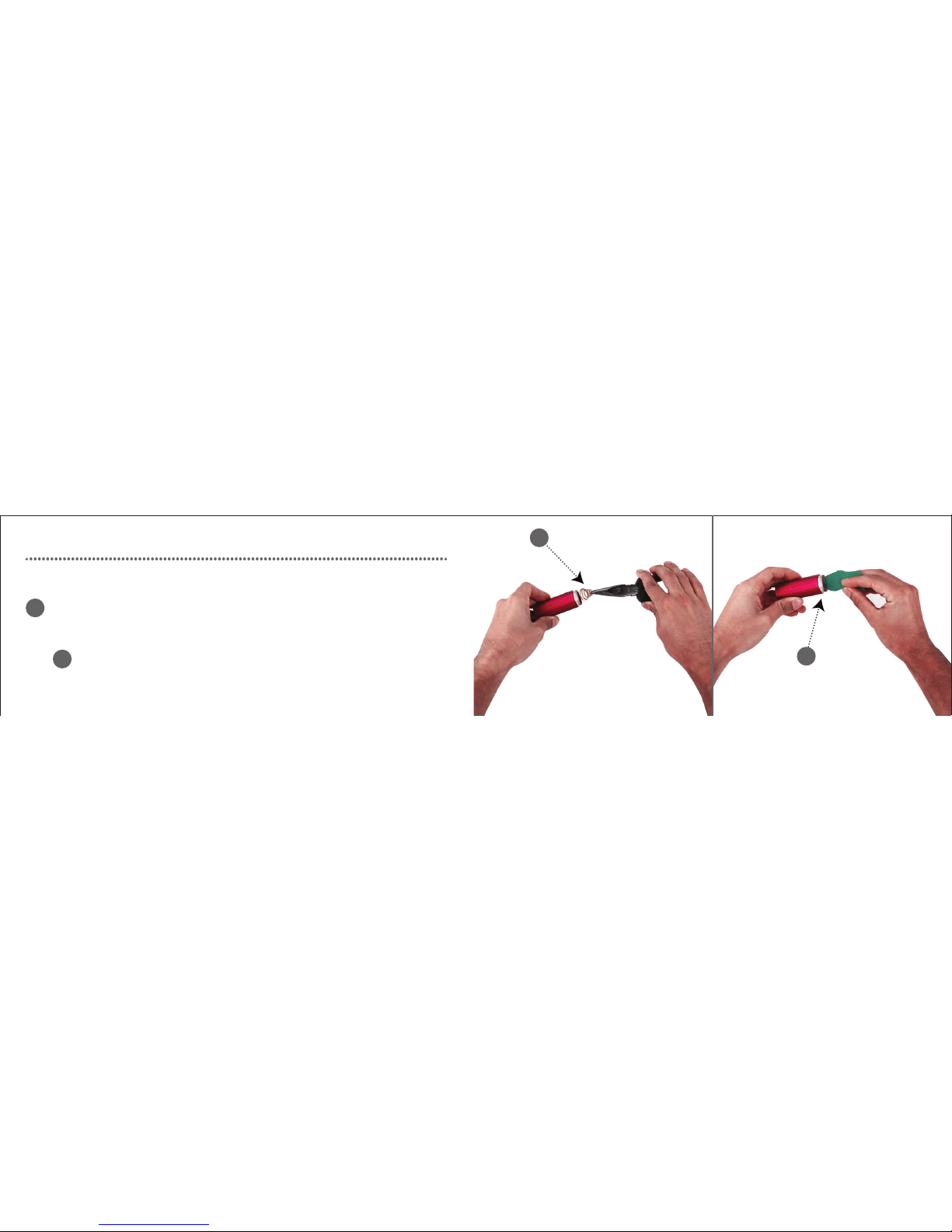

With the device disassembled locate the spring at the bottom of the battery compartment.
Using a long needle nose pliers or a straightened paper clip with a open loop on one end,
grab and remove the spring.
With the spring removed, take a scouring pad that has been cut into long 1”or 2” wide strips, and work one end
of the pad to the bottom of the tube. Twist the pad back and forth for a minute or two. Remove the pad and
rinse the entire battery compartment with Isopropyl Alcohol and let stand to dry.
1
RECOMMENDED CLEANING AND UPKEEP 1
A
B
Advanced Cleaning and Maintenance:
While waiting for the battery compartment to dry, take the spring and brush it with the scouring pad along
the length of the wire of the spring. Rinse the spring with Isopropyl Alcohol and let stand to air dry.
RECOMMENDED CLEANING AND UPKEEP
C
Advanced Cleaning and Maintenance:
After both the spring and tube are dry, push the spring back into place using a marker or other tool that can
provide even pressure to the spring. Make sure that the spring is seated all the way around
the bottom of the tube, and that it is seated upright and not o to one side.
RECOMMENDED CLEANING AND UPKEEP
