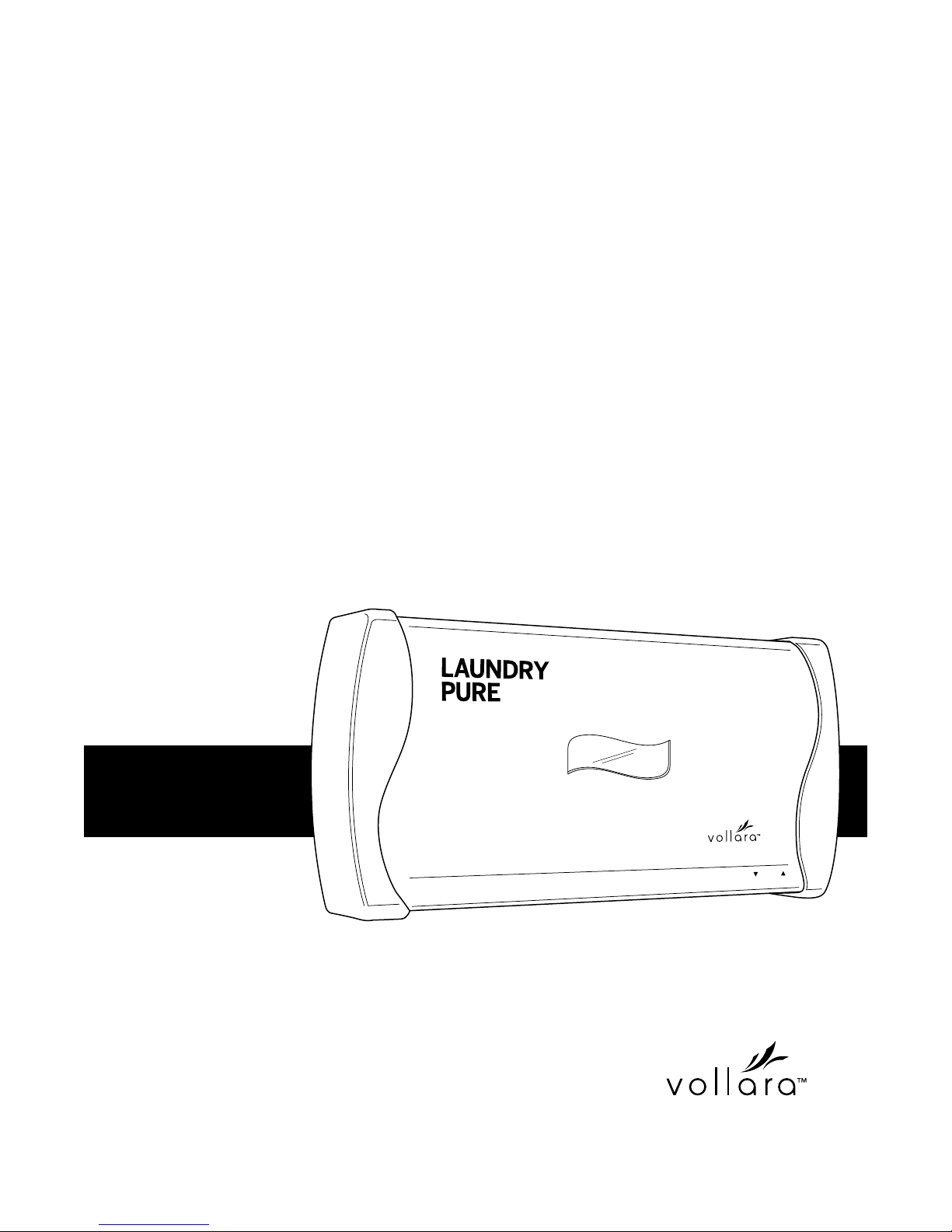

vollara LAUNDRY PURE User manual

LAUNDRY
PURE
BETTER FOR YOUR LAUNDRY, BETTER FOR YOUR FAMILY
BETTER FOR THE ENVIRONMENT
®
CAUTION: Read manual
carefully for proper use
and operation.
USER’S MANUAL

TWO MODELS FOR:
• Standard Top Load Machines
• HE Front Load

2
GENERAL INFORMATION
Contents
General Information . . . . . . . . . . . . . . . . .2
Use & Safety Considerations . . . . . . . . . . . . 3
Installation Requirements . . . . . . . . . . . . . 4
Cabinet Features. . . . . . . . . . . . . . . . . . 4
Before You Start . . . . . . . . . . . . . . . . . . .5
Installation . . . . . . . . . . . . . . . . . . . . 6
Connecting Power . . . . . . . . . . . . . . . . . .7
System Set Up. . . . . . . . . . . . . . . . . . . .7
Before Washing Clothes . . . . . . . . . . . . . . 8
Using Your LaundryPure . . . . . . . . . . . . . . 8
Removing The Cover . . . . . . . . . . . . . . . . 9
Reinstalling The Cover . . . . . . . . . . . . . . . 10
To Increase Water Pressure . . . . . . . . . . . . . 11
Maintenance Procedures . . . . . . . . . . . . . . 12
Troubleshooting . . . . . . . . . . . . . . . . . . 12
Installation Problems. . . . . . . . . . . . . . . . 12
Frequently Asked Questions . . . . . . . . . . . . 13
Declaration of Conformity . . . . . . . . . . . . . 14
Warranty Information . . . . . . . . . . . . . . . 15
Product Overview
LaundryPure is designed to work in conjunction
with your washing machine, using cold water, and
ActivePure to clean clothes. As your washer begins
to fill, LaundryPure will turn on.
LaundryPure is equipped with an internal leak sensor.
See page 12 for more details.
Please record the serial number of your LaundryPure by
Vollara, LLC:
Model # ___________________________________________
Serial # ___________________________________________
Please record the name and phone of your Independent
Vollara Business Owner:
Name _____________________________________________
Phone_____________________________________________
SPECIFICATIONS
AC/DC Adaptor:
• AC in: 100 - 240V ~ 50/60 Hz 0.8A
• DC out: 12V 2.5A
Power Consumption:
• 7.5W (standby mode)
• 25W operating
Water Pressure:
• Minimum 10 psi to 75 psi maximum
Water Temperature:
• Use cold water only (do not use hot water)
Operating Environment Temperature:
• 50˚F - 100˚F ( 10˚C - 37.8˚C)
Dimensions:
• 18.25 in. x 9.375 in. x 4.0 in.
• 463.55 mm x 238.13 mm x 101.6 mm
Weight:
• 7.55 pounds
• 3.42 kg
Dissolved Oxygen Concentration:
• 0.18 mg/L or 0.18 ppm (180 ppb)

3
• Do not operate unit with cover removed.
• Disconnect all power before servicing.
• Do not use an extension cord or other adapter with this appliance.
• This appliance is not recommended for use with high iron content
water. If your water has a high iron content, consult a water filtration
expert for available options.
• Maximum water inlet pressure is 75psi.
• Use the included new hose when connecting the LaundryPure unit to
your washing machine. You should replace any washing machine hose
that is more than 2 years old.
• To prevent leaks, do not leave your hot water hose disconnected.
• Do not clean your LaundryPure with harsh chemicals, abrasives, or
cleansers. Use a soft cloth dampened with water.
• Do not mount the LaundryPure unit vertically or at an angle. Improper
mounting may not allow the unit to function properly and void your
warranty. See page 6 for correct mounting instructions.
• LaundryPure is designed for residential use only. Use in a commercial
or non-residential setting may void your warranty.
• Water treated by your LaundryPure unit is intended for clothes washing
only and is not approved for consumption. Do not drink or ingest the
water from your LaundryPure unit or washing machine.
USE & SAFETY CONSIDERATIONS
IMPORTANT SAFETY PRECAUTIONS
• To prevent unnecessary risk of fire, electrical shock, or personal injury,
all wiring must be done in accordance with the National Electrical Code
ANSI/FNPA, No. 70 - Latest Revision and local codes and ordinances. It
is the personal responsibility and obligation of the appliance owner to
provide adequate electrical service for this appliance.
WARNING:
CAUTION:
NOTE:
We have provided
important safety warnings
in this manual and on your
appliance. Always read and
obey all safety messages.
Safety warnings in this
manual are defined as
follows:
Electrical shock hazard.
You can be killed or
seriously injured if you
don’t follow instructions.
Damage to your
appliance or the
surrounding area can
occur if you don’t follow
instructions.
DANGER:
Death or serious injury
can occur if instructions
are not followed
immediately.
This information is
included to aid in
installation and use of
this appliance.

4
ELECTRICAL REQUIREMENTS
100 - 240 Volt 50/60 Hz 5 AMP (minimum) Fuse or Circuit
Breaker.
LaundryPure is equipped with an AC to DC power supply.
NEVER USE AN EXTENSION CORD.
As with most major appliances, use of a GFI (Ground Fault
Circuit Interrupt) is not recommended.
WATER REQUIREMENTS
Water pressure of 10 to 75 psi is required to correctly
operate your LaundryPure. Low water pressure may
prevent your unit from operating properly and/or cause a
failure in your washing machine’s water valve. The washer’s
water valve may also not shut ocompletely. Check the
documentation supplied with your washing machine for
exact specifications.

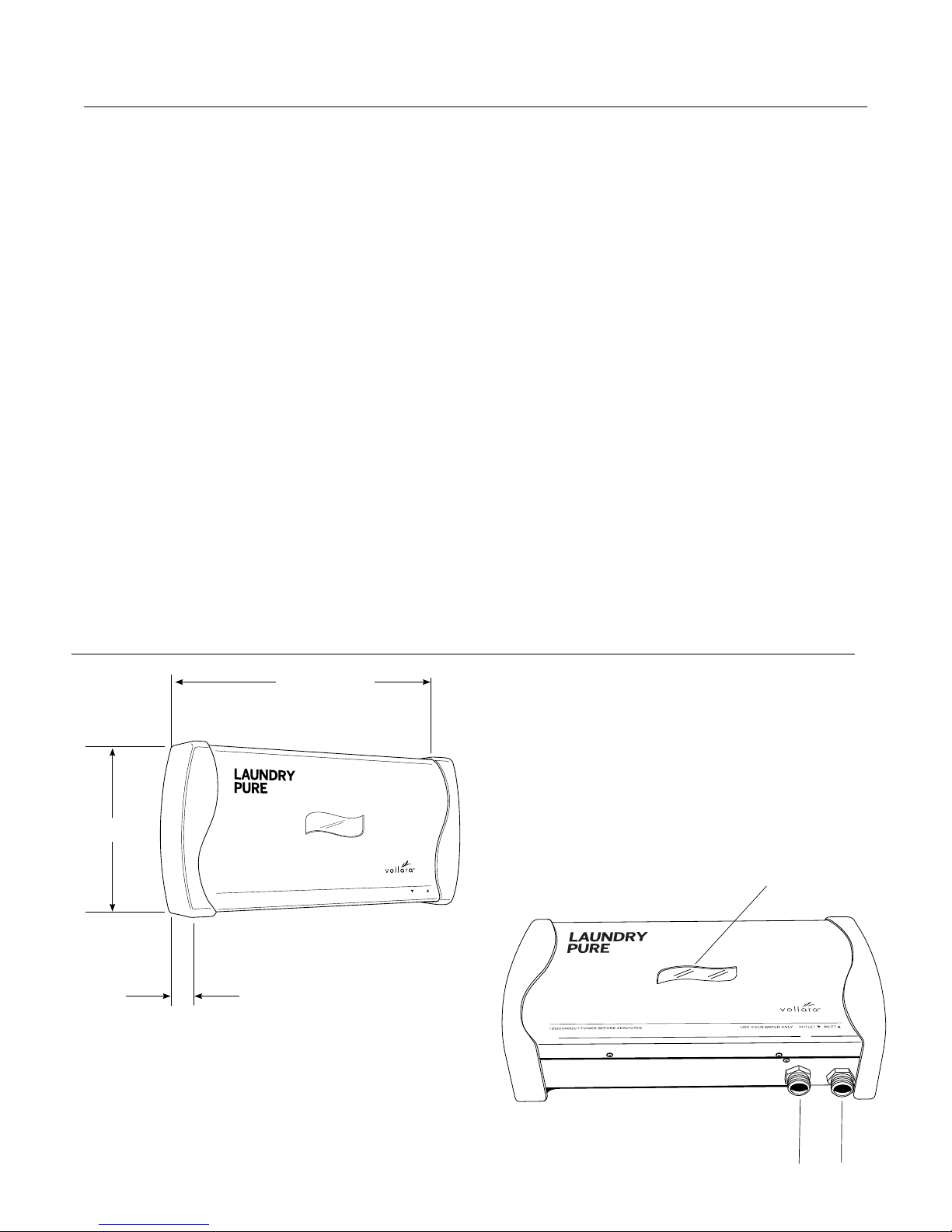

CABINET FEATURES
WATE R
OUTLET
WATE R
INLET
WINDOW
18.25” (463.55 mm)
9.375” (238.13 mm)
4.0” (101mm)
INSTALLATION REQUIREMENTS
Your washing machine and cold water faucet must be within
4 feet of the right side of the unit to use the inlet hose
provided with your LaundryPure.
TO AVOID THE POSSIBILITY OF WATER DAMAGE,
SHOULD A HOSE LEAK, ALWAYS HAVE FAUCETS
ACCESSIBLE AND TURN OFF FAUCETS WHEN WASHER
IS NOT IN USE.
Water quality may aect the performance of your
LaundryPure unit. If you have water quality concerns such
as high iron content or high chlorine content, consult a
water filtration expert.
This system is designed for use on potable water systems
only.
LOCATION CONSIDERATIONS
It is recommended the LaundryPure never be installed in
areas where water may freeze since the unit will always
maintain some water in the unit, the water valve, and hose
areas. This can cause damage to internal components.


5
BEFORE YOU START

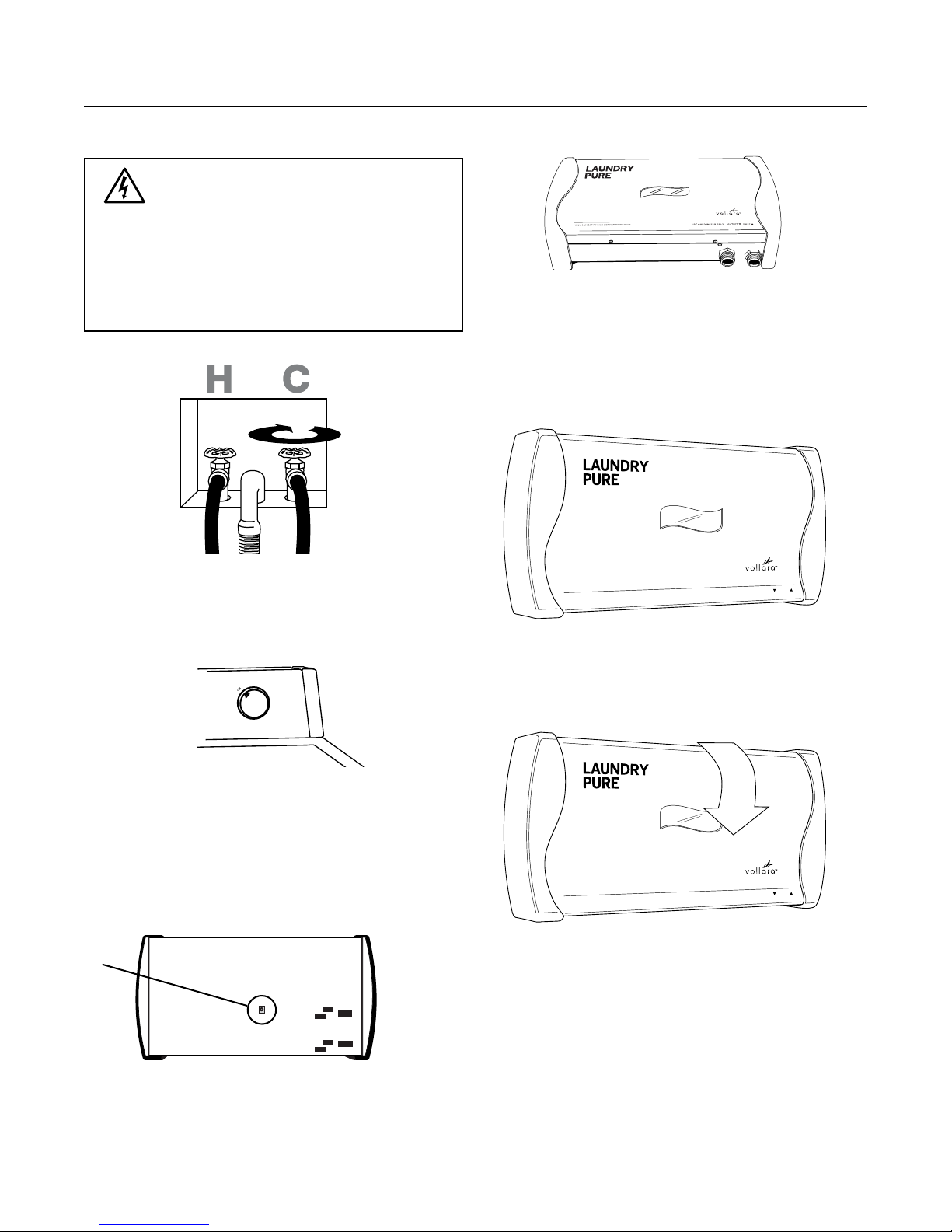

1. Remove your new LaundryPure from its packaging.
Inspect for any shipping damages.
3. Remove the cold water hose from the cold water
inlet on the back of your washing machine.
2. Turn the cold water oby shutting othe cold
water valve.
Electrical Shock Hazard.
Disconnect power before attempting installation or
service. Failure to follow these instructions can result
in death, fire, or electrical shock.
WARNING:
Do not remove or disconnect the hot water line from
your washing machine or water valve. Turn othe hot
water valve to prevent possible leakage. Using the hot
or warm water settings on your washing machine will
reduce the eectiveness of your LaundryPure system.
CAUTION:
NOTE: To help prevent water spray when disconnecting hoses, you can relieve pressure in the water line by
momentarily starting your washing machine.

6
INSTALLATION
2. Level and place the LaundryPure to the wall
marking where the two (2) keyholes are on each
side with a pencil. Drill two (2) holes in the wall
where marked and place two (2) supplied anchors
into the holes. Place the two (2) supplied screws
into anchors in the wall and tighten until almost
all the way. Move the keyholes of the LaundryPure
onto the screws and finish tightening to secure to
the wall.
4. Connect the end of the hose
from your cold water valve
to your LaundryPure’s INLET
connector (marked on front
of the LaundryPure).
6. Finally, connect the new
hose to the cold water inlet
on your washing machine.
5. Connect the new hose provided
with your LaundryPure to the
water OUTLET connector on
your LaundryPure unit.
Be sure rubber washers are properly inserted into hose connectors before installing hoses.
NOTE:
This appliance must be installed in a level, horizontal
configuration as shown. Do not install the unit
vertically or at an angle. Failure to follow these
instructions may prevent the internal moisture sensor
from operating properly.
CAUTION:
When connecting or disconnecting hoses, hold the
threaded connector on your LaundryPure with pliers
while turning the hose connector. Failure to follow these
instructions may result in damage to your appliance.
CAUTION:
Hold with pliers
while installing
hose in order to
prevent fitting
from rotating.
1. Instructions to remove cover are located on page 9. 3. Reverse instructions located on page 10 to replace
cover
Hold with pliers
while installing
hose in order to
prevent fitting
from rotating.

7
CONNECTING POWER
2. Plug the opposite end of the provided power cord
into the wall outlet of your home’s electrical power
system. See page 4 for electrical requirements.
Electrical Shock Hazard.
When working with electrical connections, the
appliance and surrounding area should be clean and
dry of any standing water.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING:
Electrical Shock Hazard.
Do no use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
WARNING:
1. Insert the provided power cord into the POWER IN
socket located on the back of the unit.
Do not use any AC/DC adaptor other than the one
supplied with your LaundryPure or Vollara
replacement cord (item #US71157).
Failure to follow these instructions may void your
warranty and/or result in damage to your unit, fire, or
electrical shock.
CAUTION:
SYSTEM SET UP
1. Turn on the cold water valve.
2. Check all hoses to ensure no water is
leaking. Tighten if necessary.
3. Start your washer. The static mixer light
(warm blue glow) should come on and
you should see water begin to flow (when
looking through the view window).
NOTE: Your LaundryPure should
automatically turn on and o
when your washing machine
starts, and stops.
The AC/DC adaptor
is designed to work
worldwide. The
electrical plug may be
removed and other
types added depending
on the country electrical
requirements.

8
BEFORE WASHING CLOTHES
IF YOUR WASHING MACHINE IS NOT NEW you will need
to perform this procedure to help remove any detergent
buildup that may contaminate your clothing.
1. Do not put clothes in the washer at this time.
Set your machine to its largest load setting,
cold water only.
2. Start the washer and let it run through every cycle.
3. Once it has finished, repeat Steps 1 and 2 three
more times.
NOTE: Depending on the age and severity
of detergent buildup in your machine,
it may be necessary to perform
Step 3 more than once.
CAUTION:
To avoid the possibility of water damage, should a hose
leak, always have faucets accessible and turn ofaucets
when washer is not in use.
IF YOUR WASHING MACHINE IS NEW, skip this section
and continue below.
BEFORE USING YOUR LAUNDRYPURE FOR THE FIRST TIME
USING YOUR LAUNDRYPURE
DETERGENT AND FABRIC SOFTENER
You may choose to continue to use detergent and/or fabric softeners if desired. However, to
completely experience all the benefits of your new LaundryPure, we recommend washing using
nothing but cold water.
COLD HOT
NORMAL OPERATION
Using your LaundryPure is as simple as turning on the washing machine. LaundryPure is designed
to use only the COLD/COLD setting of your washing machine.
HEAVY STAINS
For heavy stains, pre-treat area, apply detergent, rub gently and let stand for several minutes.
Wash as normal.

9
REMOVING THE COVER
1. Turn othe cold water valve.
3. Unplug the unit by removing the power cord from
the POWER IN socket on the LaundryPure.
2. Briefly turn washer to the “ON” position. This will
allow the water to drain from the LaundryPure unit.
Turn the washer OFF.
4. Remove the two (2) cover screws located on the
bottom of the unit.
5. Remove the two (2) screws along the top of the
LaundryPure.
6. To remove the cover, pull the top away from the
unit, then lift othe cover.
Electrical Shock Hazard.
Disconnect power before attempting installation
or service.
Failure to follow these instructions can result in
death, fire, or electrical shock.
WARNING:
POWER IN



10

1. Return the LaundryPure cover to its original
position, fitting the bottom in place and tipping
upward.
2. Secure with two (2) screws along the top edge.
3. Put the two (2) remaining screws along the bottom
edge and tighten.
4. Return the power cord to the POWER IN socket
located on the bottom of the LaundryPure.
REINSTALLING THE COVER
5. Turn on the cold water valve. Start your washer
and check the system for leaks.
Electrical Shock Hazard.
Do not operate with cover removed. When working
with electrical connections, the appliance and
surrounding area should be clean and dry of any
standing water. Failure to follow these instructions can
result in death, fire, or electrical shock.
WARNING:
Do not use any AC/DC adaptor other than the one
supplied with your LaundryPure or Vollara
replacement cord (item #US71157). Failure to follow
these instructions may void your warranty and/or
result in damage to your unit, fire, or electrical shock.
CAUTION:
Electrical Shock Hazard. Do no use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING:
POWER IN

