VOLTA VS1 User manual

www.volta.com.tr
USER MANUAL
VS1
Read this owner's manual carefully before moving your vehicle .

www.volta.com.tr
2
PREFACE
This product is designed for an environmentally friendly transportation.
Throughout the guide you will see the advantages and characteristics of the
vehicle. Its general specifications are as follows;
• High eciency brushless DC motor
• Electronic control unit (Controller) which protects from high and low
voltage.
• Braking system with electric cut-o feature for safe driving.
• High capacity battery providing longer range and high performance
• Front suspension providing a pleasant and comfortable driving.
• Vehicle parts in conforming to European standards.
IMPORTANT NOTE
Driver and Passenger
• This vehicle is designed to carry a maximum of one driver and one
passenger.
• Please use your vehicle without exceeding the load limits written on the
vehicle’s certificate of conformity..
Road Condition
• This vehicle is designed for use on flat and asphalt roads.
• Do not use the vehicle without reading the entire user manual.
• It is recommended that you read the “Warning, Caution, Note and Safety
Precautions” sections carefully.
CAUTION
WARNING
• These headings are written to protect you from serious personal injury or potential acci-
dents.
• It is obligatory to comply with the maintenance intervals written in the user manual. Oth-
erwise, your vehicle will be out of warranty conditions. The maintenance intervals for your
vehicle and the parts that need to be changed/checked are listed in this user manual.
• These headings are written to protect you from serious personal injury and mechanical
damage.
• After purchasing your vehicle, you should take it to the nearest
authorized service center or distributor for maintenance.

www.volta.com.tr 3
CONTENTS
32 4
Contents Safe
Driving
Preface
6
General
View
2
8
Actuation
And Usage
3
12
Maintenance
And Control
4
18
Storage
Conditions
5
19
Technicial6
20
Information
Producer
7
21
Guarantee
8
1

www.volta.com.tr
4
1. SAFE DRIVING
Safe Driving Instructions
• Follow the pre-ride instructions before starting to use.
• Grasp the grips with both hands while riding.
• Make sure you maintain a safe driving position.
• Practice often, primarily to gain experience.
• Obey the maximum loading conditions specified in the manual.
• Objects moving while driving will change the vehicle’s center of gravity
and will endanger the driving safety. Take the necessary measures to
avoid this situation.
• Avoid acrobatic movements while driving your vehicle.
• Avoid high speeds when turning.
• Wet weather lengthens the braking distance and restricts maneuverability.
In such cases, always maintain your low speed.
• Avoid excessive puddles that may occur in rainy weather.
• Do not use under the influence of alcohol and drugs.
Pre-Ride Instructions
• Check the condition of all the movable parts.
• Check all rotating parts and add oil if it is missing.
• Check whether the tyres are intact.
• Check the tyre pressures.
• Make sure that all nuts and bolts are tightened adequately.
• Check that the brake cable and other cables are not pinched and are
working properly.
• Make sure the throttle is working properly.
• Check all lighting systems.

www.volta.com.tr 5
1. SAFE DRIVING
Ecient Driving Instructions
If the following ecient driving instructions are followed, your vehicle’s
driving range and eciency will increase;
• Take your vehicle to service regularly.
• Comply with the maximum load limits in the manual.
• Be careful about using your vehicle in suitable weather and road
conditions.
• Check all tyres before riding, that your tyre pressures are appropriate.
• Pay attention to the maximum speed limits

www.volta.com.tr
6
1. Mirror
2. Front Signal
3. Headlight
4. Ignition
5. Front Tire
6. Middle Stand
7. Side Stant
8. Rear Tire
9. Seat
10. Rear Carrier Platform
11. Brake Lever
12. Stoplight
13. Motor
14. Brake Disc
15. Side Pocket
16. Indicator
17. Battery
2.GENERAL VIEW
• All parts listed in the user manual are for reference. The manufacturer can make changes
• without notice.
CAUTION
2
3
5
7
6
14
8
13
12
15
16
4
10
9
17
11
1

www.volta.com.tr 7
CAUTION
• All parts listed in the user manual are given as reference. The manufacturer can make
changes without notice.

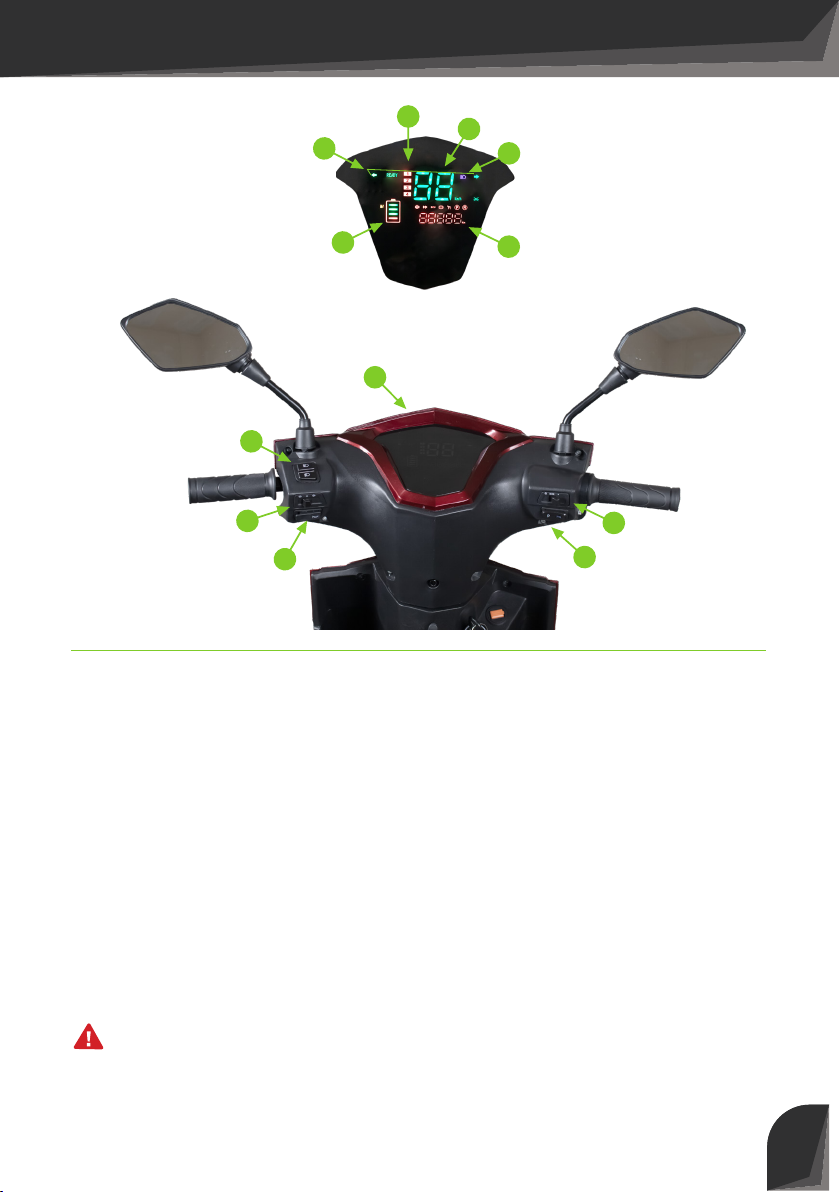

2.1. DASHBOARD
2
3
46
5
1
ab
c
d
e
f
a.Gear
b.Speedometer
c.High beam information light
d.Odometer
e.Right/Left Signal
f.Battery
1. Gear Selection 2. Low/High Beam Headlight
3. Right/Left Signal
4. Horn
5. Lighting Switch
6. Park/Gear Button

www.volta.com.tr
8
Actuating
Insert the ignition key into its slot and turn it to the on position. The vehicle
will be ready for driving.
The vehicle can be released from parking mode by squeezing the brake lever
of the vehicle.
Steering Lock
There is a steering lock feature to prevent your vehicle from being stolen.
Turn the handlebar to the far left and gently press the key on the ignition
switch to the lock position. To unlock the steering wheel, turn the handlebars
to the left and turn the key to the unlocked position by pressing lightly.
Seat Locking
When the seat is closed, you can unlock your seat by turning the key to the
lock position. If you close your open seat, the seat will be locked automatically.
3. ACTUATION AND USAGE
Acceleration and Deceleration
• Give the throttle by turning the throttle lever downwards. In this case,
your vehicle will move.
The speed can be increased or decreased with the throttle. Turn the throttle
indirection (a) to increase your speed, or (b) to decrease speed.
Loading
Do not carry loads that are not suitable for carrying loads on your electric
motorcycle. Otherwise, these parts will be damaged.
• Please do not exceed the permissible load limits. .
• Please do not carry loads on surfaces that are not suitable for
transporting loads on the vehicle. Otherwise, these parts will be
damaged.
A
B

www.volta.com.tr 9
3. ACTUATION AND USAGE
Braking
There are braking sensors in the brake lever and foot brakes. In this way,
the brakes both provide mechanical braking as well as cut the energy of the
motor.
• Grasp the brake lever with your fingers and gently squeeze it towards you.
• Slowly loosen the brake lever to stop braking.
• Avoid sudden and hard braking. Otherwise, your vehicle may slip and cause
accidents.
• Be careful when braking on downhill descents.

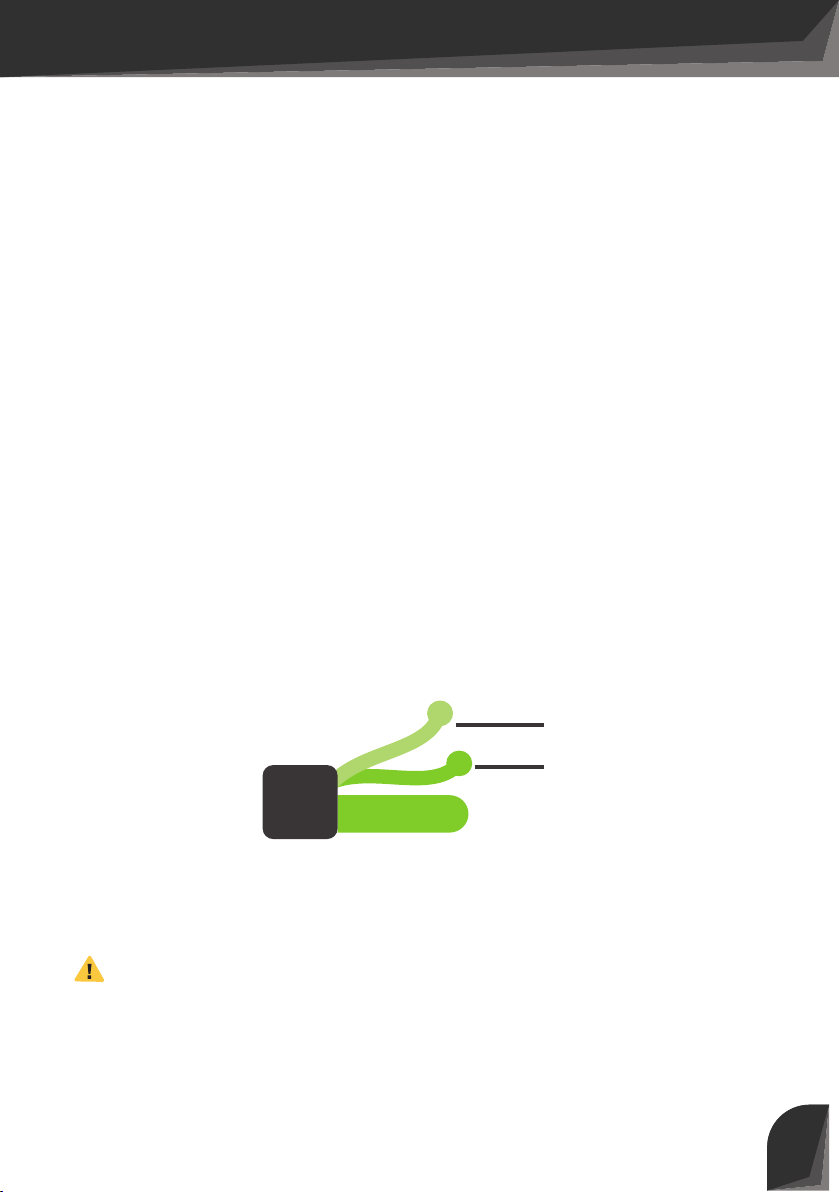

Front And Rear Brake
Your vehicle has Disc (Front) and Drum (Rear) brake systems. For brakes, brake
lever free travel distance should be 10 - 20 mm. After this distance, the braking
process should start.
WARNING
• Brake pads must always be replaced with original products. Poor quality parts can damage
other parts of the vehicle. It also aects the performance of your vehicle.
10-20mm

www.volta.com.tr
10
3.ACTUATION AND USAGE
• Damaged chargers due to voltage dierences in your electrical installation may damage
your vehicle. These types of faults are not covered by the warranty.
• Plugging the charger into the socket first will protect your vehicle from possible high/low
voltage situations.
• Charging at least once a month will extend the life of your battery.
• When the battery is fully charged, disconnect it from the charger.
WARNING
Charger
Hand-delivered your electric motorcycle with the vehicle before its first ride
charge the charger for 6-8 hours. Please observe the following instructions to
charge the vehicle;
• Make sure your electric motor is switched o.
• First plug the part of the charger marked ‘‘2’’ into the wall socket.
• Then insert the part of the charger marked ‘‘1’’ into the charging port on
your vehicle.
• Arc/spark may occur when installing the charger on the vehicle.
• Two warning strips are located on the charger. The first LED is solid red,
indicating it is working, while the other LED turns red during charging and
green when the battery is full. If the charger has a red green color, the
battery is full. If your charger is a single LED, it turns red during charging
and green when charging is finished.
• Wait until the light on the indicator is green.
• After the charging has been completed, remove the plug from the charging
port and the charger from the wall socket. Disconnecting the charger from
the wall socket will extend the life of the product.
CAUTION
• If the battery charge time exceeds the time specified in the manual, please contact the
authorized services.
• During the winter, the performance of the battery and range of your vehicle may decrease
Use only the original charger specifically designed for your product.
• Your electric motor bike must be switched o when charging.
• Never shake your vehicle when charging.
1
2

www.volta.com.tr 11
3.ACTUATION AND USAGE

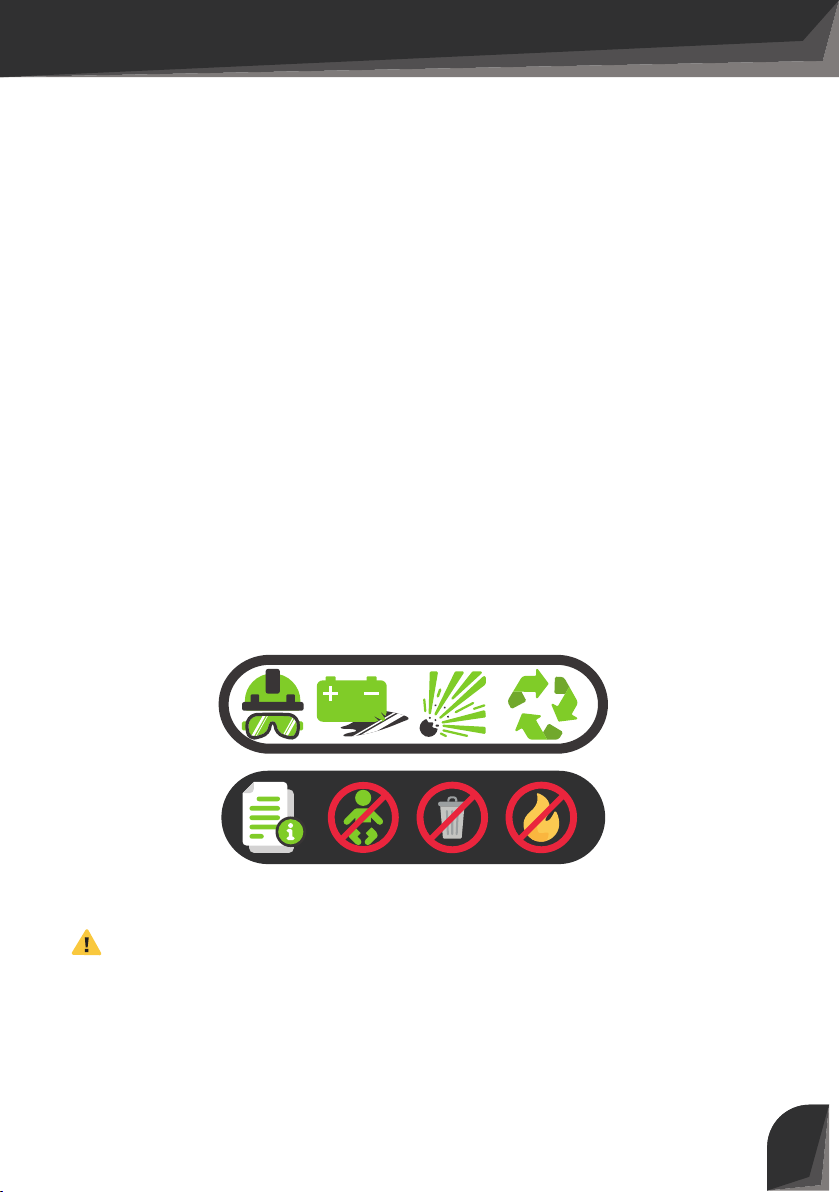

Battery
• Do not disassemble the batteries.
• Keep batteries away from children.
• When charging or discharging the anode and cathode of the battery
• do not combine. Absolutely no conductor between anode and cathode.
• do not use. It will cause a short circuit.
• Avoid contact of your battery with water.
• Protect the batteries from temperatures of 60 degrees and above.
• Do not subject it to physical impacts such as hitting, throwing, dropping.
• Do not tamper with the batteries with sharp tools.
• If leakage occurs and comes into contact with your skin or eyes,
immediately wash with plenty of water and go to the nearest health
institution.
• If the battery has physical eects such as odor, heating, burning,
discoloration.
• If changes occur, disconnect the battery from your vehicle and drive
away.
WARNING
• Store your electric motorcycle away from the cold, in your garage if possible. Like this The
life of your battery will be extended.
• If you do not use your electric motorcycle for a month or more,Recharge the batteries by
discharging them at least once a month. this app
• It helps you maintain the performance of the battery.

www.volta.com.tr
12
4.MAINTENANCE AND CONTROL
CAUTION
• If the tyre does not have the correct air pressure, it will wear out more quickly and its life will
be shortened, as well deflated tyres may cause an accident as they reduce grip.
• In case of very low air pressure, the tyre may come o the rim.
• Your tyres will wear out as you use them. You should change your tyre when your tread
depth decreases. Depending on the road, climate and usage conditions, your tyre life may
be extended or shortened. Drivers should check tire pressure and tread depth regularly.
Tyres with low tread depth will reduce grip, especially on wet surfaces. Minimum tread
depth is 1.5 mm for front tyre, 2.0 mm for rear tyre. Such situations cause accidents.
Brake Maintenance
Brake pads wear out due to the working principle. It should be replaced when
it reaches certain safety levels. Inspection of this safety level and change of
pads should be done by authorized services. Unreplaced brake pads cause the
brake system to work poorly, make noise, and in some cases, break other parts.
Brakes should be checked at every service period.
Tire Pressure Check
Check the pressure levels of your tyres daily. Tyre pressures above and below
the norm will aect the vehicle’s handling, acceleration, energy consumption
and similar performances.
Check your tyres daily for punctures, cuts or any other unusual condition.
Also on the rims; crushing, scratching and inclination can cause pressure
loss. This type of damage can cause your vehicle to unbalance and vibration.
In case of such situations, please visit the nearest ocial service point and
have the damage repaired.
VS1 3.50-10
3.50-10
42J, 59M
42J, 59M
325 kPa / 47 psi
325 kPa / 47 psi

www.volta.com.tr 13
4.MAINTENANCE AND CONTROL
Change of Circuit Breaker
The vehicle's charging circuit is susceptible to external intervention
and charger breakdown,protected by a 63A fuse. Replacing it in case of
malfunction
must. For this;
• Make sure the vehicle is in the o position.
• Unlock the seat of your vehicle.
• The fuse is located just under the seat.
• Separate the seat pool from the vehicle.
• Replace with a fuse of equivalent specification.
Rear Rim and Suspensions
• Raise the vehicle to the rear stand. Push the rear wheel shaft back and
forth by hand. In case of the slightest gap, re-tighten. totally bored.
Make sure it is in the correct position.
• Make sure all the nuts holding the front and rear suspension are tight.
Please be. If the suspension connections are not tight, it will cause some
connection points to be subjected to more force than usual. This may
cause damage and resultant accident.
Adjusting the Throttle Lever
• Check that the throttle can easily move to the top and bottom.
Please pay.
• From the top position to the position where it gives the first throttle
response the distance should be between 2 and 6 mm. Tighten to set it
loosen the nut, turn the adjuster and tighten it again.
CAUTION
• The use of fuses below the specified capacity will cause the system to be permanently
cut o, If it is used above the capacity, it is possible to use the electronic parts due to high
currents.may cause malfunction and damage to the cables.
• Do not use high pressure water while washing your vehicle. It will damage your electrical
systems.

www.volta.com.tr
14
• Never use very high pressure water while washing your electric motorcycle, high pressure
water may cause some parts of your parts to get water. Parts that receive water will have a
reduced lifespan and may deteriorate.
WARNING
4.MAINTENANCE AND CONTROL
Maintenance Interval
• Even if your vehicle runs smoothly, it should be checked by authorized
services at regular intervals. These ranges are detailed in the following
pages of the user manual. Vehicles that have experienced problems or
have had an accident should be taken directly to the authorized service
without waiting for the maintenance interval. In such cases, repairs should
definitely be made with the original part.
• Maintenance, repair, modification or any change that will increase the
performance of the vehicle other than the contracted service stations
approved by the manufacturer will cause the product to be out of
warranty.
Cleaning
• It is recommended to clean your electric vehicle with a wet cloth.
• Never lubricate the brake system and tyres.
• Use oil to clean the metal parts of your vehicle.Always use standard
cleaning materials when cleaning painted plastic parts.
• Rinse with fabrics after cleaning.
Controller / Motor Maintenance
• Your vehicle’s electronic control unit (controller) is located under the
seat. For this reason, make sure that this area does not get water, the
cables entering this area are not strained and the protective plastic does
not get impacted.
• Do not use the throttle lever and service brake system at the same time
in order to prevent deterioration of other parts.
• Slow down when the road surface is bad. Excessive vibrations may cause
the cables in the motor and controller to get damaged.
• Do not allow the water level to reach the level of the motor in rainy
weather. Otherwise, your motor will break down.

www.volta.com.tr 15
• Make sure that the motor and chassis numbers on your electric vehicle are the same as
those on the certificate of conformity.
WARNING
4.MAINTENANCE AND CONTROL
First Maintenance
• 1st and 4th month maintenance is important for your vehicle. After the
first use, the motor parts get used to each other and it is recommended
to check all the bolts during the first maintenance.
• The reliability of your vehicle depends on the correct first use and first
periodic maintenance.

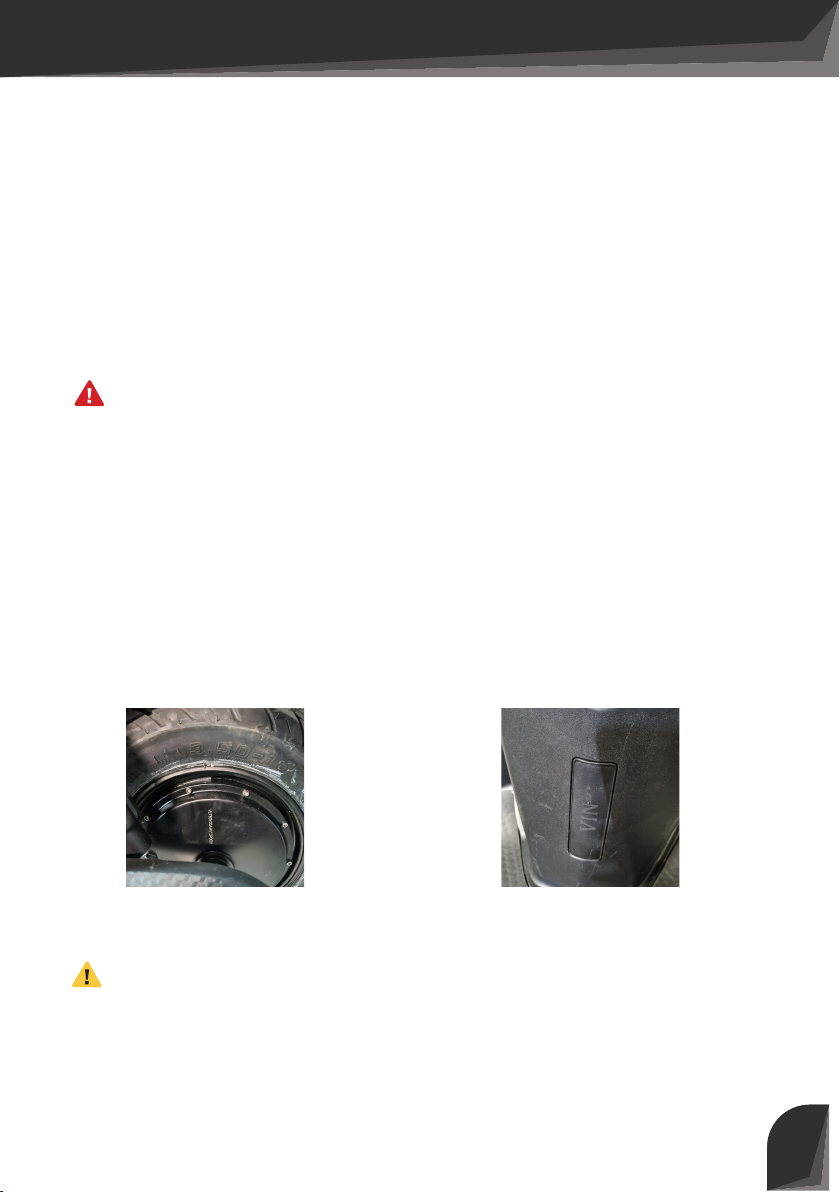

MOTOR CODE AND VEHICLE IDENTIFICATION NUMBER
Motor code and vehicle identification number are for the registration of
your vehicle and help our authorized services in order to provide better
service to you in case of need for maintenance / repair.
CAUTION
• Please stay away from modifications to make your vehicle safe and long-lasting. Modified
vehicles will endanger the safety of you and the trac. Always use parts approved by the
manufacturer.
• For your personal safety, turn o the engine and raise the vehicle to the rear before any
maintenance. Even if it is a simple maintenance, do not perform the maintenance before
the engine is turned o and the vehicle is on the rear stand.
• If the vehicle has not been used for 1 month or more, check the parts that are likely to be
corroded, such as tires and batteries, and start driving before the next use.
Motor Code Vehicle Identification

www.volta.com.tr
16
Periodic Maintenance Tables
• Periodic maintenance should be done at authorized technical service stations.
• Vehicles that are not regularly maintained (once every 4 months) will be evaluated out of
warranty.
4.MAINTENANCE AND CONTROL
1.MONTH
STAMPS TAMP STAMPS TAMP STAMPS TAMP
STAMPS TAMP STAMPS TAMP STAMPS TAMP
4.MONTH8 .MONTH 12.MONTH 16.MONTH 20.MONTH
24.MONTH 28.MONTH 32.MONTH 36.MONTH4 0.MONTH 44.MONTH
DATE:...../...../..... DATE:...../...../..... DATE:...../...../..... DATE:...../...../..... DATE:...../...../.....D ATE:...../...../.....
DATE:...../...../..... DATE:...../...../..... DATE:...../...../..... DATE:...../...../..... DATE:...../...../.....D ATE:...../...../.....
vs1
WARRANTY MAINTENANCE CARD
PERIODIC MAINTENANCE TABLE

www.volta.com.tr 17
4.MAINTENANCE AND CONTROL

www.volta.com.tr
18
5.STORAGE CONDITIONS
Storage
• If you are not going to use your electric vehicle for a long time during
periods such as winter , you should take some precautions to protect
your vehicle from malfunctions and corrosions. It would be better to
make some repairs before storage.
• Clean, rinse and dry your electric vehicle. Coating the painted surfaces
with protective oil will extend the life of your paint and ensure that it
retains its first day’s shine.
• Bring the tire pressure of your electric vehicle to the ideal level.
• Put on your vehicle a cover which will be either plastic or non-rubber. Take
care to store in storage conditions where the air temperature does not
change much. High temperature change can cause fatigue, deterioration
and cracking of many parts of your vehicle.
Get In Use
• Remove the cover from the electric vehicle and clean.
• Start the vehicle after completely following the pre-starting instructions.
• Make the first use in a trac-free area. After making sure that all parts of
your electric vehicle are working correctly and at full performance, drive
out to trac.
Loads
Do not carry loads that are not suitable for carrying loads on your electric
motor vehicle. Otherwise, these parts will be damaged.
Assembly
The electric vehicle is delivered assembled.

www.volta.com.tr 19
6.TECHNICIAL SPECIFICATIONS
Parameters
Wheelbase 1280 mm
Length 1862 mm
Width 685 mm
Height 1145 mm
Weight 89 kg
Maximum Carrying Capacity 150 kg
Motor Power 1500 W
Motor Type BLDC Hub Motor
Battery Capacity 60 V 20 Ah
Battery Type VRLA Jel
73.5V, 2.8A +/- 0.2A
Charger Capacity
Charger Time 6-8 hours
Maximum Speed 45 km/sa
Climbing Ability % 8
Range 50 km
EURO Level 5
Front Brake Disk
Rear Brake Drum
Number Of Seating Positions 2

www.volta.com.tr
20
7. MANUFACTURER INFORMATION
The service life of your Volta brand vehicle is 10 years,
maximum Repair time is 45 working days. About your
vehicle in case you encounter any problems Authorized
services by visiting our www.volta.com.tr and spare parts
information. All authorized service station information
created by the Ministry You can access it from the Service
Information System.
MANUFACTURING COMPANY
VOLTA MOTOR SAN. VE TIC. A.S.
Selamlar Köyu, Selamlar Mevkii,
Gümüşova OSB 1. Sk. No:10
Gümüşova/DÜZCE/TURKEY
Tel : [phone]
VOLTA MOTOR SAN. VE TIC. A.S. - TUBITAK Technology Free Zone
Tübitak MAM Teknoloji Serbest Bölgesi Barış SB. Mh. 5001 Sk.
No:3 A/B Gebze / KOCAELİ / TÜRKİYE
Tel : [phone]
