Voltask SB-EA User manual

20-INCH/13-AMP
Electric
Snow Thrower
SB-EA

Thank you for purchasing our Voltask 20-Inch Electric Snow Thrower. This snow thrower has
been engineered and manufactured to meet Voltask's high standards in product reliability, ease
of use and safety. When properly used, it will give you years of powerful trouble-free performance.
To reduce risk of injury, the user should read and understand this user
manual before using this product.
Save this user manual for future reference.
If you sell or pass this device on, you must also hand over these
operating instructions.
WARNING
Webside: www.voltask.com Email: [email protected]
FB: @voltasktools IG: @voltasktools

CONTENTS
INTRODUCTION 01
01
02
03
07
07
08
09
14
17
20
21
SYMBOLS
GENERAL SAFETY INSTRUCTIONS
PACKAGE CONTENTS
KNOW YOUR ELECTRIC SNOW THROWER
PRODUCT OVERVIEW
ASSEMBLY
OPERATION
MAINTENANCE AND STORAGE
TROUBLESHOOTING
TECHNICAL SPECIFICATIONS
WARRANTY

-This power tool may only be used with the accessory parts listed under accessories.
-This product is not intended for commercial use, Generally acknowledged accident prevention
regulations and endorsed safety instructions must be observed.
-Only perform work described in these instructions for use. Any other use is improper.
-The manufacturer will not assume responsibility for damage resulting from such use.
INTRODUCTION
PACKAGE CONTENTS
INTRODUCTION-PACKAGE CONTENTS 01
Snow
Thrower × 1 Assembly × 1 Accessories
Package × 1 User Manual × 1
Warranty card
× 1
Carefully remove the snow thrower and check to see that all of the above items are supplied.
Properly dispose of these materials in accordance with local regulations.
IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic
bags, foils or small parts. These items can be swallowed and pose a suffocation risk!
NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new
snow thrower. The packaging is made of recyclable materials.
Troubleshooting
× 1

-These symbols identify the required personal protective equipment:
Avoid clothing that could get caught on something:
-Wear only close-fitting clothing
-Do not wear jewelry
-If you have long hair, wear a hair net
SYMBOLS
SYMBOLS 02
DANGER! Direct danger to life and risk of injury! Directly dangerous situation that
may lead to death or severe injuries.
Hand protection: protective chainsaw gloves
Eye protection: wrap-around goggles/protective visor on the helmet
Ear protection: earplugs/earmuffs
Head protection: safety helmet with visor
Foot protection: safety shoes with gripping soles, steel caps, and leg protection
Clothing: Wear dose-fitting work clothes
CAUTIONI Possible risk of injury! Dangerous situation that may lead to injuries.
NOTICE! Risk of damage to the device! Situation that may lead to property damage.
Note: Information to help you reach a better understanding of the processes involved.
WARNING! Probable danger to life and risk of injury! Generally dangerous
situation that may lead to death or severe injuries.

GENERAL SAFETY INSTRUCTIONS 03
GENERAL SAFETY INSTRUCTIONS
IMPORTANT! All Operators Must Read These Instructions Before Use
Read all instructions before using this electric snow thrower. Basic safety precautions should always
be followed to reduce the risk of fire, electric shock and personal injury.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning the use of the appliance by a person responsible for their safety.Children should be supervised to
ensure that they do not play with the appliance.
General Safety WARNINGS!
SAVE THESE INSTRUCTIONS
● Read the operating and service instruction manual carefully. Be thoroughly familiar with the controls and the
proper use of the equipment. Know how to stop the unit and disengage the controls quickly.
● Never allow children to operate the equipment. Never allow adults to operate the equipment without proper
instruction.
● Keep the area of operation clear of all persons, particularly small children, and pets.
● Exercise caution to avoid slipping or falling, especially when operating in reverse.
Training
● Thoroughly inspect the area where the equipment is to be used and remove all doormats, sleds, boards,
wires, and other foreign objects.
● Do not operate the equipment without wearing adequate winter garments. Wear footwear, which will improve
footing on slippery surfaces.
● The operation of any powered machine can result in foreign objects being thrown into the eyes.
● Always wear safety glasses or eye shields during operation or while performing an adjustment or repair.
Preparation
● Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
● Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden
hazards or traffic.
● After striking a foreign object, stop the appliance, disconnect from the supply mains, thoroughly inspect the
snow thrower for any damage, and repair the damage before restarting and operating the snow thrower.
● If the unit should start to vibrate abnormally, stop the appliance, disconnect from the supply mains and check
immediately for the cause. Vibration is generally a warning of trouble.
● Stop the appliance, disconnect from the supply mains whenever you leave the operating position, before
unclogging the collector/impeller housing or discharge guide, and when making any repairs, adjustments, or
inspections.
● When cleaning, repairing, or inspecting, make sure to stop the appliance, disconnect from the supply mains,
the collector/impeller and all moving parts have stopped.
● Disconnect the supply mains, and keep the wire away from the plug to prevent accidental starting.
● Never operate the snow thrower without proper guards, plates or other safety protective devices in place.
Operation
WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric
shock, fire and/or serious personal injury. The term “power tool” in all of the warnings listed below
refers to your mains-operated (corded) power tool or battery-operated power tool.

GENERAL SAFETY INSTRUCTIONS 04
● Never operate the snow thrower near glass enclosures, automobiles, window wells, offs, etc; without proper
adjustment of the snow discharge angle. Keep children and pets away.
● Do not overload the machine capacity by attempting to clear snow at too fast a rate.
● Never direct discharge at bystanders or allow anyone in front of the unit.
● Stop the appliance, disconnect from the supply mains when snow thrower is transported or not in use.
● Use only attachments and accessories approved by the manufacturer of snow thrower (such as wheel
weights, counterweights, cabs, etc.).
● Never operate the snow thrower without good visibility or light. Always be sure of your footing, and keep a
firm hold on the handles. Walk; never run.
● Do not carry passengers.
● Never operate the snow thrower without good visibility or light.
● Take all possible precautions when leaving the machine unattended. Stop the appliance, disconnect from
the supply mains.
● Check the supply cord, plug and all guards; at frequent intervals for proper tightness to be sure the
equipment is in safe working condition.
● Always refer to the owner’s guide instructions for important details if the snow thrower is to be stored for an
extended period.
● Maintain or replace safety and instructions labels, as necessary.
● Run the machine a few minutes after throwing snow to prevent freeze-up of the collector/impeller.
● Specific written instructions with appropriate safety warnings shall be provided with the equipment for those
maintenance operations recommended by the manufacturer that must be performed with the appliance
running. General maintenance written instructions shall be provided with the equipment for maintenance
operations recommended by the manufacturer to maintain the equipment in safe operating condition.
● Have your power tools serviced by a qualified repair person using only identical replacement parts. This will
ensure the safety of the power tools.
● If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
● If the carbon brushes need to be replaced, have this done by a qualified repair person (always replace the
two brushed at the same time)
Maintenance and storage
1. This appliance is only intended for sweeping of snow on steps, patios and decks in private domestic and
hobby gardens.
2. Do not operate this unit when tired, ill or under the influence of alcohol, drugs, or medication.
3. Be cautious to avoid electric shock. When using the machine, keep your body away from the different
ground terminals of power (e.g. upper and lower water pipes, outer frame of heating equipment, microwave
oven, or in a place that is locked.
4. The machine should be stored carefully and safely in a dry environment when not used, far from the reach
of children, or in a place that is locked.
5. Please do not use the machine for any purposes other than it is designed for, otherwise, it may cause
mechanical defaults or serious damage or injuries.
6. Special care should be drawn to the following issues when using this machine: operation methods,
procedures, surroundings, and environment states, etc.
7. When using this machine, the user should be cautious about the nearby status or changes: The user should
constantly observe the position and movement of other people, nearby windows, vehicles, obstacles, etc.
Exercise caution to find any small piece of rocks or other articles in the snow to avoid them from flying out
and causing personal injury.
Additional Safety Rules For Snow Thrower

8. In case of the following conditions, please turn off the machine and pull out the power plug:
9. When not used, being repaired, replaced of some parts, being cleaned and checked as well as any other
conditions in which dangerous factors exist. If the cord is damaged in manner while plugged in, pull the
extension cord from the wall receptacle.
10. Never carry the snow thrower when the cord is connected to the receptacle, so as not to yank the cord.
11. Do not use hands to unclog the chute. Stop motor before removing Debris. Do not walk in front of the
running machine. Do not direct discharge at the bystander.
12. When using the machine the user must keep correct postures. Heels should be placed firmly on the ground,
while the hands hold the handles firmly.
13. Before using the machine, the user should have a careful inspection of the main machine. Carefully check
the different parts of the machine before starting, solving any problem immediately. If you find any abnormal
condition, please don’t use the machine before repairing.
14. If you find the main power cable or the extension cable damaged, please pull out the plug from the socket
and disconnect the power immediately. Repair the cable for replacing it if necessary. When adding the
lubricant or replacing any parts, you must strictly observe the instructions and procedures described in this
User Manual.
15. Special care should be paid to any rubber parts, since these parts may increase the engine load and
decrease its mechanical power if damaged.
16. When you examine, service clean the machine or replace parts, you must turn off the power switch and
disconnect the power cable. Any such operation should be performed after the revolving part inside the
machine stops completely.
17. The first time you use the machine or after replacing some parts, you should perform a test running and
ensure no abnormal conditions exist to avoid any potential damages or incidents.
18. Do not move or transport the machine when the plug is connected to the power socket and the switch is
turned on.
19. When using the machine you must respect local laws and regulations regarding noise control and
environment protection. To avoid any noise disturbance to other people, you should carefully decide
operation time and consider the surrounding conditions.
20. When the machine is running, be cautious to prevent your hands, feet or head from moving near to the
revolving part or the snow exit of the machine.
21. In case you fall or collide with the machine, please check the main machine and parts for any damages or
cracks.
When stepping backwards, be cautious about any obstacles beneath your feet or behind you to avoid
falling.
GENERAL SAFETY INSTRUCTIONS 05
Explanation of Safety Symbols
Read the instruction manual
The following warning symbols are to remind you of the safety precautions you should take
when operating the snow thrower.
Always keep the children or pets away from the working area.
Always keep away from the working area. The throwing snow may hurt you.

GENERAL SAFETY INSTRUCTIONS 06
Keep hands away from the moving parts of the snow thrower. The rotating parts will hurt you.
Keep foot way from the moving parts of the snow thrower. The rotating parts will hurt you.
To reduce the risk of electric shock, disconnect from supply mains and replace damaged
cord immediately.
Do not use hands to unclog the chute.
Wear safety goggles and ear protectors.
Double insulated for additional protection.
Conforms to relevant safety standards.
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your local authority or retailer for recycling advice.
CAUTION! This product shall not be discarded with household waste but that it shall be returned to a collection
system which conforms to the European WEEE Directive. Contact your local authorities or stockist for advice on
recycling. It will then be recycled or dismantled in order to reduce the impact on the environment. Electric and
electronic equipment can be hazardous for the environment and for human health since they contain hazardous
substances.
Environmental protection

KNOW YOUR ELECTRIC SNOW THROWER-PRODUCT OVERVIEW 07
Read the owner’s manual and safety rules carefully before operating your snow thrower. Compare the
illustration below to the actual unit in order to familiarize yourself with the location of the various controls and
adjustments. Save this manual for future reference.
PRODUCT OVERVIEW
KNOW YOUR ELECTRIC SNOW THROWER
① Switch button
② Switch trigger
③ Switch housing
④ Upper frame
⑤ Upper chute crank
⑥ Fixing knob
⑦ Plug
⑧ Middle frame
⑨ Lower chute crank
⑩ Chute deflector
⑪Discharge chute
⑫ Lower frame
⑬ Top cover 1
⑭ Top cover 2
⑮ Wheels
⑯ Side cover
⑰ Scraper
⑱ Auger
⑲ Plate
①
②
⑥
⑨
③
④
⑬
⑭
⑱
⑲
⑩
⑪
⑰
⑤
⑦
⑧
⑫
⑮
⑯

TECHNICAL SPECIFICATIONS 08
TECHNICAL SPECIFICATIONS
Power
No Load Speed
Clearing Width
Clearing Depth
Max Throwing Distance
Directional Control
13A
Rated Voltage 120V~ 60Hz
3000 rpm
20 in (50 cm)
10 in (25 cm)
30 ft (9 m)
180º adjustable chute
Net weight 30 lbs（13.6 kg）

ASSEMBLY 09
NOTE: Do not over-tighten the knobs.
ASSEMBLY
The snow Thrower is to be assembled before Operation. To assemble the snow thrower, follow the instructions
below.
1. Loosen and remove the four sets of joint fixing T-bolts, washers, and joint fixing knobs to separate the upper
frame from the lower frame.
2. Hold the middle frame so that the screw holes align with the holes on the lower frame. Insert the J-bolt with
washer into the holes on each side and use the joint fixing knobs to secure the connection on both sides.
The joint fixing bolts and washers should be inserted inside the frame of the unit so that the joint fixing knobs
are fastened to the outside of the frame.
Upper, Middle and Lower Frame Assembly
Fig. 2
Fig. 3

ASSEMBLY 10
3. Connect the upper frame with the middle frame in the same way as described in step 2. Use the joint fixing
T-bolts, washers and knobs to secure the connection on both sides.
Fig. 4 Fig. 5
Fig. 6
Fig. 7 Fig. 8

ASSEMBLY 11

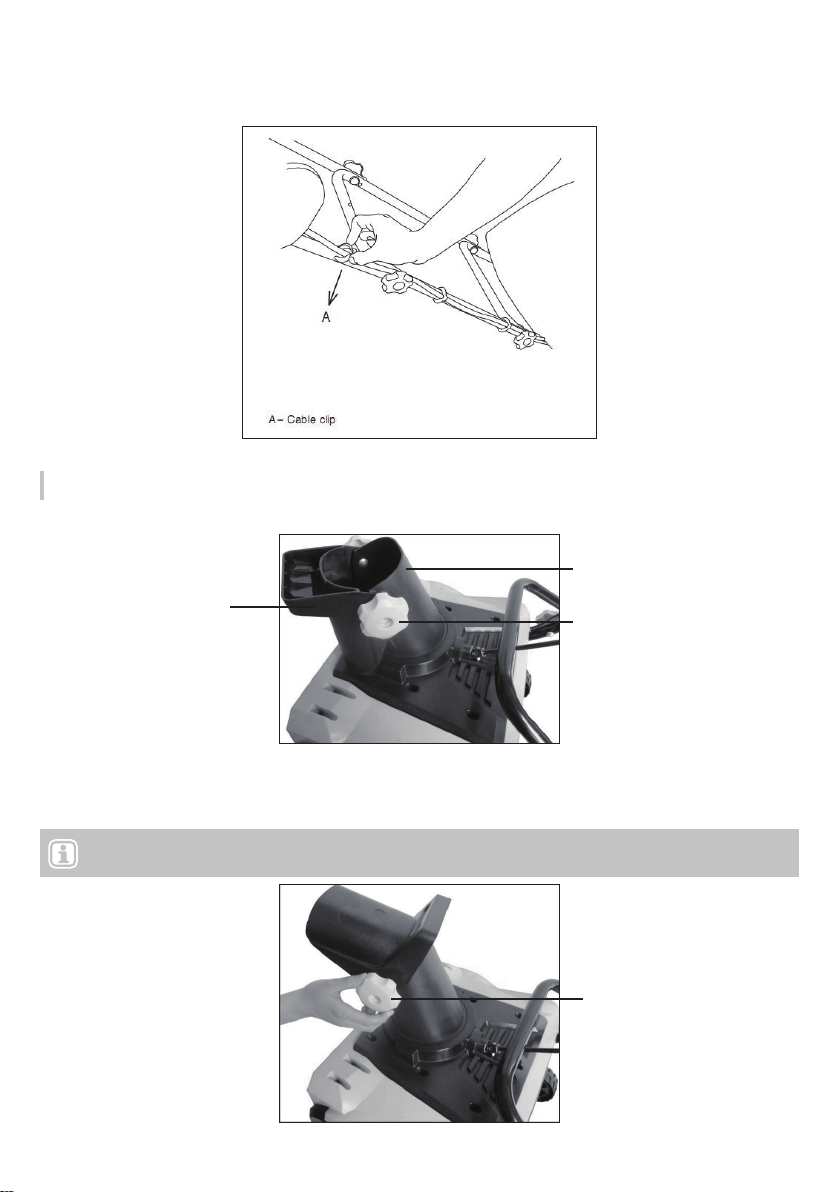

4. Locate the cable clips in the parts bag. Secure the power cord to the frame of the unit by clipping them onto
the frame at evenly spaced intervals.
1. Lift the chute deflector so that it snaps and locks securely onto the discharge chute.
2. Raise or lower the chute deflector to the desired height of the snow stream and tighten the chute deflector
knobs.
Fig. 9
Fig. 10
Fig. 11
NOTE: Do not overtighten the chute deflector knobs.
Discharge Chute and Chute Crank Assembly
Chute deflector
Discharge chute
Chute deflector knob
Chute deflector knob

ASSEMBLY 12
3. Locate the low and upper chute crank in the parts bag. Loosen the screw and nut located on the upper chute
crank with the screwdriver and wrench.
4. Slide the upper chute into the lower chute crank, aligning the screw holes. Tighten the screw into the aligning
holes using a screwdriver. Fasten the unit with a wrench.
NOTE: You may be able to unfasten the screw and nut by hand.
Fig. 12
Fig. 13 Fig. 14

ASSEMBLY 13
5. Slide the lower crank into the chute base hole.
6. Remove the washer and nut from the eye bolt with a rubber grommet found on the upper chute crank.
Position the chute crank so that the eye bole with rubber grommet inserts into the center hole of the middle
frame. Secure with washer and nut.
Slide into chute base hole
Fig. 15
Fig. 16
Fig. 17

OPERATION 14
1. For safe and efficient use of your snow thrower, use only a CE-rated extension cord recommended for
outdoor use.
2. To prevent the extension cord from disconnecting during use, tie the extension cord into a loose knot on the
top right side of middle frame before connecting the plug in the switch cord socket of the snow thrower.
1. Keep the plug into the outlet.
2. To power on, press the button B and trigger C or A at the same time, power is on, then you can release the
button B, the machine started. Release the trigger A or C, power is off.
3. To power off, release the trigger A or C.
OPERATION
Securing the extension cord
Powering on and off
Fig. 18
Fig. 19
NOTE: Before using the machine, please make sure the power source you will use is in accordance
with the specifications shown in this manual. Before inserting the plug into the socket, make sure the
machine’s roll shaft and the snow thrower’s rubber plates are all fixed firmly with screws, and the
rubber plates are facing to the correct direction. Perform a test run to ensure that the rotor turns freely.
WARNING! The auger starts rotating immediately after the snow thrower is switched on. Keep hands and feet
away from the auger.

OPERATION 15
1. Keep the area of operation free of foreign objects that can become thrown by the rotor blades. Perform a
thorough inspection of the area since some objects may be hidden from view by surrounding snow. If the
snow thrower hits an obstruction or picks up a foreign object during use, stop the snow thrower, disconnect
the extension cord, remove the obstruction, and inspect the unit for damage. Repair or replace any damaged
part before restarting and operating the unit.
2. Keep children, pets, and bystanders away from the area of operation. Be aware that the normal noise of the
machine when turned on may make it difficult for you to hear approaching people.
3. When moving the snow thrower, use the wheels on one side as the pivot point. Slightly tilt the snow thrower
on this pivot point to move it forward or backward.
4. Start your clearing path near the electrical outlet and work outward, throwing snow in a back and forth
motion. To clear in the opposite direction, step over the cord and pivot the snow thrower on its wheels. Make
sure to overlap clearing paths.
5. Note wind direction. If possible, move in the same direction as the wind so that the snow is not thrown
against the wind (and thus back into your face and on the just cleared path).
6. While moving the snow thrower, do not drag the power cable violently or roughly. The snow thrower should
move within the range that the cable can reach.
7. Do not push the snow thrower with excessive force. You should push the machine gently and evenly in
accordance with the unit’s throw rate.
8. Do not apply additional man-made load to the engine since this may cause engine damage.
9. Some parts of the snow thrower may freeze under extreme temperature conditions. Do not attempt to
operate the snow thrower with frozen parts. If the parts freeze while the snow thrower is in use, stop the
snow thrower, unplug the extension cord, and inspect for frozen parts. Free all parts before restarting or
operating the snow thrower. Never force controls that have frozen.
10. Working on pebbles, gravel, or unpaved surfaces - To avoid throwing loose surface material along with the
snow, push down on the handle to raise the scraper at the base of the unit above the pebbles or gravel.
1. The discharge chute can be adjusted 180 degrees by rotating the chute crank. Rotate the chute control
crank clockwise to move the discharge chute to the left; counterclockwise to move the chute to the right.
Moving the Machine and Plowing the Snow
Changing Snow Exit Direction
Fig. 20-21
WARNING! Foreign objects, such as rocks, broken glass, nails, wire, or string, can be picked up and thrown by
the snow thrower, causing serious personal injury. Remove all foreign objects from the area to be plowed before
operating the snow thrower.
WARNING! Never direct the snow discharge chute at the operator, at bystanders, at vehicles or at nearby
windows. The discharged snow and foreign objects accidentally picked up by the snow thrower can cause serious
damage and personal injury. Always orient the discharge chute in the opposite direction from where you,
bystanders, surrounding vehicles, or windows are located

OPERATION 16
2. The chute deflector on the top of the discharge chute controls the height of the snow stream. Loosen both
chute deflector knobs to raise or lower the deflector to the desired height of snow you wish to throw. Tighten
the knobs to secure the deflector.
Fig. 22
NOTE: Do not overtighten the chute deflector knobs.
WARNING! Make sure that the chute deflector snaps and locks completely onto the discharge chute. An opening
between the discharge chute and the chute deflector may allow foreign objects to be picked up by the snow thrower
and thrown in the direction of the operator causing serious bodily injury. l Do not advance the chute deflector too far
forward causing an opening to appear between the deflector and discharge chute. l Do not overtighten the knobs
on the chute deflector.

MAINTENANCE AND STORAGE 17
Replacing the Rubber Plates
WARNING! Make sure to turn off the switch and disconnect the extension cord before performing any
maintenance task on your snow thrower.
MAINTENANCE AND STORAGE
Lifetime Lubrication
General Maintenance Tips
Lubrication is not necessary and may damage the unit. The snow thrower is lubricated for lifetime use at the
factory before shipment.
1. Do not attempt to repair the machine unless you have the proper tools and instructions for disassembly and
repair of the machine.
2. Check the shear bolts and other bolts at frequent intervals for proper tightness to ensure that the equipment
is in safe working condition.
3. After each snow removal session, run the snow thrower for a few minutes to prevent the collector/impeller
from freezing. Shut off the motor, wait for all revolving parts to stop completely, and wipe residual ice and
snow off the unit. Rotate the chute crank several times to remove any excess snow.
4.Only use a cloth soaked with hot water and a soft brush to clean the snow thrower; never wet or spray water
on the machine!
5.Do not use detergent or solvents as these could cause irreparable damage to the snow thrower. Chemicals
can destroy the plastic parts.
6.To protect the snow thrower from corrosion when storing for long periods, lightly oil the metal parts.
7.Store the appliance in a dry area out of reach of children.
1. Detach the worn rubber plate by removing the two sets of nuts, bolts, and washers used to secure it.
2. Install the new rubber plate so that the coarse side faces inward and the smooth side faces outward.
3. Insert the bolt with the small flat washer into the corresponding holes on each end of the rubber plate.
Use the large flat washer and locknut to secure the bolt on each end. Install the other rubber plates in the
same way.
NOTE: When replacing worn rubber plates, pay close attention to carefully distinguish between the
coarse and smooth side of the plates. Place the coarse side inside and the smooth side outside.
Fig. 23-24-25
