WIRING DIAGRAM 2007 RSE-rear seat entertainment system
VOLVO S80 (07-)/XC90
TP 39111202 LATE DESIGN

© Volvo Car Corporation
Vehicles with
SRS (Airbag)/SIPS bag/IC (Inflatable Curtain)
Warning!
Extra caution must be exercised when working on vehicles equipped with SRS/SIPS bag/IC
in order to avoid:
1. Personal injuries when performing repair work.
2. Damage or malfunction of the SRS/SIPS bag/IC system.
Work involving the SRS/SIPS bag/IC systems or other components in the vehicle that may
affect the SRS/SIPS bag/IC systems must always be performed by an authorized Volvo
workshop.
In case of doubt, consult the SRS and SIPS bag/IC service manual.
Is the vehicle equipped with SRS/SIPS bag/IC?
Vehicles with SRS are most easily recognized by the letters SRS in the center of the steering
wheel. If the vehicle also has a passenger side airbag, the letters SRS are stamped on the
dashboard above the glove compartment. SRS vehicles from 1993 and onward also have
explosive seat belt tensioners. SIPS bags are only installed on SRS vehicles from 1995 and
onward. SIPS bag decals are located on the windshield and seat compartment. Vehicles with
IC can be recognized by the letters IC on the C/D panel (4 door) or the B panel (5 door).
General recommendations
• Be especially careful when working on or around SRS, SIPS, and IC components.
• Make sure that no wires are pinched, frayed, or pierced.
• Never install accessories by the sensors.
• Where applicable, work on the steering wheel, steering shaft, or steering gear must be done
in accordance with the methods in the SRS section of VIDA.
• Certain components of the aforementioned systems must be grounded while working. Read
the appropriate sections in VIDA.
• Install no accessories in the areas between the A and B posts, the B and C posts, and the C
and D posts.
Test terminal
Data link connector in the passenger compartment.
Changes introduced up to October 2006 inclusive
Any changes made to the vehicles after this date are not included in the
manual. If necessary refer to service bulletins.
Volvo models are sold in versions adapted for different markets. These
adaptations depend on factors such as legal requirements, taxation, and
market demands.
This manual may therefore include illustrations and text that do not apply to
the vehicles in your country.
Order number: TP 39111202 This publication contains updated information
for the 2007 model late design, for other electrical systems see the publica-
tion TP 3998202 for XC90 and TP 39100202.
We retain the right to make modifications.

TP39111202 RSE S80 (07-)/XC90 2007 3
Vehicles with
SRS (Airbag)/SIPS bag/IC (Inflatable Curtain).............. 2
Abbreviations................................................................. 4
How to use the wiring diagrams 1:2............................... 5
Fuses
Distribution box in engine compartment S80..................7
Central Electronic Module (CEM) S80............................8
Passenger compartment XC90.......................................9
Central Electronic Module (CEM) XC90.......................10
Ground connections
31/6 - 31/15 ................................................................. 11
31/84 ........................................................................ 12
Group 39 Other

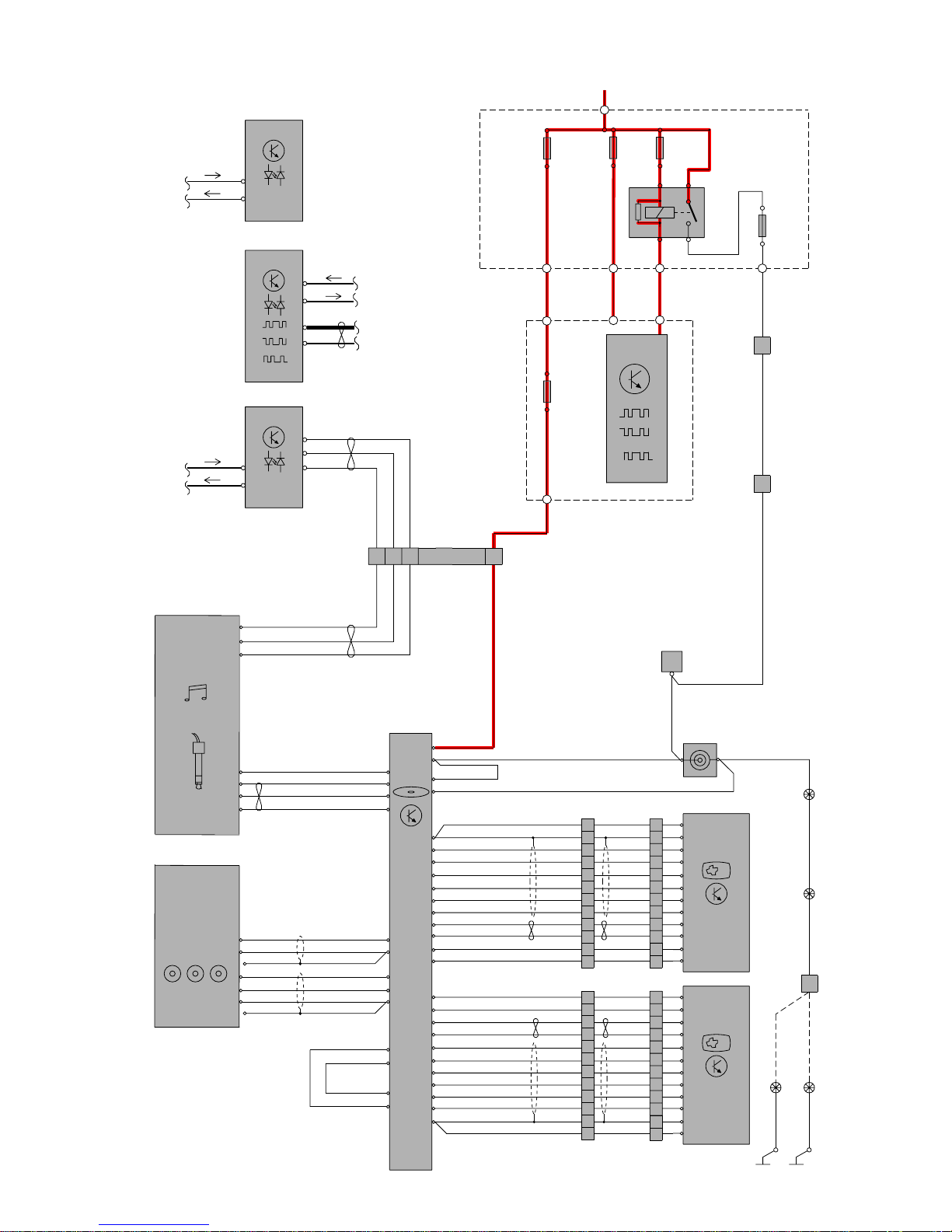

Rear Seat Entertainment S80...................................... 13
Rear Seat Entertainment XC90................................... 14
Connectors
54/134 - 54/139............................................................ 15
54/140 - 54/1401.......................................................... 16
54/1402........................................................................ 17
74/403 ........................................................................ 18
74/701 - 74/702............................................................ 19
Branching points
53/438 - 73/5035.......................................................... 20
Cable harness routine in vehicle
Tunnel harness S80......................................................21
Passenger compartment harness XC90.......................21
Component illustrations............................22
Index........................................................... 27
List of components ....................................28
Table of Contents

TP39111202 RSE S80 (07-)/XC90 2007 4
Explanations
Abbreviations
Groups
Group 23 = Fuel system
Group 26 = Cooling system
Group 27 = Engine controls
Group 32 = Generator and voltage regulator
Group 33 = Starting system
Group 35 = Lighting
Group 36 = Additional electrical equipment
Group 37 = Wiring and fuses
Group 38 = Instruments
Group 39 = Other
Group 43 = Transmission
Group 59 = Brake system
Group 64 = Steering
Group 83 = Doors and openings
Group 84 = Exterior decorative elements etc.
Group 85 = Interior equipment
Group 87 = Climate control system
Group 88 = Internal equipment
Ignition switch symbols
X = Accessories (audio position)
S = Powered upon insertion of key
15 = Contact remains connected during
start
15l = Contact is broken while starting
30 = Constant power from the battery
50 = Start
Countries/Markets
A = Austria
AUS = Australia
B = Belgium
CDN = Canada
CH = Switzerland
D = Germany
DK = Denmark
E=Spain
EU/OS = Markets outside USA and Canada
FIN = Finland
GB = Great Britain
ISR = Israel
J = Japan
KOR = Korea
N=Norway
NL = Netherlands
S = Sweden
USA = United States of America
WEU = Western Europe
Other
AUTO = Automatic transmission
CAN = CAN communication
DPY = Display
ECC = Electronic climate control system
ETA = Electronic throttle actuator
EXT. X = Extended X-feed
GDL = Gas discharge lamp
HISPEED = High speed data bus
IR = Infrared sensor
LIN = LIN communication
LH = Left-hand side
LHD = Left-hand drive
MAN = Manual transmission
MEMORY = Memory driver’s seat
MIDSPEED = Midspeed data bus
MMS = Mass movement sensor
PETROL = Gasoline
RH = Right-hand side
RHD = Right-hand drive
SCR = Screening
SRS = Airbag
T = Turbo engine
W/O = Without
2WD = Two wheel drive
5CYL, I5 = 5-cylinder engine
6CYL, I6 = 6-cylinder engine
8 CYL, V8 = 8-cylinder engine
Colors
BK, SB = Black
BN = Brown
BU, BL = Blue
GN = Green
GY, GR = Gray
LGN = Light Green
NL = Natural
OG, OR = Orange
PK, P = Pink
RD, R = Red
VT, VO = Violet
WH, W = White
YE, Y = Yellow

TP39111202 RSE S80 (07-)/XC90 2007 5
The descriptions below apply in general
to all wiring diagram manuals, although
not all sections are necessarily contain-
ed in this manual.
How to use the wiring diagrams 1:2
A. Component designation
Every component has a component designation that
consists of two parts.
The first part is a type number that describes the
type of component in question, for example 3/xx.
The second part of the designation is a serial
number, e.g. x/2.
Together, this constitutes a component designation,
e.g. 3/2.
At the end of the manual is a list of components,
where, with the help of the component designation,
you can read off the name of the component, for
example, 3/2 = light switch.
List of type numbers
The list shows which type of component that respec-
tive type numbers refer to, for example, 3/x = switch,
6/x = electric motor, etc.
1 Battery
2Relay
3 Switch
4 Control module
5 Driver information module
6 Electric motor
7Sensor
8 Actuator
9 Heating element
10 Light
11 Fuse
15 Electrical distribution rail/box
16 Audio
17 Service/diagnostics
18 Contact reel
19 Meter
20 Ignition component/shunt
27 Optics
31 Ground connection
73 Branching point
74 Connector
B. Branching points
The wiring diagrams contain numbered branching
points, for example 73/5035.
This manual contains a section with a list of branch-
ing points. This list shows all the components that
are connected to each branching point.
The location of the branching points is shown in the
"Cable harness routing in vehicle" section.
C. Connectors
Connectors provide a bridge between two cable
harnesses and are described in the "Connectors"
section.
D. Electrical distribution
Operation of the fuses and relays is shown in the
"Electrical distribution" section.
E. Data communication
Today’s cars contain CAN, LIN and MOST networks
that transfer information. Connections to these
networks are not shown in their entirety in the
respective wiring diagram. Complete information on
CAN, LIN and MOST communication is found in the
section "Control modules".
F. Abbreviations
A number of different abbreviations are used in the
manual. These are explained in the section "Abbre-
viations".
G. Component location
The end of the manual contains a section that
describes component appearance and location in
numerical order.

TP39111202 RSE S80 (07-)/XC90 2007 6

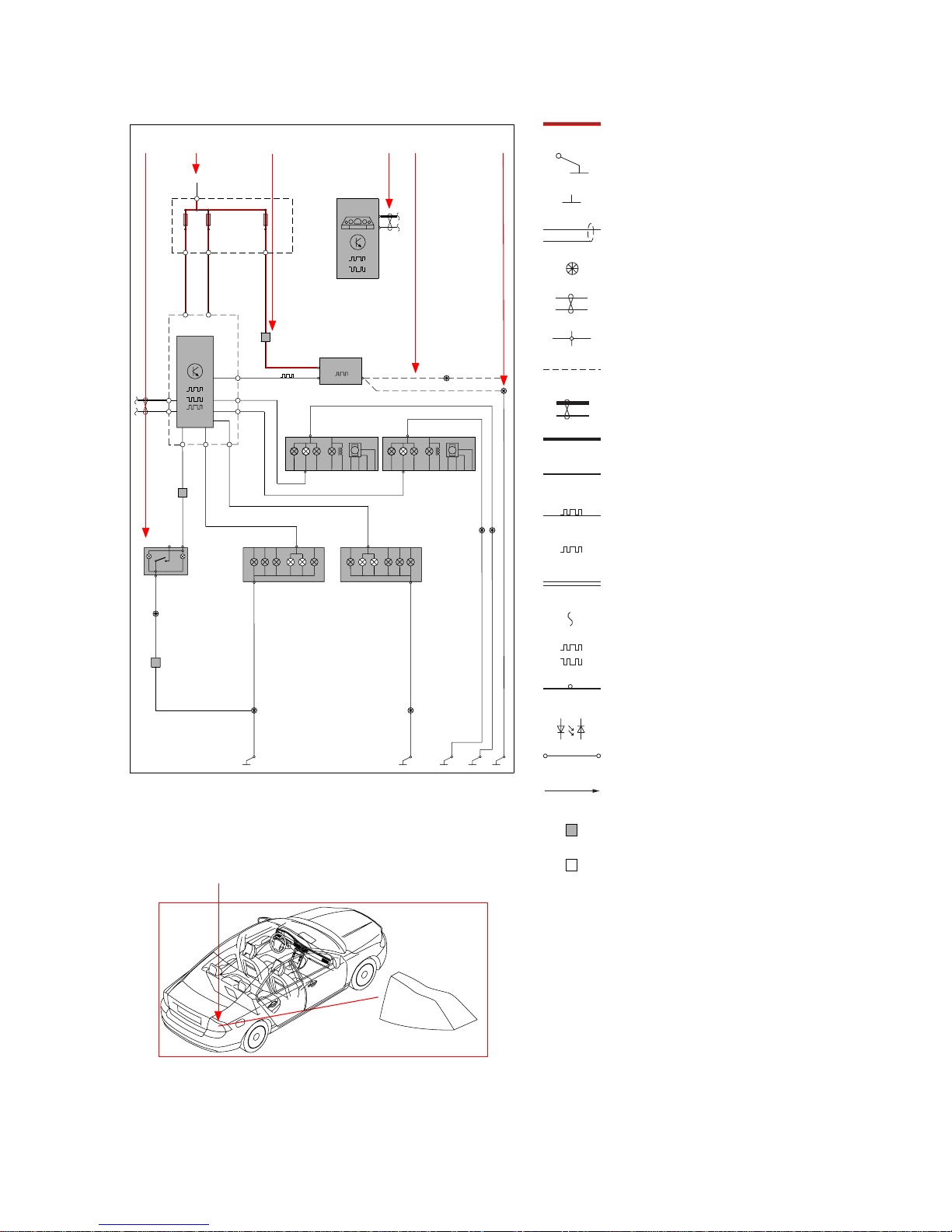

How to use the wiring diagrams 2:2
List of symbols
= System voltage
= Ground connection via wiring
= Ground connection in compo-
nent/chassis
= Screened wire
= Junction point
= Twisted cable
= Electrical connection
= Variant
= CAN communication
= CAN high data signal (CAN H)
= CAN low data signal (CAN L)
= LIN communication
= LIN communication
= DIN cable, coaxial cable, etc.
= Data communication
= CAN communication
= MOST communication
= MOST communication
= Connection with distribution box
= Further connection to...
= Connector between cable
harnesses
= Connector connected in compo-
nent
LIN
CAN
1
1
G
ADECF B
10/17
LIN
C1:50
C1:49
30+
1
CEM
4/56
2
11A/1
2
11A/2
C2:24
11
2
11B/23
15/31
C2:50
RD-BK RD-BU
BK
BK
BK BK
RHD
LHD
3
5
REV
GND
10/51 10/52 10/44 10/45
C5:2
C5:1
C1:10
C1:40
C3:52
31/8331/9331/9431/47
GN-OG
GY-RD
YE-BK
VT-GN
CAN
10/3 10/18 10/17
2
1
4
74/601
1
74/601
73/5038
73/5030
BK-OG
BK-OG
BK-OG
BK-BU BK-BU
BN-BU YE-VT
C2:52
73/3033
73/4017
73/4016
73/3035
BK-OG BK-VT
BK-OG
BK-VT
POSFOGSTOPTURN
5
REV
GND
POS FOG STOP TURN
3
31/48
73/5033
BK-BU BK-BU
1
65
LIN
RD-BK
RD-BK
GN-VT
3/111
74/411
12
LSM
CAN
6
2
5/1
DIM
10/1
TURNPOS HIGH LOW
1
10 10
M
10/2
TURNPOS HIGH LOW
M
1

TP39111202 RSE S80 (07-)/XC90 2007 7

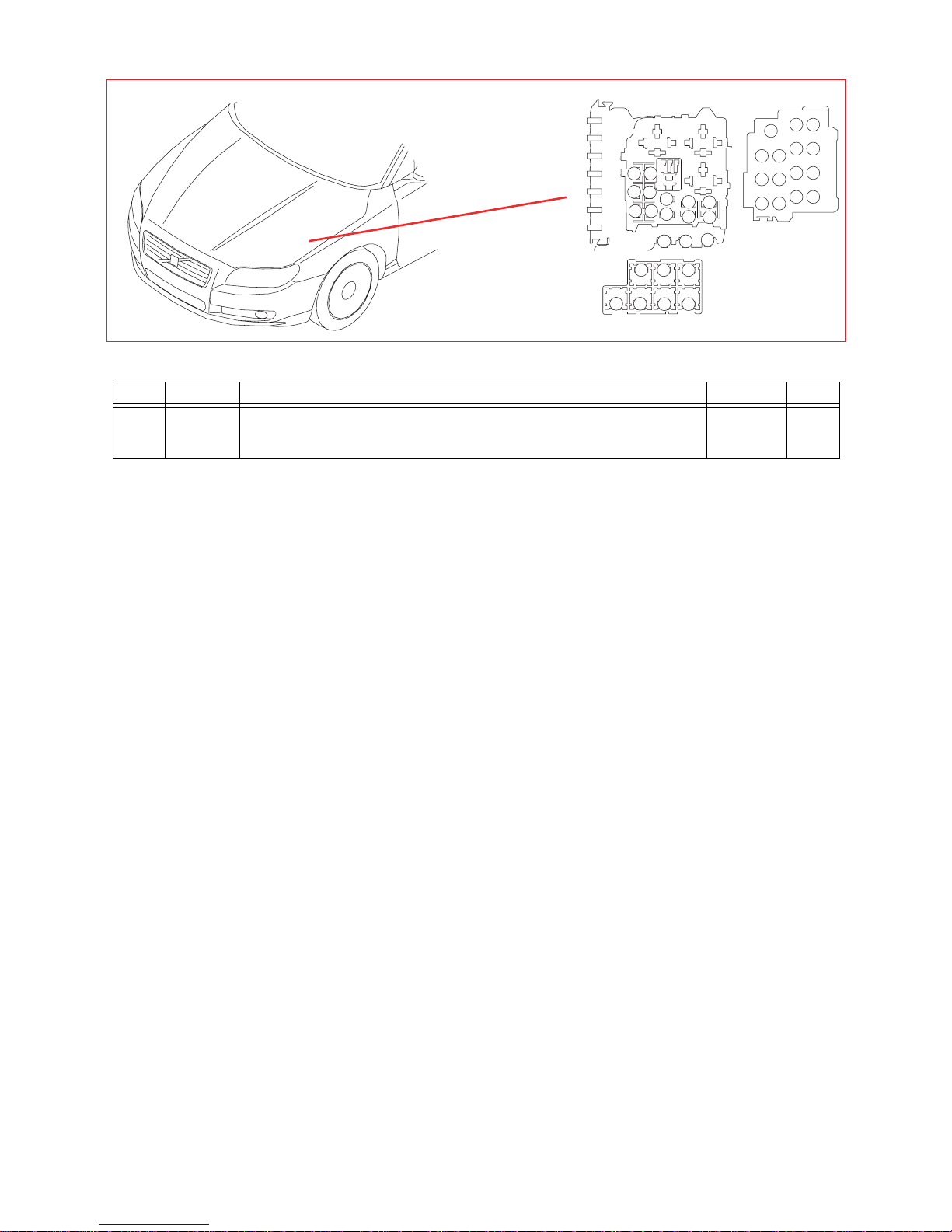

15/31 Distribution box in engine compartment
No. No. Fuse function via A
F25 11B/25 9/1 Outlet 12V front
9/25 Outlet 12V rear
16/109 DVD player/control module
-
-
-
15
39
40
41 38
37
36
34
35
32
33
30
25
22
19
15
16
17
20
23
26
28
18
21
2427
29
31
42
4344
14 13 12
89
1011
Fuses
Distribution box in engine compartment S80

TP39111202 RSE S80 (07-)/XC90 2007 8

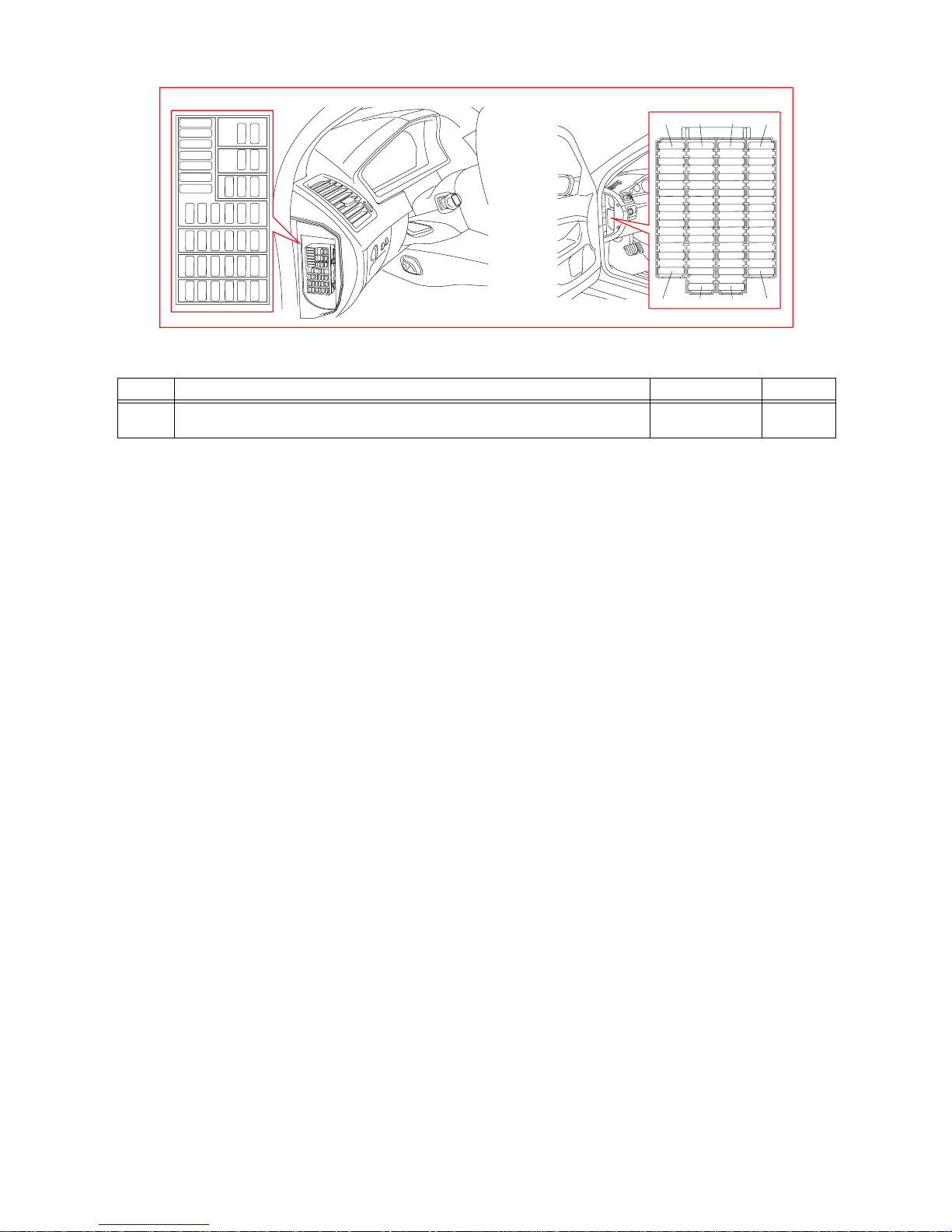

Fuses
Central Electronic Module (CEM) S80
4/56 Central Electronic Module (CEM)
No. Fuse function via A
F6 3/281 Infotainment Control Module (ICM)
4/124 Accessory USB unit (AUU)
16/1 Integrated Audio Module (IAM)
16/109 DVD player/control module
-
-
-
-
15
1 2 3 4 5 6 7 8 9 10 11 12 13 14
15 16 17 18 19 20 21 22 23 24 25 26 27 28

TP39111202 RSE S80 (07-)/XC90 2007 9

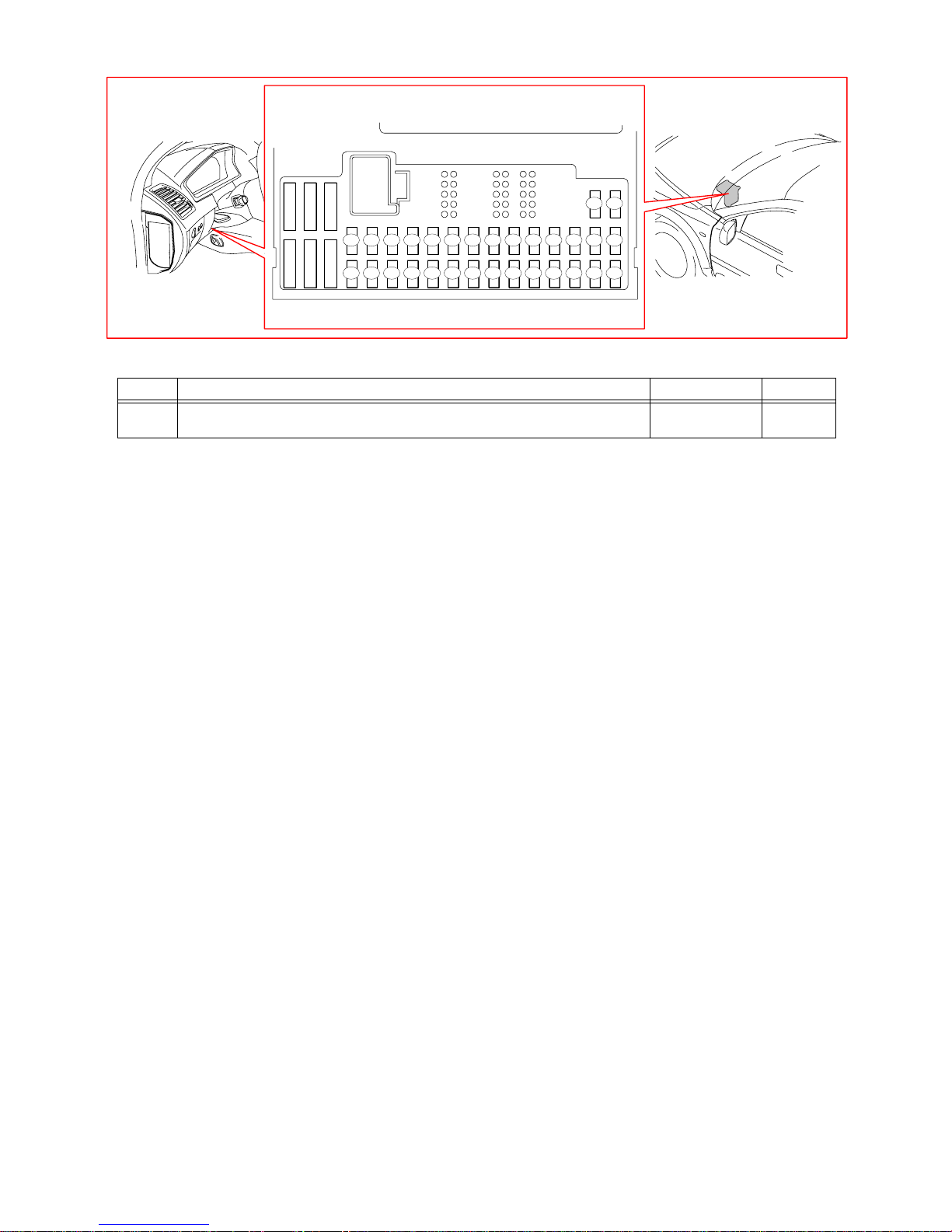

11C Fuses in passenger compartment
No. Fuse function via A
8 16/1 Integrated Audio Module (IAM)
16/109 DVD player/control module - -15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
11C/1911C / 9 11C/29 11C/38
11C/1011C / 1 11C/3011C/20
Fuses
Passenger compartment XC90

TP39111202 RSE S80 (07-)/XC90 2007 10
4/56 Central Electronic Module (CEM)
No. Fuse function via A
F28 3/27 Switch unit, power passenger seat
16/109 DVD player/control module - -5
12
31 32 33
363534
4
35678910 11 12 13 14 15 16
17 18 19 20 21 22 23 24 25 26 27 28 29 30
Fuses
Central Electronic Module (CEM) XC90

TP39111202 RSE S80 (07-)/XC90 2007 11
31/6 Left bottom rail, S80
3/65 Switch, heated rear seat
3/126 Driver’s Door Module (DDM)
3/127 Passenger Door Module (PDM)
3/128 Left rear Door Module (LDM)
3/156 Gear Selector Module (GSM)
3/176 Switch, driver’s door power window
3/273 Lock contact, LH front door
3/275 Lock contact, LH rear door
6/36 Lock motor, central locking, LH front door
6/57 Lock motor, central locking, LH rear door
8/134 Solenoid, reverse interlock, manual
9/1 Front 12V outlet, LHD
9/12 Seat Heating Module (SHM), driver’s side
9/13 Seat Heating Module (SHM), passenger side
9/25 Rear 12V outlet, LHD
10/72 Front ashtray lighting
16/109 DVD player/control module, LHD
16/111 Rear headphone sockets, LHD
31/15 Right bottom rail, S80
3/126 Driver’s Door Module (DDM)
3/127 Passenger Door Module (PDM)
3/129 Right rear Door Module (RDM)
3/156 Gear Selector Module (GSM)
3/176 Switch, driver’s door power window
3/274 Lock contact, RH front door
3/276 Lock contact, RH rear door
3/65 Switch, heated rear seat
6/55 Lock motor, central locking, RH front door
6/56 Lock motor, central locking, RH rear door
8/134 Solenoid, reverse interlock, manual
9/1 Front 12V outlet, RHD
9/12 Seat Heating Module (SHM), driver’s side
9/13 Seat Heating Module (SHM), passenger side
9/25 Rear 12V outlet, RHD
10/72 Front ashtray lighting
16/109 DVD player/control module, RHD
16/111 Rear headphone sockets, RHD
Ground connections
31/6 - 31/15

TP39111202 RSE S80 (07-)/XC90 2007 12
31/84 A-post, right-hand side, XC90
3/111 Light Switch Module (LSM)
3/112 Climate Control Module (CCM)
3/254 Steering Wheel Module (SWM)
4/68 Steering Wheel Angle Sensor Module (SAS)
4/118 Headlamp Control Module (HCM)
6/48 Damper Motor Module (DMM), recirculation
6/69 Damper Motor Module (DMM), ventilation/floor/defroster
6/95 Damper Motor Module (DMM), temperature, left-hand side
6/96 Damper Motor Module (DMM), temperature, right-hand side
6/102 Damper Motor Module (DMM), defroster
6/103 Damper Motor Module (DMM), floor/ventilation
7/159 Air Quality Sensor (AQS)
16/1 Integrated Audio Module (IAM), XC90
16/60 Phone Module (PHM)
16/93 Control module, cellular phone handsfree, accessory
16/94 Infotainment Control Module (ICM), XC90
16/105 Audio Module (AUD), XC90
16/109 DVD player/control module
16/145 Remote digital audio receiver (RDAR)
17/13 Data link connector
54/112 Connector, Infotainment cable harness, XC90
Ground connections
31/84

TP39111202 RSE S80 (07-)/XC90 2007 13
16/81A
74/502
74/504
74/403
73/5023 73/5035
73/5026
73/5027
74/702
74/701
74/502
TFT
16/123.3
AV-IN
16/109
BU
RD
BK
BN
RD-WH
BK-GNBK-GN
RHD
BK-VT BK-VT BK-VT BK-VT
RD-VT RD-VT RD-VT
RD-BU RD-BK
GY-YE
VT-GN
BK-VT
LHD
4
5
12
2
3
11
10
9
8
7
6
1
4
5
12
2
3
11
10
9
8
7
6
1
WH
BN
GN
YE
GY
PK
7
6
5
AUX
16/123.2
231 21
1
2
2
9/25
9/1
BK
16/81B
TFT
WH
RD
BK
GN
RD-WH
7
8
9
1
6
10
11
12
5
4
3
2
7
8
9
1
6
10
11
12
5
4
3
2
BU
BN
BN
YE
GY
PK
BK
BU
RD
BN
RD-WH
WH
BN
BU-RD
BN
BU
GY-OG
WH
VT-OG
WH
GN
YE
GY
PK
WH
RD
GN
RD-WH
BU
BN
BN
YE
GY
PK
E:12
5
4
3
2
1D:19
D:18
D:4
D:21
D:7
E:13
E:14
E:15
E:16
E:17
E:18
E:20
E:19
E:22
E:23
E:24
E:10
E:11
E:7
E:8
E:6
E:5
E:4
E:3
E:2
E:1
D:23
D:9
D:10
D:24
RD-WH
WH-BN
WH
WH WH-BN
BN
BN
WH-BN
WH
BN
3
2
1
4D:2
D:3
D:16
D:17 RD-VT
RD-VT
RD-VT
BK-VT
GY-YE
A:4
A:7
A:6
A:8
DVD
Y
RCA RCA RCA
WR
21
11A/2
30+
1
2
11A/1
15/31
1
2
11B/25
1
2
11B/27
52
3
1
R9
2/193
31/15 31/6
IAM
16/1
C2:11
C2:12
C2:10
C4:1
C4:2
C5:2
C3:64
C5:1 C1:48
CAN
CEM
LIN
4/56
F6
1
2
1
2
O
O
O
O
AUD
16/105
C4:1
C4:2
O
O
16
CAN
ICM
3/281
C2:1
C2:2
C1:2
C1:3
LIN
Group 39 Other
Rear Seat Entertainment S80

TP39111202 RSE S80 (07-)/XC90 2007 14
16/81A
54/1401
54/1402
54/1401
54/139
54/140
TFT
16/123.3
AV-IN
16/109
W
R-W
SB
GN
VO-GR
4
5
12
2
3
11
10
9
8
7
6
1
4
5
12
2
3
11
10
9
8
7
6
1
W
BN
GN
Y
GR
P
11C/8
R
BN
54/1401
54/134
2
1
11C/9
2
1
W
R-W
SBSB
GN
VO
W
BN
GN
Y
GR
P
16/81B
TFT
W
R-W
SB
GN
VO-GR
7
8
9
1
6
10
11
12
5
4
3
2
7
8
5
9
1
6
10
11
12
5
4
3
2
W
BN
GN
Y
GR
P
W
R-W
SBSB
GN
VO
W
BN
GN
Y
GR
P
W
R-W
GN
VO-GR
W
BN
W-SB
BN
SB
GN
W
W
W
GN
Y
GR
P
W
R-W
GN
VO-GR
W
BN
GN
Y
GR
P
6
14
15
22
12
13
21
20
19
18
17
16
6
7
8
5
9
10
11
4
3
2
1
E:24
5
4
3
2
1D:19
D:18
D:4
D:21
D:7
E:1
E:2
E:3
E:4
E:5
E:6
E:8
E:7
E:10
E:11
E:12
E:22
E:23
E:19
E:20
E:18
E:17
E:16
E:15
E:14
E:13
D:23
D:9
D:10
D:24
Y
RCA RCA RCA
WR
D:3
D:16
D:17
D:2
GR-R
VO
GR
SB
W
VO
R
A:4
A:7
A:6
SB
A:8
DVD
30+
7
6
5
AUX
17/40.1
412379 810
2
1
7
9
8
4
3
GN
W
BN
IAM
16/1
A:14
A:9
A:7
C:1
C:2
W
GN
BN
3
2
1
W
BN
GN
4Y
W
BN
GN
Y
O
O
ICM
16/94
C:1
C:2
O
O
AUD
16/105
D:1
D:2
O
O
53/438
31/84
VO
SB
CAN
LIN
4/56
CEM
D:37
D:58
D:52
X
A:6
F28
RR
54/40D
E:B
11E/4
2
1
30+
1
W
D:12
A:6
A:4
A:5
A:3
Group 39 Other
Rear Seat Entertainment XC90

TP39111202 RSE S80 (07-)/XC90 2007 15
54/134
12-pin gray, XC90
No. Passenger compartment harness Harness AUX/12V
116/1A:9 Integrated Audio Module (IAM) W17/40.1:6 Auxiliary equipment input (AUX) W
216/1A:14 Integrated Audio Module (IAM) GN 17/40.1:7 Auxiliary equipment input (AUX) GN
354/1401:4 Connector GN 17/40.1:1 Auxiliary equipment input (AUX) GN
454/1401:1 Connector BN 17/40.1:2 Auxiliary equipment input (AUX) BN
5----
69/1:1 Outlet 12V front SB 9/25:2 Outlet 12V rear SB
716/1A:7 Integrated Audio Module (IAM) BN 17/40.1:5 Auxiliary equipment input (AUX) BN
8 54/1401:2 Connector W17/40.1:3 Auxiliary equipment input (AUX) W
9 54/1401:3 Connector Y17/40.1:4 Auxiliary equipment input (AUX) Y
10 - ---
11 - ---
12 9/1:2 Outlet 12V front VO 9/25:1 Outlet 12V rear VO
54/139
12-pin gray, XC90
No. Passenger compartment harness RSE left backrest harness
154/1401:5 Connector SB 16/81A:1 Screen, LH head restraint SB
254/1402:12 Connector R-W 16/81A:2 Screen, LH head restraint R-W
354/1402:13 Connector VO 16/81A:3 Screen, LH head restraint VO-GR
454/1402:14 Connector GN 16/81A:4 Screen, LH head restraint GN
554/1402:15 Connector W16/81A:5 Screen, LH head restraint W
654/1402:16 Connector -16/81A:6 Screen, LH head restraint -
754/1402:17 Connector P16/81A:7 Screen, LH head restraint P
8 54/1402:18 Connector GR 16/81A:8 Screen, LH head restraint GR
9 54/1402:19 Connector Y16/81A:9 Screen, LH head restraint Y
10 54/1402:20 Connector GN 16/81A:10 Screen, LH head restraint GN
11 54/1402:21 Connector BN 16/81A:11 Screen, LH head restraint BN
12 54/1402:22 Connector W16/81A:12 Screen, LH head restraint W
Connectors
54/134 - 54/139

TP39111202 RSE S80 (07-)/XC90 2007 16
54/140
12-pin gray, XC90
No. Passenger compartment harness RSE right backrest harness
154/1401:6 Connector SB 16/81B:1 Screen, RH head restraint SB
254/1402:1 Connector R-W 16/81B:2 Screen, RH head restraint R-W
354/1402:2 Connector VO 16/81B:3 Screen, RH head restraint VO-GR
454/1402:3 Connector GN 16/81B:4 Screen, RH head restraint GN
554/1402:4 Connector W16/81B:5 Screen, RH head restraint W
654/1402:5 Connector -16/81B:6 Screen, RH head restraint -
754/1402:6 Connector P16/81B:7 Screen, RH head restraint P
8 54/1402:7 Connector GR 16/81B:8 Screen, RH head restraint GR
9 54/1402:8 Connector Y16/81B:9 Screen, RH head restraint Y
10 54/1402:9 Connector GN 16/81B:10 Screen, RH head restraint GN
11 54/1402:10 Connector BN 16/81B:11 Screen, RH head restraint BN
12 54/1402:11 Connector W16/81B:12 Screen, RH head restraint W
54/1401
12-pin gray, XC90
No. RSE tunnel harness Passenger compartment harness
116/109D:16 DVD player/control module GR 54/134:4 Connector BN
216/109D:17 DVD player/control module GR-R 54/134:8 Connector W
316/109D:2 DVD player/control module VO 54/134:9 Connector Y
416/109D:3 DVD player/control module SB 54/134:3 Connector GN
516/109E:24 DVD player/control module SB 54/139:1 Connector SB
616/109E:12 DVD player/control module SB 54/140:1 Connector SB
716/109A:4 DVD player/control module R11C/8 Fuses in passenger
compartment fuse box R
816/109A:8 DVD player/control module SB 53/438 Branching point SB
916/109A:7 DVD player/control module VO 4/56A:6 Central Electronic Module
(CEM) VO
10 16/109A:6 DVD player/control module W4/56D:12 Central Electronic Module
(CEM) W
11 ----
12 ----
Connectors
54/140 - 54/1401

TP39111202 RSE S80 (07-)/XC90 2007 17
54/1402
22-pin gray, XC90
No. RSE tunnel harness Passenger compartment harness
116/109E:1 DVD player/control module R-W 54/140:2 Connector R-W
216/109E:2 DVD player/control module VO-GR 54/140:3 Connector VO
316/109E:3 DVD player/control module GN 54/140:4 Connector GN
416/109E:4 DVD player/control module W54/140:5 Connector W
516/109E:12 DVD player/control module -54/140:6 Connector -
616/109E:11 DVD player/control module P54/140:7 Connector P
716/109E:10 DVD player/control module GR 54/140:8 Connector GR
816/109E:7 DVD player/control module Y54/140:9 Connector Y
916/109E:8 DVD player/control module GN 54/140:10 Connector GN
10 16/109E:6 DVD player/control module BN 54/140:11 Connector BN
11 16/109E:5 DVD player/control module W54/140:12 Connector W
12 16/109E:13 DVD player/control module R-W 54/139:2 Connector R-W
13 16/109E:14 DVD player/control module VO-GR 54/139:3 Connector VO
14 16/109E:15 DVD player/control module GN 54/139:4 Connector GN
15 16/109E:16 DVD player/control module W54/139:5 Connector W
16 16/109E:24 DVD player/control module -54/139:6 Connector -
17 16/109E:23 DVD player/control module P54/139:7 Connector P
18 16/109E:22 DVD player/control module GR 54/139:8 Connector GR
19 16/109E:19 DVD player/control module Y54/139:9 Connector Y
20 16/109E:20 DVD player/control module GN 54/139:10 Connector GN
21 16/109E:18 DVD player/control module BN 54/139:11 Connector BN
22 16/109E:17 DVD player/control module W54/139:12 Connector W
Connectors
54/1402

TP39111202 RSE S80 (07-)/XC90 2007 18
74/403
22-pin grey, S80
No. Dashboard harness Tunnel harness
1 16/1C2:10 Integrated Audio Module
(IAM) BN 16/123.2:5 Auxiliary equipment input (AUX) BN
2 16/1C2:11 Integrated Audio Module
(IAM) WH-BN 16/123.2:7 Auxiliary equipment input (AUX) WH-BN
3 16/1C2:12 Integrated Audio Module
(IAM) WH 16/123.2:6 Auxiliary equipment input (AUX) WH
4-5 - ---
6 4/56C3:68 Central Electronic Module
(CEM) BU-RD 3/65:1 Switch, heated rear seat BU-RD
7 4/56C3:22 Central Electronic Module
(CEM) BU-RD 16/111:13 Rear headphone sockets 10/72:1 Front ashtray lighting BU-RD
8 74/411:9 Connector GN-RD 3/156A:3 Gear Selector Module (GSM) GN-OG
9 74/411:11 Connector BU-GY 3/156A:1 Gear Selector Module (GSM) BU-GY
10 16/46C2:5 High Level Display Front
module (HLDF) BK 74/503:12 Connector BK
11 - ---
12 16/60C1:18 Phone Module (PHM) GN-BU 16/62:3 Hand unit, cellular phone GN-BU
13 16/60C1:7 Phone Module (PHM) GN-WH 16/62:5 Hand unit, cellular phone GN-WH
14 16/60C1:8 Phone Module (PHM) WH-BU 16/62:4 Hand unit, cellular phone WH-BU
15 16/60C1:19 Phone Module (PHM) WH-BN 16/62:1 Hand unit, cellular phone WH-BN
16 16/60C1:20 Phone Module (PHM) YE-GY 16/62:2 Hand unit, cellular phone YE-GY
17 16/46C2:1 High Level Display Front
module (HLDF) RD-BN 74/503 Connector RD-BN
18 73/4030 Branching point YE 74/503:13 Connector YE
19 73/5045 Branching point GY-YE 74/503:22 Connector GY-YE
20 4/56C3:43 Central Electronic Module
(CEM) WH-BN 8/134:1 Solenoid, reverse interlock, manual WH-BN
21 16/109A:4 DVD player/control module GY-YE 4/56C3:64 Central Electronic Module
(CEM) GY-YE
22 74/411:10 Connector BN-VT 3/156A:2 Gear Selector Module (GSM) BN-VT
Connectors
74/403

TP39111202 RSE S80 (07-)/XC90 2007 19
74/701
12-pin grey, S80
No. Tunnel harness RSE left backrest harness
116/109E:12 DVD player/control module BK 16/81A:1 Screen, LH head restraint BK
216/109E:1 DVD player/control module RD 16/81A:2 Screen, LH head restraint RD
316/109E:2 DVD player/control module RD-WH 16/81A:3 Screen, LH head restraint RD-WH
416/109E:3 DVD player/control module BN 16/81A:4 Screen, LH head restraint BN
516/109E:4 DVD player/control module BU 16/81A:5 Screen, LH head restraint BU
616/109E:12 DVD player/control module -16/81A:6 Screen, LH head restraint -
716/109E:11 DVD player/control module PK 16/81A:7 Screen, LH head restraint PK
8 16/109E:10 DVD player/control module GY 16/81A:8 Screen, LH head restraint GY
9 16/109E:7 DVD player/control module YE 16/81A:9 Screen, LH head restraint YE
10 16/109E:8 DVD player/control module GN 16/81A:10 Screen, LH head restraint GN
11 16/109E:6 DVD player/control module BN 16/81A:11 Screen, LH head restraint BN
12 16/109E:5 DVD player/control module WH 16/81A:12 Screen, LH head restraint WH
74/702
12-pin grey, S80
No. Tunnel harness RSE right backrest harness
116/109E:24 DVD player/control module BK 16/81B:1 Screen, RH head restraint BK
216/109E:13 DVD player/control module RD 16/81B:2 Screen, RH head restraint RD
316/109E:14 DVD player/control module RD-WH 16/81B:3 Screen, RH head restraint RD-WH
416/109E:15 DVD player/control module BN 16/81B:4 Screen, RH head restraint BN
516/109E:16 DVD player/control module BU 16/81B:5 Screen, RH head restraint BU
616/109E:24 DVD player/control module -16/81B:6 Screen, RH head restraint -
716/109E:23 DVD player/control module PK 16/81B:7 Screen, RH head restraint PK
816/109E:22 DVD player/control module GY 16/81B:8 Screen, RH head restraint GY
916/109E:19 DVD player/control module YE 16/81B:9 Screen, RH head restraint YE
10 16/109E:20 DVD player/control module GN 16/81B:10 Screen, RH head restraint GN
11 16/109E:18 DVD player/control module BN 16/81B:11 Screen, RH head restraint BN
12 16/109E:17 DVD player/control module WH 16/81B:12 Screen, RH head restraint WH
Connectors
74/701 - 74/702

TP39111202 RSE S80 (07-)/XC90 2007 20
53/438
73/5023
73/5026
73/5027
73/5035
54/132
6
54/1401
8
54/112
4
53-438_XC90
53/438
31/84
BN
17/13:4
17/13:5BN
4/118A:6BN
3/112A:16 BN
BN
SB
NB
3/111:5
3/254:2
BN
BN
16/145A:2
BN
BN
16/94A:10 BN
16/60A:6BN16/1A:8
BN
PHM
HCM
SDARS
BK-GN
BK-GN
RHD
LHD
LHD
RHD
RHD
BK-GN
BK-GNBK-GN
BK-GN
BK-GN
73/5023
1
74/30
16
74/30
74/31
74/31
20
74/510
2
74/502
2
74/508
BK-GN
31/15
73/5023
1
16
3/156:6
BK-VT
BK-VT
BK-VT
AUTO
MAN
BK-VT
BK-VT
BK-VT
BK-VT 3/65:5
8/134:2
16/111:14
10/72:2
73/5026
2
74/502
73/5026
73/5027
BK-VT
BK-VT
BK-VT
BK-VT
73/5027
73/5026
73/5027
9/25:1
9/1:1
16/109A:8
BK-VT LHD
LHDRHD
RHD
LHD
BK-VT
BK-VT
BK-VT
BK-VT
BK-VT
BK-VT
73/5035
2
74/502
2
74/509
1
74/30
16
74/30
74/50773/5035
74/31
74/31
BK-VT
31/6
20
16
1
Branching points
53/438 - 73/5035
