QUICK GUIDE
WEB EDITION

VÄLKOMMEN!
This Quick Guide describes a number of commonly used functions in your new XC90. The owner’s manual in the center display
contains complete information about the vehicle and a supplement containing a condensed version of this manual can also be found in
the glove compartment.
The owner’s manual is also available as an app for smartphones and tablets, as well as on the support site support.volvocars.com.
An asterisk (*) indicates optional equipment.

01. GETTING TO KNOW YOUR VEHICLE
This section helps you familiarize yourself with your Volvo and includes information about e.g., remote keys, how to start and switch
off the engine and how to open and close the hood and tailgate. It also tells you how to adjust the seats and steering wheel, and
operate lights, wipers and climate controls.
02. DRIVING AND DRIVER SUPPORT
This section includes information about drive modes, cruise control, the Start/Stop function as well as various driver support
functions such as Park Assist Pilot (PAP)*, Blind Spot Information (BLIS)* and City Safety.
03. INSTRUMENTS AND CONTROLS
This section explains e.g., lighting controls, wipers, how to operate the trip computer and how to use voice commands.
04. INTERNET CONNECTIONS, INFOTAINMENT AND SUPPORT
Your Volvo can connect to the Internet to give you access to information, entertainment and support. This section provides instruc-
tions for pairing and connecting a cell phone to the vehicle, connecting to the Internet and using apps.
05. SUPPLEMENTARY TEXTS
This section contains important information such as warnings, cautions and notes that the driver should be familiar with.

Press to lock the doors and tailgate and arm the alarm.
Press to unlock the doors and tailgate and disarm the alarm.
Press briefly to unlock and disarm the alarm on the tailgate.
Press and hold to open or close the power tailgate*.
“Panic” alarm: Press and hold for at least 3 seconds or press
twice within 3 seconds to sound the horn and flash the turn
signals. Press the same button to turn off the function (it will
deactivate automatically after approx. 3 minutes).
BUTTONS ON THE REMOTE KEY
01

KEYLESS LOCKING/UNLOCKING*
You only need to have a remote key in your possession to lock or
unlock the vehicle. The remote key has to be within a radius of approx.
5 ft. (1.5 meters) from a door handle or approx. 3 ft. (1 meter) from the
tailgate (see the illustration).
Unlocking and disarming the alarm
1. Grasp one of the door handles or press the rubber-covered button
next to the tailgate opening control. Unlocking is complete when
the turn signals flash twice and the alarm indicator in the windshield
goes out.
2. Open the door or tailgate in the normal way.
Locking and arming the alarm
1. Close all of the doors. The tailgate can be open if the vehicle is
locked using one of the door handles.
2. Press the marked surface on the outside rear section of a door
handle or press the lock button on the lower edge of the tailgate
before it is closed. Locking is complete when the turn signals flash
once and the alarm indicator on the dashboard begins to flash.
01

STARTING AND SWITCHING OFF THE ENGINE
The remote key is not used physically to start the engine since the
vehicle has a Passive Start system as standard equipment. The key
only has to be in the front section of the passenger compartment.
If the vehicle is equipped with the optional Passive Entry system, the
remote key can be anywhere in the passenger compartment.
Start
1. Press the brake pedal.
2. Turn the start knob to START and release it.
Switch off
1. Put the gear selector in posiiton P.
2. Turn the start knob to STOP and release it.
01

USING THE PARKING BRAKE
Setting
1. With the gear selector in P, press the brake pedal.
2. Pull the control up. A symbol in the instrument panel will
illuminate when the parking brake has been set.
Manual release
1. Press the brake pedal.
2. Press the control down. The symbol in the instrument
panel will go out when the parking brake has released.
Automatic release
1. Buckle your seat belt.
2. Start the engine and press the brake pedal.
3. Move the gear selector to D or R and press the accelera-
tor pedal. The symbol in the instrument panel will go out
when the parking brake has released.
With the “Auto-hold” function, the driver can release the
brake pedal when the car is at a standstill (e.g., at a traffic
light) and the brakes will remain applied. The brakes will
release when the accelerator pedal is pressed.
– Press the button in the tunnel console to activate/deacti-
vate the function. Once activated, the function remains so
until the button is pressed again.
01

THE VEHICLE’S THREE DISPLAYS
Center display
Many of the vehicle’s primary features and
functions, such as the climate and infotain-
ment systems and front seat adjustment, can
be controlled from this display.
Instrument panel
This display shows vehicle and driving-related
information using gauges, indicators, and
indicator/warning lights. The speedometer
and odometer are on the left side. The clock,
media player, navigation system map, etc. can
be displayed in the center. The tachometer,
selected driving mode and the app menu,
which is activated using the right-side steer-
ing wheel keypad, are on the right.
Head-up-display (HUD)*
The head-up-display shows e.g., traffic alerts,
speed-related information and navigation. The
information is displayed on the windshield
to make it accessible to the driver without
taking his/her eyes off the road. The head-up
display’s brightness and position on the wind-
shield can be adjusted from the right-side
steering wheel keypad and the center display.
HUD is activated from the center display’s
Function view.
01

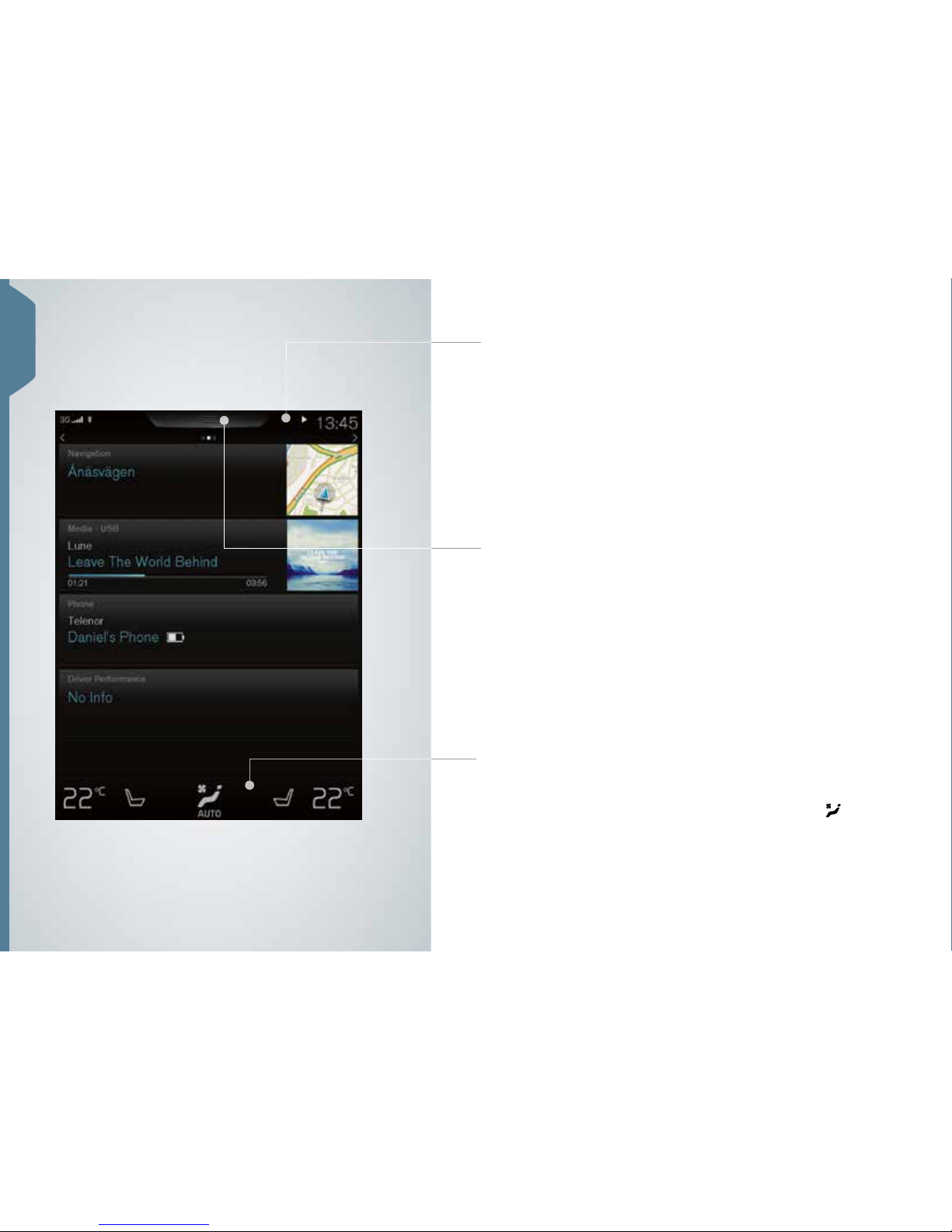

Function view
Swipe the screen from left to right to access
this view. From here, various vehicle functions
such as the head-up display (HUD)* and
drive modes can be activated/deactivated by
tapping them. In certain cases, the function
selected will open in a window of its own.
Exit the menu structure by pressing the
Home button below the screen.
App view
Swipe the screen from right to left to access
the view of the apps installed in the vehicle
such as FM radio and CD. Tap an app to
open it in a sub-view such as Media.
Press the Home button below the screen to
return to Home view.
Home view
This is the first view shown when the display
starts and it shows the Navigation, Media,
Phone sub-views as well as an additional
sub-view.
An app/function selected in the App/
Function views (e.g., FM radio or Media) will
start in their respective sub-views in Home
view.
Tap a sub-view to expand it to display addi-
tional information.
NAVIGATING IN THE CENTER DISPLAY
01

Climate view
The Climate bar is located at the bottom of the screen and is always
visible. The most common climate system settings can be made there,
such as temperature, seat heating* and blower speed. Tap at
the bottom of the screen to open Climate view to access additional
settings.
Status bar
Ongoing activities in the vehicle are shown at the top of the screen in
the status bar. Network and connection information is shown to the left
and media-related information, the clock and current background activi-
ties are shown to the right.
Top view
Tap (or pull down) the tab at the center of the status bar at the top
of the screen to open Top view. This provides access to Settings,
Owner’s manual, Driver Profile and the vehicle’s stored messages.
01

ADJUSTING A POWER FRONT SEAT*
Adjust backrest tilt by pressing the control forward/rearward.
Settings for the side bolsters, lumbar support and extending the seat
cushion are linked to the multifunction control*.
1. Activate seat adjustment by turning the control up or down. The seat
adjustment view will open in the center display.
2. Select a seat adjustment setting in the center display by turning the
multifunction control up or down.
3. Adjust a setting by pressing the desired direction on the control.
Certain settings can also be made by tapping the center display.
Raise/lower the seat by moving the rear section of the control up or
down. Move the seat forward/rearward by moving the control forward/
rearward.
Raise/lower the front edge of the seat cushion by moving the front
section of the control up or down.
Adjust lumbar support by pressing the control up/down/forward/
rearward.
01

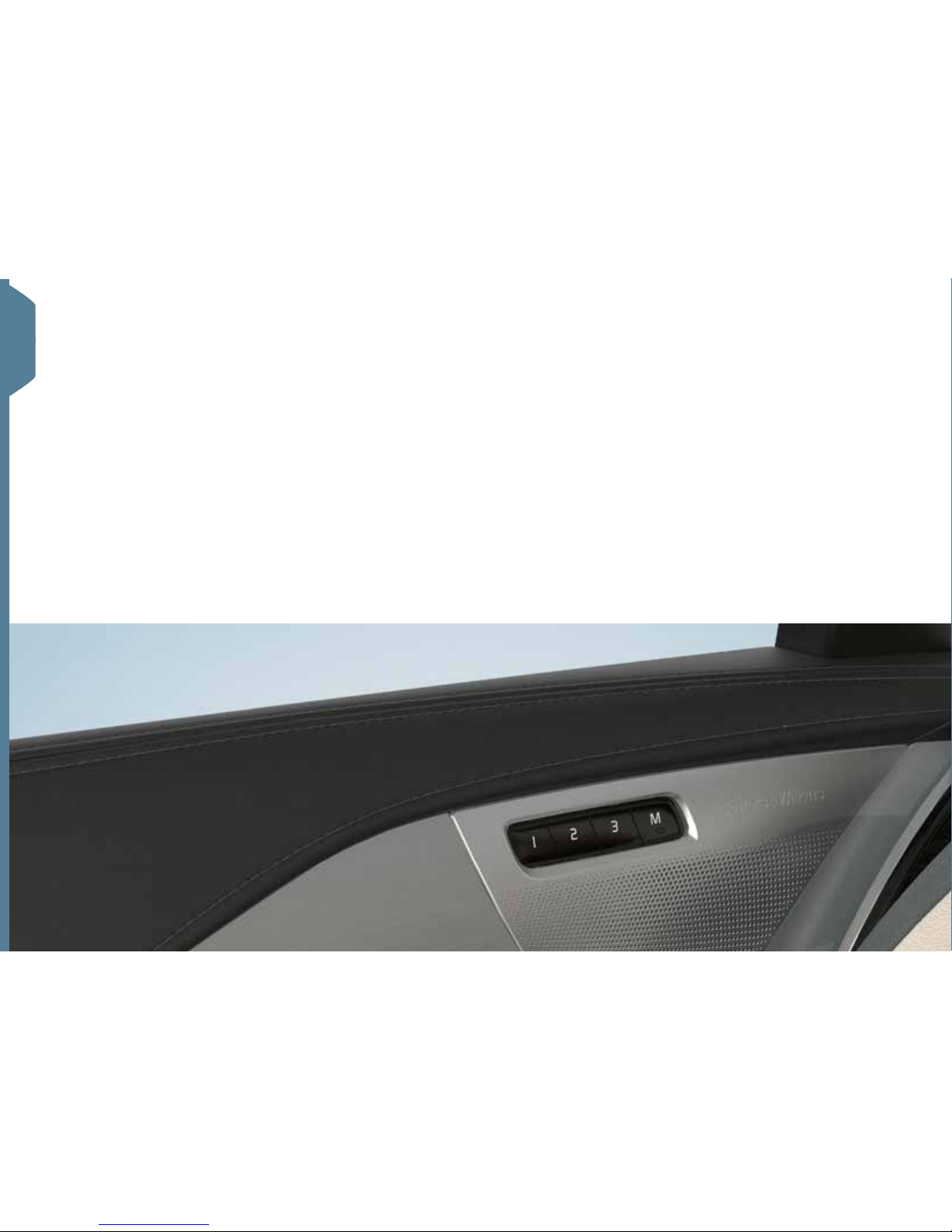

The memory function can be used to store the settings (positions) of
the power seats*, door mirrors and the head-up display*.
1. Adjust the seats, mirrors and head-up display to the desired
positions.
2. Press the M button and release it. The indicator light in the button
will illuminate.
3. Press buttons 1, 2 or 3 within 3 seconds to store the settings. When
they have been stored, an audible signal will sound and the indicator
light in the M button will go out.
Settings for the seats, door mirrors and head-up display* can be stored
in driver profiles, which can also be linked to the vehicle’s remote keys.
Accessing a stored setting
With the door open: Press and release one of the memory buttons.
With the door closed: Press and hold one of the memory buttons
until the seat reaches the stored position.
USING THE FRONT SEAT MEMORY FUNCTION
01

When folding down the backrests/head restraints, be sure that they
do not come in contact the backrests of the seats ahead. It may be
necessary to move the front/rear seats before the backrests can be
folded down.
Second row seats, center position

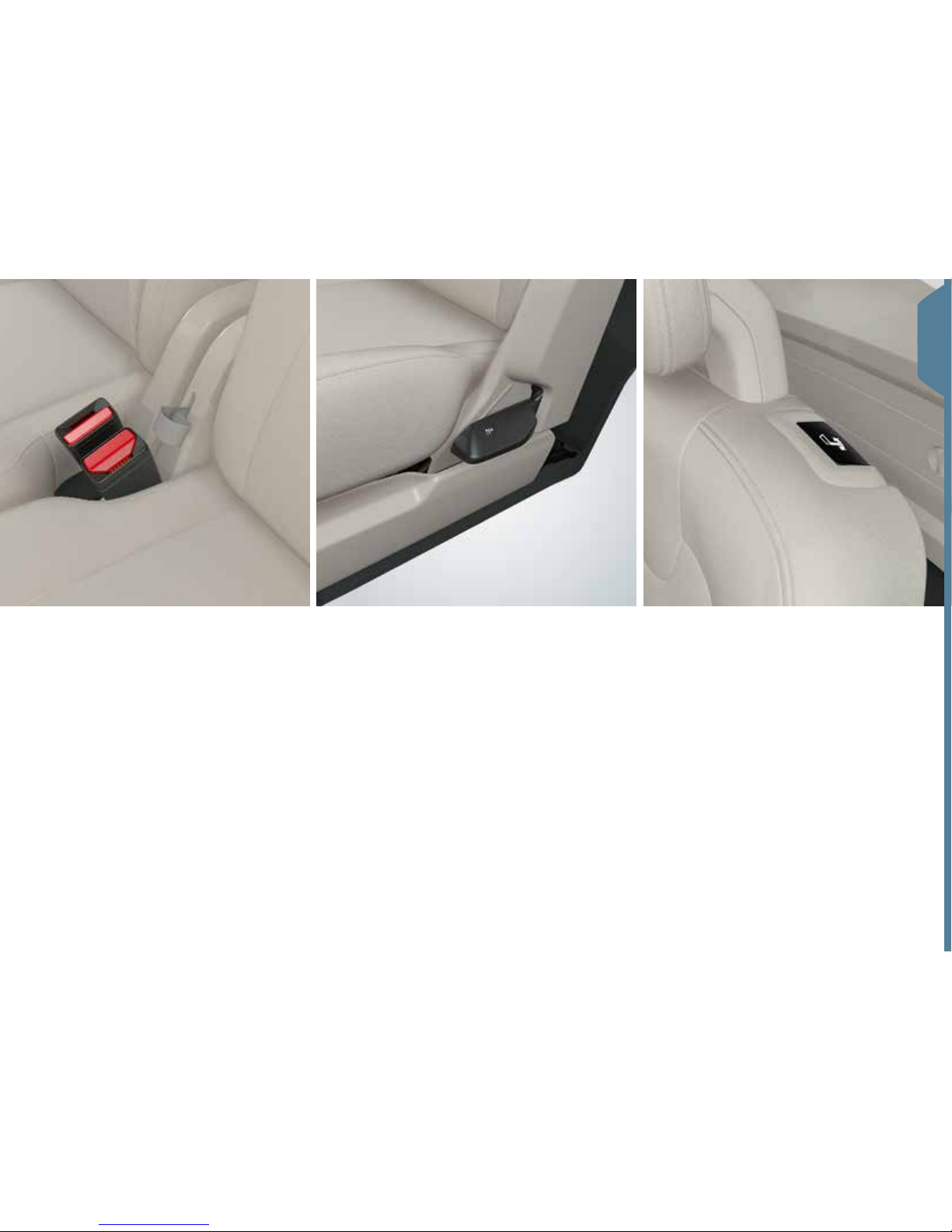

1. Lower the head restraint manually by pressing the button located
between the backrest and head restraint. With the button
depressed, press down the head restraint.
2. Pull the center position’s strap up/forward while folding down the
backrest.
Second row seats, outboard positions
– Pull up the handle on the side of an outboard seat and fold down
the backrest. The head restraint folds down automatically.
Third row seats*
– Pull the handle on the upper side of the backrest up/forward. Fold
the backrest down. The head restraint folds down automatically.
Return the backrests in both rows of seats to the upright position
in the reverse order. The head restraints must be folded up/raised
manually.
FOLDING DOWN THE REAR SEAT BACKRESTS
01

GETTING IN AND OUT OF THIRD ROW SEATS*
1. On the second row outboard seats: pull the handle on the upper
edge up and forward.
2. Fold down the backrest and push the seat forward.
Return the backrest to the upright position by first moving the seat
rearward and then folding up the backrest.
CLEAN ZONE: BETTER PASSENGER
COMPARTMENT AIR QUALITY
The Interior Air Quality System (IAQS*) is part of the Clean Zone
Interior Package* and is a fully automatic system that filters passen-
ger compartment air to help remove gases, particles and other
contaminents.
1. Tap Settings in the center display’s Top view.
2. Tap Climate.
3. Select Air quality sensor to activate/deactivate the air quality
sensor.
01

CLIMATE SYSTEM SETTINGS
Climate system functions are controlled from the center display, using
buttons on the center console and the climate panel on the rear side
of the tunnel console*. Certain climate system information is always
shown at the bottom of the center display in the climate bar.
Climate view button. The graphic in the button shows the
currently activated climate system settings. Open Climate
view by pressing the button.
Tap AUTO in Climate view to activate/deactivate automatic
control of certain climate system functions.
Tap the left or right temperature icons to set the tempera-
ture for the driver and passenger sides. Swipe the control
to change the temperature.
To synchronize the temperature for all of the vehicle’s
zones with the driver side’s temperature, tap the driver
side’s temperature icon and then tap Synchronize
temperature.
Controls for heated and ventilated* front seats and heated
steering wheel*. Tap the left or right side seat and/or
steering wheel icon to open the control. Tap repeatedly on
the respective icon to select different levels.
01

RAISING AND LOWERING THE VEHICLE*
The vehicle’s height can be changed manually to make getting in/out
and loading easier.
Entering/exiting assistance*
1. Tap Settings in the center display’s Top view.
2. Tap My Car > Suspension.
3. Select Easy Entry/Exit Control. When the vehicle is parked and the
engine is not running, the vehicle will be lowered (the level change
will stop if a door is opened). When the engine is started and the
vehicle begins to move, the level will be raised according to the drive
mode currently selected.
For easier loading, use the buttons on the rear edge of the cargo
compartment to raise/lower the level of the cargo compartment floor.
Press and hold the respective buttons until the desired level has been
reached.
CLEANING THE CENTER DISPLAY
The center display starts automatically when the driver’s door is
opened. The display should be turned off for cleaning.
1. Turn the center display off by pressing and holding the Home button.
2. Wipe the screen with the microfiber cleaning cloth provided or with a
microfiber cloth of similar quality. Wipe with small, circular move-
ments. Moisten the cloth slightly if necessary.
3. Turn the screen on again by briefly pressing the Home button.
The center display is turned off automatically when the ignition is
switched off and the driver’s door is opened.
01

OPENING AND CLOSING THE POWER TAILGATE*
Opening alternatives
• Press and pull up the handle on the tailgate.
• Press and hold the button on the remote key until the tailgate
begins to open.
• Press and hold the button on the lighting panel (to the left of
the steering wheel) until the tailgate begins to open.
• Move your foot below the left side of the rear bumper* (the remote
key has to be within range). An audible signal will sound when the
tailgate begins to open.
Closing alternatives
• Press the button on the lower edge of the tailgate to close
it only (it will not be locked). Press the button* on the lower
edge of the tailgate to close and lock it.
• Press the button on the remote key.
• Press the button on the lighting panel.
• Move your foot below the left side of the rear bumper* (the remote
key has to be within range). An audible signal will sound when the
tailgate begins to close.
01

SELECTING A DRIVE MODE*
The selected drive mode is displayed in the instrument panel. Not all
drive modes can be selected in every situation.
1. Press the DRIVE MODE control.
2. A pop-up window will open in the center display.
3. Roll the control up/down until the desired mode is highlighted in the
center display and press the control to select. The drive mode can
also be selected by tapping it in the center display.
Drive modes
Comfort: the default mode.
Eco: for energy efficient driving. This mode can also be selected
directly from the center display’s Function view.
Off road: maximizes the vehicle’s capacity to traverse difficult terrain
and poor roads.
Dynamic: sportier characteristics for a more active driving style.
Individual: a personal driving mode that has to be activated from
Settings > My Car > Individual Drive Mode.
02

This function temporarily turns off the engine when the vehicle is at a
standstill and restarts it as soon as driving resumes. This function is
activated each time the engine is started.
Auto-stopping the engine
– Apply the brakes to stop the vehicle and maintain pressure on
the brake pedal. The brake pedal can be released if the auto-hold
function is activated.
The indicator in the tachometer in the instrument panel will point
toward when the engine is auto-stopped. If the Comfort or
Eco drive modes are activated, the engine can be auto-stopped
before the vehicle comes to a complete standstill.
Auto-starting the engine
– Release the brake pedal. If auto-hold is activated, press the accel-
erator pedal.
– On downslopes: Release the brake pedal and let the vehicle begin
to roll. The engine will auto-start after a slight increase in speed.
– If Adaptive Cruise Control* or Pilot Assist* are activated, press
the accelerator pedal or press on the left-side steering wheel
keypad.
Turning off the function
– Tap the Start/Stop button in the center display’s
Function view to turn it off.
USING THE START/STOP FUNCTION
02

USING CRUISE CONTROL
Symbols for the speed limiter*, cruise control, Adaptive Cruise Control
(ACC)* and Pilot Assist* are displayed in the instrument panel. Use the
arrow keys / on the left-side steering wheel keypad to scroll
among the functions. When a function has been activated, its symbol in
the instrument panel will change colors from gray to white.
Speed limiter: Helps the driver avoid exceeding the set maximum
speed. Activate by selecting in the instrument panel.
Cruise control: Helps maintain a set speed. Activate by selecting
in the instrument panel.
Adaptive Cruise Control: Helps maintain a set speed combined with
a preset distance to the vehicle ahead. Activate by selecting in the
instrument panel.
Press to put cruise control/speed limiter/Adaptive Cruise
Control in active mode and to set the current speed. Press
again to put the selected function in standby mode.
Press to increase the set speed. Press briefly to increase the
speed in +/– 1 mph (+/– 1 km/h) increments or press and
hold until the vehicle reaches the desired speed.
Press briefly to decrease the speed in +/– 1 mph (+/– 1
km/h) increments or press and hold until the vehicle reaches
the desired speed.
Pilot Assist: At low speeds, the Pilot Assist feature helps keep the
vehicle in its current traffic lane, at a set speed and a set time interval
to the vehicle ahead. Activate by selecting .
Press to start/cancel Pilot Assist.
Press to switch from Pilot Assist to Adaptive Cruise Control.
Press to switch from Adaptive Cruise Control to Pilot Assist.
Press to reduce the distance to the vehicle ahead.
Press to increase the distance to the vehicle ahead.
02
