Volvo VCC-298068 User manual

Instruction No
Version
Part. No.
30772159
1.1
Alarm, basic kit
Instruction No
Version
Part. No.
30772159
1.1
Alarm, basic kit
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Alarm, basic kit - 30772159 - V1.1
Page 1 / 11

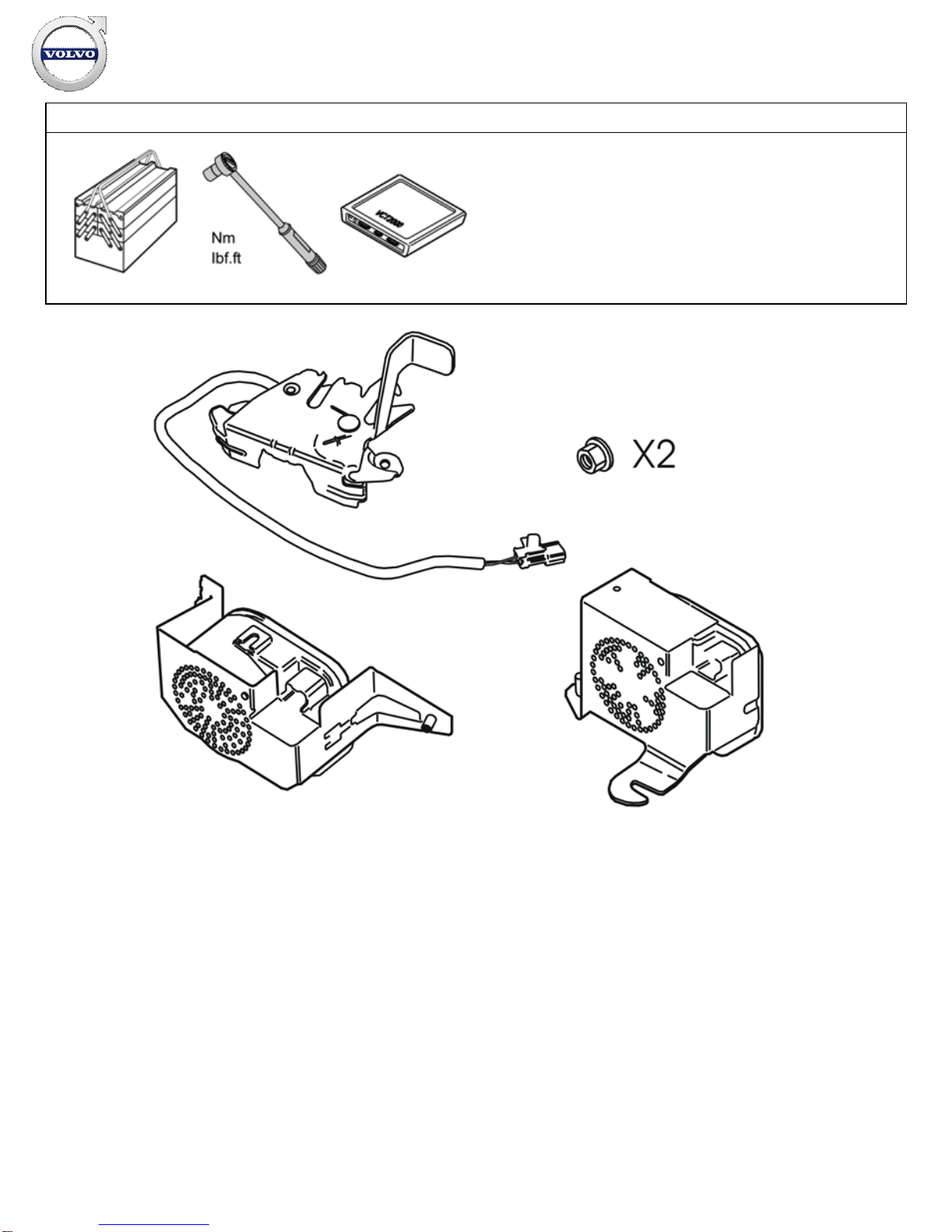

Equipment
A0000162
A0000161
A0801178
J3904626
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Alarm, basic kit - 30772159 - V1.1
Page 2 / 11

IMG- 213320
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Alarm, basic kit - 30772159 - V1.1
Page 3 / 11

INTRODUCTION
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available
before starting installation.
Certain steps in the instructions are only presented in the form
of images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.
Note!
This accessory is connected to the car's electrical system. It
requires software unique to the car.
1
Turn the ignition key to position 0.
2A
J8000362
Illustration A applies to left-hand drive cars
Illustration B applies to right-hand drive cars

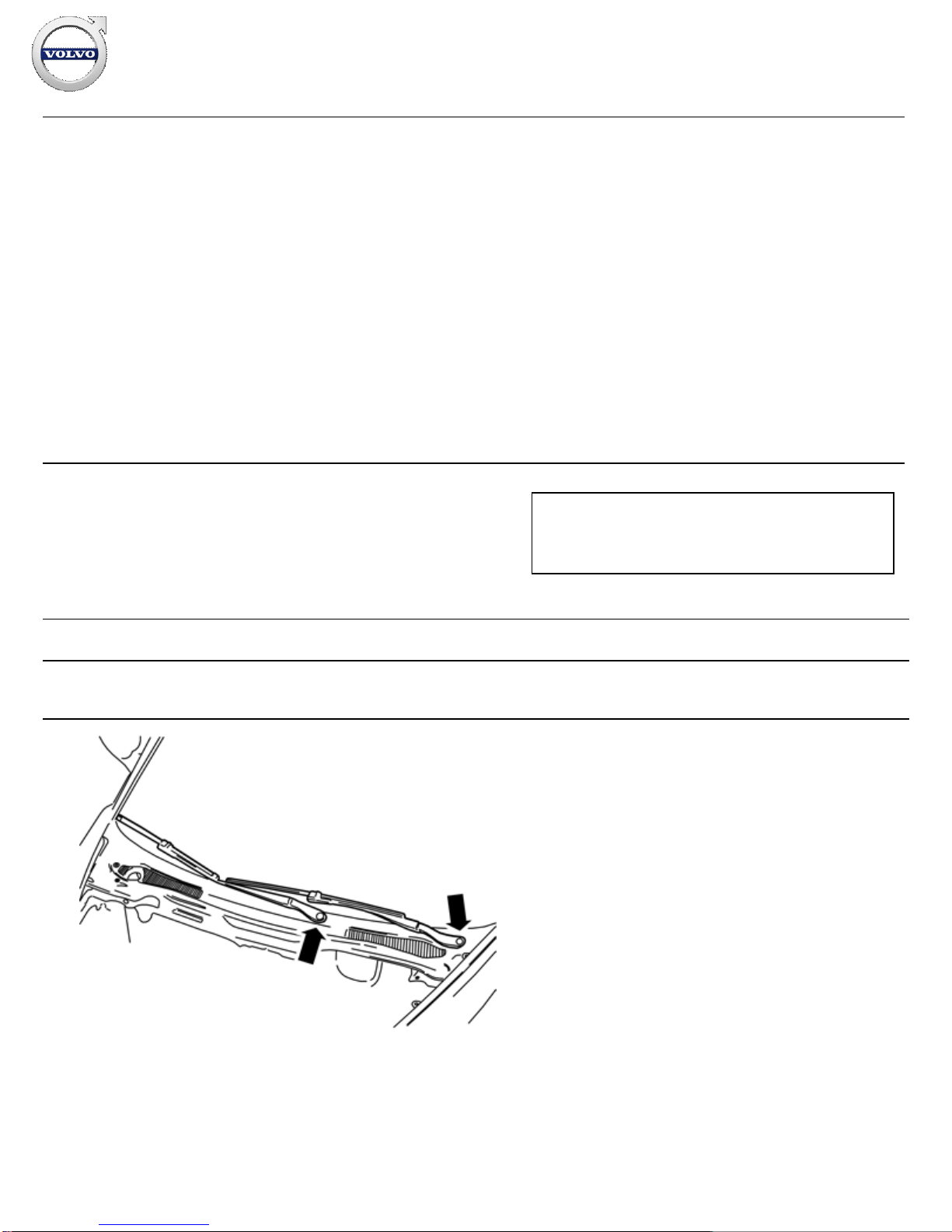

Remove the windshield wipers.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Alarm, basic kit - 30772159 - V1.1
Page 4 / 11

2B
J8000363
3
J8000361

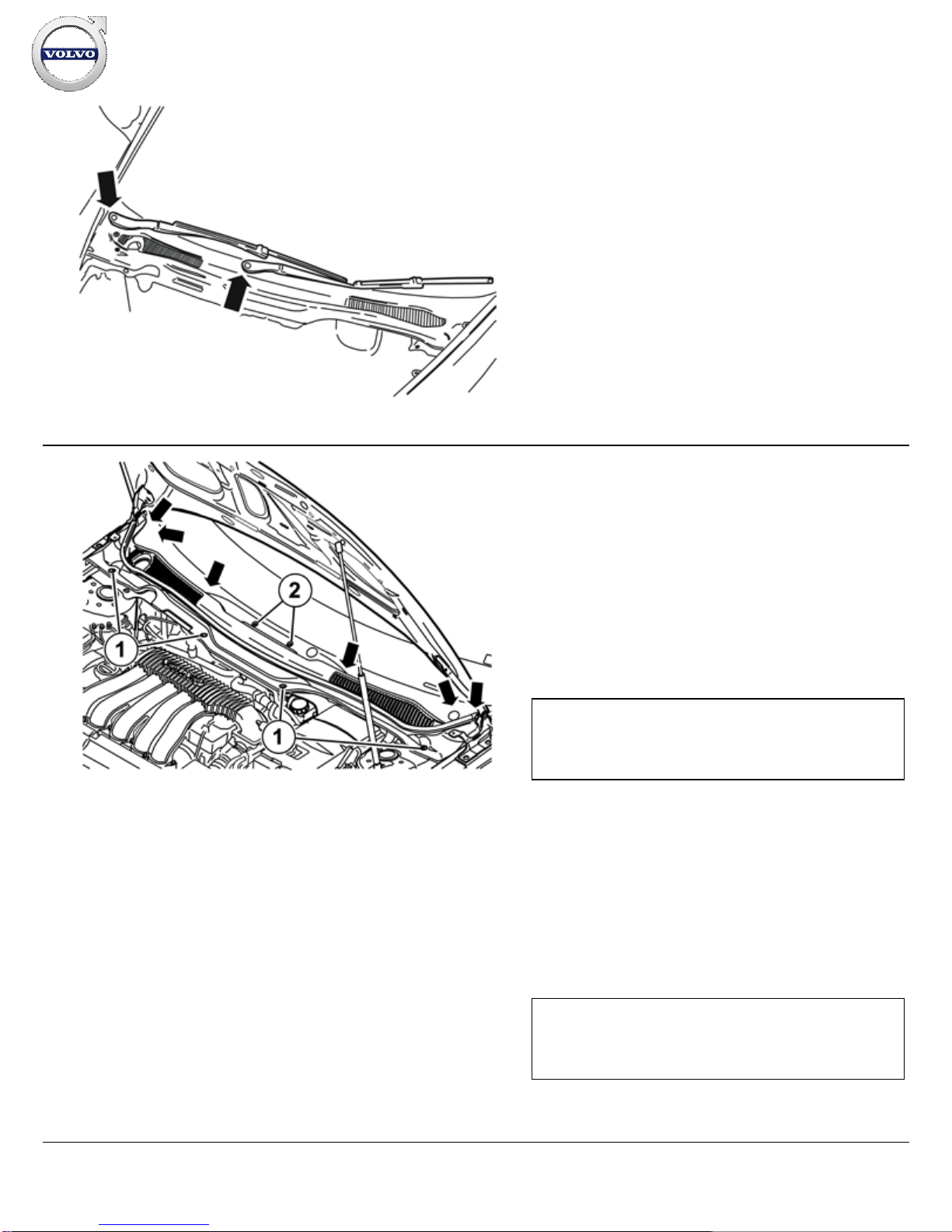

Remove the four clips (1) in the panel over the wiper motor.
Rotate the two clips (2) 90° towards each other.
Applies to left-hand drive cars
Detach the panel over the wiper motor on the right side and pull it
up from the right wiper shaft.
Pull the panel up from the left -hand wiper shaft.
Remove the panel carefully. Pull it up at the front edge and then
pull it forwards.
Applies to right-hand drive cars
Detach the panel over the wiper motor on the left hand side and
pull it up from the left wiper shaft.
Pull the panel up from the right -hand wiper shaft.
Remove the panel carefully. Pull it up at the front edge and then
pull it forwards.
Note!
The panel has little space on the left-hand side. Pull carefully so
that the clips on the underneath/rear edge do not break.
Note!
The panel has little space on the right -hand side. Pull carefully
so that the clips on the underneath/rear edge do not break.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Alarm, basic kit - 30772159 - V1.1
Page 5 / 11

4A
IMG- 246263
4B
J3904624
4C
J3904625
Illustration A applies to left-hand drive cars, newer
model
Illustration B applies to left-hand drive cars, older model
Illustration C applies to right-hand drive cars

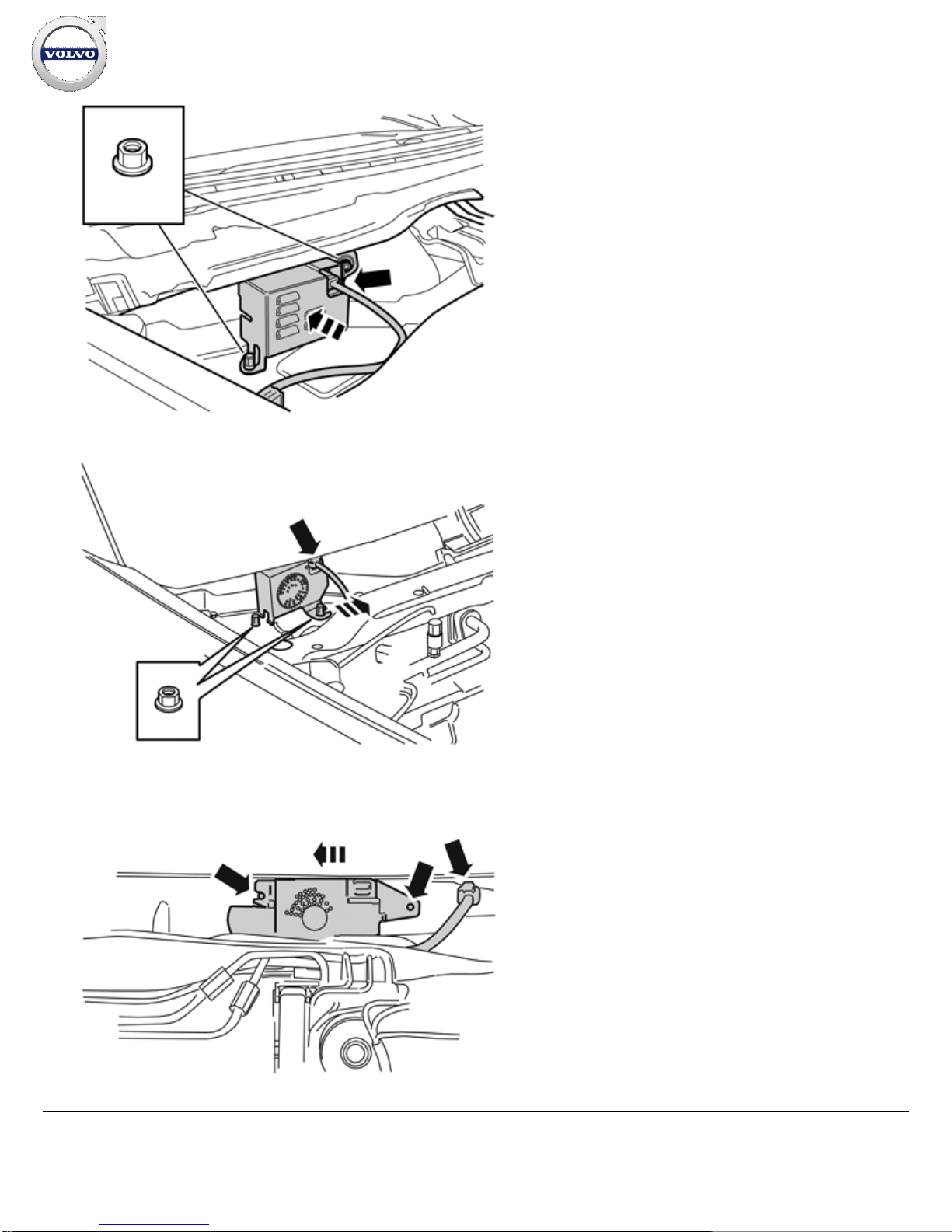

Take two nuts from the kit and install the alarm siren at the
windshield's leading edge. The alarm siren should be installed on
the right side for left-hand drive cars, and on the left side for
right-hand drive cars.
Slide the alarm siren as far as possible in the bracket's groove.
On right -hand drive cars it should be slid to the right, and on left-
hand drive cars to the left.
Torque -tighten the nuts with 10 Nm (7 lbf.ft.).
Plug in the pre -wired connector to the alarm siren.
5
Reinstall the panel above the wiper motor.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Alarm, basic kit - 30772159 - V1.1
Page 6 / 11

Reinstall the windscreen wipers and set them in the correct
position.
6
J8601087

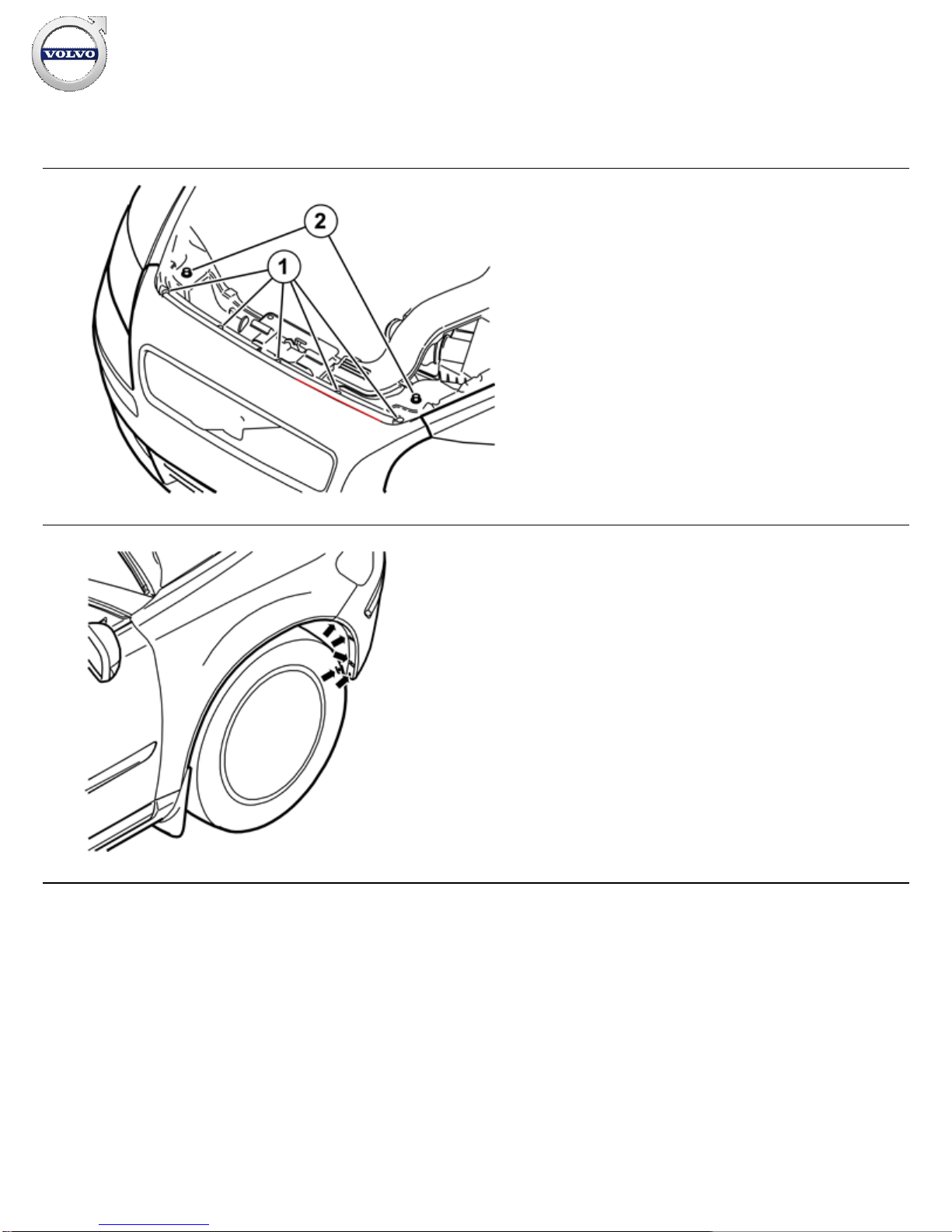

Remove the five clips (1) by pressing in their centre and pull.
Remove the two screws (2).
7
J8601083
Remove the five screws securing the bumper casing and air
baffle at the wheel housing's leading edge, on right and left
sides.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Alarm, basic kit - 30772159 - V1.1
Page 7 / 11

8A
J8601084
8B
J8903376
Illustration A
Carefully remove the cover for the nozzle for the headlights'
high -pressure washer, and pull it out until its lock catch is
accessible, on right and left side.
Illustration B
Press up the catches and remove the covers. Do not damage the
painted surfaces or the high-pressure washer nozzles.
9
J8601086
Detach the ends of the bumper casing on the left and right sides,
by grabbing the end of the bumper casing inside the wing liner.
Pull carefully so that the two catches on the inside release.
Remove the bumper casing with air baffle, by pulling them
forward until the remaining catch under the lights release.
Disconnect the connectors for the fog lamps if applicable.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Alarm, basic kit - 30772159 - V1.1
Page 8 / 11

10
J2501420

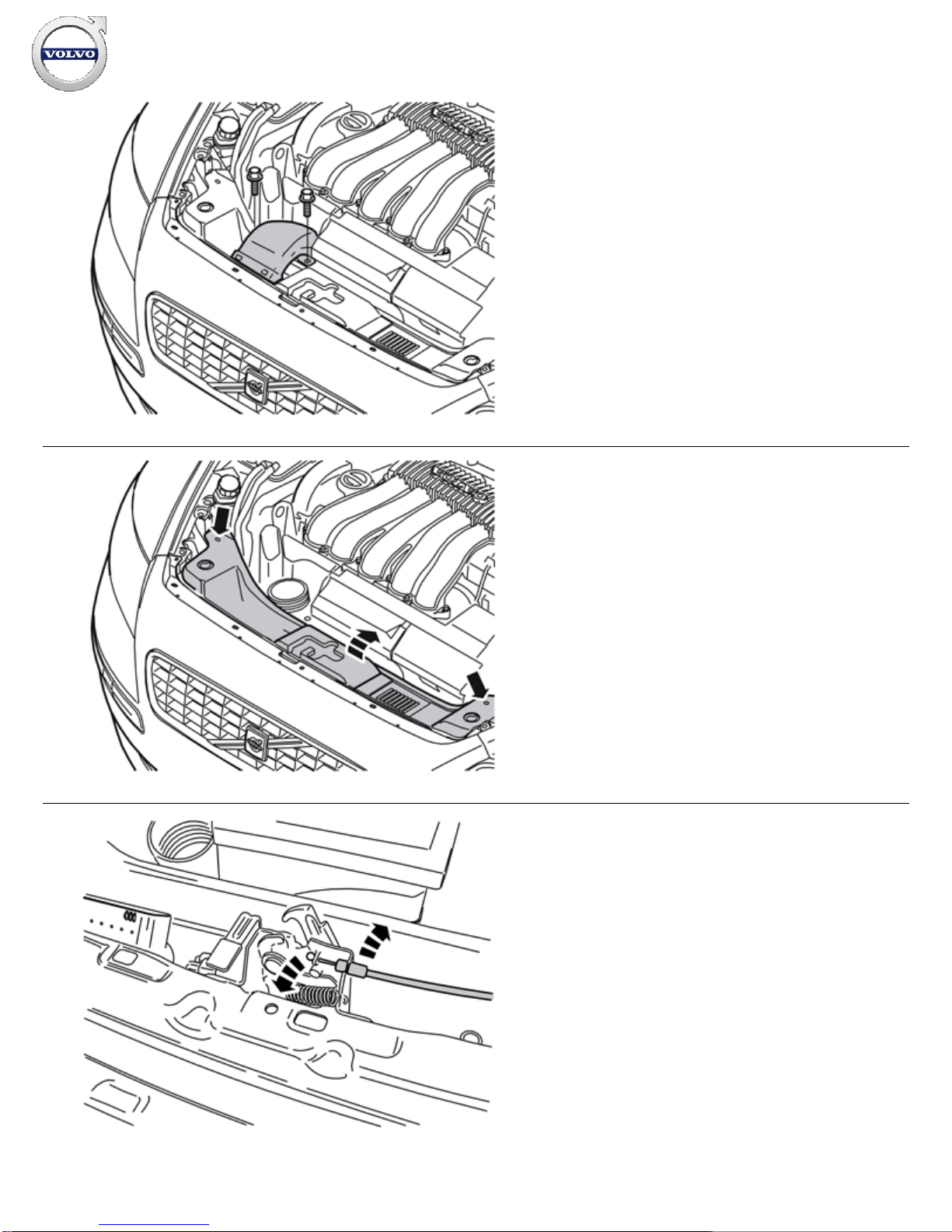

Remove the two screws in the intake manifold.
Remove the intake manifold.
11
J2501421
Remove the two screws for the panel over the bonnet catch.
Remove the panel. Lift it up at the rear edge and then pull it
backwards.
12
J8200243
Pull loose the wire sleeve and the wire from the mounting in the
hood lock.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Alarm, basic kit - 30772159 - V1.1
Page 9 / 11

13
J8200244
Remove the bonnet catch screws
Remove the bonnet catch.
14
J8000366

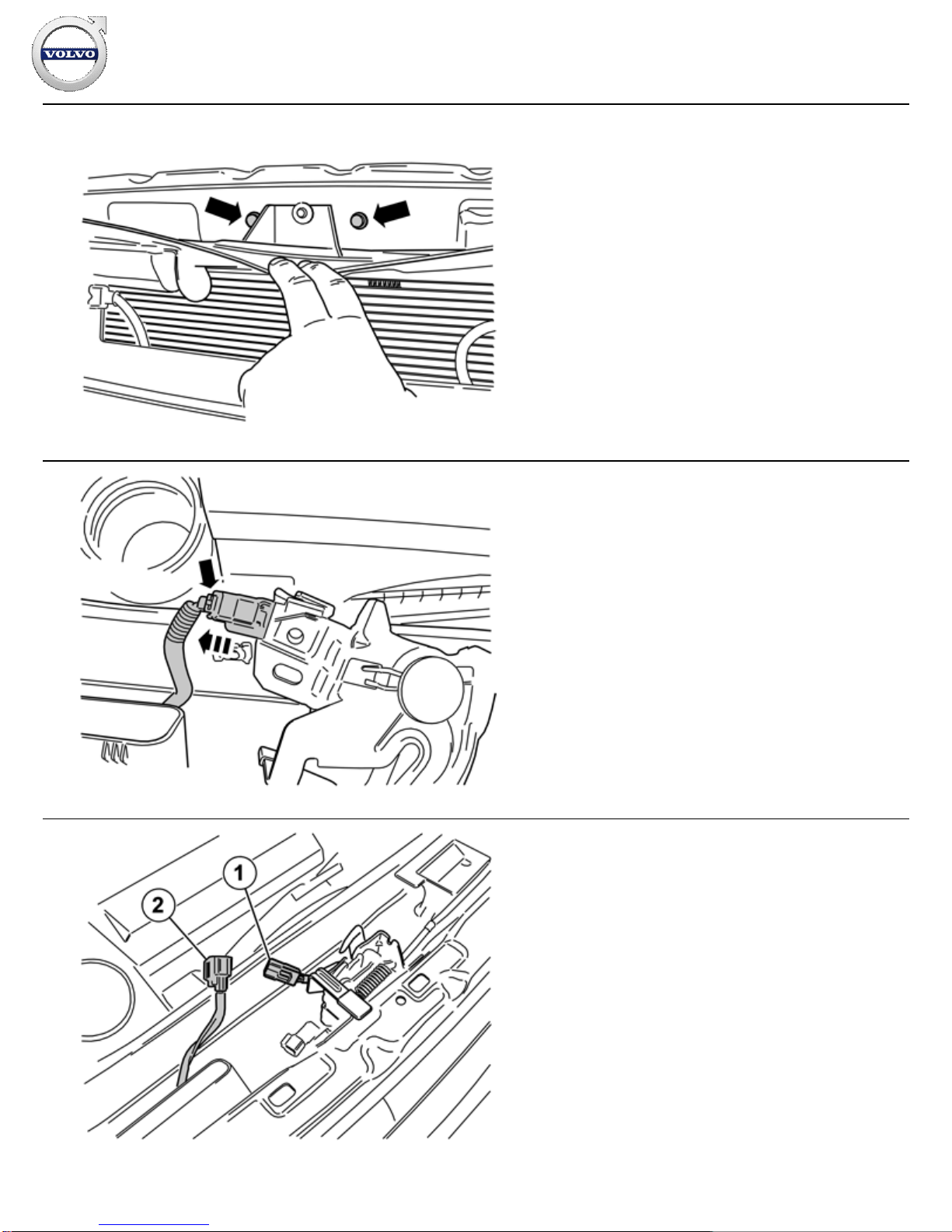

Unplug the pre -routed connector from the parking module in the
bonnet catch by pressing in the catch and pulling.
Place the bonnet catch to one side, it shall not be used again.
15
J8000364
Take the new bonnet catch from the kit and secure it with the
existing screws.
Torque tighten the screws to 24 Nm (18 lbf.ft.).
Plug the bonnet catch's connector (1) into the pre-routed
connector (2).
Secure the wire and the sleeve in the new bonnet catch.
Reinstall the panel above the bonnet catch.
Reinstall the intake manifold.
Reinstall the bumper cover using the five clips and the two
screws in the upper edge.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Alarm, basic kit - 30772159 - V1.1
Page 10 / 11

Reconnect the connectors for the fog lamps if applicable.
Make sure that the air baffle ends up correctly in its mounting.
Press the end faces for the bumper cover into the body and
reinstall the five screws at the front edge of the wheel housing
(on the right and left-hand sides).
16
Programme the software in accordance with the service
information in VIDA.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Alarm, basic kit - 30772159 - V1.1
Page 11 / 11
