Volvo 31428808 User manual

Instruction No
Version
Part. No.
31373813
1.2
31428808, 31428807, 31428588, 31428587, 31373810, 31373809
Parking assistance, camera, rear
Instruction No
Version
Part. No.
31373813
1.2
31428808, 31428807, 31428588, 31428587, 31373810, 31373809
Parking assistance, camera, rear
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 1 / 21

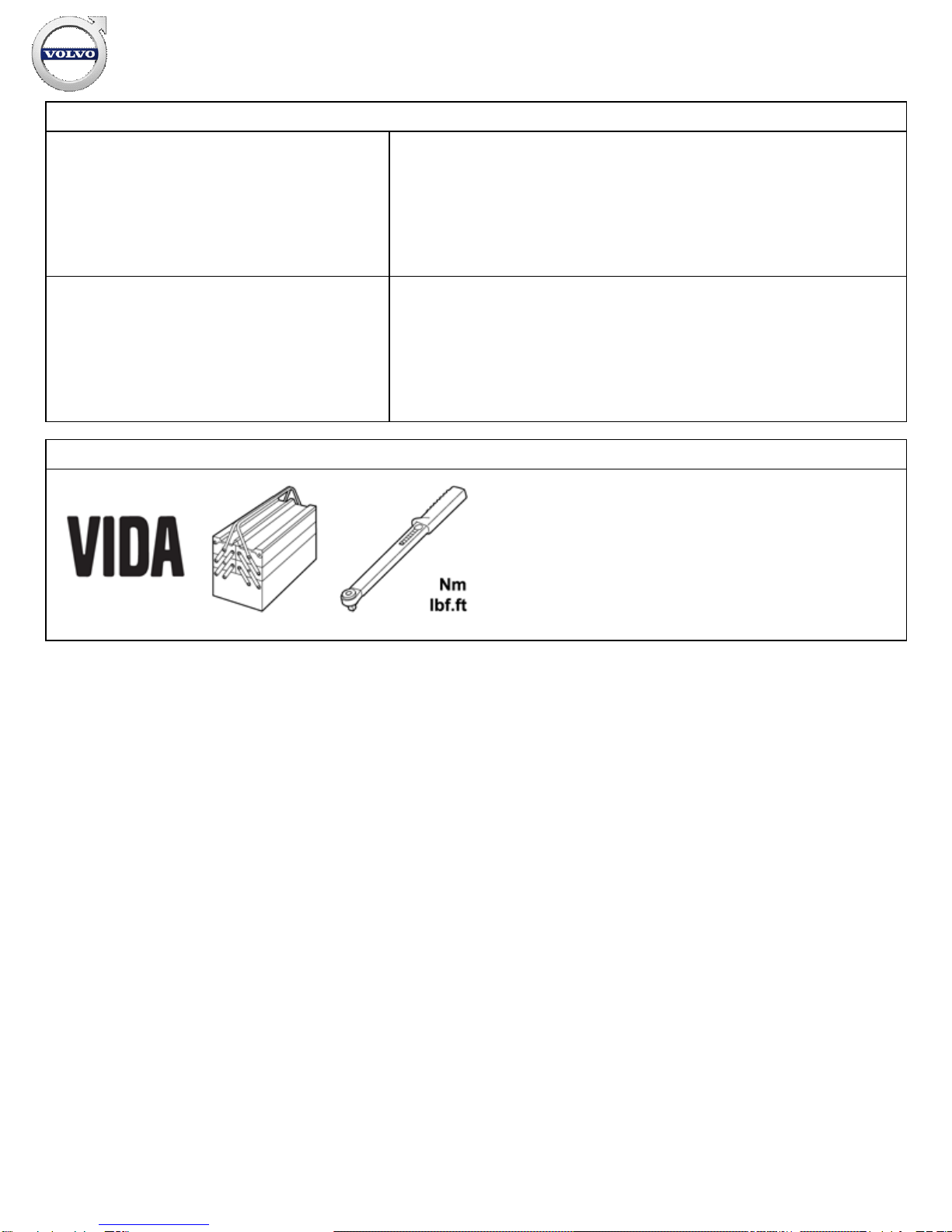

Special tools
981 4088 Puller
Tool number:981 4088
Tool description:Puller
Tool boards:80
999 7390 Key
Tool number:999 7390
Tool description:Key
Tool boards:80

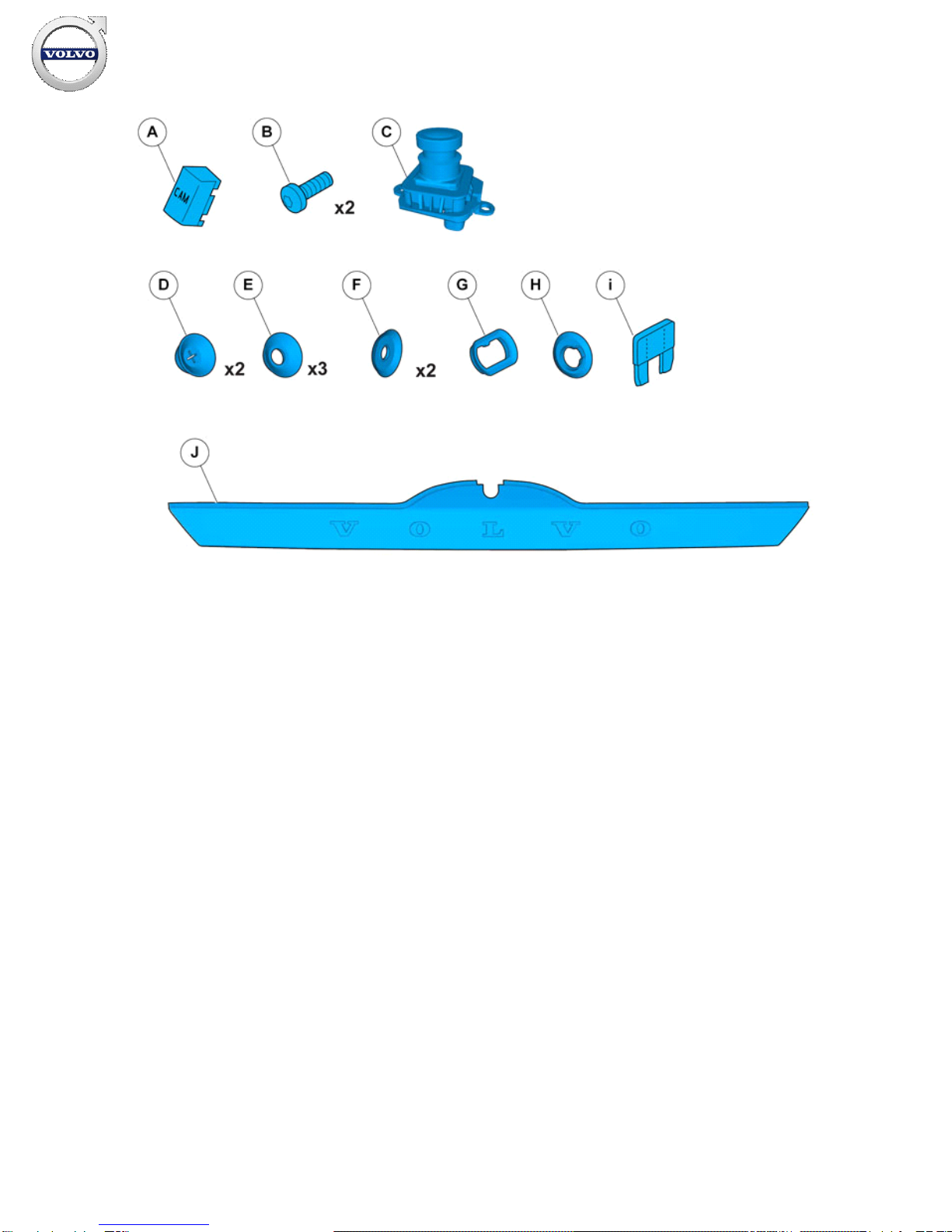

Equipment
IMG- 242205
IMG- 345497
IMG- 239664
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 2 / 21

IMG- 381049
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 3 / 21

36648-2
Parking assistance, camera, rear
Information
1
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available before
starting installation.
Certain steps in the instructions are only presented in the form of
images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.

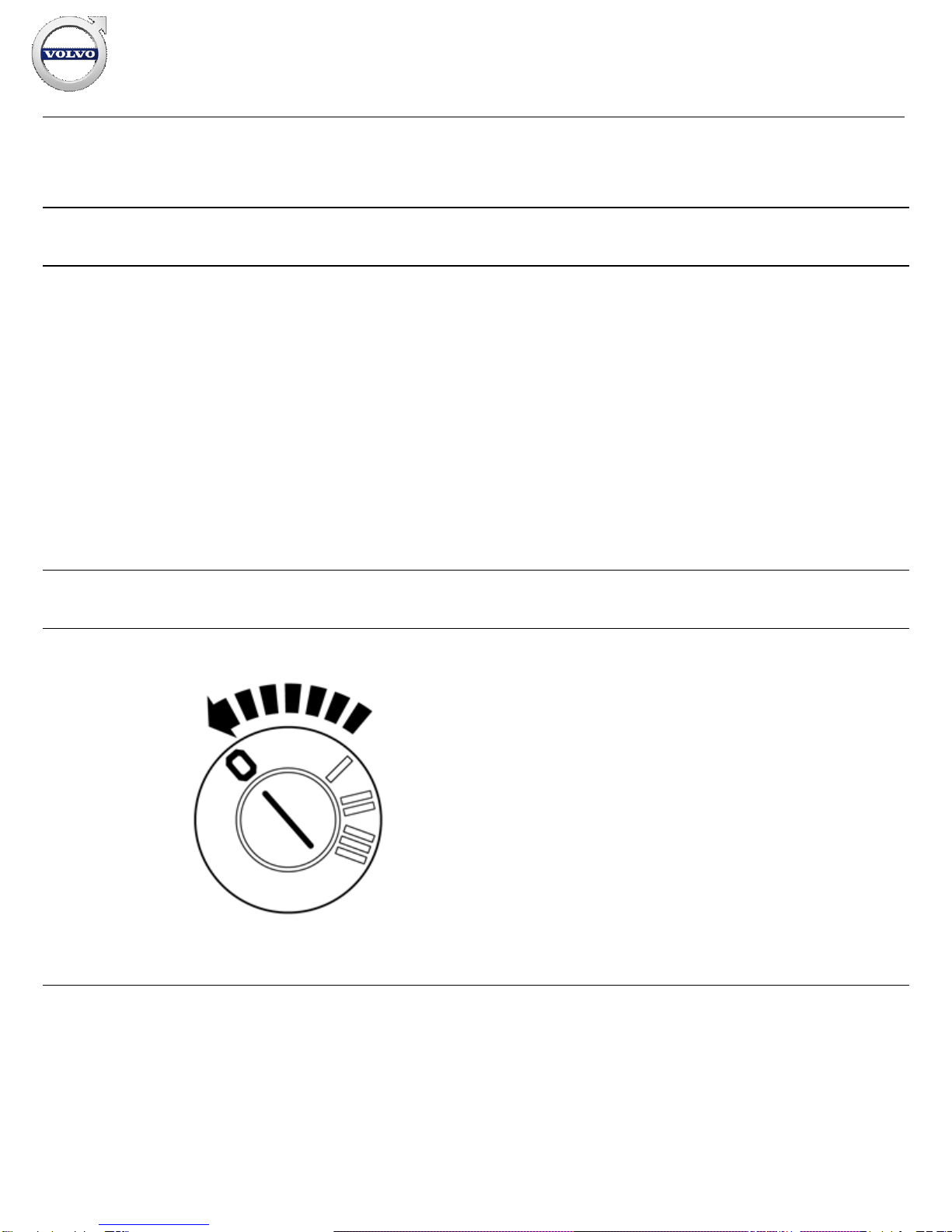

Removal
2
IMG- 332193
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 4 / 21

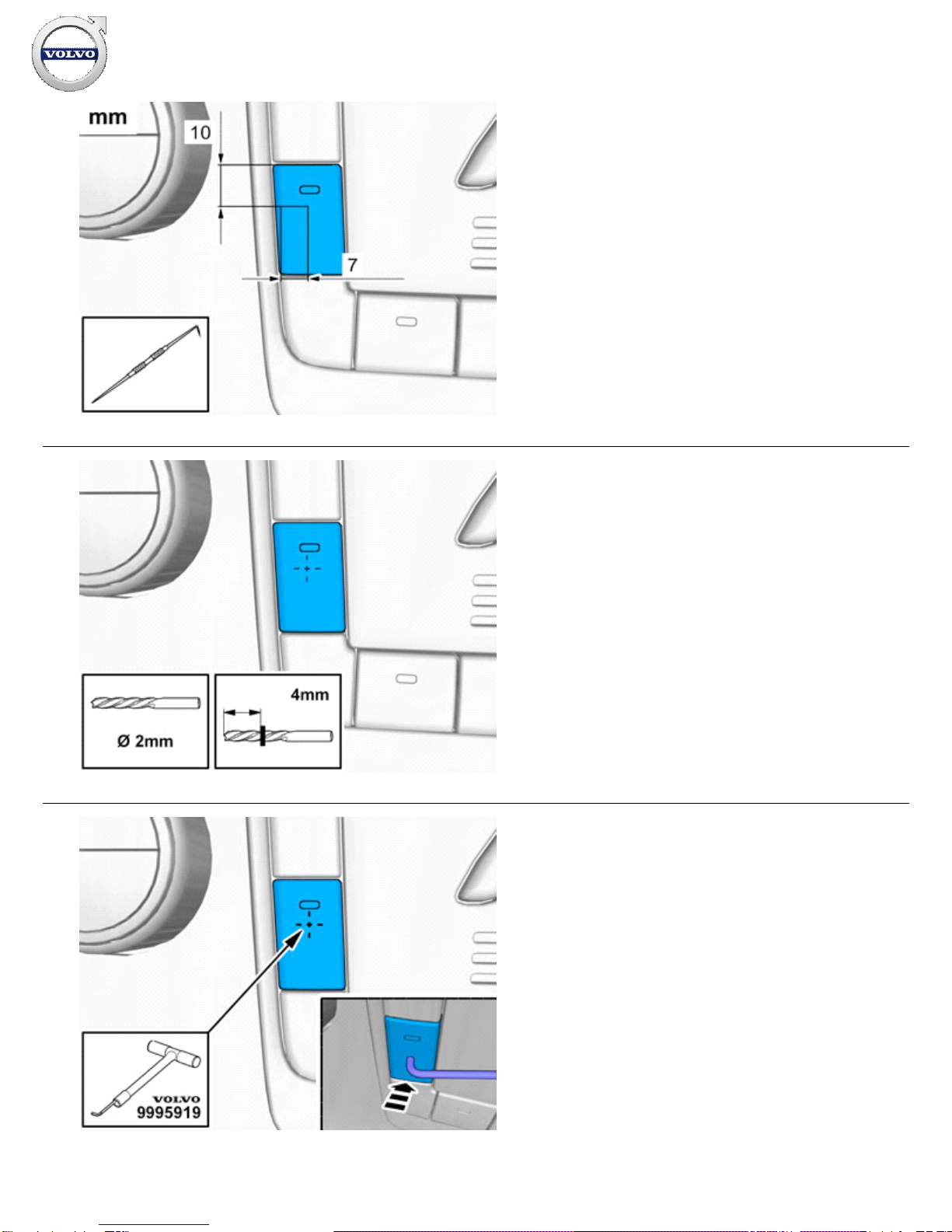

3
IMG- 381005
4
IMG- 381006
5
IMG- 381020
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 5 / 21

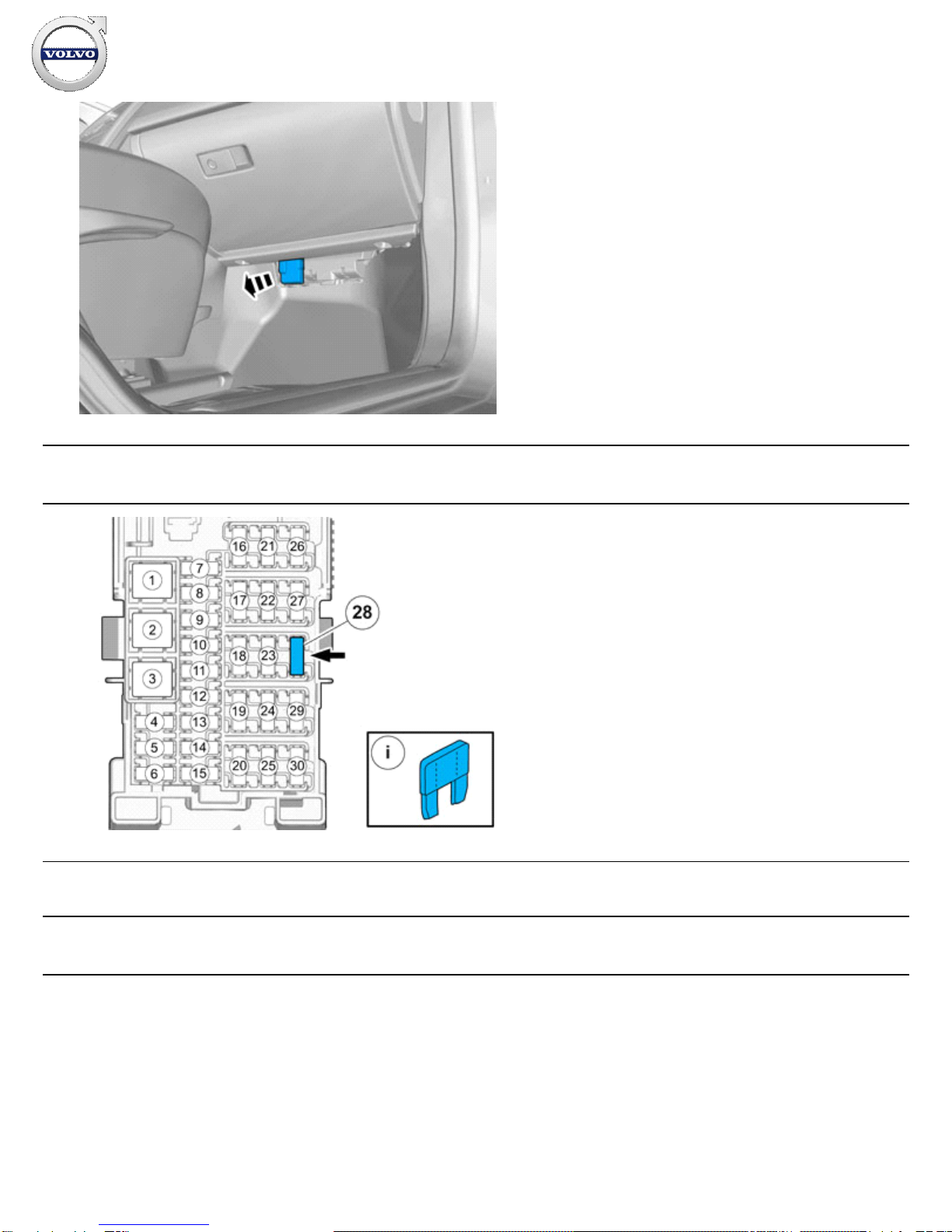

6
IMG- 380996
Accessory installation
7
IMG- 381003
Install component that comes with the accessory kit.
Removal
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 6 / 21

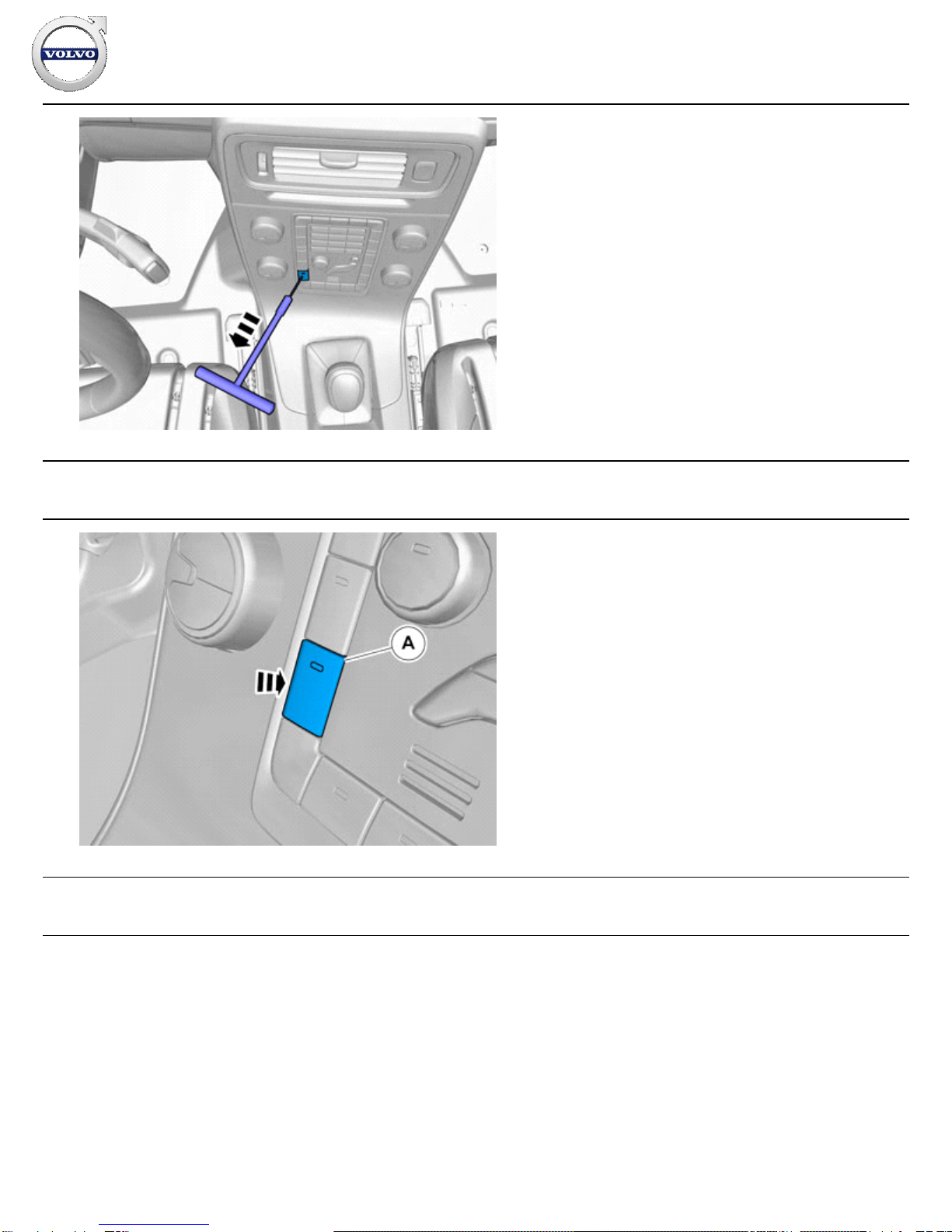

8
IMG- 381919
Accessory installation
9
IMG- 381922
Install component that comes with the accessory kit.
10
Reinstall the removed parts in reverse order.
Removal
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 7 / 21

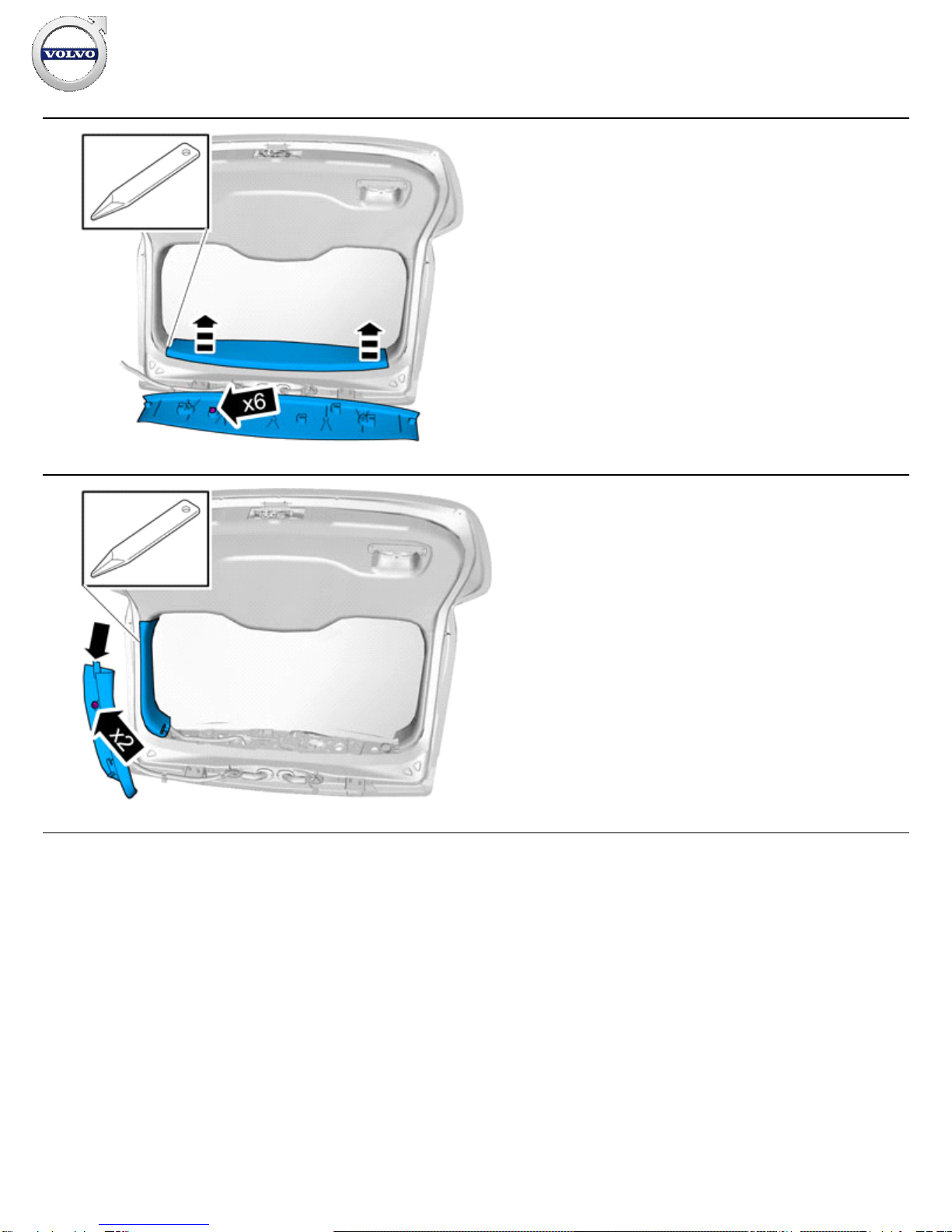

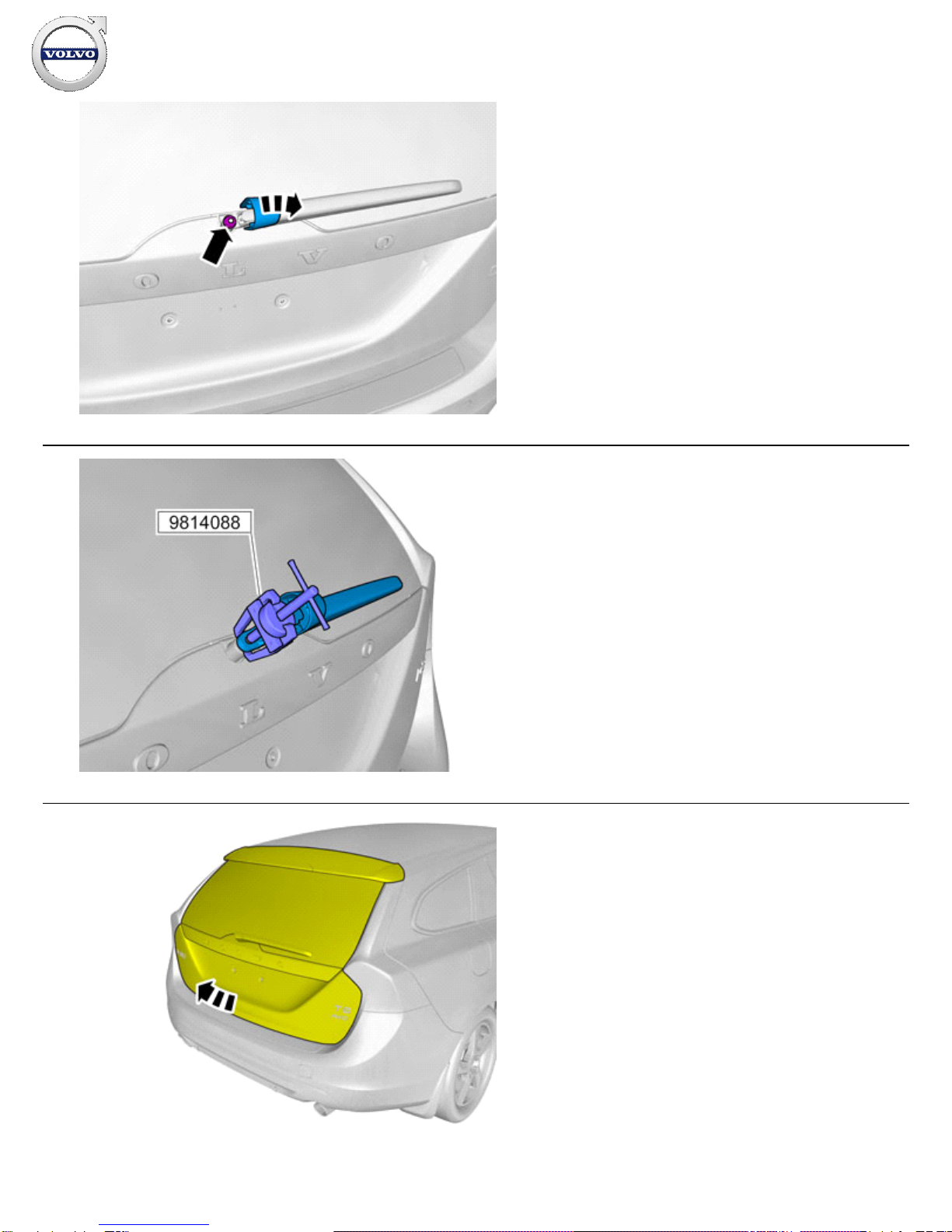

11
IMG- 344481
12
IMG- 344483
Use special tool: T9814088, Puller
13
IMG- 351651
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 8 / 21

14
IMG- 344484
15
IMG- 344487
16
IMG- 344488
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 9 / 21

17
IMG- 344489
18
IMG- 344490
Repeat on the other side.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 10 / 21

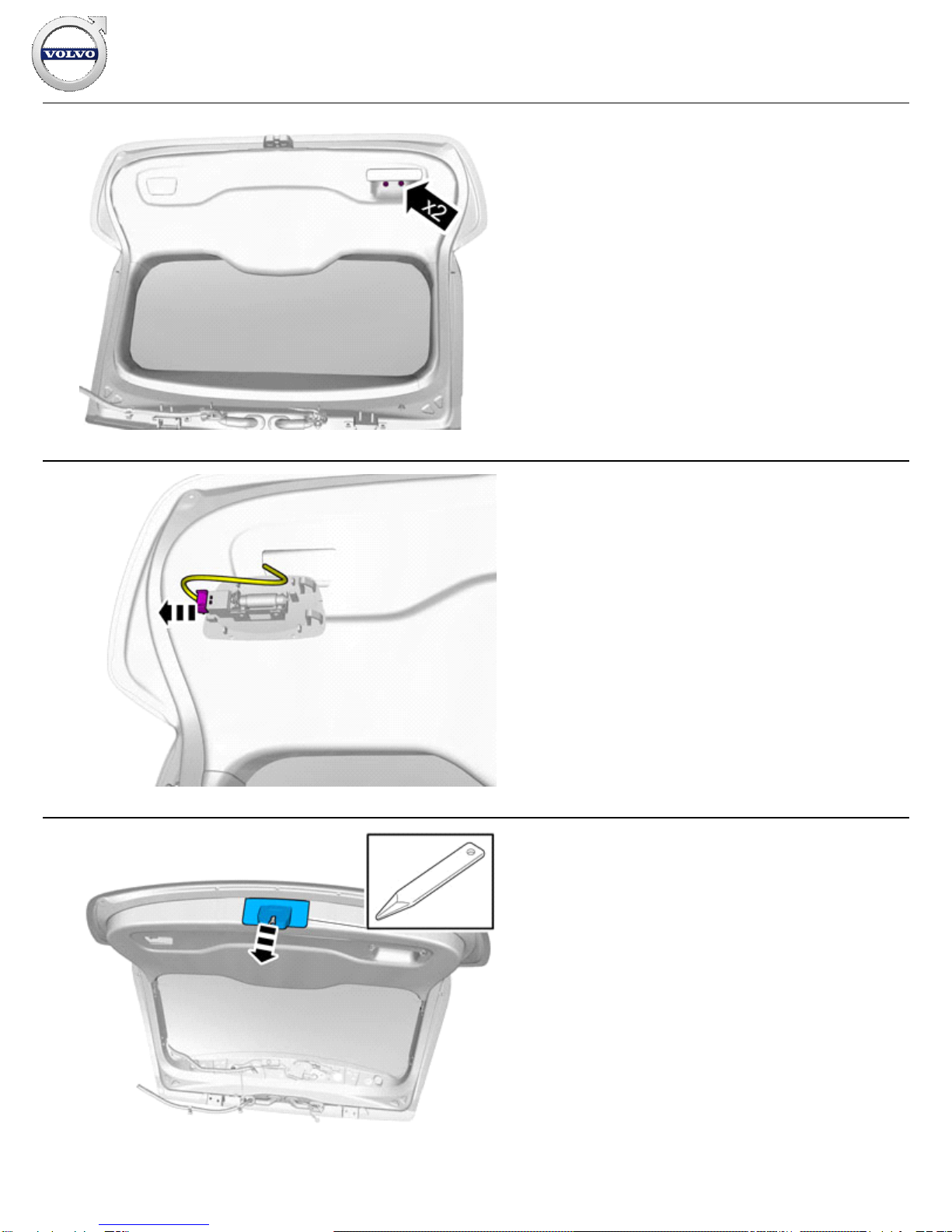

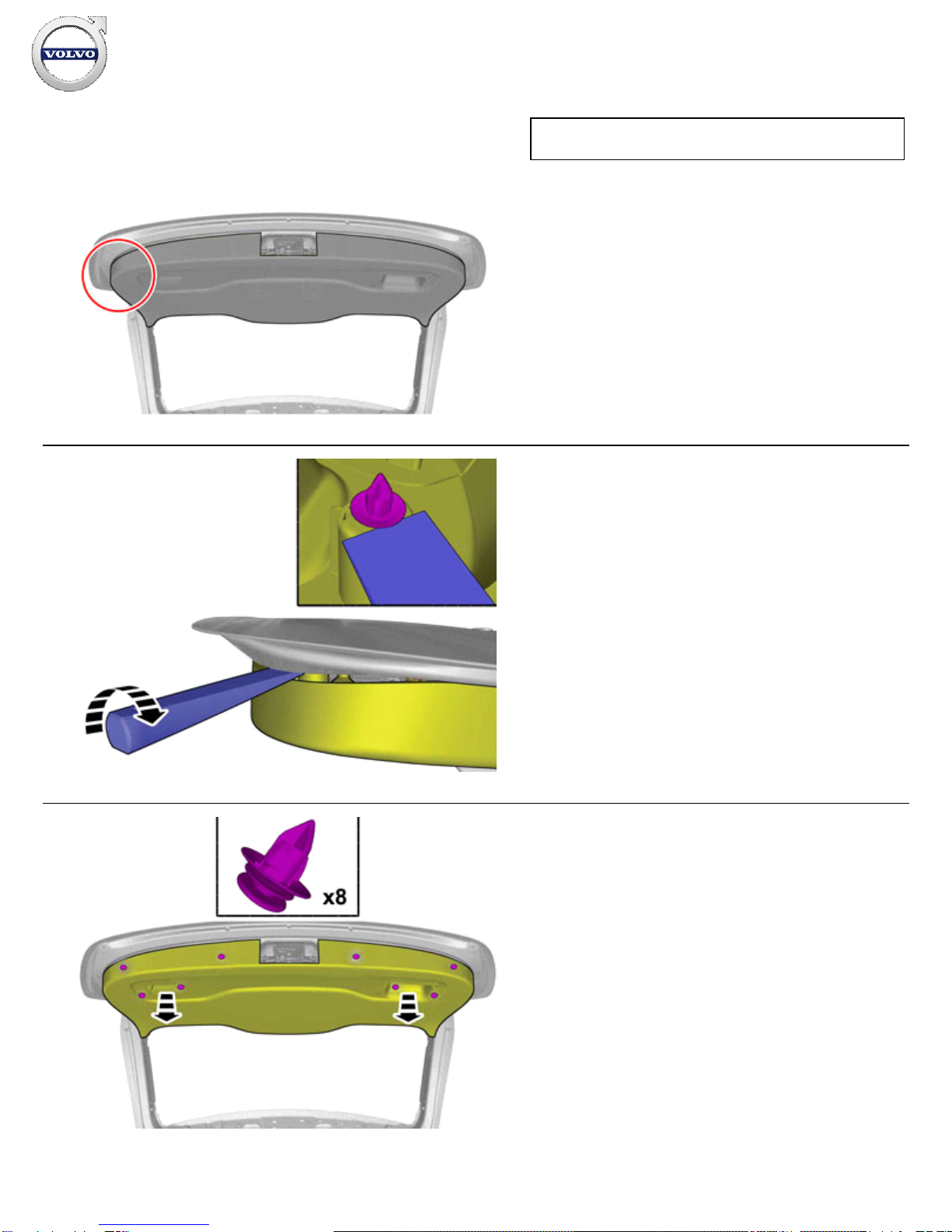

19
IMG- 352241
Note!
Orientation view
20
IMG- 352242
Use special tool: T9997390, Key
21
IMG- 352243
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 11 / 21

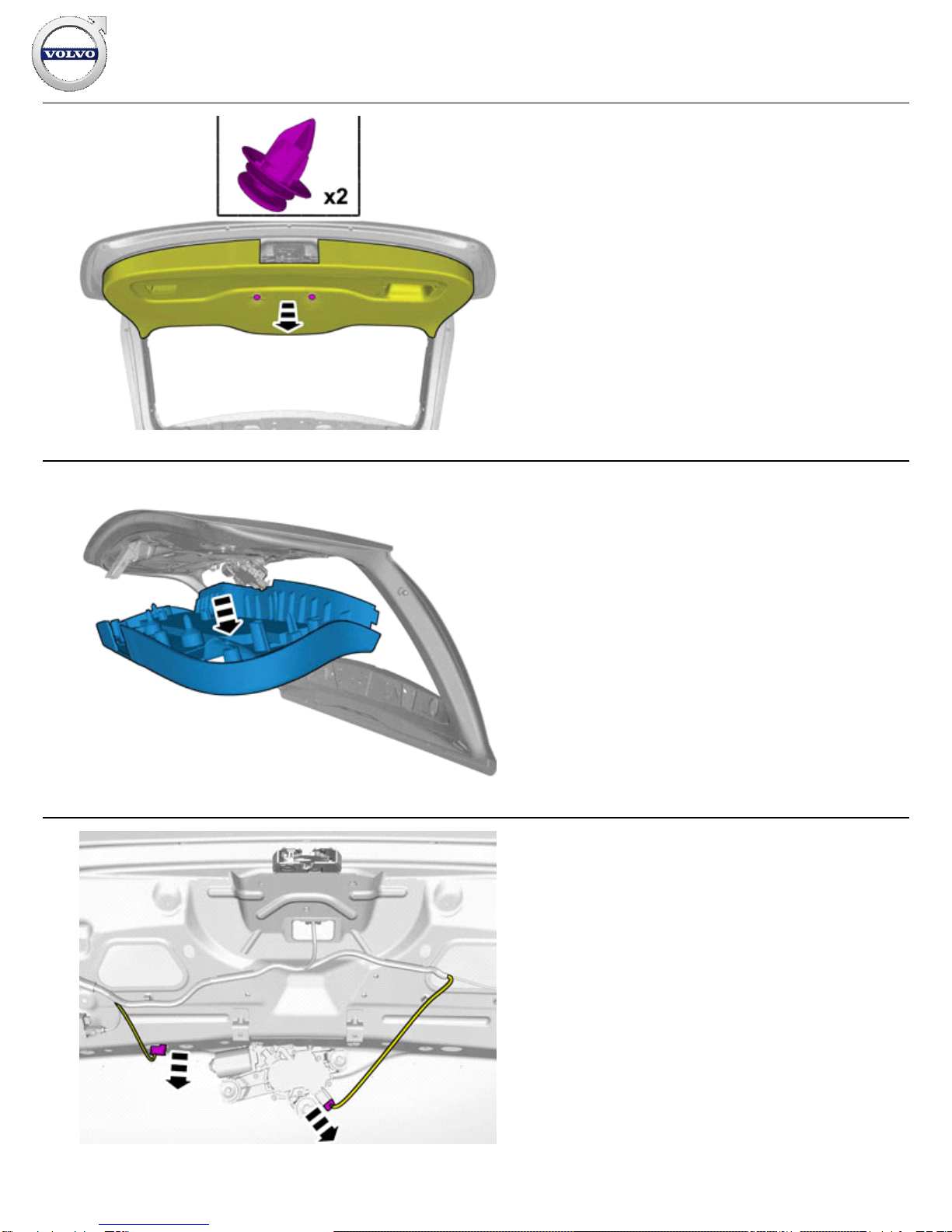

22
IMG- 352244
23
IMG- 352246
24
IMG- 344495
Disconnect the connectors.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 12 / 21

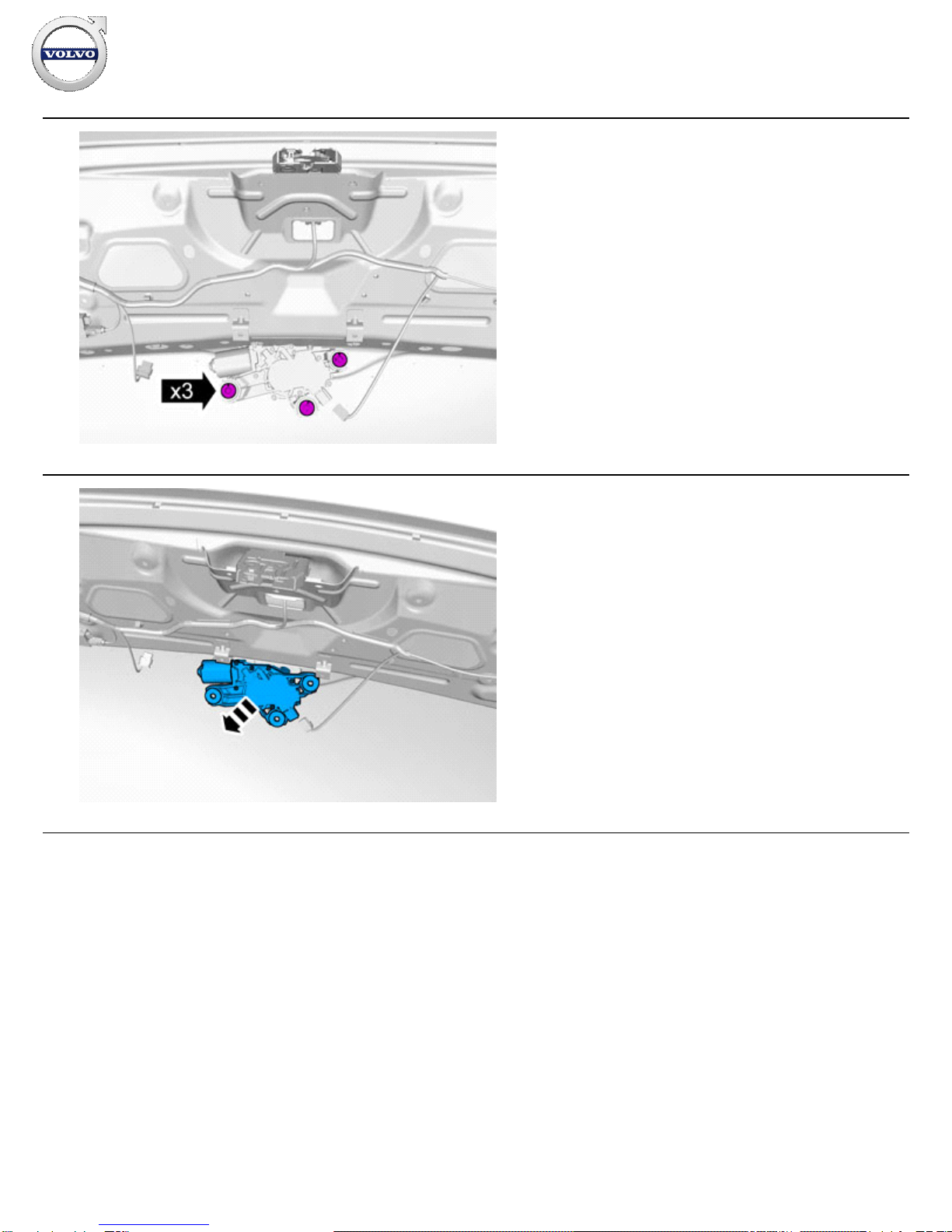

25
IMG- 344494
Remove the screws.
26
IMG- 344496
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 13 / 21

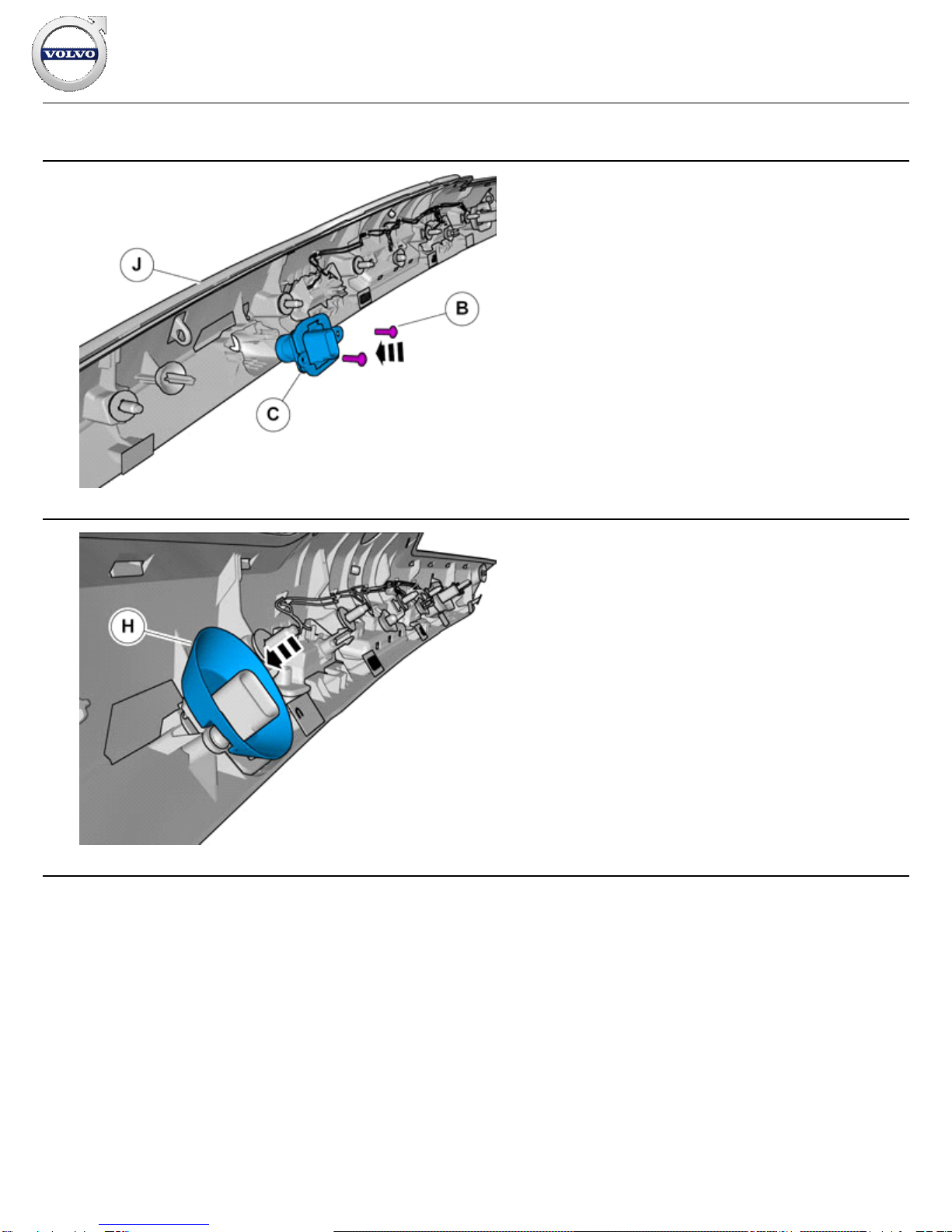

27
IMG- 344497
Remove the nuts.
28
IMG- 344499
29
IMG- 344498
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 14 / 21

Accessory installation
30
IMG- 381050
31
IMG- 381051
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 15 / 21

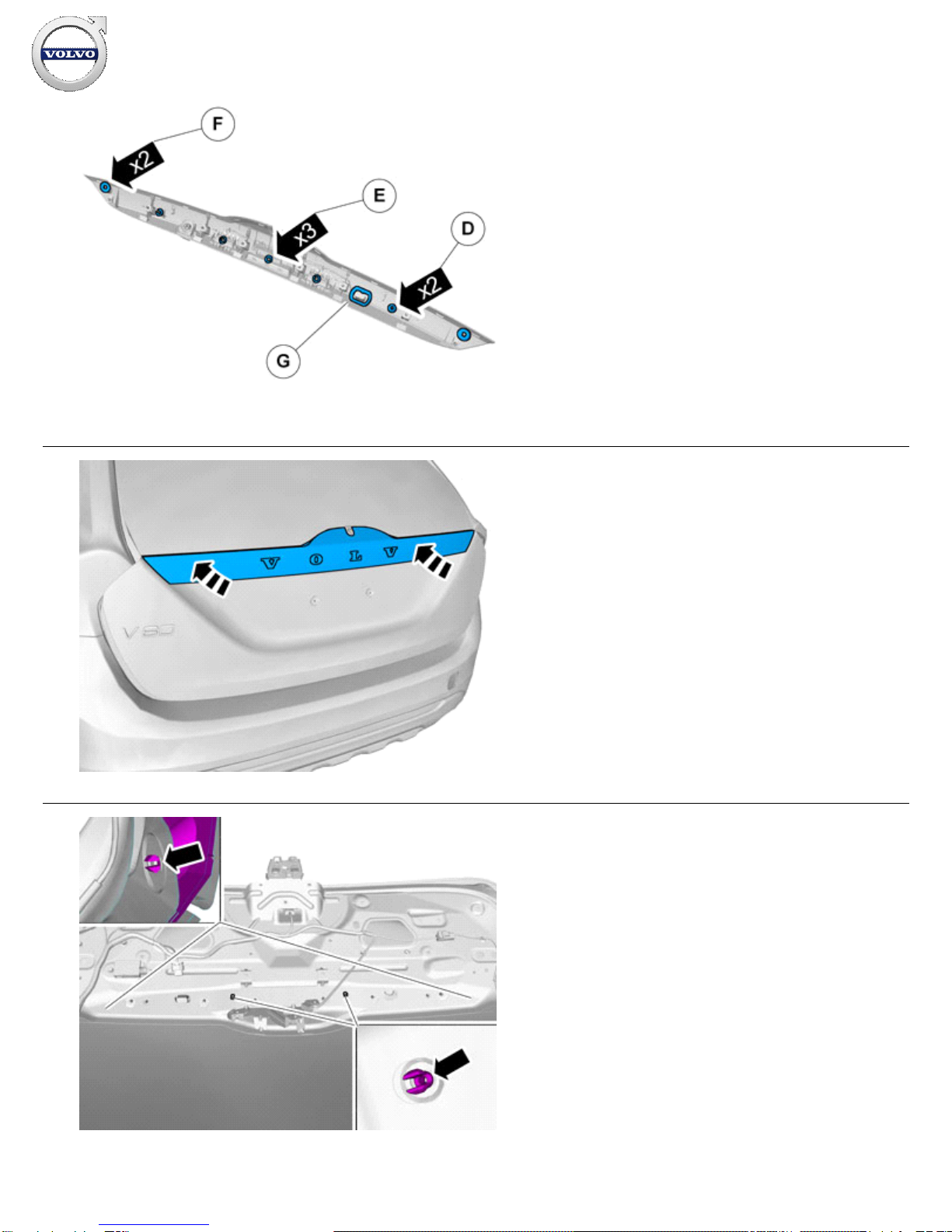

32
IMG- 381052
33
IMG- 344518
34
IMG- 344499
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 16 / 21

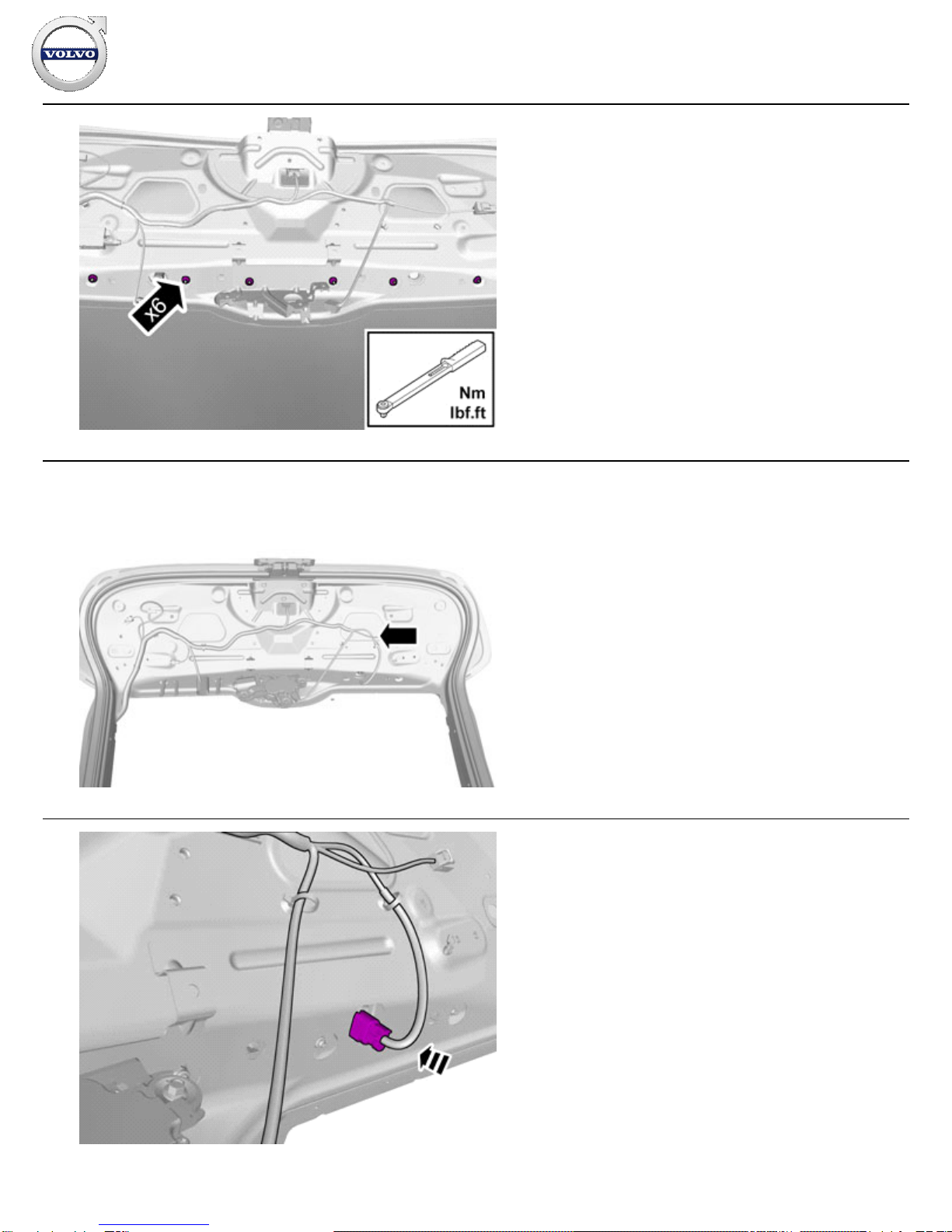

35
IMG- 381063
Tightening torque: Exterior handle to tailgate/luggage
compartment lid , 3 Nm
36
IMG- 381062
Locate the pre-routed connector.
37
IMG- 381059
Connect the connector.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 17 / 21

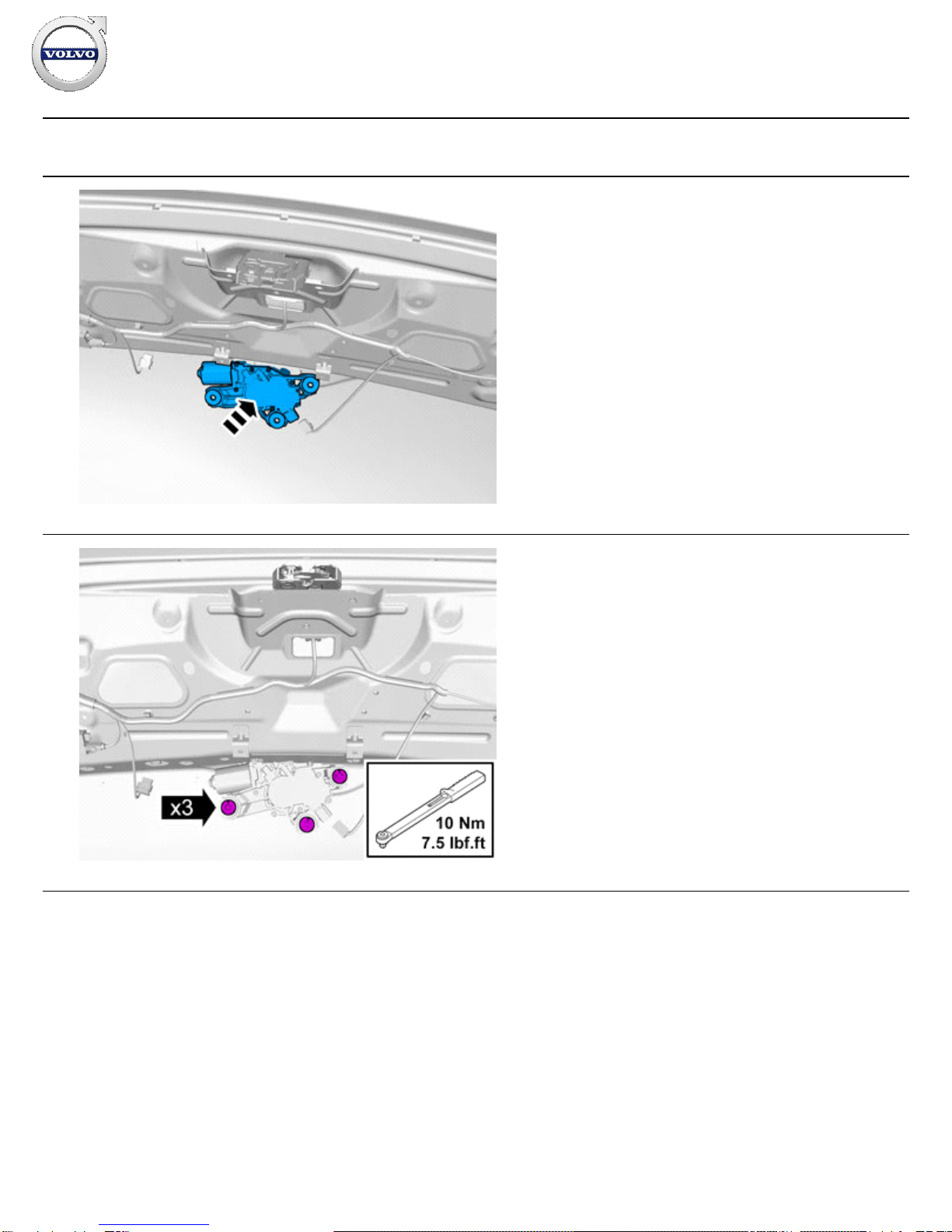

Installation
38
IMG- 344525
39
IMG- 344521
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 18 / 21

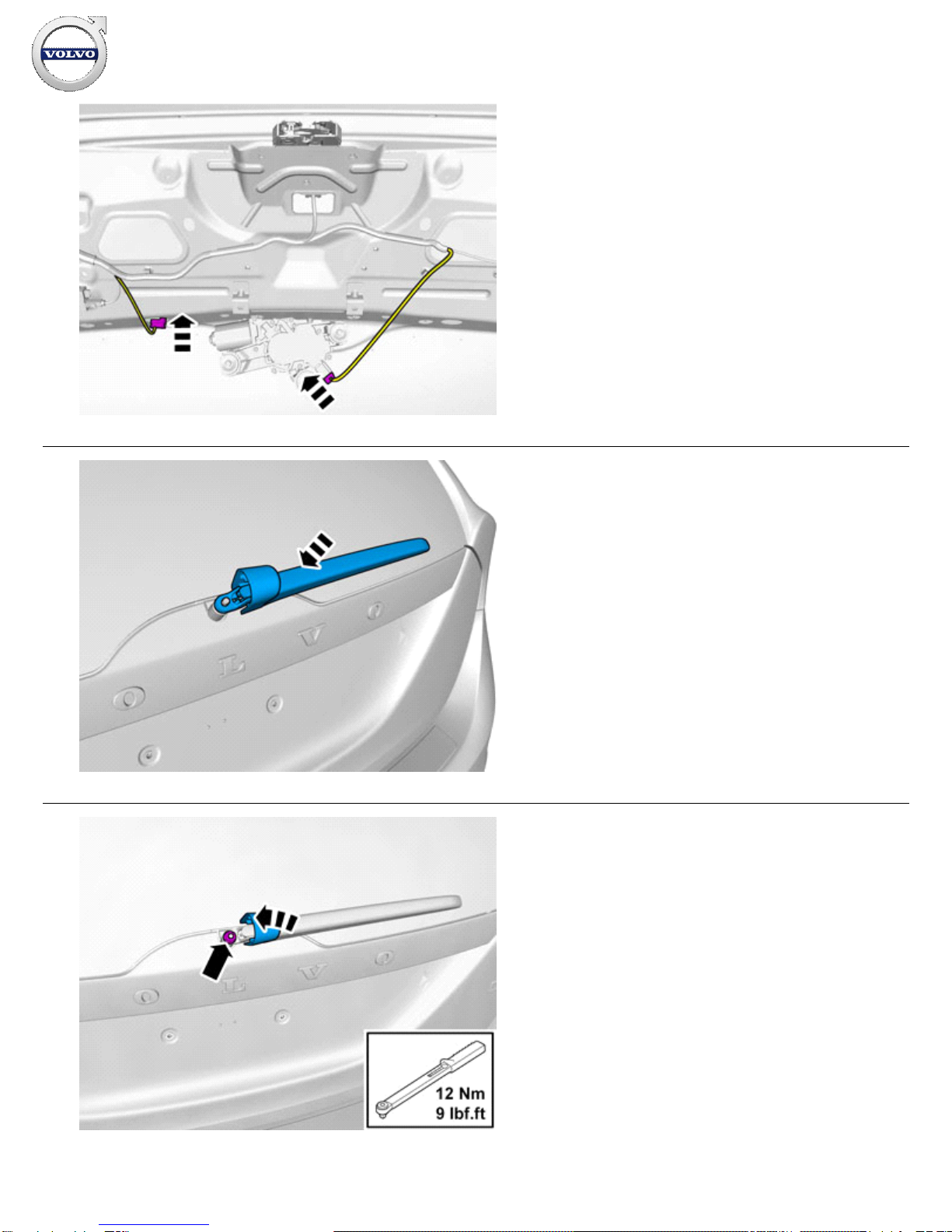

40
IMG- 344533
41
IMG- 344523
42
IMG- 344524
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, camera, rear - 31373813 - V1.2
Page 19 / 21

43
IMG- 377070

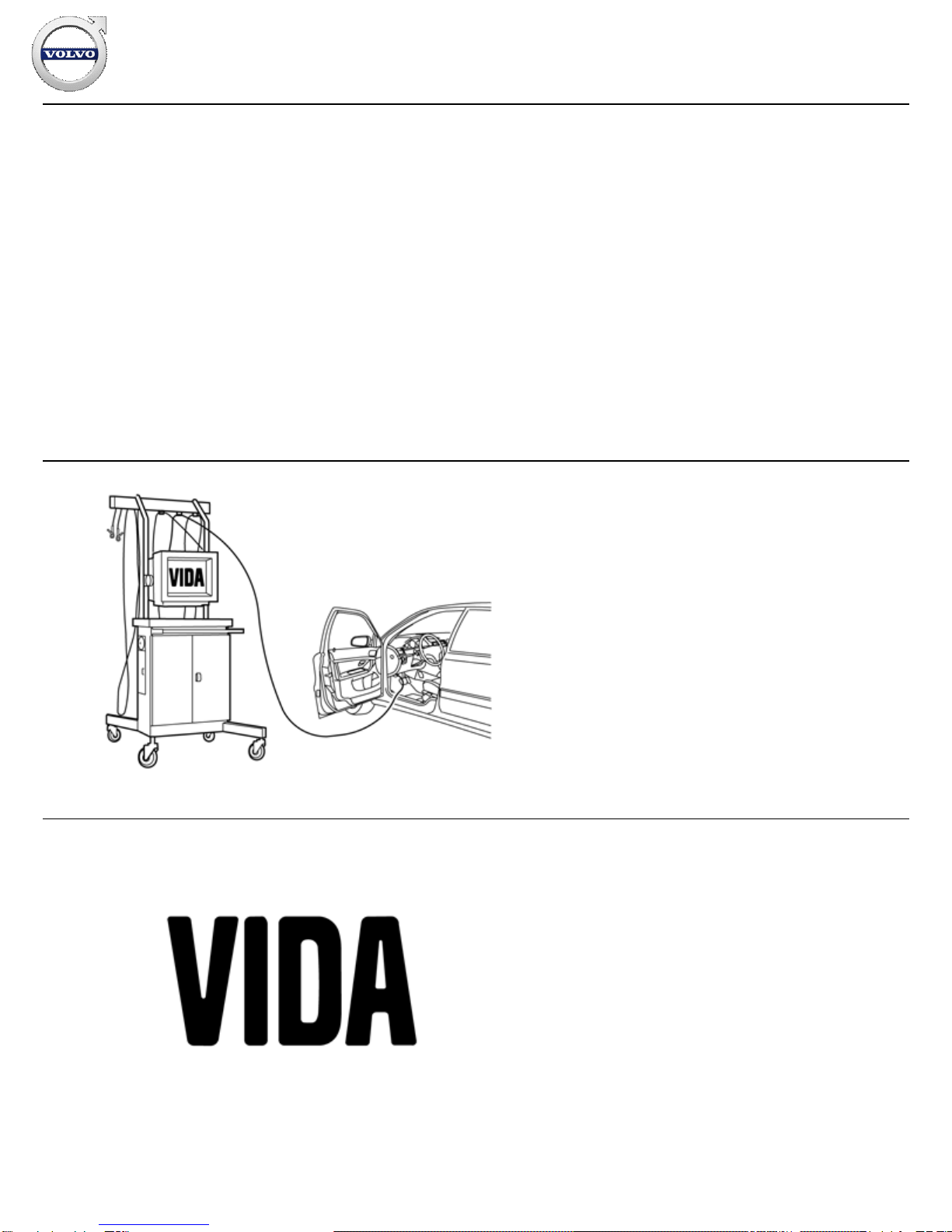

Reinstall the removed parts in reverse order.
44
IMG- 242268
Download software (application) for the accessory's function
according to the service information in VIDA. See VIDA or the
accessories catalogue for software part number.
45
IMG- 275777
Calibrate according to: DIAGNOSTICS/VEHICLE
COMMUNICATION/Advanced/PAC/Service calibration, parking
camera
