1. SAFETY INSTRUCTIONS
Read the enclosed safety warnings, the
additional safety warnings and the
instructions. Failure to follow the safety
warnings and the instructions may result in
electric shock, fire and/or serious injury.
Save the safety warnings and the instruc-
tions for future reference.
The following symbols are used in the user manual
or on the product:
Read the instructions!
Risk of personal injury.
Risk of electric shock.
Wear hearing protection.
Wear eye protection.
Caution: Do not touch rotating blades.
Sharp blade(s). Beware of severing toes or
fingers. Keep bystanders, especially
children and pets, at adistance greater
than 10m.
The lawn mower shall not be operated
without either the entire grass catcher or
the guard in place.
Do not use in the rain or leave the mower
outdoors while it is raining.
Switch off and remove safety key (isolator
switch) before adjusting, cleaning and
before leaving the product unattended for
any period of time.
Use only batteries which are charged to the
same level. Never combine full and half-full
batteries. Always charge the two batteries
simultaneously. The equipment‘soperating
time depends on the battery with the lower
charge level. The two batteries must always
be fully charged before use. Close the
battery cover before use.
Warning: for use with
CD803AA 4.0Ah only!
This machine is designed and developed
specifically to be used with CD803AA
4.0Ah only. It is not allowed to use this
machine with CD801AA 2.0Ah battery or
any other battery type, as it may
permanently damage the battery and/or
the machine. Warranty is voided for both
battery as the machine, when the wrong
battery type is used.
Wait until all machine components have
completely stopped before touching them.
The blades continue to rotate after the
machine is switched off, arotating blade
can cause injury.
Make sure that bystanders are not injured
by foreign objects being thrown away.
Warning: Keep asafe distance to the
product when operating.
Carefully check the area where the tool is to
be used for wildlife and pets. Wildlife and
pets may be injured while the machine is in
operation. Thoroughly check the working
area and remove any stones, sticks, wires,
bones and foreign objects. When sing the
machine, ensure that no wildlife, pets or
small tree stumps are hidden in the dense
grass.
Only use the battery charger indoors.
Conforms to all relevant European
Directives.
Do not dispose of the product in unsuitable
containers.
The guaranteed sound power level LWA
= 96 dB(A)
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings
and instructions may result in electric
shock, fire and/or serious injury.

10
EN
WWW.VONROC.COM
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to
your mains-operated (corded) power tool or bat-
tery-operated (cordless) power tool.
1) Work area safety
a) Keep the work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive atmos-
pheres, such as in the presence of flammable
liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while oper-
ating apower tool. Distractions can cause you to
lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets
will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet condi-
tions. Water entering apower tool will increase
the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating apower tool outdoors, use an
extension cord suitable for outdoor use. Use of
acord suitable for outdoor use reduces the risk
of electric shock.
f) If operating apower tool in adamp location is
unavoidable, use aresidual current device (RCD)
protected supply. Use of an RCD reduces the risk
of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating apower tool. Do
not use apower tool while you are tired or under
the influence of drugs, alcohol or medication.
Amoment of inattention while operating power
tools may result in serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as
dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate condi-
tions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carry-
ing the tool. Carrying power tools with your finger
on the switch or energising power tools that have
the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. Awrench or akey left
attached to arotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust related hazards.
h) Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. Acareless action can cause
severe injury within afraction of asecond.
4) Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source and/
or the battery pack from the power tool before
making any adjustments, changing accessories,
or storing power tools. Such preventive safety
measures reduce the risk of starting the power
tool accidentally.
d) Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.

EN
11
WWW.VONROC.COM
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’soperation. If damaged, have the power
tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and the
work to be performed. Use of the power tool for
operations different from those intended could
result in ahazardous situation.
h) Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles
and grasping surfaces do not allow for safe
handling and control of the tool in unexpected
situations.
5) Battery tool use and care
a) Recharge only with the charger specified by
the manufacturer. Acharger that is suitable for
one type of battery pack may create arisk of fire
when used with another battery pack.
b) Use power tools only with specifically design-
ated battery packs. Use of any other battery
packs may create arisk of injury and fire.
c) When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects
that can make aconnection from one terminal to
another. Shorting the battery terminals together
may cause burns or afire.
d) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact acci-
dentally occurs, flush with water. If liquid con-
tacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or
burns.
e) Do not use abattery pack or tool that is damaged
or modified. Damaged or modified batteries may
exhibit unpredictable behaviour resulting in fire,
explosion or risk of injury.
f) Do not expose abattery pack or tool to fire
or excessive temperature. Exposure to fire or
temperature above 130 °C may cause explosion.
NOTE The temperature „130 °C“ can be replaced
by the temperature „265 °F“.
g) Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specified in the instructions.
Charging improperly or at temperatures outside
the specified range may damage the battery and
increase the risk of fire.
6) Service
a) Have your power tool serviced by aqualified
repair person using only identical replacement
parts. This will ensure that the safety of the
power tool is maintained.
b) Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
ADDITIONAL SAFETY INSTRUCTION FOR
BATTERY LAWN MOWERS
• Never allow children or people unfamiliar with
these instructions to use the product. Local
regulations may restrict the age of the operator.
When not in use store the product out of reach of
children.
• Never allow children, persons with physical,
sensory or mental limitations or alack of experi-
ence and/or knowledge and/or people unfamiliar
with these instructions to use the product. Local
regulations may re-strict the age of the operator.
• Children should be supervised to ensure that
they do not play with the product.
• Never work while people, especially children, or
pets are nearby.
• The user is responsible for accidents or hazards
occurring to other people or their property.
• Do not wear open rubber shoes or sandals when
using the product. Al-ways wear sturdy shoes
and long trousers. Do not use barefoot.
• Thoroughly inspect the area where the machine
is to be used and re-move all stones, sticks,
wires, bones and other foreign objects.
• Before using, always visually inspect to see that
the blades, blade bolts and cutter assembly are
not worn or damaged. Replace worn or damaged
blades and bolts in sets to preserve balance.
• Mow only in daylight or in good artificial light.
• Avoid mowing in bad weather conditions espe-
cially when there is arisk of lightning.
• Avoid operating the machine in wet grass, where
feasible.
• Walk, never run.
• Never operate the machine with defective guards
or shields, or without safety devices, for example

12
EN
WWW.VONROC.COM
deflectors and/or grass catchers in place.
• We would advise you to wear ear protection for
your own convenience.
• Never operate the product when you are tired,
ill or under the influence of alcohol, drugs or
medicine.
• Working on banks can be dangerous:
− Do not mow on excessively steep slopes.
− Always be sure of your footing on slopes or
wet grass.
− Mow across the face of slopes never up and
down.
− Exercise extreme caution when changing
direction on slopes.
• Use extreme caution when stepping back or
pulling the machine towards you.
• Never mow by pulling the mower towards you.
• Wait until the blades stop if the machine has to
be tilted for transportation when crossing sur-
faces other than grass and when transporting
the machine to and from the area to be mowed.
• Do not tilt the machine when starting or switch-
ing on the motor.
• Switch on the motor according to the instruc-
tions with feet well away from rotating parts.
• Do not put hands or feet near or un-der rotating
parts.
• Always stand clear of the discharge zone when
operating the machine.
• Never pick up or carry the machine while the
motor is running.
• When storing, make sure that all 4 wheels of the
garden tool stand on the ground/floor.
• Only lift the garden tool with the carrying handle.
Use the carrying handle with care.
• Do not modify the machine. Unauthorized modi-
fications can impair the safety of your machine,
lead to increased noise and vibrations, and poor
performance.
• Remove the safety key (isolator switch):
– Whenever you leave the machine.
– Before clearing ablockage.
– Before checking, cleaning or working on the
machine.
– After striking aforeign object. Inspect the
machine for damage and change the blade
as necessary.
– If the machine starts to vibrate abnormally
(check immediately).
SAFETY WARNINGS FOR BATTERY
a) Do not open the battery. Danger of short-circuit-
ing.
b) Protect the battery against heat, e. g., against
continuous intense sunlight, fire, water, and
moisture. Danger of explosion.
c) In case of damage and improper use of the bat-
tery, vapours may be emitted. Ventilate the area
and seek medical help in case of complaints.
The vapours can irritate the respiratory system.
d) Use the battery only in conjunction with your
Vonroc product. This measure alone protects
the battery against dangerous overload.
e) The battery can be damaged by pointed objects
such as nails or screwdrivers or by force
applied externally. An internal short circuit can
occur and the battery can burn, smoke, explode
or overheat.
SAFETY WARNINGS FOR CHARGER
Intended use
Charge only CD801AA and CD803AA type recharge-
able Battery packs with the charger. Other types
of batteries may burst causing personal injury and
damage.
a) The appliance is not to be used by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of expe-
rience and knowledge, unless they have been
given supervision or instruction.
b) Children being supervised not to play with the
appliance.
c) Do not recharging non-rechargeable batteries!
d) During charging, batteries must be placed in
the well ventilated area!
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in asafe way and understand
the hazards involved. Children shall not play
with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.

EN
13
WWW.VONROC.COM
Electrical safety
Always check that the voltage of the power
supply corresponds to the voltage on the
rating plate.
• Do not use the machine if the mains cable or
the mains plug is damaged.
• Only use extension cables that are suitable for
the power rating of the machine with aminimum
thickness of 1.5 mm
2
. If you use an extension
cable reel, always fully unroll the cable.
2. MACHINE INFORMATION
Intended use
This product is designed for lawnmowing in domestic
environments. The lawn mower is intended for pri-
vate gardens at home. The lawn mower may not be
used to trim bushes, hedges or shrubs, to cut scaling
vegetation, planted roofs, or balcony-grown grass,
to clean (vacuum) dirt and debris off walkways, or to
chop up tree or hedge clippings. Moreover, the lawn
mower may not be used as apower cultivator to level
out high areas such as molehills. The equipment is
to be used only for its prescribed purpose. Any other
use is deemed to be acase of misuse.
TECHNICAL SPECIFICATIONS
MACHINE
Model No. S4_LM505DC
Voltage 40V (2 x 20V)
No load speed 3500/min
Cutting width 380 mm
Cutting height 35/45/55/65mm
Grass box capacity 45 L
Weight 16,5 kg
Protection level IPX1
Sound pressure level (Lpa) 80.8dB(A), K=3dB(A)
Sound power level (Lwa) 91.4dB(A), K=2.29dB(A)
Vibration value <2.5m/s, K=1.5m/s
BATTERY
Model No. CD803AA
Battery Type Lithium-Ion
Voltage 20V
Capacity 4.0 Ah
Recommended charger CD802AA, CD820AA
Weight 0.65 kg
CHARGER
Model No. CD802AA
Charger input 220-240V, 50Hz 0.4A
Charger output 21V 2.5A
Charging time 2Ah battery 60 minutes
Charging time 4Ah battery 120 minutes
Recommended batteries CD801AA, CD803AA
Weight 0.36 kg
Model No. CD820AA
Charger input 220-240V, 50-60Hz,
200W
Charger output 21V 2.3A, <3.8A
Charging time 2Ah battery 45 minutes
Charging time 4Ah battery 85 minutes
Recommended batteries CD801AA, CD803AA
Weight 0.81 kg
Only use the following batteries of the VONROC
VPOWER 20V battery platform. Using any other
batteries could cause serious injury or damage the
tool.
CD803AA 20V, 4Ah Lithium-Ion
The following chargers can be used to charge
these batteries.
CD802AA Quick charger
CD820AA Dual quick charger
Vibration level
The vibration emission level stated in this instruc-
tion manual has been measured in accordance
with astandardized test given in EN 60335-1 and
EN 60335-2-77; it may be used to compare one
tool with another and as apreliminary assessment
of exposure to vibration when using the tool for the
applications mentioned.
• Using the tool for different applications, or with
different or poorly maintained accessories, may
significantly increase the exposure level.

14
EN
WWW.VONROC.COM
• The times when the tool is switched off or when
it is running but not actually doing the job, may
significantly reduce the exposure level.
Protect yourself against the effects of vibration by
maintaining the tool and its accessories, keep-
ing your hands warm, and organizing your work
patterns.

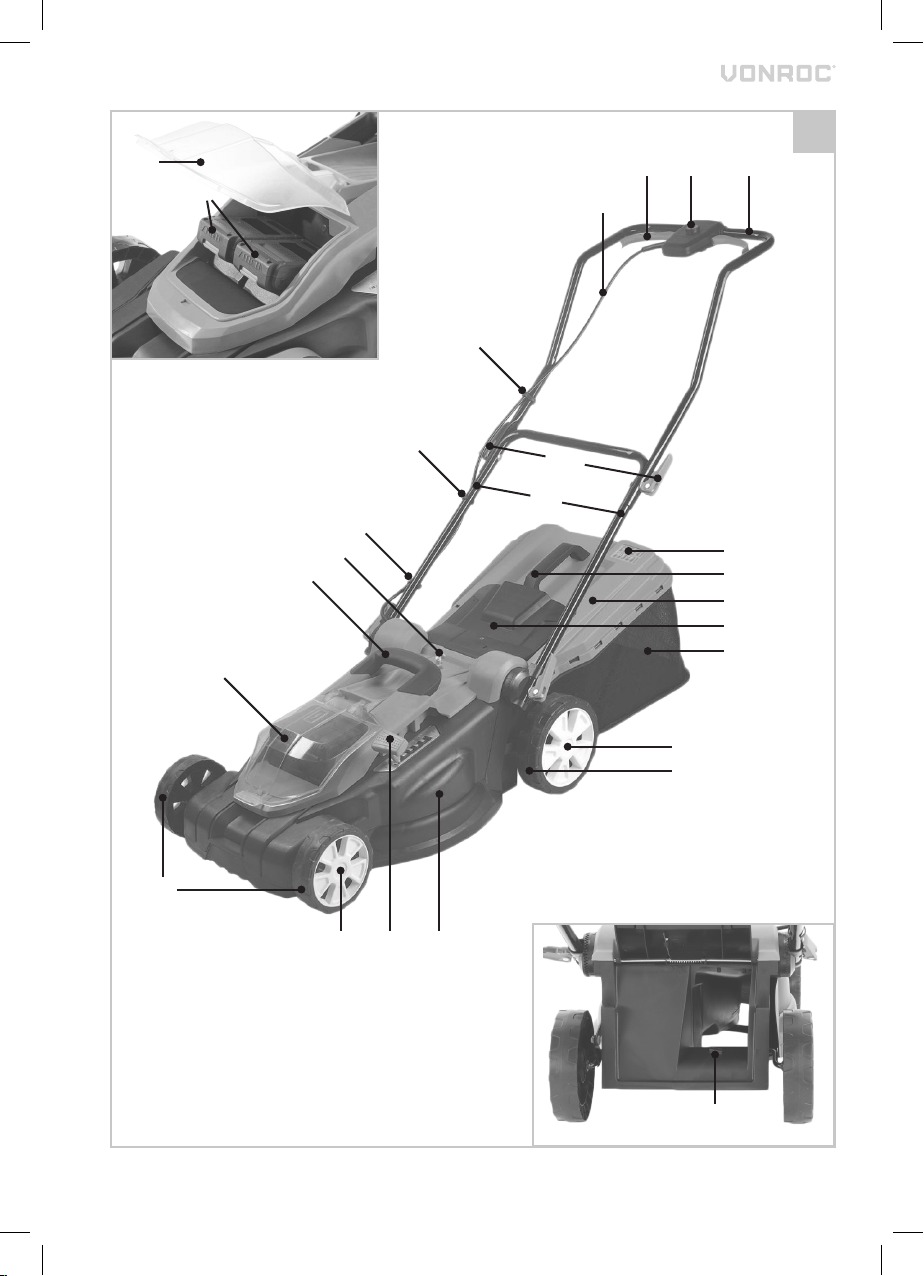

DESCRIPTION

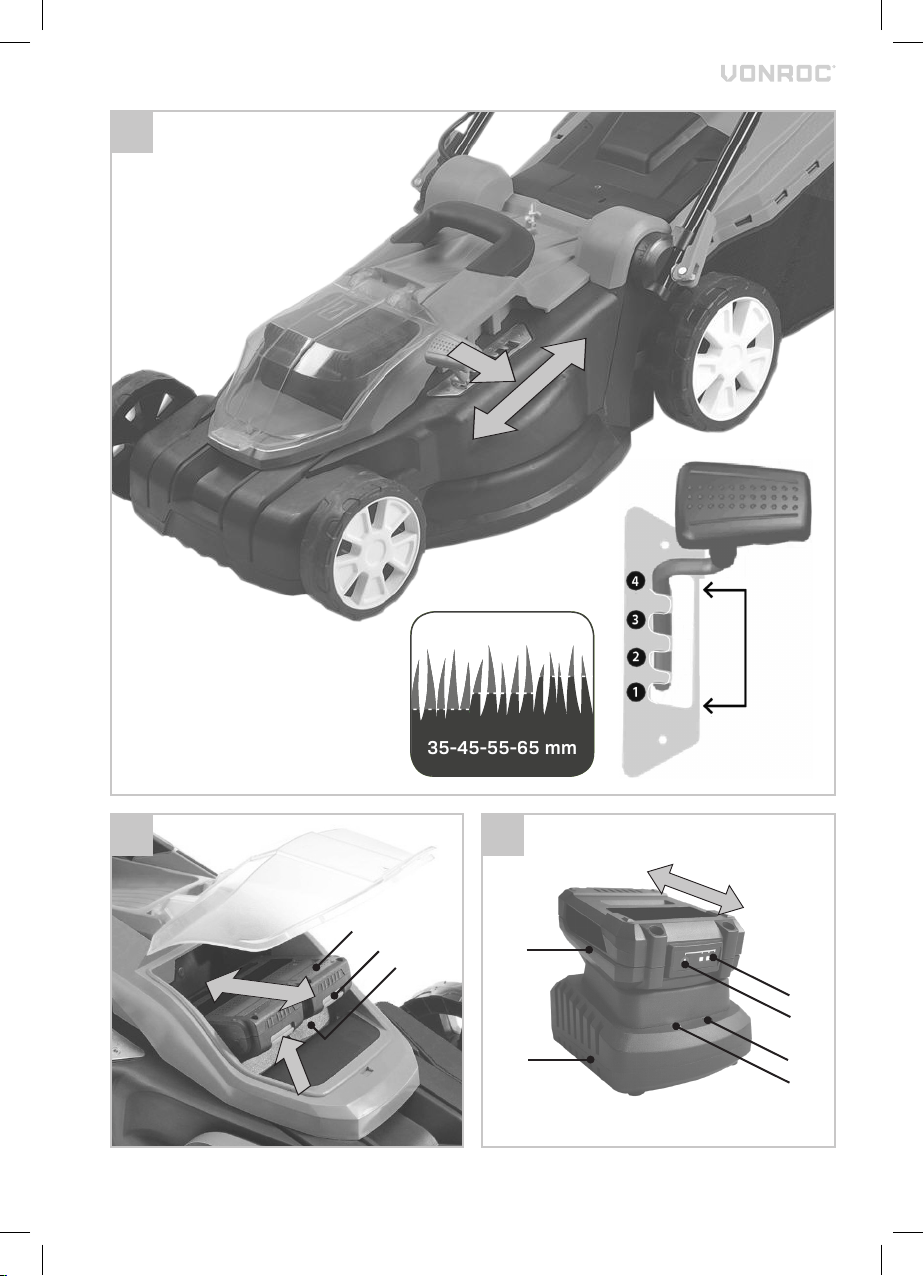

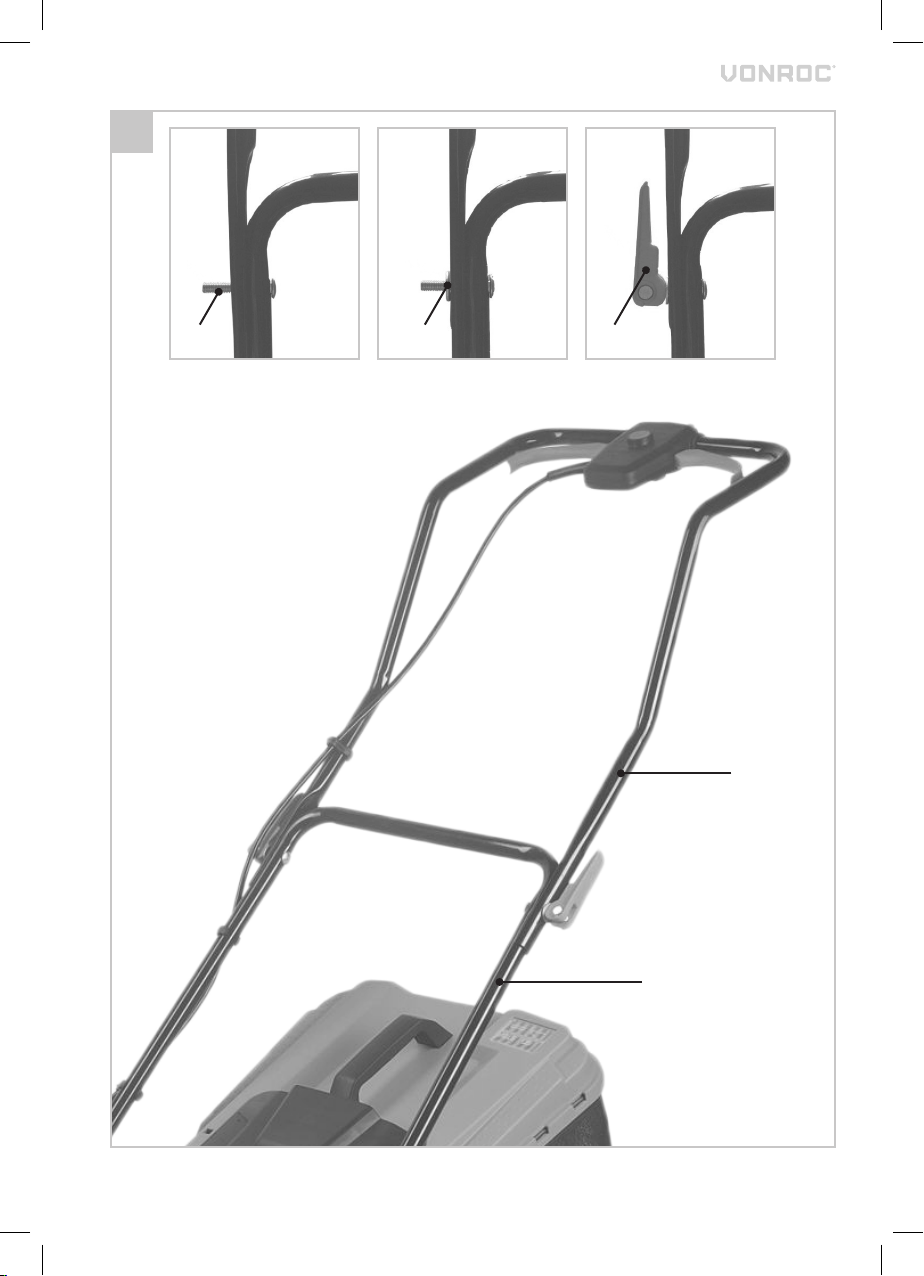

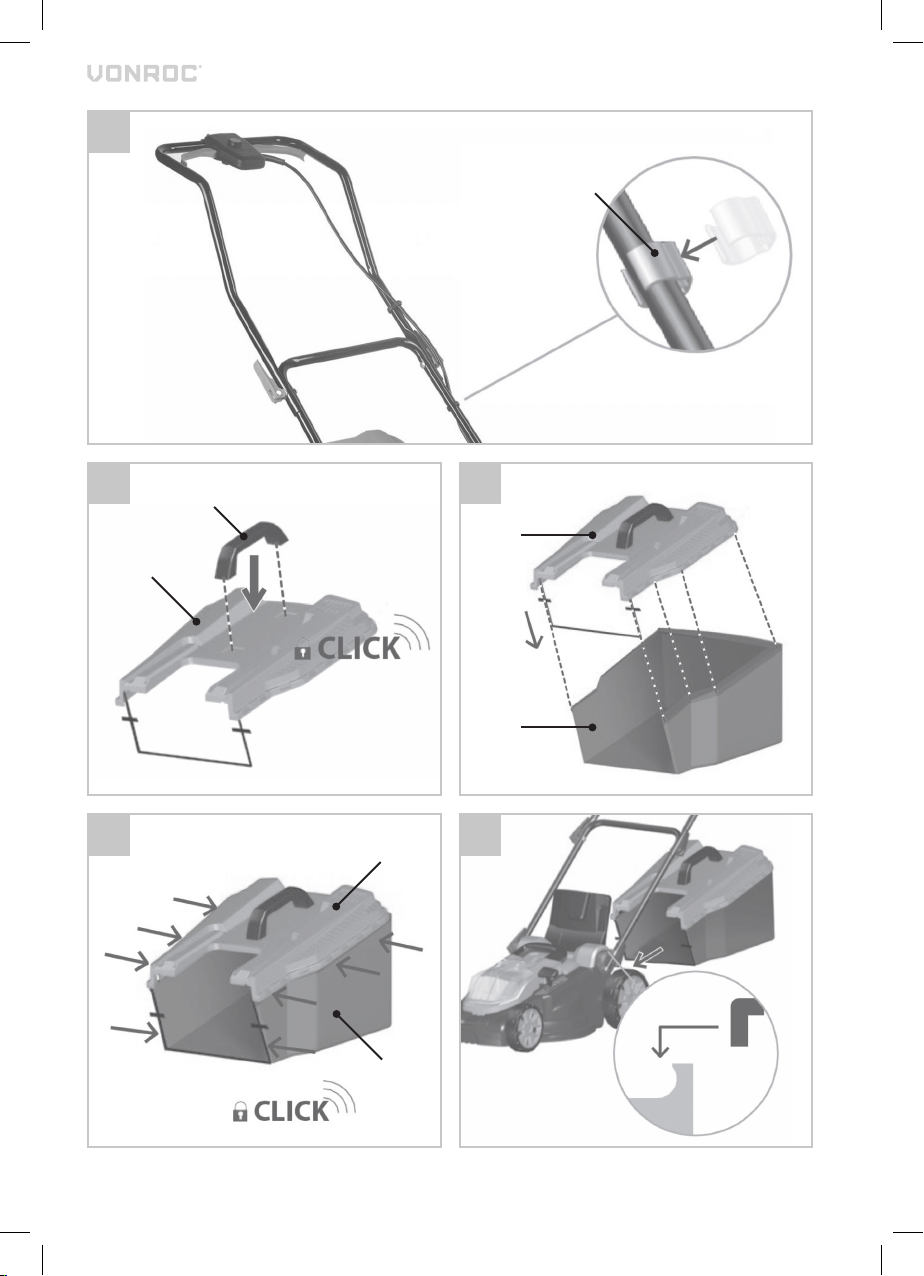

The numbers in the text refer to the diagrams on
pages 2-8.
1. Upper handle
2. On/off switch
3. Safety button
4. Power cable
5. Machine
6. Cable holder
7. Carrying handle
8. Wheel
9. Wheel cover
10.Grass box bag
11.Grass box lid
12.Grass box cover
13.Grass level indicator
14.Lower handle
15A. Upper handle adjustment knob
15B. Bolt for upper handle
15C. Washer for upper handle
16.Grass box carrying handle
17.Height adjustment lever
18.Grass outlet
19.Battery compartment cover
20.Battery bay
21.Safety key (isolator switch)
22.Battery unlock button
23.Battery
24.Battery LED indicators button
25.Battery LED indicators
26.Charger
27.Charger LED indicators
28.Blade
29.Blade bolt
30.Charger
31.Green LED indicators
32.Amber LED indicators
33.Red LED indicators
34A. Lower handle adjustment knob
34B. Bolt for lower handle
34C. Washer for lower handle
3. ASSEMBLY
Before any work on the power tool, remove
the battery.
The battery must be charged before first use.
Warning: Use only batteries which are
charged to the same level. Never combine full
and half-full batteries. Always charge the two
batteries simultaneously. The equip-
ment‘soperating time depends on the battery
with the lower charge level. The two batteries
must always be fully charged before use.
Inserting the battery into the machine (Fig. A, J)
Ensure that the exterior of the battery is
clean and dry before connecting to the
charger or machine. Close the battery cover
before use.
Warning: for use with
CD803AA 4.0Ah only!
This machine is designed and developed
specifically to be used with CD803AA
4.0Ah only. It is not allowed to use this
machine with CD801AA 2.0Ah battery or
any other battery type, as it may
permanently damage the battery and/or
the machine. Warranty is voided for both
battery as the machine, when the wrong
battery type is used.
1. Open the battery compartment cover (19).
2. Insert the battery (23) into the battery bay (20)
as shown in Fig. J.
3. Push the battery further forward until it clicks
into place.
4. Repeat for the other battery (23).
5. Close the battery compartment cover (19).
Removing the battery from the machine (Fig. A, J)
1. Open the battery compartment cover (19).
2. Pull the battery (23) out of the battery bay (20)
as shown in Fig. J.
3. Repeat for the other battery (23).
Checking the battery charging status (Fig. K)
• To check the battery charge status, push the
button (24) on battery shortly.
• The battery has 3 lights indicating the charge
level, the more lights that burn, the more charge
the battery has left.

EN
15
WWW.VONROC.COM
• When the lights are not burning it means the bat-
tery is empty and must be charged immediately.
Charging the battery with the CD802AA charger
(Fig. K)
1. Take the battery (23) from the machine.
2. Turn the battery (23) to upside down position and
slide it onto the charger (26) as shown in Fig. K.
3. Push the battery until it is fully pushed into the
slot.
4. Plug the charger plug into an electrical outlet and
wait for awhile. The LED indicators on the charger
(27) will lighten up and show the charger status.
The charger has 2 LED indicators (27) which indicate
the status of the charging process:
Red LED
Status
Green LED
status Charger status
Off Off No power
Off On
Standby mode:
- No battery is inserted or,
- Battery inserted but
charging has finished
On Off Battery charging in progress
• Fully charging the 4Ah battery may take up to
120 minutes.
After the battery is fully charged remove the charg-
er plug from the outlet and remove the battery from
the charger.
When the machine is not being used over
alonger period of time it is best to store the
battery in charged condition.

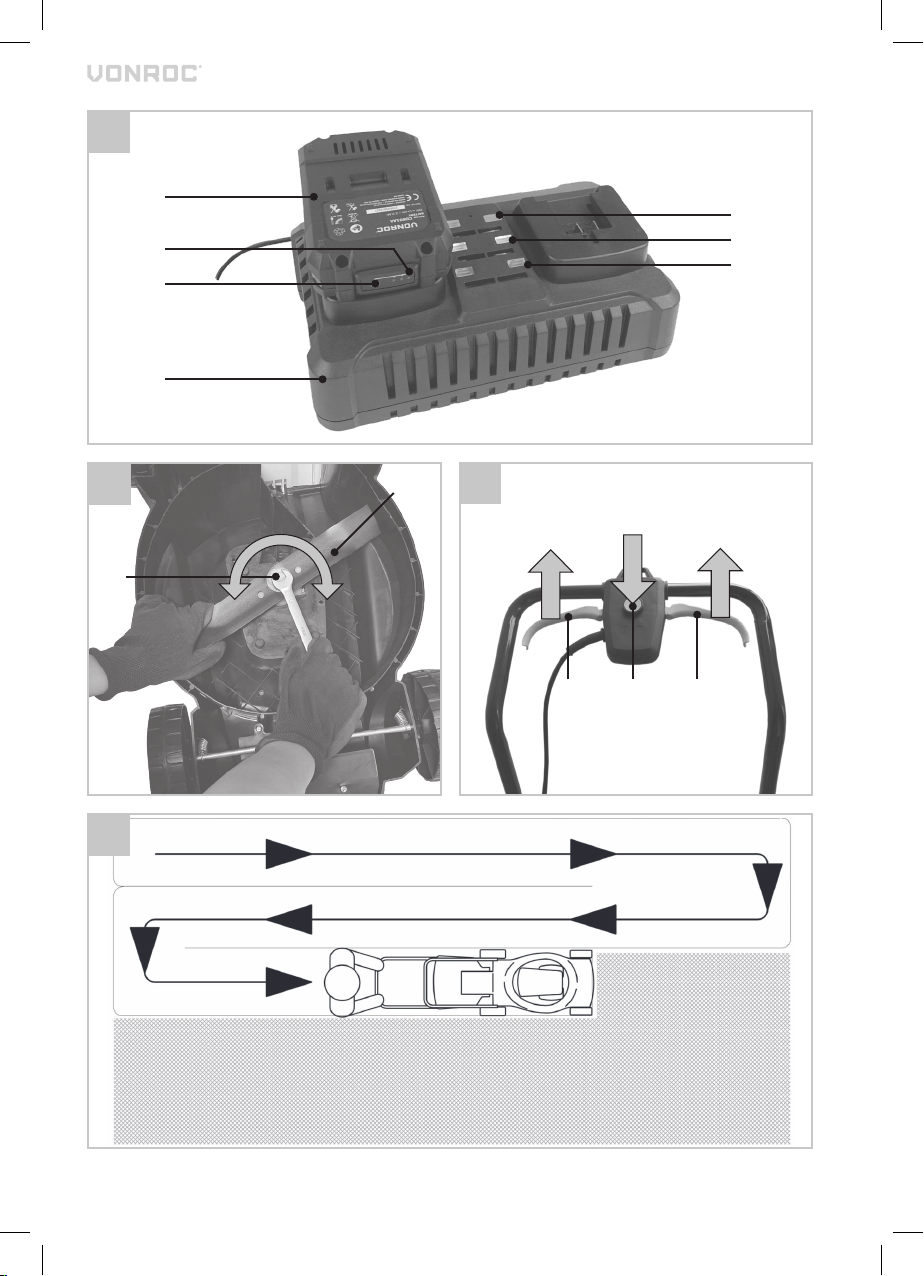

Charging the battery with the CD820AA dual
charger (Fig. L)
1. Take the battery (26) from the machine.
2. Turn the battery (26) to upside down position
and slide it onto the charger (30) as shown in
Fig. L.
3. Push the battery until it is fully pushed into the
slot.
4. Plug the charger plug into an electrical outlet
and wait for awhile. The LED indicators on the
charger (31, 32, 33) will lighten up and show
the charger status.
The charger has 6 LED indicators (31, 32, 33)
which indicate the status of the charging process:
Item Conditions LED colour
Red Amber Green
Stand by Power on On On On
Charging Started charging
(10-19V DC±0.5V DC) Blink Off Off
Halfway charging
(19-20V DC±0.5V DC) On Blink Off
Finished charging
(20-21V DC±0.5V DC) On On Blink
Fully
charged
Trickle charging
≤300±150mA On On On
Stop charging
High tem-
perature
High-temperature
protection of the
battery works
On On On
• Fully charging the 4Ah battery may take up to
85 minutes.
After the battery is fully charged remove the charger
plug from the outlet and remove the battery from the
charger.
When the machine is not being used over
alonger period of time it is best to store the
battery in charged condition.
Assembling the lower handle (Fig. A, B)
1. Mount the lower handle (14) onto the lawn
mower body, as shown on figure B.
2. Put the washer (34C) onto the bolt (34B).
3. Screw the handle adjustment knob (34A) onto
the bolt (34B) with assembled washer and
secure the handle by closing it.
4. Repeat these steps for the other side.
Assembling the upper handle (Fig. A, C, D)
1. Attach the upper handle (1) to the lower handle
(14).
2. Secure the upper handle (1) by inserting the
bolts (15B), washers (15C) and handle knobs
(15A) as shown on figure C.
3. Fixate the cable to the handle by using the
cable holders (6), as shown on figure D.

16
EN
WWW.VONROC.COM
Assembling and mounting the grass box
(Fig. A, E, F, G, H)
The lawn mower shall not be operated
without either the entire grass catcher or
the guard in place.
It is possible to use the lawn mower with or without
grass box. Remember though that when cutting
without the grass box, the grass box lid (11) must
be lowered. Do not operate the mower with outlet
lid lifted.
1. Mount the Grass box carrying handle (16) onto
the grass box cover (12), as shown on figure E.
2. Mount the grass box cover (12) onto the grass
box bag (10), as shown on figure F.
3. Ensure the notches are properly inserted until
aclicking noise can be heard, as shown on figure
G.
4. Lift the grass box lid (11) and attach the assem-
bled grass box onto the lawn mower, as shown on
figure H. Ensure the indents in the grass box align
properly with the holders of the lawn mower body.
Note: the grass box is fitted with agrass level
indicator (13), which shows the amount of mowed
grass. As long as the grass box is not full, the indi-
cator will be opened. When the grass box is full, the
indicator will close. In that case immediately stop
mowing and empty the grass box. This indicator is
only arough guideline, of which the functionality
depends on the condition inside the grass basket.
Replacing the cutting blade (Fig. A, M)
Before any work on the power tool, remove
the battery.
When replacing the cutting blade, wear
protective gloves. Danger of injury when
touching the cutting blade.
Only use blades that are recommended by
the manufacturer.
1. Remove the grass box.
2. Turn the mower onto its side.
3. Firmly hold cutting blade using protective gloves.
4. Turn the cutting blade fixing screw counterclock-
wise to loosen it, as shown on figure M.
5. Replace or sharpen the cutting blade.
6. Install the cutting blade, use the above pro-
cedure in reversed order (holes in the cutting
blade must be seated on the spindle pins).
7. It is best to entrust sharpening or replacement
of cutting blade to aqualified person. Only orig-
inal parts should be used. All defects should be
repaired by service workshop authorized by the
manufacturer.
4. OPERATION
Before using, always visually inspect to see
that the blades, blade bolts and cutter
assembly are not worn or damaged. Please
remove the battery from the tool. Replace
worn or damaged blades and bolts in sets
to preserve balance.
If the machine starts to vibrate abnormally
(check immediately):
- inspect for damage,
- replace or repair any damaged parts,
- check for and tighten any loose parts.
Immediately switch off the machine in the
following cases:
- whenever you leave the machine,
- before clearing blockages or unclogging
chute,
- before checking, cleaning or working on
the machine,
- after striking aforeign object. Inspect the
machine for damage and make repairs
before restarting and operating the ma-
chine;
Be careful during adjustment of the
machine to prevent entrapment of the
fingers between moving blades and fixed
parts of the machine.
Adjusting the cutting height (Fig. A, I)
Switch off the equipment, wait for the blade
to stop and remove the battery. There is
arisk of injury.
Depending on the preferred cutting height, you
can adjust the heigh level in one of five positions.
Adjust the cutting height according to the needs of
your lawn. The cutting height depends on the kind
of lawn and its actual height. When mowing high
grass, start with the maximum cutting height and

EN
17
WWW.VONROC.COM
make asecond cut with alower cutting height.
Ahigher cut height should always be selected for
the first cut of the season.
1. Pull the height adjustment lever (17) outwards
(away from the machine housing) as shown on
figure I.
2. Whilst holding the height adjustment lever (17)
in outwards position, push it forward or back-
ward to the desired cutting height.
3. Release the lever (17) and ensure it engaged in
the slot properly.
NOTE: There are 4 cutting height levels available:
35mm, 45mm, 55mm, 65mm
Adjusting the handle (Figure A, P)
When adjusting the upper handle (1) or
lower handle (14), ensure that the power
cable is not caught.
The upper handle (1) can be folded inwards, to store
the lawn mower in amore compact formfactor.
The lower handle (14) can also be folded inwards
for storage purposes, but it can also be adjusted
in several positions as shown on figure P. This way,
the lawn mower can be adjusted to the ideal height
depending on the length of the user.
Switching the machine on/off (Fig. A, N)
Before starting, put the product on aflat
surface free of high grass.
Clean the underside of the deck before
turning on the machine.
Keep your feet well away from the cutting
blade.
Do not tilt the product when starting the
motor.
1. Ensure the safety key (21) is inserted in the
designated spot on top of the machine housing,
behind the carrying handle (7).
2. To start the machine, press and hold the safety
button (3) and press the on/off switch (2).
Whilst holding the on/off switch (2), you can
release pressure on the safety button (3).
3. To stop the machine, release the on/off switch
(2) and wait until cutting blade stops rotating.
Operating the mower (fig. A, O)
Always ensure that asafe distance
(provided by the length of the long handles)
is maintained between the user and the
mower housing.
Be especially careful when mowing and
changing direction on slopes and inclines.
Maintain asolid footing and wear sturdy,
non-slip footwear and long trousers. Always
mow along the incline (not up and down).
For safety reasons, the lawn mower may not
be used to mow inclines whose gradient
exceeds 15 degrees.
Use special caution when backing up and
pulling the lawn mower. Tripping hazard!
Before use
• Make sure that the lawn is clear of stones,
sticks, wire or other objects that could damage
the product or its product.
• Do not cut wet grass because it tends to stick
to the underbody of the product, preventing the
proper discharge of grass clippings, and it could
also cause you to slip and fall.
• Never cut off more than one-third of the total
length of the grass for ahealthy lawn. In the
autumn, lawns should only be cut as long as
there is growth.
• Slowly push the product forward, do not force.
• Mow in slight overlapping rows. The most effec-
tive hat all the lawn is cut without missing any
spots, as shown on figure O.
• Circle around flower beds. When reaching
aflower bed in the middle of the lawn, cut arow
or two around the circumference of the bed.
• Pay special attention when changing direction.
• Always mow along inclines (not up and down).
You can prevent the lawn mower from slipping
down by holding aposition at an angle upwards.
• Select the cutting height according to the
length of the grass. Make several passes to
prevent that too much grass is cut at one time.
• Empty the grass box regularly.
Note: The operating time of the rechargeable bat-
teries and therefore the area in square meters that
can be covered with asingle battery charge is largely
dependent on the state of the grass (e.g. density,
moisture, height, cutting height, etc.) and the mowing

18
EN
WWW.VONROC.COM
speed (walking speed). To adjust the area coverage to
your individual requirements, it is recommended that
you mow the lawn more often, with ahigher cutting
height and at an appropriate speed. Frequently
turning the equipment on and off while mowing will
also reduce the amount of area that you can cover. If
the operating time of the rechargeable batteries (area
coverage) is still unsatisfactory in spite of the above
measures, you can remedy the problem by using
rechargeable batteries with alarger capacity (Ah).
After use
1. After use, switch the product off, disconnect the
safety key (21).
2. Remove the battery packs (23).
3. Check, clean and store the product as described
in chapter ‘maintenance’.
5. MAINTENANCE
Switch off the equipment, wait for the blade
to stop and remove the battery. There is
arisk of injury.
Cleaning
Your mower has been designed to operate over
along period of time with minimum of mainte-
nance. Continuous satisfactory operation depends
upon proper mower care and regular cleaning.
• Keep the mower clean and dry.
• Regularly use ablunt scraper to remove grass
and dirt from the mower
• To clean the mower, use only mild soap and
adamp cloth. Never let any liquid get inside
the tool and never immerse any part of the tool
into liquid. Do not use any abrasive or solvent -
based cleaner.
Stop the blade(s) if the machine has to be tilted for
transportation when crossing surfaces other than
grass, and when transporting the machine to and
from the area to be used. Do not start the machine
when standing in front of the discharge opening.
Storage
Always allow the machine to cool down before stor-
ing. Replace worn or damaged parts for safety. Use
only genuine replacement parts and accessories.
1. Switch the product off, disconnect the safety key
(21) and remove the battery pack (23) before
storage.
2. Clean the product as described above.
3. Store the product and its accessories in adark,
dry, frost-free, well-ventilated place. The ideal
storage temperature is between 10 °C and 30 °C.
4. Always store the product in aplace that is inac-
cessible to children.
5. We recommend using the original package for
storage or covering the product with asuitable
cloth or enclosure to protect it against dust.
Transportation
1. Switch the product off, disconnect the safety
key (21) and remove the battery pack (23)
before transporting it anywhere.
2. Always transport the product by its transport
handle (7).
3. Protect the product from any heavy impact or
strong vibrations which may occur during trans-
portation in vehicles.
4. Secure the product to prevent it from slipping or
falling over, damage and injury.
ENVIRONMENT
Faulty and/or discarded electrical or
electronic apparatus have to be collected at
the appropriate recycling locations.
Only for EC countries
Do not dispose of power tools into domestic waste.
According to the European Guideline 2012/19/EC
for Waste Electrical and Electronic Equipment and its
implementation into national right, power tools that
are no longer usable must be collected separately
and disposed of in an environmentally friendly way.
WARRANTY
VONROC products are developed to the highest
quality standards and are guaranteed free of
defects in both materials and workmanship for the
period lawfully stipulated starting from the date of
original purchase. Should the product develop any
failure during this period due to defective material
and/or workmanship then contact VONROC directly.
The following circumstances are excluded from this
guarantee:
• Repairs and or alterations have been made
or attempted to the machine by unauthorized
service centers;

DE
19
WWW.VONROC.COM
• Normal wear and tear;
• The tool has been abused, misused or improperly
maintained;
• Non-original spare parts have been used.
This constitutes the sole warranty made by
company either expressed or implied. There are
no other warranties expressed or implied which
extend beyond the face hereof, herein, including
the implied warranties of merchantability and
fitness for aparticular purpose. In no event shall
VONROC be liable for any incidental or consequen-
tial damages. The dealers remedies shall be limited
to repair or replacement of nonconforming units or
parts. The product and the user manual are subject
to change. Specifications can be changed without
further notice.
The product and the user manual are subject to
change. Specifications can be changed without
further notice.
1. SICHERHEITSHINWEISE
Lesen Sie die beigefügten Sicherheitswar-
nungen, die zusätzlichen Sicherheitswar-
nungen und die Anweisungen. Die
Nichteinhaltung der Sicherheitswarnungen
und der Anweisungen kann in einem
Stromschlag, Brand und/oder in schweren
Verletzungen resultieren. Bewahren Sie die
Sicherheitswarnungen und Anweisungen
für künftige Referenzzwecke auf.

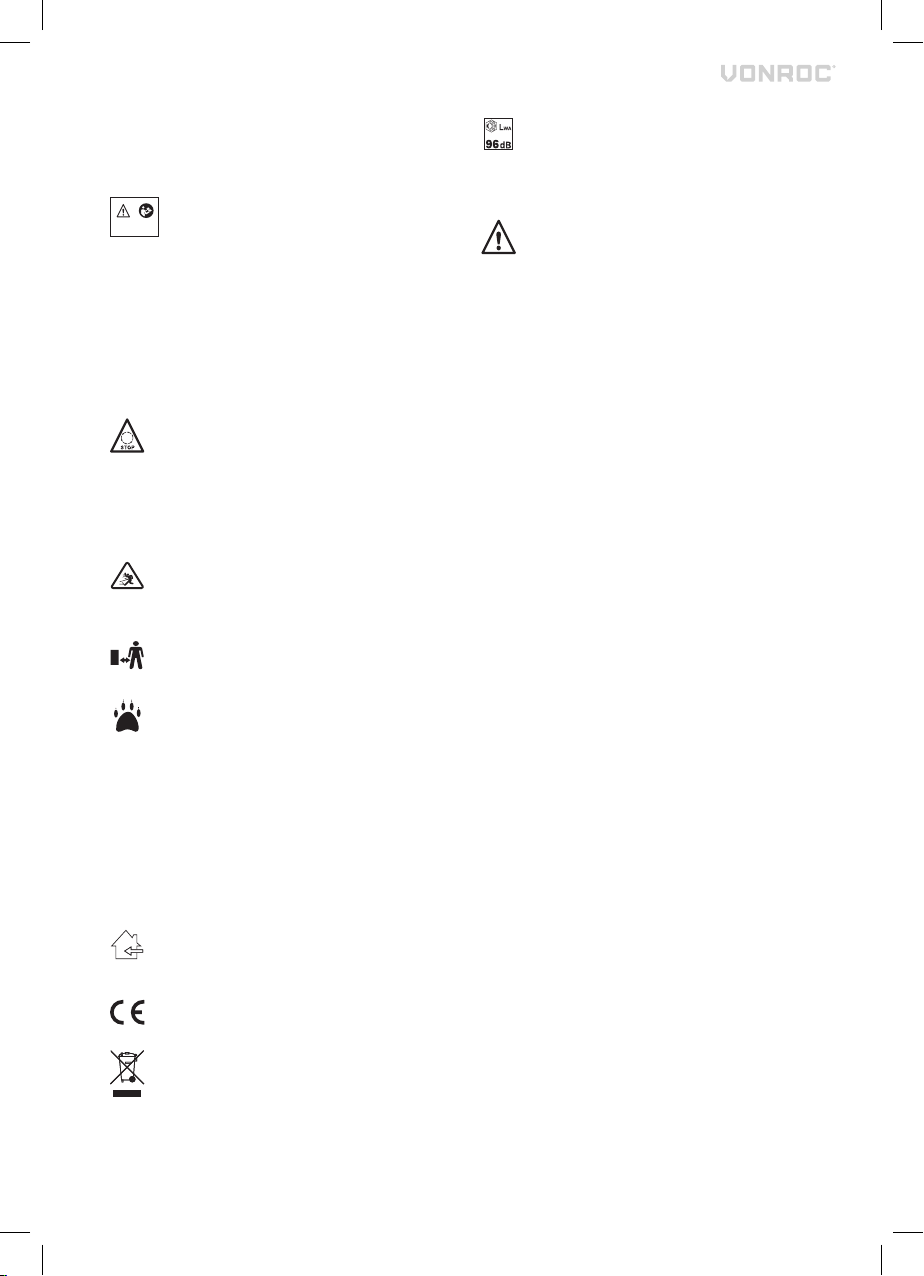

Die folgenden Symbole werden im Benutzerhand-
buch oder auf dem Produkt verwendet:
Lesen Sie die Anweisungen!
Verletzungsgefahr.
Stromschlagrisiko.
Immer einen Gehörschutz tragen.
Tragen Sie Augenschutz.
Vorsicht! Keine rotierenden Klingen
berühren. Scharfe Klinge(n). Gefahr des
Abtrennens von Zehen oder Fingern.
Zuschauer, insbesondere Kinder und
Haustiere in einem Abstand von mehr als
10 Metern halten.
Der Rasenmäher darf nicht ohne den
vollständigen Grasfänger oder die
Schutzvorrichtung betrieben werden.
Nicht im Regen verwenden oder den
Rasenmäher bei Regen draußen lassen.
Schalten Sie das Gerät aus und ziehen Sie
den Sicherheitsschlüssel (Trennschalter)
ab, bevor Sie es einstellen, reinigen oder für
längere Zeit unbeaufsichtigt lassen.
Verwenden Sie nur Akkus, die auf den
gleichen Stand aufgeladen sind. Niemals
volle und halbvolle Akkus kombinieren.
Laden Sie immer beide Akkus gleichzeitig
auf. Die Betriebsdauer des Geräts hängt von
dem Akku mit dem niedrigeren Ladestand
ab. Beide Akkus müssen vor dem Gebrauch

20
DE
WWW.VONROC.COM
immer vollständig aufgeladen werden.
Schließen Sie vor Gebrauch die Akkuabde-
ckung.
Warning: for use with
CD803AA 4.0Ah only!
Dieses Gerät wurde speziell für die
Verwendung mit dem Akku CD803AA
4.0Ah entwickelt und konstruiert. Das
Gerät darf nicht mit dem Akku CD801AA
2.0Ah oder einem anderen Akkutyp
verwendet werden, da dies zu dauerhaf-
ten Schäden am Akku und/oder am Gerät
führen kann. Die Garantie erlischt sowohl
für den Akku als auch für das Gerät, wenn
der falsche Akkutyp verwendet wird.
Warten Sie, bis alle Maschinenkomponen-
ten vollständig zum Stillstand gekommen
sind, bevor Sie sie berühren. Die Klingen
drehen sich auch nach dem Ausschalten
der Maschine weiter, eine rotierende Klinge
kann Verletzungen verursachen.
Stellen Sie sicher, dass Unbeteiligte nicht
durch umhergeschleuderte Fremdkörper
verletzt werden.
Warnung: Halten Sie beim Betrieb einen
Sicherheitsabstand zu dem Produkt ein.
Überprüfen Sie den Bereich, in dem das
Gerät eingesetzt werden soll, sorgfältig auf
Wildtiere und Haustiere. Wildtiere und
Haustiere können durch den Betrieb des
Geräts verletzt werden. Überprüfen Sie den
Arbeitsbereich gründlich und entfernen Sie
sämtliche Steine, Stöcke, Drähte, Knochen
und anderen Fremdkörper. Achten Sie beim
Einsatz des Geräts darauf, dass keine
Wildtiere, Haustiere oder kleine Baum-
stümpfe im dichten Gras versteckt sind.
Verwenden Sie das Akkuladegerät nur in
Innenräumen.
Erfüllt alle entsprechenden europäischen
Richtlinien.
Das Produkt nicht in ungeeigneten
Behältern entsorgen.
Garantierter Schallleistungspegel LWA
= 96dB(A)
ALLGEMEINE SICHERHEITSHINWEISE FÜR
ELEKTROWERKZEUGE
WARNUNG! Beachten Sie alle Sicherheits-
warnungen und Anweisungen. Die
Nichtbeachtung der Warnungen und
Anweisungen kann in einem Stromschlag,
Brand und/oder in schweren Verletzungen
resultieren.
Bewahren Sie die Warnungen und Anweisungen für
künftige Referenzzwecke auf.
Der Begriff „Elektrowerkzeug“ in den Warnhinwei-
sen bezieht sich auf ein netzbetriebenes (kabelge-
bundenes) oder auf ein akkubetriebenes (kabello-
ses) Elektrowerkzeug.
1) Sicherheit am Arbeitsplatz
a) Halten Sie den Arbeitsbereich sauber und gut
beleuchtet. Unübersichtliche oder dunkle Berei-
che führen eher zu Unfällen.
b) Betreiben Sie Elektrowerkzeuge nicht in
explosionsgefährdeten Bereichen, z.B. bei
Vorhandensein von brennbaren Flüssigkeiten,
Gasen oder Staub. Elektrowerkzeuge erzeugen
Funken, die den Staub oder die Dämpfe entzün-
den können.
c) Halten Sie Kinder und Umstehende fern, wäh-
rend Sie Elektrogeräte benutzen. Ablenkungen
können zum Verlust der Kontrolle führen.
2) Elektrische Sicherheit
a) Die Stecker von Elektrowerkzeugen müssen
zur Steckdose passen. Den Stecker niemals
modifizieren. Verwenden Sie bei geerdeten
Elektrowerkzeugen keine Adapterstecker. Nicht
modifizierte Stecker und passende Steckdosen
reduzieren das Stromschlagrisiko.
b) Vermeiden Sie Körperkontakt mit geerdeten
Oberflächen, wie Rohren, Heizkörpern, Herden
und Kühlschränken. Es besteht ein erhöhtes
Stromschlagrisiko, wenn Ihr Körper geerdet ist.
c) Setzen Sie Elektrowerkzeuge keinem Regen
oder feuchten Bedingungen aus. Wenn Wasser
in ein Elektrowerkzeug eindringt, erhöht sich
die Gefahr eines Stromschlags.
d) Missbrauchen Sie das Kabel nicht. Verwenden
Sie das Kabel niemals zum Tragen, Ziehen oder
Herausziehen des Steckers des Elektrowerk-
