Vornado flippi V10 User manual

models
FLIPPI V10 & FLIPPI V
vornado.com
COMPACT AIR CIRCULATOR
OWNER’S GUIDE
GUÍA DEL PROPIETARIO DEL
CIRCULADOR DE AIRE COMPACTO
GUIDE DE L’UTILISATEUR DU
VENTILATEUR D’AIR COMPACT

vornado.com
800.234.0604
[email protected]
we expect
this product
to be PERFECT
if it’s not
WE will make
it right.

English 3
Important Safety Instructions ....................................................................................... 4
Controls....................................................................................................................... 10
Cleaning ...................................................................................................................... 13
Troubleshooting ......................................................................................................... 14
Warranty...................................................................................................................... 15
Español p. 17 Français p. 32
CONTENTS

4English
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
This owner’s guide and any additional inserts are considered part of the
product. They contain important information about safety, use and disposal.
Before using the product, please familiarize yourself with all operating and
safety instructions. Please keep all documents for future reference and pass
these documents on, together with the product, to any future owner. See
our website to view, download and print the most current version of this
owner’s guide.
INTENDED USE: This product is intended to circulate the air in indoor living
spaces only in the United States and Canada. This product is not intended
for commercial or industrial use. The manufacturer assumes no responsibility
for damage or injury due to unauthorized use or product modication.
Failure to follow these directions will void the product warranty.
WARNING: Risk to Children and Impaired Persons
- Supervision is required during the installation, operation, cleaning and
maintenance of this product by children under age 12 and anyone with
reduced physical, sensory or mental capabilities. Children should be
supervised to ensure that they do not play with the appliance, its parts and
packaging material.
- WARNING: KEEP NEW AND USED BATTERIES AWAY FROM CHILDREN.
The remote control supplied with this product (model Flippi V only) contains
a button cell battery. Leaking or damaged batteries can cause burns on
contact with skin. The battery could potentially be a choking hazard for

English 5
children. If the button cell battery is swallowed it can cause severe internal
burns in just 2 hours and can lead to death. If you think the battery may have
been swallowed or placed inside any part of the body seek immediate medical
attention. In the US call the National Poison Control Center at 1-800-222-1222
or 202-625-3333. In Canada call 416-813-5900.
INSTALLATION WARNING—To reduce risk of re, electrical shock and
injury to persons, observe the following:
- Place this product away from curtains, draperies, tablecloths and other
fabrics, since they may be drawn into the fan, damage the motor and/or
cause a re.
- No part of this product (the appliance, power cord, plug, packaging,
etc.) should be placed near furnaces, replaces, stoves or other high
temperature heat sources. Do not use this product in a window, on an
uneven or unstable surface, or near water.
- The appliance, power supply, power cord and plug cannot come into
contact with water. Do not use this product on wet surfaces. Do not use this
product in a bathtub or shower or position product where it may fall into a
bathtub, laundry, swimming pool or other water container. Do not use this
product outdoors or expose it weather or elements.
- Do not run cord under carpeting. Do not cover cord with throw rugs,
runners, or similar coverings. Do not route under furniture or appliances.
Arrange cord away from trafc area and where it will not be tripped over.
The cord should not hang over edges of counters or be placed where it can
be crimped or closed in doors. Place appliance near an easily accessible
outlet so the product can be unplugged quickly during an emergency.

6English
SAFE USE WARNING—To reduce risk of re, electrical shock and injury
to persons, observe the following:
- WARNING: To reduce likelihood of circuit overload, re and electric shock,
do not operate with a solid state speed device, such as a dimmer control
switch.
- Do not operate unit if the unit has been dropped or damaged. Do not
use this product if it has a damaged power cord or plug. To avoid risk of
electrical shock, do not attempt to repair or replace parts. Only original
replacement parts may be used. If the power cord is damaged, it must be
replaced by the manufacturer, its service agent, or similarly qualied persons
in order to avoid a hazard. Contact Vornado Consumer Service at 1-800-
234-0604 (phone) or [email protected] (email) for further
instructions about replacement and repair.
- Risk of re. Your appliance may be equipped with a detachable power
supply or a cord/plug with a safety device such as a fuse. Use only the
power cord and plug provided.
- Before plugging power cord into electrical outlet, be sure that all electrical
information on the rating label, including voltage, is compatible with your
outlet’s power supply.
- Never use the cord as a handle or otherwise yank, strain or stretch the
power cord.
- While the product is plugged in, do not insert or allow foreign objects to
enter any input or output opening as this may cause risk of electric shock or
re, or damage the product.
- A loose t between wall outlet (receptacle) and plug may cause overheating
and distortion of the plug. Discontinue use of the product in this outlet.
Contact a qualied electrician to replace loose or worn outlets.

English 7
- This appliance has a polarized plug (one blade is wider than the other.) To
reduce the risk of electrical shock, this plug is intended to t in a polarized
outlet only one way. If the plug does not t fully in the outlet, reverse the
plug. If it still does not t, contact a qualied electrician. Do not attempt to
defeat this safety feature.
- Before moving, repositioning, servicing, cleaning and when not in use, use
the product controls to turn off the power and then unplug. To disconnect
from outlet, grasp and pull only the plug. Also, power off and unplug if the
product will be left unattended for an extended period of time or during
electrical storms.
SERVICING WARNING—To reduce risk of re, electrical shock and injury
to persons, observe the following:
- Clean your product regularly, only as is instructed in this manual. Prior
to cleaning, turn off the power on your product and unplug. Do not use
gasoline, thinners, solvents, ammonias or other chemicals for cleaning.
Refer to the CLEANING instructions provided.
- Do not open appliance housing. To avoid risk of shock, all service and/or
repairs must be done by a Vornado Authorized Service Center.
- This product may have an overload protection (fuse) located in the plug. A
blown fuse indicates an overload or short-circuit. If the fuse blows, follow
these instructions to replace and reinstall the safety device:
User Servicing Instructions
1. Using the product controls, turn off the appliance.
2. Grasp the plug (not the cord) and disconnect from the outlet.
3. Risk of Fire. Replace fuse only with 2.5 Amp, 125 Volt fuse as approved
by Vornado Consumer Service. For an authorized replacement fuse,

8English
please contact Vornado Consumer Service.
4. Once the replacement is received, use a small at-head screwdriver to
slide open the fuse cover (located on the plug) (See Fig. A).
5. Remove fuse by using the screwdriver to gently lift each end of the
fuse (See Fig. B).
6. Install the replacement fuse by using the screwdriver to gently push
each metal end of the fuse into the receptacle one at a time. Do not
push on the center of the fuse—it is fragile and may break.
7. Slide the fuse cover closed using the screwdriver. When closed, the
cover should t completely in the plug. No part of the cover should
stick out (See Fig. C).
8. Plug your appliance into the outlet and turn the power on.
9. If the replacement fuse blows, a short-circuit may be present and the
product should be discarded or returned to an authorized service
facility for examination and/or repair.
Risk of re. Do not replace attachment plug. Contains a safety device (fuse,
AFCI, LCDI) that should not be removed. Discard product if the attachment
plug is damaged.
FCC Consumer Advisement
This equipment may generate, use and/or radiate radio frequency energy that
may cause harmful interference to radio communications. If this equipment
Fig. A Fig. B Fig. C

English 9
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to
contact Vornado Consumer Service. Changes or modications to this unit not
expressly approved by the party responsible for compliance could void the
user’s authority to operate the product.
DISPOSAL WARNING
To reduce waste and environmental harm, observe the following:
DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK.
PACKAGE RECYCLING: The packaging protects the appliance
from transport damage. The packaging materials are selected from
the point of view of their environmental friendliness and disposal
technology and are therefor recyclable. Dispose of all packaging
materials in an environmentally responsible manner.

10 English
CONTROLS
MODEL FLIPPI V10
POWER ON/OFF
Select High (III),
Medium (II), Low (I) fan
speed or power off (O)
OSCILLATION
Model V10 has an
oscillation switch on
the back of the base
of the unit. Press ( )
to turn oscillation On.
Press (O) to turn Off.

English 11
CONTROLS
MODEL FLIPPI V
POWER ON/OFF
The unit functions ON and OFF
by pressing the POWER button .
Lights on the unit's control panel
indicate the power is ON.
FAN SPEED
The fan speed can be adjusted by
pressing the POWER button. Press
the button to switch between the
unit’s 3 speed settings. Lights on
the unit’s control panel indicate the
selected speed setting.
OSCILLATION
Oscillation can be selected by pressing the Oscillation Button , press again to
switch OFF. Note: Oscillation only works when the main power is ON.

12 English
REMOTE CONTROLS
MODEL FLIPPI V

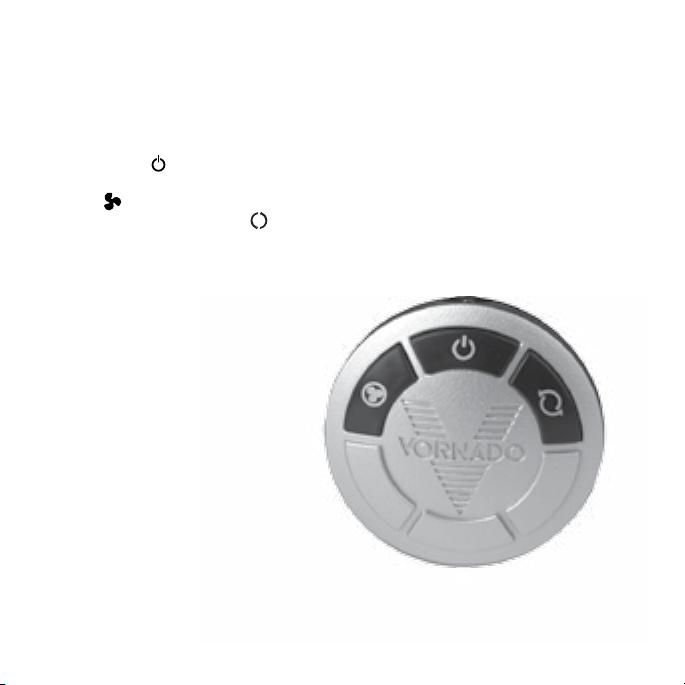

REMOTE CONTROL
To turn the unit ON or OFF, press the
Power Button . To switch between
the 3 fan speeds, press the Fan Speed
Button . To turn oscillation ON or OFF,
press the Oscillation Button . Remote
Control Requires a line-of-sight path to
the blue lens on the front of the base
to allow for the signal to be received by
the unit.

English 13
1. Power off and unplug the unit prior
to cleaning.
2. Dust or wipe the circulator with a
damp cloth.
3. Use the brush attachment on your
household vacuum cleaner to vacuum
any accumulated dust.
Because your Flippi™ moves a substantial amount of air, it will need regular cleaning.
The fan has no user serviceable parts inside and cannot be opened for cleaning.
Never clean the product in any manner other than instructed in this owner's guide.
CLEANING
Note: The motor is permanently
lubricated and requires no oiling.

14 English
POSSIBLE CAUSE AND SOLUTIONPROBLEM
Unit is not plugged in. Plug Power Cord into electrical outlet.
Ensure unit fan speed setting is selected.
Plug fuse has blown. Replace fuse (See USER SERVICING
INSTRUCTIONS).
Unit is damaged or in need of repair. Cease usage and unplug.
Contact Consumer Service for assistance.
The outlet is worn or damaged. Try another outlet or contact a
qualied electrician.
Unit set to a low speed setting. Adjust to a higher speed setting.
Airow is blocked. Remove obstruction.
Adjust direction of airow towards the user.
Under certain conditions, it is possible for a reset GFCI (Ground
Fault Circuit Interrupter) outlet to trip when the user is changing
speeds on a Vornado circulator. In this event, change to an outlet
that is not connected to a GFCI device. It could also indicate a
weak or defective GFCI outlet. Contact a qualied electrician to
check the GFCI outlet.
The unit fails to
power on.
Airow is weak
orslow.
GFCI has tripped.
TROUBLESHOOTING
POSSIBLE CAUSE AND SOLUTIONPROBLEM
Unit is not plugged in. Plug Power Cord into electrical outlet.
Ensure unit fan speed setting is selected.
Plug fuse has blown. Replace fuse (See USER SERVICING
INSTRUCTIONS).
Unit is damaged or in need of repair. Cease usage and unplug.
Contact Consumer Service for assistance.
The outlet is worn or damaged. Try another outlet or contact a
qualied electrician.
Unit set to a low speed setting. Adjust to a higher speed setting.
Airow is blocked. Remove obstruction.
Adjust direction of airow towards the user.
Under certain conditions, it is possible for a reset GFCI (Ground
Fault Circuit Interrupter) outlet to trip when the user is changing
speeds on a Vornado circulator. In this event, change to an outlet
that is not connected to a GFCI device. It could also indicate a
weak or defective GFCI outlet. Contact a qualied electrician to
check the GFCI outlet.
The unit fails to
power on.
Airow is weak
orslow.
GFCI has tripped.
TROUBLESHOOTING
