Vornado 600 series User manual

VORNADO

T

READ

AND

KEEP

THESE

IMPORTANT

INSTRUCTIONS

Whole

Room

Air

Circulator

Owner's

Guide

LIRE

ET

CONSERVER

CES

INSTRUCTIONS

IMPORTANTES

Guide

de

I'utilisateur

du

ventilateur

integral

de

piece

LEA

Y

TENGA

EN

CUENTA

ESTAS

INSTRUCCIONES

IMPORTANTES

Guia

del

propietario

del

Circulador

de

Aire

para

toda

la

habitacidn

www.vornado.com

Designed

and

engineered

in

Andover,

Kansas.

Questions

or

comments?

questions

ou

commentaires?

^preguntas

o

comentarios?

C

www.vornado.com

[email protected]

1

-

8

00

-

2

3

4

-

06

04

2

Vornado

Vortex

Action

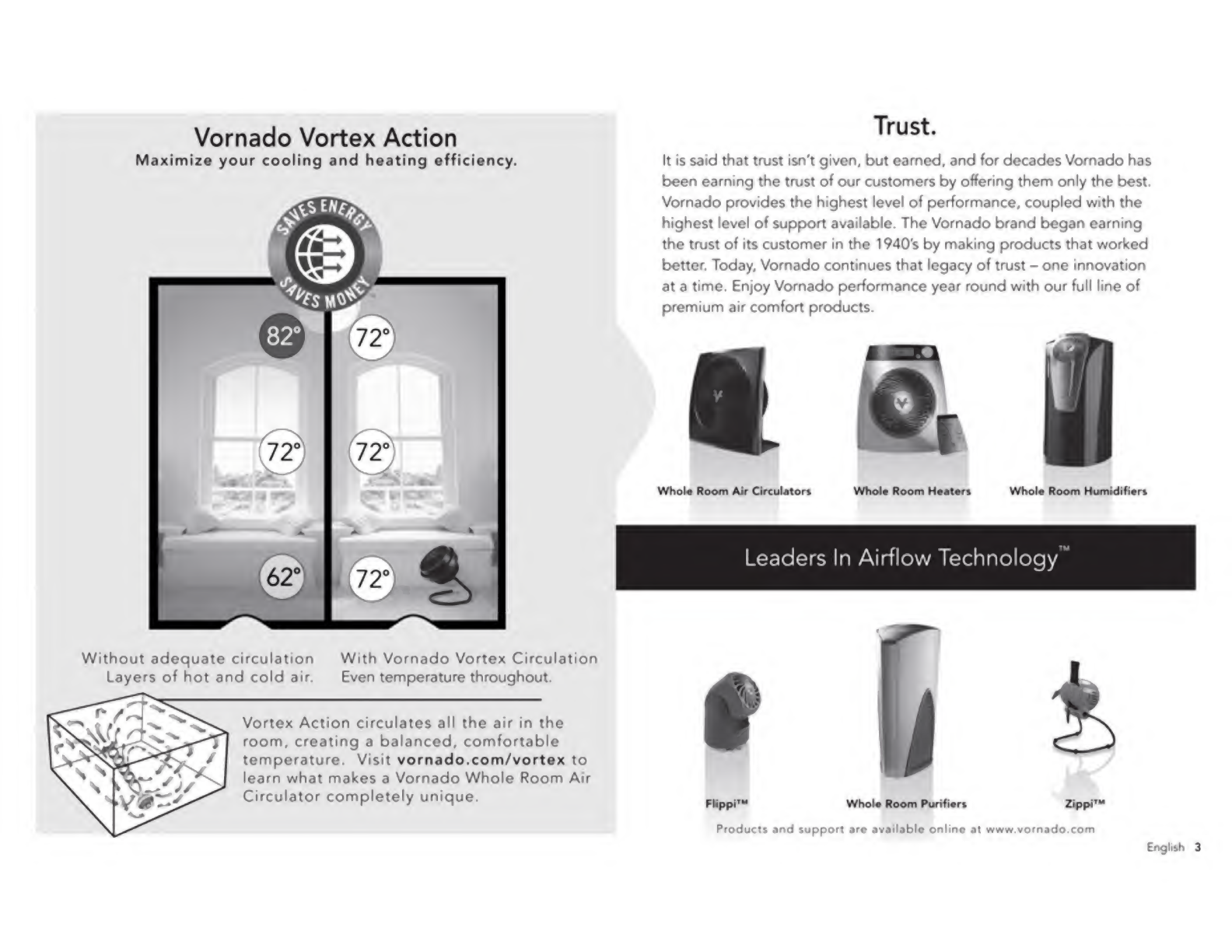

Maximize

your

cooling

and

heating

efficiency.

Without

adequate

circulation

With

Vornado

Vortex

Circulation

Layers

of

hot

and

cold

air.

Even

temperature

throughout.

Vortex

Action

circulates

all

the

air

in

the

room,

creating

a

balanced,

comfortable

temperature.

Visit

vornado.com/vortex

to

learn

what

makes

a

Vornado

Whole

Room

Air

Circulator

completely

unique.

Trust.

It

is

said

that

trust

isn't

given,

but

earned,

and

for

decades

Vornado

has

been

earning

the

trust

of

our

customers

by

offering

them

only

the

best.

Vornado

provides

the

highest

level

of

performance,

coupled

with

the

highest

level

of

support

available.

The

Vornado

brand

began

earning

the

trust

of

its

customer

in

the

1940’s

by

making

products

that

worked

better.

Today,

Vornado

continues

that

legacy

of

trust

-

one

innovation

at

a

time.

Enjoy

Vornado

performance

year

round

with

our

full

line

of

premium

air

comfort

products.

Whole

Room

Air

Circulators

Whole

Room

Heelers

Whole

Room

Humidifiers

Leaders

In

Airflow

Technology

Flippi

™

Whole

Room

Purifiers

Zippi

™

Products

and

support

are

available

online

at

www.vornado.com

English

3

Important

Instructions

Your

Vornado

Air

Circulator

has

a

polarized

plug.

{One

blade

is

wider

than

the

other.)

To

reduce

the

risk

of

electrical

shock,

this

plug

is

intended

to

fit

in

a

polarized

outlet

only

one

way.

If

the

plug

does

not

fit

fully

in

the

outlet,

reverse

the

plug.

If

it

still

does

not

fit,

contact

a

qualified

electrician.

Do

not

attempt

to

defeat

this

safety

feature.

WARNING

-

To

reduce

the

risk

of

fire

or

electrical

shock,

do

not

use

this

product

with

any

solid

state

speed

control

device.

To

reduce

the

risk

of

fire

or

electric

shock

and

injury

to

persons,

do

not

use

in

a

window.

Do

unplug

your

circulator

before

cleaning

Do

clean

your

Vornado

Air

Circulator

regularly.

Refer

to

tne

CLEANING

instructions

provided.

Never

clean

the

air

circulator

in

any

manner

other

than

as

instructed

in

this

manual.

Do

Not

use

gasoline,

thinners,

solvents,

ammonias

or

other

chemicals

for

cleaning.

Do

Not

immerse

this

product

in

water

or

allow

water

to

drip

into

the

motor

housing.

Do

Not

use

near

furnaces,

fireplaces,

stoves

or

other

high-temperature

heat

sources.

Do

Not

position

this

product

too

close

to

draperies

because

they

may

be

drawn

into

the

rear

grill,

cutting

off

airflow.

Do

Not

use

this

product

outdoors

Do

Not

use

this

product

on

wet

surfaces.

Do

Not

use

this

product

in

a

bathtub

or

shower.

Do

Not

use

this

product

if

it

has

a

damaged

cord

or

plug.

Do

Not

carry

this

product

by

the

cord,

or

use

the

cord

as

a

handle.

Do

Not

attempt

to

repair

or

replace

parts.

Do

use

common

sense

when

using

this

product

and/or

any

electrical

appliance.

How

To

Use

1.

Position

your

Air

Circulator

so

the

beam

of

air

has

an

unobstructed

path

from

one

side

of

tne

room

to

the

other.

2.

Set

speed

to

medium

and

allow

a

few

minutes

for

an

airflow

pattern

to

be

established.

(Different

airflow

patterns

can

be

established

by

changing

the

location,

angle

and

speed

of

the

Air

Circulator.)

3.

Adjust

the

speed

accordingly

until

a

desired

comfort

level

is

achieved.

You

will

quickly

determine

the

precise

amount

of

circulation

required

to

maintain

your

personal

comfort

in

a

given

room

for

the

prevailing

temperature

and

humidity

conditions.

Once

you

discover

the

addea

comfort

of

air

circulation,

you

will

use

your

Vornado

Air

Circulator

season

after

season.

4

Engtah

When

To

Use

-

Saves

Energy

Year-Round

Summer

Use

your

Air

Circulator

withyour

home's

air

conditioning

system

to

create

brisk,

comforting

air

movement.

Tnis

breeze

will

eliminate

stagnant

air

and

remove

body

heat

to

make

you

feel

cooler.

With

Vornado

Air

Circulators,

you

can

save

money

on

energy

bills

by

raising

your

thermostat

several

degrees

and

still

maintaining

tne

same

comfort

level.

Use

with

central

Of

window

air

conditioning

Spring

&

Fall

Your

Air

Circulator

can

make

the

indoors

as

fresh

and

pleasant

as

the

outdoors.

Place

the

Air

Circulator

near

an

open

window,

sliding

door

or

French

door

to

take

full

advantage

of

mild

temperatures

and

seasonal

breezes.

Winter

Position

your

Air

Circulator

in

a

place

with

unobstructed

upward

air

movement.

Run

it

only

as

fast

as

necessary

to

lower

the

heated

air

from

the

ceiling

-

but

not

fast

enough

to

create

a

draft.

Or,

use

your

Air

Circulator

with

other

available

heat

sources

(furnace

vents,

wood

stoves

or

baseboard

heaters)

to

circulate

their

warmth,

taking

full

advantage

of

all

available

heat

in

the

room.

Do

not

point

the

Air

Circulator

at

open

flames.

Increase

the

efficiency

of

heating

sources

Replace

cold

floor

air

with

warm

ceding

air

Feature

Multiple

Speeds

Directable

Airflow

Energy

Savings

Adjustable

Height

Features

&

Benefits

Benefit

With

multiple

speeds,

any

circulation

need

will

be

met.

To

turn

on

unit

-

rotate

knob

one

position

clockwise.

Turn

the

knob

dockwise

to

decrease

airflow.

Turn

counterclockwise

to

increase

airflow.

On

models

equipped

with

push

button

speed

controls:

Press

power

(©),

then

select

speed.

Provides

movement

of

air

at

any

angle-up

stairs,

down

a

hallway,

room

to

room

and

everywhere

in

between.

Model

VI02

provides

movement

of

air

in

two

positions

-

vertically

or

horizontally.

Saves

energy

by

maximizing

the

performance

of

heating

and

cooling

systems.

When

you

use

a

Vornado

Air

Circulator,

you

will

not

have

to

set

your

summertime

thermostat

as

low

or

your

wintertime

thermostat

as

high.

(Models

783

and

795

only)

27"

or

42"

heights

make

this

model

perfect

for

out-of-the-way

placement

behind

furniture

and

office

furnishings.

The

extension

tube

must

be

used

to

achieve

the

42"

height.To

shorten

the

height

of

the

drculator,

remove

the

extension

tube.

(See

the

assembly

instructions

in

the

shipping

carton.)

Grill

Removal

Unplug

the

Air

Circulator

before

removing

the

grill.

Model

VI02

•

Remove

the

screw.

Rotate

the

grill

counterclockwise

to

unlock

and

then

lift

off.

To

reinstall

the

grill,

position

the

grill

with

the

logo

slightly

turned

to

the

left

and

rotate

clockwise.

Model

500

series

•

Depress

the

grill

clips

by

placing

your

thumbs

against

the

outside

surface

of

tne

clips.

At

the

same

time

press

them

down

toward

the

motor

(applying

slight

pressure

forward

mav

be

necessary).

Repeat

the

process

against

the

remaining

two

dips

then

lift

the

grill

out

of

the

cowl.

Replace

by

lining

up

the

clips

with

the

holes

and

firmly

snapping

the

grill

back

into

place.

Model

630,

700

series

*

Using

a

flathead

screwdriver,

depress

one

of

the

safety

dips

on

the

back

of

tne

unit

and

push

forward.

Usually

by

releasing

one

clip,

the

grill

can

be

removed.

After

releasing

one

dip,

if

the

grill

cannot

be

removed,

repeat

the

process

on

a

second

clip.

Replace

by

lining

up

the

clips

with

the

holes

and

firmly

snapping

the

grill

back

into

place.

Blade

Removal

It

is

possible

to

remove

the

blade

should

something

accidentally

get

wrapped

around

the

motor

shaft.

First,

remove

the

nut

from

the

shaft

(only

on

Vl02

model.)

Turn

the

nut

dockwise

to

loosen.

Pull

the

blade

straight

out

from

the

shaft.

When

replacing,

the

blade

can

only

go

on

the

shaft

one

way.

Be

certain

the

flat

side

ot

the

shaft

aligns

directly

with

the

same

flat

side

on

the

blade's

socket.

Push

the

blade

all

the

way

on

the

shaft

until

it

bottoms

out.

Do

not

use

a

hammer

as

this

could

result

in

bearing

damage.

Reinstall

nut

on

model

VI02.

Installing

Protective

Feet

Onduded

in

Models

723.

783,

745

and

795

only)

Use

the

feet

to

protect

floors

when

using

your

air

drculator

on

uncarpeted

surfaces

such

as

hardwood,

vinyl,

or

tile,

the

feet

are

simple

to

install

and

will

help

maintain

the

whisper-quiet

operation.

The

cushion

ring

feet

are

packaged

separately

in

the

box.

To

install,

roll

or

clip

all

feet

onto

the

base

and

space

evenly.

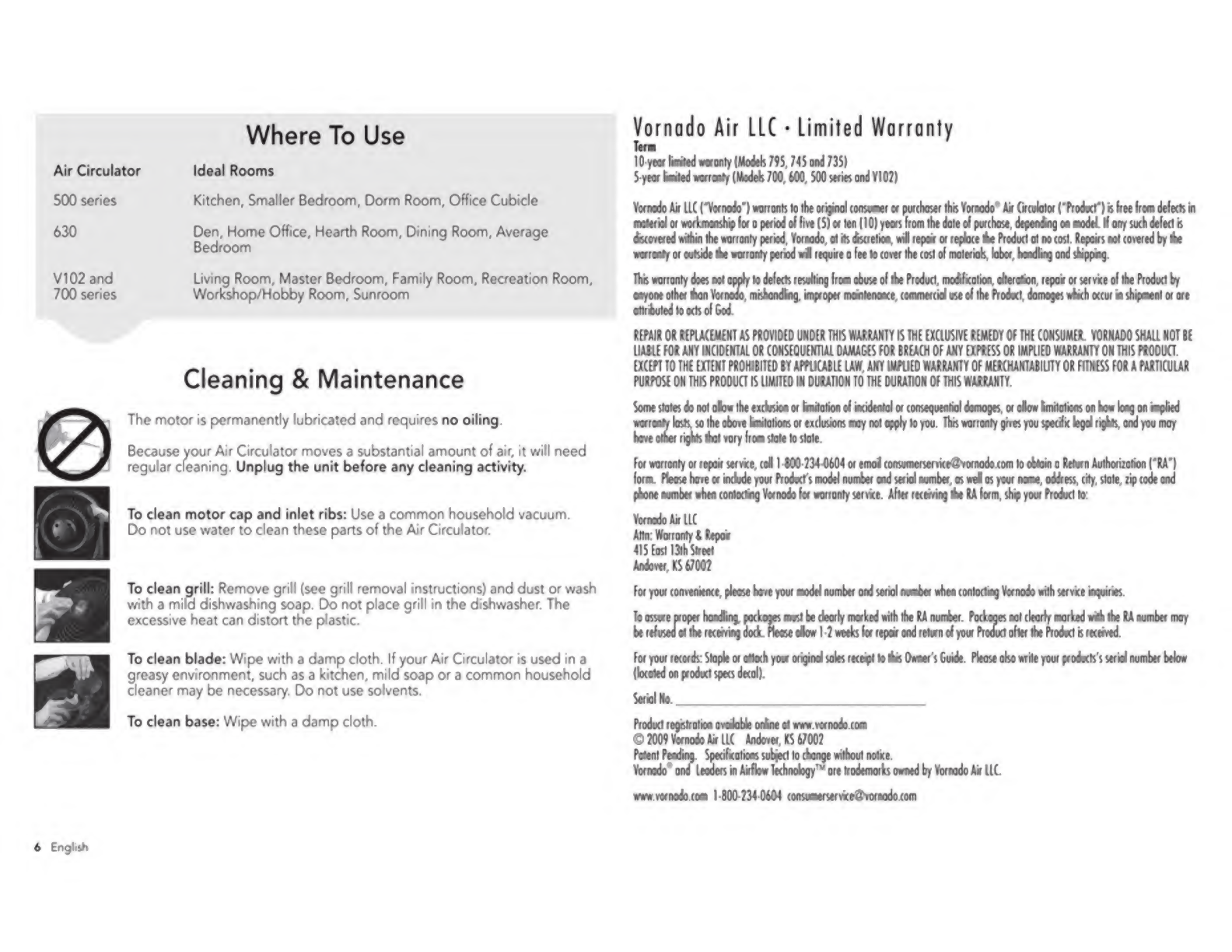

English

S

Where

To

Use

Air

Circulator

Ideal

Rooms

500

series

Kitchen,

Smaller

Bedroom,

Dorm

Room,

Office

Cubicle

630

Den,

Home

Office,

Hearth

Room,

Dining

Room,

Average

Bedroom

VI02

and

Living

Room,

Master

Bedroom,

Family

Room,

Recreation

Room,

700

series

Workshop/Hobby

Room,

Sunroom

Cleaning

&

Maintenance

The

motor

is

permanently

lubricated

and

requires

no

oiling

Because

your

Air

Circulator

moves

a

substantial

amount

of

air,

it

will

need

regular

cleaning.

Unplug

the

unit

before

any

cleaning

activity.

To

clean

motor

cap

and

inlet

ribs:

Use

a

common

household

vacuum.

Do

not

use

water

to

clean

these

parts

of

the

Air

Circulator.

To

clean

grill:

Remove

grill

(see

grill

removal

instructions)

and

dust

or

wash

with

a

mild

dishwashing

soap.

Do

not

place

grill

in

the

dishwasher.

The

excessive

heat

can

distort

the

plastic.

To

clean

blade:

Wipe

with

a

damp

cloth.

If

your

Air

Circulator

is

used

in

a

greasy

environment,

such

as

a

kitchen,

mild

soap

or

a

common

household

cleaner

may

be

necessary.

Do

not

use

solvents.

To

clean

base:

Wipe

with

a

damp

cloth.

6

English

Vornado

Air

LLC

*

Limited

Warranty

Tern

10

year

Invited

woronty

(Models

795,745

and

735)

5

year

Unfed

worronty

(todek

700,

MO,

500

series

and

Y102)

Vornado

Air

LLC

('Vornodo'l

warrants

to

the

original

consumer

or

purchaser

this

Yomodo

Air

Circulator

('Product*)

r

free

from

defects

in

material

or

workmanship

lor

a

period

of

five

(5)

or

ten

(10)

years

from

the

date

<4

purchase,

depending

on

model

H

any

such

defect

is

dowered

within

the

warranty

period,

Yomodo,

at

its

dbcretiew

will

repair

or

reploce

fa

Product

at

no

cost.

Repairs

not

covered

by

fa

warranty

or

outside

the

warranty

pared

rl

require

o

fee

to

cover

the

cost

of

materials,

labor,

handling

and

skipping.

This

warranty

does

not

apply

to

defects

resulting

from

abuse

of

the

Product,

modftcotion

alter

chon,

repair

or

service

of

the

Product

by

anyone

other

Aon

Vornado,

mhfandtng,

improper

maintenance,

commercid

use

of

the

Product,

damoges

which

occur

A

shipment

or

ore

muted

to

ads

of

God.

REPAIR

OR

REPlA(EMfNT

AS

PROVIDED

UNDER

THIS

WARRANTY

IS

THE

EXCLUSIVE

REMEDY

Of

THE

CONSUMER

VORNADO

SHALL

NOT

BE

LIAItf

FOR

ANY

INCIDENTAL

OR

CONSEQUENTIAL

DAMAGES

fOR

BREACH

OF

ANY

EXPRESS

OR

IMPLIED

WARRANTY

ON

THIS

PRODUCT.

EXCEPT

TO

THE

EXTENT

PROHIBITED

»Y

APPLICABLE

LAW,

ANY

IMPLIED

WARRANTY

OF

MERCHANTABILITY

OR

FITNESS

FOR

A

PARTICULAR

PURPOSE

ON

THIS

PRODUCT

IS

LIMITED

IN

DURATION

TO

THE

DURATION

OF

THIS

WARRANTY.

Some

states

do

not

alow

the

exclusion

or

(nutation

of

incidental

or

consequential

damoges,

or

allow

imitations

on

how

long

on

mplied

warranty

lash,

so

the

above

Imitations

or

exclusions

may

not

apply

to

you.

This

warranty

gives

you

specific

legd

rights,

ond

you

may

have

other

rights

that

vary

from

state

to

state

For

warranty

or

repair

service,

cal

I

800

234

0604

or

emd

comumerserwe&vornodo

com

to

obtain

a

Return

Authorization

('RA')

form

Please

have

or

indude

your

Product

s

model

number

ond

serial

number

os

wel

as

your

name,

odiress,

city,

state,

zip

code

and

phone

number

when

contacting

Vornodo

for

warranty

service.

After

receiving

the

RA

form,

sh

tp

your

Product

la:

Vornado

Air

III

Attn:

Worronty

&

Repot

415

East

13th

Street

Andover,

KS

67002

For

your

convenience,

please

have

your

model

number

ond

serial

number

when

contorting

Vornodo

with

service

inquires.

To

assure

proper

handling

packages

must

be

dearly

marked

with

the

RA

number

Pockopes

not

clearly

marked

will

the

RA

number

may

be

refused

al

ike

ra<eiviog

docL

PWas«

oiow

I

-2

wmIcs

let

repair

ond

return

cf

your

ProJud

after

the

Prodwct

is

rexetvtd.

For

your

records:

Staple

or

artoch

you

onginol

sales

receipt

to

fa

Owner's

Guide.

Please

also

write

your

products's

seriof

number

below

(located

on

product

specs

decal)

SeriolN«L_

Product

registration

avaiohle

online

at

www.vornodo.com

©

2009

Vornodo

Air

ll(

Andover,

KS

67002

Patent

Pealing

Specifwatiom

subped

to

dkonge

wrthoul

rvotwe

Vornodo

ond

Lenders

in

Airflow

Technology

TV

ore

trodemorhs

owned

by

Yornodo

Air

LLC

www.vornodo.com

1

800

234

0604

consumersifvice^voriodo.com
