Introduction
Thank you for your purchasing the VOX MINI GO 3/10/50 Portable
Modeling Guitar Amplier. To help you get the most out of your new
instrument, please read this manual carefully.
Main Features
11 amp types
The amplier features 9 amp sounds using the “VET” modeling technology,
as well as a vocoder setting and a line setting for electric acoustic guitars or
keyboards.
Available effects
The amplier features eight high-quality effects: four delay and reverb effects
in addition to three modulation effects and an octave effect.
Rhythm function
Includes 33 types of rhythm patterns with a wide range of variations.
Tuner function
You can tune the guitar or bass connected to the INPUT terminal.
Looper function (VOX MINI GO 10/50)
Provides a simple and user-friendly looper function, which can be used
together with the rhythm function.
Supports mobile batteries
Off-the-shelf mobile batteries can be used as the power supply.
Use with microphone or audio player
Inputs include an AUX IN jack, for connecting an external audio device (MP3
player, etc.), and a MIC IN jack, to where you can connect a microphone.
You can play along with recorded music or accompany your vocals on guitar.
Supports a foot switch (VOX MINI GO 10/50)
By connecting an optional foot switch VFS3, you can manipulate rhythm and
looper functions using your foot.
Parts and their function
Top Panel

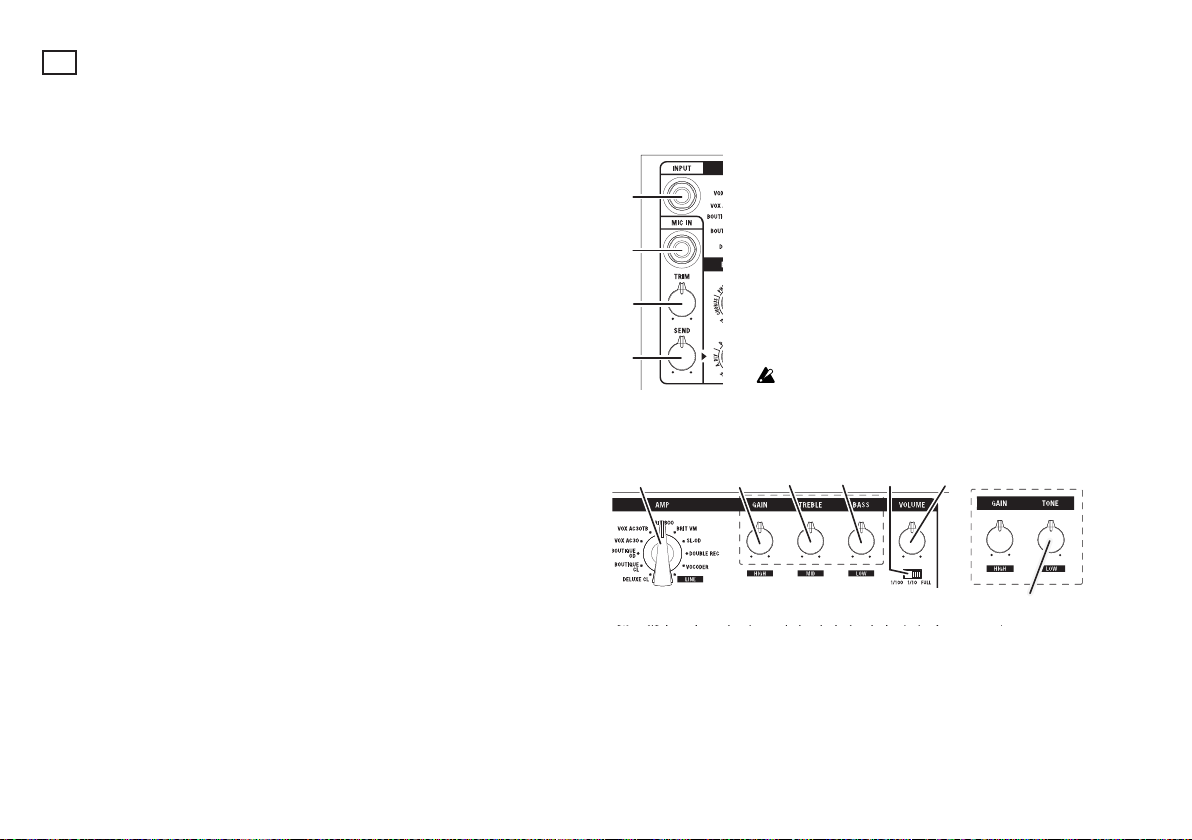

INPUT Section
1. INPUT jack
This is where you plug in your guitar.
2. MIC IN jack
Connect the microphone (dynamic microphone).
3. TRIM knob
This knob enables you to adjust the volume level of the
microphone input.
4. SEND knob
Adjust the volume sent from the MIC input to Effect 2
(delay/reverb).
Not available when the AMP selector is set to VOCODER.
AMP section
This section enables you to adjust various amplier settings.
5. AMP selector
This selector enables you to choose an amp model (for additional details, refer
to “Amp model” on page 13). The gain circuit, tone control characteristics,
and circuit layout will be set automatically in accordance with the selected amp
model. You can also select the amplier model or vocoder appropriate for the
LINE input.
6. GAIN knob
This knob enables you to adjust the pre amp gain for the selected amp model.
1
2
3
4
5
6
7
8 9 10
5
VOX MINI GO 3
VOX MINI GO 10
7b

5
7. TREBLE knob (VOX MINI GO 50 only)
Used to adjust the tone in the high-tone range. The tone will be changed
automatically in accordance with the selected amp model.
7b. TONE knob (VOX MINI GO 3/10)
Used to adjust the tone. The tone will be changed automatically in
accordance with the selected amp model.
8. BASS knob (VOX MINI GO 50 only)
Used to adjust the tone in the low-tone range. The tone will be changed
automatically in accordance with the selected amp model.
9. Power select switch (VOX MINI GO 10/50)
This switch adjusts the output wattage of the power amp.
This switch does not affect the PHONES output.
10. VOLUME knob
Used to adjust the output level of the pre-amplier.
EFFECTS section
Here is where you can adjust the settings for the effects. For additional
details on each effect, refer to “EFFECTS 1”, “EFFECTS 2” on page 14.
11. EFFECTS knob 1
Adjust the knob position to switch Effect 1 (modulation/
octave) and set the depth of an effect. To bypass the
effects, rotate the knob all the way to the left.
12. EFFECTS knob 2
Adjust the knob position to switch Effect 2 (delay/
reverb) and set the depth of an effect. To bypass the
effects, rotate the knob all the way to the left.
13. TIME button, LED
This button enables you to set the time of Effect 2
(delay/reverb). Tap this button twice to set the time.
The duration between two taps will be used as the
time value. The LED will ash in sync with the time.
11 12 13

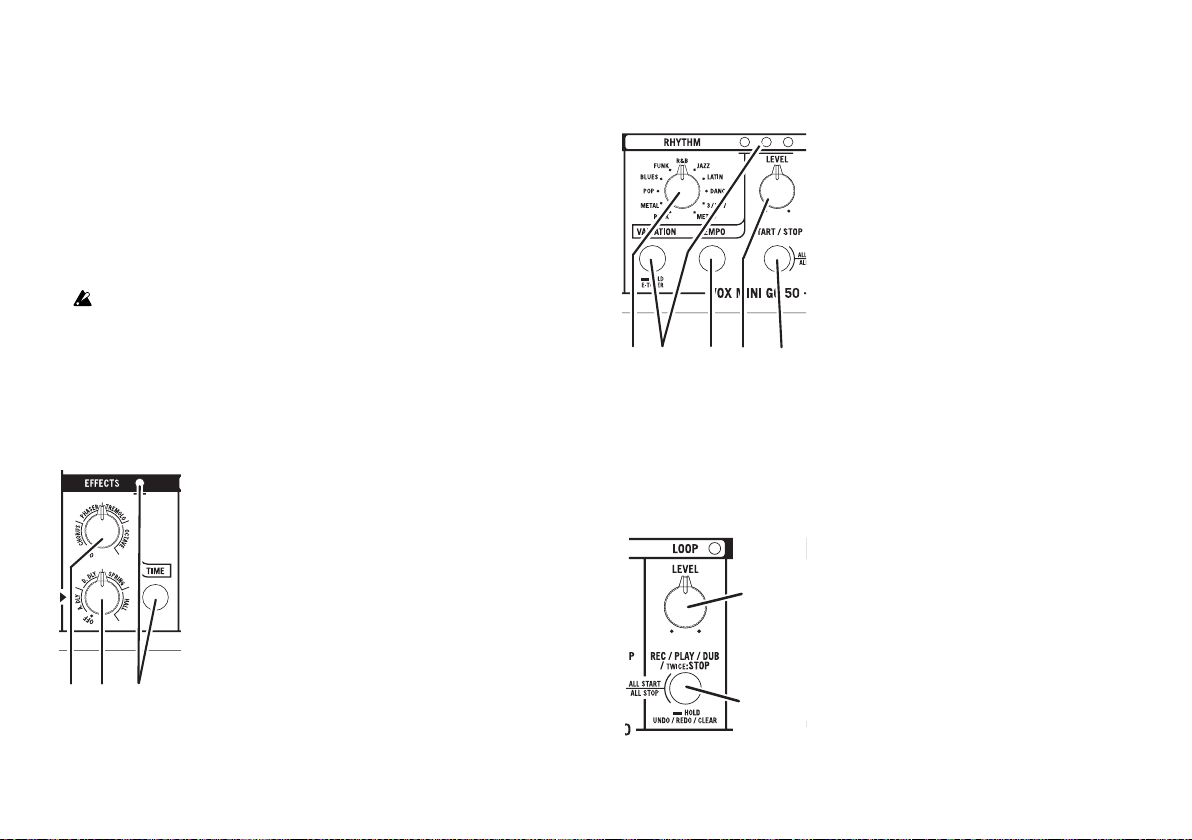

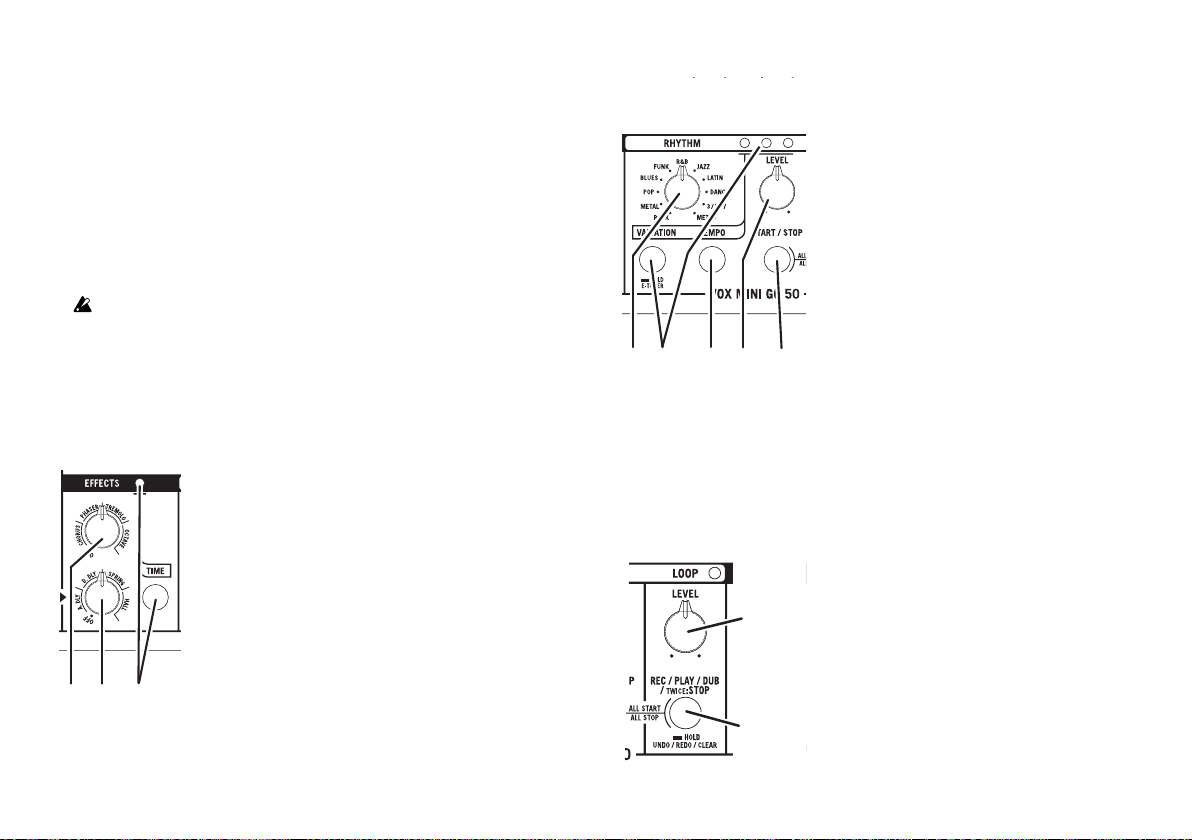

RHYTHM section
14. Genre selector
This enables you to select the genre for a
rhythm pattern.
15. VARIATION button, LED
This is where you can select one of nine
variations for each genre. (see p.8 “Using
the Rhythm Section”)
To enable the tuner function, press and hold
down the VARIATIONS button for more than one
second. (see p.10 “Using the Tuner”)
16. TEMPO button
Set the rhythm tempo. Tap this button twice
to set the tempo. The duration between two
taps will be used as the tempo value.
17. RHYTHM LEVEL knob
This knob controls the volume level of the
rhythm pattern.
18. RHYTHM START/STOP button
This button starts or stops playback of the
rhythm pattern.
Looper section (VOX MINI GO 10/50)
Perform looper operations and settings. For
details about how to use the looper, refer to
"Using the looper function (VOX MINI GO
10/50)" on p.8.
19. LOOP LEVEL knob
Used to adjust the volume during loop
playback
20. LOOP button, LED
Perform operations such as loop recording,
playback, and erasing.
14 15 16 17 18
19
20

6
Program section (VOX MINI GO 50 only)
21. PROGRAM button, LED
Use this button to choose a program. Each time the
PROGRAM button is pressed, the PROGRAM LED turns
green orange red Off. (Refer to “User programs and
Manual mode” on page 10.) This button is also used to
save new programs. (Refer to “Saving a program” on page
10.)
Power/AUX IN/PHONES Section
22. (Power) button, LED
Pressing and holding down this button enables you to turn
the power on or off. The power LED will light up when the
power is turned on.
The color of the power LED varies depending on the type
of the connected power supply equipment (maximum
current that can be consumed by this instrument).
Green: Lights up when the current of up to 3A can be
consumed by connecting the AC adapter supplied
with this product to the DC19V terminal (DC 12V
terminal for VOX MINI GO 3/10) or by the battery
connected to the DC 5V IN terminal.
Orange: Lights up when the current of up to 1.5A can
be consumed depending on the equipment
connected to the DC 5V IN terminal.
23. AUX IN jack
Connect an external audio device to this jack. This enables you to conveniently
connect an audio player and play your guitar along with the player’s output.
24. PHONES jack
Use this jack if you’re plugging directly in to a mixer, recording device, or if
you’re using headphones. The output signal from this jack is taken before
the power amp, and the character of the guitar amp cabinet is applied to it.
Connecting headphones to this jack will mute the internal speaker.
Be sure to make a stereo connection at the PHONES jack.
19 20
22
23
24
21
Rear Panel
25. Connector protection bar (VOX MINI GO 10/50)
Do not use this protection bar to carry this instrument. To carry the
instrument, use the carry strap provided with this product.
26. DC 19V jack* (*DC 12V jack at VOX MINI GO 3/10)
Connect this jack to the included AC adapter.
The AC adapter should only be used with the main unit. Do not use the
adapter with other devices since doing so may cause a malfunction.
27. DC 5V IN jack (USB type-C connector)
Connect a commercially available mobile battery.
Noise may be heard when the power is supplied from a commercially
available USB AC adapter, so use a mobile battery.
This terminal is only used for input. It cannot supply power to another
device.
Not compatible with USB Power Delivery (USB PD).
28. FOOT SW jack (VOX MINI GO 10/50)
Connect the dedicated foot switch VFS3. For details, refer to "Using the foot
switch" on page 11.
2625 27 28
VOX MINI GO 3VOX MINI GO 50
26 27
21

7

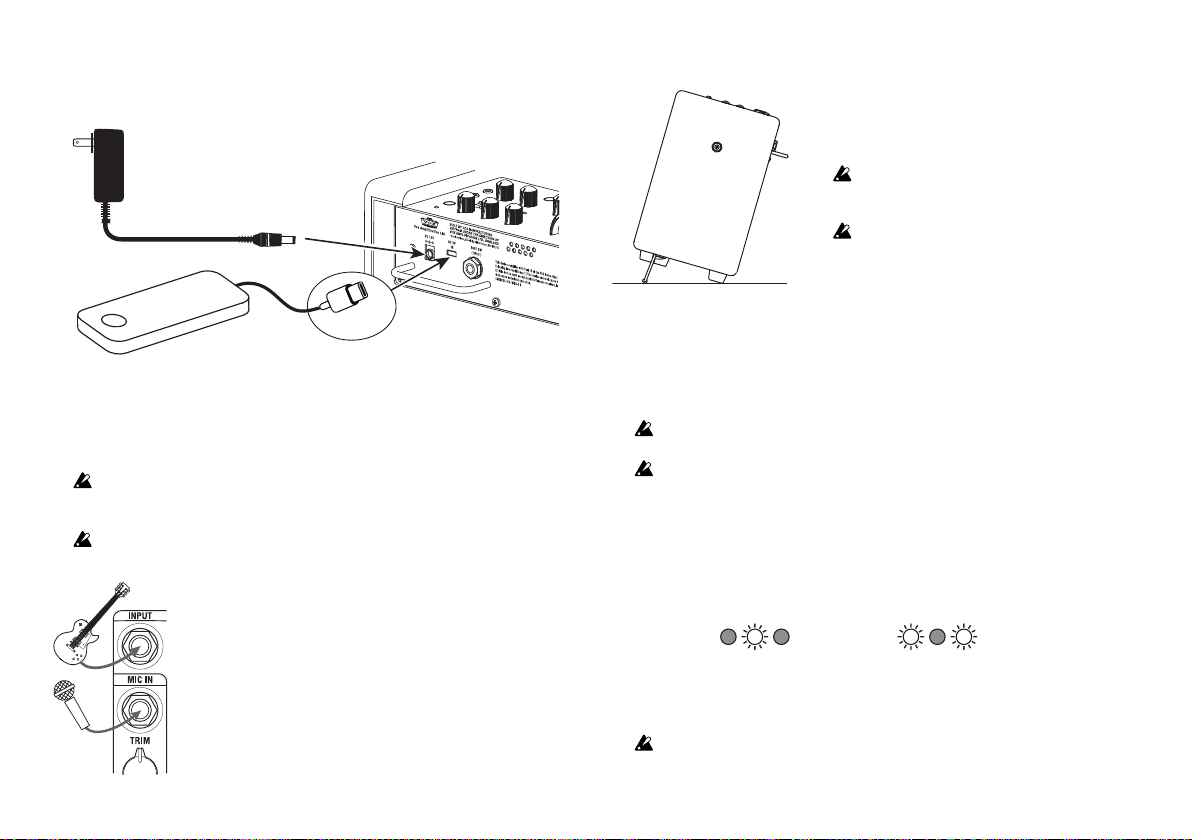

Setup
1. Set the VOLUME knob (10), TRIM knob (3) and RHYTHM LEVEL knob (17) to
the minimum level.
2. Connect the included AC adapter to the DC19V jack (DC 12V jack for VOX
MINI GO 3/10) on the rear panel (26), then plug the adapter into an AC
outlet.
To use an off-the-shelf mobile battery, connect it to the DC 5V IN jack (27)
using a USB type-C cable.
Use a mobile battery with an output of at least 1.5A. Depending on the
mobile battery or USB Type-C used, the power may not be turned on, or the
battery may not be able to provide sufcient power.
When using a mobile battery, the output may be distorted or there may be
noise.
3. Plug your guitar into the INPUT jack on the top panel.
If you also plan to use a CD or MP3 player or a
microphone, connect the player to the AUX IN jack, or
the microphone to the MIC IN jack on the top panel.
4. Press and hold down the Power button until the power
LED lights up and the power turns on.
5. Slowly raise the VOLUME Knob to the desired level.
6. When turning off the power, press and hold down the
Power button until the power LED turns off.
USB-C
Using the stand (VOX MINI GO 10/50)
The VOX MINI GO 10/50 can be set at an
angle by pulling out two stands at the bottom
of the main unit (refer to the gure on the
left).
Be sure to install the stand on a at surface.
If you set the stand at an angle on a slope, it
may fall over.
Do not apply an excessive load such as by
leaning against the amplier.
Auto Power Off Function
The Auto Power Off function automatically turns the power off when the
amplier is not used or when the sound is not output for approximately
one hour. When the power is turned off, it’s not restored even if a knob or
selector is used. Turn on the power again.
The Auto Power Off function does not work during rhythm playback or looper
operation (during recording, playback, or overdubbing).
If the volume or variation of the output sound is extremely small, the Auto
Power Off function may be activated. Also, depending on the settings and
environment, the Auto Power Off function may not be activated due to noise
even if you are not playing.
Setting the Auto Power Off function to enable or disable
1. Press and hold down the TEMPO button (16) and turn on the power.
2. The VARIATION LED (15) will indicate the current setting.
Enable
Disable
3. Press the TEMPO button (16) to switch between the enable and disable setting.
4. Wait a few seconds without using any of the buttons or controls. The unit
will automatically switch to normal operation.
The Auto Power Off function enable and disable setting will be saved even
when the power is turned off.

8
Using the Rhythm Section
Selecting a rhythm pattern
1. Select a genre for each rhythm pattern using the GENRE selector (14).
2. Select a variation for each rhythm pattern using the VARIATION button (15).
One of three VARIATION LEDs lights up green, orange or red in the following
sequence each time you press the button.
Variation 1 Variation 2Variation 3
Starting and stopping the playback of a rhythm pattern
Press the RHYTHM START/STOP button (18) to start or stop playing a
rhythm pattern. During playback, the VARIATIONS LED that corresponds
to the selected rhythm pattern will ash in sync with the tempo.
[TIP] The three VARIATION LEDs light up momentarily at the beginning of each bar.
Adjusting the volume of a rhythm pattern
Use the LEVEL knob (17) to adjust the volume of a rhythm pattern.
Changing the tempo of a rhythm pattern
You can adjust the rhythm tempo within the range of 40 to 240 BPM by
pressing the TEMPO button twice at the required interval.
[TIP] If you press the button several times in time with the song, it will help you set
the correct tempo.
[TIP] If you press the TEMPO button while playback is suspended, the VARIATION LED
will blink in time with the tempo (the rhythm will not be played back). If you
change the rhythm pattern or turn the RHYTHM LEVEL knob fully
counterclockwise, the blinking will stop.
Using the looper function (VOX MINI GO 10/50)
The looper function allows you to perform jam sessions
while looping phrases recorded using a guitar or
microphone, or play a performance in real time while
repeating overdubbing.
Basic usage of looper
1. Press the LOOP button (20) to enable record standby
mode. (The LOOP LED blinks red.)
2. Press the LOOP button again or start playing the guitar to
start recording. (The LOOP LED lights up red.)
The minimum recording time is approximately 0.25 seconds and the
maximum recording time is approximately 45 seconds.
The sound being input via the AUX IN jack or the rhythm pattern is not
recorded.
Depending on the equipment used or settings, recording may start due to
noise even if you are not playing.
3. Press the LOOP button to exit recording and play back the recorded
interval. (The LOOP LED lights up green.)
4. Press the LOOP button during playback to start overlap recording, or quickly
press the LOOP button twice to stop playback.
5. If you hold down the LOOP button during playback after overdubbing, the
overdubbing is undone (the overdubbed phrase is muted), and is redone
(the mute is released) when you press and hold the LOOP button again.
Pressing and holding the LOOP button while playback is suspended erases
recorded data.
6. If you press the LOOP button while playback is suspended, the recorded
phrase will be played back in a loop from the beginning. Also, if you press
and hold the LOOP button while playback is suspended, the recorded
phrase will be deleted (the phrase will be played back for a moment).

9
List of the LOOP button operations and functions
LOOP LED status Short-press LOOP
button
Twice-press LOOP
button (*1)
Press-hold LOOP
button
Suspended (does
not record) Turns OFF Turns OFF (The twice-press and press-hold functions
are not available.)
Recording standby Blinks red Recording starts
Recording Lights up red Recording ends
Plays back
Recording ends
Stops
Cancels recording,
Stops
Suspended
(recorded) Blinks green Playback starts Stops Erases
Plays back Lights up green
(*2) Overdubbing Stops
Undoes/Redoes (*3)
Overdubbing Lights up orange
(*2) Plays back Stops Undoes Plays
back
*1 Press the button twice within half a second.
*2 The LED turns off for a moment at the beginning of a loop.
*3 If you have never overdubbed, the recorded phrases will be erased.
Synchronous operation of rhythm and looper
The looper function can be used together with the rhythm function.
Looper recording during rhythm playback (quantize)
If you record a looper during rhythm playback, the loop length is automatically adjusted
to match the rhythm beat or bar length when recording is stopped (quantize).
[TIP] The rhythm tempo is quantized to one beat, two beats, or a well-separated bar length.
If the genre is 3/5/7, the rhythm tempo is not quantized to two beats long.
[TIP] The relative position between the beginning of the rhythm and the beginning of
the looper is stored, and when simultaneous playback is performed, the rhythm
and looper are played back while the same relative position as Recording mode
is maintained (refer to "Simultaneous playback of rhythm and looper").
Rhythm playback during looper playback (Automatic tempo adjustment)
If the rhythm is played back during loop playback, the rhythm tempo is automatically
set based on the rhythm tempo before playback and the length of the recorded phrase.
[TIP] Calculate the tempo at which the looper's phrase length is one beat, two beats, or a
well-separated bar length. The number of bars is 1, 2, 4, 8, 12, 16, 24, 32, or 48.
If the genre is 3/5/7, the rhythm is not set to a tempo that is two beats long
[TIP] When the looper is recorded and quantized during rhythm playback, the tempo
will not change even if you stop the rhythm and play it back again.
Simultaneous playback of rhythm and looper
When a looper has already been recorded and both the rhythm and the
looper are suspended, if you press both the RHYTHM button and the LOOP
button, the rhythm and looper start playback at the same time. If a looper is
recorded during rhythm playback, the rhythm and looper are played back
while the same relative position as Recording mode is maintained.
[TIP] The looper is always played from the beginning, and the rhythm is played from
the middle according to the relative position.
[TIP] The rhythm tempo is automatically adjusted even in the case of the
simultaneous playback.
If a looper is recorded while the rhythm is suspended, the relative position is cleared to 0.
If the rhythm tempo is changed, the relative positions of the rhythm and looper are cleared to 0.
Looper:Quantize
( ll )
( cut )
( ll )
( cut )
Rhythm
Pattern
Looper
. . .
Rhythm:AutoTempoAdjustment
40-60
LoopPhrase
RhythmTempo[bpm]
40
60-120 80
120-240 160
1.5sec

10
Using the Tuner
The tuner function lets you tune a guitar that’s connected to the INPUT
jack. The tuner detects the pitch of the input sound, then indicates the
discrepancy from the standard pitch of E.
1. Press and hold down the VARIATION button for more than one second.
Effect 1 will be bypassed, and the tuner function will turn on.
All effects are bypassed.
(No valid signal is being input.)
2. Play the open 6th string.
Be careful not to touch any other strings.
3. Tune the guitar so that only the center green LED lights up, as shown on
the right.
The pitch is slightly sharp.
The pitch is sharp.
In tune.
The pitch is slightly at.
The pitch is at.
[TIP] The tuner recognizes the pitch of E in any octave.
This is useful if you want to tune to harmonics or tune other musical instruments,
such as a bass guitar.
[TIP] Once you tune the 6th string using the tuner function, tune the other strings in
reference to the 6th string.
4. Press the VARIATION button again or turn the EFFECTS knob 1 to
switch the type of Effect 1; the tuner ends, and the bypass is released.
[TIP] In the VOX MINI GO 50, the tuner ends even if the program is switched.
User programs and Manual mode
(VOX MINI GO 50 only)
You can save the tones produced by adjusting the amplier or EFFECTS
knob as user programs A, B, and C. The saved programs can be easily
called using the PROGRAM button (21) or the foot switch.
The power select switch, TRIM, SEND, RHYTHM section, and LOOP section
settings cannot be saved in a program.
Each time you press the PROGRAM button, user programs A, B, and C
(green, orange, and red) and Manual mode (LED off) are called in
sequence. In Manual mode, all the knob positions are reected on
sounds as they are.
[TIP] The VOX MINI GO 3/10, which does not provide any user programs, is always in
Manual mode.
Saving a program (VOX MINI GO 50 only)
After adjusting the various knobs and buttons on the top panel to create
your desired sound, it can be saved (written) as a user program.
[TIP] The saved programs can be called using the PROGRAM button or the foot
switch.
1. Hold down the PROGRAM button (21) for at least one second (until the
PROGRAM LED starts blinking).
2. Press the PROGRAM button to select the save location.
[TIP] To cancel the write operation, press the TIME button (13).
3. Hold down the PROGRAM button for at least 2 seconds (until the LED
changes from blinking to lit). The program is saved at the selected
location, and the saved program is selected.
If you switch to another program or turn off the amp before saving the sound
that you are creating, the changes that you made will be lost.
