VF2500F
USER MANUAL FREEZER
GBR

Index
BEFORE USING THE APPLIANCE ...............................................2
General warnings ........................................................................................ 2
Old and out-of-order freezers ..................................................................... 5
Safety warnings ...........................................................................................5
Installing and operating your freezer ........................................................... 6
Before using your freezer ............................................................................ 7
USING YOUR FREEZER ................................................................7
Freezer partition temperature setting button................................................................ 7
Alarm light.................................................................................................................... 7
Super Freezer Mode.................................................................................................... 7
Freezer Temperature Settings ..................................................................................... 8
Warnings for temperature settings............................................................... 8
Accesories ...................................................................................................9
Making Ice cubes (Ice tray).......................................................................................... 9
Plastic scraper ............................................................................................................. 9
Dimensions .................................................................................................10
ARRANGING FOOD IN THE APPLIANCE ...................................11
CLEANING AND MAINTENANCE ................................................12
Defrosting ...................................................................................................13
TRANSPORTATION AND CHANGING OF INSTALLATION
POSITION ......................................................................................13
Repositioning the door................................................................................ 14
BEFORE CALLING YOUR AFTER SALES SERVICE ..............14
Tips for saving energy ................................................................................15
THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS16
GBR - 1 -

General warnings
WARNING: Keep the ventilation openings of the Freezer clear
from obstruction.
WARNING: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those recom-
mended by the manufacturer.
WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: In order to avoid any hazards resulting from the in-
stability of the appliance, it must be xed in accordance with the
following instructions:
WARNING: When positioning the appliance, ensure the supply
cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
SYMBOL ISO 7010 W021
Warning: Risk of re / ammable materials
• If your appliance uses R600a as a refrigerant (this information
will be provided on the label of the cooler) you should take care
during transportation and installation to prevent the cooler
elements from being damaged. R600a is an environmentally
friendly and natural gas, but it is explosive. In the event of a
leak due to damage of the cooler elements, move your fridge
away from open ames or heat sources and ventilate the
room where the appliance is located for a few minutes.
• While carrying and positioning the freezer, do not damage
the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with
a ammable propellant in this appliance.
BEFORE USING THE APPLIANCEPART 1.
GBR - 2 -

• This appliance is intended to be used in household and
domestic applications such as:
- sta󰀨 kitchen areas in shops, o󰀩ces and other working en-
vironments.
- farm houses and by clients in hotels, motels and other resi-
dential type environments.
- bed and breakfast type environments;
- catering and similar non-retail applications.
• If the socket does not match the freezer plug, it must be
replaced by the manufacturer, a service agent or similarly
qualied persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power
cable of your freezer. This plug should be used with a
specially grounded socket of 16 amperes. If there is no
such socket in your house, please have one installed by an
authorised electrician.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances. Children are not expected
to perform cleaning or user maintenance of the appliance,
very young children (0-3 years old) are not expected to use
appliances, young children (3-8 years old) are not expected
to use appliances safely unless continuous supervision is
given, older children (8-14 years old) and vulnerable people
can use appliances safely after they have been given
GBR - 3 -

appropriate supervision or instruction concerning use of the
appliance. Very vulnerable people are not expected to use
appliances safely unless continuous supervision is given.
• If the supply cord is damaged, it must be replaced by the
manufacturer, an authorised service agent or similar qualied
persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding
2000 m.
To avoid contamination of food, please respect the
following instructions:
• Opening the door for long periods can cause a signicant
increase of the temperature in the compartments of the
appliance.
• Clean regularly surfaces that can come in contact with food
and accessible drainage systems.
• Store raw meat and sh in suitable containers in the
freezer, so that it is not in contact with or drip onto other
food.
• Two-star frozen-food compartments are suitable for storing
pre-frozen food, storing or making ice cream and making ice
cubes.
• One-, two- and three-star compartments are not suitable for
the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods,
switch o󰀨, defrost, clean, dry, and leave the door open to
prevent mould developing within the appliance.
GBR - 4 -

Old and out-of-order freeezers
• If your old freezer has a lock, break or remove the lock before discarding it,
because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore,
take care not to harm environment when you are discarding your old fridges.
Disposal of your old appliance
This symbol on the product or package implies that the product should not
be treated as domestic waste. Instead, it should be delivered to applicable
waste collection places recycling electrical and electronic equipment. You will
contribute to avoid potential negative results regarding environment and human
health, which will arise due to wrong waste procedure for the product by ensuring
that this product is annihilated properly. Recycling materials will help natural
resources be preserved. For more detailed information regarding recycling of this product,
please contact local municipality, domestic waste annihilation service or the shop you have
purchased the product.
Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle
and recovery purposes.
Notes:
• Please read the instruction manual carefully before installing and using your appliance.
We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in
a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic
environments and for the specied purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the appliance to be cancelled and
our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing
foods. It is not suitable for commercial or common use and/or for storing substances
except for food. Our company is not responsible for the losses to be occurred in the
contrary case.
Safety warnings
• Do not connect your freezer to the mains electricity supply using an extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow children to play
with the appliance or let them hang o󰀨 the door.
• Never touch the power cord/plug with wet hands as this could cause a
short circuit or electric shock.
GBR - 5 -

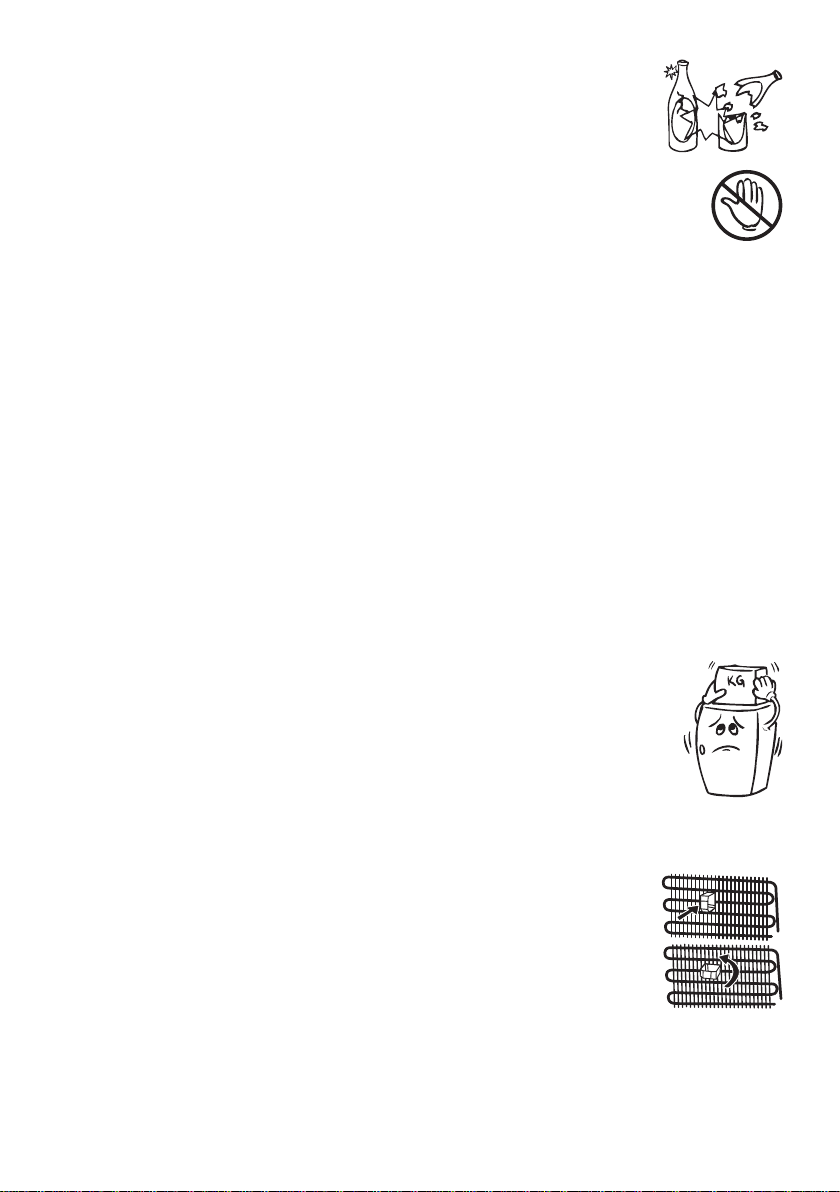

• Do not place glass bottles or beverage cans in the ice-making
compartment as they can burst as the contents freeze.
• Do not place explosive or ammable material in your freezer. Place
drinks with high alcohol content vertically in the freezer and make sure
that their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it. Ice may
cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes
immediately after you have taken them out of the ice-making compartment.
• Do not re-freeze frozen goods after they have melted. This may cause health issues such
as food poisoning.
• Do not cover the body or top of freezer with lace. This a󰀨ects the performance of your
freezer.
• Secure any accessories in the freezer during transportation to prevent damage to the
accessories.
• Do not use plug adapter.
Installing and operating your freezer
Before starting to use your freezer, you should pay attention to the following points:
• The operating voltage for your freezer is 220-240 V at 50Hz.
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your freezer where it will not be exposed to direct sunlight.
• Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores,
and at least 5 cm away from electrical ovens.
• Your freezer should never be used outdoors or exposed to rain.
• When your freezer is placed next to a deep freezer, there should be at least
2 cm between them to prevent humidity forming on the outer surface.
• Do not place heavy items on the appliance.
• Do not place anything on your freezer, and install your freezer in a suitable
place so that at least 15 cm of free space is available above it.
• Use the adjustable front legs to make sure your appliance is level and
stable. You can adjust the legs by turning them in either direction. This should be done
before placing food in the freezer.
• Before using your freezer, wipe all parts with a solution of warm water
and a teaspoon of sodium bicarbonate, then rinse with clean water and
dry. Place all parts in the freezer after cleaning.
• Install the plastic distance guide (the part with black vanes at the rear)
by turning it 90° (as shown in the gure) to prevent the condenser from
touching the wall.
• The freezer should be placed against a wall with a free space not
exceeding 75 mm.
GBR - 6 -

Before using your freezer
• When using your freezer for the rst time, or after transportation, keep it in
an upright position for at least 3 hours before plugging into the mains. This
allows e󰀩cient operation and prevents damage to the compressor.
• Your freezer may have a smell when it is operated for the rst time. This is normal and
the smell will fade away when your freezer starts to cool.
PART 2. USING YOUR FREEZER
Control panel
Freezer temperature set
button
Symbol of
Super Freezing Mode
alarm
indicator led
Freezer adjusted
temperature indicator
Freezer temperature setting button
This button allows setting temperature of the freezer. In order to set values for freezer
partition, press this button. Use this button also to activate SF mode.
Alarm light
In case of a problem within the freezer, the alarm led will release red light
Super Freezer Mode
When would it be used?
• To freeze huge quantities of food.
• To freeze fast food.
• To freeze food quickly.
• To store seasonal food for a long time.
How to use?
• Press temperature set button until super freezing light comes on.
• Super freezing led will light during this mode.
• Maximum amount of fresh food (in kilograms) to be frozen within 24 hours is shown on
the appliance label.
• For optimal appliance performance in maximum freezer capacity, set the appliance to
active SF mode 3 hours before you put the fresh food into the freezer.
During this mode:
• If you press temperature set button, the mode will be canceled and the setting will be
restored from -16 °C.
GBR - 7 -

Warnings for temperature settings
• The ambient temperature, temperature of the freshly stored food and how often the door
is opened, a󰀨ects the temperature in the freezer. If required,change the temperature
setting.
• It is not recommended that you operate your freezer in environments colder than 10°C.
• The temperature setting should be set by taking into consideration how often the freezer
door is opened and closed, how much food is stored in the freezer and the environment
in which and the positioning of the appliance.
• We recommend that when rst using the freezer it should be left running for 24 hours
uninterrupted to ensure it is completely cooled. Do not open the freezer door, or put
food inside for this period.
• Your freezer has a 5 minute built in delay function, designed to prevent damage to the
compressor. When power is applied to your freezer, it will begin to operate normally after
5 minutes.
• Your freezer is designed to operate in the ambient temperature intervals stated in
the standards, according to the climate class stated in the information label. It is not
recommended that your freezer is operated in the environments which are out of the
stated temperature intervals in terms of cooling e󰀩ciency.
Note: “Super Freezer” mode will be automatically cancelled after 30 hours or when freezer
sensor temperature drops beneath -32 °C.
Freezer Temperature Settings
• The initial temperature of the Setting Display is -18°C.
• Press freezer setting button once.
• Every time you press the button, the setting temperature will decrease. (-16°C, -18°C,
-20°C,.. super freezing)
• If you press freezer setting button until super freezer symbol is displayed on Freezer
Settings Display and you do not press any button within the following 3 seconds,
Super Freezing will blink.
• If you keep on pressing, it will restart from last value.
Climate class and meaning:
T (tropical): This refrigerating appliance is intended to be used at ambient temperatures
ranging from 16 °C to 43 °C.
ST (subtropical): This refrigerating appliance is intended to be used at ambient
temperatures ranging from 16 °C to 38 °C.
N (temperate): This refrigerating appliance is intended to be used at ambient temperatures
ranging from 16 °C to 32 °C.
SN (extended temperate): This refrigerating appliance is intended to be used at ambient
temperatures ranging from 10 °C to 32 °C.
GBR - 8 -

Accesories
Making Ice cubes (Ice tray)
• Fill the ice tray with water and place in the freezer compartment.
• After the water has completely turned into ice, you can twist the tray as shown below to
remove the ice cubes.
Plastic scraper
After a period of time frost will build up in certain areas in the freezer compartment.
The frost accumulated in the freezer should be removed periodically. Use the
plastic scraper provided if necessary. Do not use sharp metal objects for this
operation. They could puncture the refrigerator circuit and cause irreparable
damage to the unit.
Visual and text descriptions on the accessories section may
vary according to the model of your appliance.
GBR - 9 -

Dimensions
Space required in use 2
H2 mm 1605
W2 mm 640
D2 mm 692,8
Overall space required in use 3
W3 mm 659,8
D3 mm 1142,3
Overall dimensions 1
H1 mm 1455
W1 mm 540
D1 mm 652,8
H1
H2
W1
D1
W2
D2
W3
D3
GBR - 10 -

PART 3. ARRANGING FOOD IN THE APPLIANCE
• The use of freezer is, storing of deep-frozen or frozen food for long periods of time and
making ice cubes.
• Do not put fresh and warm food to the freezer door shelves to be frozen. Only use for
storage of frozen food.
• Do not put fresh and warm food with frozen food side by side as it can thaw the frozen
food.
• While freezing fresh food (i.e. meat, sh and mincemeat) divide them in parts in order to
use in one time.
• For storing the frozen food; the instructions shown on frozen food packages should
always be followed carefully and if no information is provided, food should not be stored
for more than 3 months from the purchased date.
• When buying frozen food ensure that these have been frozen at suitable temperatures
and that the packing is intact.
• Frozen food should be transported in appropriate containers to maintain the quality of the
food and should be returned to the freezing surfaces of the unit in the shortest possible
time.
• If a package of frozen food shows the sign of humidity and abnormal swelling it is
probable that it has been previously stored at an unsuitable temperature and that the
contents have deteriorated.
• The storage life of frozen food depends on the room temperature, thermostat setting,
how often the door is opened, the type of food and the length of time required to transport
the product from the shop to your home. Always follow the instructions printed on the
package and never exceed the maximum storage life indicated.
• While freezing food; Maximum amount of fresh food (in kg) that can be frozen in 24
hours is indicated on the appliance label.
• For optimum appliance performance to reach maximum freezing capacity , after loading
the fresh food into freezer press SF button. When the SF mode nishes, freezer will
continue to operate according to last set value.
Attention; In order to save energy, When freezing small amounts of food, reset the set value
to desired value to desired position. (Recommendation)
GBR - 11 -

PART 4. CLEANING AND MAINTENANCE
• Disconnect the unit from the power supply before cleaning.
• Do not wash your freezer by pouring water on it.
• Make sure that no water enters the lamp housing and other electrical
components.
• The freezer should be cleaned periodically using a solution of
bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and water Do not
clean them in the dishwasher.
• Do not use abrasive products, detergents or soaps. After washing, rinse
with clean water and dry carefully. When you have nished cleaning,
reconnect the plugto the mains supply with dry hands.
• Clean the condenser with a broom at least twice a year. This will
help you to save on energy costs and increase productivity.
!The power supply must be disconnected.
GBR - 12 -

Defrosting
Freezer defrosting process
• Small amounts of frost will accumulate inside the freezer, depending upon the length of
time for which the door is left open or the amount of moisture introduced. It is essential to
ensure that no frost or ice is allowed to form at places where it will a󰀨ect the close tting
of the door seal. This might allow air to penetrate the cabinet, encouraging continuous
running of the compressor. Thin frost formation is quite soft and can be removed with
a brush or plastic scraper. Do not use metal or sharp scrapers, mechanical devices or
other means to accelerate the defrosting process. Remove all dislodged frost from the
cabinet oor. It is not necessary to switch o󰀨 the appliance for the removal of this frost.
• For the removal of heavy ice deposits, disconnect the appliance from the mains supply,
empty the contents into cardboard boxes and wrap in thick blankets or layers of paper to
keep them cold. Defrosting will be most e󰀨ective if carried out when the freezer is nearly
empty and should be carried out as quickly as possible to prevent undue increase in the
temperature of the contents.
• Do not use metal or sharp scrapers, mechanical devices or other means to accelerate
the defrosting process. An increase in temperature of frozen food during defrosting will
shorten the storage life. If the contents are well wrapped and placed in a cool area they
should keep for several hours.
• Dry the inside of the compartment with a
sponge or a clean cloth.
• To accelerate the defrosting process,
place one or more bowls of warm water in
the freezer compartment.
• Examine the contents when replacing them in the freezer and if some of the food has
thawed out it should be eaten within 24 hours, or be cooked and re-frozen.
• After defrosting has nished clean the inside of the appliance with a solution of warm
water with a little bicarbonate of soda and then dry thoroughly. Wash all removable parts
in the same way and reassemble. Reconnect the appliance to the mains supply and
leave for 2 to 3 hours on setting « 5 » position before introducing the food back into the
freezer.
TRANSPORTATION AND CHANGING OF
INSTALLATION POSITION
PART 5.
Transportation and changing of Installation position
• The original packages and foamed polystyrene (PS) can be retained if required.
• During transportation, the appliance should be secured with a wide string or a strong
rope. The instructions written on the corrugated box must be followed while transporting.
• Before transporting or changing the installation position,
all the moving objects (ie, ice tray, scraper, drawers …)
should be taken out or xed with bands in order to prevent
them from getting damaged.
!Carry your freezer in the upright position.
GBR - 13 -

Repositioning the door
• It is not possible to change the opening direction of your freezer door, if the door handle
on your freezer is installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your freezer may be changed, you should contact the
nearest Authorised Service Agent to have the opening direction changed.
PART 6. BEFORE CALLING YOU’RE AFTER SALES SERVICE
Errors
Your freezer will warn you if the temperatures for the freezer is at improper levels or if a
problem occurs with the appliance. In case of a problem within the freezer, the alarm led
will release red light.
Alarm
indicator LED
is turning on
MEANING WHY WHAT TO DO
"Failure" Warning
There is/are some
part(s) out of order or
there is a failure in the
cooling process.
The product is plugged
for the rst time or
a long-time power
interruption for 1 hour.
Check the door is open or not and check
if the product working 1 hour. If the door
is not open and the product had worked
1 hour, call service for assistance as
soon as possible.
If your freezer is not working properly, it may be a minor problem, therefore check the following,
before calling an electrician to save time and money.
What to do if your appliance does not operate;
Check that;
• There is no power.
• The general switch in your home is disconnected.
• The socket is not su󰀩cient. To check this, plug in another appliance that you know which
is working into the same socket.
What to do if your appliance performs poorly;
Check that;
• You have not overloaded the appliance.
• The freezer temperature set to -16.
• The doors are closed perfectly.
• There is no dust on the condenser.
• There is enough place at the rear and side walls.
If there is noise;
The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling
sound) even when the compressor is not running. Do not worry this is quite normal. If these
sounds are di󰀨erent check that:
GBR - 14 -

Tips for saving energy
1. Install the appliance in a cool, well ventilated room , but not in direct sunlight and not
near a heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2. Allow warm food and drinks to cool down outside the appliance.
3. Cover drinks or other liquids when placing them in the appliance Otherwise humidity
increases in the appliance. Therefore, the working time gets longer. Also covering drinks
and other liquids helps to preserve smell and taste.
4. Try to avoid keeping the doors open for long periods or opening the doors too frequently
as warm air will enter the cabinet and cause the compressor to switch on unnecessarily
often.
5. Keep the covers of the di󰀨erent temperature compartments (crisper, chiller ...etc) closed
6. Door gasket must be clean and pliable. Replace gaskets if worn.
• The appliance is well levelled
• Nothing is touching the rear.
• The stu󰀨s on the appliance are vibrating.
Recommendations
• To stop the appliance completely, unplug from main socket (for cleaning and when the
doors are left open)
GBR - 15 -

THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
PART 7.
1. Plastic scraper
2. Ice tray
3. Thermostat
4. Freezer upper room cover
5. Freezer bottom room cover
6. Freezer compartment drawers
7. Levelling Foot
This presentation is only for information about the parts of the appliance.
Parts may vary according to the appliance model.
This appliance is not intended to be used as a built-in appliance.
General notes:
Freezer Compartment (Freezer): Most E󰀩cient use of energy is ensured in the
conguration with the drawers and bins are on stock position.
GBR - 16 -

1 TECHNICAL DATA
The technical information is situated in the rating plate on the internal side of the
appliance and on the energy label. The QR code on the energy label supplied with
the appliance provides a web link to the information related to the performance of
the appliance in the EU EPREL database.
Keep the energy label for reference together with the user manual and all other
documents provided with thisappliance.
It is also possible to find the same information in EPREL using the link https://
eprel.ec.europa.eu and the model name and product number that you find on
the rating plate of the appliance.
See the link www.theenergylabel.eufor detailed information about the energy
label.
2 INFORMATION FOR TEST INSTITUTES
Appliance for any EcoDesign verifcation shall be compliant with EN 62552.
Ventilation requirements, recess dimensions and minimum rear clearances shall
be as stated in this User Manual atChapter 2. Please contact the manufacturer for
any other further information, including loading plans.
3 CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, SerialNumber and Service Index.
The information can be found on the rating plate. Subject to change without notice.
The original spare parts for some specific components are available for a minimum
of 7 or 10 years, based on the type of component, from the placing on the market
of the last unit of the model.
Visit our website to:
www.voxelectronics.com
GBR - 17 -

VF2500F
UPUTSTVO ZA UPOTREBU ZAMRZIVAČ
SRP
